知识点12-接触面的设置

1.接触面的约定：

①选小原则，大小不一接触表面时

②选密原则，上下网格密度不一

③接触面构件等于或者小于接触的面单元网格大小

④接触面接触构件（非模型表面）

⑤FLAC3D接触面是单面性质的地质界面（设置参数组合仅为一套）

2.均匀接触分组网格接触面建立

model new
model title "model with a dipping joint"
fish automatic-create off
zone create brick size 3 3 3 ...
     point 0 (0,0,0) point 1 (3,0,0) point 2 (0,3,0) ...
     point 3 (0,0,1.5) point 4 (3,3,0) point 5 (0,3,1.5) ...
     point 6 (3,0,4.5) point 7 (3,3,4.5) ...
     group "base"
zone create brick size 3 3 3 ...
     point 0 (0,0,1.5) point 1 (3,0,4.5) point 2 (0,3,1.5) ...
     point 3 (0,0,6) point 4 (3,3,4.5) point 5 (0,3,6) ...
     point 6 (3,0,6) point 7 (3,3,6) ...
     group "top"
model save "int0"

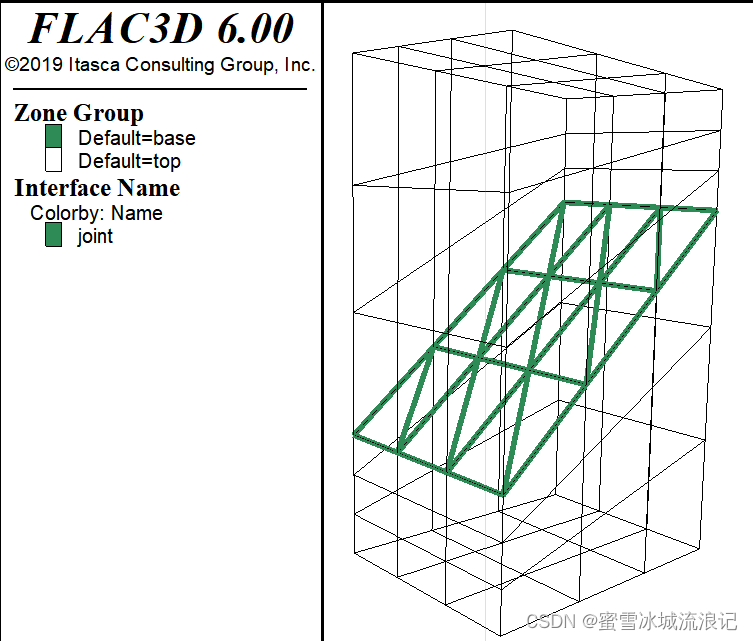

;在基础的顶面创建接触单元（jiont为接触面自定义名称）
zone interface "joint" create by-face separate range group "top" group "base"
model save "int1"

3.非均匀接触分组网格接触面建立

model new
model title "model with a dipping joint"
fish automatic-create off
zone create brick size 3 3 3 ...
     point 0 (0,0,0) point 1 (3,0,0) point 2 (0,3,0) ...
     point 3 (0,0,1.5) point 4 (3,3,0) point 5 (0,3,1.5) ...
     point 6 (3,0,4.5) point 7 (3,3,4.5) ...
     group "base"
zone create brick size 6 6 6 ...
     point 0 (0,0,1.5) point 1 (3,0,4.5) point 2 (0,3,1.5) ...
     point 3 (0,0,6) point 4 (3,3,4.5) point 5 (0,3,6) ...
     point 6 (3,0,6) point 7 (3,3,6) ...
     group "top"
model save "int0"

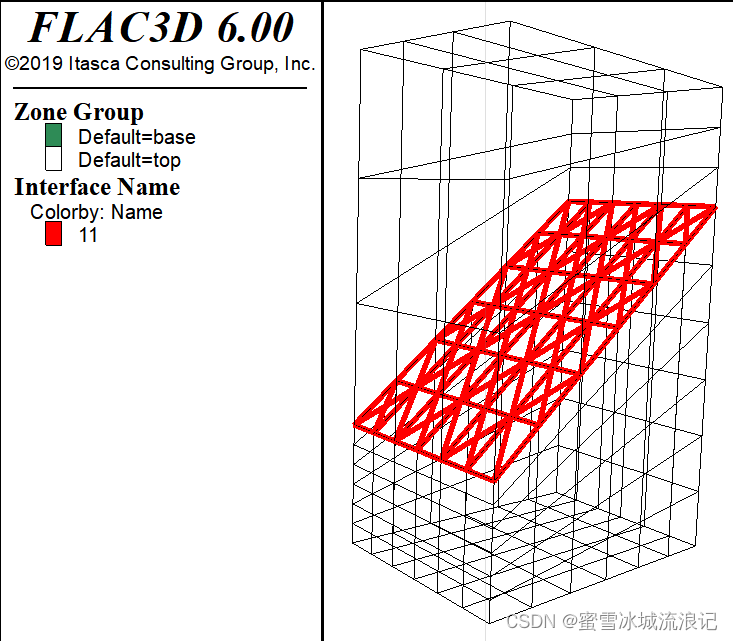

;在基础的顶面创建接触单元
zone interface "11" create by-face range position-z 1.1 4.5 position-x 0.1 2.9 position-y 0.1 2.9
model save "int2"

Tip ：用空间范围约定接触面建立的区域， 只能附在两个分组构件表面，

分组内部无法建立接触面。

★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★★

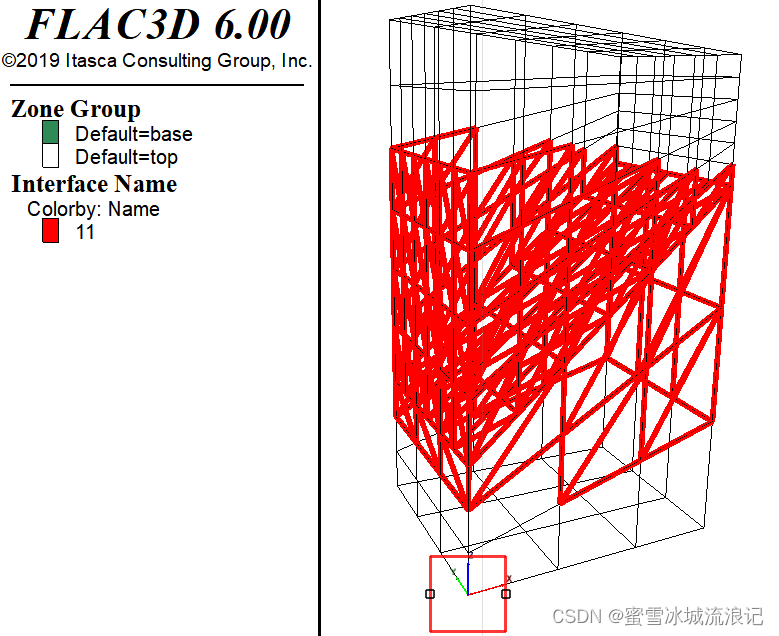

注意：加上x和y的约束范围；；

zone interface "11" create by-face range position-z 1.1 4.5

4.表面分组交互式建立接触面（6.0新特征）

zone interface 'c' create by-face range group 'Top25'

model new
;桩体的建立
zone create cylinder point 0 0 0 14 point 1 1 0 14 point 2 0 0 13 point 3 0 1 14 point 4 1 0 13 point 5 0 1 13 size 3 3 17
zone create cylinder point 0 0 0 13 point 1 1.2 0 13 point 2 0 0 12 point 3 0 1.2 13 point 4 1.2 0 12 point 5 0 1.2 12 size 3 3 17
zone create cylinder point 0 0 0 12 point 1 1 0 12 point 2 0 0 11 point 3 0 1 12 point 4 1 0 11 point 5 0 1 11 size 3 3 17
zone create cylinder point 0 0 0 11 point 1 1.2 0 11 point 2 0 0 10 point 3 0 1.2 11 point 4 1.2 0 10 point 5 0 1.2 10 size 3 3 17
zone create cylinder point 0 0 0 10 point 1 1 0 10 point 2 0 0 9 point 3 0 1 10 point 4 1 0 9 point 5 0 1 9 size 3 3 17
zone create cylinder point 0 0 0 9 point 1 1.2 0 9 point 2 0 0 8 point 3 0 1.2 9 point 4 1.2 0 8 point 5 0 1.2 8 size 3 3 17
zone create cylinder point 0 0 0 8 point 1 1 0 8 point 2 0 0 7 point 3 0 1 8 point 4 1 0 7 point 5 0 1 7 size 3 3 17
zone create cylinder point 0 0 0 7 point 1 1.2 0 7 point 2 0 0 6 point 3 0 1.2 7 point 4 1.2 0 6 point 5 0 1.2 6 size 3 3 17
zone create cylinder point 0 0 0 6 point 1 1 0 6 point 2 0 0 5 point 3 0 1 6 point 4 1 0 5 point 5 0 1 5 size 3 3 17
zone create cylinder point 0 0 0 5 point 1 1.2 0 5 point 2 0 0 4 point 3 0 1.2 5 point 4 1.2 0 4 point 5 0 1.2 4 size 3 3 17
zone create cylinder point 0 0 0 4 point 1 1 0 4 point 2 0 0 3 point 3 0 1 4 point 4 1 0 3 point 5 0 1 3 size 3 3 17
zone create cylinder point 0 0 0 3 point 1 2 0 3 point 2 0 0 1 point 3 0 2 3 point 4 2 0 1 point 5 0 2 1 size 3 3 17
zone attach by-face range position-z 1 14
zone reflect dip-direction 270 dip 90 range position-z 1 14
zone group 'pile' range position-z 1 14
;地基的建立
zone create radial-cylinder point 0 0 0 0 point 1 10 0 0 point 2 0 0 -1 point 3 0 10 0 point 4 10 0 -1 point 5 0 10 -1 point 6 10 10 0 point 7 10 10 -1 point 8 1 0 0 point 9 0 1 0 point 10 1 0 -1 point 11 0 1 -1 size 3 3 6 17
zone create radial-cylinder point 0 0 0 -1 point 1 10 0 -1 point 2 0 0 -2 point 3 0 10 -1 point 4 10 0 -2 point 5 0 10 -2 point 6 10 10 -1 point 7 10 10 -2 point 8 1.2 0 -1 point 9 0 1.2 -1 point 10 1.2 0 -2 point 11 0 1.2 -2 size 3 3 6 17
zone create radial-cylinder point 0 0 0 -2 point 1 10 0 -2 point 2 0 0 -3 point 3 0 10 -2 point 4 10 0 -3 point 5 0 10 -3 point 6 10 10 -2 point 7 10 10 -3 point 8 1 0 -2 point 9 0 1 -2 point 10 1 0 -3 point 11 0 1 -3 size 3 3 6 17
zone create radial-cylinder point 0 0 0 -3 point 1 10 0 -3 point 2 0 0 -4 point 3 0 10 -3 point 4 10 0 -4 point 5 0 10 -4 point 6 10 10 -3 point 7 10 10 -4 point 8 1.2 0 -3 point 9 0 1.2 -3 point 10 1.2 0 -4 point 11 0 1.2 -4 size 3 3 6 17
zone create radial-cylinder point 0 0 0 -4 point 1 10 0 -4 point 2 0 0 -5 point 3 0 10 -4 point 4 10 0 -5 point 5 0 10 -5 point 6 10 10 -4 point 7 10 10 -5 point 8 1 0 -4 point 9 0 1 -4 point 10 1 0 -5 point 11 0 1 -5 size 3 3 6 17
zone create radial-cylinder point 0 0 0 -5 point 1 10 0 -5 point 2 0 0 -6 point 3 0 10 -5 point 4 10 0 -6 point 5 0 10 -6 point 6 10 10 -5 point 7 10 10 -6 point 8 1.2 0 -5 point 9 0 1.2 -5 point 10 1.2 0 -6 point 11 0 1.2 -6 size 3 3 6 17
zone create radial-cylinder point 0 0 0 -6 point 1 10 0 -6 point 2 0 0 -7 point 3 0 10 -6 point 4 10 0 -7 point 5 0 10 -7 point 6 10 10 -6 point 7 10 10 -7 point 8 1 0 -6 point 9 0 1 -6 point 10 1 0 -7 point 11 0 1 -7 size 3 3 6 17
zone create radial-cylinder point 0 0 0 -7 point 1 10 0 -7 point 2 0 0 -8 point 3 0 10 -7 point 4 10 0 -8 point 5 0 10 -8 point 6 10 10 -7 point 7 10 10 -8 point 8 1.2 0 -7 point 9 0 1.2 -7 point 10 1.2 0 -8 point 11 0 1.2 -8 size 3 3 6 17
zone create radial-cylinder point 0 0 0 -8 point 1 10 0 -8 point 2 0 0 -9 point 3 0 10 -8 point 4 10 0 -9 point 5 0 10 -9 point 6 10 10 -8 point 7 10 10 -9 point 8 1 0 -8 point 9 0 1 -8 point 10 1 0 -9 point 11 0 1 -9 size 3 3 6 17
zone create radial-cylinder point 0 0 0 -9 point 1 10 0 -9 point 2 0 0 -10 point 3 0 10 -9 point 4 10 0 -10 point 5 0 10 -10 point 6 10 10 -9 point 7 10 10 -10 point 8 1.2 0 -9 point 9 0 1.2 -9 point 10 1.2 0 -10 point 11 0 1.2 -10 size 3 3 6 17
zone create radial-cylinder point 0 0 0 -10 point 1 10 0 -10 point 2 0 0 -11 point 3 0 10 -10 point 4 10 0 -11 point 5 0 10 -11 point 6 10 10 -10 point 7 10 10 -11 point 8 1 0 -10 point 9 0 1 -10 point 10 1 0 -11 point 11 0 1 -11 size 3 3 6 17
zone create radial-cylinder point 0 0 0 -11 point 1 10 0 -11 point 2 0 0 -13 point 3 0 10 -11 point 4 10 0 -13 point 5 0 10 -13 point 6 10 10 -11 point 7 10 10 -13 point 8 2 0 -11 point 9 0 2 -11 point 10 2 0 -13 point 11 0 2 -13 size 3 3 6 17
zone create radial-cylinder point 0 0 0 -13 point 1 10 0 -13 point 2 0 0 -23 point 3 0 10 -13 point 4 10 0 -23 point 5 0 10 -23 point 6 10 10 -13 point 7 10 10 -23 point 8 2 0 -13 point 9 0 2 -13 point 10 2 0 -23 point 11 0 2 -23 size 3 3 6 17 fill on
zone attach by-face range position-z -23 0
zone reflect dip-direction 270 dip 90 range position-z -23 0
zone group 'jichu' range position-z -23 0

zone interface 'b' create by-face range group 'West12' or 'south26'
zone interface 'c' create by-face range group 'Top25'
zone interface 'b' create by-face range group 'west10'

5.接触面参数介绍与赋值

bonds-slip on/off ：设置允许滑动按钮

zone interface 1/"b"（id或者“名字”） node property ……keyword ……range ……

normal stiffness	法向刚度
shear stiffness	剪切刚度
cohesion	内聚力
friction angle	内摩擦角
dilation angle	膨胀角
tensile strength	抗拉强度

注：可以换算成young's modulus杨氏模量、poisson's ratio泊松比
