工具系列：feature-engine介绍_数据转换_Yeo-Johnson变换YeoJohnsonTransformer

变量转换器：YeoJohnsonTransformer

YeoJohnsonTransformer()将Yeo-Johnson变换应用于数值变量。

在这个演示中，我们使用Dean De Cock教授制作的Ames房价数据集：

Dean De Cock (2011) Ames, Iowa: Alternative to the Boston Housing
Data as an End of Semester Regression Project, Journal of Statistics Education, Vol.19, No. 3

http://jse.amstat.org/v19n3/decock.pdf

https://www.tandfonline.com/doi/abs/10.1080/10691898.2011.11889627

可以从Kaggle获取此笔记本中使用的数据集的版本。

# 导入所需的库
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from sklearn.model_selection import train_test_split

# 导入特征工程库中的ArbitraryNumberImputer类和YeoJohnsonTransformer类
from feature_engine.imputation import ArbitraryNumberImputer
from feature_engine.transformation import YeoJohnsonTransformer

# 读取名为'houseprice.csv'的数据文件
data = pd.read_csv('houseprice.csv')

# 显示数据的前几行
data.head()

	Id	MSSubClass	MSZoning	LotFrontage	LotArea	Street	Alley	LotShape	LandContour	Utilities	...	PoolArea	PoolQC	Fence	MiscFeature	MiscVal	MoSold	YrSold	SaleType	SaleCondition	SalePrice
0	1	60	RL	65.0	8450	Pave	NaN	Reg	Lvl	AllPub	...	0	NaN	NaN	NaN	0	2	2008	WD	Normal	208500
1	2	20	RL	80.0	9600	Pave	NaN	Reg	Lvl	AllPub	...	0	NaN	NaN	NaN	0	5	2007	WD	Normal	181500
2	3	60	RL	68.0	11250	Pave	NaN	IR1	Lvl	AllPub	...	0	NaN	NaN	NaN	0	9	2008	WD	Normal	223500
3	4	70	RL	60.0	9550	Pave	NaN	IR1	Lvl	AllPub	...	0	NaN	NaN	NaN	0	2	2006	WD	Abnorml	140000
4	5	60	RL	84.0	14260	Pave	NaN	IR1	Lvl	AllPub	...	0	NaN	NaN	NaN	0	12	2008	WD	Normal	250000

5 rows × 81 columns

# 将数据分为训练集和测试集

# 使用train_test_split函数将数据分为训练集和测试集
# data.drop(['Id', 'SalePrice'], axis=1)表示去除数据中的'Id'和'SalePrice'列作为特征
# data['SalePrice']表示将'SalePrice'列作为目标变量
# test_size=0.3表示将数据集中的30%作为测试集
# random_state=0表示设置随机种子，保证每次运行代码时划分的训练集和测试集相同
X_train, X_test, y_train, y_test = train_test_split(
    data.drop(['Id', 'SalePrice'], axis=1), data['SalePrice'], test_size=0.3, random_state=0)

# 输出训练集和测试集的形状
print(X_train.shape, X_test.shape)

((1022, 79), (438, 79))

# 初始化一个变量转换器，用于转换两个变量
yjt = YeoJohnsonTransformer(variables = ['LotArea', 'GrLivArea'])

# 寻找变换的最佳lambda值
yjt.fit(X_train)

YeoJohnsonTransformer(variables=['LotArea', 'GrLivArea'])

# 这些是YeoJohnson转换的lambda值字典
yjt.lambda_dict_

{'LotArea': 0.02258978732751055, 'GrLivArea': 0.06781061353154169}

# 将变量进行转换

# 对训练集进行转换
train_t = yjt.transform(X_train)

# 对测试集进行转换
test_t = yjt.transform(X_test)

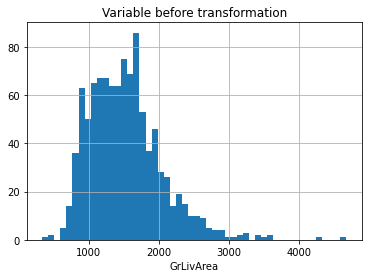

# 给变量进行转换之前的直方图
X_train['GrLivArea'].hist(bins=50)
plt.title('变量转换之前')
plt.xlabel('GrLivArea')

Text(0.5, 0, 'GrLivArea')

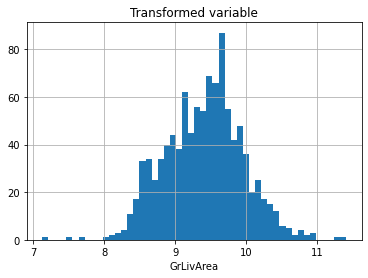

# 绘制GrLivArea变量的直方图，将数据分成50个区间
train_t['GrLivArea'].hist(bins=50)

# 设置图表标题为"Transformed variable"
plt.title('Transformed variable')

# 设置x轴标签为"GrLivArea"
plt.xlabel('GrLivArea')

Text(0.5, 0, 'GrLivArea')

# 导入必要的库
import matplotlib.pyplot as plt

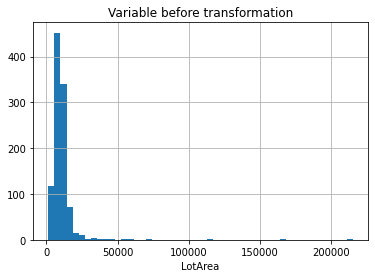

# 绘制X_train['LotArea']的直方图，将数据分为50个bins
X_train['LotArea'].hist(bins=50)

# 设置图表标题为'变换前的变量'
plt.title('变换前的变量')

# 设置x轴标签为'LotArea'
plt.xlabel('LotArea')

Text(0.5, 0, 'LotArea')

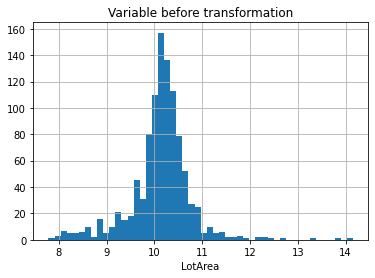

# 绘制训练集中变量"LotArea"的直方图，将数据分成50个区间
train_t['LotArea'].hist(bins=50)

# 设置直方图的标题为"变换前的变量"
plt.title('Variable before transformation')

# 设置x轴标签为"LotArea"
plt.xlabel('LotArea')

Text(0.5, 0, 'LotArea')

自动选择数值变量

在使用YeoJohnsonTransformer之前，我们需要确保数值变量没有缺失数据。

# 创建一个ArbitraryNumberImputer对象，将缺失值替换为2
arbitrary_imputer = ArbitraryNumberImputer(arbitrary_number=2)

# 使用训练数据拟合imputer对象
arbitrary_imputer.fit(X_train)

# 使用imputer对象对训练数据进行转换，将缺失值替换为2
train_t = arbitrary_imputer.transform(X_train)

# 使用imputer对象对测试数据进行转换，将缺失值替换为2
test_t = arbitrary_imputer.transform(X_test)

# 初始化一个Yeo-Johnson变换器对象，用于对所有变量进行变换
yjt = YeoJohnsonTransformer()

# 对训练数据进行拟合，以学习变换参数
yjt.fit(train_t)

C:\Users\Sole\Documents\Repositories\envs\fenotebook\lib\site-packages\numpy\core\_methods.py:205: RuntimeWarning: overflow encountered in multiply
  x = um.multiply(x, x, out=x)
C:\Users\Sole\Documents\Repositories\envs\fenotebook\lib\site-packages\scipy\optimize\optimize.py:2149: RuntimeWarning: invalid value encountered in double_scalars
  tmp2 = (x - v) * (fx - fw)





YeoJohnsonTransformer()

注意，运行时错误是因为我们试图转换整数。

# 定义将被转换的变量
# （这些是数据集中的数值变量）

yjt.variables_

['MSSubClass',
 'LotFrontage',
 'LotArea',
 'OverallQual',
 'OverallCond',
 'YearBuilt',
 'YearRemodAdd',
 'MasVnrArea',
 'BsmtFinSF1',
 'BsmtFinSF2',
 'BsmtUnfSF',
 'TotalBsmtSF',
 '1stFlrSF',
 '2ndFlrSF',
 'LowQualFinSF',
 'GrLivArea',
 'BsmtFullBath',
 'BsmtHalfBath',
 'FullBath',
 'HalfBath',
 'BedroomAbvGr',
 'KitchenAbvGr',
 'TotRmsAbvGrd',
 'Fireplaces',
 'GarageYrBlt',
 'GarageCars',
 'GarageArea',
 'WoodDeckSF',
 'OpenPorchSF',
 'EnclosedPorch',
 '3SsnPorch',
 'ScreenPorch',
 'PoolArea',
 'MiscVal',
 'MoSold',
 'YrSold']

# 这些是YeoJohnsonTransformer的参数

yjt.lambda_dict_

{'MSSubClass': -0.2378306859381657,
 'LotFrontage': 0.8125118353085222,
 'LotArea': 0.02258978732751055,
 'OverallQual': 0.8643396718133388,
 'OverallCond': 0.3969558337988488,
 'YearBuilt': 22.190602427177428,
 'YearRemodAdd': 39.78218820691653,
 'MasVnrArea': -0.25239760257649463,
 'BsmtFinSF1': 0.2366258546377551,
 'BsmtFinSF2': -1.4342285901348042,
 'BsmtUnfSF': 0.48006245124988,
 'TotalBsmtSF': 0.7956604221557544,
 '1stFlrSF': 0.02379301178012459,
 '2ndFlrSF': -0.11762285496291223,
 'LowQualFinSF': -9.792554984978894,
 'GrLivArea': 0.06781061353154169,
 'BsmtFullBath': -1.6227232190570056,
 'BsmtHalfBath': -25.604493651416906,
 'FullBath': 0.7799203671146958,
 'HalfBath': -2.204536108690803,
 'BedroomAbvGr': 0.8360057761170219,
 'KitchenAbvGr': -1.594528611751712,
 'TotRmsAbvGrd': 0.13886712654681466,
 'Fireplaces': -0.3289777349413731,
 'GarageYrBlt': 2.844211228808113,
 'GarageCars': 1.3847317293866424,
 'GarageArea': 0.8241205521050128,
 'WoodDeckSF': -0.09933941199949706,
 'OpenPorchSF': 0.00882850937230263,
 'EnclosedPorch': -1.3484255768857674,
 '3SsnPorch': -11.660518913094377,
 'ScreenPorch': -2.30942436747328,
 'PoolArea': -53.219699359215674,
 'MiscVal': -3.612316196644568,
 'MoSold': 0.723241223747494,
 'YrSold': -2.72135950034568}

# 将变量进行转换
train_t = yjt.transform(train_t)  # 对训练集进行转换
test_t = yjt.transform(test_t)  # 对测试集进行转换
