SAP 批量创建生产订单并下达

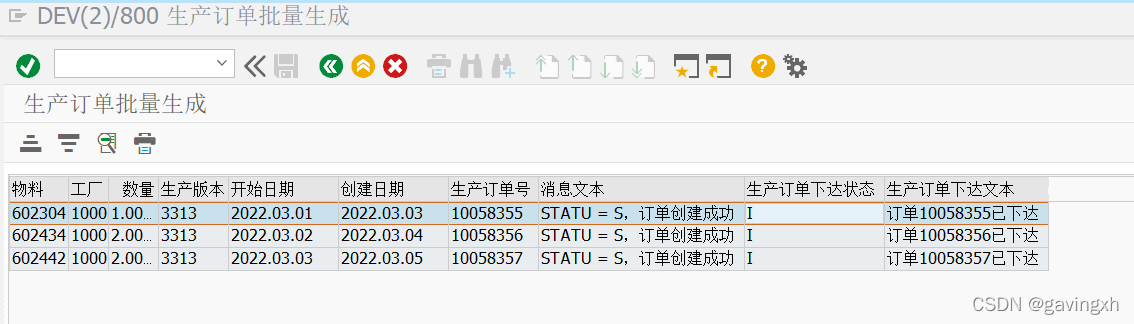

实际成果

说重点 上代码

*&---------------------------------------------------------------------*
*& REPORT  ZRPT_PP_ORDER_CREATEM
*&
*&---------------------------------------------------------------------*
*&DATE：20220228
*&AUTHOR：gavin
*&TITLE：生产订单批量生成 4
*&TCODE： ZCO01
*&---------------------------------------------------------------------*

REPORT ZRPT_PP_ORDER_CREATEM.
TABLES:ZPPCOSTMDATA,SSCRFIELDS.
*
*定义内表类型
*
TYPES: BEGIN OF W_ITAB,
MATNR LIKE BAPI_PP_ORDER_CREATE-MATERIAL,
WERKS LIKE BAPI_PP_ORDER_CREATE-PLANT,
QUANTT LIKE BAPI_PP_ORDER_CREATE-QUANTITY,
VERID LIKE BAPI_PP_ORDER_CREATE-PROD_VERSION,
START LIKE BAPI_PP_ORDER_CREATE-BASIC_START_DATE,
ENDDT LIKE BAPI_PP_ORDER_CREATE-BASIC_END_DATE,
AUFNR LIKE BAPI_PP_ORDER_CREATE-ORDER_NUMBER,
MSGTXT LIKE      BAPIRET2-MESSAGE,
RELSTT TYPE C,"下达生产订单的状态
MSGREL LIKE      BAPIRET2-MESSAGE,
END OF W_ITAB.

FIELD-SYMBOLS: <FS>.

DATA:
      FILETAB TYPE FILETABLE WITH HEADER LINE,
      RC TYPE I,
      G_FILE TYPE RLGRAP-FILENAME,
      LT_RETURN TYPE TABLE OF BAPIRET2 WITH HEADER LINE,
      LT_AUFNR TYPE AUFNR,
      ITAB TYPE TABLE OF ALSMEX_TABLINE WITH HEADER LINE.
DATA: WTAB TYPE TABLE OF W_ITAB WITH HEADER LINE.
DATA: COUNT TYPE I.
DATA:STDATUM LIKE SY-DATUM,
      STUZEIT LIKE SY-UZEIT.
DATA:L_FILENAME TYPE STRING,L_MUBAN TYPE STRING.
DATA:GV_FULLPATH TYPE STRING,GV_PATH TYPE STRING,GV_NAME TYPE STRING.

data:header_in TYPE BAPI_PP_ORDER_CREATE.

*&---------------------------------------------------------------------*
*& 选择界面
*&---------------------------------------------------------------------*

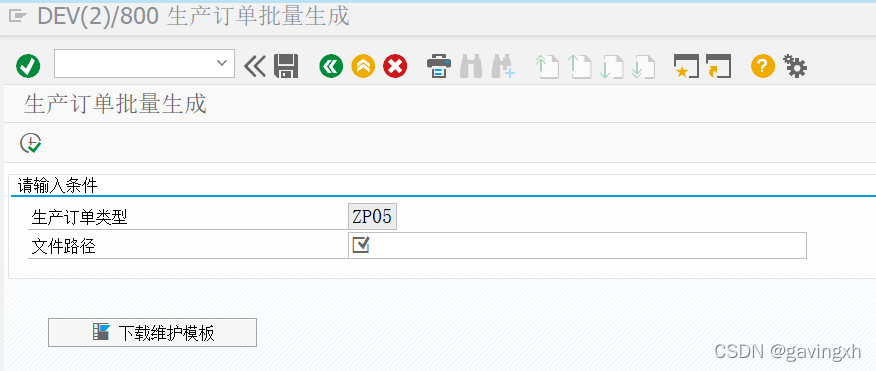

SELECTION-SCREEN BEGIN OF BLOCK BLK1 WITH FRAME TITLE TXT1 .

PARAMETER:PAUART TYPE PP_AUFART OBLIGATORY DEFAULT 'ZP05'.
PARAMETER:P_FILE  TYPE STRING OBLIGATORY.
*PARAMETER:DELFLG AS CHECKBOX DEFAULT 'X'.
SELECTION-SCREEN END OF BLOCK BLK1.

SELECTION-SCREEN SKIP.
SELECTION-SCREEN BEGIN OF LINE.
*SELECTION-SCREEN PUSHBUTTON 5(60) but1 USER-COMMAND bt1.
SELECTION-SCREEN PUSHBUTTON 5(20) but2 USER-COMMAND bt2.
SELECTION-SCREEN END OF LINE.

INITIALIZATION.
  TXT1 = '请输入条件'.
 "生产订单类型固定且不可改
  LOOP AT SCREEN.
    IF SCREEN-NAME = 'PAUART'.
      SCREEN-INPUT = '0'.
      MODIFY SCREEN.
    ENDIF.

  ENDLOOP.
*  CALL FUNCTION 'ICON_CREATE'
*    EXPORTING
*      name                  = ICON_BW_REF_STRUCTURE_SAP
*      TEXT                  = 'SM30维护 视图 ZPPCOSTMDATA'
*      INFO                  = 'SM30维护 视图 ZPPCOSTMDATA'
*    IMPORTING
*      result                = but1
*    EXCEPTIONS
*      icon_not_found        = 1
*      outputfield_too_short = 2
*      OTHERS                = 3.

  CALL FUNCTION 'ICON_CREATE'
    EXPORTING
      name                  = ICON_BW_REF_STRUCTURE_SAP
      TEXT                  = '下载维护模板'
      INFO                  = '下载维护模板'
    IMPORTING
      result                = but2
    EXCEPTIONS
      icon_not_found        = 1
      outputfield_too_short = 2
      OTHERS                = 3.

*&---------------------------------------------------------------------

AT SELECTION-SCREEN.
  CASE SSCRFIELDS-UCOMM.
*    WHEN 'BT1'.
*      PERFORM CALLSM30.
    WHEN 'BT2'.
      PERFORM DOWNLOAD_DATA.
  ENDCASE.

AT SELECTION-SCREEN ON VALUE-REQUEST FOR P_FILE.

  CALL METHOD CL_GUI_FRONTEND_SERVICES=>FILE_OPEN_DIALOG
    EXPORTING
      DEFAULT_FILENAME = P_FILE
    CHANGING
      RC               = RC
      FILE_TABLE       = FILETAB[].

  READ TABLE  FILETAB INDEX  1.
  IF SY-SUBRC EQ 0.
    P_FILE = FILETAB-FILENAME.
  ENDIF.

START-OF-SELECTION.

  STDATUM = SY-DATUM.
  STUZEIT = SY-UZEIT.

  if p_file <> ''.
    PERFORM GETEXCEL."EXCEL数据获取
*  else.
*    MESSAGE '请选择要导入的excel文件' TYPE I.
*    perform getdata."获取版本描述表中数据
  endif.
  COUNT = 0.
  PERFORM WRITERPTRUNRECORD.
  PERFORM DISPLAY."数据ALV输出

END-OF-SELECTION.

*&---------------------------------------------------------------------*
*&      Form  WRITERPTRUNRECORD
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
FORM WRITERPTRUNRECORD.

  get time.
  CALL FUNCTION 'ZSYS_RPT_RUNRECORD'
    EXPORTING
      TCODE     = SY-TCODE
      PROGRAMM  = SY-CPROG
      DATUMRST  = STDATUM
      UZEITRST  = STUZEIT
      BATCH     = SY-BATCH
      DATUMREND = SY-datum
      UZEITREND = sy-UZEIT
      DATUMC    = '20220228'
      RUNNER    = SY-UNAME
      RPTSRC    = 'cfp'.

ENDFORM.                    "WRITERPTRUNRECORD

*&---------------------------------------------------------------------*
*&      FORM  DISPLAY
*&---------------------------------------------------------------------*
*       TEXT 数据展示
*----------------------------------------------------------------------*
*  -->  P1        TEXT
*  <--  P2        TEXT
*----------------------------------------------------------------------*
FORM DISPLAY .
  DATA: IT_FIELDCAT TYPE SLIS_T_FIELDCAT_ALV,
        IS_VARIANT LIKE DISVARIANT,
        IT_EVENTS   TYPE SLIS_T_EVENT,
        IS_LAYOUT   TYPE SLIS_LAYOUT_ALV,
        TITLE       TYPE LVC_TITLE,
        I_CALLBACK_PROGRAM TYPE SY-REPID,
        IT_SORT     TYPE SLIS_T_SORTINFO_ALV WITH HEADER LINE,
          I_GRID_SETTINGS TYPE LVC_S_GLAY.
  I_GRID_SETTINGS-EDT_CLL_CB = 'X'. "更改数据后更新表数据.
  PERFORM FIELDCAT_INIT USING IT_FIELDCAT.
  PERFORM LAYOUT_INIT USING IS_LAYOUT.
  I_CALLBACK_PROGRAM = SY-REPID.

  CALL FUNCTION 'REUSE_ALV_GRID_DISPLAY'
    EXPORTING
      I_CALLBACK_PROGRAM       = I_CALLBACK_PROGRAM
      I_GRID_TITLE             = TITLE
      I_GRID_SETTINGS          = I_GRID_SETTINGS
      IS_LAYOUT                = IS_LAYOUT
      I_CALLBACK_PF_STATUS_SET = 'SET_PF_STATUS'
      I_CALLBACK_USER_COMMAND  = 'USER_COMMAND'
      IT_FIELDCAT              = IT_FIELDCAT
      IT_EVENTS                = IT_EVENTS
    TABLES
      T_OUTTAB                 = WTAB[]
    EXCEPTIONS
      PROGRAM_ERROR            = 1
      OTHERS                   = 2.
  IF SY-SUBRC <> 0.
  ENDIF.

ENDFORM.                    " DISPLAY

*&--------------------------------------------------------------------- *
*&      Form  g_status_form 调用自定义屏幕
*&---------------------------------------------------------------------
FORM SET_PF_STATUS  USING rt_extab TYPE slis_t_extab.
  SET PF-STATUS 'STANDARD' EXCLUDING rt_extab.
ENDFORM.                    "SET_PF_STATUS

*&---------------------------------------------------------------------*
*&      FORM  FIELDCAT_INIT
*&---------------------------------------------------------------------*
*       TEXT 定义输出项
*----------------------------------------------------------------------*
*      -->P_IT_FIELDCAT  TEXT
*----------------------------------------------------------------------*
FORM FIELDCAT_INIT  USING  IT_FIELDCAT TYPE SLIS_T_FIELDCAT_ALV.
  DATA: LS_FIELDCAT TYPE SLIS_FIELDCAT_ALV.
  DATA:LOC_REPID LIKE SY-REPID.
  LOC_REPID = SY-REPID.

  LS_FIELDCAT-FIELDNAME = 'MATNR'.
  LS_FIELDCAT-REPTEXT_DDIC  = '物料'.
  APPEND LS_FIELDCAT TO IT_FIELDCAT.
  CLEAR LS_FIELDCAT.

  LS_FIELDCAT-FIELDNAME = 'WERKS'.
  LS_FIELDCAT-REPTEXT_DDIC  = '工厂'.
  APPEND LS_FIELDCAT TO IT_FIELDCAT.
  CLEAR LS_FIELDCAT.

  LS_FIELDCAT-FIELDNAME = 'QUANTT'.
  LS_FIELDCAT-REPTEXT_DDIC  = '数量'.
  APPEND LS_FIELDCAT TO IT_FIELDCAT.
  CLEAR LS_FIELDCAT.

  LS_FIELDCAT-FIELDNAME = 'VERID'.
  LS_FIELDCAT-REPTEXT_DDIC  = '生产版本'.
  APPEND LS_FIELDCAT TO IT_FIELDCAT.
  CLEAR LS_FIELDCAT.

  LS_FIELDCAT-FIELDNAME = 'START'.
  LS_FIELDCAT-REPTEXT_DDIC  = '开始日期'.
  LS_FIELDCAT-REF_TABNAME = 'CAUFV'.
  LS_FIELDCAT-REF_FIELDNAME = 'ERDAT'.
  APPEND LS_FIELDCAT TO IT_FIELDCAT.
  CLEAR LS_FIELDCAT.

  LS_FIELDCAT-FIELDNAME = 'ENDDT'.
  LS_FIELDCAT-REPTEXT_DDIC  = '结束日期'.
  LS_FIELDCAT-REF_TABNAME = 'CAUFV'.
  LS_FIELDCAT-REF_FIELDNAME = 'ERDAT'.
  APPEND LS_FIELDCAT TO IT_FIELDCAT.
  CLEAR LS_FIELDCAT.

  LS_FIELDCAT-FIELDNAME = 'AUFNR'.
  LS_FIELDCAT-REPTEXT_DDIC  = '生产订单号'.
  LS_FIELDCAT-NO_ZERO = 'X'.
  APPEND LS_FIELDCAT TO IT_FIELDCAT.
  CLEAR LS_FIELDCAT.

  LS_FIELDCAT-FIELDNAME = 'MSGTXT'.
  LS_FIELDCAT-REPTEXT_DDIC  = '消息文本'.
  APPEND LS_FIELDCAT TO IT_FIELDCAT.
  CLEAR LS_FIELDCAT.

  LS_FIELDCAT-FIELDNAME = 'RELSTT'.
  LS_FIELDCAT-REPTEXT_DDIC  = '生产订单下达状态'.
  APPEND LS_FIELDCAT TO IT_FIELDCAT.
  CLEAR LS_FIELDCAT.

  LS_FIELDCAT-FIELDNAME = 'MSGREL'.
  LS_FIELDCAT-REPTEXT_DDIC  = '生产订单下达文本'.
  APPEND LS_FIELDCAT TO IT_FIELDCAT.
  CLEAR LS_FIELDCAT.

ENDFORM.                    "FIELDCAT_INIT
" FIELDCAT_INIT
*&---------------------------------------------------------------------*
*&      FORM  LAYOUT_INIT
*&---------------------------------------------------------------------*
*       TEXT  LAYOUT属性设置，双击响应字段设置
*----------------------------------------------------------------------*
*      -->P_IS_LAYOUT  TEXT
*----------------------------------------------------------------------*
FORM LAYOUT_INIT  USING    IS_LAYOUT TYPE SLIS_LAYOUT_ALV.
  IS_LAYOUT-COLWIDTH_OPTIMIZE = 'X'.
ENDFORM.                    " LAYOUT_INIT
**&--------------------------------------------------------------------*
**&      FORM  USER_COMMAND
**&--------------------------------------------------------------------*
**       TEXT
**---------------------------------------------------------------------*
**      -->RF_UCOMM   TEXT
**      -->RS_SELFIELDTEXT
**---------------------------------------------------------------------*
FORM USER_COMMAND USING RF_UCOMM    LIKE SY-UCOMM
                       RS_SELFIELD TYPE SLIS_SELFIELD.      "#EC CALLED
  DATA:BEGIN OF ORDERLIST  OCCURS 0,
    AUFNR TYPE AUFNR,
  END OF ORDERLIST.
  data:pflg TYPE c.

  DATA:DELETERETURN TYPE TABLE OF BAPI_ORDER_RETURN.
  DATA:L_DELETERETURN LIKE LINE OF DELETERETURN.
  CASE RF_UCOMM.
    WHEN '&PRT'.
*****插入数据   创建生产订单
      if COUNT = 0.
        COUNT = COUNT + 1.
        CLEAR ORDERLIST[].
        loop at WTAB.
*        HEADER_IN-ORDER_NUMBER = LT_MOINFO-AUFNR."订单号
*          注意：物料前导0 要加上
          CALL FUNCTION 'CONVERSION_EXIT_ALPHA_INPUT'
            EXPORTING
              INPUT  = WTAB-MATNR
            IMPORTING
              OUTPUT = HEADER_IN-MATERIAL.
*        HEADER_IN-MATERIAL =  WTAB-MATNR."物料编号
          HEADER_IN-PLANT = WTAB-WERKS."工厂
          HEADER_IN-ORDER_TYPE = PAUART."ORDER_TYPE."订单类型
          HEADER_IN-QUANTITY = WTAB-QUANTT."订单数量总计
          HEADER_IN-BASIC_START_DATE = WTAB-START."基本开始日期
          HEADER_IN-BASIC_END_DATE = WTAB-ENDDT."基本完成日期
          HEADER_IN-PROD_VERSION = WTAB-VERID."生产版本
          CALL FUNCTION 'BAPI_PRODORD_CREATE'
            EXPORTING
              ORDERDATA    = HEADER_IN
            IMPORTING
              ORDER_NUMBER = LT_AUFNR
              RETURN       = LT_RETURN.    "ORDER_TYPE = LT_AUART


          IF LT_AUFNR IS NOT INITIAL.
            ORDERLIST-AUFNR =  LT_AUFNR.
            APPEND ORDERLIST.
          ELSE.
            WTAB-RELSTT = 'E'.
            WTAB-MSGREL = '生产订单号为空，不能下达'.
          ENDIF.

          IF LT_AUFNR <> '' AND LT_RETURN IS INITIAL . "订单创建成功
            WTAB-AUFNR = LT_AUFNR.
            WTAB-MSGTXT = 'STATU = S，订单创建成功 '.
          ELSE.
            WTAB-MSGTXT = 'STATU = E，订单创建失败。' && LT_RETURN-MESSAGE.
          ENDIF.
          MODIFY WTAB.
        ENDLOOP.
        ”等待10s 否则会有生产订单不存在的提示
        CALL FUNCTION 'AB_SLEEP'
          EXPORTING
            WAIT_TIME = 10.

        IF ORDERLIST[] IS NOT INITIAL.
          CALL FUNCTION 'BAPI_PRODORD_RELEASE'
            TABLES
              ORDERS        = ORDERLIST
              DETAIL_RETURN = DELETERETURN.
          LOOP AT WTAB.
            SHIFT WTAB-AUFNR LEFT DELETING LEADING '0'.
            LOOP AT DELETERETURN  INTO L_DELETERETURN WHERE  MESSAGE_V1 = WTAB-AUFNR.
              WTAB-RELSTT = L_DELETERETURN-TYPE.
              WTAB-MSGREL = L_DELETERETURN-MESSAGE.
              MODIFY WTAB.
            ENDLOOP.
          ENDLOOP.
        ENDIF.
        RS_SELFIELD-REFRESH = 'X'.
      ELSE.
        MESSAGE '订单已经创建并下达，请不要重复创建/下达' TYPE 'I'.
      ENDIF.
  ENDCASE.
ENDFORM.                   "USER_COMMAND
*&---------------------------------------------------------------------*
*&      FORM  GETEXCEL
*&---------------------------------------------------------------------*
*       TEXT 获取上传EXCEL文件内相关数据
*----------------------------------------------------------------------*
*  -->  P1        TEXT
*  <--  P2        TEXT
*----------------------------------------------------------------------*
FORM GETEXCEL .
  G_FILE = P_FILE.  "注意两个文件用于不同的函数，所以类型不同

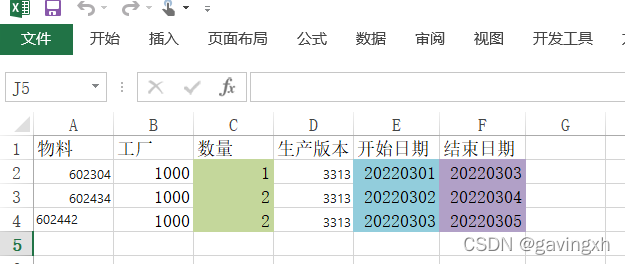

  CALL FUNCTION 'ALSM_EXCEL_TO_INTERNAL_TABLE'
    EXPORTING
      FILENAME    = G_FILE
      I_BEGIN_COL = 1
      I_BEGIN_ROW = 1
      I_END_COL   = 10
      I_END_ROW   = 5000
    TABLES
      INTERN      = ITAB[].

  DELETE ITAB WHERE ROW = 1.  "删除字段名行

  LOOP AT ITAB.
    ON CHANGE OF ITAB-ROW.
      IF SY-TABIX NE 1.
        APPEND WTAB.
        CLEAR WTAB.
      ENDIF.
    ENDON.
    ASSIGN COMPONENT ITAB-COL OF STRUCTURE WTAB TO <FS>.         "动态方法将值传到相应的内表
    <FS> = ITAB-VALUE.
  ENDLOOP.
  APPEND WTAB.   "这句不要忘记，要把最后一条APPEND到内表中
  sort wtab by MATNR.

ENDFORM.                    " GETEXCEL
*&---------------------------------------------------------------------*
*&      Form  GETDATA
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM GETDATA .

*  SELECT *
*  INTO CORRESPONDING FIELDS OF TABLE WTAB
*  FROM  ZPPCOSTMDATA
*  WHERE KOSTL IN S_KOSTL AND
*        ZDEPT1 IN S_ZDEPT1 AND
*        ZDEPT2 IN S_ZDEPT2 AND
*        ZDEPT3 IN S_ZDEPT3 AND
*        ZDEPT4 IN S_ZDEPT4 AND
*        ZDEPT5 IN S_ZDEPT5.
*  SORT WTAB BY KOSTL.

ENDFORM.                    " GETDATA
*&---------------------------------------------------------------------*
*&      Form  CALLSM30
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM CALLSM30 .
  CALL FUNCTION 'VIEW_MAINTENANCE_CALL'
    EXPORTING
      action                       = 'U'          " S = Display U = Change T = Transport
      view_name                    = 'ZPPCOSTMDATA'     "读取的表
      no_warning_for_clientindep   = 'X'
    EXCEPTIONS
      client_reference             = 1
      foreign_lock                 = 2
      invalid_action               = 3
      no_clientindependent_auth    = 4
      no_database_function         = 5
      no_editor_function           = 6
      no_show_auth                 = 7
      no_tvdir_entry               = 8
      no_upd_auth                  = 9
      only_show_allowed            = 10
      system_failure               = 11
      unknown_field_in_dba_sellist = 12
      view_not_found               = 13
      OTHERS                       = 14.
ENDFORM.                    " CALLSM30
*&---------------------------------------------------------------------*
*&      Form  DOWNLOAD_DATA
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*  -->  p1        text
*  <--  p2        text
*----------------------------------------------------------------------*
FORM DOWNLOAD_DATA .
  l_filename = 'ZPPORDERC.xlsx'.
  l_muban = 'ZPPORDERC'.
*&---下载模板
  PERFORM frm_get_fullpath CHANGING gv_fullpath gv_path gv_name.
*&---路径为空则退出
  IF gv_fullpath IS INITIAL.
    MESSAGE '用户取消操作' TYPE 'S'.
    RETURN.
  ENDIF.
  PERFORM frm_down USING gv_fullpath.
ENDFORM.                    " DOWNLOAD_DATA

*&---------------------------------------------------------------------*
*&      Form  FRM_GET_FULLPATH
*&---------------------------------------------------------------------*
*       text
*----------------------------------------------------------------------*
*      <--P_GV_FULLPATH  text
*      <--P_GV_PATH  text
*      <--P_GV_NAME  text
*----------------------------------------------------------------------*
FORM frm_get_fullpath   CHANGING pv_fullpath TYPE string
  pv_path     TYPE string
  pv_name     TYPE string.

  DATA: lv_init_path  TYPE string,
        lv_init_fname TYPE string,
        lv_path       TYPE string,
        lv_filename   TYPE string,
        lv_fullpath   TYPE string.

*&---初始名称(输出的文件名称)
*  concatenate 'Material_Doc_' SY-DATUM '.xslx' into L_INIT_FNAME.
  lv_init_fname = l_filename.

* 获取桌面路径
  CALL METHOD cl_gui_frontend_services=>get_desktop_directory
    CHANGING
      desktop_directory    = lv_init_path
    EXCEPTIONS
      cntl_error           = 1
      error_no_gui         = 2
      not_supported_by_gui = 3
      OTHERS               = 4.
  IF sy-subrc <> 0.
    EXIT.
  ENDIF.

*&---用户选择名称、路径
  CALL METHOD cl_gui_frontend_services=>file_save_dialog
    EXPORTING
*     window_title         = '指定保存文件名'
*     default_extension    = 'DOC'
      default_file_name    = lv_init_fname
*     FILE_FILTER          = CL_GUI_FRONTEND_SERVICES=>FILETYPE_EXCEL
*     FILE_FILTER          = CL_GUI_FRONTEND_SERVICES=>FILETYPE_WORD
      initial_directory    = lv_init_path
      prompt_on_overwrite  = 'X'
    CHANGING
      filename             = lv_filename
      path                 = lv_path
      fullpath             = lv_fullpath
*     USER_ACTION          =
*     FILE_ENCODING        =
    EXCEPTIONS
      cntl_error           = 1
      error_no_gui         = 2
      not_supported_by_gui = 3
      OTHERS               = 4.
  IF sy-subrc = 0.
    pv_fullpath = lv_fullpath.
    pv_path     = lv_path.
  ENDIF.
ENDFORM.                    " FRM_GET_FULLPATH

*--------------------------------------------------------------------*
*       下载文件
*--------------------------------------------------------------------*
FORM frm_down  USING pr_filename.
  DATA: lv_objdata     LIKE wwwdatatab,
        lv_mime        LIKE w3mime,
        lv_destination LIKE rlgrap-filename,
        lv_objnam      TYPE string,
        lv_rc          LIKE sy-subrc,
        lv_errtxt      TYPE string.

  DATA: lv_filename TYPE string,
        lv_result,
        lv_subrc    TYPE sy-subrc.

  DATA: lv_objid TYPE wwwdatatab-objid .


  lv_objid = l_muban.  "上传的模版名称

*&---查找文件是否存在。
  SELECT SINGLE relid objid
  FROM wwwdata
  INTO CORRESPONDING FIELDS OF lv_objdata
  WHERE srtf2    = 0
  AND   relid    = 'MI'
  AND   objid    = lv_objid.

*&---判断模版不存在则报错
  IF sy-subrc NE 0 OR lv_objdata-objid EQ space.
    CONCATENATE '模板文件：' lv_objid '不存在，请用TCODE：SMW0进行加载'
    INTO lv_errtxt.
    MESSAGE lv_errtxt TYPE 'E'.
  ENDIF.

  lv_filename = pr_filename.

  "判断本地地址是否已经存在此文件。
  CALL METHOD cl_gui_frontend_services=>file_exist
    EXPORTING
      file                 = lv_filename
    RECEIVING
      result               = lv_result
    EXCEPTIONS
      cntl_error           = 1
      error_no_gui         = 2
      wrong_parameter      = 3
      not_supported_by_gui = 4
      OTHERS               = 5.
  IF sy-subrc <> 0.
    CASE sy-subrc.
      WHEN 1.
      WHEN 2.
      WHEN OTHERS.
    ENDCASE.
  ENDIF.

  IF lv_result EQ 'X'.  "如果存在则删除原始文件，重新覆盖
    CALL METHOD cl_gui_frontend_services=>file_delete
      EXPORTING
        filename             = lv_filename
      CHANGING
        rc                   = lv_subrc
      EXCEPTIONS
        file_delete_failed   = 1
        cntl_error           = 2
        error_no_gui         = 3
        file_not_found       = 4
        access_denied        = 5
        unknown_error        = 6
        not_supported_by_gui = 7
        wrong_parameter      = 8
        OTHERS               = 9.

    IF sy-subrc <> 0.
      CASE sy-subrc.
        WHEN 1.
        WHEN 2.
        WHEN OTHERS.
      ENDCASE.
    ENDIF.

    IF lv_subrc <> 0. "如果删除失败，则报错。
      CONCATENATE '同名EXCEL文件已打开' '请关闭该EXCEL后重试。'
      INTO lv_errtxt.
      MESSAGE lv_errtxt TYPE 'E'.
    ENDIF.
  ENDIF.

  lv_destination   = pr_filename.

*&---下载模版。
  CALL FUNCTION 'DOWNLOAD_WEB_OBJECT'
    EXPORTING
      KEY         = lv_objdata
      destination = lv_destination
    IMPORTING
      rc          = lv_rc.
  IF lv_rc NE 0.
    CONCATENATE '模板文件' '下载失败' INTO lv_errtxt.
    MESSAGE lv_errtxt TYPE 'E'.
  ENDIF.
ENDFORM.                    "frm_down
