在四旋翼切换模式为Auto之后,飞机飞了一段距离,然后异常降落。
一开始以为GPS位置错误,后来发现报错EKF Variance,
查了一下官网。
In autonomous modes that require GPS (i.e. Loiter, PosHold, RTL, Guided, Auto, etc) the FS_EKF_ACTION controls the behaviour. By default this is “1” meaning the vehicle will switch to Land mode. This is a “pilot controlled” land meaning the pilot will have control of the roll and pitch angle but the vehicle will descend at the LAND_SPEED. It will land and finally disarm its motors
An EKF failsafe error will be written to the dataflash logs
意思就是,EKF错误了,故障了。然后自动模式下,会切换为LAND模式。自动降落。
怎么解决这个问题呢?
看上述参数,可以设置阈值大一点,这个不是办法。
还有,看到故障保护后,默认动作是LAND,改一下这个参数就行了。

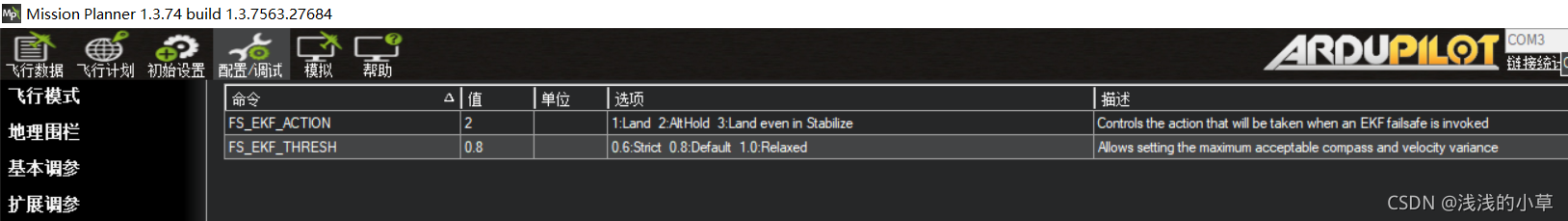

设置FS_EKF_ACTION为2.解释失效后,保持高度。
至于为什么纠结这个问题,因为飞机莫名其妙掉水里了。
终究吃了没有文化的亏。
