什么是fastboot
- fastboot是android使用的一种刷机方法。android系统设计了2种刷机方式:fastboot和recovery。
- fastboot使用usb作为物理传输。刷机其实是镜像传输+烧录,fastboot刷机时就是通过usb线来传输镜像的
- fastboot是uboot种的一个命令。uboot进行命令行中后,如果需要刷机,则可以在命令行中执行fastboot命令就可以让uboot进入fastboot模式,刷机就是在fastboot模式下进行的。
- fastboot需要主机端的fastboot软件配合。要实现fastboot刷机,只有开发板端uboot是不行的,还需要在主机有fastboot.exe配合。
- fastboot在开发板和主机间定义了一套协议。其实就是fastboot是我们在开发板和主机之间定义的一套协议,这套协议以usb为底层传输物理层,协议规定了主机fastbooot软件和开发板fastboot软件之间的信息传输规则。消息传递可以实现功能有:主机可以向开发板发送命令、开发板可以向主机发送回复、主机可以向开发板发送文件(download)

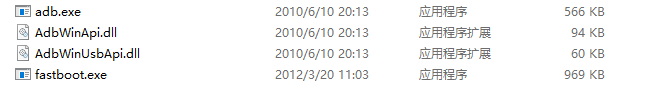

图1 fastboot运行演示
fastboot的工作原理
- uboot的fastboot的命令将开发板伪装成一个usb设备。开发板本身并不是一个usb设备,所以开发板直接插到电脑是没有反应的,没有提示发现设备需要装驱动的。伪装之后开发板就被主机windows识别成一个安卓手机了。
- 主机的fastboot软件和开发板的fastboot程序通信来工作。平时工作时,开发板端只要执行了fastboot命令进入fastboot模式即可,剩下的就不用管了。主机端通过运行fastboot命令,传递不同的参数来实现主机端和开发板端的通信。 譬如主机端执行fastboot devices,则这个命令通过usb线被传递到开发板中被开发板的fastboot程序接收,接收后去处理向主机端发送发聩信息,主机端接收到反馈信息后显示出来。
- 学习fastboot时分析代码的思路是:主机端:fastboot.exe的源代码没有,fastboot协议虽然能找到但是很枯燥,所以主机端没有去分析。开发板端:主要分析点就是uboot如何进入fastboot模式,fastboot模式下如何响应主机发送的各种命令。
fastboot源码分析
int do_fastboot (cmd_tbl_t *cmdtp, int flag, int argc, char *argv[])
{
int ret = 1;
int check_timeout = 0;
uint64_t timeout_endtime = 0;
uint64_t timeout_ticks = 0;
long timeout_seconds = -1;
int continue_from_disconnect = 0;
if (set_partition_table())
return 1;
/* Time out */
if (2 == argc)
{
long try_seconds;
char *try_seconds_end;
/* Check for timeout */
try_seconds = simple_strtol(argv[1], &try_seconds_end, 10);
if ((try_seconds_end != argv[1]) && (try_seconds >= 0))
{
check_timeout = 1;
timeout_seconds = try_seconds;
printf("Fastboot inactivity timeout %ld seconds\n", timeout_seconds);
}
}
if (1 == check_timeout)
{
timeout_ticks = (uint64_t) (timeout_seconds * get_tbclk());
}
do
{
continue_from_disconnect = 0;
/* Initialize the board specific support */
if (0 == fastboot_init(&interface))
{
int poll_status;
/* If we got this far, we are a success */
ret = 0;
timeout_endtime = get_ticks();
timeout_endtime += timeout_ticks;
LCD_turnon();
while (1)
{
uint64_t current_time = 0;
poll_status = fastboot_poll();
if (1 == check_timeout)
current_time = get_ticks();
/* Check if the user wanted to terminate with ^C */
if ((poll_status != FASTBOOT_OK) && (ctrlc()))
{
printf("Fastboot ended by user\n");
continue_from_disconnect = 0;
break;
}
if (FASTBOOT_ERROR == poll_status)
{
/* Error */
printf("Fastboot error \n");
break;
}
else if (FASTBOOT_DISCONNECT == poll_status)
{
/* break, cleanup and re-init */
printf("Fastboot disconnect detected\n");
continue_from_disconnect = 1;
break;
}
else if ((1 == check_timeout) &&
(FASTBOOT_INACTIVE == poll_status))
{
/* No activity */
if (current_time >= timeout_endtime)
{
printf("Fastboot inactivity detected\n");
break;
}
}
else
{
/* Something happened */
/* Actual works of parsing are done by rx_handler */
if (1 == check_timeout)
{
/* Update the timeout endtime */
timeout_endtime = current_time;
timeout_endtime += timeout_ticks;
}
}
} /* while (1) */
}
/* Reset the board specific support */
fastboot_shutdown();
LCD_setfgcolor(0x000010);
LCD_setleftcolor(0x000010);
LCD_setprogress(100);
/* restart the loop if a disconnect was detected */
} while (continue_from_disconnect);
return ret;
}
do_fastboot函数
- do_fastboot函数本身涉及到很多操作SD/Nand等磁盘的,主要目的就是为了刷机。要完整的分析fastboot的函数细节很复杂很麻烦,我们并不是要做这个。
关键点:rx_handler
- do_fastboot fastboot_poll fboot_usb_int_hndlr fboot_usb_pkt_receive fboot_usb_int_bulkout fastboot_interface->rx_handler(函数指针) 指向cmd_fastboot.c/rx_handler
- 最终uboot这边的fastboot是通过rx_handler函数来处理主机端fastboot软件发送过来的信息的。fastboot协议的命令实现都是在这个函数中体现的,所示这个函数就是重点
static int rx_handler (const unsigned char *buffer, unsigned int buffer_size)
{
int ret = 1;
/* Use 65 instead of 64
null gets dropped
strcpy's need the extra byte */
char response[65];
if (download_size)
{
/* Something to download */
if (buffer_size)
{
/* Handle possible overflow */
unsigned int transfer_size = download_size - download_bytes;
if (buffer_size < transfer_size)
transfer_size = buffer_size;
/* Save the data to the transfer buffer */
memcpy (interface.transfer_buffer + download_bytes,
buffer, transfer_size);
download_bytes += transfer_size;
/* Check if transfer is done */
if (download_bytes >= download_size)
{
/* Reset global transfer variable,
Keep download_bytes because it will be
used in the next possible flashing command */
download_size = 0;
if (download_error)
{
/* There was an earlier error */
sprintf(response, "ERROR");
}
else
{
/* Everything has transferred,
send the OK response */
sprintf(response, "OKAY");
}
fastboot_tx_status(response, strlen(response), FASTBOOT_TX_ASYNC);
printf ("\ndownloading of %d bytes finished\n", download_bytes);
LCD_setprogress(0);
}
···
···
//此处省略,如需可自己去看源码
else
{
/* A command */
/* Cast to make compiler happy with string functions */
const char *cmdbuf = (char *) buffer;
/* Generic failed response */
sprintf(response, "FAIL");
/* reboot
Reboot the board. */
if (memcmp(cmdbuf, "reboot", 6) == 0)
{
if (!strcmp(cmdbuf + 6, "-bootloader"))
{
strcpy((char *)interface.transfer_buffer, (char *)FASTBOOT_REBOOT_MAGIC);
}
else
{
memset(interface.transfer_buffer, 0x0, FASTBOOT_REBOOT_MAGIC_SIZE);
}
sprintf(response,"OKAY");
fastboot_tx_status(response, strlen(response), FASTBOOT_TX_SYNC);
//udelay (1000000); /* 1 sec */
do_reset (NULL, 0, 0, NULL);
/* This code is unreachable,
leave it to make the compiler happy */
return 0;
}
···
···
//此处省略,如需可自己去看源码
大文件download机制
- rx_handler函数中通过if和else分成了两部分,if部分负责处理download,else部分负责处理命令。usb传输单次传输最大只能有限个字节(64、256),因此当发送比较小的东西(譬如命令)时可以单词传输完毕;当发送比较大的东西时(譬如文件)就必须要分包发送。
download后的响应机制
- 开发板端通过fastboot_tx_status函数向主机发送响应,主机显示这个响应。
fastboot常用命令
- fastboot getvar:作用是得到一些fastboot中定义的变量名的值,譬如version、product、serialno、downloadsize
- fastboot erase:擦除
- fastboot download:下载
- fastboot boot:启动内核
- fastboot flash:烧录
- fastboot oem:oem是用户自定义的,其他命令都是fastboot协议定义的,但是有时候自带的命令不足以使用,oem厂商可能希望定义一些自己专有的命令,则可以使用oem命令。
