CANoe 杂谈

这篇文章聊聊在工作中遇到的问题和分享一些好玩的函数

 halt();暂停模拟=断点

variables
{
  message InspectMessage gMsgInspect;
  message BreakPointMessage gMsgBreakPoint;
  message BreakPointMessage2 gMsgBreakPoint2;

  msTimer tSignalUpdateBreakPoint;

  byte gBreakPointMsgByte0 ;
  byte gBreakPointMsgByte1 ;
  byte gBreakPointMsgByte2 ;
  byte gBreakPointMsgByte3 ;
  byte gBreakPointMsgByte4 ;
  byte gBreakPointMsgByte5 ;
  byte gBreakPointMsgByte6 ;
  byte gBreakPointMsgByte7 ;

  byte gInspectMsgByte0 ;
  byte gInspectMsgByte1 ;
  byte gInspectMsgByte2 ;
  byte gInspectMsgByte3 ;
  byte gInspectMsgByte4 ;
  byte gInspectMsgByte5 ;
  byte gInspectMsgByte6 ;
  byte gInspectMsgByte7 ;
}

on message InspectMessage
{
  gMsgInspect = this;

  gInspectMsgByte0 = gMsgInspect.SigInspect0;
  gInspectMsgByte1 = gMsgInspect.SigInspect1;
  gInspectMsgByte2 = gMsgInspect.SigInspect2;
  gInspectMsgByte3 = gMsgInspect.SigInspect3;
  gInspectMsgByte4 = gMsgInspect.SigInspect4;
  gInspectMsgByte5 = gMsgInspect.SigInspect5;
  gInspectMsgByte6 = gMsgInspect.SigInspect6;
  gInspectMsgByte7 = gMsgInspect.SigInspect7;

  // Inspect() function will update
  // the variables in the debugger window
  if(@sysvar::Inspect::InspectOnOff)
  {
    inspect();
  }
}

on start
{
  @sysvar::Inspect::InspectOnOff = 0;
  @sysvar::BreakPoint::TimerBreakPoint = 0;
  @sysvar::BreakPoint::MessageBreakPointOnOff = 0;
  @sysvar::BreakPoint::SignalBreakPoint = 0;
  setTimer(tSignalUpdateBreakPoint,2000);
}

on message BreakPointMessage
{
  int CAPLError;
  int SigPointValue;

  SigPointValue = this.SigBPoint0;

  if(@sysvar::BreakPoint::SetError)
  {
    if(SigPointValue == 0 && @sysvar::BreakPoint::SignalBreakPoint)
    {
      halt();
    }
    CAPLError = (1.0/this.SigBPoint0);  // Diff through 0
  }
}

on timer tSignalUpdateBreakPoint
{
  if(@sysvar::BreakPoint::TimerBreakPoint)
  {
    @sysvar::BreakPoint::TimerBreakPoint = 0;
  }
  setTimer(this,2000);
}

on message BreakPointMessage2
{
  gMsgBreakPoint2 = this;

  // halt() function will halt the simulation, if the
  // message comes into the on message handler
  if(@sysvar::BreakPoint::MessageBreakPointOnOff)
  {
    @sysvar::BreakPoint::MessageBreakPointOnOff = 0;
    halt();
  }

  saveMessageBytes();
}

void saveMessageBytes()
{
  gBreakPointMsgByte0 = gMsgBreakPoint2.SigBPoint0;
  gBreakPointMsgByte1 = gMsgBreakPoint2.SigBPoint1;
  gBreakPointMsgByte2 = gMsgBreakPoint2.SigBPoint2;
  gBreakPointMsgByte3 = gMsgBreakPoint2.SigBPoint3;
  gBreakPointMsgByte4 = gMsgBreakPoint2.SigBPoint4;
  gBreakPointMsgByte5 = gMsgBreakPoint2.SigBPoint5;
  gBreakPointMsgByte6 = gMsgBreakPoint2.SigBPoint6;
  gBreakPointMsgByte7 = gMsgBreakPoint2.SigBPoint7;
}

stop():停止运行上位机

if (IsSimulated()) // don't activate tests when running in simulated mode
  {
    WriteLineEx(wrCAPLSink, wrError
      , "This demo cannot run in simulated mode!");
    stop();
  }

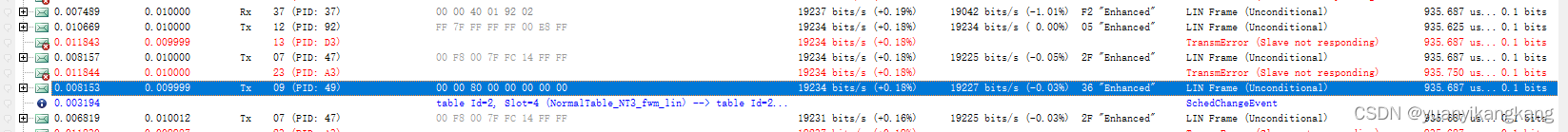

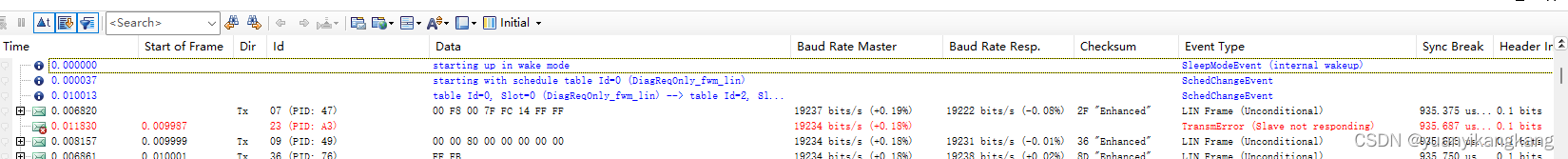

linChangeSchedTable(dword tableIndex, dword slotIndex, dword onSlotIndex)

实现调度表的调度（切换的调度表，切换的调度表的报文，上一个调度表终止调度的报文）

on start
{
  //linStopScheduler();
 linChangeSchedTable(2,2);



}
on key 'a'
{
  linChangeSchedTable(2,2,4);
}



linRunSchedTableNTimes (1, 2, -2, -1);暂时只支持仿真模式，真实节点不确定是否可用

报错1：Start of measurement aborted:复制上位机后添加dbc出现此报错建议，重新新建一个工程环境
