小例子，导出文件。

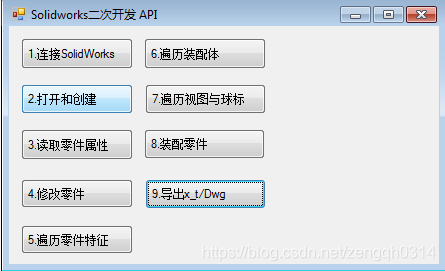

下面是代码：

        private void btnExport_Click(object sender, EventArgs e)
        {
            ISldWorks swApp = Utility.ConnectToSolidWorks();

            if (swApp != null)
            {
                ModelDoc2 swModel = (ModelDoc2)swApp.ActiveDoc;

                if (swModel.GetType() == (int)swDocumentTypes_e.swDocPART || swModel.GetType() == (int)swDocumentTypes_e.swDocASSEMBLY)
                {
                    ModelDocExtension swModExt = (ModelDocExtension)swModel.Extension;

                    int error = 0;

                    int warnings = 0;

                    //设置导出版本
                    swApp.SetUserPreferenceIntegerValue((int)swUserPreferenceIntegerValue_e.swParasolidOutputVersion, (int)swParasolidOutputVersion_e.swParasolidOutputVersion_161);

                    swModExt.SaveAs(@"C:\export.x_t", (int)swSaveAsVersion_e.swSaveAsCurrentVersion, (int)swSaveAsOptions_e.swSaveAsOptions_Silent, null, ref error, ref warnings);
                }
                else if (swModel.GetType() == (int)swDocumentTypes_e.swDocDRAWING)
                {
                    ModelDocExtension swModExt = (ModelDocExtension)swModel.Extension;

                    int error = 0;

                    int warnings = 0;

                    //设置dxf 导出版本 R14
                    swApp.SetUserPreferenceIntegerValue((int)swUserPreferenceIntegerValue_e.swDxfVersion, 2);

                    //是否显示 草图
                    swModel.SetUserPreferenceToggle(196, false);

                    swModExt.SaveAs(@"C:\export.dxf", (int)swSaveAsVersion_e.swSaveAsCurrentVersion, (int)swSaveAsOptions_e.swSaveAsOptions_Silent, null, ref error, ref warnings);
                }
            }
        }
