LEACH-C协议Matlab源码，将三部分代码复制粘贴到一个matlab文件中执行即可。（还有LEACH版本，有需要的可以私聊我）（若代码有不足的地方，还请各位批评指正）

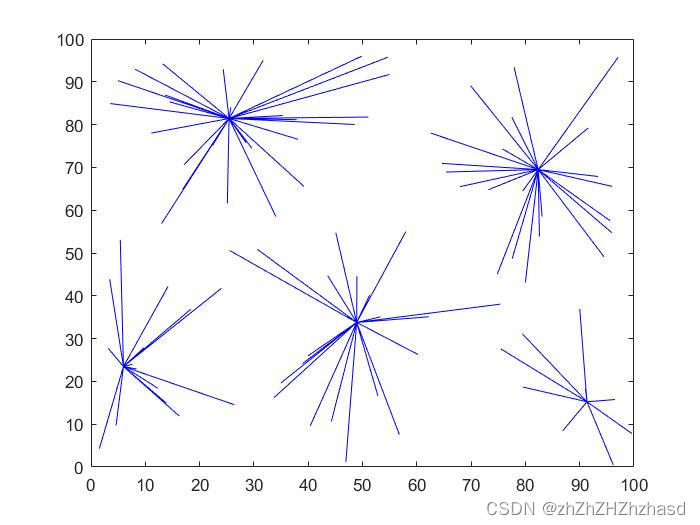

运行结果
主体代码(包含控制能耗和传输能耗)
% close all;
clear
clc
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% 1.一阶无线电能耗模型（First Order Radio Model）%%%%%%%%%%%%%%%%%%%
for zh=1:1
N=100;%节点个数
sinkx=50;sinky=175;%基站位置
xm=100;ym=100;%监测范围
p=0.05;%簇头节点比例
Eo=0.2;%初始能量
Eelec=50*10^(-9);%电路能耗（Joules/bit）
ETx=50*10^(-9);%传送能耗（Joules/bit）
ERx=50*10^(-9);%接收能耗（Joules/bit）
Efs=10*10^(-12);%自由空间模型能耗系数
Emp=0.0013*10^(-12);%多径衰落模型能耗系数
d0=sqrt(Efs/Emp);%临界值
EDA=5*10^(-9);%数据聚合能耗
Lc=100;%控制包大小（bit）
Ld=4000;%数据包大小（bit）
AD_Range=sqrt(xm^2+ym^2);%广播范围
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% 2.网络初始化 %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
for zh=1:1
% load location.mat;%载入位置
for i=1:N
node(i).energy=Eo;%剩余能量
node(i).location=[rand*xm rand*ym];%节点位置
% node(i).location=location(i,:);%节点位置
node(i).dtoBS=sqrt((node(i).location(1)-sinkx)^2+(node(i).location(2)-sinky)^2);%节点至基站距离
node(i).status=0;%表明节点是否成为或成为过簇头：0为簇成员节点，1为簇头节点
node(i).CH=0;% 表明节点的簇头
node(i).CM=[];% 表明节点的簇成员
node(i).CM_count=0;% 表明簇内的簇成员节点数
end
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% 3.网络运行 %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
for zh=1:1
%%%%%%性能指标参数设置（包括存活节点数量、网络剩余能量、控制开销）%%%%%%
for z=1:1
r=0;%轮数
number_AliveNodes=N;%存活节点数量
residual_Energy=N*Eo;%网络剩余能量
contorl_Overhead=0;%控制开销
AliveNodes=1:1:N;%存活节点
Throughput=0;%吞吐量
% figure(1)%画图
% for i=1:N
% plot(node(i).location(1),node(i).location(2),'bo','linewidth',1);
% hold on;
% end
% plot(sinkx,sinky,'rd','linewidth',2);hold on;
end
while number_AliveNodes>0%当节点存活数量>0时，网络正常运行
%%%%%%%%%%%%%%%%%%%%%%%%%%% ①簇建立阶段 %%%%%%%%%%%%%%%%%%%%%%%%%%%%
for z=1:1
%%%%%%%%%节点将能量位置信息发送至基站（能量消耗）%%%%%%%%%
for i=1:length(AliveNodes)
d=sqrt((node(AliveNodes(i)).location(1)-sinkx)^2+((node(AliveNodes(i)).location(2)-sinky))^2);
if d>d0
node(AliveNodes(i)).energy=node(AliveNodes(i)).energy-Lc*(Eelec+Emp*d^4);
contorl_Overhead=contorl_Overhead+Lc*(Eelec+Emp*d^4);%控制开销
else
node(AliveNodes(i)).energy=node(AliveNodes(i)).energy-Lc*(Eelec+Efs*d^2);
contorl_Overhead=contorl_Overhead+Lc*(Eelec+Efs*d^2);%控制开销
end
end
%%%%%%%%%基站使用模拟退火算法选择合适的簇头%%%%%%%%%
for h=1:1
CH=[];%簇头集合
CM=[];%簇成员集合
C_opt=round(number_AliveNodes*p);%最优簇头数量
if C_opt==0
C_opt=1; %最小簇头数为1
end
%%%%%%%%%模拟退火算法(SMfunc1为计算适应度值的函数，SMfunc2为随机扰动的函数)%%%%%%%%%
%%%%%%%%%参数%%%%%%%%%
k=1;%迭代次数
Niter=500;%最大迭代次数
bounder=10;%边界
%%%%%%%%%计算高于能量平均值的节点%%%%%%%%%
Eavg=0;%平均能量
count=0;%计数
node_HE=[];%记录高能量的节点
for i=1:length(AliveNodes)
Eavg=Eavg+node(AliveNodes(i)).energy;
count=count+1;
end
Eavg=Eavg/count;%平均能量
for i=1:length(AliveNodes)
if node(AliveNodes(i)).energy>=Eavg
node_HE=[node_HE AliveNodes(i)];%记录高能量节点
end
end
%%%%%%%%%随机选点初值确定%%%%%%%%%
if length(node_HE)<=C_opt
CH=node_HE;%记录簇头
count_CH=length(CH);%记录簇头个数
else
CH=node_HE(randperm(length(node_HE),C_opt));%随机选取簇头
BestCH=CH;%记录最佳簇头
CM=AliveNodes(~ismember(AliveNodes,CH));%簇成员集合
Bestf=SMfunc_1(CM,CH,node);%记录最佳适应度值
CH_candidate=node_HE;%候选簇头成员集合（这里指高能量节点中的簇成员）
if isempty(CH_candidate)==1%如果候选簇头数为0，择直接确定簇头
else
%%%%%%%%%%每迭代一次退火一次(降温)，知道满足迭代条件%%%%%%%
while k<=Niter
%%%%%%%%%%%%%%%%对节点随机扰动%%%%%%%%%%%%%%
CH_candidate=node_HE;%候选簇头成员集合（这里指高能量节点中的簇成员）
NextCH=SMfunc2(CH,CH_candidate,node,bounder,node_HE);%随机扰动生成新簇
%%%%%%%%%%%%%%%%是否全局最优解%%%%%%%%%%%%%%
CM=AliveNodes(~ismember(AliveNodes,CH));%簇成员集合
NextCM=AliveNodes(~ismember(AliveNodes,NextCH));%新簇成员集合
f=SMfunc_1(CM,CH,node);%记录原簇头集合适应度值
Nextf=SMfunc_1(NextCM,NextCH,node);%记录新簇头集合适应度值
if (Bestf>Nextf)
%%%%%%%%%%%%%%%%此为新的最优解%%%%%%%%%%%%%%
BestCH=NextCH;
Bestf=Nextf;
trace(k)=Bestf;
k=k+1;
continue;%直接进入下个循环
end
%%%%%%%%%%%%%%%%Metripolos过程%%%%%%%%%%%%%%
if (f>Nextf)
%%%%%%%%%%%%%%%%接收新解%%%%%%%%%%%%%%
CH=NextCH;
else
a_k=1000*exp(-k/20);
changer=-1*(Nextf-f)/(a_k);
p1=exp(changer);
%%%%%%%%%%%%%%%%接收较差的解%%%%%%%%%%%%%%
if p1>rand
CH=NextCH;
end
end
trace(k)=Bestf;
k=k+1;
end
end
%%%%%%%%%迭代适应度变化图%%%%%%%%%
% figure(1)
% plot(trace)
CH=BestCH;%记录簇头
count_CH=length(CH);%记录簇头个数
end
end
%%%%%%%%%画图（簇头与簇成员节点连线）%%%%%%%%%
CH=BestCH;CM=AliveNodes(~ismember(AliveNodes,CH));%簇成员集合
figure(2)
for i=1:length(CM)
d_min=inf;
for j=1:length(CH)
d=sqrt((node(CM(i)).location(1)-node(CH(j)).location(1))^2+((node(CM(i)).location(2)-node(CH(j)).location(2)))^2);
if d<d_min
d_min=d;
node(CM(i)).CH=CH(j);
end
end
plot([node(CM(i)).location(1),node(node(CM(i)).CH).location(1)],[node(CM(i)).location(2),node(node(CM(i)).CH).location(2)],'b');hold on
end
hold off;
%%%%基站广播簇头表给节点（包含能量消耗）%%%%
for i=1:length(AliveNodes)
node(AliveNodes(i)).energy=node(AliveNodes(i)).energy-Lc*Eelec;
contorl_Overhead=contorl_Overhead+Lc*Eelec;%控制开销
end
%%%%簇头广播信息消耗能量（包含能量消耗）%%%%
for i=1:count_CH
d=AD_Range;
if d>d0
node(CH(i)).energy=node(CH(i)).energy-Lc*(Eelec+Emp*d^4);
contorl_Overhead=contorl_Overhead+Lc*(Eelec+Emp*d^4);%控制开销
else
node(CH(i)).energy=node(CH(i)).energy-Lc*(Eelec+Efs*d^2);
contorl_Overhead=contorl_Overhead+Lc*(Eelec+Efs*d^2);%控制开销
end
end
%%%%节点根据距离选择簇头加入（包含能量消耗）%%%%
for i=1:length(AliveNodes)
d_min=inf;%判断加入的条件
F=find(CH==AliveNodes(i));
if length(F)==0%如果节点不是是簇头
for j=1:count_CH
d=sqrt((node(AliveNodes(i)).location(1)-node(CH(j)).location(1))^2+(node(AliveNodes(i)).location(2)-node(CH(j)).location(2))^2);
if d<=AD_Range %如果节点在簇头广播范围内
node(AliveNodes(i)).energy=node(AliveNodes(i)).energy-Lc*Eelec;%节点接收信息的能耗
contorl_Overhead=contorl_Overhead+Lc*Eelec;%控制开销
if d<d_min %判断簇头和节点距离是否最近
d_min=d;
node(AliveNodes(i)).CH=CH(j);%为节点选择簇头
end
end
end
if node(AliveNodes(i)).CH~=0 %如果节点拥有簇头
node(node(AliveNodes(i)).CH).CM=[node(node(AliveNodes(i)).CH).CM AliveNodes(i)];% 将节点添加到簇头当中
node(node(AliveNodes(i)).CH).CM_count=node(node(AliveNodes(i)).CH).CM_count+1;% 对应簇头的簇成员数量+1
% 画图（簇头与簇成员节点连线） %
% plot([node(i).location(1),node(node(i).CH).location(1)],[node(i).location(2),node(node(i).CH).location(2)],'b');hold on
end
end
end
%%%%节点返回注册信息（包含能量消耗） %%%%
for i=1:length(AliveNodes)
F=find(CH==AliveNodes(i));
if length(F)==0 && node(AliveNodes(i)).CH~=0 %如果节点不是是簇头、拥有簇头
d=sqrt(((node(AliveNodes(i)).location(1)-node(node(AliveNodes(i)).CH).location(1)))^2+((node(AliveNodes(i)).location(2)-node(node(AliveNodes(i)).CH).location(2)))^2);
if d>d0
node(AliveNodes(i)).energy=node(AliveNodes(i)).energy-Lc*(Eelec+Emp*d^4);
contorl_Overhead=contorl_Overhead+Lc*(Eelec+Emp*d^4);%控制开销
else
node(AliveNodes(i)).energy=node(AliveNodes(i)).energy-Lc*(Eelec+Efs*d^2);
contorl_Overhead=contorl_Overhead+Lc*(Eelec+Efs*d^2);%控制开销
end
end
end
%%%%簇头发送TDMA时间表（包含能量消耗）%%%%
for i=1:count_CH%找到距离最远的节点，以此距离广播TDMA时间表
d_Max=-inf;
for j=1:node(CH(i)).CM_count%找到距离最远的节点
id=node(CH(i)).CM(j);
d=sqrt(((node(id).location(1)-node(CH(i)).location(1)))^2+((node(id).location(2)-node(CH(i)).location(2)))^2);
if d>d_Max
d_Max=d;
end
end
if node(CH(i)).CM_count>0%如果簇内只有簇头，则不广播
if d_Max>d0
node(CH(i)).energy=node(CH(i)).energy-Lc*(Eelec+Emp*d_Max^4);
contorl_Overhead=contorl_Overhead+Lc*(Eelec+Emp*d_Max^4);%控制开销
else
node(CH(i)).energy=node(CH(i)).energy-Lc*(Eelec+Efs*d_Max^2);
contorl_Overhead=contorl_Overhead+Lc*(Eelec+Efs*d_Max^2);%控制开销
end
end
end
%%%%节点接收TDMA时间表（包含能量消耗）%%%%
for i=1:length(AliveNodes)
F=find(CH==AliveNodes(i));
if length(F)==0 && node(AliveNodes(i)).CH~=0%如果节点不是簇头、能量大于0、拥有簇头
node(AliveNodes(i)).energy=node(AliveNodes(i)).energy-Lc*Eelec;
contorl_Overhead=contorl_Overhead+Lc*Eelec;%控制开销
end
end
% 画图 %
% for i=1:count_CH
% plot(node(CH(i)).location(1),node(CH(i)).location(2),'rx','linewidth',1);
% hold on;
% end
end
%%%%%%%%%%%%%%%%%%%%%%% ②稳态数据传输阶段 %%%%%%%%%%%%%%%%%%%%%%%%%%%
for z=1:1
%%%%%%%%%%%% 数据传送(消耗能量) %%%%%%%%%%%%
for i=1:count_CH
for j=1:node(CH(i)).CM_count%簇内节点传送数据
%%%%%%%%%%%%对应节点发送数据消耗能量%%%%%%%%%%%%
id=node(CH(i)).CM(j);%节点序号
d=sqrt(((node(id).location(1)-node(CH(i)).location(1)))^2+((node(id).location(2)-node(CH(i)).location(2)))^2);
if d>d0
node(id).energy=node(id).energy-Ld*(Eelec+Emp*d^4);
else
node(id).energy=node(id).energy-Ld*(Eelec+Efs*d^2);
end
%%%%%%%%%%%%对应簇头接收数据能耗%%%%%%%%%%%%
node(CH(i)).energy=node(CH(i)).energy-Ld*Eelec;
end
end
%%%%%%%%%%%%簇头将簇内数据融合并将数据送往基站（能量消耗）%%%%%%%%%%%%
for i=1:count_CH
node(CH(i)).energy=node(CH(i)).energy-node(CH(i)).CM_count*Ld*EDA;%数据融合
d=sqrt((node(CH(i)).location(1)-sinkx)^2+((node(CH(i)).location(2)-sinky)^2));%将数据传送至基站
if d>d0
node(CH(i)).energy=node(CH(i)).energy-Ld*(Eelec+Emp*d^4);
else
node(CH(i)).energy=node(CH(i)).energy-Ld*(Eelec+Efs*d^2);
end
end
end
%%%%%%%%%%%%%%%%%%%%%%% ③更新参数 %%%%%%%%%%%%%%%%%%%%%%%
for z=1:1
%%%%%%%%%%%%更新节点参数%%%%%%%%%%%%
for i=1:N
node(i).CH=0;% 表明节点的簇头
node(i).CM=[];% 表明节点的簇成员
node(i).CM_count=0;% 表明簇内的簇成员节点数
end
%%%%%%%%%%%%更新性能指标参数%%%%%%%%%%%%
r=r+1%轮数+1
number_AliveNodes
%%%吞吐量%%%
Throughput=Throughput+count_CH*Ld;%吞吐量
trace_Throughput(r)=Throughput;
%%%网络生命周期%%%
number_AliveNodes=N;
AliveNodes=1:1:N;
for i=1:N
if node(i).energy<=0
number_AliveNodes=number_AliveNodes-1;%跟新节点数
AliveNodes=AliveNodes(~ismember(AliveNodes,i));%删除死亡节点
end
end
network_Lifetime(r)=number_AliveNodes;%存活节点数量
%%%网络剩余能量%%%
E=0;
for i=1:N
if node(i).energy>0
E=E+node(i).energy;
end
end
network_ResidualEnergy(r)=E;%网络剩余能量
%%%网络时延%%%
% network_Delay(r)=delay;%网络时延
%%%控制开销%%%
network_Control_Overhead(r)=contorl_Overhead;%控制开销
%%%簇头个数%%%
network_CH_Count(r)=count_CH;%簇头个数
%%%参数更新%%%
% delay=0;%网络时延初始化
% contorl_Overhead=0;%控制开销初始化
end
end
end
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% 4.实验结果 %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
for zh=1:1
figure(3)
plot(network_Lifetime,'--k','linewidth',1.25) ;hold on
figure(4)
plot(network_ResidualEnergy,'--k','linewidth',1.25) ;hold on
figure(5)
plot(trace_Throughput,'--k','linewidth',1.25) ;hold on
figure(6)
plot(network_Control_Overhead,'--k','linewidth',1.25) ;hold on
end
SMfunc_1代码(适应度函数)
function result=SMfunc_1(CM,CH,node)
%%%%%% 簇内距离因子 %%%%%%
f2=0;%簇内距离因子
for i=1:length(CM)
d_min=inf;
for j=1:length(CH)
d=sqrt((node(CM(i)).location(1)-node(CH(j)).location(1))^2+((node(CM(i)).location(2)-node(CH(j)).location(2)))^2);
if d<d_min
d_min=d;
end
end
f2=f2+d_min^2;%记录最佳适应度值
end
%%%%%% 适应度函数 %%%%%%
F=f2;
result=F;
end
SMfunc2代码（簇头随机扰动）
function result = SMfunc2(CH,CH_candidate,node,bounder,node_HE)
for i=1:length(CH)%随机扰动
Next_CH_location(i,1)=node(CH(i)).location(1)+(-bounder)+rand*(2*bounder);
Next_CH_location(i,2)=node(CH(i)).location(2)+(-bounder)+rand*(2*bounder);
end
for i=1:length(CH)%选择近距离节点
d_min=inf;
for j=1:length(CH_candidate)
d=sqrt((Next_CH_location(i,1)-node(CH_candidate(j)).location(1))^2+(Next_CH_location(i,2)-node(CH_candidate(j)).location(2))^2);
if d_min>d
d_min=d;
NextCH(i)=CH_candidate(j);
end
end
end
if length(unique(NextCH))~=length(NextCH)%避免重复的簇头,若有重复簇头，则从高能量节点中随机挑选簇头补上
UniqueCH=unique(NextCH);
CH_candidate=node_HE(~ismember(node_HE,UniqueCH));
count=(length(NextCH)-length(UniqueCH));
RandSet=randperm(length(CH_candidate),count);
UniqueCH=[UniqueCH CH_candidate(RandSet)];
NextCH=UniqueCH;
end
result=NextCH;%输出结果
end
