01 XC6206 3.3V稳压

一、前言

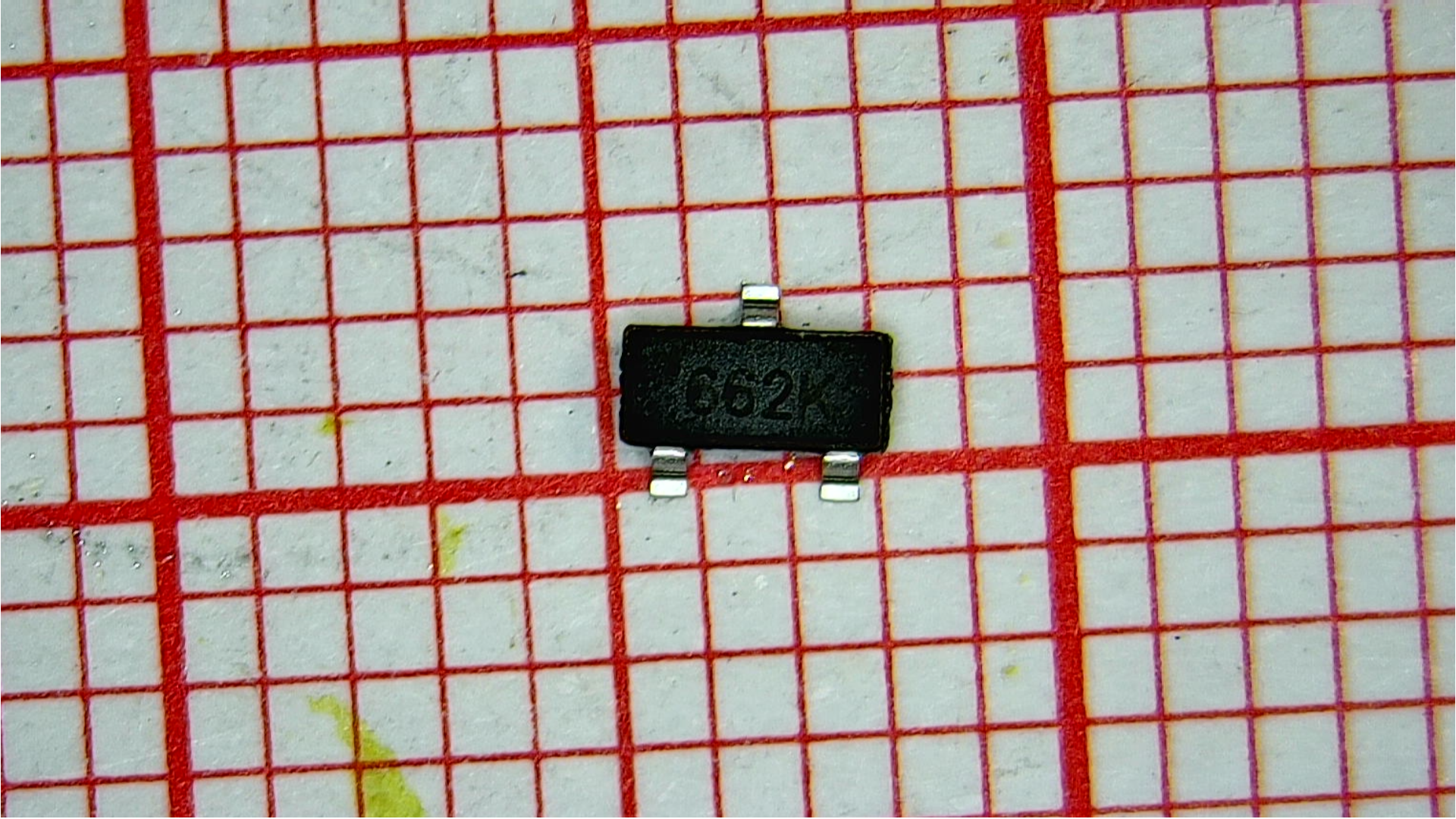

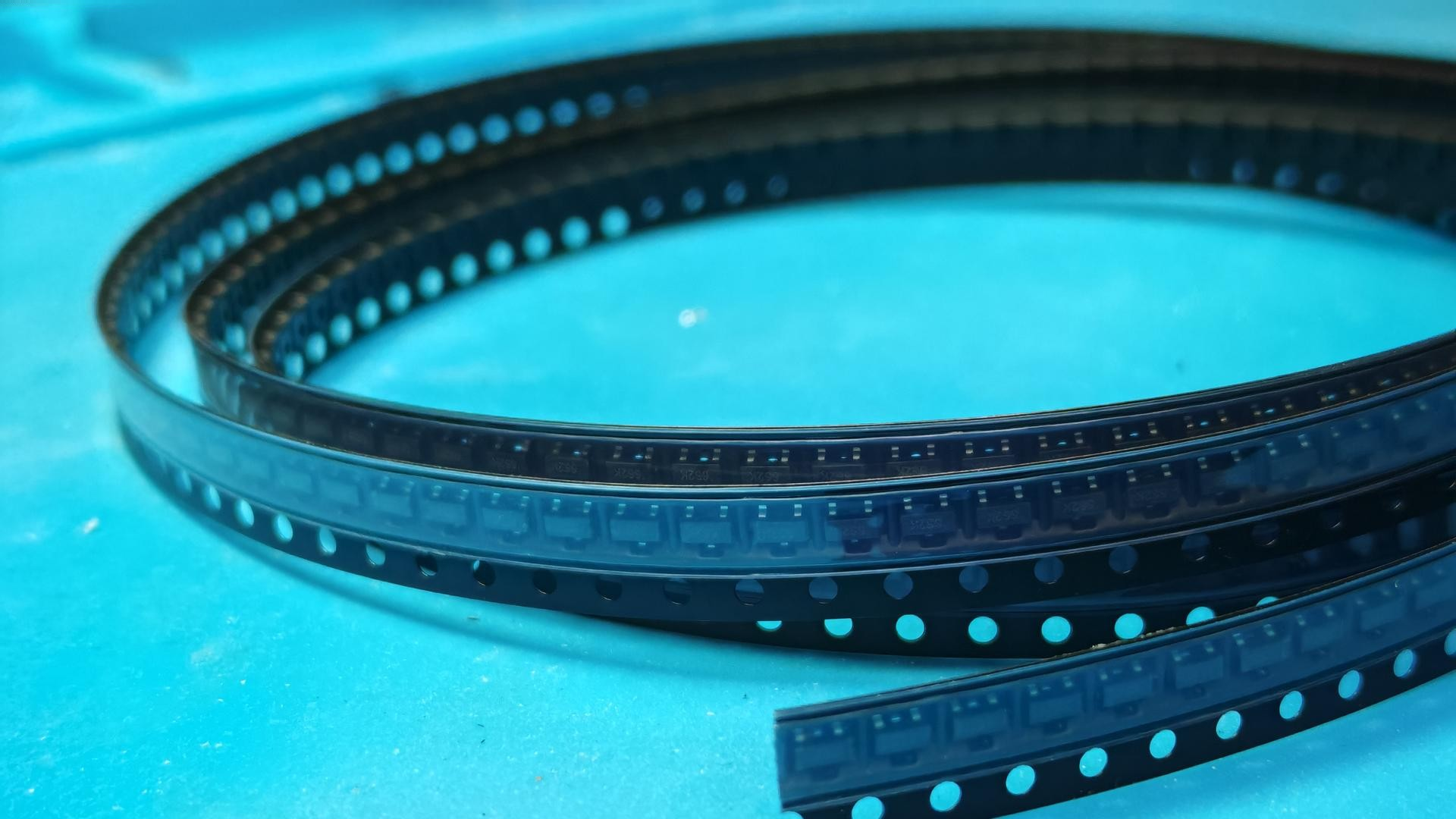

刚刚到了我购买的 XC6206三端稳压芯片。下面对它的性能进行初步测试。相比于普通的 1117，它具有更低的稳压压差。下面通过测试，得到它的一些基本特性。

GM1709030161_1920_1080.MP4|_-4

二、测试电路

测试电路非常简单，在XC6206输入和输出增加滤波电容。通过单面板铺设测试电路。一分钟后的带了四块测试PCB。

GM1709030743_1920_1080.MP4|_-3

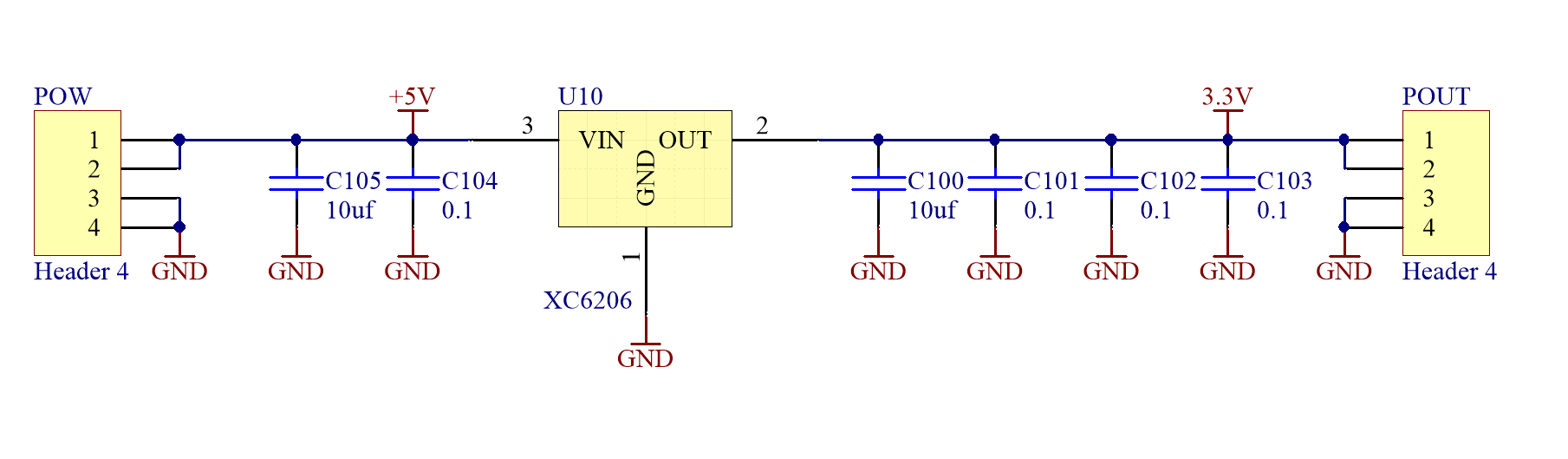

▲ 图1.2.1 测试电路原理图

▲ 图1.2.1 测试电路原理图

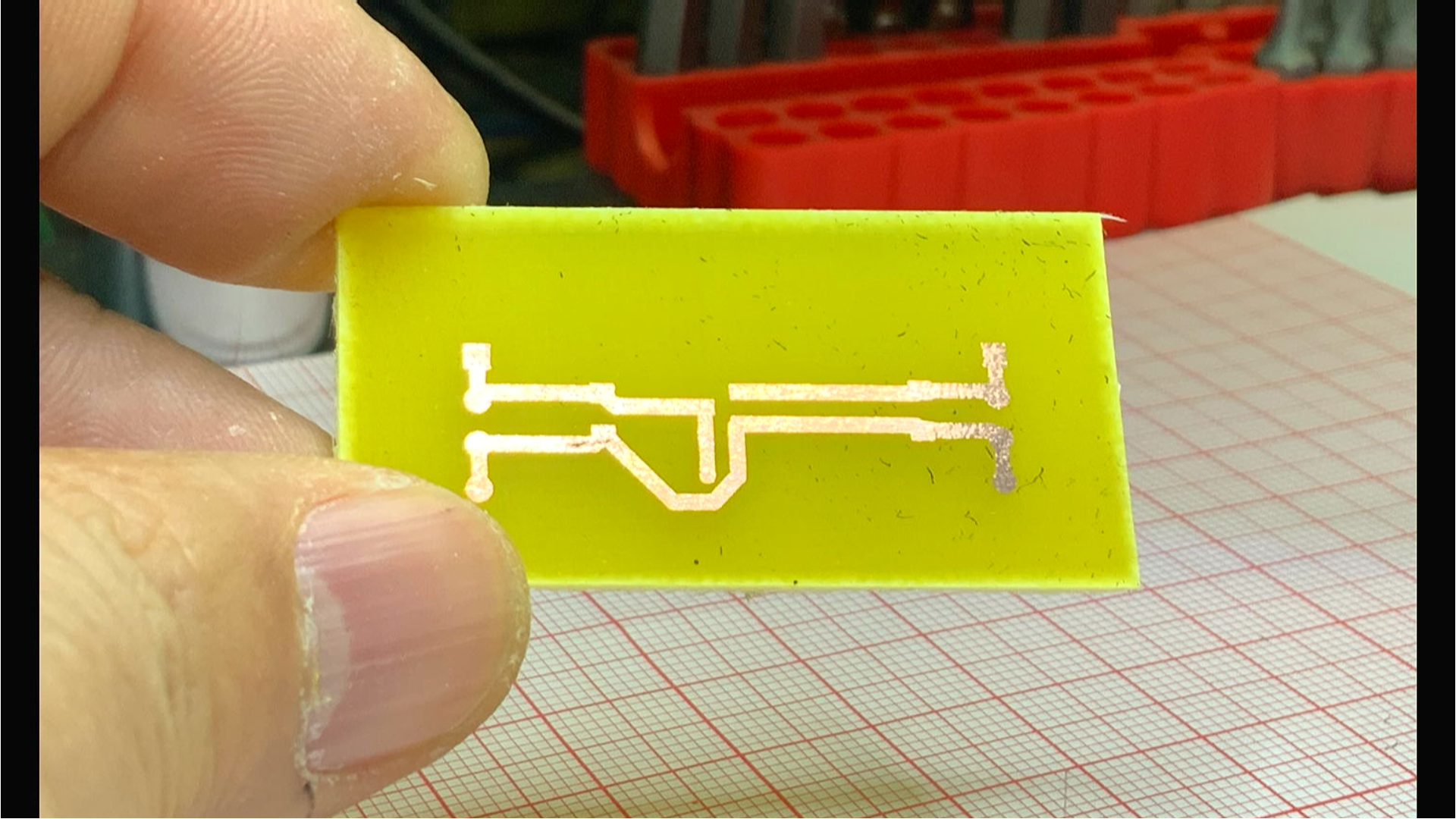

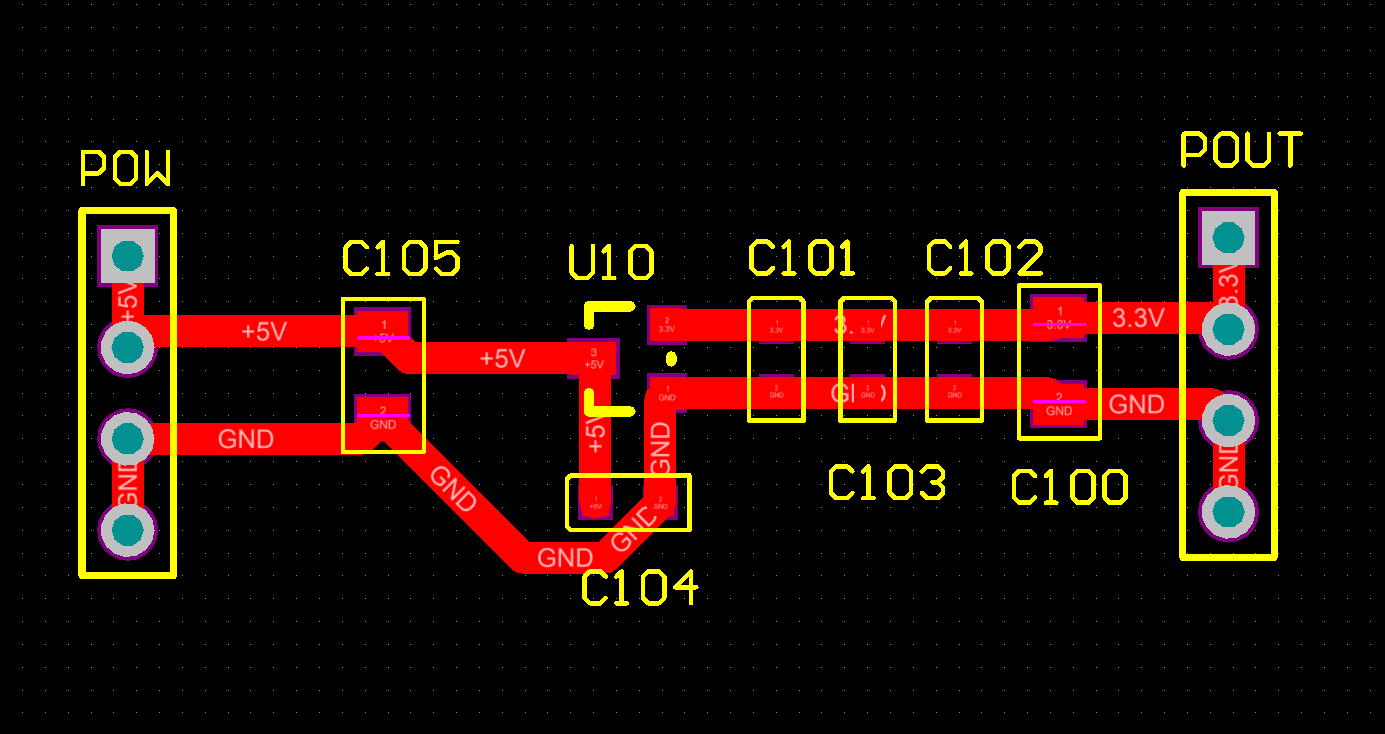

▲ 图1.2.2 测试电路PCB

▲ 图1.2.2 测试电路PCB

三、测试电路

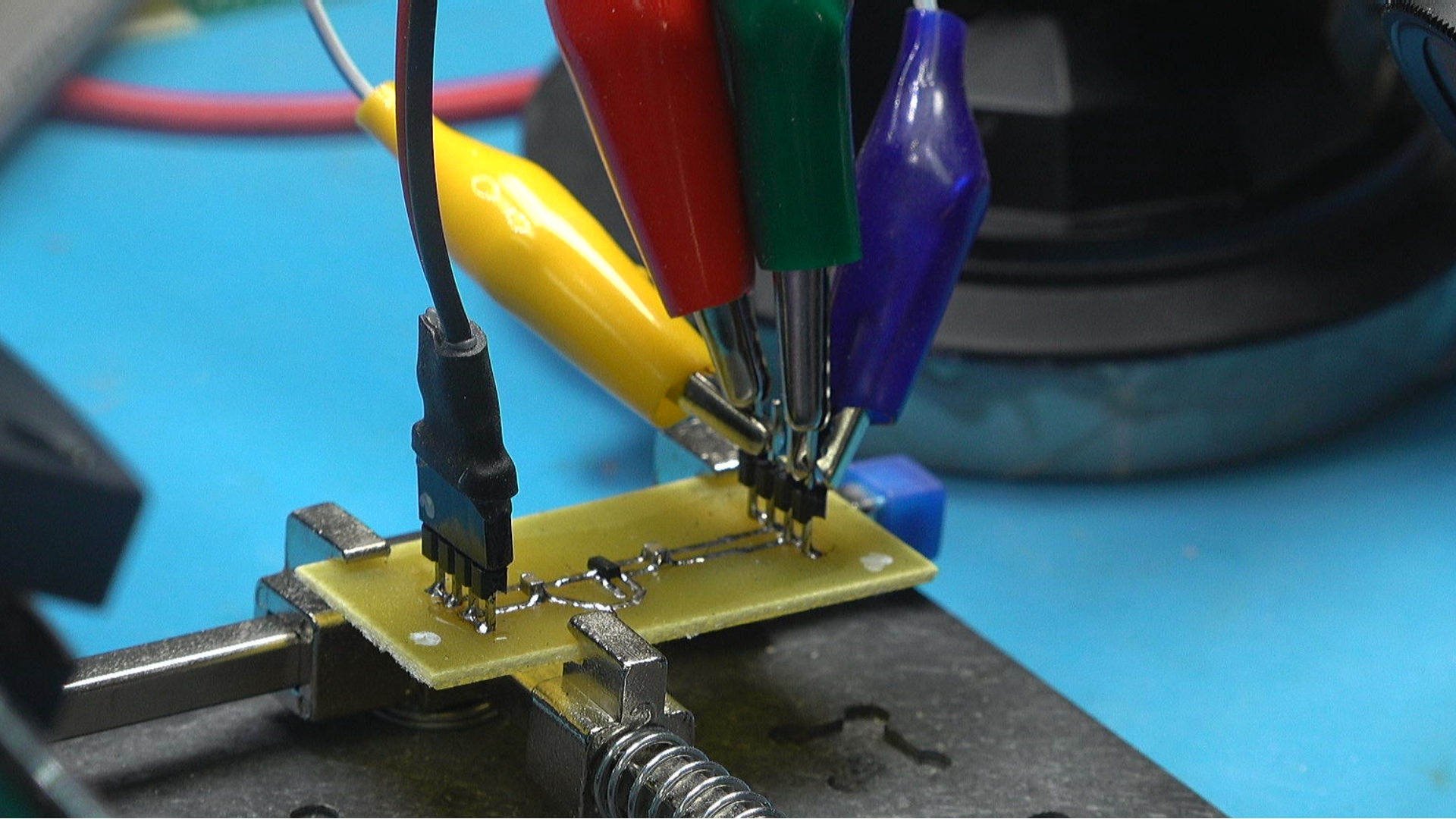

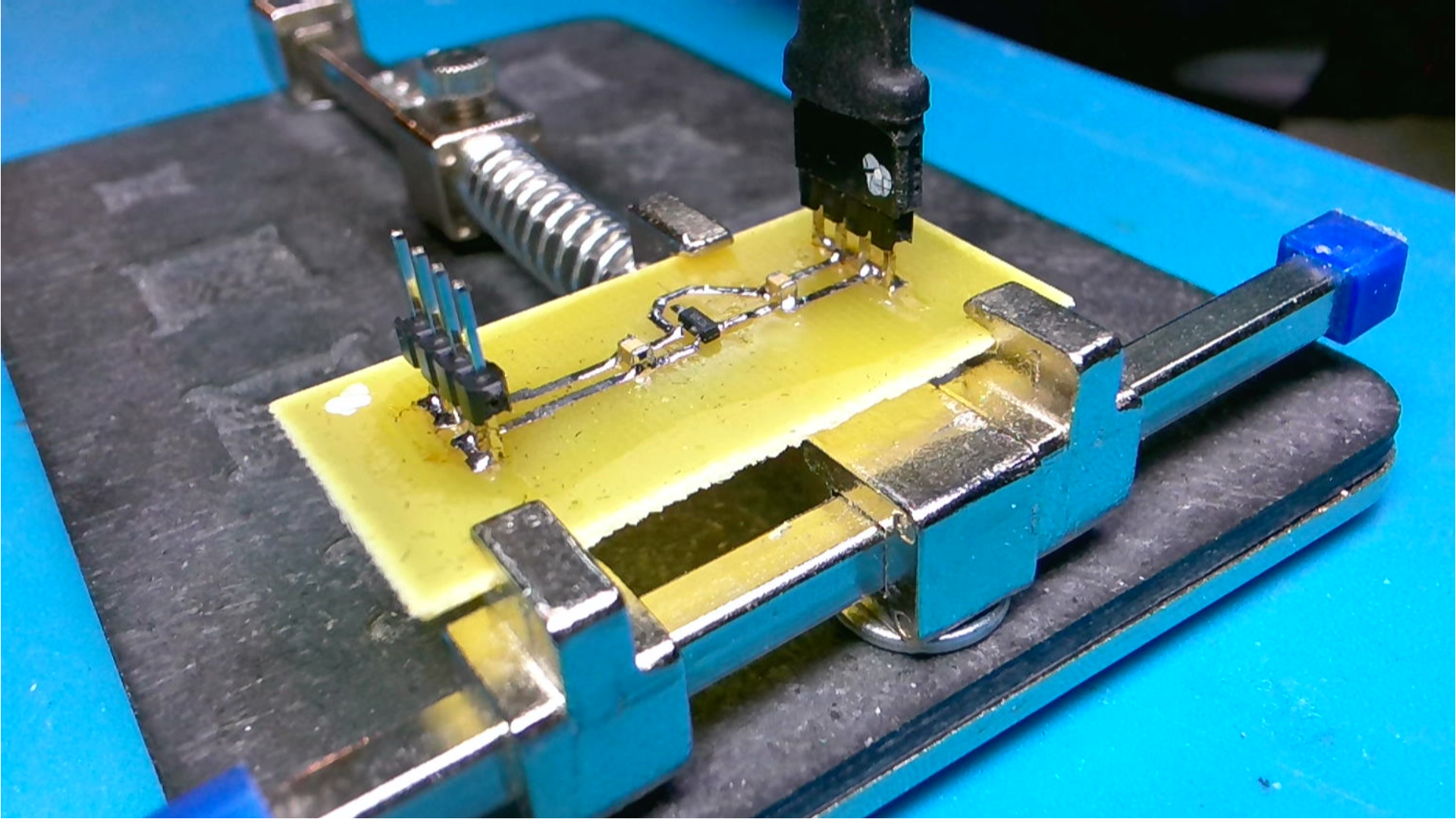

将测试电路板焊接之后，固定在测试平台上。在输入端口施加5V电源，发现稳压电源输出电流很大，已经 1A 限流了。还看到了芯片冒烟了。在放大器下可以看到芯片表面出现烧坏的情形。经过检查，刚才是把电路的输入输出弄反了。下面将芯片使用新的进行替换。确定好正确的输入端，重新进行测试。

GM1709032001_1920_1080.MP4|_-6

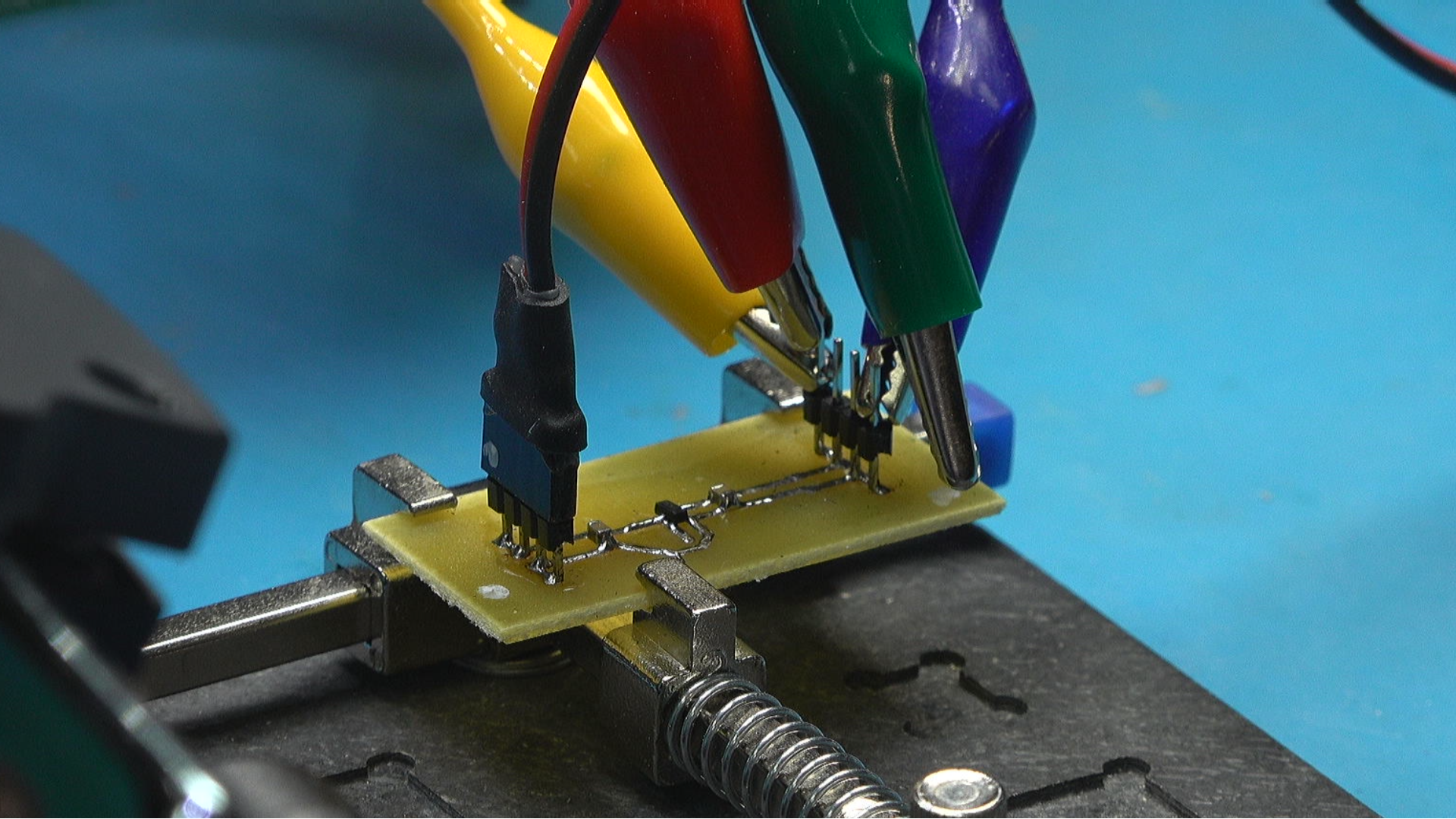

测量输入电压，电压为 5V。测量输出电压，电压为3.34V。这个结果满足XC6206输出特性。

GM1709032390_1920_1080.MP4|_-2

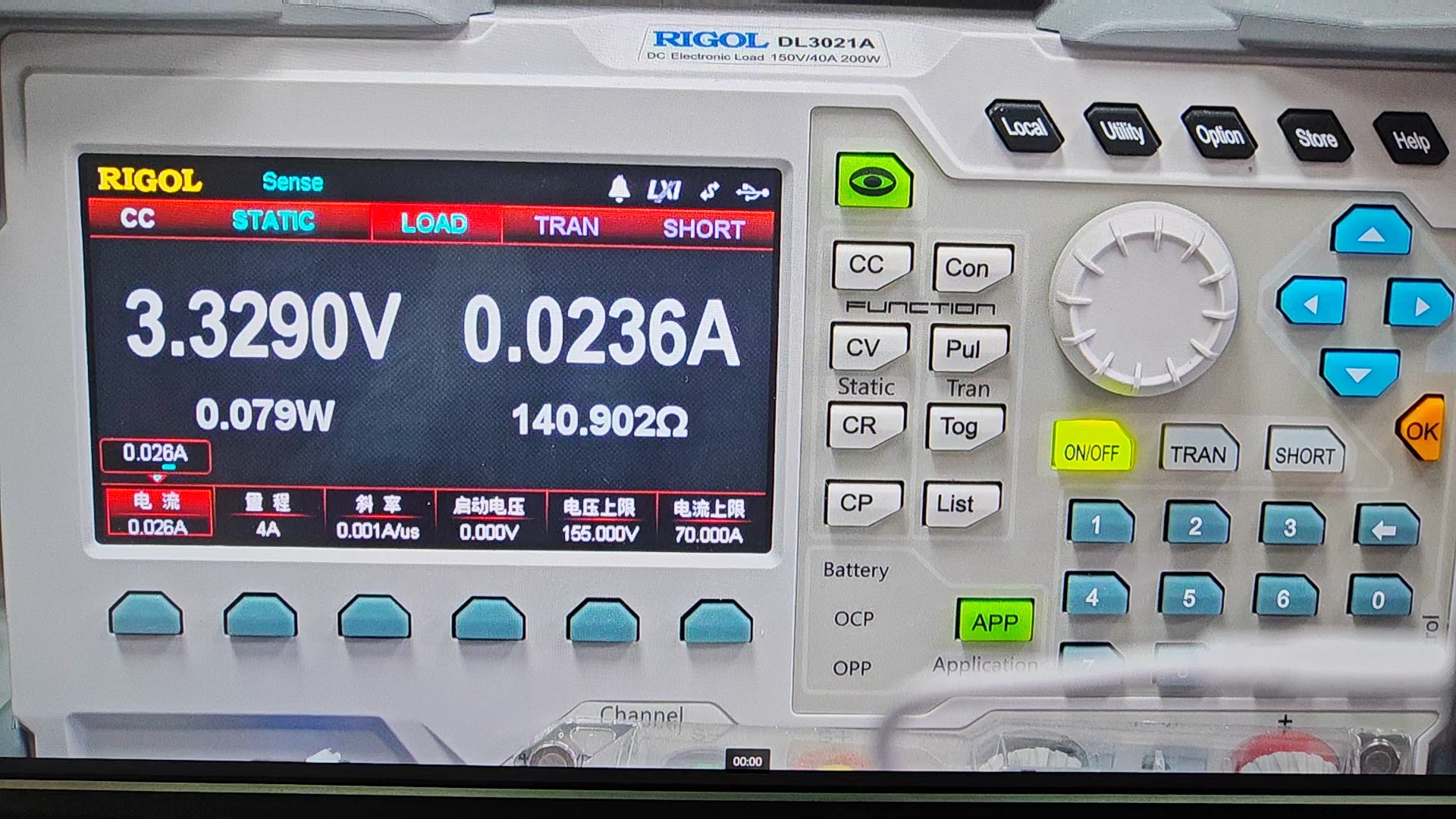

使用电子负载 DL3021A测量 XC6206 输出特性。设置输出电流从 0 逐步增加到 100mA，测量每个电流下对应的输出电压。这是测量结果。发现这次测量时，没有打开 DL3021A 的电压感知功能。重新进行测量，这次使用 DL3021A 的电压感知测量输出电压。这是第二次测量结果。在同样的电流下，对应的电压下降减少了。这是因为电压感知通道没有工作电流对测量电压的影响。根据电压变化数据，可以得到 XC6206 输出等效串联电阻大约为 150 毫欧姆。

GM1709033358_1920_1080.MP4|_-8

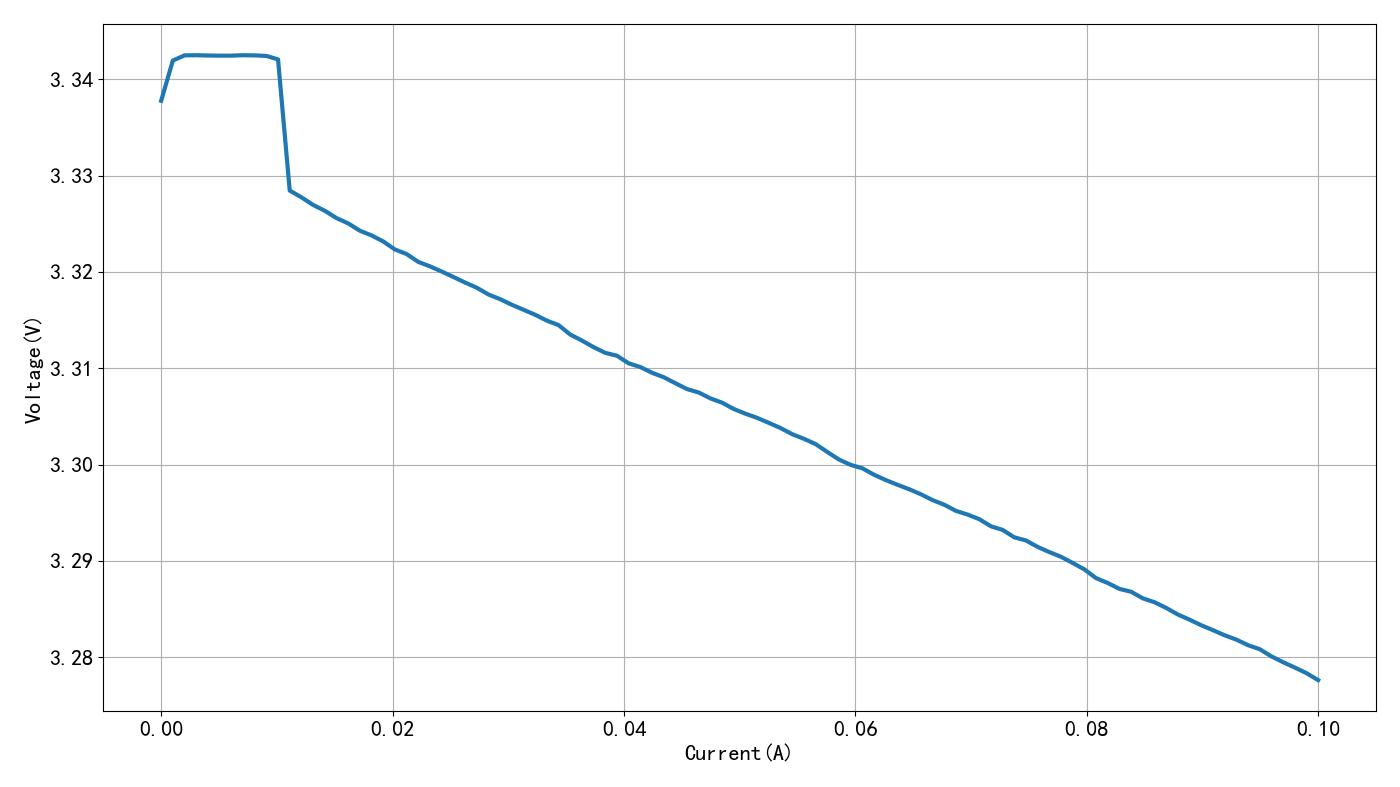

▲ 图1.3.1 没有使用电压感知测量的结果

▲ 图1.3.1 没有使用电压感知测量的结果

idim=[0.0000,0.0010,0.0020,0.0030,0.0040,0.0051,0.0061,0.0071,0.0081,0.0091,0.0101,0.0111,0.0121,0.0131,0.0141,0.0152,0.0162,0.0172,0.0182,0.0192,0.0202,0.0212,0.0222,0.0232,0.0242,0.0253,0.0263,0.0273,0.0283,0.0293,0.0303,0.0313,0.0323,0.0333,0.0343,0.0354,0.0364,0.0374,0.0384,0.0394,0.0404,0.0414,0.0424,0.0434,0.0444,0.0455,0.0465,0.0475,0.0485,0.0495,0.0505,0.0515,0.0525,0.0535,0.0545,0.0556,0.0566,0.0576,0.0586,0.0596,0.0606,0.0616,0.0626,0.0636,0.0646,0.0657,0.0667,0.0677,0.0687,0.0697,0.0707,0.0717,0.0727,0.0737,0.0747,0.0758,0.0768,0.0778,0.0788,0.0798,0.0808,0.0818,0.0828,0.0838,0.0848,0.0859,0.0869,0.0879,0.0889,0.0899,0.0909,0.0919,0.0929,0.0939,0.0949,0.0960,0.0970,0.0980,0.0990,0.1000]
vdim=[3.3378,3.3419,3.3425,3.3425,3.3425,3.3425,3.3425,3.3425,3.3425,3.3424,3.3421,3.3284,3.3277,3.3270,3.3264,3.3256,3.3250,3.3243,3.3238,3.3232,3.3223,3.3219,3.3210,3.3206,3.3200,3.3195,3.3189,3.3184,3.3177,3.3172,3.3166,3.3161,3.3156,3.3149,3.3145,3.3135,3.3129,3.3122,3.3116,3.3113,3.3105,3.3101,3.3095,3.3091,3.3084,3.3078,3.3075,3.3069,3.3064,3.3058,3.3053,3.3048,3.3043,3.3038,3.3032,3.3027,3.3021,3.3013,3.3005,3.3000,3.2996,3.2989,3.2984,3.2979,3.2974,3.2969,3.2963,3.2958,3.2952,3.2948,3.2943,3.2936,3.2932,3.2924,3.2921,3.2915,3.2909,3.2904,3.2898,3.2891,3.2882,3.2877,3.2871,3.2868,3.2861,3.2857,3.2851,3.2844,3.2839,3.2833,3.2828,3.2823,3.2818,3.2813,3.2808,3.2801,3.2795,3.2789,3.2784,3.2776]

▲ 图1.3.2 使用电压感知测量的结果

▲ 图1.3.2 使用电压感知测量的结果

idim=[0.0000,0.0010,0.0020,0.0030,0.0040,0.0051,0.0061,0.0071,0.0081,0.0091,0.0101,0.0111,0.0121,0.0131,0.0141,0.0152,0.0162,0.0172,0.0182,0.0192,0.0202,0.0212,0.0222,0.0232,0.0242,0.0253,0.0263,0.0273,0.0283,0.0293,0.0303,0.0313,0.0323,0.0333,0.0343,0.0354,0.0364,0.0374,0.0384,0.0394,0.0404,0.0414,0.0424,0.0434,0.0444,0.0455,0.0465,0.0475,0.0485,0.0495,0.0505,0.0515,0.0525,0.0535,0.0545,0.0556,0.0566,0.0576,0.0586,0.0596,0.0606,0.0616,0.0626,0.0636,0.0646,0.0657,0.0667,0.0677,0.0687,0.0697,0.0707,0.0717,0.0727,0.0737,0.0747,0.0758,0.0768,0.0778,0.0788,0.0798,0.0808,0.0818,0.0828,0.0838,0.0848,0.0859,0.0869,0.0879,0.0889,0.0899,0.0909,0.0919,0.0929,0.0939,0.0949,0.0960,0.0970,0.0980,0.0990,0.1000]
vdim=[3.3424,3.3424,3.3424,3.3424,3.3423,3.3423,3.3423,3.3423,3.3423,3.3423,3.3392,3.3321,3.3318,3.3314,3.3313,3.3310,3.3308,3.3305,3.3302,3.3300,3.3299,3.3297,3.3295,3.3293,3.3291,3.3289,3.3287,3.3286,3.3284,3.3282,3.3281,3.3280,3.3278,3.3276,3.3274,3.3272,3.3270,3.3269,3.3267,3.3266,3.3265,3.3263,3.3262,3.3261,3.3259,3.3259,3.3258,3.3257,3.3255,3.3254,3.3252,3.3250,3.3249,3.3249,3.3247,3.3246,3.3245,3.3243,3.3241,3.3240,3.3238,3.3237,3.3235,3.3235,3.3233,3.3233,3.3232,3.3229,3.3229,3.3227,3.3225,3.3224,3.3223,3.3221,3.3221,3.3220,3.3218,3.3216,3.3215,3.3214,3.3212,3.3209,3.3208,3.3208,3.3206,3.3204,3.3203,3.3202,3.3199,3.3198,3.3197,3.3196,3.3194,3.3193,3.3192,3.3190,3.3188,3.3187,3.3186,3.3183]

#!/usr/local/bin/python
# -*- coding: gbk -*-
#============================================================
# TEST1.PY                     -- by Dr. ZhuoQing 2024-02-27
#
# Note:
#============================================================

from headm import *
from tsmodule.tsvisa        import *

dl3021open(102)

dl3021on()

idim = linspace(0, 0.1, 100)
vdim = []


for i in idim:
    dl3021setcurrent(i)
    time.sleep(.5)
    v = dl3021volt()
    printff(i, v)
    vdim.append(v)

    tspsave('meas1', idim=idim, vdim=vdim)

dl3021setcurrent(0)
plt.plot(idim, vdim, lw=3)

plt.xlabel("Current(A)")
plt.ylabel("Voltage(V)")
plt.grid(True)
plt.tight_layout()
plt.show()



#------------------------------------------------------------
printf("\a")



#------------------------------------------------------------
#        END OF FILE : TEST1.PY
#============================================================

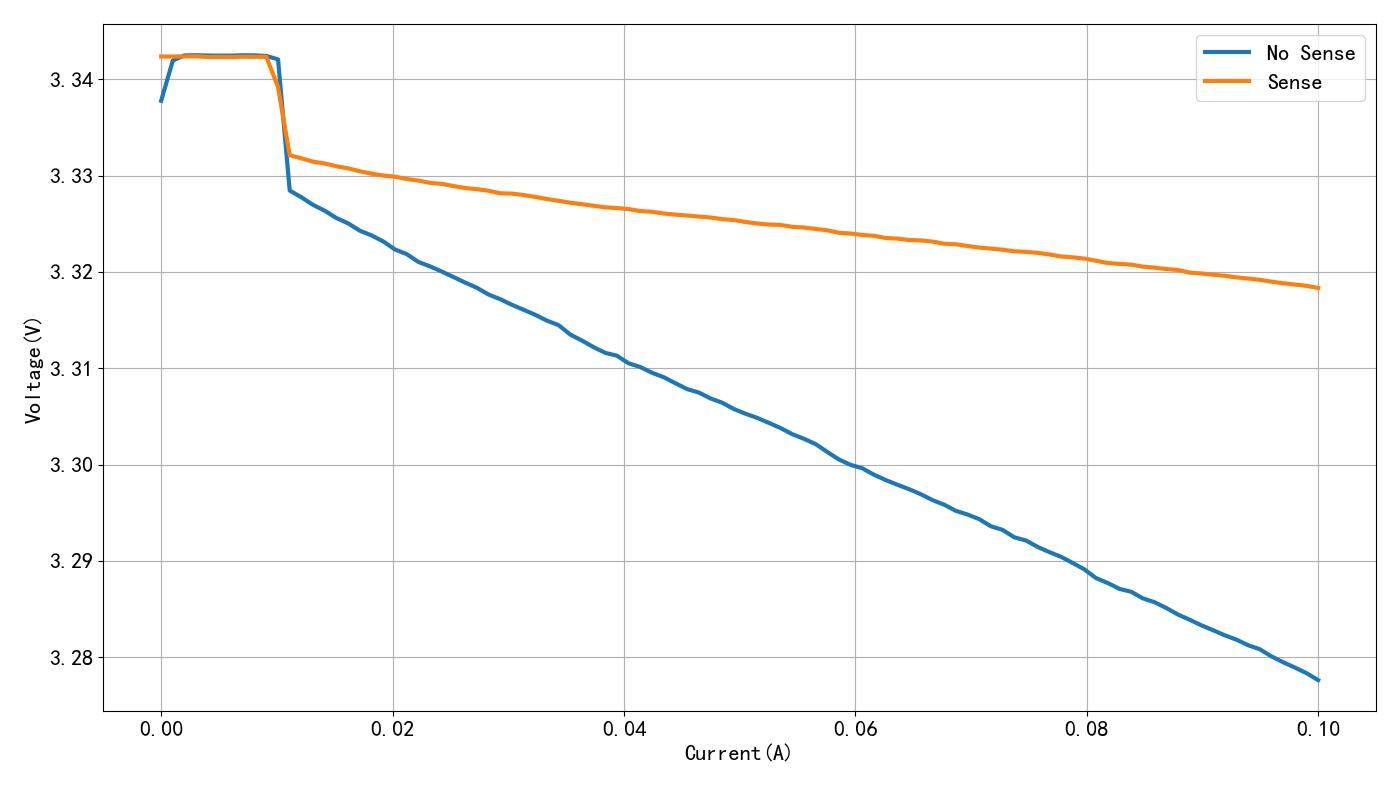

▲ 图1.3.3 对比使用Sense和没有Sense测量的结果

▲ 图1.3.3 对比使用Sense和没有Sense测量的结果

※ 总结 ※

本文测量了 XC6206 的基本特性。这是一个 SOT23封装的 3.3V 稳压器。它输出最大工作电流为 100mA。利用 DL3021A测量了它的输出电阻大约为 150毫欧姆。

GM1709033636_1920_1080.MP4|_-4

补充测试

▲ 图2.1.1 10mA负载下输入输出电压

▲ 图2.1.1 10mA负载下输入输出电压

#!/usr/local/bin/python
# -*- coding: gbk -*-
#============================================================
# TEST1.PY                     -- by Dr. ZhuoQing 2024-02-27
#
# Note:
#============================================================

from headm import *
from tsmodule.tsvisa        import *

vin = linspace(0, 5, 100)
vout = []

dm3068open()

for v in vin:
    dh1766volt1(v)
    time.sleep(2)

    vv = dm3068vdc()
    vout.append(vv)

    printff(v, vv)

plt.plot(vin, vout, lw=3)

plt.xlabel("Input(V)")
plt.ylabel("Output(V)")
plt.grid(True)
plt.tight_layout()
plt.show()




#------------------------------------------------------------
#        END OF FILE : TEST1.PY
#============================================================
