【ns-3】OpenMPI安装与ns-3的分布式配置及运行

ns-3分布式mpi配置及运行

一，安装openmpi

1，下载Open MPI

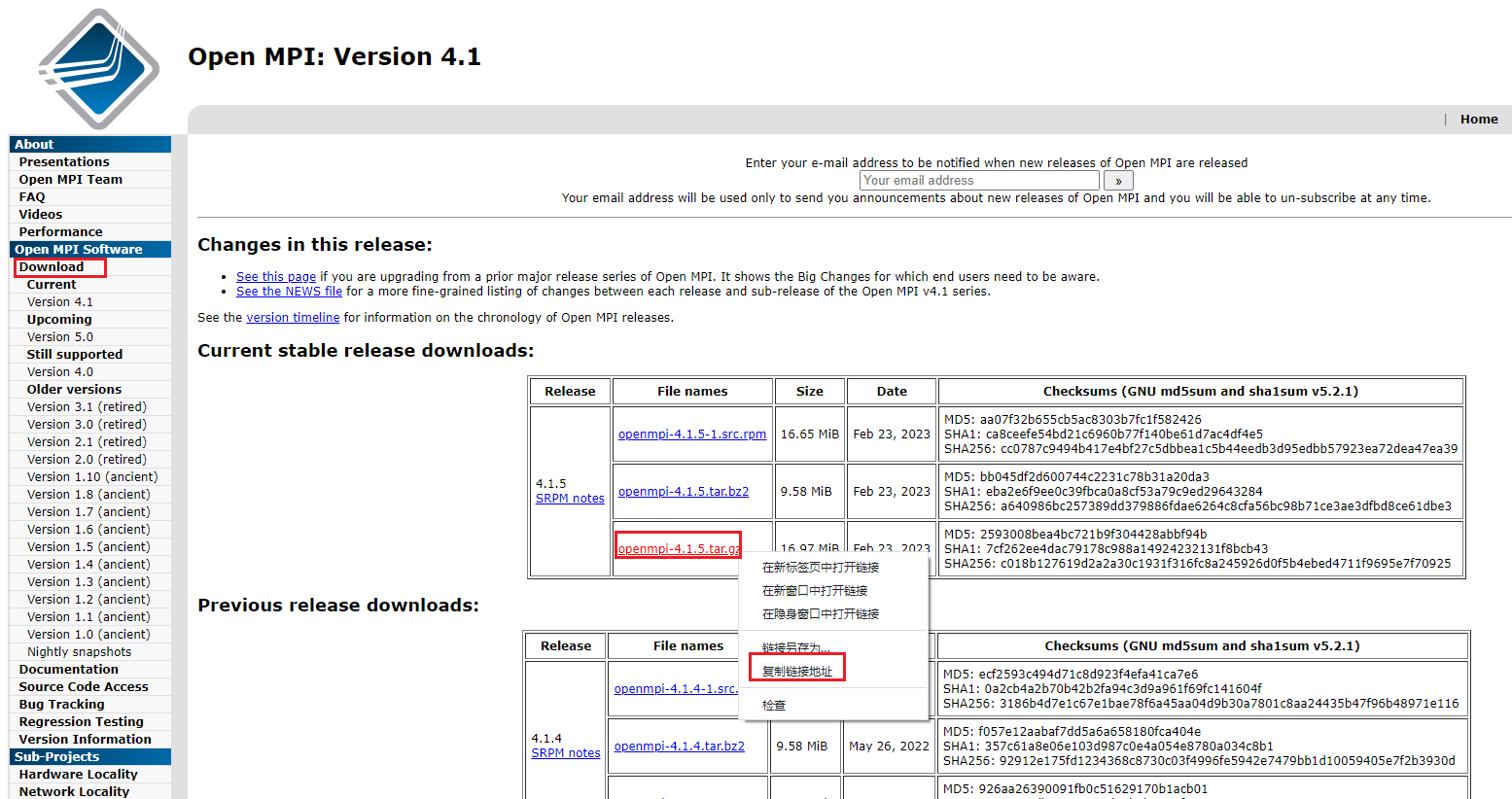

1.1，访问Open MPI官网，获取最新下载链接

1.2，进入命令窗口，使用wget获取安装包（或直接网页下载）

wget https://download.open-mpi.org/release/open-mpi/v4.1/openmpi-4.1.5.tar.gz

1.3，解压安装包

tar- zxvf openmpi-4.1.5.tar.gz
cd openmpi-4.1.5

2，安装

2.1，安装到用户目录

配置安装到 /usr/local/openmpi目录下，可以指定为其他目录，如，用户目录下。

./configure --prefix="/usr/local/openmpi"

2.2，编译安装

make -j8
sudo make install

3，配置环境

3.1，打开配置文件

sudo gedit ~/.bashrc

3.2，末尾添加

export PATH="$PATH:/usr/local/openmpi/bin"
export LD_LIBRARY_PATH="$LD_LIBRARY_PATH:/usr/local/openmpi/lib/"

3.3，保存后，执行

sudo ldconfig

打开新的终端，使环境变量生效

4，测试是否安装成功

cd ~/openmpi-4.0.5/examples
make all
mpirun -np 4 hello_c

参考链接：

https://blog.csdn.net/m0_49448331/article/details/128041491?spm=1001.2014.3001.5502

二，ns-3配置MPI

ns-3 在大规模拓扑仿真中，为加速仿真速度，可以利用MPI工具，实现分布式多进程联合仿真。

1，配置ns-3的文件

sudo gedit /etc/profile

在文件最后加入一行路径为ubuntu系统安装openmpi的路径; 一行ns-3的安装路径

export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/usr/local/lib
export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/home/antl/zq/ns-allinone-3.30.1/ns-3.30.1

更新源

source /etc/profile
sudo /sbin/ldconfig -v

2，运行编译

根据当前版本ns-3的文档执行指令（文档位置：…/src/mpi/doc/distributed.rst）

清理目录

./waf distclean

使能MPI

./waf -d debug configure --enable-examples --enable-tests --enable-mpi

编译

./waf

MPI运行脚本

mpirun -np 2 ./waf --run simple-distributed

参考链接：

https://blog.csdn.net/m0_49448331/article/details/128043426

三，demo

撰写可MPI执行的脚本的核心是根据systemId分别运行应用部分代码，实现多核处理；

/*
· 使能：./waf configure -d debug --enable-examples --enable-tests --enable-mpi
· 单机：mpirun -np 2 ./waf --run "scratch/fattree-distributed"
· 多机：mpirun -np 2 -machinefile mpihosts ./waf --run "scratch/fattree-distributed"
· ./waf --run simple-distributed --command-template="mpiexec -np 2 %s"
· ./waf --run nms-p2p-nix-distributed --command-template="mpiexec -np 2 -machinefile mpihosts %s --nix=0"
*/

...
#include <mpi.h>
...

int main (int argc, char *argv[])
{
    ...
    // Enable parallel simulator with the command line arguments
    MpiInterface::Enable (&argc, &argv);
    uint32_t systemId = MpiInterface::GetSystemId ();
    uint32_t systemCount = MpiInterface::GetSize ();

    ...
    //启动应用
     PsWorkerApp (systemId);

    ...
    // Exit the MPI execution environment
    MpiInterface::Disable ();

    ...
}

void PsWorkerApp (uint32_t systemId){
  for(uint32_t i=numofHost/10;i<numofHost;i++){
      ...

      if (systemId == 1)
      {
        Address sinkLocalAddress (InetSocketAddress (Ipv4Address::GetAny (), port[desttemp]));
        PacketSinkHelper sinkHelper ("ns3::UdpSocketFactory", sinkLocalAddress);
        ApplicationContainer sinkApp = sinkHelper.Install (hostNodes.Get (desttemp));
        sinkApp.Start (Seconds (next_time));
        sinkApp.Stop (Seconds (10.0));

      }

      if (systemId == 0)
      {
        OnOffHelper clientHelper1 ("ns3::UdpSocketFactory", Address ());
        clientHelper1.SetAttribute ("OnTime", StringValue (onfilename));
        clientHelper1.SetAttribute ("OffTime", StringValue (offfilename));
        clientHelper1.SetAttribute ("DataRate", DataRateValue (DataRate ("10Gbps")));
        clientHelper1.SetAttribute ("PacketSize", UintegerValue (1024));
        clientHelper1.SetAttribute ("Totaltime", DoubleValue (on));
        clientHelper1.SetAttribute ("Stoptime", DoubleValue (run_time));

        ApplicationContainer clientApps1;
        AddressValue remoteAddress (InetSocketAddress (ipEH[desttemp].GetAddress (1), port[desttemp]));
        clientHelper1.SetAttribute ("Remote", remoteAddress);
        clientApps1.Add (clientHelper1.Install (hostNodes.Get (i)));
        clientApps1.Start (Seconds (next_time));
        clientApps1.Stop (Seconds (10.0));
      }
    ...
}
