【OpenFOAM】学习module1-02

- - 1

of9

1

case:$PTOFC/101OF/3d_damBreak
0
├── alpha.water
├── epsilon
├── k
├── nut
├── p_rgh
└── U
0/U

  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  9
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       volVectorField;
    object      U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //


dimensions      [0 1 -1 0 0 0 0];

internalField   uniform (0 0 0);

boundaryField
{
    front
    {
        type            fixedValue;
        value           uniform (0 0 0);
    }
    back
    {
        type            fixedValue;
        value           uniform (0 0 0);
    }
    left
    {
        type            fixedValue;
        value           uniform (0 0 0);
    }
    right
    {
        type            fixedValue;#noSlip;
        value           uniform (0 0 0);
    }
    bottom
    {
        type            fixedValue;
        value           uniform (0 0 0);
    }
    top
    {
        type            pressureInletOutletVelocity;
        value           uniform (0 0 0);
    }
    stlSurface
    {
        type            fixedValue;
        value           uniform (0 0 0);
    }

}

constant/momentumTransport

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  9
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       dictionary;
    object      momentumTransport;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //


simulationType  RAS;	//laminar

RAS
{
    RASModel        kEpsilon;

    turbulence      on;

    printCoeffs     on;
}

// ************************************************************************* //

system/controlDict

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  9
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       dictionary;
    object      controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //


application     interFoam;

startFrom       startTime;

startTime       0;

stopAt          endTime;

endTime         8;

deltaT          0.0001;

writeControl    adjustableRunTime;

writeInterval   0.02;

purgeWrite      0;#3，只存最后三个步长

writeFormat     ascii;

writePrecision  8;

writeCompression uncompressed;#不压缩

timeFormat      general;

timePrecision   8;

runTimeModifiable yes;

adjustTimeStep  yes;

maxCo           1.0;
maxAlphaCo      0.5;
maxDeltaT       0.01;

// ************************************************************************* //

functions
{

///
/*
//OF8
minmaxdomain
{
    type fieldMinMax;

    functionObjectLibs ("libfieldFunctionObjects.so");

    enabled true; //true or false

    mode component;

    writeControl timeStep;
    writeInterval 1;

    log true;

    fields (p p_rgh U alpha.water k epsilon);
}
*/

minmaxdomain_scalar
{
    type            volFieldValue;
    libs            ("libfieldFunctionObjects.so");

    enabled 	    true; 	//true or false
    log             true;	//write to screen

    //writeControl    writeTime;
    writeControl    timeStep;
    writeInterval   1;

    writeFields     false;	//write solution to field value - Not needed when only reporting value to screen

    writeLocation   true;	//write location in the output file

    //mode component;

    regionType      all;

    operation       none;

    fields
    (
        p
	p_rgh
        alpha.water
	k
	epsilon
    );
}

minmaxdomain_vector
{
    type            volFieldValue;
    libs            ("libfieldFunctionObjects.so");

    enabled 	    true; 	//true or false
    log             true;	//write to screen

    //writeControl    writeTime;
    writeControl    timeStep;
    writeInterval   1;

    writeFields     false;	//write solution to field value - Not needed when only reporting value to screen

    writeLocation   true;	//write location in the output file

    //mode component;

    regionType      all;

    operation       none;

    fields
    (
        U
    );
}

mindomain_scalar
{
    $minmaxdomain_scalar
    operation       min;
}

mindomain_vector
{
    $minmaxdomain_vector
    operation       minMag;
}

maxdomain_scalar
{
    $minmaxdomain_scalar
    operation       max;
}

maxdomain_vector
{
    $minmaxdomain_vector
    operation       maxMag;
}

///

///
water_in_domain
{
    type            volFieldValue;
    functionObjectLibs ("libfieldFunctionObjects.so");

    enabled         true;
    log             true;

    //writeControl    writeTime;
    writeControl   timeStep;
    writeInterval  1;

    writeFields     false;
    writeLocation   false;

    regionType      all;

    operation       volIntegrate;
    fields
    (
        alpha.water
    );
}

///

///
probes1
{
    type probes;
    functionObjectLibs ("libsampling.so");
    //dictionary probesDict;
    probeLocations
    (
	(0.82450002 0 0.021)
	(0.82450002 0 0.061)
	(0.82450002 0 0.101)
	(0.82450002 0 0.141)
	(0.8035 0 0.161)
	(0.7635 0 0.161)
	(0.7235 0 0.161)
	(0.6835 0 0.161)
    );

    fields
    (
	p p_rgh
    );

    writeControl       timeStep;
    writeInterval      1;
}
///

///
    yplus
    {
    	type yPlus;
    	functionObjectLibs ("libfieldFunctionObjects.so");
    	enabled true;
        writeControl outputTime;
    }
///

};

system/fvSolution

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  9
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       dictionary;
    object      fvSolution;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //


solvers
{
    "alpha.water.*"
    {
        nAlphaCorr      2;
        nAlphaSubCycles 1;
        cAlpha          1;

        MULESCorr       yes;
        nLimiterIter    10;

        solver          PBiCGStab;
        preconditioner  DILU;
        tolerance       1e-08;
        relTol          0;
    }

    "(pcorr|pcorrFinal)"
    {
        solver          PCG;
        preconditioner  DIC;
        tolerance       1e-8;
        relTol          0;
    }

    p_rgh
    {

        solver          PCG;
        preconditioner  DIC;
        tolerance       1e-06;
        relTol          0.01;
	      minIter		2;
    }

    p_rghFinal
    {
        $p_rgh;
        //tolerance       1e-08;
        relTol          0;
	      minIter		2;
    }

    "(U|UFinal)"
    {
        solver          PBiCGStab;
        preconditioner  DILU;
        tolerance       1e-08;
        relTol          0;

    }

    "(k|epsilon).*"
    {
        solver          PBiCGStab;
        preconditioner  DILU;
        tolerance       1e-08;
        relTol          0;
    }

}

PIMPLE
{
    consistent 		yes;
    momentumPredictor   yes;

    nOuterCorrectors    1;
    nCorrectors         3;
    nNonOrthogonalCorrectors 1;
}

relaxationFactors
{
    fields
    {
        ".*" 0.9;
    }
    equations
    {
        ".*" 0.9;
    }
}

// ************************************************************************* //

system/fvScheme

/*--------------------------------*- C++ -*----------------------------------*\
  =========                 |
  \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox
   \\    /   O peration     | Website:  https://openfoam.org
    \\  /    A nd           | Version:  9
     \\/     M anipulation  |
\*---------------------------------------------------------------------------*/
FoamFile
{
    format      ascii;
    class       dictionary;
    object      fvSchemes;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //


ddtSchemes
{
    default         Euler;
}

gradSchemes
{
    default         Gauss linear;
    grad(U)         cellLimited Gauss linear 1;#除了U，其他使用默认 Gauss linear
}

divSchemes
{
    div(rhoPhi,U)    Gauss linearUpwindV grad(U);
    div(phi,alpha)   Gauss interfaceCompression vanLeer 1;
    div(phi,k)      Gauss upwind;
    div(phi,epsilon) Gauss upwind;
    div(((rho*nuEff)*dev2(T(grad(U))))) Gauss linear;
}

laplacianSchemes
{
    default         Gauss linear corrected;
}

interpolationSchemes
{
    default         linear;
}

snGradSchemes
{
    default         corrected;
}

// ************************************************************************* //

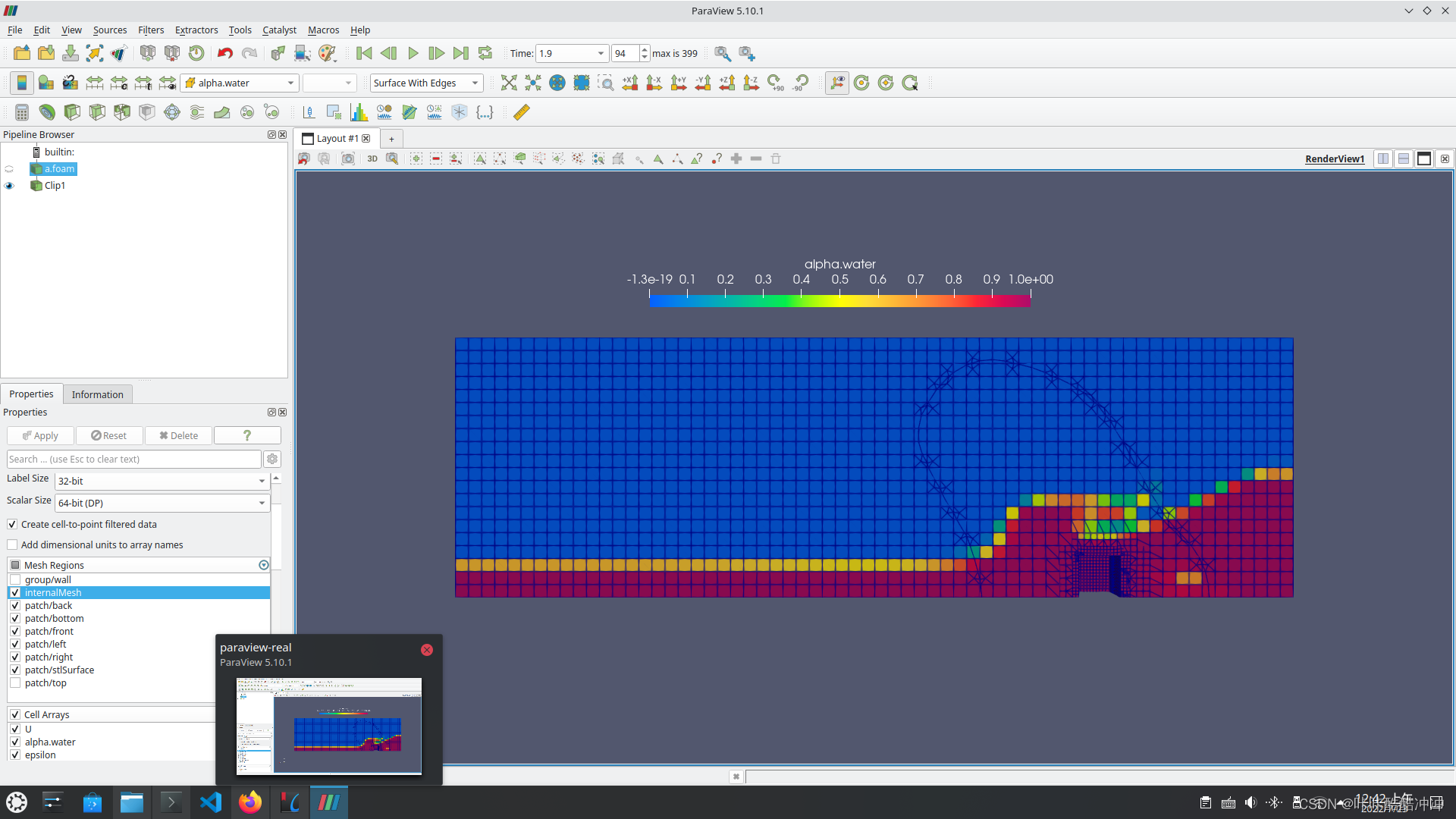

在这里插入图片描述
