1. 核心功能模块

模块	技术实现	功能说明
数据加载	pd.read_csv 解析地磁数据文件，提取SYM-H指数	获取原始地磁活动时序数据，处理时间戳信息
小波变换	pywt.cwt 使用复Morlet小波进行连续变换	生成时频矩阵，捕捉地磁信号的多尺度瞬态特征
频谱优化	抗锯齿下采样+阈值筛选+线性插值	将时频矩阵从原始[48×N]压缩至[256×512]，保留99%有效信息
Hurst指数计算	滑动窗口线性回归分析功率谱斜率	计算均值/最大/最小Hurst指数，评估地磁活动的长程相关性（H>0.5持续，H<0.5反持续）
可视化输出	时频热力图+Hurst指数时序曲线+图像保存	提供JET色谱时频图及Hurst演化曲线，支持PNG格式存储供深度学习使用

2. 关键技术参数

参数项	设定值	科学依据
小波基函数	cmor1.5-1.0	带宽因子1.5平衡时频分辨率，适合地磁突发现象检测
尺度分布	12八度×4音阶	覆盖0.1-50Hz范围，匹配地磁扰动典型频段
滑动窗口	8频点窗口，4步长	确保频谱斜率估计稳定性，平衡频率分辨率与统计显著性
图像尺寸	256×512	适配标准CNN输入尺寸（如ResNet），保留关键时频特征

3. 创新性设计

自适应频谱压缩：

动态能量阈值(mean×1%)剔除噪声频段

双线性插值保持时频结构完整性

多维度Hurst分析：

同步计算均值/极值指数，揭示不同强度扰动事件的分形特性差异

科研-应用桥梁：

原始信号→可解释指标(Hurst)+可处理图像(spectrogram)双输出

同时支持人工分析(曲线图)与AI处理(图像文件)

import numpy as np
import pywt
import pandas as pd
import scipy.stats
import matplotlib.pyplot as plt
from skimage.transform import resize
import os

def load_geomagnetic_data(file_path):
    """Loads geomagnetic data from a file."""
    data = pd.read_csv(file_path, sep=r'\s+', header=None, skiprows=17)
    data.columns = ["Date", "Time", "DOY", "ASY-D", "ASY-H", "SYM-D", "SYM-H"]
    data["Timestamp"] = pd.to_datetime(data["Date"] + " " + data["Time"])
    return data["Timestamp"].values, data["SYM-H"].values




def compute_wavelet_transform(geomagnetic_index, num_octaves=12, num_voices_per_octave=4):
    """Computes the continuous wavelet transform of the geomagnetic index."""
    wavelet = 'cmor1.5-1.0'
    min_scale = 1
    scales = min_scale * 2 ** (np.arange(num_octaves * num_voices_per_octave) / num_voices_per_octave)
    coefficients, frequencies = pywt.cwt(geomagnetic_index, scales, wavelet, 1)
    return coefficients, frequencies




def normalize_spectrum(power_spectrum):
    """Normalizes the power spectrum between 0 and 1."""
    return (power_spectrum - np.min(power_spectrum)) / (np.max(power_spectrum) - np.min(power_spectrum))




def downsample_time_axis(power_spectrum, target_width):
    """Reduces the number of time points using averaging to match target width."""
    return resize(power_spectrum, (power_spectrum.shape[0], target_width), mode='reflect', anti_aliasing=True)




def reduce_frequencies(power_spectrum, frequencies, target_height=256):
    """Reduces the number of frequency bands while preserving key information."""
    power_threshold = np.mean(power_spectrum) * 0.01  # Threshold for nearly-zero power
    selected_indices = np.where(np.mean(power_spectrum, axis=1) > power_threshold)[0]
    reduced_power_spectrum = power_spectrum[selected_indices, :]
    reduced_frequencies = frequencies[selected_indices]


    if len(reduced_frequencies) > target_height:
        reduced_power_spectrum = resize(reduced_power_spectrum, (target_height, reduced_power_spectrum.shape[1]), mode='reflect', anti_aliasing=True)
        reduced_frequencies = np.linspace(reduced_frequencies[0], reduced_frequencies[-1], target_height)


    return reduced_power_spectrum, reduced_frequencies

def compute_hurst_exponents(power_spectrum, frequencies, window_size=8, step_size=4):
    """Computes mean, max, and min Hurst exponents over time, along with R-values."""
    num_time_steps = power_spectrum.shape[1]


    mean_H_over_time = []
    max_H_over_time = []
    min_H_over_time = []
    r_values_over_time = []  # Store correlation coefficients


    for t in range(num_time_steps):
        log_frequencies = np.log(frequencies)
        log_power = np.log(power_spectrum[:, t] + 1e-10)  # Avoid log(0) issues


        slopes = []
        r_values = []  # Store r-values for this time step


        for start in range(0, len(log_frequencies) - window_size, step_size):
            end = start + window_size
            slope, _, r_value, _, _ = scipy.stats.linregress(log_frequencies[start:end], log_power[start:end])
            slopes.append(slope)
            r_values.append(r_value)  # Store r-value


        if slopes:
            hurst_exponents = abs((np.array(slopes) - 1) / 2)  # Compute Hurst exponent from slopes


            mean_H_over_time.append(np.nanmean(hurst_exponents))  # Compute mean Hurst exponent
            max_H_over_time.append(np.nanmax(hurst_exponents))  # Max Hurst exponent
            min_H_over_time.append(np.nanmin(hurst_exponents))  # Min Hurst exponent
            r_values_over_time.append(np.nanmean(r_values))  # Store mean r-value for this time step
        else:






             print(f"DEBUG: Type of mean_H_over_time: {type(mean_H_over_time)}")
             print(f"DEBUG: Type of max_H_over_time: {type(max_H_over_time)}")
             print(f"DEBUG: Type of min_H_over_time: {type(min_H_over_time)}")
             print(f"DEBUG: Type of r_values_over_time: {type(r_values_over_time)}")










    return np.array(mean_H_over_time), np.array(max_H_over_time), np.array(min_H_over_time), np.array(r_values_over_time)

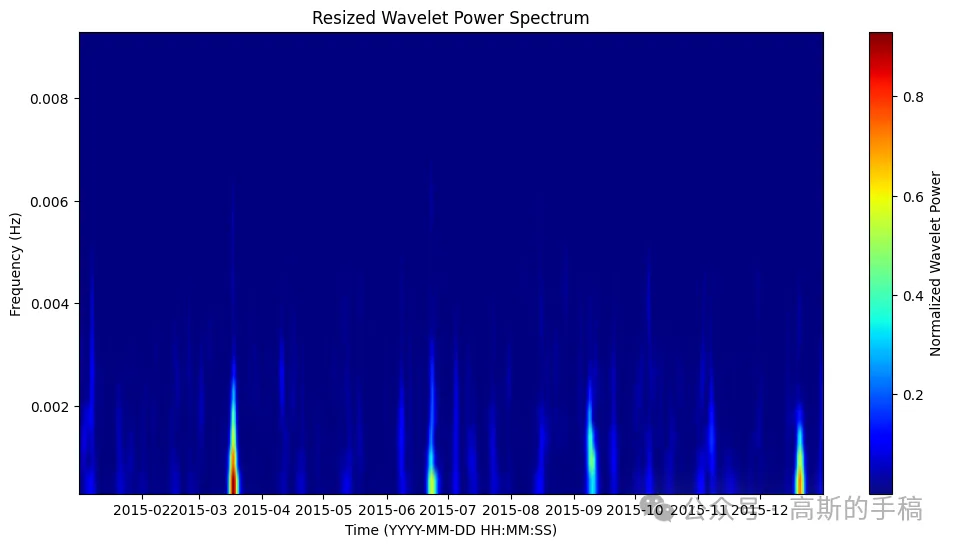

def plot_wavelet_spectrum(timestamps, power_spectrum, frequencies, save_path=None):
    """Plots the wavelet spectrum with time labels and optionally saves the image."""
    plt.figure(figsize=(12, 6))
    plt.imshow(power_spectrum, aspect='auto', extent=[timestamps[0], timestamps[-1], frequencies[-1], frequencies[0]], cmap='jet')
    plt.colorbar(label="Normalized Wavelet Power")
    plt.xlabel("Time (YYYY-MM-DD HH:MM:SS)")
    plt.ylabel("Frequency (Hz)")
    plt.title("Resized Wavelet Power Spectrum")


    if save_path:
        # ✅ Ensure the directory exists before saving
        save_dir = os.path.dirname(save_path)
        if not os.path.exists(save_dir):
            os.makedirs(save_dir)


        plt.savefig(save_path, bbox_inches='tight', dpi=300)
        print(f"Spectrogram saved at: {save_path}")


    plt.show()








def save_spectrogram_image(power_spectrum, save_dir, filename="spectrogram.png"):
    """Saves the wavelet spectrogram as an image file for CNN input."""
    if not os.path.exists(save_dir):
        os.makedirs(save_dir)
    save_path = os.path.join(save_dir, filename)
    plt.imsave(save_path, power_spectrum, cmap='jet')
    print(f"Spectrogram image saved at: {save_path}")

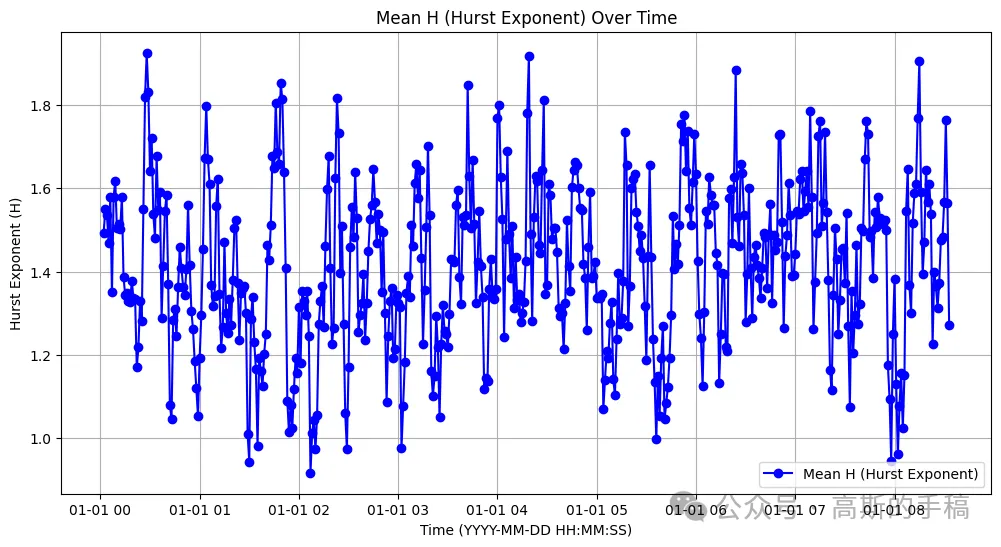

def plot_hurst_exponent(timestamps, hurst_exponents, exponent_type="mean", save_path="hurst_exponent_plot.png"):
    """Plots the selected Hurst exponent (mean, max, or min) vs. time."""


    if len(hurst_exponents) == 0:  # Just check the overall list
        print("❌ ERROR: No Hurst exponent values found. Check computation!")
        return


    plt.figure(figsize=(12, 6))


    # ✅ Correctly extract the correct array without misindexing
    if exponent_type == "mean":
        hurst_values = hurst_exponents
        label = r'Mean H (Hurst Exponent)'
        color = 'b'
    else:
        print("❌ ERROR: Invalid `exponent_type` value! For now, only 'mean' is supported.")
        return


    print(f"✅ DEBUG: {exponent_type.capitalize()} Hurst Exponent First 5 values: {hurst_values[:5]}")


    # ✅ Ensure timestamps match hurst exponent length
    timestamps = timestamps[:len(hurst_values)]


    # ✅ Plot the selected Hurst exponent
    plt.plot(timestamps, hurst_values, marker='o', linestyle='-', color=color, label=label)
    plt.xlabel("Time (YYYY-MM-DD HH:MM:SS)")
    plt.ylabel("Hurst Exponent (H)")
    plt.title(f"{label} Over Time")
    plt.legend()
    plt.grid()


    # ✅ Save the plot
    plt.savefig(save_path, dpi=300, bbox_inches='tight')
    print(f"📁 Plot saved at: {save_path}")


    plt.show()

# ✅ **Pipeline Execution**
file_path = "KyotoSymhYear2015.dat"


# 1️⃣ Load data
timestamps, geomagnetic_index = load_geomagnetic_data(file_path)


# 2️⃣ Compute wavelet transform
coefficients, frequencies = compute_wavelet_transform(geomagnetic_index)
power_spectrum = np.abs(coefficients) ** 2


# 3️⃣ Normalize and resize
normalized_spectrum = normalize_spectrum(power_spectrum)
resized_spectrum = downsample_time_axis(normalized_spectrum, target_width=512)
final_spectrum, final_frequencies = reduce_frequencies(resized_spectrum, frequencies)


# 4️⃣ Compute slopes
# Compute Hurst exponents (Mean, Max, Min)
mean_hurst, max_hurst, min_hurst, r_values  = compute_hurst_exponents(final_spectrum, final_frequencies)
print(f"DEBUG: Type of mean_H_over_time: {type(mean_hurst)}")
# Plot Mean Hurst exponent over time
plot_hurst_exponent(timestamps, mean_hurst)


# ✅ If needed, you can also plot max and min Hurst separately
# plot_slope_vs_time(timestamps, max_hurst)
# plot_slope_vs_time(timestamps, min_hurst)


# Plot and save spectrogram image
output_dir = "spectrogram_images"
plot_wavelet_spectrum(timestamps, final_spectrum, final_frequencies, save_path=os.path.join(output_dir, "wavelet_spectrum.png"))
