openpose和mediapipe中的关键点

openpose关键点：

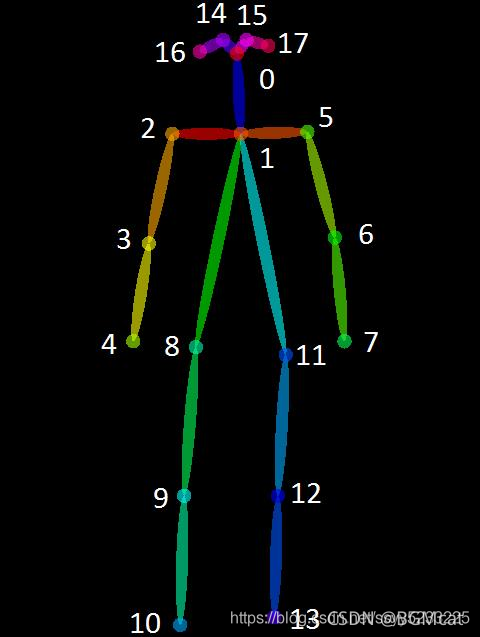

1、18点模型（mscoco）
对应位置：
// {0, “Nose”},
// {1, “Neck”},
// {2, “RShoulder”},
// {3, “RElbow”},
// {4, “RWrist”},
// {5, “LShoulder”},
// {6, “LElbow”},
// {7, “LWrist”},
// {8, “RHip”},
// {9, “RKnee”},
// {10, “RAnkle”},
// {11, “LHip”},
// {12, “LKnee”},
// {13, “LAnkle”},
// {14, “REye”},
// {15, “LEye”},
// {16, “REar”},
// {17, “LEar”}

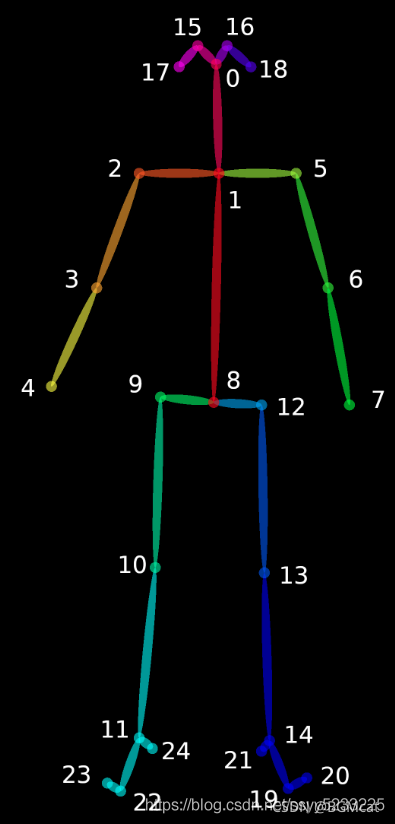

2.25关键点模型
{0, “Nose”},
{1, “Neck”},
{2, “RShoulder”},
{3, “RElbow”},
{4, “RWrist”},
{5, “LShoulder”},
{6, “LElbow”},
{7, “LWrist”},
{8, “MidHip”},
{9, “RHip”},
{10, “RKnee”},
{11, “RAnkle”},
{12, “LHip”},
{13, “LKnee”},
{14, “LAnkle”},
{15, “REye”},
{16, “LEye”},
{17, “REar”},
{18, “LEar”},
{19, “LBigToe”},
{20, “LSmallToe”},
{21, “LHeel”},
{22, “RBigToe”},
{23, “RSmallToe”},
{24, “RHeel”},

MPI:15个身体关键点的识别
Face：70个面部关键点的识别
Hand：221个手部关键点识别。

mediapipe关键点：

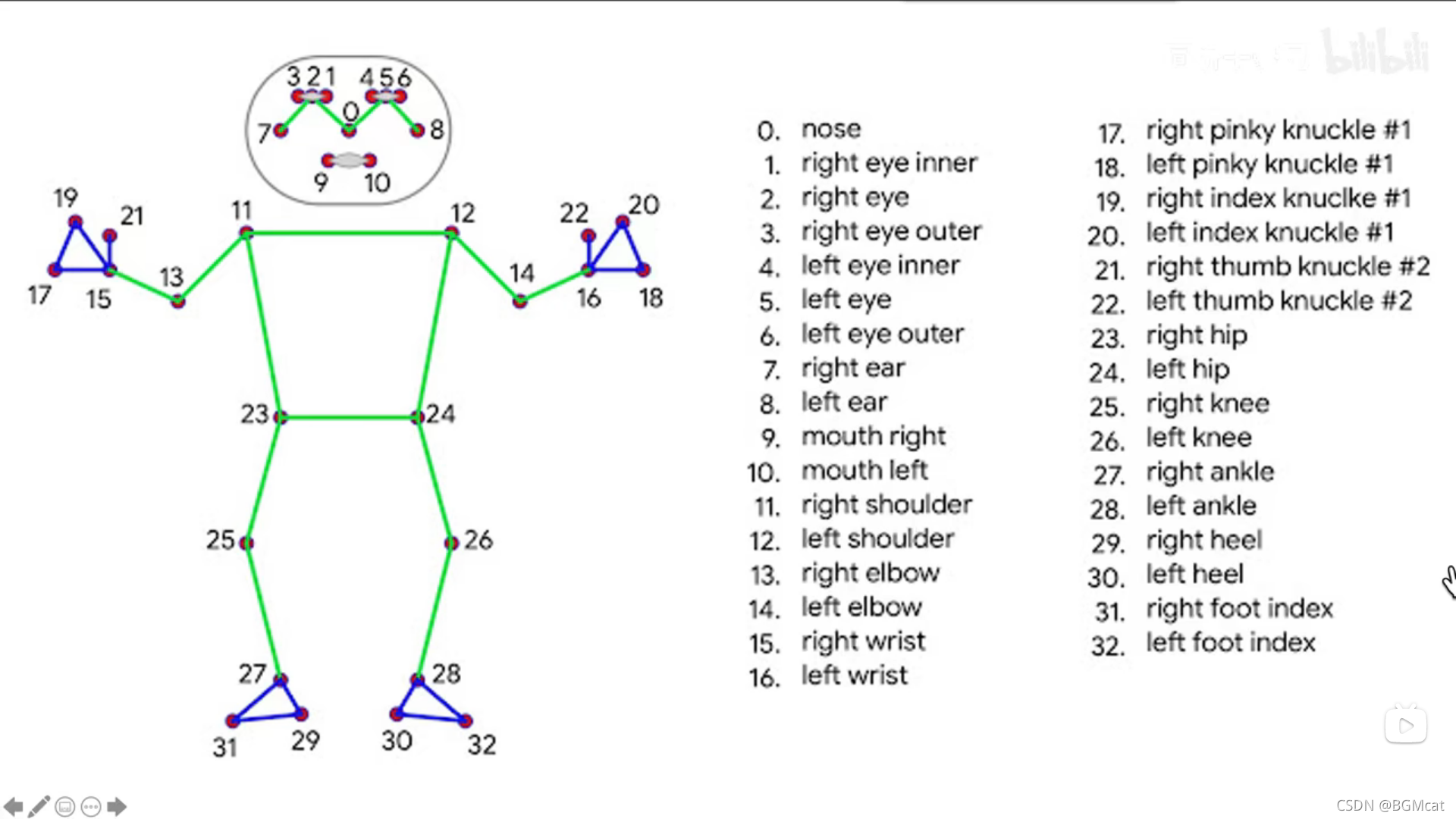

谷歌mediapipe人体33关键点：

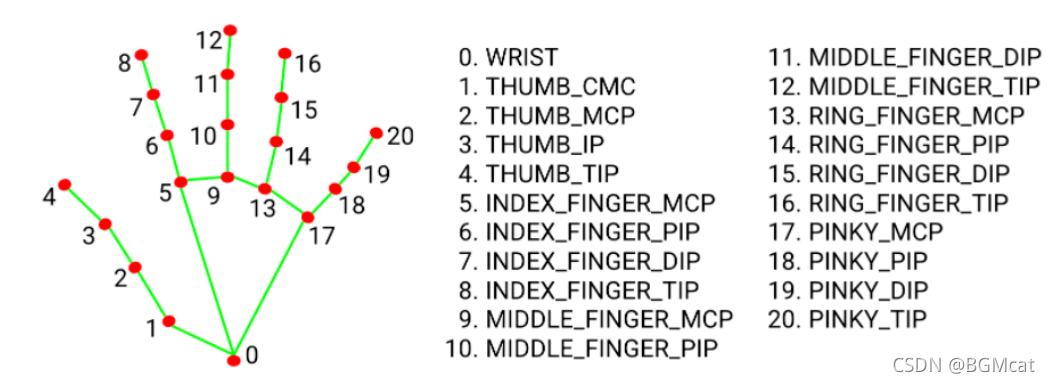

谷歌mediapipe手部21关键点：
