模拟相机拍照——对文档进行数据增强

一. 背景

假如我们有一个标准文件，我们对其进行文字识别、版面分析或者其他下游任务就比较容易。然而，当图片是手机拍照获取的，图片中往往有阴影、摩尔纹、弯曲。
那么，如何通过标准的文档，获得类似相机拍照的图片呢？
这里介绍的就是文档数据增强，用标准文档模拟相机拍照场景。该方法不仅能用于文档各场景的数据增强，用于OCR检测识别等任务；还能合成各种图片训练对，用于文档去阴影、文档去摩尔纹、文档弯曲矫正等各项任务。

二. 效果实现

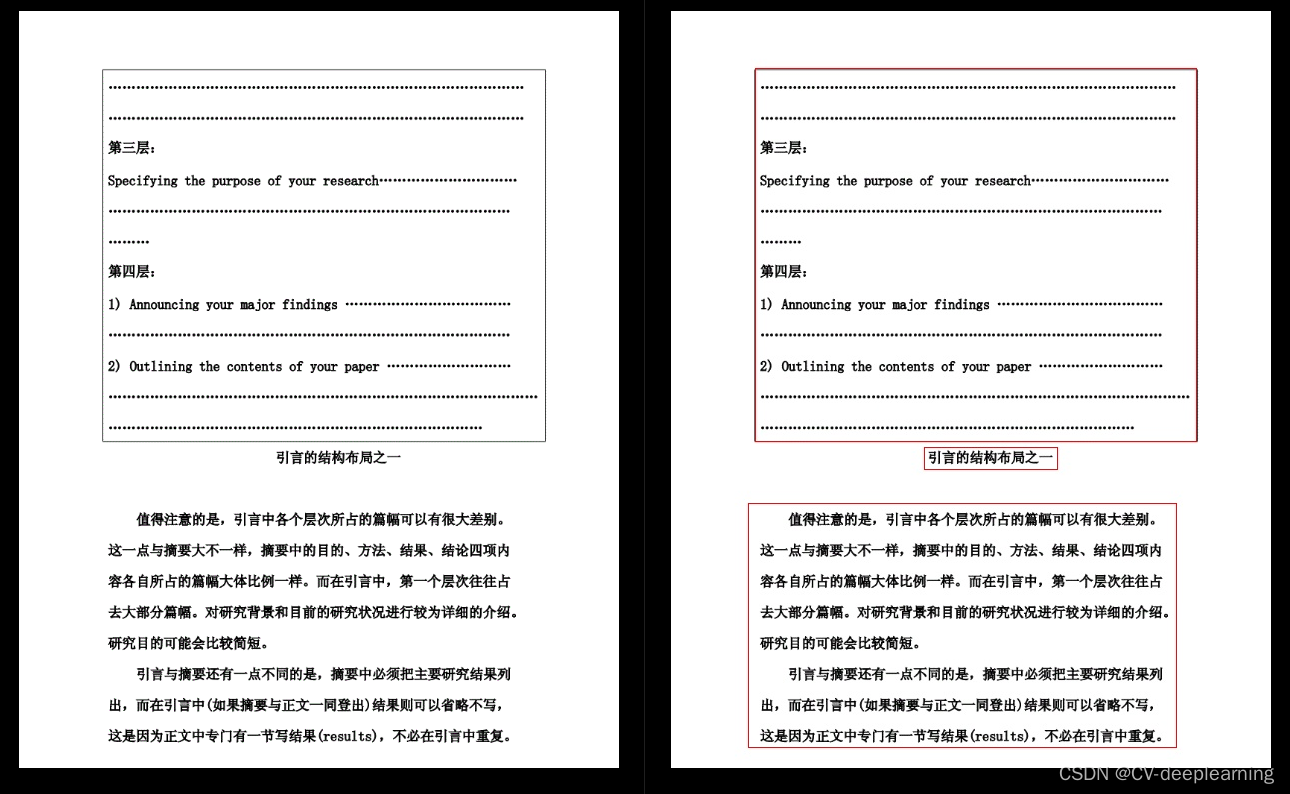

首先给大家展示的是一个PDF截图和对应的标注（红色为标注框）

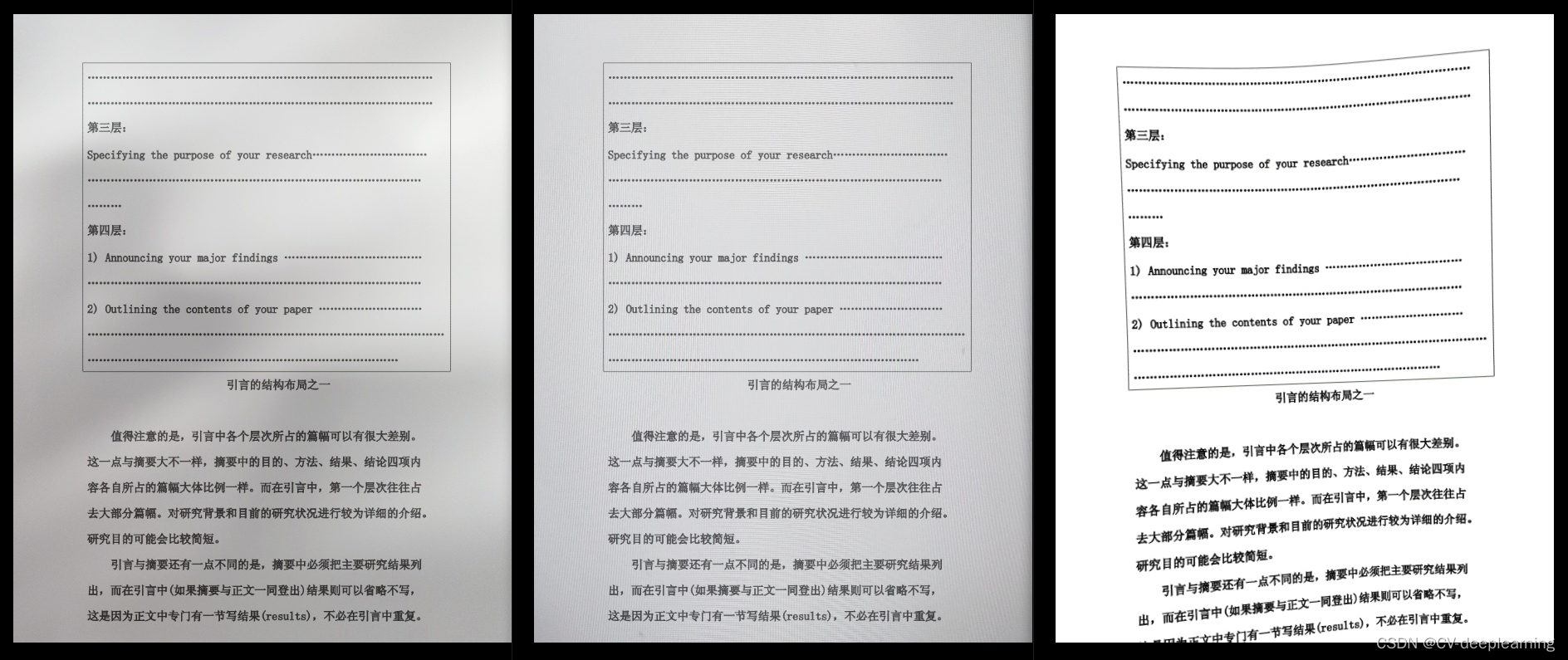

下面给标准图片分别添加阴影、摩尔纹、弯曲，效果如下：

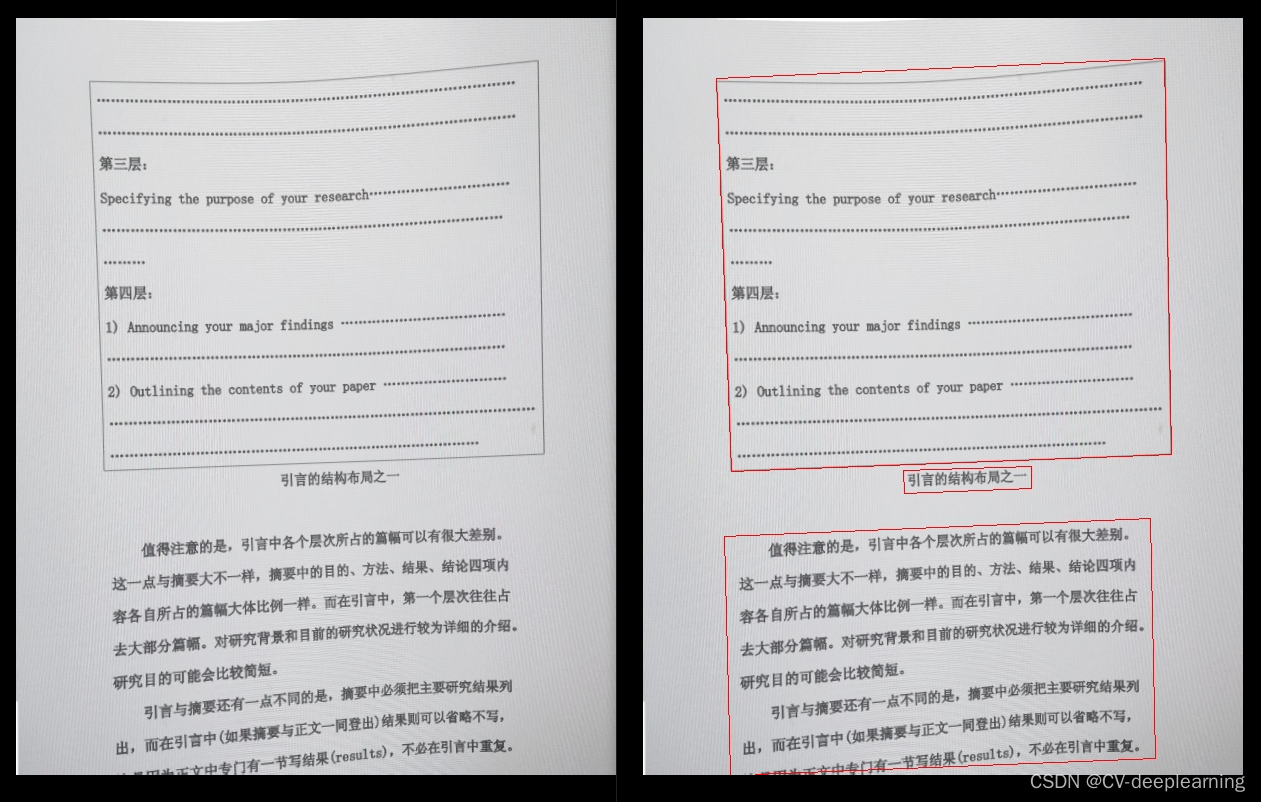

摩尔纹+弯曲，并且把标注点映射到弯曲图片上，如下图所示：

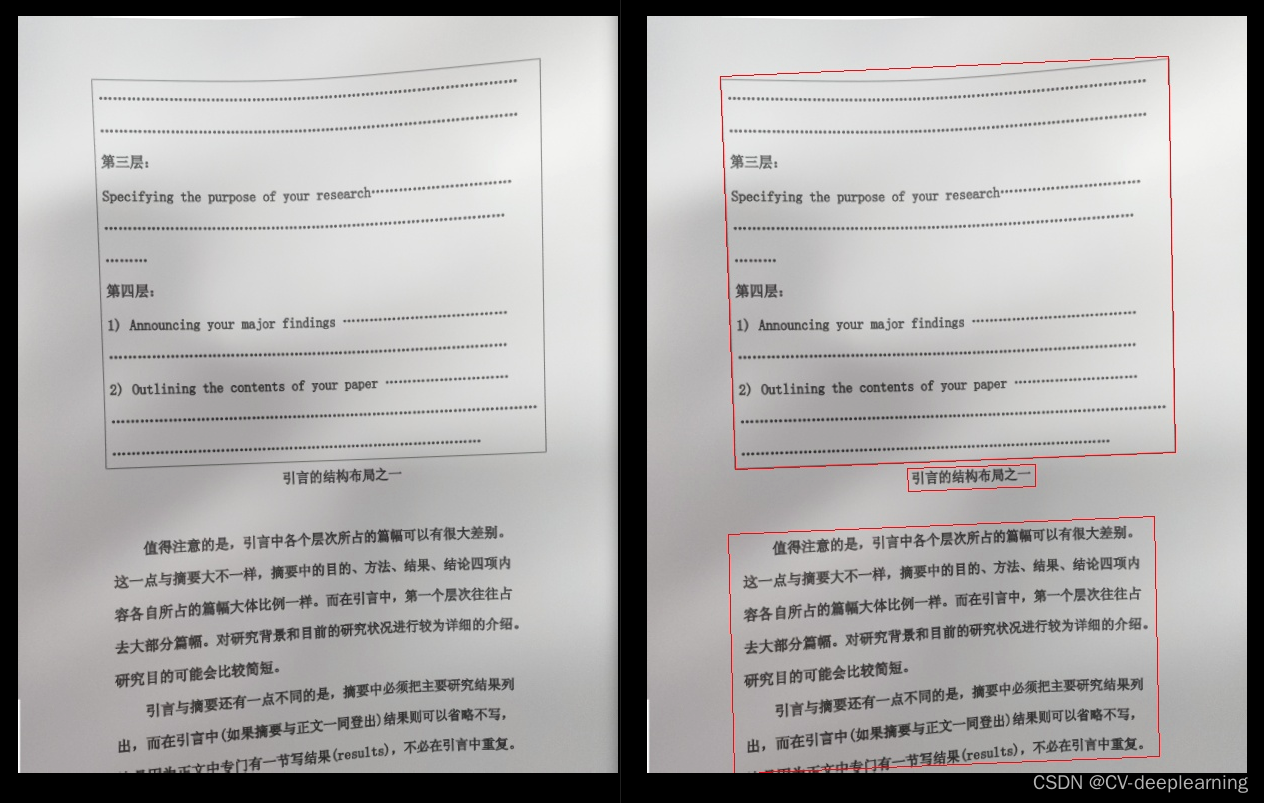

阴影+弯曲，并且把标注点映射到弯曲图片上，如下图所示：

三. 算法原理与代码实现

原理：利用渲染工具（推荐blender），渲染出各种弯曲、阴影、摩尔纹，然后再pdf图片上进行合成。
最后，一定要代码实现(只给初级版本，完整版本比较复杂)：

import os
import cv2
import json
import random
import numpy as np
from scipy.interpolate import LinearNDInterpolator as linterp
from scipy.interpolate import NearestNDInterpolator as nearest


class LinearNDInterpolatorExt(object):
    def __init__(self, points, values):
        self.funcinterp = linterp(points, values)
        self.funcnearest = nearest(points, values)

    def __call__(self, *args):
        z = self.funcinterp(*args)
        chk = np.isnan(z)
        if chk.any():
            return np.where(chk, self.funcnearest(*args), z)
        else:
            return z


def crop_flow_from_nan(flow):
    mask = ~np.any(np.isnan(flow), -1)
    x, y, w, h = cv2.boundingRect(mask.astype(np.uint8))
    flow = flow[y: y + h, x: x + w]
    mask = mask[y: y + h, x: x + w]
    max_nonzero_ratio = 0.9
    max_crop_size = 20
    mask_h, mask_w = mask.shape[0], mask.shape[1]
    y0 = max_crop_size
    for i in range(0, max_crop_size):
        if np.count_nonzero(mask[i]) / mask_w > max_nonzero_ratio:
            y0 = i
            break

    y1 = mask_h - 1 - max_crop_size
    for i in range(mask_h - 1, y1, -1):
        if np.count_nonzero(mask[i]) / mask_w > max_nonzero_ratio:
            y1 = i
            break

    crop_mask = mask[y0:y1]
    mask_h, mask_w = crop_mask.shape[0], crop_mask.shape[1]
    x0 = max_crop_size
    for i in range(0, x0):
        if np.count_nonzero(mask[:, i]) / mask_h > max_nonzero_ratio:
            x0 = i
            break

    x1 = mask_w - 1 - max_crop_size
    for i in range(mask_w - 1, x1, -1):
        if np.count_nonzero(mask[:, i]) / mask_h > max_nonzero_ratio:
            x1 = i
            break
    flow = flow[y0:y1, x0:x1]
    return flow


def flow_2_points(flow, pts):
    """
    根据flow映射场反向计算点的对应点
    :param flow: 前向、或后向映射场, range (-1,  1)
    :param pts: 目标图、或原图的坐标点, 点经过归一化 range (0, 1),  shape: (n, 2)
    :return: 原图、或目标图的坐标点, 经过归一化 range (0, 1), shape: (n, 2)
    """
    mask = ~np.any(np.isnan(flow), -1)
    flow_masked = flow[mask]
    flow_w, flow_h = flow.shape[1], flow.shape[0]

    flow_xrange = np.arange(flow_w, dtype=np.float32)
    flow_yrange = np.arange(flow_h, dtype=np.float32)
    flow_xgrid, flow_ygrid = np.meshgrid(flow_xrange, flow_yrange)
    flow_xgrid_masked = flow_xgrid[mask]
    flow_ygrid_masked = flow_ygrid[mask]

    src_pts = (pts - 0.5) * 2  # (0-1) to (-1, 1)
    interpX = LinearNDInterpolatorExt(np.reshape(flow_masked, [-1, 2]), flow_xgrid_masked.reshape(-1))
    interpY = LinearNDInterpolatorExt(np.reshape(flow_masked, [-1, 2]), flow_ygrid_masked.reshape(-1))
    fm_x = interpX(src_pts)
    fm_y = interpY(src_pts)
    # fm_x, fm_y range is (0, flow_w-1)  and (0, flow_h-1), need convert to (0-1)
    fm_x = fm_x / (flow_w - 1)
    fm_y = fm_y / (flow_h - 1)
    return np.stack((fm_x, fm_y), axis=-1)


def warp_img(img, flow, points_list):
    h, w, _ = img.shape
    flow = crop_flow_from_nan(flow)
    flow = flow.astype(np.float32)
    flow = cv2.resize(flow, (256, 256))
    points_list_warp = []
    for points in points_list:
        points = points.astype(np.float64)
        points[:, 0] /= w*1.0
        points[:, 1] /= h*1.0
        points_warp = flow_2_points(flow, points)
        points_warp[:, 0] *= w
        points_warp[:, 1] *= h
        points_list_warp.append(points_warp)

    bm_flow = flow / 2 + 0.5
    bm_flow[..., 0] = bm_flow[..., 0] * w
    bm_flow[..., 1] = bm_flow[..., 1] * h
    bm_flow = np.nan_to_num(bm_flow, nan=-1)
    if bm_flow.shape[0] != h or bm_flow.shape[1] != w:
        bm_flow = cv2.resize(bm_flow, (w, h))

    warp_img = cv2.remap(img, bm_flow.astype(np.float32), None, cv2.INTER_LINEAR, borderValue=(255, 255, 255))
    return warp_img, points_list_warp


def json_2_points(json_path):
    with open(json_path, "r") as f:
        data = json.load(f)
    obj_list = []
    for obj in data[0]['annotations']:
        obj = obj['coordinates']
        cx, cy, w, h = obj['x'], obj['y'], obj['width'], obj['height']
        x1 = cx - 0.5 * w
        x2 = cx + 0.5 * w
        y1 = cy - 0.5 * h
        y2 = cy + 0.5 * h
        points = np.array([[x1,y1], [x2,y1], [x2,y2], [x1,y2]], np.int32)
        obj_list.append(points)
    return obj_list


def add_background(img, img_background):
    height, width, _ = img.shape
    background = cv2.resize(img_background, (width, height))
    img_res = img * 0.5 + background * 0.5
    img_res = np.clip(img_res, 0, 255)
    return img_res


if __name__ == "__main__":
    img = cv2.imread("test.png")
    shadow = cv2.imread("./background/shadow.jpg")
    img = add_background(img, shadow)
    obj_list = json_2_points("test.json")
    flow = np.load("test.npy")
    warp_img, points_list_warp = warp_img(img, flow, obj_list)
    cv2.imwrite("warp_shadow.jpg", warp_img)
    for points in points_list_warp:
        cv2.polylines(warp_img, [points.astype(np.int32)], isClosed=True, color=(0, 0, 255), thickness=1)
    cv2.imwrite("warp_shadow_draw.jpg", warp_img)

致谢，在写代码过程中受到了鑫哥的启发，再次表示感谢！
欢迎小伙伴们技术交流~
