碰撞检测

显示名称	中文名称	C++
Sphere Trace By Channel	按通道进行球体追踪	UKismetSystemLibrary::SphereTraceSingle
Sphere Trace By Profile	按描述文件进行球体追踪	UKismetSystemLibrary::SphereTraceSingleByProfile
Sphere Trace For Objects	针对Object进行球体追踪	UKismetSystemLibrary::SphereTraceSingleForObjects
Multi Sphere Trace By Channel	按通道进行多球体追踪	UKismetSystemLibrary::SphereTraceMulti
Multi Sphere Trace By Profile	按描述文件进行多球体追踪	UKismetSystemLibrary::SphereTraceMultiByProfile
Multi Sphere Trace For Objects	针对object进行多球体追踪	UKismetSystemLibrary::SphereTraceMultiForObjects
Box Trace By Channel	按通道进行盒体追踪	UKismetSystemLibrary::BoxTraceSingle
Box Trace By Profile	按描述文件进行盒体追踪	UKismetSystemLibrary::BoxTraceSingleByProfile
Box Trace For Objects	针对Object进行盒体追踪	UKismetSystemLibrary::BoxTraceSingleForObjects
Multi Box Trace By Channel	按通道进行多盒体追踪	UKismetSystemLibrary::BoxTraceMulti
Multi Box Trace By Profile	按描述文件进行多盒体追踪	UKismetSystemLibrary::BoxTraceMultiByProfile
Multi Box Trace For Objects	针对object进行多盒体追踪	UKismetSystemLibrary::BoxTraceMultiForObjects
Line Trace By Channel	按通道进行线条追踪	UKismetSystemLibrary::LineTraceSingle
Line Trace By Profile	按描述文件进行线条追踪	UKismetSystemLibrary::LineTraceSingleByProfile
Line Trace For Objects	针对object进行线条追踪	UKismetSystemLibrary::LineTraceSingleForObjects
Multi Line Trace By Channel	按通道进行多线条追踪	UKismetSystemLibrary::LineTraceMulti
Multi Line Trace By Profile	按描述文件进行多线条追踪	UKismetSystemLibrary::LineTraceMultiByProfile
Multi Line Trace For Objects	针对object进行多线条追踪	UKismetSystemLibrary::LineTraceMultiForObjects
Capsule Trace By Channel	按通道进行胶囊体追踪	UKismetSystemLibrary::CapsuleTraceSingle
Capsule Trace By Profile	按描述文件进行胶囊体追踪	UKismetSystemLibrary::CapsuleTraceSingleByProfile
Capsule Trace For Objects	针对object进行胶囊体追踪	UKismetSystemLibrary::CapsuleTraceSingleForObjects
Multi Capsule Trace By Channel	按通道进行多胶囊体追踪	UKismetSystemLibrary::CapsuleTraceMulti
Multi Capsule Trace By Profile	按描述文件进行多胶囊体追踪	UKismetSystemLibrary::CapsuleTraceMultiByProfile
Multi Capsule Trace For Objects	针对object进行多胶囊体追踪	UKismetSystemLibrary::CapsuleTraceMultiForObjects

参数详情

输入引脚

• Start：射线起点的位置。
• End：射线终点的位置。
• Radius：球体的半径。
• Trace Channel：碰撞通道，用于指定哪些类型的物体可以被检测到。常见的通道包括 Visibility、Camera、WorldStatic 等。
• bTrace Complex：是否启用复杂碰撞几何体的检测。如果设置为 True，则会检测复杂的静态网格体；如果设置为 False，则只检测简单的碰撞盒。
• bFind Initial Overlap：是否检测初始重叠。如果设置为 True，则会在起点处检测是否有重叠的物体。
• bIgnore Self：是否忽略自身物体的碰撞。如果设置为 True，则不会检测到执行该节点的物体本身。
• Actor to Ignore：需要忽略的特定 Actor。你可以在这里指定一个或多个 Actor，使其不参与碰撞检测。
• bShow Trace：是否在编辑器中显示射线追踪的可视化效果。这在调试时非常有用。
• bPersistent Show Trace：是否持续显示射线追踪的可视化效果。如果设置为 True，即使游戏停止，也会继续显示。

输出引脚

• Out Hit：如果检测到碰撞，这里会返回一个 Hit Result 结构体，包含碰撞的详细信息，如碰撞位置、碰撞物体等。
• Return Value：布尔值，表示是否检测到碰撞。如果检测到碰撞，返回 True；否则返回 False。

示例用法

蓝图API	C++ API

	const FVector ActorLocation = GetActorLocation();
	TArray<TEnumAsByte<EObjectTypeQuery>> ObjectTypes;
	ObjectTypes.Emplace(EObjectTypeQuery::ObjectTypeQuery1); // WorldStatic
	ObjectTypes.Emplace(EObjectTypeQuery::ObjectTypeQuery2); // WorldDynamic
	ObjectTypes.Emplace(EObjectTypeQuery::ObjectTypeQuery3); // Pawn
	ObjectTypes.Emplace(EObjectTypeQuery::ObjectTypeQuery4); // PhysicsBody
	ObjectTypes.Emplace(EObjectTypeQuery::ObjectTypeQuery5); // Vehicle
	ObjectTypes.Emplace(EObjectTypeQuery::ObjectTypeQuery6); // Destructible
	TArray<FHitResult> HitResults;
	TArray<AActor*> ActorsToIgnore;
	ActorsToIgnore.Add(this); // 忽略自身

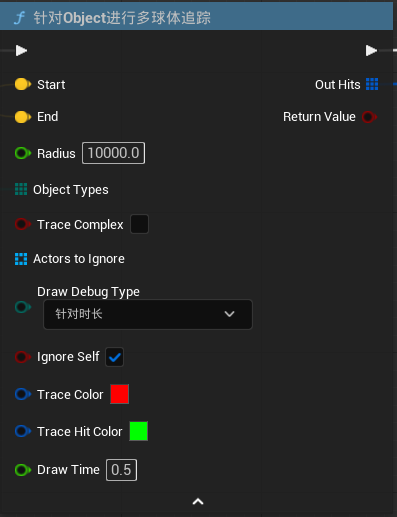

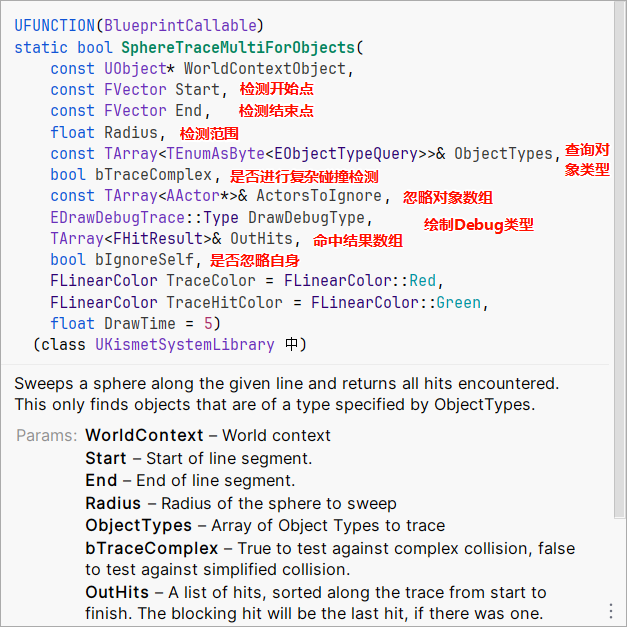

	if (UKismetSystemLibrary::SphereTraceMultiForObjects(GetWorld(), ActorLocation, ActorLocation, Area, ObjectTypes,false, ActorsToIgnore, EDrawDebugTrace::ForDuration, HitResults, true))
	{
		for (FHitResult HitResult : HitResults) {
			if (HitResult.GetActor() != nullptr) {
				ApplyEffectToTarget(HitResult.GetActor());
			}
		}
	}

获取最近对象蓝图函数库示例

// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Kismet/BlueprintFunctionLibrary.h"
#include "Kismet/KismetSystemLibrary.h"
#include "SysUtilsBPLibrary.generated.h"

namespace EDrawDebugTrace
{
	enum Type : int;
}

/**
 *
 */
UCLASS()
class GENERALFRAMEWORK_API USysUtilsBPLibrary : public UBlueprintFunctionLibrary
{
	GENERATED_BODY()

public:
	/**
	 * 获取最近距离的对象
	 * @param WorldContextObject
	 * @param Location 位置
	 * @param Radius 范围
	 * @param ObjectTypes 检测对象类型列表
	 * @param ActorsToIgnore 忽略对象列表
	 * @param DrawDebugType 绘制Debug类型
	 * @return 最近检测对象
	 */

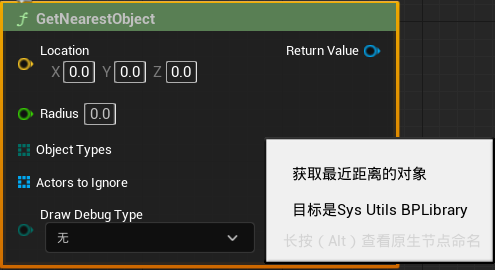

	UFUNCTION(BlueprintPure, meta = (DisplayName = "GetNearestObject", WorldContext = "WorldContextObject" ), Category = "GeneralFramework|SysUtils")
	static AActor* GetNearestObject(const UObject* WorldContextObject,FVector Location, float Radius, const TArray<TEnumAsByte<EObjectTypeQuery> > & ObjectTypes,const TArray<AActor*>& ActorsToIgnore, EDrawDebugTrace::Type DrawDebugType);
};

// Fill out your copyright notice in the Description page of Project Settings.
#include "Libraries/SysUtilsBPLibrary.h"
#include "GameFramework/Character.h"
#include "Kismet/KismetMathLibrary.h"
#include "Kismet/KismetSystemLibrary.h"

AActor* USysUtilsBPLibrary::GetNearestObject(const UObject* WorldContextObject, FVector Location, float Radius,
                                             const TArray<TEnumAsByte<EObjectTypeQuery>>& ObjectTypes,
                                             const TArray<AActor*>& ActorsToIgnore, EDrawDebugTrace::Type DrawDebugType)
{
	AActor* HitActor = nullptr;
	TArray<FHitResult> HitResults;
	if (UKismetSystemLibrary::SphereTraceMultiForObjects(WorldContextObject->GetWorld(), Location, Location, Radius,
	                                                     ObjectTypes, false, ActorsToIgnore,
	                                                     DrawDebugType, HitResults, true))
	{
		float MinDistance = 99999;
		for (FHitResult HitResult : HitResults)
		{
			if (HitResult.GetActor() != nullptr)
			{
				const float Distance = UKismetMathLibrary::Vector_Distance2D(
					HitResult.GetActor()->GetActorLocation(), Location);
				if (Distance < MinDistance)
				{
					HitActor = HitResult.GetActor();
					MinDistance = Distance;
				}
			}
		}
	}
	return HitActor;
}
