CiA402电机控制代码

Link

CiA402 Demo Code Download

CiA402是基于CANOPEN的电机控制驱动代码和通信层的接口:

1. 状态机转换
2. CiA402 objects
3. 支持csp、csv，csp(cyclic synchronous position)、csv(cyclic synchronous velocity)操作模式。
   CiA402 specific files:
   cia402appl.c: CiA402 driver implemention
   cia402appl.h: Driver profile specific objects, definitions and axes structres

All motion controller related values are encapsulated in structure TCiA402Axis(file cia402appl.h).
The configuration parameters and error codes are directly mapping functions(file: ecatappl.c).
Currently the sample support maximum of two axes. The axes are initialized in the EtherCAT state change from PREOP to SAFEOP.
objects: refer EL9300 and ETG.6010

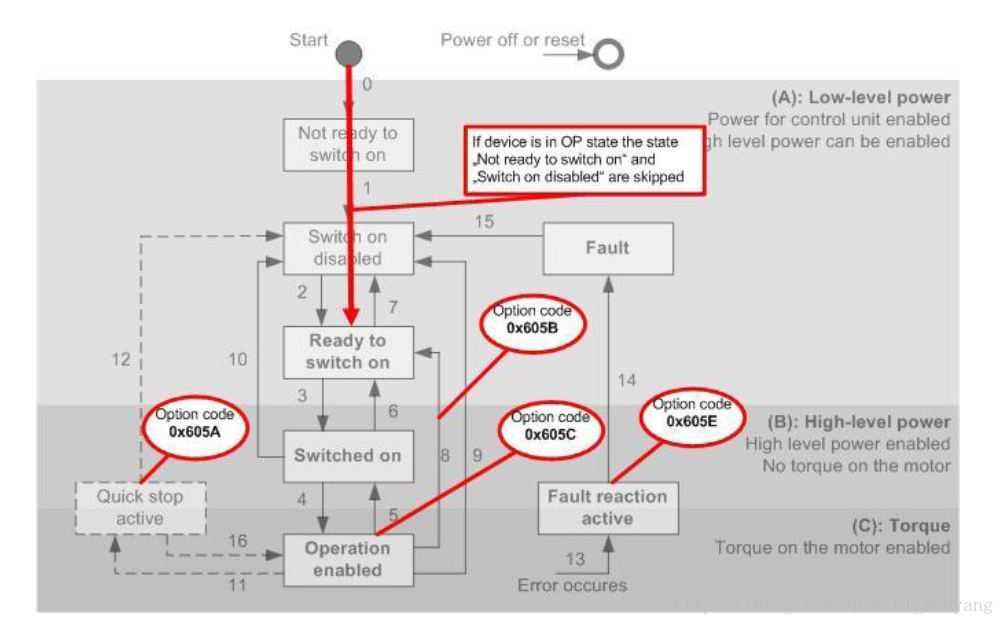

State machine:

Operation modes:
csv : 周期性同步速度模式

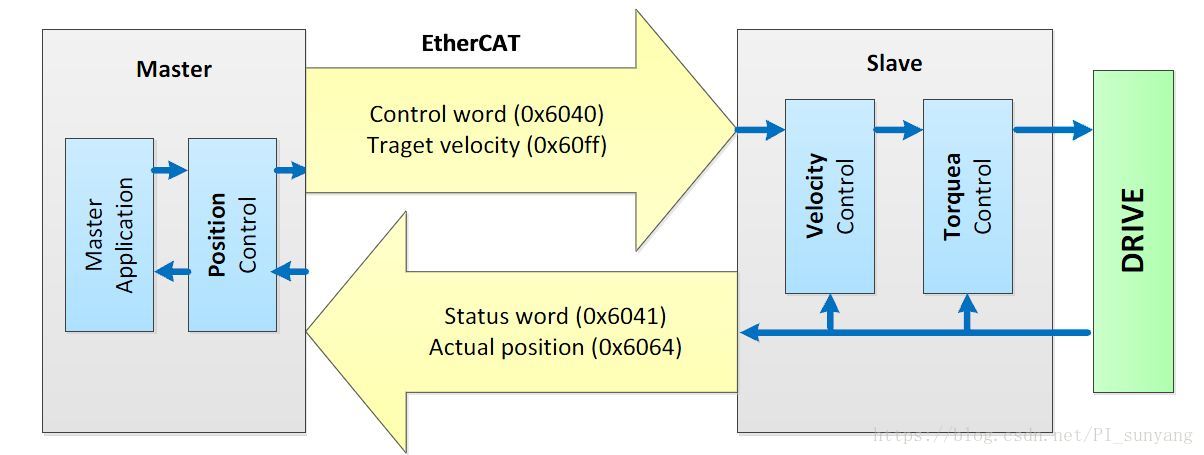

csv:运行原理图：

CiA402 Demo百度网盘下载链接

1. 链接：https://pan.baidu.com/s/1DEC-0bIPfgkJ864upg3KoQ
   提取码：evhs
2. 吐槽下，我上传的文档从未设置过VIP下载等各种乱收费的东西，从未主动修改过，这是CSDN自己设置的，免费的资源自动升级为付费，我也没收到过一分钱！我也改变不了权限！
