P-tuning V2论文和代码实现详解

前阵子在本地部署体验完清华开源的ChatGLM-6B后，用P-tuning v2对其做了些微调。遂对P-tuning v2产生了些兴趣，阅读完原论文《P-Tuning v2: Prompt Tuning Can Be Comparable to Fine-tuning Universally Across Scales and Tasks》后，对其实现方式仍保有疑问，于是详细阅读了其源码后，做了以下记录。

论文简要介绍

• 论文题目：P-Tuning v2: Prompt Tuning Can Be Comparable to Finetuning Universally Across Scales and Tasks

• 论文地址：https://arxiv.org/pdf/2110.07602.pdf

• 论文源码：https://github.com/THUDM/P-tuni

  网上已经有很多关于论文理论的介绍了，这里只简单提一提。

  P-tuning V2不是一个新东西，它是Deep Prompt Tuning (Li and Liang,2021; Qin and Eisner,2021)的一个优化和适应实现。与深度提示调整类似，P-tuning v2被设计用于生成和知识探索，但最重要的改进之一是将连续提示应用于预训练模型的每个层，而不仅仅是输入层。

  通过增加连续提示的容量，并针对各种设置（特别是针对小模型和难任务），P-tuning v2提高了与Fine-tuning相媲美的性能。此外，作者还介绍了一系列关键的优化和实现细节，以确保实现Fine-tuning的性能表现。



  • 仅需微调0.1%-3%的参数，就能和Fint-tuning比肩
  • 将Prompt tuning技术首次应用到序列标注等复杂的NLU任务上

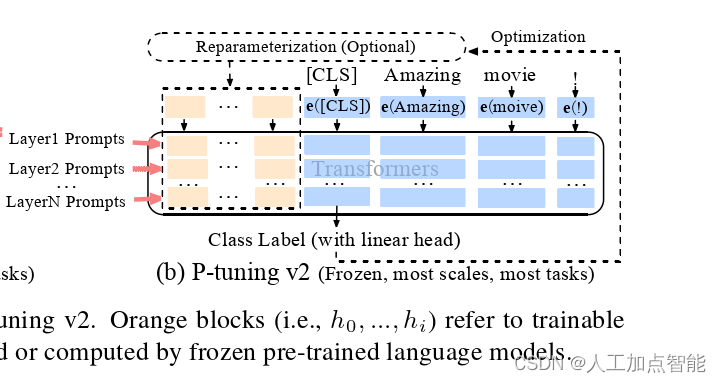

  其结构如图所示：



P-tuning V2的改进

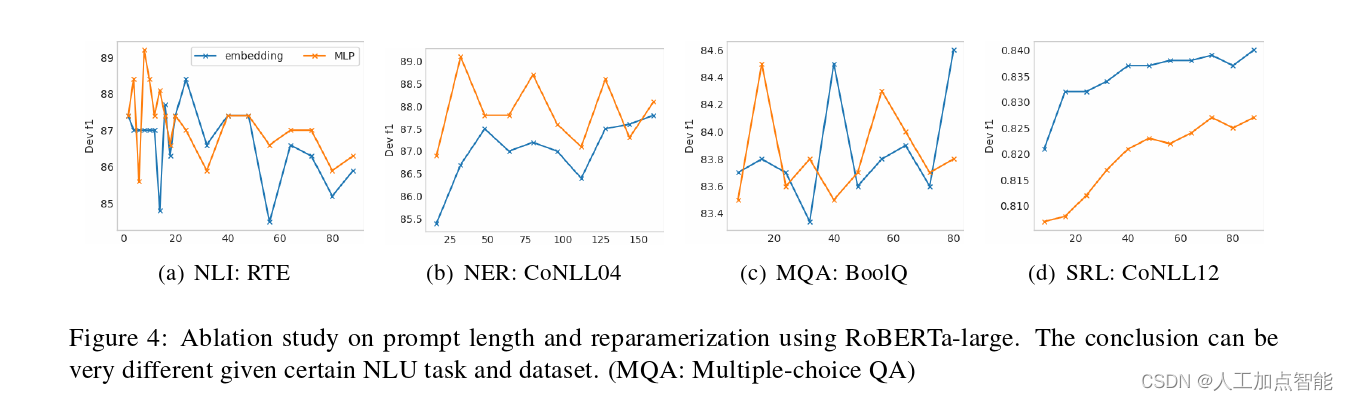

• 相比于Li and Liang,2021的Prefix tuning用的MLP当作Reparameterization encoder，P-tuning V2用Embedding层。两者的对比如图所示

• 基于多任务数据集预训练，在适配下游任务

• 不采用Verbalizer，用模型原始的linear head。

  •

  • 效果差不多，但是linear head更加通用，方便适配序列标注等复杂NLU

  其实看完之后，不难发现P-tuning v2跟prefix tuning大差不差，但是P-tuning v2适配到了NLU任务之上。

P-tuning V2的连续prompt代码实现

这里会忽略些细节问题，只看其本质的实现方式

以代码中的**RobertaPrefixForTokenClassification**类为例

初始化

class RobertaPrefixForTokenClassification(RobertaPreTrainedModel):
    def __init__(self, config):
        super().__init__(config)
        ....
        self.prefix_tokens = torch.arange(self.pre_seq_len).long()
        self.prefix_encoder = PrefixEncoder(config)
		...

• prefix_tokens“加在输入前面的prompt"

• PrefixEncoder：为了获得连续prompt，设计的模块

  class PrefixEncoder(torch.nn.Module):
      r'''
      The torch.nn model to encode the prefix
      Input shape: (batch-size, prefix-length)
      Output shape: (batch-size, prefix-length, 2*layers*hidden)
      '''
      def __init__(self, config):
          super().__init__()
          self.prefix_projection = config.prefix_projection
          if self.prefix_projection:
              # Use a two-layer MLP to encode the prefix
  			...
          else:
              self.embedding = torch.nn.Embedding(
                  config.pre_seq_len,
                  config.num_hidden_layers * 2 * config.hidden_size)

      def forward(self, prefix: torch.Tensor):
          if self.prefix_projection:
             	...
          else:
              past_key_values = self.embedding(prefix)
          return past_key_values


  • self.embedding这里就是论文附录B所说的Embedding

前向计算

在**RobertaPrefixForTokenClassification**中的forward函数中

class RobertaPrefixForTokenClassification(RobertaPreTrainedModel):
    def __init__(self, config):
		...
    def get_prompt(self, batch_size):
        prefix_tokens = self.prefix_tokens.unsqueeze(0).expand(batch_size, -1).to(self.roberta.device)
        # 得到连续Prompt
        past_key_values = self.prefix_encoder(prefix_tokens)
        # 改变形状
        past_key_values = past_key_values.view(
            batch_size,
            self.pre_seq_len,
            self.n_layer * 2,
            self.n_head,
            self.n_embd
        )
        past_key_values = self.dropout(past_key_values)
        # 改变形状，划分成数组。没一个数组元素形状为：(2,batch_size,n_head,seq_len,head_dim)
        past_key_values = past_key_values.permute([2, 0, 3, 1, 4]).split(2)
        return past_key_values

    def forward(...):
        ...
        past_key_values = self.get_prompt(batch_size=batch_size)
        prefix_attention_mask = torch.ones(batch_size, self.pre_seq_len).to(self.roberta.device)
        attention_mask = torch.cat((prefix_attention_mask, attention_mask), dim=1)

        outputs = self.roberta(
            input_ids,
           	...
            past_key_values=past_key_values,
        )
		...

• 再一次前向计算中，P-tuning v2会通过self.get_prompt(batch_size=batch_size)得到要连续Prompt
• 巧妙的利用past_key_values参数，将past_key_values数组中每一个元素，拼接到BertSelfAttention中Key和Value。那具体怎么实现的？接下来就是Transformers库里原代码了

past_key_values

跟踪past_key_values传递的路径：

RobertaModel -> RobertaEncoder

# 在RobertaEncoder的Forward里，有这样一段代码
for i, layer_module in enumerate(self.layer):
	# 遍历Roberta的层数，然后每一次得到past_key_values的数组元素，
    # past_key_value的形状就是上述提到的(2,batch_size,n_head,seq_len,head_dim)
    past_key_value = past_key_values[i] if past_key_values is not None else None
    ....
    layer_outputs = layer_module(
        hidden_states,
        attention_mask,
        layer_head_mask,
        encoder_hidden_states,
        encoder_attention_mask,
        past_key_value,
        output_attentions,
        )


self.layer是nn.ModuleList([RobertaLayer(config) for _ in range(config.num_hidden_layers)])

所以看到**RobertaLayer**层

class RobertaLayer(nn.Module):
    def __init__(self, config):
        super().__init__()
       	...
        self.attention = RobertaAttention(config)
		...

    def forward(
        self,
        hidden_states: torch.Tensor,
        attention_mask: Optional[torch.FloatTensor] = None,
        head_mask: Optional[torch.FloatTensor] = None,
        encoder_hidden_states: Optional[torch.FloatTensor] = None,
        encoder_attention_mask: Optional[torch.FloatTensor] = None,
        past_key_value: Optional[Tuple[Tuple[torch.FloatTensor]]] = None,
        output_attentions: Optional[bool] = False,
    ) -> Tuple[torch.Tensor]:
        # decoder uni-directional self-attention cached key/values tuple is at positions 1,2
        self_attn_past_key_value = past_key_value[:2] if past_key_value is not None else None
        self_attention_outputs = self.attention(
            hidden_states,
            attention_mask,
            head_mask,
            output_attentions=output_attentions,
            past_key_value=self_attn_past_key_value,
        )
        attention_output = self_attention_outputs[0]

		...

• self.attention是RobertaAttention，继续跟踪

class RobertaAttention(nn.Module):
    def __init__(self, config, position_embedding_type=None):
        super().__init__()
        self.self = RobertaSelfAttention(config, 		position_embedding_type=position_embedding_type)
        ...

    def forward(...) -> Tuple[torch.Tensor]:
        self_outputs = self.self(
            hidden_states,
            attention_mask,
            head_mask,
            encoder_hidden_states,
            encoder_attention_mask,
            past_key_value,
            output_attentions,
        )
        attention_output = self.output(self_outputs[0], hidden_states)
        outputs = (attention_output,) + self_outputs[1:]  # add attentions if we output them
        return outputs

继续跟踪，RobertaSelfAttention

class RobertaSelfAttention(nn.Module):
    def __init__(self, config, position_embedding_type=None):
        super().__init__()
        ...
        self.num_attention_heads = config.num_attention_heads
        self.attention_head_size = int(config.hidden_size / config.num_attention_heads)
        self.all_head_size = self.num_attention_heads * self.attention_head_size

        self.query = nn.Linear(config.hidden_size, self.all_head_size)
        self.key = nn.Linear(config.hidden_size, self.all_head_size)
        self.value = nn.Linear(config.hidden_size, self.all_head_size)
    	...
        return outputs

    def transpose_for_scores(self, x: torch.Tensor) -> torch.Tensor:
        new_x_shape = x.size()[:-1] + (self.num_attention_heads, self.attention_head_size)
        x = x.view(new_x_shape)
        return x.permute(0, 2, 1, 3)

    def forward(
  		...
        past_key_value: Optional[Tuple[Tuple[torch.FloatTensor]]] = None,
        output_attentions: Optional[bool] = False,
    ) -> Tuple[torch.Tensor]:

        # query
        mixed_query_layer = self.query(hidden_states)
    	...
        if is_cross_attention and past_key_value is not None:
            ...
        elif is_cross_attention:
            ...
        elif past_key_value is not None:
            #
            key_layer = self.transpose_for_scores(self.key(hidden_states))
            value_layer = self.transpose_for_scores(self.value(hidden_states))
            key_layer = torch.cat([past_key_value[0], key_layer], dim=2)
            value_layer = torch.cat([past_key_value[1], value_layer], dim=2)
        else:
            ...
        query_layer = self.transpose_for_scores(mixed_query_layer)
    	...
        # Take the dot product between "query" and "key" to get the raw attention scores.
        attention_scores = torch.matmul(query_layer, key_layer.transpose(-1, -2))
        ...
        attention_scores = attention_scores / math.sqrt(self.attention_head_size)
       	...
        # Normalize the attention scores to probabilities.
        attention_probs = nn.functional.softmax(attention_scores, dim=-1)
        # This is actually dropping out entire tokens to attend to, which might
        # seem a bit unusual, but is taken from the original Transformer paper.
        attention_probs = self.dropout(attention_probs)
        # Mask heads if we want to
        ...
        context_layer = torch.matmul(attention_probs, value_layer)
        context_layer = context_layer.permute(0, 2, 1, 3).contiguous()
        new_context_layer_shape = context_layer.size()[:-2] + (self.all_head_size,)
        context_layer = context_layer.view(new_context_layer_shape)
        outputs = (context_layer, attention_probs) if output_attentions else (context_layer,)
        if self.is_decoder:
            outputs = outputs + (past_key_value,)
        return outputs

• 到这里情况就很明了，因为past_key_value is not None成立，会执行

  • key_layer = self.transpose_for_scores(self.key(hidden_states))
    value_layer = self.transpose_for_scores(self.value(hidden_states))
    key_layer = torch.cat([past_key_value[0], key_layer], dim=2)
    value_layer = torch.cat([past_key_value[1], value_layer], dim=2)


  • 其中transpose_for_scores这个函数会将张量转换形状，调换维度。这个代码会在seq_length维度进行拼接，其他维度不可动。

• 然后，mixed_query_layer经过transpose_for_scores得到query_layer，方便和key_layer和value_layer做运算，即attention_scores = torch.matmul(query_layer, key_layer.transpose(-1, -2))

• 然后就是注意分数的计算细节，得到注意力分数attention_probs后，做注意力汇聚context_layer = torch.matmul(attention_probs, value_layer)

• 最后调整context_layer的形状，使其和输入hidden state保持一致

代码实现总结

1. RobertaPrefixForTokenClassification中的get_prompt函数，调用PrefixEncoder，调整形状转换维度，划分数组，得到每一层RobertaLayer需要的past_key_value
2. 持续跟踪past_key_value传递，到RobertaSelfAttention，发现past_key_value会在seq_length维度和key_layer及其value_layer拼接。
3. 然后就是一些注意层的计算，调整形状，使注意层的输入和hidden_state形状一致。

P-tuning V2巧妙的利用past_key_value这个参数，完成了连续Promtpt参数的融入。

P-tuning V2连续Prompt代码实现仿真代码

为了方便读者直观理解，整个过程，我写了一段仿真代码，如下：

from torch import nn
def transpose_for_scores(x: torch.Tensor) -> torch.Tensor:
    new_x_shape = x.size()[:-1] + (12, 64)
    x = x.view(new_x_shape)
    return x.permute(0, 2, 1, 3)

prompt = torch.rand(32,128,48,12,64) # batch_size, seq_len, num_layer*2, num_head, head_size
prompt = prompt.permute([2,0,3,1,4])
print(f"P-tuningV2构造的trainable continuous embeddings形状：{prompt.shape}")
past_key_values = prompt.split(2)
num_layers = 24
hidden_dim = 768
n_head = 12
head_dim = hidden_dim // n_head
all_head_size = n_head * head_dim
hidden_states = torch.randn(32,128,768) # batch_size, seq_len, hidden_size
print(f"输入的向量形状：{hidden_states.shape}")
for i in range(num_layers):
    past_key_value = past_key_values[i]
    print(f"每一层BertLayer需要加入的prompt形状: {past_key_value.shape}")
    self_attn_past_key_value = past_key_value[:2] if past_key_value is not None else None
    # BertSelfAttention
    query = nn.Linear(hidden_dim, all_head_size)
    key = nn.Linear(hidden_dim, all_head_size)
    value = nn.Linear(hidden_dim, all_head_size)

    key_layer = transpose_for_scores(key(hidden_states))
    print(f"经过transpose_for_scores后的key形状：{key_layer.shape}")
    value_layer = transpose_for_scores(value(hidden_states))
    print(f"经过transpose_for_scores后的value形状：{value_layer.shape}")
    key_layer = torch.cat([past_key_value[0], key_layer], dim=2)
    print(f"past_key_value[0]的形状：{past_key_value[0].shape} key_layer的形状：{key_layer.shape} 经过cat后的key_layer形状：{key_layer.shape}")
    value_layer = torch.cat([past_key_value[1], value_layer], dim=2)
    print(f"past_key_value[1]的形状：{past_key_value[1].shape} value_layer的形状：{value_layer.shape} 经过cat后的value_layer形状：{value_layer.shape}")

    mixed_query_layer = query(hidden_states)
    print(f"hidden_states经过query层后输出的形状：{mixed_query_layer.size()}") #batch seq len embed
    query_layer = transpose_for_scores(mixed_query_layer)
    print(f"经过transpose_for_scores后的query形状{query_layer.size()}") #batch

    print("注意力分数开始计算")
    attention_scores = torch.matmul(query_layer, key_layer.transpose(-1, -2))
    print(f"attention_scores的形状：{attention_scores.size()}") #batch head seq_len seq_len
    print("开始注意力汇聚计算")
    context_layer = torch.matmul(attention_scores, value_layer)
    print(f"注意力汇聚后输出矩阵context_layer的形状：{context_layer.size()}") #batch head seq_len embed/12
    print("最后，将context_layer的形状恢复成输入hidden_states的形状")
    context_layer = context_layer.permute(0, 2, 1, 3).contiguous()
    new_context_layer_shape = context_layer.size()[:-2] + (768,)
    context_layer = context_layer.view(new_context_layer_shape)
    print(f"context_layer的形状恢复完成，其形状为：{context_layer.size()}")
    print("一次P-tuningV2的BertLayer计算仿真结束")
    break

其输出为

P-tuningV2构造的contigous prompt形状：torch.Size([48, 32, 12, 128, 64])
输入的向量形状：torch.Size([32, 128, 768])
每一层BertLayer需要加入的prompt形状: torch.Size([2, 32, 12, 128, 64])
经过transpose_for_scores后的key形状：torch.Size([32, 12, 128, 64])
经过transpose_for_scores后的value形状：torch.Size([32, 12, 128, 64])
past_key_value[0]的形状：torch.Size([32, 12, 128, 64]) key_layer的形状：torch.Size([32, 12, 256, 64]) 经过cat后的key_layer形状：torch.Size([32, 12, 256, 64])
past_key_value[1]的形状：torch.Size([32, 12, 128, 64]) value_layer的形状：torch.Size([32, 12, 256, 64]) 经过cat后的value_layer形状：torch.Size([32, 12, 256, 64])
hidden_states经过query层后输出的形状：torch.Size([32, 128, 768])
经过transpose_for_scores后的query形状torch.Size([32, 12, 128, 64])
注意力分数开始计算
attention_scores的形状：torch.Size([32, 12, 128, 256])
开始注意力汇聚计算
注意力汇聚后输出矩阵context_layer的形状：torch.Size([32, 12, 128, 64])
最后，将context_layer的形状恢复成输入hidden_states的形状
context_layer的形状恢复完成，其形状为：torch.Size([32, 128, 768])
一次P-tuningV2的BertLayer计算仿真结束
