 忘了附上项目下载地址：

https://github.com/PacktPublishing/Mastering-OpenCV-4-Third-Edition

https://github.com/PacktPublishing/Mastering-OpenCV3-Second-Edition

https://github.com/MasteringOpenCV/code

git clone https://github.com/Microsoft/vcpkg/

又遇到了新问题：

Can't use SPARSE_SCHUR with Solver::Options::sparse_linear_algebra_library_type = EIGEN_SPARSE

解决，重新rebuild ceres

./vcpkg install ceres[eigensparse,suitesparse,lapack]:x64-windows --recurse

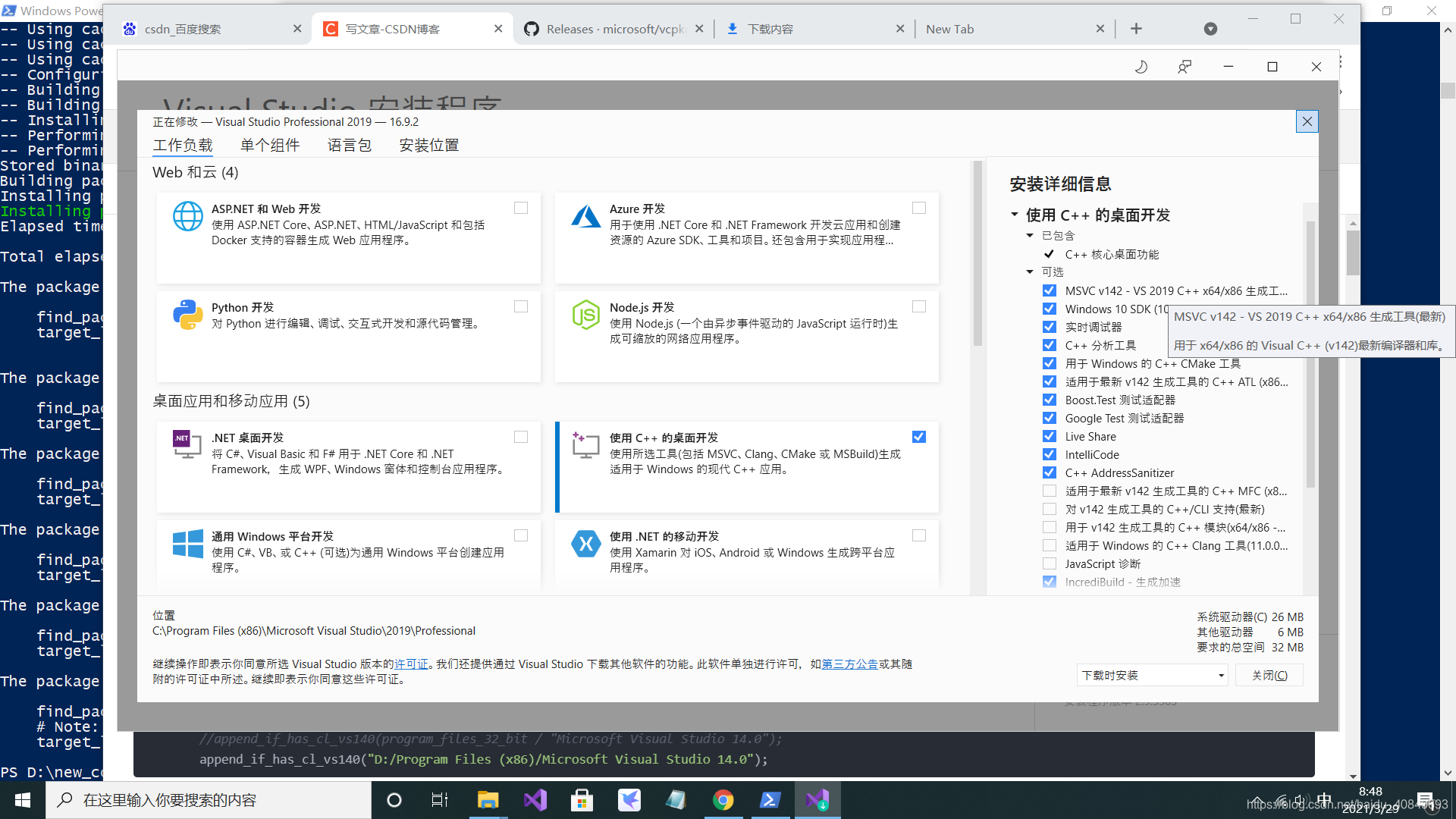

我换成了VS2019 english语言 默认安装路径  vcpkg-2020.11-1(改成这个vcpkg-e054fe2b20469c894b88be4ac466776f9f653954) 解决了所有问题。。。。。(md 我想多了)

cmake . ..\src -G "Visual Studio 16 2019" -DCMAKE_TOOLCHAIN_FILE=D:\new_code\vcpkg-2020.11-1\scripts\buildsystems\vcpkg.cmake -DVCPKG_TARGET_TRIPLET=x64-windows -DVCG_ROOT="..\VCG" -DCMAKE_INSTALL_PREFIX="..\install"



又出现问题了：

  Could NOT find OpenCV (missing: viz) (found suitable version "4.3.0",
  minimum required is "4"

然后。。。。

https://github.com/microsoft/vcpkg/pull/12785

https://github.com/microsoft/vcpkg/tree/e054fe2b20469c894b88be4ac466776f9f653954

我改成这个了

vcpkg-e054fe2b20469c894b88be4ac466776f9f653954

重新来一遍

但是这个版本的boost换成了1.74.0 不是吧，又要下载。。。

我因为之前有1.73.0，用脚本弄了一下(代码写的很着急比较垃圾大家自己写一个吧)：

import os
lines = os.listdir("./data")

# for index, value in enumerate(lines):
#     newname = value.replace("1.73.0", "1.74.0")
#     name = value.split("-")[1]
#     downname = "https://github.com/boostorg/{}/archive/boost-1.74.0.tar.gz".format(name)
#     print(downname)
#     print(newname)

import shutil
lines2 = os.listdir("./data2")
lines2_kuname = []
lines2_kuname_index = []
for index, value in enumerate(lines2):
    lines2_kuname.append(value.split("-")[0])
    lines2_kuname_index.append(index)

for index, value in enumerate(lines):
    newname = value.replace("1.73.0", "1.74.0")
    name = value.split("-")[1]
    index = lines2_kuname.index(name)
    lines2_index = lines2_kuname_index[index]
    ori_name = lines2[lines2_index]
    shutil.copy(os.path.join("./data2", ori_name), os.path.join("./", newname))

编译完以后又遇到问题：

'static_cast': cannot convert from 'const std::string' to 'const cv::utils::logging::LogTag *'

https://github.com/opencv/opencv/issues/17792

https://github.com/opencv/opencv/pull/17822/files

https://github.com/opencv/opencv/pull/17822

opencv4.4才解决了这个bug，正好我的是4.3有这个bug，太棒了。好巧。但是！我是不可能重新编译的。。。

注释全部的CV_LOG_INFO 还有其他 or and 引起的错误。。尴尬vs2019我记得支持or and的啊，有可能cmake写的c11，难道and是c14？

完整版修改后的我放在文章最后

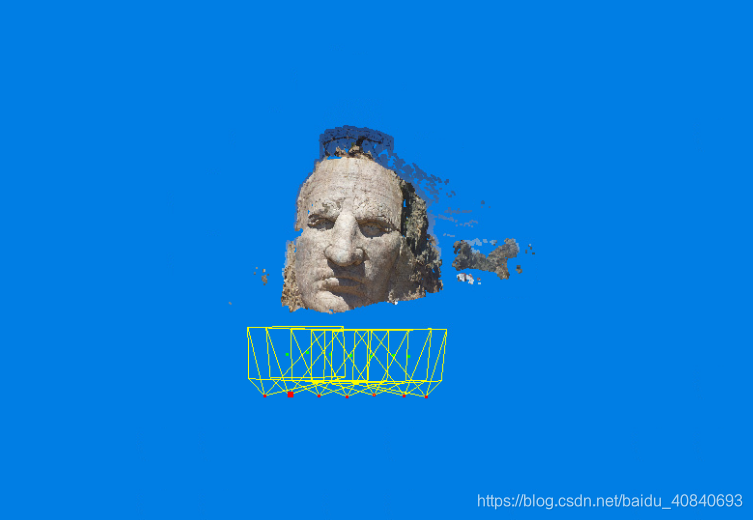

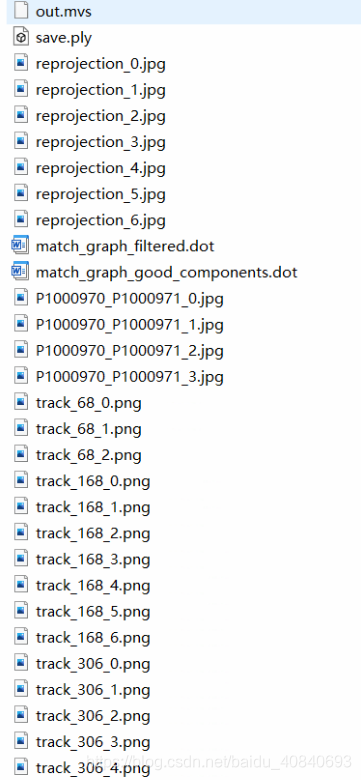

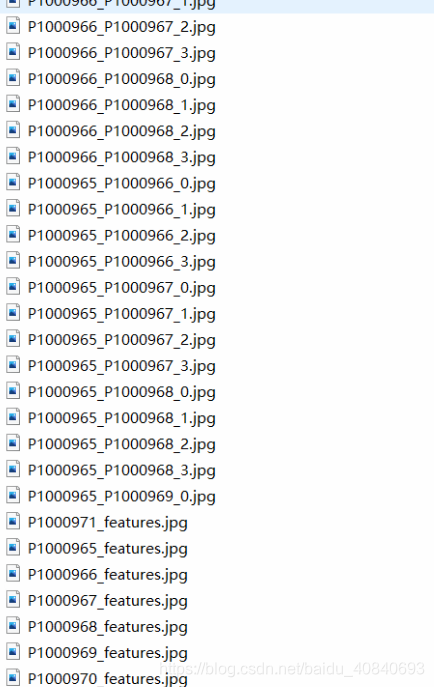

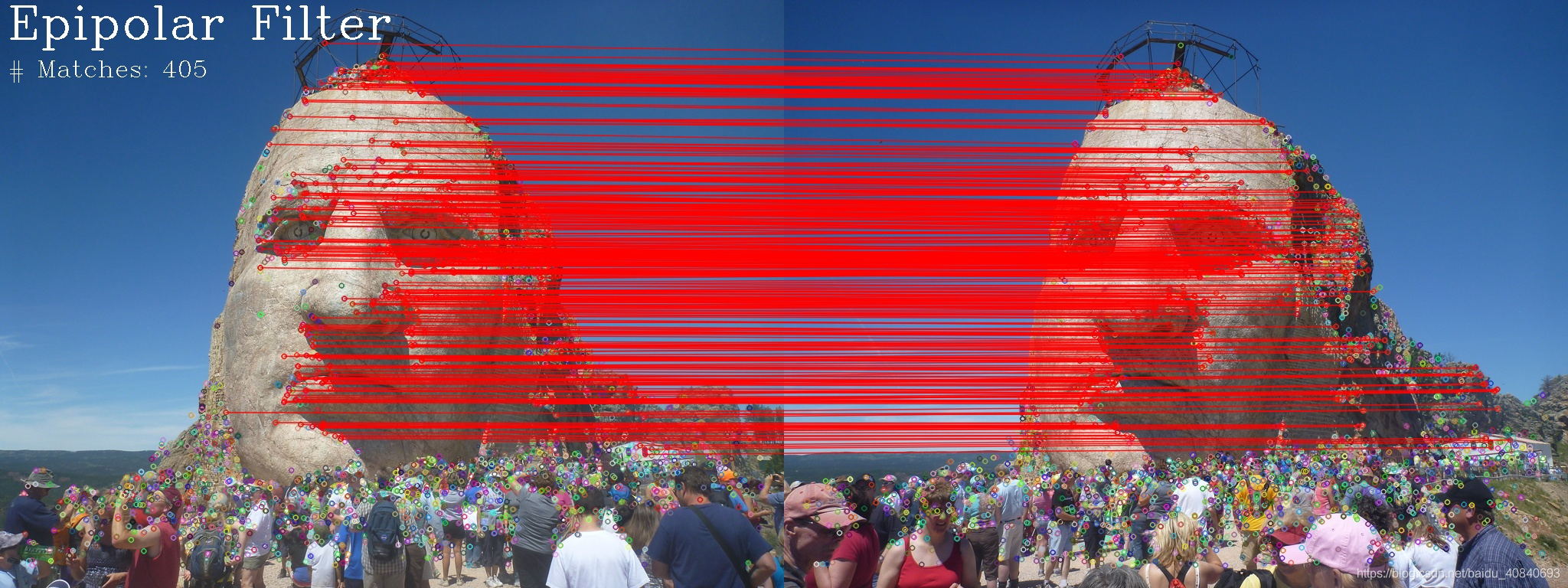

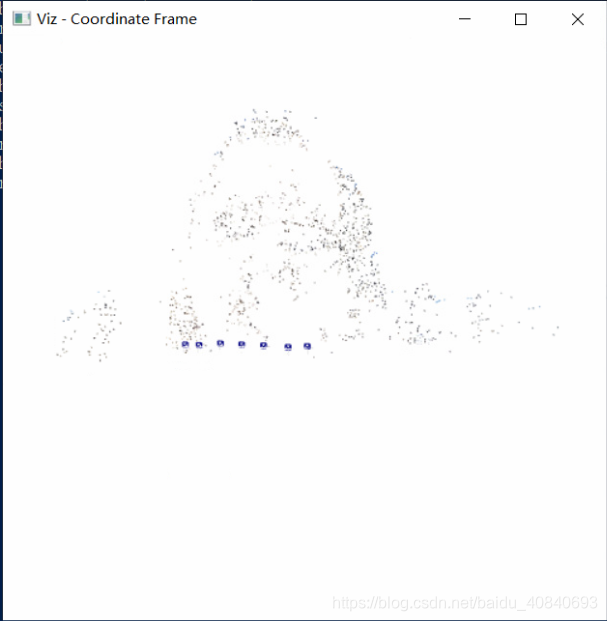

./ch2_sfm.exe --viz=true --cloud=save.ply --debug=true --mvs=out.mvs D:/new_code/OpenMVS/Chapter_02/crazyhorse/

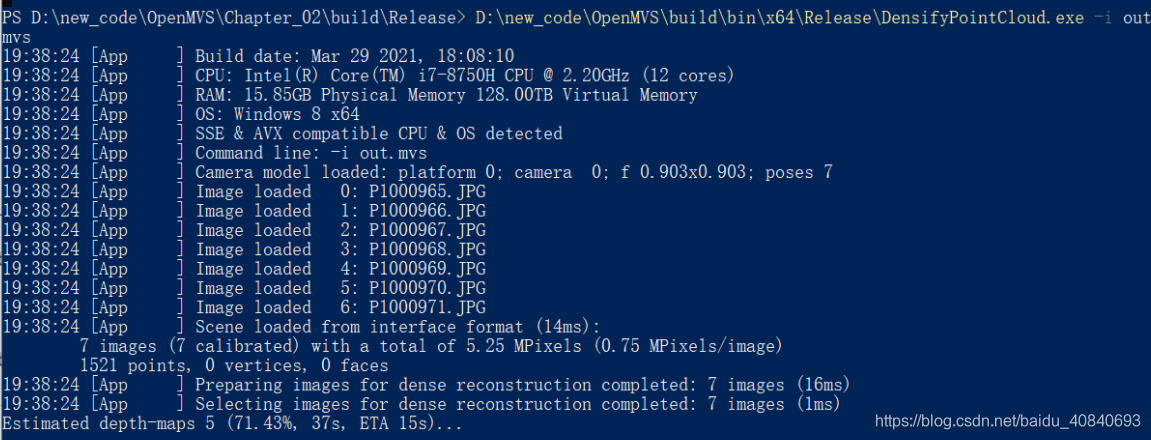

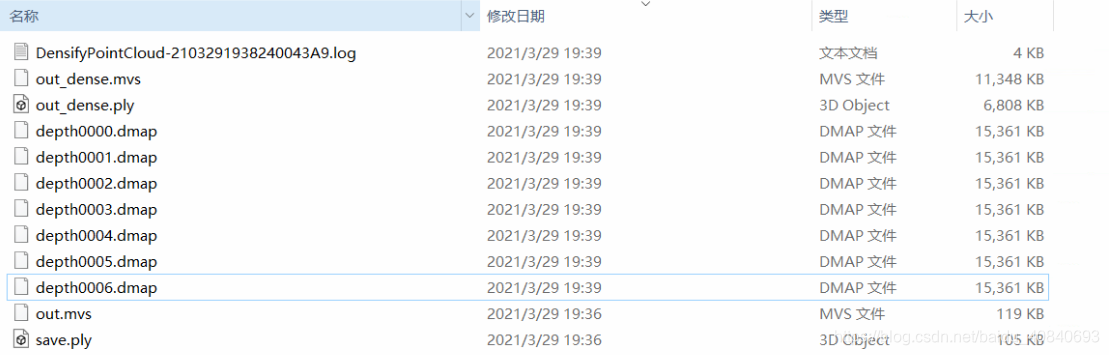

D:\new_code\OpenMVS\build\bin\x64\Release\DensifyPointCloud.exe -i out.mvs

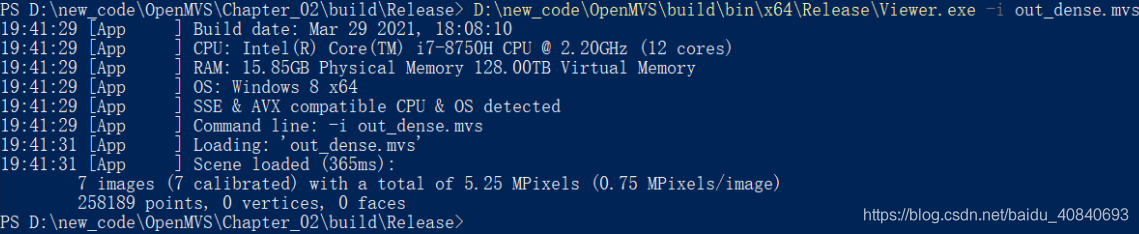

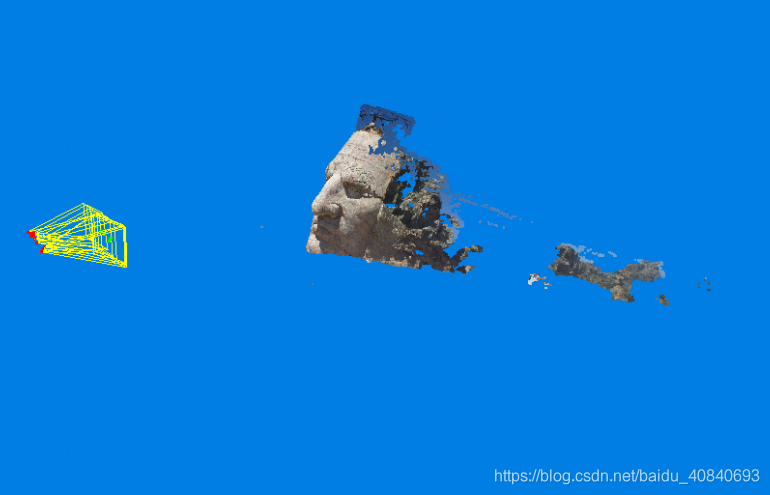

D:\new_code\OpenMVS\build\bin\x64\Release\Viewer.exe -i out_dense.mvs

用到命令集合：

 ./vcpkg install opencv4[sfm,vtk]:x64-windows zlib:x64-windows boost-iostreams:x64-windows boost-program-options:x64-windows boost-system:x64-windows boost-serialization:x64-windows eigen3:x64-windows cgal[core]:x64-windows glew:x64-windows glfw3:x64-windows boost-graph:x64-windows boost-filesystem:x64-windows


cmake . ..\src -G "Visual Studio 16 2019" -DCMAKE_TOOLCHAIN_FILE=D:\new_code\vcpkg-e054\scripts\buildsystems\vcpkg.cmake -DVCPKG_TARGET_TRIPLET=x64-windows -DVCG_ROOT="..\VCG" -DCMAKE_INSTALL_PREFIX="..\install"


cmake .. -G "Visual Studio 16 2019" -DCMAKE_TOOLCHAIN_FILE=D:/new_code/vcpkg-e054/scripts/buildsystems/vcpkg.cmake -DVCPKG_TARGET_TRIPLET=x64-windows -DOpenMVS_DIR=D:/new_code/OpenMVS/build

请一定全部看完再进行开始（下面都是我第一次失败的流程）

Explore Structure from Motion with the SfM Module

需要的东西vcpkg 版本vcpkg-2020.11 (不要用这个直接安装mvs，会出错)

1. 首先vs2015安装，然后语言变成English(后面我会出错，请使用vs2017 or vs2019)

2. powershell v7.0.3以上

3. 由于我没有选择VS2015默认安装路径，error：

https://github.com/microsoft/vcpkg/issues/12488

修改：D:\install\vcpkg\vcpkg-2020.11\toolsrc\src\vcpkg\visualstudio.cpp


        // VS2015 instance from Program Files
        //append_if_has_cl_vs140(program_files_32_bit / "Microsoft Visual Studio 14.0");
        append_if_has_cl_vs140("D:/Program Files (x86)/Microsoft Visual Studio 14.0");

4. opengl的错误

https://blog.csdn.net/baidu_40840693/article/details/106279727

修改：D:\install\vcpkg\vcpkg-2020.11\ports\opengl\portfile.cmake

#vcpkg_get_windows_sdk(WINDOWS_SDK)
set(WINDOWS_SDK "8.1")

5.补充

如果已使用 integrate 选项，则应在删除 vcpkg 实例之前删除该集成。 若要删除和清理该集成，请将目录更改为 vcpkg 根目录。 在 Windows 上，运行 vcpkg integrate remove，确保清除该集成。 在 Linux 或 macOS 上，运行 ./vcpkg integrate remove 命令。

6. 安装

./vcpkg install opencv4[sfm,vtk]:x64-windows

7. 包下载极其不友好，只能自己下载然后改名字放到指定位置

8. 关于包的卸载

./vcpkg remove opencv4:x64-windows --recurse

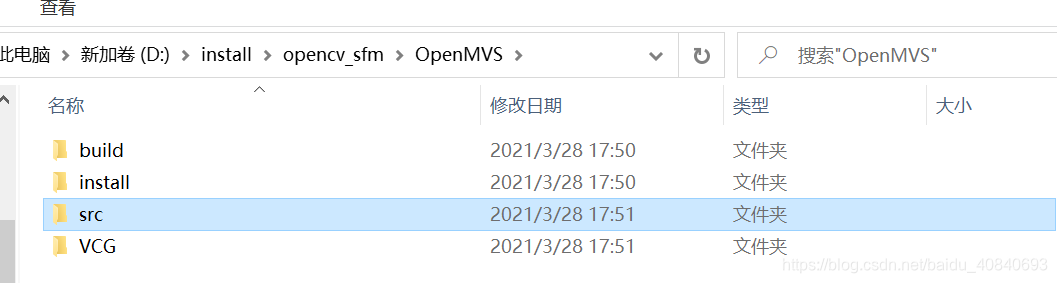

 9. openMVS官方

#Make a toplevel directory for deps & build & src somewhere:
mkdir OpenMVS
cd OpenMVS

#Get and install dependencies using vcpkg;
#choose the desired triplet, like "x64-windows", by setting the VCPKG_DEFAULT_TRIPLET environment variable or by specifying it after each package:
vcpkg install zlib boost-iostreams boost-program-options boost-system boost-serialization eigen3 cgal[core] opencv glew glfw3

#Get VCGLib (Required):
git clone https://github.com/cdcseacave/VCG.git

#Get and unpack OpenMVS in OpenMVS/src:
git clone https://github.com/cdcseacave/openMVS.git src

#Make build directory:
mkdir build
cd build

#Run CMake, where VCPKG_ROOT environment variable points to the root of vcpkg installation:
cmake . ..\src -G "Visual Studio 15 2017 Win64" -DCMAKE_TOOLCHAIN_FILE=%VCPKG_ROOT%\scripts\buildsystems\vcpkg.cmake -DVCPKG_TARGET_TRIPLET=x64-windows -DVCG_ROOT="..\VCG"

#Open the solution in MSVC and build it

10.

./vcpkg install zlib:x64-windows boost-iostreams:x64-windows boost-program-options:x64-windows boost-system:x64-windows boost-serialization:x64-windows eigen3:x64-windows cgal[core]:x64-windows glew:x64-windows glfw3:x64-windows glfw3:x64-windows

还有如下两个

./vcpkg install boost-graph:x64-windows boost-filesystem:x64-windows

11.记得添加

CMAKE_INSTALL_PREFIX

12.openMVS编译



cmake . ..\src -G "Visual Studio 14 2015 Win64" -DCMAKE_TOOLCHAIN_FILE=%VCPKG_ROOT%\scripts\buildsystems\vcpkg.cmake -DVCPKG_TARGET_TRIPLET=x64-windows -DVCG_ROOT="..\VCG" -DCMAKE_INSTALL_PREFIX="..\install"

 如果你没设置VCPKG_ROOT：

cmake . ..\src -G "Visual Studio 14 2015 Win64" -DCMAKE_TOOLCHAIN_FILE=D:\install\vcpkg\vcpkg\scripts\buildsystems\vcpkg.cmake -DVCPKG_TARGET_TRIPLET=x64-windows -DVCG_ROOT="..\VCG" -DCMAKE_INSTALL_PREFIX="..\install"

结果展示：

Selecting Windows SDK version  to target Windows 10.0.18363.
cotire 1.8.0 loaded.
Compiling with C++14
CUDA_TOOLKIT_ROOT_DIR not found or specified
Could NOT find CUDA (missing: CUDA_TOOLKIT_ROOT_DIR CUDA_NVCC_EXECUTABLE CUDA_INCLUDE_DIRS CUDA_CUDART_LIBRARY)
-- Can't find CUDA. Continuing without it.
WARNING: BREAKPAD was not found: Please specify BREAKPAD directory using BREAKPAD_ROOT env. variable
-- Can't find BreakPad. Continuing without it.
Found Boost: D:/install/vcpkg/vcpkg/installed/x64-windows/include (found version "1.73.0") found components: iostreams program_options system serialization regex
Eigen 3.3.7 found (include: D:/install/vcpkg/vcpkg/installed/x64-windows/include/eigen3)
OpenCV 4.3.0 found (include: D:/install/vcpkg/vcpkg/installed/x64-windows/include)
Visual Leak Detector (VLD) is not found.
Using header-only CGAL
Targetting Visual Studio 14 2015 Win64
Target build enviroment supports auto-linking
Using VC toolset 140.
Generator uses intermediate configuration directory: $(Platform)/$(Configuration)
Found Boost: D:/install/vcpkg/vcpkg/installed/x64-windows/include (found suitable version "1.73.0", minimum required is "1.48")
Boost include dirs: D:/install/vcpkg/vcpkg/installed/x64-windows/include
Boost libraries:
CGAL 5.1 found (include: D:/install/vcpkg/vcpkg/installed/x64-windows/share/cgal/../../include)
VCG  found (include: D:/install/opencv_sfm/OpenMVS/VCG)
GLEW  found (include: D:/install/vcpkg/vcpkg/installed/x64-windows/include)
GLFW3 3.3.2 found (include: )
Configuring done
Generating done

遇到问题：

'ret': declaration is not allowed in 'constexpr' function body

// VC work around for constexpr and noexcept: VC2013 and below do not support these 2 keywords

 openMVS-1.1.1必须vs2017 or vs 2019 建议使用vs2019



但是我们已经编译了vs2015了使用低版本

openMVS-0.9.zip

#Make a toplevel directory for deps & build & src somewhere:
mkdir OpenMVS
cd OpenMVS

#Get and install dependencies using vcpkg;
#choose the desired triplet, like "x64-windows", by setting the VCPKG_DEFAULT_TRIPLET environment variable or by specifying it after each package:
vcpkg install zlib boost-iostreams boost-program-options boost-system boost-serialization eigen3 cgal[core] opencv glew glfw3

#Get VCGLib (Required):
git clone https://github.com/cdcseacave/VCG.git

#Get and unpack OpenMVS in OpenMVS/src:
git clone https://github.com/cdcseacave/openMVS.git src

#Make build directory:
mkdir build
cd build

#Run CMake, where VCPKG_ROOT environment variable points to the root of vcpkg installation:
cmake . ..\src -G "Visual Studio 15 2017 Win64" -DCMAKE_TOOLCHAIN_FILE=%VCPKG_ROOT%\scripts\buildsystems\vcpkg.cmake -DVCPKG_TARGET_TRIPLET=x64-windows -DVCG_ROOT="..\VCG"

#Open the solution in MSVC and build it

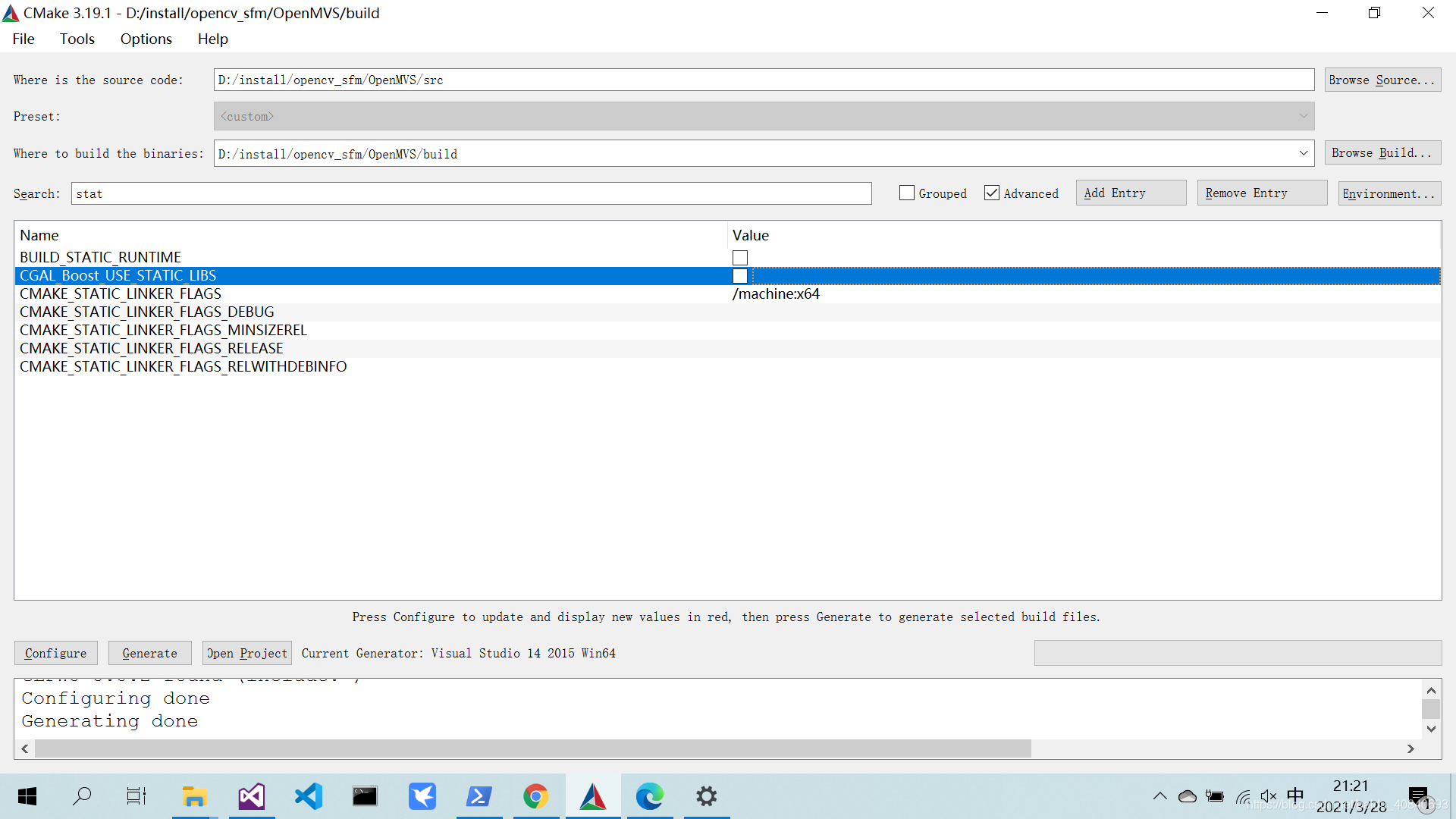

如果出现少CMAKE_TOOLCHAIN_FILE or VCG_ROOT，cmake-gui打开配置



还是出错：
“boost::throw_exception”: 重定义；"__declspec(noreturn)" 或 "[[noreturn]]" 不同   改一下，取消use static

因为vcpkg编译时候，x64-windows是动态，x64-windows-static才是静态

还是不行

最后换成VS2017 来一遍。。。。。。。。。。

不过最幸运的是，不用再下载包了

13.项目编译

cmake .. -G "Visual Studio 18 2019" -DCMAKE_TOOLCHAIN_FILE=D:/new_code/vcpkg-2020.11-1/scripts/buildsystems/vcpkg.cmake -DVCPKG_TARGET_TRIPLET=x64-windows -DOpenMVS_DIR=D:/new_code/OpenMVS/build









项目readme详情：

# Chapter 2: Explore Structure from Motion with the SfM Module
Structure from Motion (SfM) is the process of recovering both the positions of cameras looking at the scene, as well as the sparse geometry of the scene.
The motion between the cameras imposes geometric constraints that can help us recover the structure of objects, hence the process is called Structure from Motion.
Since OpenCV v3.0+ a contributed ("contrib") module called sfm was added, that assists in performing end-to-end SfM processing from multiple images.
In this chapter, we will learn how to use the SfM module to reconstruct a scene to a sparse point cloud including camera poses.
Later we will also densify the point cloud, add many more points to it to make it dense, using an open Multi-View Stereo (MVS) package called OpenMVS.

## Requirements
* OpenCV 4 (compiled with the  sfm contrib module)
* Eigen v3.3.5+ (required by the sfm module and Ceres)
* Ceres solver v2+ (required by the sfm module)
* CMake 3.12+
* Boost v1.66+
* OpenMVS
* CGAL v4.12+ (required by OpenMVS)
* VCG (required by OpenMVS)

## Building instructions

### Building or installing third-party libraries
Follow the instructions on https://github.com/opencv/opencv_contrib to build OpenCV with the contrib modules.
You may only include the following contrib modules: `sfm`, `viz`

Build OpenMVS following these instructions: https://github.com/cdcseacave/openMVS/wiki/Building.
These also include the installation instructions for Ceres, Boost, Eigen and CGAL.

Example for building OpenMVS: (OpenMVS already has a `build` dir, from which CMake should be called)
```
$ cd <openMVS dir>/build
$ cmake .. -DOpenCV_DIR=<opencv4 dir>/build -DCGAL_ROOT=<cgal4 dir>/lib/cmake/ -DVCG_DIR=<vcg dir> -DCMAKE_BUILD_TYPE=Release
$ make
```

### Building project
```
$ mkdir build && cd build
$ cmake .. -DOpenCV_DIR=<opencv dir>/build -DOpenMVS_DIR=<openMVS dir>/build
$ make
```

## Running instructions
```
Usage: ch2_sfm [params] dir

	-?, -h, --help (value:true)
		help message
	--cloud
		Save reconstruction to a point cloud file (PLY, XYZ and OBJ). Provide filename
	--debug (value:false)
		Save debug visualizations to files?
	--mrate (value:0.5)
		Survival rate of matches to consider image pair success
	--mvs
		Save reconstruction to an .mvs file. Provide filename
	--viz (value:false)
		Visualize the sparse point cloud reconstruction?

	dir (value:.)
		directory with image files for reconstruction
```

Example:
```
$ ./ch2_sfm --viz=true --mvs=out.mvs ../crazyhorse/
$ <openMVS dir>/build/bin/DensifyPointCloud -i out.mvs
$ <openMVS dir>/build/bin/Viewer -i out_dense.mvs
```

## Author
Roy Shilkrot <br/>
roy.shil@gmail.com <br/>
http://www.morethantechnical.com



代码：

#include <iostream>
#include <algorithm>
#include <string>
#include <numeric>

#define CERES_FOUND true

#include <opencv2/opencv.hpp>
#include <opencv2/sfm.hpp>
#include <opencv2/viz.hpp>
#include <opencv2/core/utils/logger.hpp>
#include <opencv2/core/utils/filesystem.hpp>
#include <opencv2/xfeatures2d.hpp>

#include <boost/filesystem.hpp>
#include <boost/graph/graph_traits.hpp>
#include <boost/graph/adjacency_list.hpp>
#include <boost/graph/connected_components.hpp>
#include <boost/graph/graphviz.hpp>

#define _USE_OPENCV true
#include <libs/MVS/Interface.h>

using namespace cv;
using namespace std;
namespace fs = boost::filesystem;

class StructureFromMotion {

public:
    StructureFromMotion(const string& dir,
            const float matchSurvivalRate = 0.5f,
            const bool viz = false,
            const string mvs = "",
            const string cloud = "",
            const bool saveDebug = false)
        :PAIR_MATCH_SURVIVAL_RATE(matchSurvivalRate),
         visualize(viz),
         saveMVS(mvs),
         saveCloud(cloud),
         saveDebugVisualizations(saveDebug)

    {
        findImagesInDiretcory(dir);
    }

    void runSfM() {
        extractFeatures();
        matchFeatures();
        buildTracks();
        reconstructFromTracks();
        if (visualize) {
            visualize3D();
        }
        if (saveMVS != "") {
            saveToMVSFile();
        }
        if (saveCloud != "") {
            //CV_LOG_INFO(TAG, "Save point cloud to: " + saveCloud);
			cout << "Save point cloud to: " + saveCloud << endl;
            viz::writeCloud(saveCloud, pointCloud, pointCloudColor);
        }
    }

private:
    void findImagesInDiretcory(const string& dir) {
        //CV_LOG_INFO(TAG, "Finding images in " + dir);
        cout << "Finding images in " + dir << endl;

        utils::fs::glob(dir, "*.jpg", imagesFilenames);
        utils::fs::glob(dir, "*.JPG", imagesFilenames);
        utils::fs::glob(dir, "*.png", imagesFilenames);
        utils::fs::glob(dir, "*.PNG", imagesFilenames);

        std::sort(imagesFilenames.begin(), imagesFilenames.end());

        //CV_LOG_INFO(TAG, "Found " + std::to_string(imagesFilenames.size()) + " images");
        cout << "Found " + std::to_string(imagesFilenames.size()) + " images" << endl;

        //CV_LOG_INFO(TAG, "Reading images...");
        cout << "Reading images..." << endl;
        for (const auto& i : imagesFilenames) {
            //CV_LOG_INFO(TAG, i);
            cout << i << endl;
            images[i] = imread(i);
            imageIDs[i] = images.size() - 1;
        }
    }

    void extractFeatures() {
        //CV_LOG_INFO(TAG, "Extract Features");
        cout << "Extract Features" << endl;

        auto detector = AKAZE::create();
        auto extractor = AKAZE::create();

        for (const auto& i : imagesFilenames) {
            Mat grayscale;
            cvtColor(images[i], grayscale, COLOR_BGR2GRAY);
            detector->detect(grayscale, keypoints[i]);
            extractor->compute(grayscale, keypoints[i], descriptors[i]);

            //CV_LOG_INFO(TAG, "Found " + to_string(keypoints[i].size()) + " keypoints in " + i);
            cout << "Found " + to_string(keypoints[i].size()) + " keypoints in " + i << endl;

            if (saveDebugVisualizations) {
                Mat out;
                drawKeypoints(images[i], keypoints[i], out, Scalar(0,0,255));
                imwrite(fs::basename(fs::path(i)) + "_features.jpg", out);
            }
        }
    }

    vector<DMatch> matchWithRatioTest(const DescriptorMatcher& matcher, const Mat& desc1, const Mat& desc2) {
        // Raw match
        vector< vector<DMatch> > nnMatch;
        matcher.knnMatch(desc1, desc2, nnMatch, 2);

        // Ratio test filter
        vector<DMatch> ratioMatched;
        for (size_t i = 0; i < nnMatch.size(); i++) {
            DMatch first = nnMatch[i][0];
            float dist1 = nnMatch[i][0].distance;
            float dist2 = nnMatch[i][1].distance;

            if (dist1 < MATCH_RATIO_THRESHOLD * dist2) {
                ratioMatched.push_back(first);
            }
        }

        return ratioMatched;
    }

    void matchFeatures() {
        //CV_LOG_INFO(TAG, "Match Features");
        cout << "Match Features" << endl;

        BFMatcher matcher(NORM_HAMMING);

        for (size_t i = 0; i < imagesFilenames.size() - 1; ++i) {
            for (size_t j = i + 1; j < imagesFilenames.size(); ++j) {
                const string imgi = imagesFilenames[i];
                const string imgj = imagesFilenames[j];

                // Match with ratio test filter
                vector<DMatch> match = matchWithRatioTest(matcher, descriptors[imgi], descriptors[imgj]);

                // Reciprocity test filter
                vector<DMatch> matchRcp = matchWithRatioTest(matcher, descriptors[imgj], descriptors[imgi]);
                vector<DMatch> merged;
                for (const DMatch& dmr : matchRcp) {
                    bool found = false;
                    for (const DMatch& dm : match) {
                        // Only accept match if 1 matches 2 AND 2 matches 1.
                        if (dmr.queryIdx == dm.trainIdx && dmr.trainIdx == dm.queryIdx) {
                            merged.push_back(dm);
                            found = true;
                            break;
                        }
                    }
                    if (found) {
                        continue;
                    }
                }

                // Fundamental matrix filter
                vector<uint8_t> inliersMask(merged.size());
                vector<Point2f> imgiPoints, imgjPoints;
                for (const auto& m : merged) {
                    imgiPoints.push_back(keypoints[imgi][m.queryIdx].pt);
                    imgjPoints.push_back(keypoints[imgj][m.trainIdx].pt);
                }
                findFundamentalMat(imgiPoints, imgjPoints, inliersMask);

                vector<DMatch> final;
                for (size_t m = 0; m < merged.size(); m++) {
                    if (inliersMask[m]) {
                        final.push_back(merged[m]);
                    }
                }

                if ((float)final.size() / (float)match.size() < PAIR_MATCH_SURVIVAL_RATE) {
                    //CV_LOG_INFO(TAG, "Final match '" + imgi + "'->'" + imgj + "' has less than "+to_string(PAIR_MATCH_SURVIVAL_RATE)+" inliers from orignal. Skip");
                    cout << "Final match '" + imgi + "'->'" + imgj + "' has less than " + to_string(PAIR_MATCH_SURVIVAL_RATE) + " inliers from orignal. Skip" << endl;
                    continue;
                }

                matches[make_pair(imgi, imgj)] = final;

                //CV_LOG_INFO(TAG, "Matching " + imgi + " and " + imgj + ": " + to_string(final.size()) + " / " + to_string(match.size()));
                cout << "Matching " + imgi + " and " + imgj + ": " + to_string(final.size()) + " / " + to_string(match.size()) << endl;

                if (saveDebugVisualizations) {
                    Mat out;
                    vector<DMatch> rawmatch;
                    matcher.match(descriptors[imgi], descriptors[imgj], rawmatch);
                    vector<pair<string, vector<DMatch>& > > showList{
                            {"Raw Match", rawmatch},
                            {"Ratio Test Filter", match},
                            {"Reciprocal Filter", merged},
                            {"Epipolar Filter", final}
                    };
                    for (size_t i = 0; i< showList.size(); i++) {
                        drawMatches(images[imgi], keypoints[imgi],
                                    images[imgj], keypoints[imgj],
                                    showList[i].second, out, CV_RGB(255,0,0));
                        putText(out, showList[i].first, Point(10,50), FONT_HERSHEY_COMPLEX, 2.0, CV_RGB(255,255,255), 2);
                        putText(out, "# Matches: " + to_string(showList[i].second.size()), Point(10,100), FONT_HERSHEY_COMPLEX, 1.0, CV_RGB(255,255,255));
                        imwrite(fs::basename(fs::path(imgi)) + "_" + fs::basename(fs::path(imgj)) + "_" + to_string(i) + ".jpg", out);
                    }
                }
            }
        }
    }

    void buildTracks() {
        //CV_LOG_INFO(TAG, "Build tracks");
		cout << "Build tracks" << endl;

        using namespace boost;

        struct ImageFeature {
            string image;
            size_t featureID;
        };
        typedef adjacency_list < listS, vecS, undirectedS, ImageFeature > Graph;
        typedef graph_traits < Graph >::vertex_descriptor Vertex;

        map<pair<string, int>, Vertex> vertexByImageFeature;

        Graph g;

        // Add vertices - image features
        for (const auto& imgi : keypoints) {
            for (size_t i = 0; i < imgi.second.size(); i++) {
                Vertex v = add_vertex(g);
                g[v].image = imgi.first;
                g[v].featureID = i;
                vertexByImageFeature[make_pair(imgi.first, i)] = v;
            }
        }

        // Add edges - feature matches
        for (const auto& match : matches) {
            for (const DMatch& dm : match.second) {
                Vertex& vI = vertexByImageFeature[make_pair(match.first.first, dm.queryIdx)];
                Vertex& vJ = vertexByImageFeature[make_pair(match.first.second, dm.trainIdx)];
                add_edge(vI, vJ, g);
            }
        }

        using Filtered  = filtered_graph<Graph, keep_all, std::function<bool(Vertex)>>;
        Filtered gFiltered(g, keep_all{}, [&g](Vertex vd) { return degree(vd, g) > 0; });

        // Get connected components
        std::vector<int> component(num_vertices(gFiltered), -1);
        int num = connected_components(gFiltered, &component[0]);
        map<int, vector<Vertex> > components;
        for (size_t i = 0; i != component.size(); ++i) {
            if (component[i] >= 0) {
                components[component[i]].push_back(i);
            }
        }
        // Filter bad components (with more than 1 feature from a single image)
        std::vector<int> vertexInGoodComponent(num_vertices(gFiltered), -1);
        map<int, vector<Vertex> > goodComponents;
        for (const auto& c : components) {
            set<string> imagesInComponent;
            bool isComponentGood = true;
            for (int j = 0; j < c.second.size(); ++j) {
                const string imgId = g[c.second[j]].image;
                if (imagesInComponent.count(imgId) > 0) {
                    // Image already represented in this component
                    isComponentGood = false;
                    break;
                } else {
                    imagesInComponent.insert(imgId);
                }
            }
            if (isComponentGood) {
                for (int j = 0; j < c.second.size(); ++j) {
                    vertexInGoodComponent[c.second[j]] = 1;
                }
                goodComponents[c.first] = c.second;
            }
        }

        Filtered gGoodComponents(g, keep_all{}, [&vertexInGoodComponent](Vertex vd) {
            return vertexInGoodComponent[vd] > 0;
        });

        //CV_LOG_INFO(TAG, "Total number of components found: " + to_string(components.size()));
        //CV_LOG_INFO(TAG, "Number of good components: " + to_string(goodComponents.size()));
		cout << "Total number of components found: " + to_string(components.size()) << endl;
		cout << "Number of good components: " + to_string(goodComponents.size()) << endl;
        const int accum = std::accumulate(goodComponents.begin(),
                                          goodComponents.end(), 0,
                                          [](int a, pair<const int, vector<Vertex> >& v){
                                                    return a+v.second.size();
                                                });
        //CV_LOG_INFO(TAG, "Average component size: " + to_string((float)accum / (float)(goodComponents.size())));
		cout << "Average component size: " + to_string((float)accum / (float)(goodComponents.size())) << endl;

        if (saveDebugVisualizations) {
            struct my_node_writer {
                my_node_writer(Graph& g_, const map<string,int>& iid_) : g (g_), iid(iid_) {};
                void operator()(std::ostream& out, Vertex v) {
                    const int imgId = iid[g[v].image];
                    out << " [label=\"" << imgId << "\" colorscheme=\"accent8\" fillcolor="<<(imgId+1)<<" style=filled]";
                };
                Graph g;
                map<string,int> iid;
            };
            std::ofstream ofs("match_graph_good_components.dot");
            write_graphviz(ofs, gGoodComponents, my_node_writer(g, imageIDs));
            std::ofstream ofsf("match_graph_filtered.dot");
            write_graphviz(ofsf, gFiltered, my_node_writer(g, imageIDs));
        }

        // Each component is a track
        const size_t nViews = imagesFilenames.size();
        tracks.resize(nViews);
        for (int i = 0; i < nViews; i++) {
            tracks[i].create(2, goodComponents.size(), CV_64FC1);
            tracks[i].setTo(-1.0);
        }
        int i = 0;
        for (auto c = goodComponents.begin(); c != goodComponents.end(); ++c, ++i) {
            for (const int v : c->second) {
                const int imageID = imageIDs[g[v].image];
                const size_t featureID = g[v].featureID;
                const Point2f p = keypoints[g[v].image][featureID].pt;
                tracks[imageID].at<double>(0, i) = p.x;
                tracks[imageID].at<double>(1, i) = p.y;
            }
        }

        if (saveDebugVisualizations) {
            vector<Scalar> colors = {CV_RGB(240, 248, 255),
                                     CV_RGB(250, 235, 215),
                                     CV_RGB(0, 255, 255),
                                     CV_RGB(127, 255, 212),
                                     CV_RGB(240, 255, 255),
                                     CV_RGB(245, 245, 220),
                                     CV_RGB(255, 228, 196),
                                     CV_RGB(255, 235, 205),
                                     CV_RGB(0, 0, 255),
                                     CV_RGB(138, 43, 226),
                                     CV_RGB(165, 42, 42),
                                     CV_RGB(222, 184, 135)};

            vector<Mat> imagesM;
            for (const auto m : images) imagesM.push_back(m.second);
            Mat out;
            hconcat(vector<Mat>(imagesM.begin(), imagesM.begin() + 4), out);
            RNG& rng = cv::theRNG();
            const Size imgS = imagesM[0].size();
            for (int tId = 0; tId < 20; tId++) {
                const int trackId = rng(tracks[0].cols); // Randomize a track ID

                // Show track over images
                for (int i = 0; i < 3; i++) {
                    Point2f a = Point2f(tracks[i].col(trackId));
                    Point2f b = Point2f(tracks[i + 1].col(trackId));

                    if (a.x < 0 || a.y < 0 || b.x < 0 || b.y < 0) {
                        continue;
                    }

                    const Scalar c = colors[tId % colors.size()];
                    a.x += imgS.width * i;
                    b.x += imgS.width * (i + 1);
                    circle(out, a, 7, c, FILLED);
                    circle(out, b, 7, c, FILLED);
                    line(out, a, b, c, 3);
                }
                imwrite("tracks.jpg", out);

                // Show track patches
                const int patchSize = 20;
                const Point2f patch(patchSize, patchSize);
                for (int i = 0; i < tracks.size(); i++) {
                    Point2f a = Point2f(tracks[i].col(trackId));
                    if (a.x < patchSize || a.y < patchSize ||
                        a.x > imgS.width-patchSize || a.y > imgS.height-patchSize) {
                        continue;
                    }

                    imwrite("track_" + to_string(trackId) + "_" + to_string(i) + ".png",
                            imagesM[i](Rect(a - patch, a + patch)));
                }
            }
        }
    }

    bool reconstructFromTracks() {
        //CV_LOG_INFO(TAG, "Reconstruct from " + to_string(tracks[0].cols) + " tracks");
		cout << "Reconstruct from " + to_string(tracks[0].cols) + " tracks" << endl;
        const Size imgS = images.begin()->second.size();
        const float f = std::max(imgS.width,imgS.height);
        Mat K = Mat(Matx33f{f, 0.0, imgS.width/2.0f,
                            0.0, f, imgS.height/2.0f,
                            0.0, 0.0, 1.0});
        cv::sfm::reconstruct(tracks, Rs, Ts, K, points3d, true);

        K.copyTo(K_);

        //CV_LOG_INFO(TAG, "Reconstruction: ");
        //CV_LOG_INFO(TAG, "Estimated 3D points: " + to_string(points3d.size()));
        //CV_LOG_INFO(TAG, "Estimated cameras: " + to_string(Rs.size()));
        //CV_LOG_INFO(TAG, "Refined intrinsics: ");
        //CV_LOG_INFO(TAG, K_);
		cout << "Reconstruction: " << endl;
		cout << "Estimated 3D points: " + to_string(points3d.size()) << endl;
		cout << "Estimated cameras: " + to_string(Rs.size()) << endl;
		cout << "Refined intrinsics: " << endl;
		cout << K_ << endl;


        if (Rs.size() != imagesFilenames.size()) {
            //CV_LOG_ERROR(TAG, "Unable to reconstruct all camera views (" + to_string(imagesFilenames.size()) + ")");
			cout << "Unable to reconstruct all camera views (" + to_string(imagesFilenames.size()) + ")" << endl;
            return false;
        }

        if (tracks[0].cols != points3d.size()) {
            //CV_LOG_WARNING(TAG, "Unable to reconstruct all tracks (" + to_string(tracks[0].cols) + ")");
			cout << "Unable to reconstruct all tracks (" + to_string(tracks[0].cols) + ")" << endl;
        }

        // Create the point cloud
        pointCloud.clear();
        for (const auto &p : points3d) pointCloud.emplace_back(Vec3f(p));

        // Get the point colors
        pointCloudColor.resize(pointCloud.size(), Vec3b(0,255,0));
        vector<Point2f> point2d(1);
        for (int i = 0; i < (int)pointCloud.size(); i++) {
            for (int j = 0; j < imagesFilenames.size(); ++j) {
                Mat point3d = Mat(pointCloud[i]).reshape(1, 1);
                cv::projectPoints(point3d, Rs[j], Ts[j], K_, Mat(), point2d);
                if (point2d[0].x < 0 || point2d[0].x >= imgS.width || point2d[0].y < 0 ||
                    point2d[0].y >= imgS.height) {
                    continue;
                }
                pointCloudColor[i] = images[imagesFilenames[j]].at<Vec3b>(point2d[0]);
                break;
            }
        }

        return true;
    }

    void visualize3D() {
        //CV_LOG_INFO(TAG, "Visualize reconstruction");
		cout << "Visualize reconstruction" << endl;

        if (saveDebugVisualizations) {
            // 3d point reprojections
            Mat points2d;
            Mat points3dM(points3d.size(), 1, CV_32FC3);
            for (int i = 0 ; i < points3d.size(); i++) {
                points3dM.at<Vec3f>(i) = Vec3f(points3d[i]);
            }
            for (int j = 0; j < imagesFilenames.size(); j++) {
                //ynh error
                //11张图 第10个会出bug
                //modules\core\include\opencv2\core\mat.inl.hpp
                /*
                inline
                Mat::Mat(const Mat& m)
                    : flags(m.flags), dims(m.dims), rows(m.rows), cols(m.cols), data(m.data),
                      datastart(m.datastart), dataend(m.dataend), datalimit(m.datalimit), allocator(m.allocator),
                      u(m.u), size(&rows), step(0)
                {
                    if( u )
                        CV_XADD(&u->refcount, 1);
                    //断点
                    if( m.dims <= 2 )
                    {
                        step[0] = m.step[0]; step[1] = m.step[1];
                    }
                    else
                    {
                        dims = 0;
                        copySize(m);
                    }
                }
                */
                cv::projectPoints(points3dM, Rs[j], Ts[j], K_, noArray(), points2d);

                Mat out;
                images[imagesFilenames[j]].copyTo(out);
                for (int i = 0; i < points2d.rows; i++) {
                    circle(out, points2d.at<Point2f>(i), 3, CV_RGB(255, 0, 0), FILLED);
                }
                imwrite("reprojection_" + to_string(j) + ".jpg", out);
            }
        }

        // Create 3D windows
        viz::Viz3d window("Coordinate Frame");
        window.setWindowSize(Size(500, 500));
        window.setWindowPosition(Point(150, 150));
        window.setBackgroundColor(viz::Color::white());

        //cout << "rotations[0].rows:" << Rs[0].rows << endl;
        //cout << "rotations[0].cols:" << Rs[0].cols << endl;
        //cout << "translations[0].rows:" << Ts[0].rows << endl;
        //cout << "translations[0].cols:" << Ts[0].cols << endl;

        // Recovering cameras
        vector<Affine3d> path;
        for (size_t i = 0; i < Rs.size(); ++i)
            path.push_back(Affine3d(Rs[i],Ts[i]));

        // Add the pointcloud
        viz::WCloud cloud_widget(pointCloud, pointCloudColor);
        window.showWidget("point_cloud", cloud_widget);
        // Add cameras
        window.showWidget("cameras_frames_and_lines", viz::WTrajectory(path, viz::WTrajectory::BOTH, 0.1, viz::Color::black()));
        window.showWidget("cameras_frustums", viz::WTrajectoryFrustums(path, K_, 0.1, viz::Color::navy()));
        window.setViewerPose(path[0]);

        /// Wait for key 'q' to close the window
        //CV_LOG_INFO(TAG, "Press 'q' to close ... ")
		cout << "Press 'q' to close ... " << endl;

        window.spin();
    }

    void saveToMVSFile() {
        //CV_LOG_INFO(TAG, "Save reconstruction to MVS file: " + saveMVS)
		cout << "Save reconstruction to MVS file: " + saveMVS << endl;

        MVS::Interface interface;
        MVS::Interface::Platform p;

        // Add camera
        MVS::Interface::Platform::Camera c;
        const Size imgS = images[imagesFilenames[0]].size();
        c.K = Matx33d(K_);
        c.R = Matx33d::eye();
        c.C = Point3d(0,0,0);
        c.name = "Camera1";
        c.width = imgS.width;
        c.height = imgS.height;
        p.cameras.push_back(c);

        // Add views
        p.poses.resize(Rs.size());
        for (size_t i = 0; i < Rs.size(); ++i) {
            Mat t = -Rs[i].t() * Ts[i];
            p.poses[i].C.x = t.at<double>(0);
            p.poses[i].C.y = t.at<double>(1);
            p.poses[i].C.z = t.at<double>(2);
            Mat r; Rs[i].copyTo(r);
            Mat(r).convertTo(p.poses[i].R, CV_64FC1);

            // Add corresponding image
            MVS::Interface::Image image;
            image.cameraID = 0;
            image.poseID = i;
            image.name = imagesFilenames[i];
            image.platformID = 0;
            interface.images.push_back(image);
        }
        p.name = "Platform1";
        interface.platforms.push_back(p);

        // Add point cloud
        for (size_t k = 0; k < points3d.size(); ++k) {
            MVS::Interface::Color c;
            MVS::Interface::Vertex v;
            v.X = Vec3f(points3d[k]);

            // Reproject to see if in image bounds and get the RGB color
            Mat point3d;
            Mat(points3d[k].t()).convertTo(point3d, CV_32FC1);
            for (uint32_t j = 0; j < tracks.size(); ++j) {
                vector<Point2f> points2d(1);
                cv::projectPoints(point3d, Rs[j], Ts[j], K_, Mat(), points2d);
                if (points2d[0].x < 0 || points2d[0].x > imgS.width ||
                    points2d[0].y < 0 || points2d[0].y > imgS.height) {
                    continue;
                } else {
                    c.c = images[imagesFilenames[j]].at<Vec3b>(points2d[0]);
                    v.views.push_back({j, 1.0});
                }
            }

            interface.verticesColor.push_back(c);
            interface.vertices.push_back(v);
        }

        MVS::ARCHIVE::SerializeSave(interface, saveMVS);
    }

    vector<String> imagesFilenames;
    map<string, int> imageIDs;
    map<string, Mat> images;
    map<string, vector<KeyPoint> > keypoints;
    map<string, Mat> descriptors;
    map<pair<string, string>, vector<DMatch> > matches;
    vector<Mat> Rs, Ts;
    vector<Mat> points3d;
    vector<Mat> tracks;
    vector<Vec3f> pointCloud;
    vector<Vec3b> pointCloudColor;
    Matx33f K_;

    const float MATCH_RATIO_THRESHOLD = 0.8f; // Nearest neighbor matching ratio
    const float PAIR_MATCH_SURVIVAL_RATE;     // Ratio of surviving matches for a successful stereo match
    const bool visualize;                     // Show 3D visualization of the sprase cloud?
    const string saveMVS;                     // Save the reconstruction in MVS format for OpenMVS?
    const string saveCloud;                   // Save the reconstruction to a point cloud file?
    const bool saveDebugVisualizations;       // Save debug visualizations from the reconstruction process

    const string TAG = "StructureFromMotion";
};


// ./ch2_sfm.exe --viz=true --cloud=save.ply --debug=true --mvs=out.mvs D:/new_code/OpenMVS/Chapter_02/crazyhorse/
// D:\new_code\OpenMVS\build\bin\x64\Release\DensifyPointCloud.exe -i out.mvs
// D:\new_code\OpenMVS\build\bin\x64\Release\Viewer.exe -i out_dense.mvs

int main(int argc, char** argv) {
    utils::logging::setLogLevel(utils::logging::LOG_LEVEL_DEBUG);

    cv::CommandLineParser parser(argc, argv,
                                 "{help h ? |       | help message}"
                                 "{@dir     | .     | directory with image files for reconstruction }"
                                 "{mrate    | 0.5   | Survival rate of matches to consider image pair success }"
                                 "{viz      | false | Visualize the sparse point cloud reconstruction? }"
                                 "{debug    | false | Save debug visualizations to files? }"
                                 "{mvs      |       | Save reconstruction to an .mvs file. Provide filename }"
                                 "{cloud    |       | Save reconstruction to a point cloud file (PLY, XYZ and OBJ). Provide filename}"
    );

    if (parser.has("help"))
    {
        parser.printMessage();
        return 0;
    }

    StructureFromMotion sfm(parser.get<string>("@dir"),
                            parser.get<float>("mrate"),
                            parser.get<bool>("viz"),
                            parser.get<string>("mvs"),
                            parser.get<string>("cloud"),
                            parser.get<bool>("debug")
                            );
    sfm.runSfM();

    return 0;
}



ros 找不到 OpenCV 的问题
N1CROWN的博客
04-21 6732
1.问题描述 Could not find a package configuration file provided by "OpenCV" with any of the following names: OpenCVConfig.cmake opencv-config.cmake Add the installation prefix of "OpenCV" to CMAKE_PREFIX_PATH or set "OpenCV_DIR" to a direct...
OpenCV中的模块：三维重建-SFM（2）
A_Jia_17的博客
04-03 1426
接上一篇文章，本篇将介绍SFM模块在windows平台上的编译。与Ubuntu下的过程类似，主要过程也是依赖库的下载、编译及安装，不同点是：与Ubuntu直接安装不同，windows下我们将对库的依赖关系更加清晰。
一个sfm开源项目
anlaiji6783的博客
07-06 288
Structure from Motion 资料总结 https://blog.csdn.net/u014636245/article/details/77527627 github上用opencv实现的sfm工具 https://github.com/royshil/SfM-Toy-Library 在ubunu上安装 mkdir build cd build ...
PaddleOCR 编译 预测库 找不到opencv 报错～Could not find a package configuration file provided by “OpenCV“ with
weixin_46400740的博客
09-22 520
打开 CMakeLists.txt 加一句 这个 find_package("OpenCV") 在哪加？ find_package("OpenCV") 《----- if (WIN32) include_directories("${PADDLE_LIB}/paddle/include") link_directories("${PADDLE_LIB}/paddle/lib") find_package(OpenCV REQUIRED PATHS ${OPENCV_DIR}/build
SFM与MVS
最新发布
qq_46454669的博客
04-01 827
SFM是可以重建稀疏点云的和相机参数(内外)， 主要目的是：estimating the geometry of the scene and camera poses from a set of images. 使用场景最多还是标定相机内外参。MVS重建的是稠密点云。输入的数据：SFM是没有标定的图像，而MVS输入的是标定的图像(具有相机参数)，PS:相机参数可以通过SFM标定，所以如果从一组图像中重建三维模型，我们可以首先采用SFM标定相机内外参，然后根据标定结果进行稠密点云重建。
解决Can't use SPARSE_SCHUR with EIGEN_SPARSE because Eigen's sparse linear algebra was not enabled whe
固本培元的专栏
03-05 1213
如图问题：（墙内没有。。墙外好像也没搜到，只有自己解决咯） Can't use SPARSE_SCHUR with EIGEN_SPARSE because Eigen's sparse linear algebra was not enabled when Ceres was built 下载Ceres * 链接: https://pan.baidu.com/s/17qOxlCb8db3...
UIUC同学Jia-Bin Huang收集的计算机视觉代码合集（ZZ）
ubunfans的专栏
04-20 5725
转自：http://www.cnblogs.com/idaidai/archive/2012/03/01/2375800.html     UIUC的Jia-Bin Huang同学收集了很多计算机视觉方面的代码，链接如下： https://netfiles.uiuc.edu/jbhuang1/www/resources/vision/index.html 248 it
OpenCV中的模块：三维重建-SFM（1）
A_Jia_17的博客
04-01 918
在三维重建中，运动中恢复结构（SFM）可以用来重建目标的稀疏点云并为后续的稠密重建提供相对精度更高的种子点。笔者在三维重建的相关工作中除了采用结构光（线激光和条纹光等）外，还使用过OpenMVG + C/PMVS和COLMAP等。在浏览OpenCV contrib模块时发现OpenCV也可实现SFM，基于兴趣这里也编译学习了一下。同样，笔者会在Ubuntu下和windows下分别编译及测试
opencv-contrib sfm扩展模块下载安装
小白学习过程
11-04 1834
VS2017 OPENCV3 contrib(SFM模块) 血泪记录下安装opencv扩展模块踩过的坑！！！ 一开始我已经安装了opencv4.5.1，最近需要使用到扩展模块，故上网查询了一些帖子，按照教程操作了好几遍，花了三四天时间始终不能安装编译。。。。。。最后卸载了opencv4.5.1，安装了opencv3.4.13，终于能够编译通过了。不知道是opencv版本问题还是我的问题，csdn上找到的版本最高是4.2的，跟着用opnecv4.5.1,安装了几次都不行，没试过4.2版本的。 看教程一定要先大
MATLAB2018a+mexopencv+opencv+VS2017配置步骤，从下载到安装使用的全套姿势
Woosual的博客
05-05 8011
最近需要读取视频，MATLAB居然不支持特定格式，徘徊在把代码改成python和配置MATLAB去调用opencv之间，最后选了后者。我也出现过失败，装了第二次。过程中一定要看仔细，如果遇到错误找找相同类型的帖子有没有说明。 条件：已经安装了MATLAB2018a，VS2017 MATLAB命令行中mex -setup可执行 下载Windows版本的cmake： https://cmake...
玩转rk3588（五）：rk3588+openEuler 指定python环境编译安装opencv
qq_32636415的博客
12-06 2760
conda或pip在rk3588+openEuler上可以成功安装的opencv，但是在运行opencv+qt5程序时及其不稳定（程序不能启动或者运行过程中出错）通过查找资料，尝试了网上各种可行的方法仍然不能解决，于是尝试编译安装opencv。
Ubuntu20.04编译安装Opencv4.5.5安装包报错：Could NOT find ZLIB (missing: ZLIB_LIBRARY ZLIB_INCLUDE_DIR)
tanmx219的博客
03-15 1万+
刚装好的系统Ubuntu20.04上，想编译安装一下Opencv455，会出现很多的"Could NOT find"报错，有些是完全是可以忽略的，有些用户可能会根据自己的需要安装，我这里列一下自己想安装的一些包。 通用的解决办法 首先，你要如何找到那些你想安装的文件包呢？一般我们可以通过 apt-cache search libjpeg 或 apt search libjpeg 来查找含有libjpeg关键字的包，然后根据描述看是否是我们所需要的包， 查找完之后通过sudo apt install 这样
【三维重建】增量SFM系统
holle_world_ldx的博客
06-11 975
在学习完鲁鹏老师的三维重建基础后，打算用C++代码复现一下增量SFM系统（https://github.com/ldx-star/SFM）。本项目的最终目标就是通过相机拍摄的多视角视图获取三维点云。由于资金有效，博主使用的是相机是小米12。先来看一下最终效果：当然了，和开源系统比起来还是差很多的。
Breakpad(跨平台crash工具）
热门推荐
奇小葩
08-10 1万+
1. 编译Breakpad 下载源码，具体的编译过程请参考breakpad git clone https://chromium.googlesource.com/breakpad/breakpad 编译方法 ./configure && make 编译出错 mv -f $depbase.Tpo $depbase.Po src/client/linux/crash_generation/crash_generation_client.cc:40:10: fatal error: thir
【opencv】示例-flann_search_dataset.cpp 使用FLANN算法在一个图片数据集中搜索一个查询图像...
cxyhjl的博客
04-10 318
// 简单程序，用于展示如何使用FLANN在数据集中搜索查询图片 #include <iostream> #include <vector> #include "opencv2/core.hpp" #include "opencv2/core/utils/filesystem.hpp" #include "opencv2/highgui.hpp" #include "o...
02-跨平台的Qt程序崩溃之前生成Dump文件Breakpad
Robert Zhang
06-14 6158
Qt跨平台开发之崩溃捕捉并记录崩溃详情Breakpad一、崩溃捕捉记录的意义二、在Qt开发中怎样实现崩溃捕捉记录呢？三、Google breakpad简单介绍四、Google breakpad实现原理简单了解五、在Qt工程中集成Breakpad实现跨平台异常捕获六、qBreakpad的编译方法七、各平台下的例子工程下载地址 一、崩溃捕捉记录的意义 应用程序发布出去之后用户使用的过程中出现崩溃的情况...
Ubuntu16.04安装OpenCV
foochane
01-04 747
1.安装 opencv 所需依赖包 如果后面还要遗漏的，出错再补上 $ sudo apt-get update $ sudo apt-get upgrade $ sudo apt-get -y install libopencv-dev build-essential cmake git libgtk2.0-dev pkg-config python-d...
Windows 配置 Ceres-solver
bitheng的专栏
05-25 1万+
Windows 配置 Ceres-solver （Visual Studio） Ceres Solver是由Google开发的非线性最小二乘问题求解工具包 本文重点 安装必备及下载 安装步骤 测试与使用 参考资源
评论 4
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
