main.c

int main(void)
{
    int32_t addr0;              //spi读取的数据
    int32_t data = 0xffffffff;  //spi写入数据

    for( ;; )
    {
		Reg_Write_0(uint32_t data)
		addr = Reg_Read();

		printf("spi1 is %d , %x",addr,addr);

		vTaskDelay(1000);
	}
}

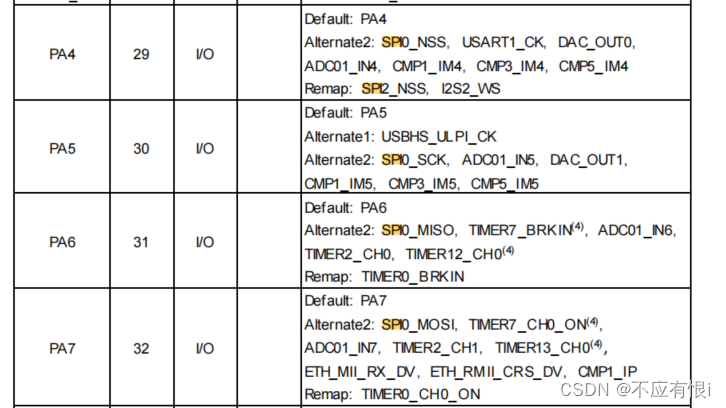

查询芯片的数据手册，查看spi0的引脚

(1)本次使用的是SPI0读取某个芯片的地址，spi.c

#include "bsp_spi.h"


void SPI0_Init(void)                                                             //SPI0
{
    spi_parameter_struct spi_init_struct;

    rcu_periph_clock_enable(RCU_GPIOA);
	rcu_periph_clock_enable(RCU_GPIOE);
	rcu_periph_clock_enable(RCU_AF);
    rcu_periph_clock_enable(RCU_SPI0);

    /* SPI0_SCK(PA5), SPI0_MISO(PA6) and SPI0_MOSI(PA7) GPIO pin configuration */
    gpio_init(GPIOA, GPIO_MODE_AF_PP, GPIO_OSPEED_50MHZ, GPIO_PIN_5 | GPIO_PIN_7);
    gpio_init(GPIOA, GPIO_MODE_IN_FLOATING, GPIO_OSPEED_50MHZ, GPIO_PIN_6);
    /* SPI0_CS(PA4) GPIO pin configuration */
    gpio_init(GPIOA, GPIO_MODE_OUT_PP, GPIO_OSPEED_50MHZ, GPIO_PIN_4);

    /* chip select invalid*/
    SPI0_CS_HIGH();

    /* SPI0 parameter config */
    spi_init_struct.trans_mode           = SPI_TRANSMODE_FULLDUPLEX;
    spi_init_struct.device_mode          = SPI_MASTER;
    spi_init_struct.frame_size           = SPI_FRAMESIZE_8BIT;
    spi_init_struct.clock_polarity_phase = SPI_CK_PL_LOW_PH_2EDGE;
    spi_init_struct.nss                  = SPI_NSS_SOFT;
    spi_init_struct.prescale             = SPI_PSC_64;
    spi_init_struct.endian               = SPI_ENDIAN_MSB;
    spi_init(SPI0, &spi_init_struct);

    /* enable SPI0 */
    spi_enable(SPI0);

}

uint32_t Reg_Read_0(uint8_t addr)
{
    uint8_t a,b,c;
    uint32_t reg_data;

    SPI0_CS_LOW();
    spi0_flash_send_byte(addr);
    a = spi0_flash_read_byte();
    b = spi0_flash_read_byte();
    c = spi0_flash_read_byte();

    reg_data = (a << 16) | (b << 8) | c;
    SPI0_CS_HIGH();

    return reg_data;
}

void Reg_Write_0(uint32_t data)
{
    SPI0_CS_LOW();
    spi0_flash_send_byte((uint8_t)((data >> 24) & 0xFF));
    spi0_flash_send_byte((uint8_t)((data >> 16) & 0xFF));
    spi0_flash_send_byte((uint8_t)((data >> 8) & 0xFF));
    spi0_flash_send_byte((uint8_t)(data & 0xFF));
    SPI0_CS_HIGH();
}

uint8_t spi0_flash_send_byte(uint8_t byte)
{
    /* loop while data register in not emplty */
    while (RESET == spi_i2s_flag_get(SPI0,SPI_FLAG_TBE));

    /* send byte through the SPI0 peripheral */
    spi_i2s_data_transmit(SPI0,byte);

    /* wait to receive a byte */
    while(RESET == spi_i2s_flag_get(SPI0,SPI_FLAG_RBNE));

    /* return the byte read from the SPI bus */
    return(spi_i2s_data_receive(SPI0));
}

uint8_t spi0_flash_read_byte(void)
{
    return(spi0_flash_send_byte(0xA5));
}

(3)spi.h

#ifndef __BSP_SPI_H_
#define __BSP_SPI_H_


#include "bsp.h"

#define  SPI0_CS_LOW()        gpio_bit_reset(GPIOA, GPIO_PIN_4)
#define  SPI0_CS_HIGH()       gpio_bit_set(GPIOA, GPIO_PIN_4)

uint32_t Reg_Read_0(uint8_t addr);
void Reg_Write_0(uint32_t data);
uint8_t spi0_flash_send_byte(uint8_t byte);
uint8_t spi0_flash_read_byte(void);
