如何查找ST官方STM32_USB-FS-Device_Lib_V4.1.0

本文链接：https://blog.csdn.net/caigen0001/article/details/115932565

STM32 USB FS HS开发必用的官方库STM32_USB-FS-Device_Lib_V4.1.0

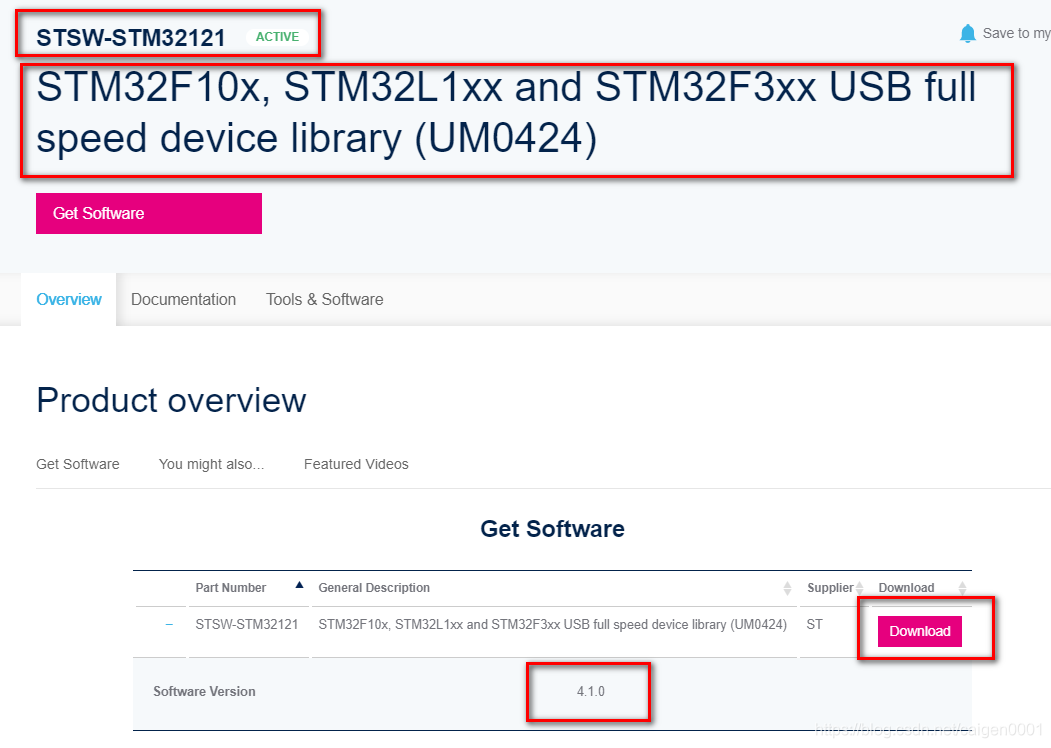

STSW-STM32121

Save to myST

官方文件名:

STM32F10x, STM32L1xx and STM32F3xx USB full speed device library (UM0424)

网址:

https://www.stmicroelectronics.com.cn/en/embedded-software/stsw-stm32121.html#overview

邮箱注册就可以免费下载了

更新历史:

V4.1.0 / 26-May-2017

Main Changes

Official release to support  STM32F302x8 and STM32F303xE devices
Use latest version of STM32F10x, STM32L1xx , STM32F30xx HAL  and CMSIS (for more details refer to each component's release notes)
STM32_USB_FS-Device_Driver
usb_core.c
Add test variable (DevRemoteWakeup) to solve issue regarding the device cannot wake USB host when receiving a second SUSPEND.
Fix issue in function DataStageOut regarding reporting status results for status IN stage.
Add JoyStickMouse_LPM example to show Link Power management LPM to show USB L1 state capability.
JoyStickMouse example
stm32_it.c: Add test variable (DevRemoteWakeup) to solve issue regarding the device cannot wake USB host when receiving a second SUSPEND.
Add VBUS sensing mechanism by using a normal GPIO pin (external interrupt line) and call PowerOff when cable is disconnected.

All examples
Remove Projects for Raisonance IDE RIDE7, Atollic TrueSTUDIO and TASKING toolchain.
Add projects for SW4STM32 toolchain.

Add USB_LOW_PWR_MGMT_SUPPORT to define if low power mode is enabled.
usb_prop.c
Fix issue regarding the wrong index of the descriptor string in _GetStringDescriptor function.
usb_pwr.c
Fix issue regarding answer of the device after a short USB reset.

Fix issue regarding unexpected USB reset interrupt.

Contents

CMSIS CM3 V4.3.0 (release notes)
STM32F10x CMSIS V3.6.4 (release notes)
STM32L1xx CMSIS V1.3.3 (release notes)
STM32F30x CMSIS V1.2.2 (release notes)
STM32_USB-FS-Device_Driver V4.1.0 (release notes)
STM32F37x CMSIS V1.0.0 (release notes)
STM32F10x_StdPeriph_Driver V3.6.1 (release notes)
STM32L1xx_StdPeriph_Driver   V1.3.1 (release notes)
STM32F30x_StdPeriph_Driver   V1.2.2 (release notes)
STM32F37x_StdPeriph_Driver   V1.0.0 (release notes)
STM32_EVAL\Common V5.0.2 (release notes)
STM3210B_EVAL          V5.0.1 (release notes)
STM3210E_EVAL          V5.1.0 (release notes)
STM32L152_EVAL         V5.0.2 (release notes)
STM32L152D_EVAL       V1.0.1 (release notes)
STM32303C_EVAL         V1.0.1 (release notes)
STM32373C_EVAL         V1.0.0 (release notes)

Development Toolchains

IAR Embedded Workbench for ARM (EWARM) toolchain V7.80.4 + ST-Link
RealView Microcontroller Development Kit (MDK-ARM) toolchain V5.23 + ST-LINK
System Workbench for STM32 (SW4STM32) toolchain V1.14 + ST-Link

Supported Devices and EVAL boards

STM32F10x Medium-density devices and STM3210B-EVAL board RevB
STM32F10x High-density devices and STM3210E-EVAL board  RevC
STM32F10x XL-density devices STM3210E-EVAL_XL board  RevB
STM32L1xx Medium-Density devices and STM32L152-EVAL board   RevB
STM32L1xx High-Density devices and STM32L152D-EVAL board RevB
STM32F37xx devices and STM32373C-EVAL board  RevC
STM32F303xC, STM32303xE devices and STM32303C-EVAL and STM32303E-EVAL board Rev C
STM32F302x8 and STM32F303RE-Nucleo Rev C

V4.0.0 / 29-June-2012

Main Changes

Add support of STM32F30xx and STM32F37xx devices
Remove support of the USB OTG Full speed in device (peripheral) mode embedded in the STM32F105x/7x devices
All source files starting with prefix otgd_fs (ex. otgd_fs_pcd.c/.h) were removed
There is no change on the API dealing with the USB FS Device peripheral, full compatibility is maintained vs. V3.4.0
The  STM32F105x/7x devices are supported by the STM32F105/7xx, STM32F2xx and STM32F4xx USB On-The-Go Host and Device Library (UM1021)

All examples
usb_pwr.c and usb_istr.c files updated to make the code more robust
Custom HID example
Add GET_Report/Set_Report features
Add composite "Mass Storage and HID" example
Add VirtualComport_Loopback example
Remove USB Audio Streaming example (used only for STM32F105x/7x devices)
Remove "stm32_usb-fs-device_lib_contents.htm" file: the information provided in this html page are available in UM0424

Contents

CMSIS CM3 V3.01 (release notes)
STM32F10x CMSIS V3.6.1 (release notes)
STM32L1xx CMSIS V1.1.1 (release notes)
STM32F30x CMSIS V1.0.0 (release notes)
STM32F37x CMSIS V1.0.0 (release notes)
STM32_USB-FS-Device_Driver V4.0.0 (release notes)
STM32F10x_StdPeriph_Driver V3.6.1 (release notes)
STM32L1xx_StdPeriph_Driver   V1.1.1 (release notes)
STM32F30x_StdPeriph_Driver   V1.0.1 (release notes)
STM32F37x_StdPeriph_Driver   V1.0.0 (release notes)
STM32_EVAL\Common V5.0.2 (release notes)
STM3210B_EVAL          V5.0.1 (release notes)
STM3210E_EVAL          V5.1.0 (release notes)
STM32L152_EVAL         V5.0.2 (release notes)
STM32L152D_EVAL       V1.0.1 (release notes)
STM32303C_EVAL         V1.0.1 (release notes)
STM32373C_EVAL         V1.0.0 (release notes)

Development Toolchains

IAR Embedded Workbench for ARM (EWARM) toolchain V6.50 + J-Link
RealView Microcontroller Development Kit (MDK-ARM) toolchain V4.50 + ULINK
Raisonance IDE RIDE7 (RIDE) toolchain v1.46 + Rlink Pro
Atollic TrueSTUDIO toolchain V3.3.0 + ST-LINK
TASKING VX-toolset for ARM Cortex-M V4.3r1 + ST-LINK

Supported Devices and EVAL boards

STM32F10x Medium-density devices and STM3210B-EVAL board
STM32F10x High-density devices and STM3210E-EVAL board
STM32F10x XL-density devices STM3210E-EVAL_XL board
STM32L1xx Medium-Density devices and STM32L152-EVAL board
STM32L1xx High-Density devices and STM32L152D-EVAL board
STM32F37xx devices and STM32373C-EVAL board
STM32F30xx devices and STM32303C-EVAL board

注意区别：

STM32_USB-FS-Device_Lib_V4.1.0不支持STM32F407;STM32_USB-FS-Device_Lib_V4.0.0支持STM32F407

STM32_USB-FS-Device_Lib_V4.1.0文件目录：

卷 新加卷 的文件夹 PATH 列表
卷序列号为 AED4-4CF9
D:\高速USB传输\STM32F10X, STM32L1XX AND STM32F3XX USB FULL SPEED DEVICE LIBRARY (UM0424)
└─en.stsw-stm32121-V4..1.0
    └─STM32_USB-FS-Device_Lib_V4.1.0
        ├─Libraries
        │  ├─CMSIS
        │  │  ├─Device
        │  │  │  └─ST
        │  │  │      ├─STM32F10x
        │  │  │      │  ├─Include
        │  │  │      │  └─Source
        │  │  │      │      └─Templates
        │  │  │      │          ├─arm
        │  │  │      │          ├─gcc
        │  │  │      │          └─iar
        │  │  │      ├─STM32F30x
        │  │  │      │  ├─Include
        │  │  │      │  └─Source
        │  │  │      │      └─Templates
        │  │  │      │          ├─arm
        │  │  │      │          ├─gcc
        │  │  │      │          └─iar
        │  │  │      ├─STM32F37x
        │  │  │      │  ├─Include
        │  │  │      │  └─Source
        │  │  │      │      └─Templates
        │  │  │      │          ├─arm
        │  │  │      │          ├─gcc
        │  │  │      │          └─iar
        │  │  │      └─STM32L1xx
        │  │  │          ├─Include
        │  │  │          └─Source
        │  │  │              └─Templates
        │  │  │                  ├─arm
        │  │  │                  ├─gcc
        │  │  │                  └─iar
        │  │  ├─Documentation
        │  │  │  ├─Core
        │  │  │  │  └─html
        │  │  │  │      └─search
        │  │  │  ├─General
        │  │  │  │  └─html
        │  │  │  └─RTOS
        │  │  │      └─html
        │  │  ├─Include
        │  │  └─RTOS
        │  │      └─Template
        │  ├─STM32F10x_StdPeriph_Driver
        │  │  ├─inc
        │  │  └─src
        │  ├─STM32F30x_StdPeriph_Driver
        │  │  ├─inc
        │  │  └─src
        │  ├─STM32F37x_StdPeriph_Driver
        │  │  ├─inc
        │  │  └─src
        │  ├─STM32L1xx_StdPeriph_Driver
        │  │  ├─inc
        │  │  └─src
        │  └─STM32_USB-FS-Device_Driver
        │      ├─inc
        │      └─src
        ├─Projects
        │  ├─Audio_Speaker
        │  │  ├─EWARM
        │  │  ├─inc
        │  │  ├─MDK-ARM
        │  │  ├─src
        │  │  └─SW4STM32
        │  │      ├─STM3210B-EVAL
        │  │      ├─STM3210E-EVAL
        │  │      ├─STM3210E-EVAL_XL
        │  │      └─STM32L152-EVAL
        │  ├─Composite_Examples
        │  │  └─MSC_HID_Composite
        │  │      ├─EWARM
        │  │      ├─inc
        │  │      ├─MDK-ARM
        │  │      ├─src
        │  │      └─SW4STM32
        │  │          ├─STM3210B-EVAL
        │  │          ├─STM3210E-EVAL
        │  │          ├─STM3210E-EVAL_XL
        │  │          ├─STM32303C_EVAL
        │  │          ├─STM32303xE_EVAL
        │  │          ├─STM32373C_EVAL
        │  │          ├─STM32L152-EVAL
        │  │          └─STM32L152D-EVAL
        │  ├─Custom_HID
        │  │  ├─EWARM
        │  │  ├─inc
        │  │  ├─MDK-ARM
        │  │  ├─src
        │  │  └─SW4STM32
        │  │      ├─STM3210B-EVAL
        │  │      ├─STM3210E-EVAL
        │  │      ├─STM3210E-EVAL_XL
        │  │      ├─STM32303C_EVAL
        │  │      ├─STM32303xE_EVAL
        │  │      ├─STM32373C_EVAL
        │  │      ├─STM32L152-EVAL
        │  │      └─STM32L152D-EVAL
        │  ├─Device_Firmware_Upgrade
        │  │  ├─binary_template
        │  │  │  ├─EWARM
        │  │  │  ├─inc
        │  │  │  ├─MDK-ARM
        │  │  │  ├─src
        │  │  │  └─SW4STM32
        │  │  │      ├─STM3210B-EVAL
        │  │  │      ├─STM3210E-EVAL
        │  │  │      ├─STM3210E-EVAL_XL
        │  │  │      ├─STM32303C_EVAL
        │  │  │      ├─STM32303xE_EVAL
        │  │  │      ├─STM32373C_EVAL
        │  │  │      ├─STM32F302x8_Nucleo
        │  │  │      ├─STM32L152D_EVAL
        │  │  │      └─STM32L152_EVAL
        │  │  ├─EWARM
        │  │  ├─inc
        │  │  ├─MDK-ARM
        │  │  ├─src
        │  │  └─SW4STM32
        │  │      ├─STM3210B-EVAL
        │  │      ├─STM3210E-EVAL
        │  │      ├─STM3210E-EVAL_XL
        │  │      ├─STM32303C_EVAL
        │  │      ├─STM32303xE_EVAL
        │  │      ├─STM32373C_EVAL
        │  │      ├─STM32F032F302x8_Nucleo
        │  │      ├─STM32L152-EVAL
        │  │      └─STM32L152D-EVAL
        │  ├─JoyStickMouse
        │  │  ├─EWARM
        │  │  ├─inc
        │  │  ├─MDK-ARM
        │  │  ├─src
        │  │  └─SW4STM32
        │  │      ├─STM3210B-EVAL
        │  │      ├─STM3210E-EVAL
        │  │      ├─STM3210E-EVAL_XL
        │  │      ├─STM32303C_EVAL
        │  │      ├─STM32303xE_EVAL
        │  │      ├─STM32373C_EVAL
        │  │      ├─STM32F302x8_Nucleo
        │  │      ├─STM32L152-EVAL
        │  │      └─STM32L152D-EVAL
        │  ├─JoyStickMouse_LPM
        │  │  ├─EWARM
        │  │  ├─inc
        │  │  ├─MDK-ARM
        │  │  ├─src
        │  │  └─SW4STM32
        │  │      ├─STM32303xE_EVAL
        │  │      └─STM32F302x8_Nucleo
        │  ├─Mass_Storage
        │  │  ├─EWARM
        │  │  ├─inc
        │  │  ├─MDK-ARM
        │  │  ├─src
        │  │  └─SW4STM32
        │  │      ├─STM3210B-EVAL
        │  │      ├─STM3210E-EVAL
        │  │      ├─STM3210E-EVAL_XL
        │  │      ├─STM32303C_EVAL
        │  │      ├─STM32303xE_EVAL
        │  │      ├─STM32373C_EVAL
        │  │      ├─STM32L152-EVAL
        │  │      └─STM32L152D-EVAL
        │  ├─VirtualComport_Loopback
        │  │  ├─EWARM
        │  │  ├─inc
        │  │  ├─MDK-ARM
        │  │  ├─src
        │  │  └─SW4STM32
        │  │      ├─STM3210B-EVAL
        │  │      ├─STM3210E-EVAL
        │  │      ├─STM3210E-EVAL_XL
        │  │      ├─STM32303C_EVAL
        │  │      ├─STM32303xE_EVAL
        │  │      ├─STM32373C_EVAL
        │  │      ├─STM32F302x8_Nucleo
        │  │      ├─STM32L152-EVAL
        │  │      └─STM32L152D-EVAL
        │  └─Virtual_COM_Port
        │      ├─EWARM
        │      ├─inc
        │      ├─MDK-ARM
        │      ├─src
        │      └─SW4STM32
        │          ├─STM3210B-EVAL
        │          ├─STM3210E-EVAL
        │          ├─STM3210E-EVAL_XL
        │          ├─STM32303C_EVAL
        │          ├─STM32303xE_EVAL
        │          ├─STM32373C_EVAL
        │          ├─STM32L152-EVAL
        │          └─STM32L152D-EVAL
        ├─Utilities
        │  ├─DFU_images
        │  └─STM32_EVAL
        │      ├─Common
        │      ├─STM3210B_EVAL
        │      ├─STM3210E_EVAL
        │      ├─STM32303C_EVAL
        │      ├─STM32373C_EVAL
        │      ├─STM32L152D_EVAL
        │      └─STM32L152_EVAL
        └─_htmresc
