前言
helix.toolkit封装了模型加载的操作，由于按照了标准模型的读取，出现材质或者贴图找不到的情况，容易模型加载异常。因此解决办法是，如果相关资源没找到的话，默认赋上默认材质来解决。

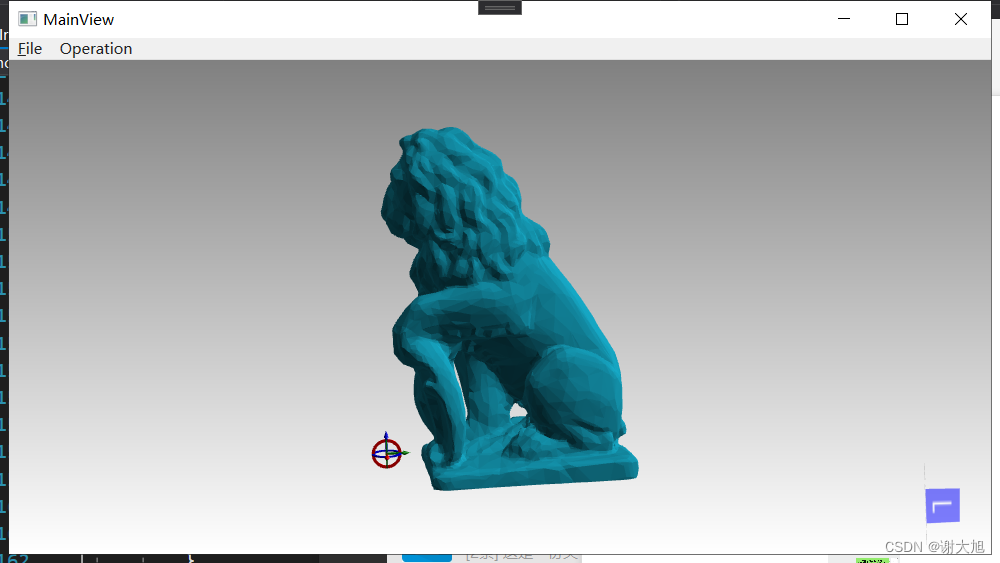

附上本文demo
(10条消息) helix.toolkit封装了模型加载的操作，由于按照了标准模型的读取，出现材质或者贴图找不到的情况，容易模型加载异常。因此解-C#文档类资源-CSDN文库
详细内容
helix中封装了对模型类型文件的读取操作，如下
private async Task<Model3DGroup> LoadAsync(string model3DPath, bool freeze)
{
return await Task.Factory.StartNew(() =>
{
var mi = new ModelImporter2.ModelImporter();
if (freeze)
{
// Alt 1. - freeze the model
return mi.Load(model3DPath, null, true);
}
// Alt. 2 - create the model on the UI dispatcher
return mi.Load(model3DPath, this.dispatcher);
});
}f12进去看，能够看到ObjReader层级，问题就出来了ObjReader默认加载模型自带的贴图或者材质，如果找不到，模型就加载不出来，因此解决办法自然是“让代码正常运行”先。给模型加载默认的材质。
/// <summary>
/// Loads a model from the specified path.
/// </summary>
/// <param name="path">The path.</param>
/// <param name="dispatcher">The dispatcher used to create the model.</param>
/// <param name="freeze">Freeze the model if set to <c>true</c>.</param>
/// <returns>A model.</returns>
/// <exception cref="System.InvalidOperationException">File format not supported.</exception>
public Model3DGroup Load(string path, Dispatcher dispatcher = null, bool freeze = false)
{
if (path == null)
{
return null;
}
if (dispatcher == null)
{
dispatcher = Dispatcher.CurrentDispatcher;
}
Model3DGroup model;
var ext = Path.GetExtension(path);
if (ext != null)
{
ext = ext.ToLower();
}
switch (ext)
{
case ".3ds":
{
var r = new StudioReader(dispatcher) { DefaultMaterial = this.DefaultMaterial, Freeze = freeze };
model = r.Read(path);
break;
}
case ".lwo":
{
var r = new LwoReader(dispatcher) { DefaultMaterial = this.DefaultMaterial, Freeze = freeze };
model = r.Read(path);
break;
}
case ".obj":
{
var r = new ObjReader2(dispatcher) { DefaultMaterial = this.DefaultMaterial, Freeze = freeze };
model = r.Read(path);
break;
}
case ".objz":
{
var r = new ObjReader(dispatcher) { DefaultMaterial = this.DefaultMaterial, Freeze = freeze };
model = r.ReadZ(path);
break;
}
case ".stl":
{
var r = new StLReader(dispatcher) { DefaultMaterial = this.DefaultMaterial, Freeze = freeze };
model = r.Read(path);
break;
}
case ".off":
{
var r = new OffReader(dispatcher) { DefaultMaterial = this.DefaultMaterial, Freeze = freeze };
model = r.Read(path);
break;
}
case ".ply":
{
var r = new PlyReader(dispatcher) { DefaultMaterial = this.DefaultMaterial, Freeze = freeze };
model = r.Read(path);
break;
}
default:
throw new InvalidOperationException("File format not supported.");
}
//if (!freeze)
//{
// dispatcher.Invoke(new Action(() => model.SetName(Path.GetFileName(path))));
//}
return model;
}修改后的objreader实现如下：
public class ObjReader2 : ModelReader
{
private static readonly char[] Delimiters = new char[] { ' ' };
/// <summary>
/// The smoothing group maps.
/// </summary>
/// <remarks>
/// The outer dictionary maps from a smoothing group number to a dictionary.
/// The inner dictionary maps from an obj file (vertex, texture coordinates, normal) index to a vertex index in the current group.
/// </remarks>
private readonly Dictionary<long, Dictionary<Tuple<int, int, int>, int>> smoothingGroupMaps;
/// <summary>
/// The current smoothing group.
/// </summary>
private long currentSmoothingGroup;
/// <summary>
/// The line number of the line being parsed.
/// </summary>
private int currentLineNo;
/// <summary>
/// Initializes a new instance of the <see cref="ObjReader" /> class.
/// </summary>
/// <param name="dispatcher">The dispatcher.</param>
public ObjReader2(Dispatcher dispatcher = null)
: base(dispatcher)
{
this.IgnoreErrors = false;
this.SwitchYZ = false;
this.IsSmoothingDefault = true;
this.SkipTransparencyValues = true;
this.Points = new List<Point3D>();
this.TextureCoordinates = new List<Point>();
this.Normals = new List<Vector3D>();
this.Groups = new List<Group>();
this.Materials = new Dictionary<string, MaterialDefinition>();
this.smoothingGroupMaps = new Dictionary<long, Dictionary<Tuple<int, int, int>, int>>();
// File format specifications
// http://en.wikipedia.org/wiki/Obj
// http://en.wikipedia.org/wiki/Material_Template_Library
// http://www.martinreddy.net/gfx/3d/OBJ.spec
// http://www.eg-models.de/formats/Format_Obj.html
}
/// <summary>
/// Gets or sets a value indicating whether to ignore errors.
/// </summary>
/// <value><c>true</c> if errors should be ignored; <c>false</c> if errors should throw an exception.</value>
/// <remarks>
/// The default value is on (true).
/// </remarks>
public bool IgnoreErrors { get; set; }
/// <summary>
/// Gets or sets a value indicating whether to switch Y and Z coordinates.
/// </summary>
public bool SwitchYZ { get; set; }
/// <summary>
/// Gets or sets a value indicating whether to skip transparency values in the material files.
/// </summary>
/// <value>
/// <c>true</c> if transparency values should be skipped; otherwise, <c>false</c>.
/// </value>
/// <remarks>
/// This option is added to allow disabling the <code>Tr</code> values in files where it has been defined incorrectly.
/// The transparency values (<code>Tr</code>) are interpreted as 0 = transparent, 1 = opaque.
/// The dissolve values (<code>d</code>) are interpreted as 0 = transparent, 1 = opaque.
/// </remarks>
public bool SkipTransparencyValues { get; set; }
/// <summary>
/// Sets a value indicating whether smoothing is default.
/// </summary>
/// <remarks>
/// The default value is smoothing=on (true).
/// </remarks>
public bool IsSmoothingDefault
{
set
{
this.currentSmoothingGroup = value ? 1 : 0;
}
}
/// <summary>
/// Gets the groups of the file.
/// </summary>
/// <value>The groups.</value>
public IList<Group> Groups { get; private set; }
/// <summary>
/// Gets the materials in the imported material files.
/// </summary>
/// <value>The materials.</value>
public Dictionary<string, MaterialDefinition> Materials { get; private set; }
/// <summary>
/// Gets or sets the current material.
/// </summary>
private Material CurrentMaterial { get; set; }
/// <summary>
/// Gets the current group.
/// </summary>
private Group CurrentGroup
{
get
{
if (this.Groups.Count == 0)
{
this.AddGroup("default");
}
return this.Groups[this.Groups.Count - 1];
}
}
/// <summary>
/// Gets or sets the normal vectors.
/// </summary>
private IList<Vector3D> Normals { get; set; }
/// <summary>
/// Gets or sets the points.
/// </summary>
private IList<Point3D> Points { get; set; }
/// <summary>
/// Gets or sets the stream reader.
/// </summary>
private StreamReader Reader { get; set; }
/// <summary>
/// Gets or sets the texture coordinates.
/// </summary>
private IList<Point> TextureCoordinates { get; set; }
/// <summary>
/// Reads the model and any associated materials from streams
/// </summary>
/// <param name="objStream">A model stream from the obj file</param>
/// <param name="mtlStreams">Array of Material streams referenced in the obj file</param>
/// <returns></returns>
public Model3DGroup Read(Stream objStream, Stream[] mtlStreams)
{
foreach (var mtlStream in mtlStreams)
{
using (var mtlStreamReader = new StreamReader(mtlStream))
{
ReadMaterial(mtlStreamReader);
}
}
return Read(objStream);
}
/// <summary>
/// Reads the model from the specified path.
/// </summary>
/// <param name="path">The path.</param>
/// <returns>The model.</returns>
public override Model3DGroup Read(string path)
{
this.TexturePath = Path.GetDirectoryName(path);
using (var s = new FileStream(path, FileMode.Open, FileAccess.Read, FileShare.Read))
{
return this.Read(s);
}
}
/// <summary>
/// Reads the model from the specified stream.
/// </summary>
/// <param name="s">The stream.</param>
/// <returns>The model.</returns>
public override Model3DGroup Read(Stream s)
{
using (this.Reader = new StreamReader(s))
{
this.currentLineNo = 0;
while (!this.Reader.EndOfStream)
{
this.currentLineNo++;
var line = this.Reader.ReadLine();
if (line == null)
{
break;
}
line = line.Trim();
while (line.EndsWith("\\"))
{
var nextLine = this.Reader.ReadLine();
while (nextLine.Length == 0)
{
nextLine = this.Reader.ReadLine();
}
line = line.TrimEnd('\\') + nextLine;
}
if (line.StartsWith("#") || line.Length == 0)
{
continue;
}
string keyword, values;
SplitLine(line, out keyword, out values);
switch (keyword.ToLower())
{
// Vertex data
case "v": // geometric vertices
this.AddVertex(values);
break;
case "vt": // texture vertices
this.AddTexCoord(values);
break;
case "vn": // vertex normals
this.AddNormal(values);
break;
case "vp": // parameter space vertices
case "cstype": // rational or non-rational forms of curve or surface type: basis matrix, Bezier, B-spline, Cardinal, Taylor
case "degree": // degree
case "bmat": // basis matrix
case "step": // step size
// not supported
break;
// Elements
case "f": // face
this.AddFace(values);
break;
case "p": // point
case "l": // line
case "curv": // curve
case "curv2": // 2D curve
case "surf": // surface
// not supported
break;
// Free-form curve/surface body statements
case "parm": // parameter name
case "trim": // outer trimming loop (trim)
case "hole": // inner trimming loop (hole)
case "scrv": // special curve (scrv)
case "sp": // special point (sp)
case "end": // end statement (end)
// not supported
break;
// Connectivity between free-form surfaces
case "con": // connect
// not supported
break;
// Grouping
case "g": // group name
this.AddGroup(values);
break;
case "s": // smoothing group
this.SetSmoothingGroup(values);
break;
case "mg": // merging group
break;
case "o": // object name
// not supported
break;
// Display/render attributes
case "mtllib": // material library
this.LoadMaterialLib(values);
break;
case "usemtl": // material name
this.EnsureNewMesh();
this.SetMaterial(values);
break;
case "usemap": // texture map name
this.EnsureNewMesh();
break;
case "bevel": // bevel interpolation
case "c_interp": // color interpolation
case "d_interp": // dissolve interpolation
case "lod": // level of detail
case "shadow_obj": // shadow casting
case "trace_obj": // ray tracing
case "ctech": // curve approximation technique
case "stech": // surface approximation technique
// not supported
break;
}
}
}
return this.BuildModel();
}
/// <summary>
/// Reads a GZipStream compressed OBJ file.
/// </summary>
/// <param name="path">The path.</param>
/// <returns>A Model3D object containing the model.</returns>
/// <remarks>This is a file format used by Helix Toolkit only.
/// Use the GZipHelper class to compress an .obj file.</remarks>
public Model3DGroup ReadZ(string path)
{
this.TexturePath = Path.GetDirectoryName(path);
using (var s = new FileStream(path, FileMode.Open, FileAccess.Read, FileShare.Read))
{
var deflateStream = new GZipStream(s, CompressionMode.Decompress, true);
return this.Read(deflateStream);
}
}
/// <summary>
/// Parses a color string.
/// </summary>
/// <param name="values">
/// The input.
/// </param>
/// <returns>
/// The parsed color.
/// </returns>
private static Color ColorParse(string values)
{
var fields = Split(values);
return Color.FromRgb((byte)(fields[0] * 255), (byte)(fields[1] * 255), (byte)(fields[2] * 255));
}
/// <summary>
/// Parse a string containing a double value.
/// </summary>
/// <param name="input">
/// The input string.
/// </param>
/// <returns>
/// The value.
/// </returns>
private static double DoubleParse(string input)
{
return double.Parse(input, CultureInfo.InvariantCulture);
}
/// <summary>
/// Splits the specified string using whitespace(input) as separators.
/// </summary>
/// <param name="input">
/// The input string.
/// </param>
/// <returns>
/// List of input.
/// </returns>
private static IList<double> Split(string input)
{
input = input.Trim();
var fields = input.Split(Delimiters, System.StringSplitOptions.RemoveEmptyEntries);
var result = new double[fields.Length];
for (int i = 0; i < fields.Length; i++)
{
result[i] = DoubleParse(fields[i]);
}
return result;
}
/// <summary>
/// Splits a line in keyword and arguments.
/// </summary>
/// <param name="line">
/// The line.
/// </param>
/// <param name="keyword">
/// The keyword.
/// </param>
/// <param name="arguments">
/// The arguments.
/// </param>
private static void SplitLine(string line, out string keyword, out string arguments)
{
int idx = line.IndexOf(' ');
if (idx < 0)
{
keyword = line;
arguments = null;
return;
}
keyword = line.Substring(0, idx);
arguments = line.Substring(idx + 1);
}
/// <summary>
/// Adds a group with the specified name.
/// </summary>
/// <param name="name">The name.</param>
private void AddGroup(string name)
{
this.Groups.Add(new Group(name, this.CurrentMaterial ?? this.DefaultMaterial));
this.smoothingGroupMaps.Clear();
}
/// <summary>
/// Ensures that a new mesh is created.
/// </summary>
private void EnsureNewMesh()
{
if (this.CurrentGroup.MeshBuilder.TriangleIndices.Count != 0)
{
this.CurrentGroup.AddMesh(this.CurrentMaterial ?? this.DefaultMaterial);
this.smoothingGroupMaps.Clear();
}
}
/// <summary>
/// Sets the smoothing group number.
/// </summary>
/// <param name="values">The group number.</param>
private void SetSmoothingGroup(string values)
{
if (values == "off")
{
this.currentSmoothingGroup = 0;
}
else
{
long smoothingGroup;
if (long.TryParse(values, out smoothingGroup))
{
this.currentSmoothingGroup = smoothingGroup;
}
else
{
// invalid parameter
if (this.IgnoreErrors)
{
return;
}
throw new FileFormatException(string.Format("Invalid smoothing group ({0}) at line {1}.", values, this.currentLineNo));
}
}
}
/// <summary>
/// Adds a face.
/// </summary>
/// <param name="values">
/// The input values.
/// </param>
/// <remarks>
/// Adds a polygonal face. The numbers are indexes into the arrays of vertex positions,
/// texture coordinates, and normal vectors respectively. A number may be omitted if,
/// for example, texture coordinates are not being defined in the model.
/// There is no maximum number of vertices that a single polygon may contain.
/// The .obj file specification says that each face must be flat and convex.
/// </remarks>
private void AddFace(string values)
{
var currentGroup = this.CurrentGroup;
var builder = currentGroup.MeshBuilder;
var positions = builder.Positions;
var textureCoordinates = builder.TextureCoordinates;
var normals = builder.Normals;
Dictionary<Tuple<int, int, int>, int> smoothingGroupMap = null;
// If a smoothing group is defined, get the map from obj-file-index to current-group-vertex-index.
if (this.currentSmoothingGroup != 0)
{
if (!this.smoothingGroupMaps.TryGetValue(this.currentSmoothingGroup, out smoothingGroupMap))
{
smoothingGroupMap = new Dictionary<Tuple<int, int, int>, int>();
this.smoothingGroupMaps.Add(this.currentSmoothingGroup, smoothingGroupMap);
}
}
var fields = values.Split(Delimiters, System.StringSplitOptions.RemoveEmptyEntries);
var faceIndices = new List<int>();
foreach (var field in fields)
{
if (string.IsNullOrEmpty(field))
{
continue;
}
var ff = field.Split('/');
int vi = int.Parse(ff[0]);
int vti = ff.Length > 1 && ff[1].Length > 0 ? int.Parse(ff[1]) : int.MaxValue;
int vni = ff.Length > 2 && ff[2].Length > 0 ? int.Parse(ff[2]) : int.MaxValue;
// Handle relative indices (negative numbers)
if (vi < 0)
{
vi = this.Points.Count + vi + 1;
}
if (vti < 0)
{
vti = this.TextureCoordinates.Count + vti + 1;
}
if (vni < 0)
{
vni = this.Normals.Count + vni + 1;
}
// Check if the indices are valid
if (vi - 1 >= this.Points.Count)
{
if (this.IgnoreErrors)
{
return;
}
throw new FileFormatException(string.Format("Invalid vertex index ({0}) on line {1}.", vi, this.currentLineNo));
}
if (vti == int.MaxValue)
{
// turn off texture coordinates in the builder
builder.CreateTextureCoordinates = false;
}
if (vni == int.MaxValue)
{
// turn off normals in the builder
builder.CreateNormals = false;
}
// check if the texture coordinate index is valid
if (builder.CreateTextureCoordinates && vti - 1 >= this.TextureCoordinates.Count)
{
if (this.IgnoreErrors)
{
return;
}
throw new FileFormatException(
string.Format(
"Invalid texture coordinate index ({0}) on line {1}.", vti, this.currentLineNo));
}
// check if the normal index is valid
if (builder.CreateNormals && vni - 1 >= this.Normals.Count)
{
if (this.IgnoreErrors)
{
return;
}
throw new FileFormatException(
string.Format("Invalid normal index ({0}) on line {1}.", vni, this.currentLineNo));
}
bool addVertex = true;
if (smoothingGroupMap != null)
{
var key = Tuple.Create(vi, vti, vni);
int vix;
if (smoothingGroupMap.TryGetValue(key, out vix))
{
// use the index of a previously defined vertex
addVertex = false;
}
else
{
// add a new vertex
vix = positions.Count;
smoothingGroupMap.Add(key, vix);
}
faceIndices.Add(vix);
}
else
{
// if smoothing is off, always add a new vertex
faceIndices.Add(positions.Count);
}
if (addVertex)
{
// add vertex
positions.Add(this.Points[vi - 1]);
// add texture coordinate (if enabled)
if (builder.CreateTextureCoordinates)
{
textureCoordinates.Add(this.TextureCoordinates[vti - 1]);
}
// add normal (if enabled)
if (builder.CreateNormals)
{
normals.Add(this.Normals[vni - 1]);
}
}
}
if (faceIndices.Count <= 4)
{
// add triangles or quads
builder.AddPolygon(faceIndices);
}
else
{
// add triangles by cutting ears algorithm
// this algorithm is quite expensive...
builder.AddPolygonByTriangulation(faceIndices);
}
}
/// <summary>
/// Adds a normal.
/// </summary>
/// <param name="values">
/// The input values.
/// </param>
private void AddNormal(string values)
{
var fields = Split(values);
if (SwitchYZ)
{
this.Normals.Add(new Vector3D(fields[0], -fields[2], fields[1]));
}
else
{
this.Normals.Add(new Vector3D(fields[0], fields[1], fields[2]));
}
}
/// <summary>
/// Adds a texture coordinate.
/// </summary>
/// <param name="values">
/// The input values.
/// </param>
private void AddTexCoord(string values)
{
var fields = Split(values);
this.TextureCoordinates.Add(new Point(fields[0], 1 - fields[1]));
}
/// <summary>
/// Adds a vertex.
/// </summary>
/// <param name="values">
/// The input values.
/// </param>
private void AddVertex(string values)
{
var fields = Split(values);
if (SwitchYZ)
{
this.Points.Add(new Point3D(fields[0], -fields[2], fields[1]));
}
else
{
this.Points.Add(new Point3D(fields[0], fields[1], fields[2]));
}
}
/// <summary>
/// Builds the model.
/// </summary>
/// <returns>A Model3D object.</returns>
private Model3DGroup BuildModel()
{
Model3DGroup modelGroup = null;
this.Dispatch(() =>
{
modelGroup = new Model3DGroup();
foreach (var g in this.Groups)
{
foreach (var gm in g.CreateModels())
{
gm.SetName(g.Name);
if (this.Freeze)
{
gm.Freeze();
}
modelGroup.Children.Add(gm);
}
}
if (this.Freeze)
{
modelGroup.Freeze();
}
});
return modelGroup;
}
/// <summary>
/// Gets the material with the specified name.
/// </summary>
/// <param name="materialName">
/// The material name.
/// </param>
/// <returns>
/// The material.
/// </returns>
private Material GetMaterial(string materialName)
{
MaterialDefinition mat;
if (!string.IsNullOrEmpty(materialName) && this.Materials.TryGetValue(materialName, out mat))
{
Material m = null;
this.Dispatch(() =>
{
m = mat.GetMaterial(this.TexturePath);
});
return m;
}
return this.DefaultMaterial;
}
/// <summary>
/// Loads a material library.
/// </summary>
/// <param name="mtlFile">
/// The material file name.
/// </param>
private void LoadMaterialLib(string mtlFile)
{
string path = PathHelpers.GetFullPath(this.TexturePath, mtlFile);
if (!File.Exists(path))
{
return;
}
using (var materialReader = new StreamReader(path))
{
ReadMaterial(materialReader);
}
}
/// <summary>
/// Loads the material library from a streamreader
/// </summary>
/// <param name="materialReader"></param>
private void ReadMaterial(StreamReader materialReader)
{
MaterialDefinition currentMaterial = null;
while (!materialReader.EndOfStream)
{
var line = materialReader.ReadLine();
if (line == null)
{
break;
}
line = line.Trim();
if (line.StartsWith("#") || line.Length == 0)
{
continue;
}
string keyword, value;
SplitLine(line, out keyword, out value);
switch (keyword.ToLower())
{
case "newmtl":
if (value != null)
{
if (this.Materials.ContainsKey(value))
{
currentMaterial = null;
}
else
{
currentMaterial = new MaterialDefinition(value);
this.Materials.Add(value, currentMaterial);
}
}
break;
case "ka":
if (currentMaterial != null && value != null)
{
currentMaterial.Ambient = ColorParse(value);
}
break;
case "kd":
if (currentMaterial != null && value != null)
{
currentMaterial.Diffuse = ColorParse(value);
}
break;
case "ks":
if (currentMaterial != null && value != null)
{
currentMaterial.Specular = ColorParse(value);
}
break;
case "ns":
if (currentMaterial != null && value != null)
{
currentMaterial.SpecularCoefficient = DoubleParse(value);
}
break;
case "d":
if (currentMaterial != null && value != null)
{
currentMaterial.Dissolved = DoubleParse(value);
}
break;
case "tr":
if (!this.SkipTransparencyValues && currentMaterial != null && value != null)
{
currentMaterial.Dissolved = DoubleParse(value);
}
break;
case "illum":
if (currentMaterial != null && value != null)
{
currentMaterial.Illumination = int.Parse(value);
}
break;
case "map_ka":
if (currentMaterial != null)
{
currentMaterial.AmbientMap = value;
}
break;
case "map_kd":
if (currentMaterial != null)
{
currentMaterial.DiffuseMap = value;
}
break;
case "map_ks":
if (currentMaterial != null)
{
currentMaterial.SpecularMap = value;
}
break;
case "map_d":
if (currentMaterial != null)
{
currentMaterial.AlphaMap = value;
}
break;
case "map_bump":
case "bump":
if (currentMaterial != null)
{
currentMaterial.BumpMap = value;
}
break;
}
}
}
/// <summary>
/// Sets the material for the current group.
/// </summary>
/// <param name="materialName">
/// The material name.
/// </param>
private void SetMaterial(string materialName)
{
this.CurrentGroup.Material = this.CurrentMaterial = this.GetMaterial(materialName);
}
/// <summary>
/// Represents a group in the obj file.
/// </summary>
public class Group
{
/// <summary>
/// List of mesh builders.
/// </summary>
private readonly List<MeshBuilder> meshBuilders;
/// <summary>
/// List of materials.
/// </summary>
private readonly List<Material> materials;
/// <summary>
/// Initializes a new instance of the <see cref="Group"/> class.
/// </summary>
/// <param name="name">
/// The name of the group.
/// </param>
/// <param name="material">The material of the group.</param>
public Group(string name, Material material)
{
this.Name = name;
this.meshBuilders = new List<MeshBuilder>();
this.materials = new List<Material>();
this.AddMesh(material);
}
/// <summary>
/// Sets the material.
/// </summary>
/// <value>The material.</value>
public Material Material
{
set
{
this.materials[this.materials.Count - 1] = value;
}
}
/// <summary>
/// Gets the mesh builder for the current mesh.
/// </summary>
/// <value>The mesh builder.</value>
public MeshBuilder MeshBuilder
{
get
{
return this.meshBuilders[this.meshBuilders.Count - 1];
}
}
/// <summary>
/// Gets or sets the group name.
/// </summary>
/// <value>The name.</value>
public string Name { get; set; }
/// <summary>
/// Adds a mesh.
/// </summary>
/// <param name="material">The material of the group.</param>
public void AddMesh(Material material)
{
var meshBuilder = new MeshBuilder(true, true);
this.meshBuilders.Add(meshBuilder);
this.materials.Add(material);
}
/// <summary>
/// Creates the models of the group.
/// </summary>
/// <returns>The models.</returns>
public IEnumerable<Model3D> CreateModels()
{
for (int i = 0; i < this.meshBuilders.Count; i++)
{
DiffuseMaterial DefaultMaterial2 = new DiffuseMaterial();
SolidColorBrush bursh = new SolidColorBrush(Color.FromRgb(23, 174, 204));
bursh.Opacity = 1;
DefaultMaterial2.Brush = bursh;
//DefaultMaterial2.Color = Color.FromRgb(80, 88, 99);
MaterialGroup materialgroup = new MaterialGroup();
materialgroup.Children.Add(DefaultMaterial2);
var material = this.materials[i];
var mesh = this.meshBuilders[i].ToMesh();
var model = new GeometryModel3D { Geometry = mesh,Material = materialgroup, BackMaterial = materialgroup };
yield return model;
}
}
}
/// <summary>
/// A material definition.
/// </summary>
/// <remarks>
/// The file format is documented in http://en.wikipedia.org/wiki/Material_Template_Library.
/// </remarks>
public class MaterialDefinition
{
/// <summary>
/// Initializes a new instance of the <see cref="MaterialDefinition" /> class.
/// </summary>
/// <param name="name">The name.</param>
public MaterialDefinition(string name)
{
this.Name = name;
this.Dissolved = 1.0;
}
/// <summary>
/// Gets or sets the alpha map.
/// </summary>
/// <value>The alpha map.</value>
public string AlphaMap { get; set; }
/// <summary>
/// Gets or sets the ambient color.
/// </summary>
/// <value>The ambient.</value>
public Color Ambient { get; set; }
/// <summary>
/// Gets or sets the ambient map.
/// </summary>
/// <value>The ambient map.</value>
public string AmbientMap { get; set; }
/// <summary>
/// Gets or sets the bump map.
/// </summary>
/// <value>The bump map.</value>
public string BumpMap { get; set; }
/// <summary>
/// Gets or sets the diffuse color.
/// </summary>
/// <value>The diffuse.</value>
public Color Diffuse { get; set; }
/// <summary>
/// Gets or sets the diffuse map.
/// </summary>
/// <value>The diffuse map.</value>
public string DiffuseMap { get; set; }
/// <summary>
/// Gets or sets the opacity value.
/// </summary>
/// <value>The opacity.</value>
/// <remarks>
/// 0.0 is transparent, 1.0 is opaque.
/// </remarks>
public double Dissolved { get; set; }
/// <summary>
/// Gets or sets the illumination.
/// </summary>
/// <value>The illumination.</value>
public int Illumination { get; set; }
/// <summary>
/// Gets or sets the name of the material.
/// </summary>
/// <value>
/// The name.
/// </value>
public string Name { get; set; }
/// <summary>
/// Gets or sets the specular color.
/// </summary>
/// <value>The specular color.</value>
public Color Specular { get; set; }
/// <summary>
/// Gets or sets the specular coefficient.
/// </summary>
/// <value>The specular coefficient.</value>
public double SpecularCoefficient { get; set; }
/// <summary>
/// Gets or sets the specular map.
/// </summary>
/// <value>The specular map.</value>
public string SpecularMap { get; set; }
/// <summary>
/// Gets or sets the material.
/// </summary>
/// <value>The material.</value>
public Material Material { get; set; }
/// <summary>
/// Gets the material from the specified path.
/// </summary>
/// <param name="texturePath">
/// The texture path.
/// </param>
/// <returns>
/// The material.
/// </returns>
public Material GetMaterial(string texturePath)
{
if (this.Material == null)
{
this.Material = this.CreateMaterial(texturePath);
}
return this.Material;
}
/// <summary>
/// Creates the material.
/// </summary>
/// <param name="texturePath">The texture path.</param>
/// <returns>A WPF material.</returns>
private Material CreateMaterial(string texturePath)
{
var mg = new MaterialGroup();
mg.SetName(this.Name);
// add the diffuse component
if (this.DiffuseMap == null)
{
var diffuseBrush = new SolidColorBrush(this.Diffuse) { Opacity = this.Dissolved };
mg.Children.Add(new DiffuseMaterial(diffuseBrush));
}
else
{
string path = PathHelpers.GetFullPath(texturePath, this.DiffuseMap);
if (File.Exists(path))
{
mg.Children.Add(new DiffuseMaterial(this.CreateTextureBrush(path)));
}
}
// add the ambient components
if (this.AmbientMap == null)
{
// ambient material is not supported by WPF?
}
else
{
string path = PathHelpers.GetFullPath(texturePath, this.AmbientMap);
if (File.Exists(path))
{
mg.Children.Add(new EmissiveMaterial(this.CreateTextureBrush(path)));
}
}
// add the specular component
if (this.Specular.R > 0 || this.Specular.G > 0 || this.Specular.B > 0)
{
mg.Children.Add(new SpecularMaterial(new SolidColorBrush(this.Specular), this.SpecularCoefficient));
}
return mg.Children.Count != 1 ? mg : mg.Children[0];
}
/// <summary>
/// Creates a texture brush.
/// </summary>
/// <param name="path">The path.</param>
/// <returns>The brush.</returns>
private ImageBrush CreateTextureBrush(string path)
{
var img = new BitmapImage(new Uri(path, UriKind.Relative));
var textureBrush = new ImageBrush(img) { Opacity = this.Dissolved, ViewportUnits = BrushMappingMode.Absolute, TileMode = TileMode.Tile };
return textureBrush;
}
}
/// <summary>
/// Path helpers.
/// </summary>
private static class PathHelpers
{
/// <summary>
/// Gets a full path.
/// </summary>
/// <param name="basePath">
/// The base path.
/// </param>
/// <param name="path">
/// The path.
/// </param>
public static string GetFullPath(string basePath, string path)
{
if (path.Length > 1
&& (path[0] == Path.DirectorySeparatorChar || path[0] == Path.AltDirectorySeparatorChar)
&& (path[1] != Path.DirectorySeparatorChar && path[1] != Path.AltDirectorySeparatorChar))
{
path = path.Substring(1);
}
return !string.IsNullOrWhiteSpace(basePath) ? Path.GetFullPath(Path.Combine(basePath, path)) : "";
}
}
}结果如图
扫一扫
3100
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
