关于Android的Touch事件传递机制,只是知道事件传入Activity后的流程,但是这些事件是如何传递给Activity的一直模糊不清。现在再来好好回顾一遍,顺道整理一点儿东西出来,同时分享给大家。
前面用源码带着大家分享过View的创建和加载,以及View的绘制流程。
今天就随着Android源码一起来探寻一番Android中各View的Touch事件到底是怎么注册和接收的,虽然有一些大神做过分享,但是源码比较老旧,而且通过自己研究会掌握的更透彻一些。本文章主要分析Java部分,底层C++部分暂不分析。

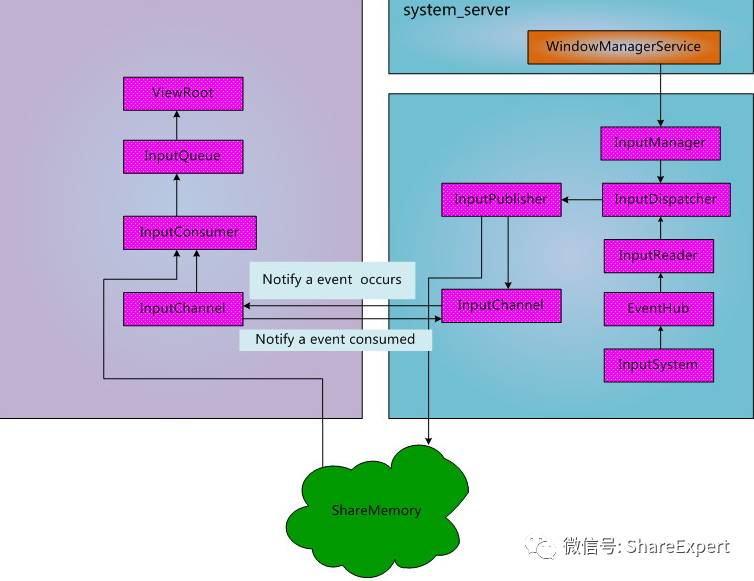

Android输入系统的主要工作是读取设备节点中的原始事件,将其加工封装,然后派发给一个特定的窗口以及窗口中的控件,如一个活动状态的Activity界面中的Button。
同时我们知道Android系统是Linux内核的,它的事件处理也是在Linux的基础上完成的,因此我们从Linux 内核往应用这个方向慢慢理清它的大致处理过程。首先来看事件是如何注册的。
1、事件注册
从之前的View加载流程源码分析知道(如果不清楚,建议返回先回顾View的加载流程),在ActivityThread中的handleResumeActivity方法会调用wm.addView()方法,将View添加到mWindowManger上,即WindowManagerImpl类的addView方法,而其又是由WindowManagerGlobal代理的。在WindowManagerGlobal的addView方法中会先创建了一个ViewRootImpl对象,然后调用ViewRootImpl.setView()方法。
在setView方法中会找到如下代码:
/**
* We have one child
*/
public void setView(View view, WindowManager.LayoutParams attrs, View panelParentView) {
synchronized (this) {
if (mView == null) {
mView = view;
...
// Schedule the first layout -before- adding to the window
// manager, to make sure we do the relayout before receiving
// any other events from the system.
requestLayout();
if ((mWindowAttributes.inputFeatures
& WindowManager.LayoutParams.INPUT_FEATURE_NO_INPUT_CHANNEL) == 0) {
mInputChannel = new InputChannel();
}
mForceDecorViewVisibility = (mWindowAttributes.privateFlags
& PRIVATE_FLAG_FORCE_DECOR_VIEW_VISIBILITY) != 0;
try {
mOrigWindowType = mWindowAttributes.type;
mAttachInfo.mRecomputeGlobalAttributes = true;
collectViewAttributes();
res = mWindowSession.addToDisplay(mWindow, mSeq, mWindowAttributes,
getHostVisibility(), mDisplay.getDisplayId(),
mAttachInfo.mContentInsets, mAttachInfo.mStableInsets,
mAttachInfo.mOutsets, mInputChannel);
} catch (RemoteException e) {
mAdded = false;
mView = null;
mAttachInfo.mRootView = null;
mInputChannel = null;
mFallbackEventHandler.setView(null);
unscheduleTraversals();
setAccessibilityFocus(null, null);
throw new RuntimeException("Adding window failed", e);
} finally {
if (restore) {
attrs.restore();
}
}
...
if (view instanceof RootViewSurfaceTaker) {
mInputQueueCallback =
((RootViewSurfaceTaker)view).willYouTakeTheInputQueue();
}
if (mInputChannel != null) {
if (mInputQueueCallback != null) {
mInputQueue = new InputQueue();
mInputQueueCallback.onInputQueueCreated(mInputQueue);
}
mInputEventReceiver = new WindowInputEventReceiver(mInputChannel,
Looper.myLooper());
}
view.assignParent(this);
mAddedTouchMode = (res & WindowManagerGlobal.ADD_FLAG_IN_TOUCH_MODE) != 0;
mAppVisible = (res & WindowManagerGlobal.ADD_FLAG_APP_VISIBLE) != 0;
if (mAccessibilityManager.isEnabled()) {
mAccessibilityInteractionConnectionManager.ensureConnection();
}
if (view.getImportantForAccessibility() == View.IMPORTANT_FOR_ACCESSIBILITY_AUTO) {
view.setImportantForAccessibility(View.IMPORTANT_FOR_ACCESSIBILITY_YES);
}
// Set up the input pipeline.
CharSequence counterSuffix = attrs.getTitle();
mSyntheticInputStage = new SyntheticInputStage();
InputStage viewPostImeStage = new ViewPostImeInputStage(mSyntheticInputStage);
InputStage nativePostImeStage = new NativePostImeInputStage(viewPostImeStage,
"aq:native-post-ime:" + counterSuffix);
InputStage earlyPostImeStage = new EarlyPostImeInputStage(nativePostImeStage);
InputStage imeStage = new ImeInputStage(earlyPostImeStage,
"aq:ime:"
