LIVE MINI ESP32开发板教程系列（三）drv2605L模块+手机常用振动器实现117种震动效果

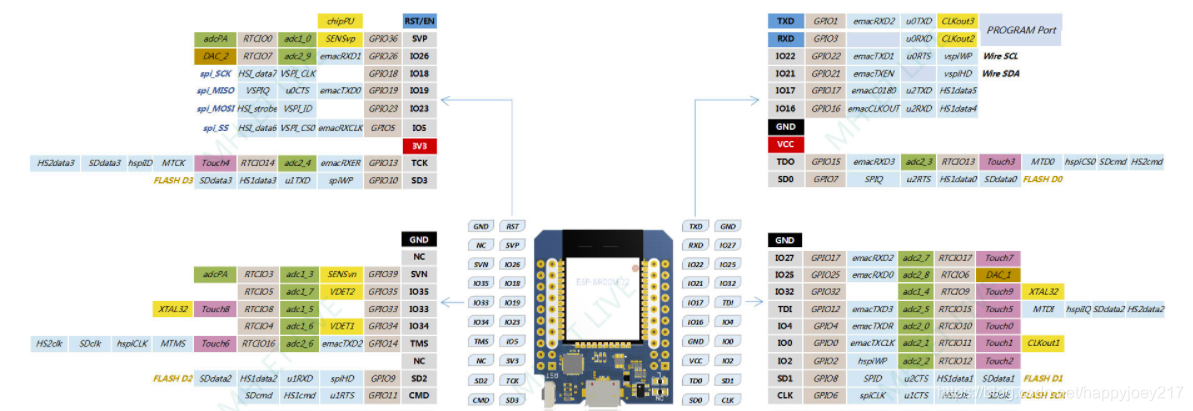

LIVE MINI ESP32引脚图

手机振动器介绍

知乎的一篇帖子很好玩介绍的也很详细，忽然有股冲动想要收集尽可能多的废旧收集，拆了看看。。。哈哈哈哈
手机振动器的前世今生 by 起名free

DRV2605L模块

sparkFun官方网站

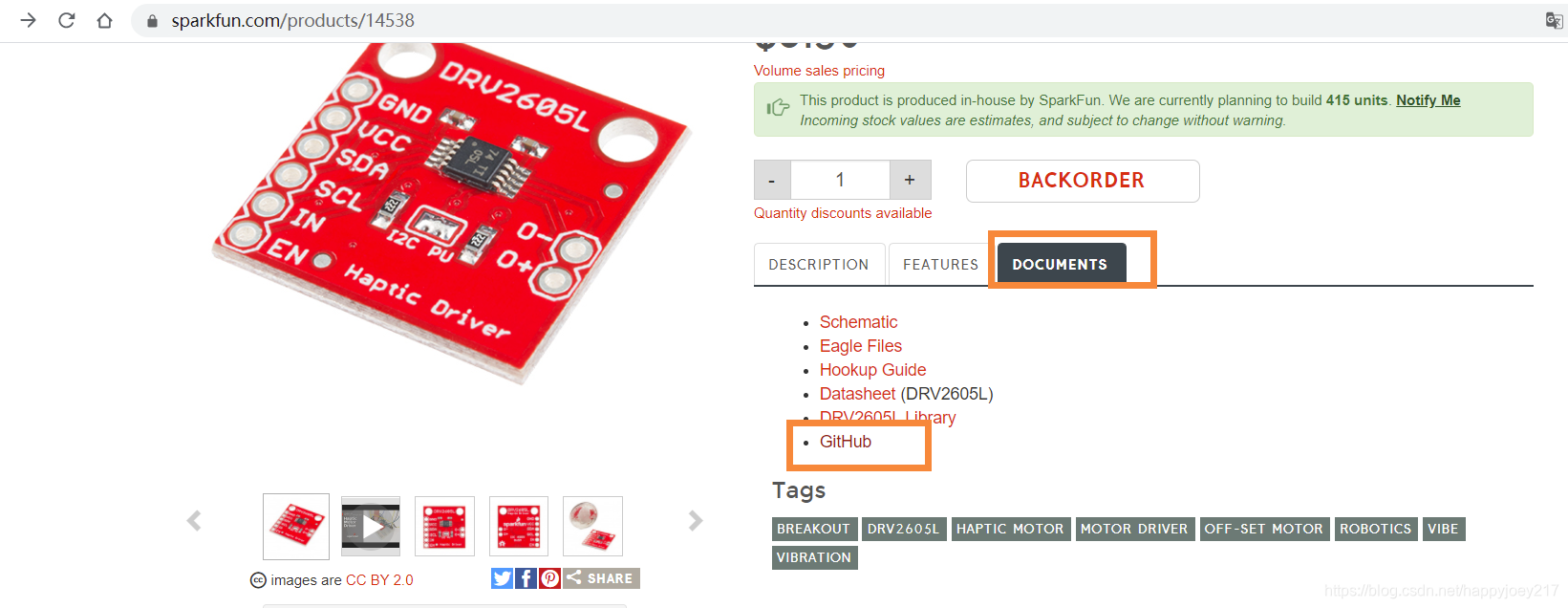

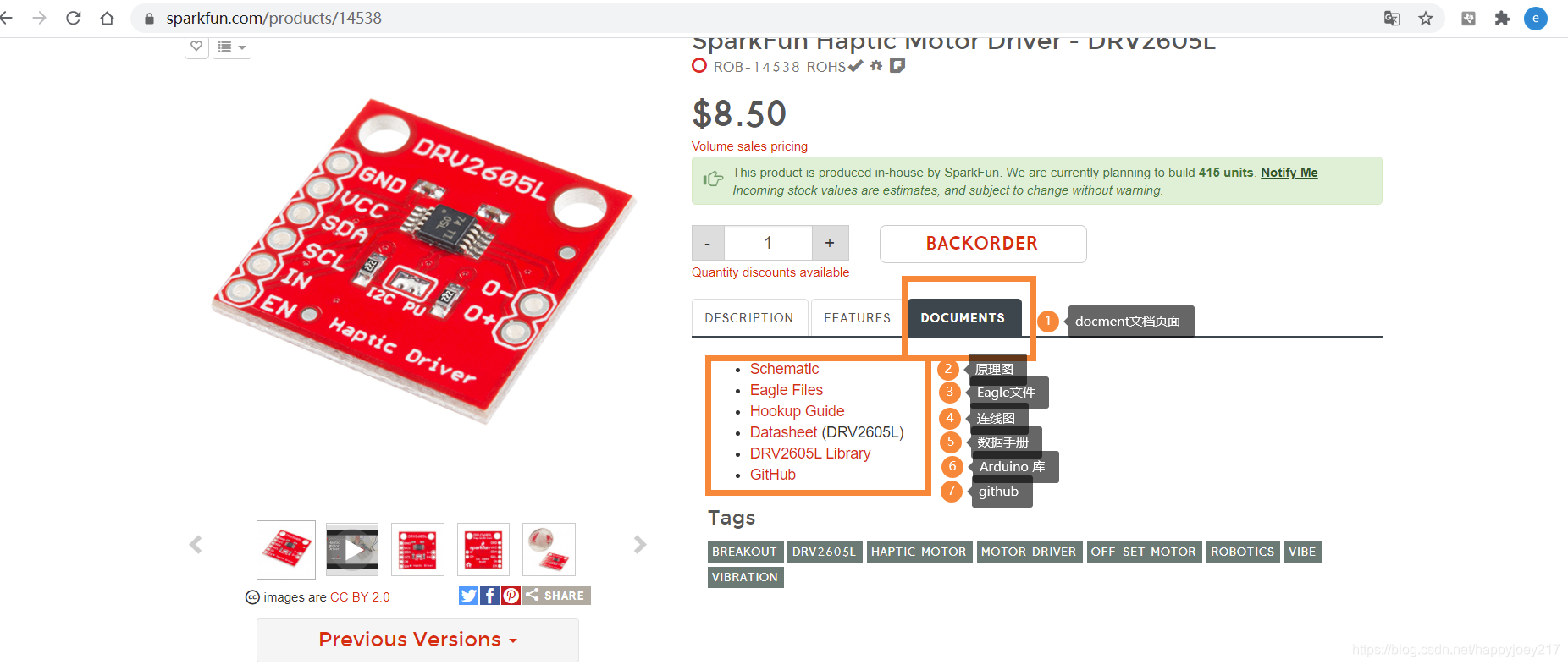

一般sparkFun的模块线上资料都特别全，在他的商品页如下图所示的，打开document标签，下面依次给出了原理图，Eagle文件（可以直接给pcb制造商制作pcb板的文件），接线图，Arduino库文件，对应的github网址。

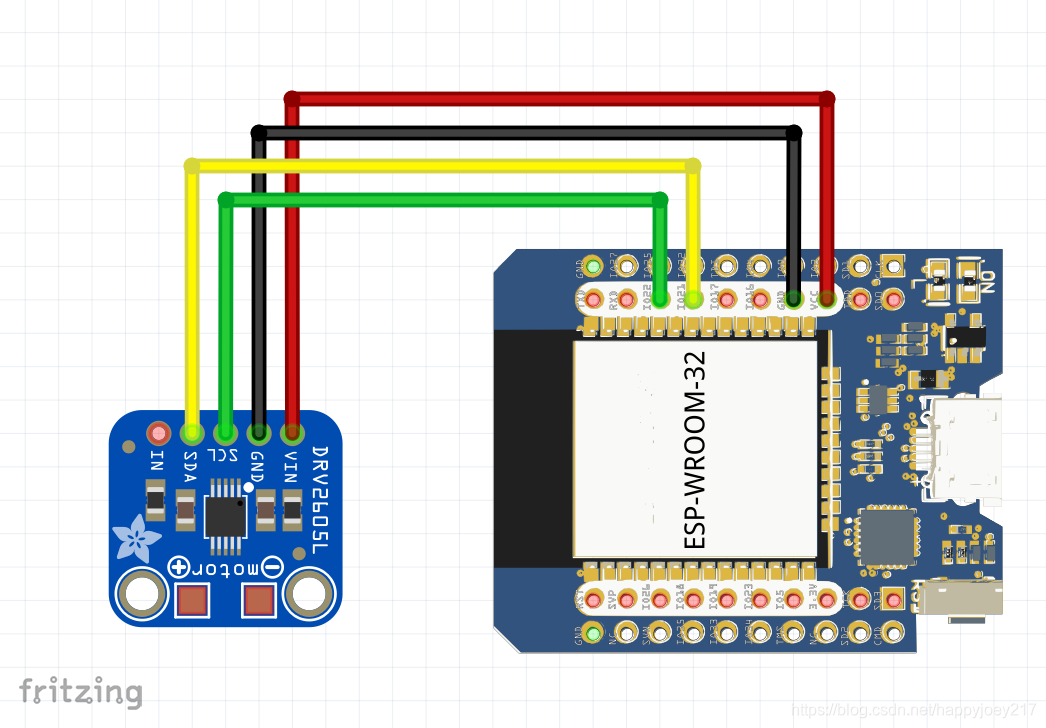

硬件连线图

LIVE MINI ESP32	DRV2605L
VCC	VIN
GND	GND
SCL	SCL
SDA	SDA

DRV2605L库安装

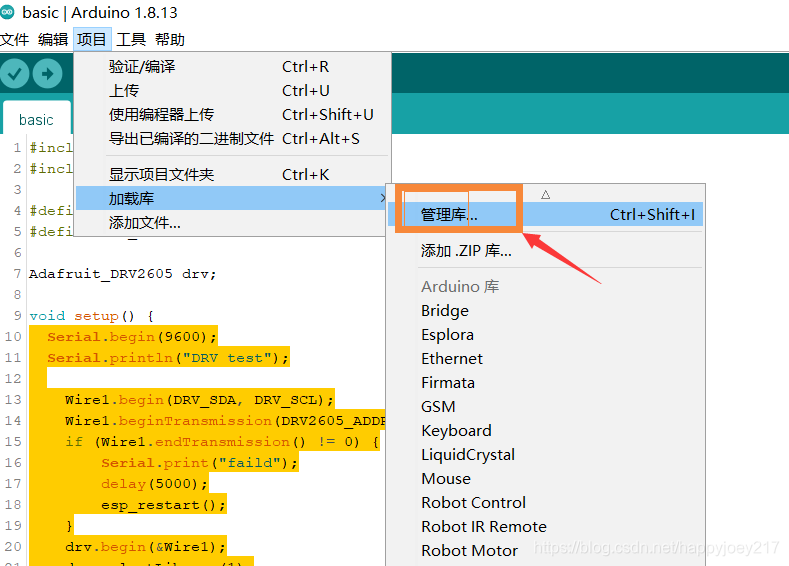

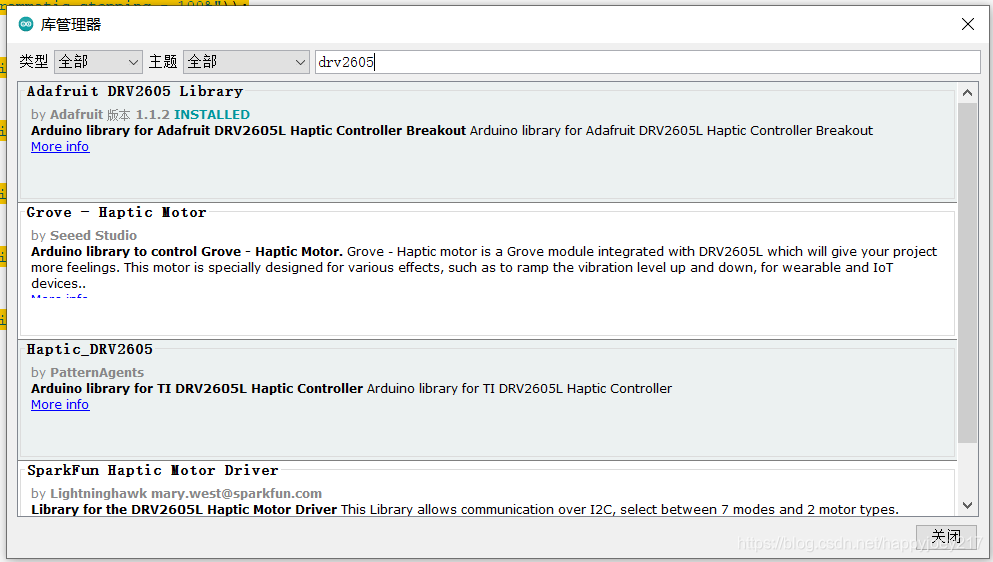

方式一

方式二

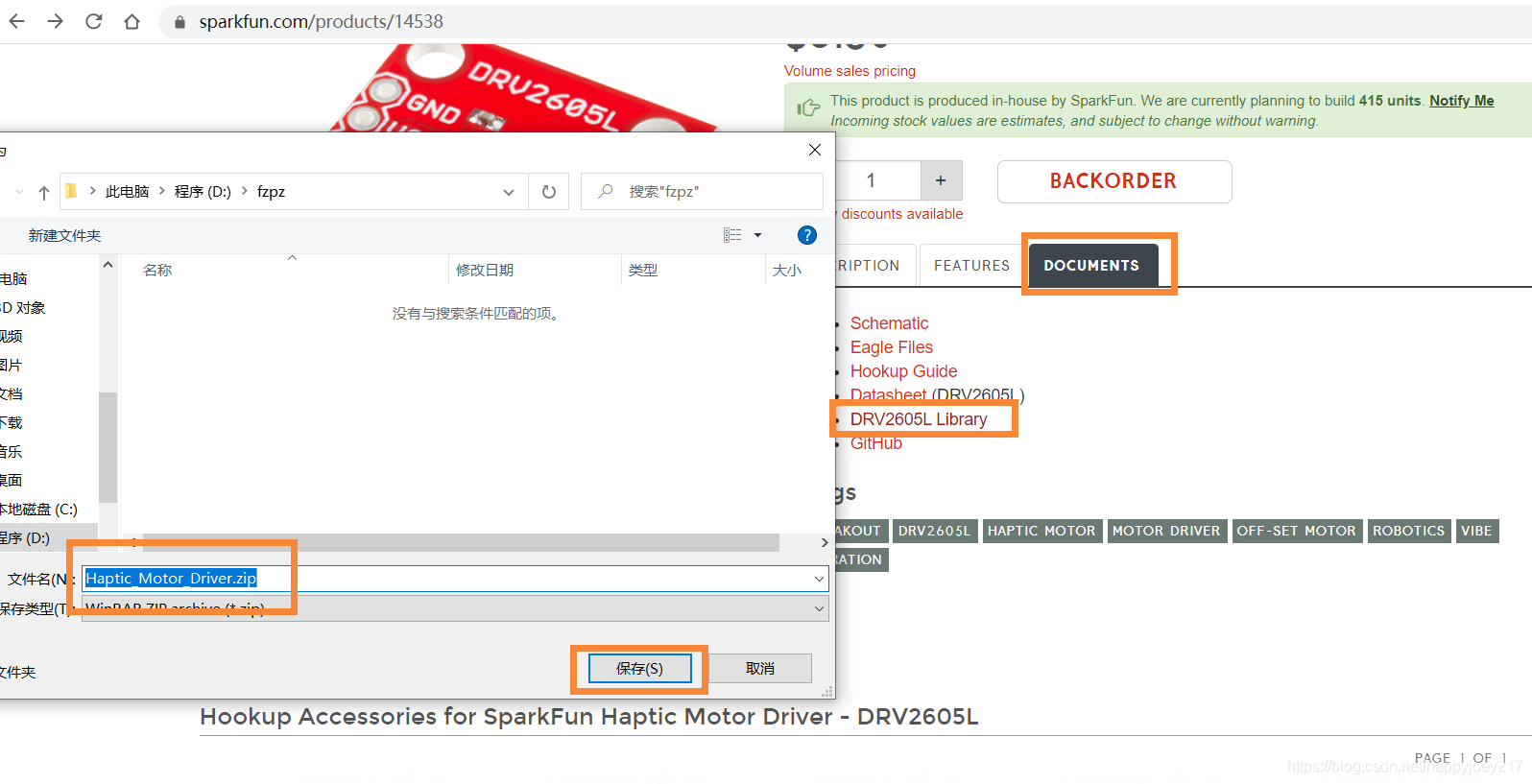

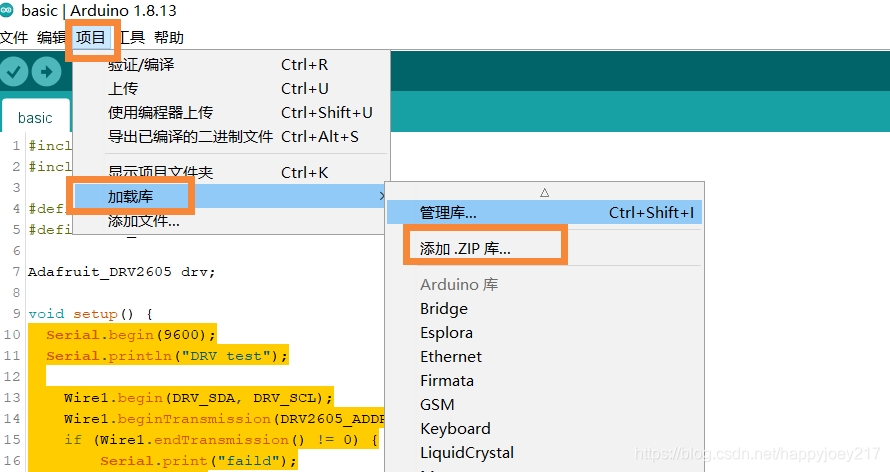

官网下载后，通过zip文件方式安装

方式三

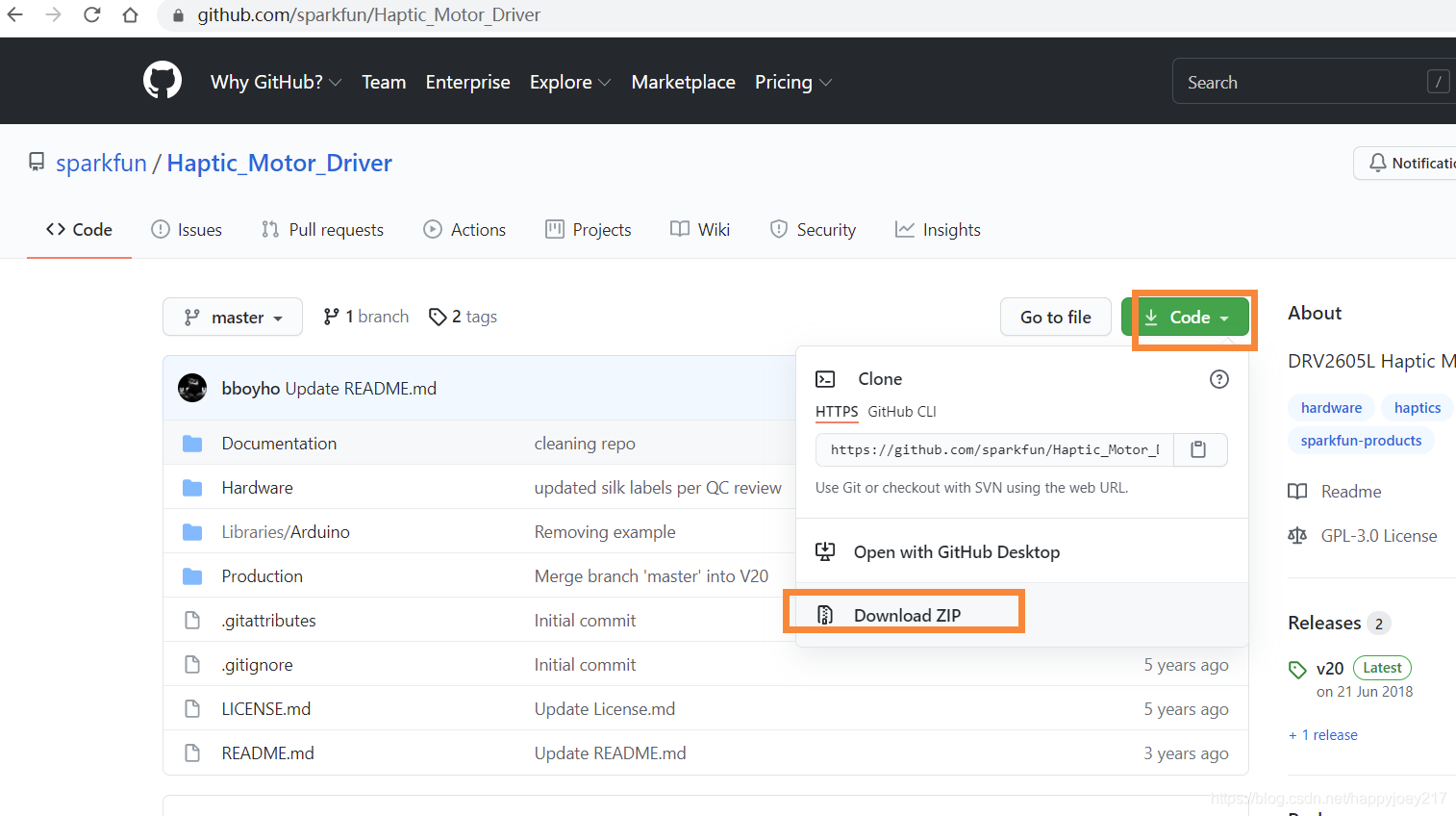

通过github上的zip文件安装，

源代码

这段代码是在官方basic示例上根据LIVE MINI ESP32的引脚进行修改的，其中关于DRV的启动采用了两种方式，第一种方式增加了I2C设备的自检，一旦检查不到就重启ESP32，并在串口输出faild；第二种方式则比较简单，根据你自己的需求两种都可以~

#include <Wire.h>
#include "Adafruit_DRV2605.h"

#define DRV_SDA             21
#define DRV_SCL             22

Adafruit_DRV2605 drv;

void setup() {
    //方式一 这种方法带I2c设备自检
    Serial.begin(9600);
    Serial.println("DRV test");

    //检测I2C设备是否连接正常，如果不正常重启ESP32
    Wire1.begin(DRV_SDA, DRV_SCL);
    Wire1.beginTransmission(DRV2605_ADDR);
    if (Wire1.endTransmission() != 0) {
        Serial.print("faild");
        delay(5000);
        esp_restart();
    }
    drv.begin(&Wire1);
    drv.selectLibrary(1);//设置震动模式为mode1
    drv.setMode(DRV2605_MODE_INTTRIG);

    //方式二 这种就比较简单
    /*Serial.begin(9600);
    Serial.println("DRV test");
    drv.begin();

    drv.selectLibrary(1);

  // I2C trigger by sending 'go' command
  // default, internal trigger when sending GO command
    drv.setMode(DRV2605_MODE_INTTRIG); */
}

uint8_t effect = 1;

void loop() {
//  Serial.print("Effect #"); Serial.println(effect);

   if (effect == 1) {
    Serial.println("11.2 Waveform Library Effects List");
  }

  if (effect == 1) {
    Serial.println(F("1 − Strong Click - 100%"));
  }
  if (effect == 2) {
    Serial.println(F("2 − Strong Click - 60%"));
  }
  if (effect == 3) {
    Serial.println(F("3 − Strong Click - 30%"));
  }
  if (effect == 4) {
    Serial.println(F("4 − Sharp Click - 100%"));
  }
  if (effect == 5) {
    Serial.println(F("5 − Sharp Click - 60%"));
  }
  if (effect == 6) {
    Serial.println(F("6 − Sharp Click - 30%"));
  }
  if (effect == 7) {
    Serial.println(F("7 − Soft Bump - 100%"));
  }
  if (effect == 8) {
    Serial.println(F("8 − Soft Bump - 60%"));
  }
  if (effect == 9) {
    Serial.println(F("9 − Soft Bump - 30%"));
  }
  if (effect == 10) {
    Serial.println(F("10 − Double Click - 100%"));
  }
  if (effect == 11) {
    Serial.println(F("11 − Double Click - 60%"));
  }
  if (effect == 12) {
    Serial.println(F("12 − Triple Click - 100%"));
  }
  if (effect == 13) {
    Serial.println(F("13 − Soft Fuzz - 60%"));
  }
  if (effect == 14) {
    Serial.println(F("14 − Strong Buzz - 100%"));
  }
  if (effect == 15) {
    Serial.println(F("15 − 750 ms Alert 100%"));
  }
  if (effect == 16) {
    Serial.println(F("16 − 1000 ms Alert 100%"));
  }
  if (effect == 17) {
    Serial.println(F("17 − Strong Click 1 - 100%"));
  }
  if (effect == 18) {
    Serial.println(F("18 − Strong Click 2 - 80%"));
  }
  if (effect == 19) {
    Serial.println(F("19 − Strong Click 3 - 60%"));
  }
  if (effect == 20) {
    Serial.println(F("20 − Strong Click 4 - 30%"));
  }
  if (effect == 21) {
    Serial.println(F("21 − Medium Click 1 - 100%"));
  }
  if (effect == 22) {
    Serial.println(F("22 − Medium Click 2 - 80%"));
  }
  if (effect == 23) {
    Serial.println(F("23 − Medium Click 3 - 60%"));
  }
  if (effect == 24) {
    Serial.println(F("24 − Sharp Tick 1 - 100%"));
  }
  if (effect == 25) {
    Serial.println(F("25 − Sharp Tick 2 - 80%"));
  }
  if (effect == 26) {
    Serial.println(F("26 − Sharp Tick 3 – 60%"));
  }
  if (effect == 27) {
    Serial.println(F("27 − Short Double Click Strong 1 – 100%"));
  }
  if (effect == 28) {
    Serial.println(F("28 − Short Double Click Strong 2 – 80%"));
  }
  if (effect == 29) {
    Serial.println(F("29 − Short Double Click Strong 3 – 60%"));
  }
  if (effect == 30) {
    Serial.println(F("30 − Short Double Click Strong 4 – 30%"));
  }
  if (effect == 31) {
    Serial.println(F("31 − Short Double Click Medium 1 – 100%"));
  }
  if (effect == 32) {
    Serial.println(F("32 − Short Double Click Medium 2 – 80%"));
  }
  if (effect == 33) {
    Serial.println(F("33 − Short Double Click Medium 3 – 60%"));
  }
  if (effect == 34) {
    Serial.println(F("34 − Short Double Sharp Tick 1 – 100%"));
  }
  if (effect == 35) {
    Serial.println(F("35 − Short Double Sharp Tick 2 – 80%"));
  }
  if (effect == 36) {
    Serial.println(F("36 − Short Double Sharp Tick 3 – 60%"));
  }
  if (effect == 37) {
    Serial.println(F("37 − Long Double Sharp Click Strong 1 – 100%"));
  }
  if (effect == 38) {
    Serial.println(F("38 − Long Double Sharp Click Strong 2 – 80%"));
  }
  if (effect == 39) {
    Serial.println(F("39 − Long Double Sharp Click Strong 3 – 60%"));
  }
  if (effect == 40) {
    Serial.println(F("40 − Long Double Sharp Click Strong 4 – 30%"));
  }
  if (effect == 41) {
    Serial.println(F("41 − Long Double Sharp Click Medium 1 – 100%"));
  }
  if (effect == 42) {
    Serial.println(F("42 − Long Double Sharp Click Medium 2 – 80%"));
  }
  if (effect == 43) {
    Serial.println(F("43 − Long Double Sharp Click Medium 3 – 60%"));
  }
  if (effect == 44) {
    Serial.println(F("44 − Long Double Sharp Tick 1 – 100%"));
  }
  if (effect == 45) {
    Serial.println(F("45 − Long Double Sharp Tick 2 – 80%"));
  }
  if (effect == 46) {
    Serial.println(F("46 − Long Double Sharp Tick 3 – 60%"));
  }
  if (effect == 47) {
    Serial.println(F("47 − Buzz 1 – 100%"));
  }
  if (effect == 48) {
    Serial.println(F("48 − Buzz 2 – 80%"));
  }
  if (effect == 49) {
    Serial.println(F("49 − Buzz 3 – 60%"));
  }
  if (effect == 50) {
    Serial.println(F("50 − Buzz 4 – 40%"));
  }
  if (effect == 51) {
    Serial.println(F("51 − Buzz 5 – 20%"));
  }
  if (effect == 52) {
    Serial.println(F("52 − Pulsing Strong 1 – 100%"));
  }
  if (effect == 53) {
    Serial.println(F("53 − Pulsing Strong 2 – 60%"));
  }
  if (effect == 54) {
    Serial.println(F("54 − Pulsing Medium 1 – 100%"));
  }
  if (effect == 55) {
    Serial.println(F("55 − Pulsing Medium 2 – 60%"));
  }
  if (effect == 56) {
    Serial.println(F("56 − Pulsing Sharp 1 – 100%"));
  }
  if (effect == 57) {
    Serial.println(F("57 − Pulsing Sharp 2 – 60%"));
  }
  if (effect == 58) {
    Serial.println(F("58 − Transition Click 1 – 100%"));
  }
  if (effect == 59) {
    Serial.println(F("59 − Transition Click 2 – 80%"));
  }
  if (effect == 60) {
    Serial.println(F("60 − Transition Click 3 – 60%"));
  }
  if (effect == 61) {
    Serial.println(F("61 − Transition Click 4 – 40%"));
  }
  if (effect == 62) {
    Serial.println(F("62 − Transition Click 5 – 20%"));
  }
  if (effect == 63) {
    Serial.println(F("63 − Transition Click 6 – 10%"));
  }
  if (effect == 64) {
    Serial.println(F("64 − Transition Hum 1 – 100%"));
  }
  if (effect == 65) {
    Serial.println(F("65 − Transition Hum 2 – 80%"));
  }
  if (effect == 66) {
    Serial.println(F("66 − Transition Hum 3 – 60%"));
  }
  if (effect == 67) {
    Serial.println(F("67 − Transition Hum 4 – 40%"));
  }
  if (effect == 68) {
    Serial.println(F("68 − Transition Hum 5 – 20%"));
  }
  if (effect == 69) {
    Serial.println(F("69 − Transition Hum 6 – 10%"));
  }
  if (effect == 70) {
    Serial.println(F("70 − Transition Ramp Down Long Smooth 1 – 100 to 0%"));
  }
  if (effect == 71) {
    Serial.println(F("71 − Transition Ramp Down Long Smooth 2 – 100 to 0%"));
  }
  if (effect == 72) {
    Serial.println(F("72 − Transition Ramp Down Medium Smooth 1 – 100 to 0%"));
  }
  if (effect == 73) {
    Serial.println(F("73 − Transition Ramp Down Medium Smooth 2 – 100 to 0%"));
  }
  if (effect == 74) {
    Serial.println(F("74 − Transition Ramp Down Short Smooth 1 – 100 to 0%"));
  }
  if (effect == 75) {
    Serial.println(F("75 − Transition Ramp Down Short Smooth 2 – 100 to 0%"));
  }
  if (effect == 76) {
    Serial.println(F("76 − Transition Ramp Down Long Sharp 1 – 100 to 0%"));
  }
  if (effect == 77) {
    Serial.println(F("77 − Transition Ramp Down Long Sharp 2 – 100 to 0%"));
  }
  if (effect == 78) {
    Serial.println(F("78 − Transition Ramp Down Medium Sharp 1 – 100 to 0%"));
  }
  if (effect == 79) {
    Serial.println(F("79 − Transition Ramp Down Medium Sharp 2 – 100 to 0%"));
  }
  if (effect == 80) {
    Serial.println(F("80 − Transition Ramp Down Short Sharp 1 – 100 to 0%"));
  }
  if (effect == 81) {
    Serial.println(F("81 − Transition Ramp Down Short Sharp 2 – 100 to 0%"));
  }
  if (effect == 82) {
    Serial.println(F("82 − Transition Ramp Up Long Smooth 1 – 0 to 100%"));
  }
  if (effect == 83) {
    Serial.println(F("83 − Transition Ramp Up Long Smooth 2 – 0 to 100%"));
  }
  if (effect == 84) {
    Serial.println(F("84 − Transition Ramp Up Medium Smooth 1 – 0 to 100%"));
  }
  if (effect == 85) {
    Serial.println(F("85 − Transition Ramp Up Medium Smooth 2 – 0 to 100%"));
  }
  if (effect == 86) {
    Serial.println(F("86 − Transition Ramp Up Short Smooth 1 – 0 to 100%"));
  }
  if (effect == 87) {
    Serial.println(F("87 − Transition Ramp Up Short Smooth 2 – 0 to 100%"));
  }
  if (effect == 88) {
    Serial.println(F("88 − Transition Ramp Up Long Sharp 1 – 0 to 100%"));
  }
  if (effect == 89) {
    Serial.println(F("89 − Transition Ramp Up Long Sharp 2 – 0 to 100%"));
  }
  if (effect == 90) {
    Serial.println(F("90 − Transition Ramp Up Medium Sharp 1 – 0 to 100%"));
  }
  if (effect == 91) {
    Serial.println(F("91 − Transition Ramp Up Medium Sharp 2 – 0 to 100%"));
  }
  if (effect == 92) {
    Serial.println(F("92 − Transition Ramp Up Short Sharp 1 – 0 to 100%"));
  }
  if (effect == 93) {
    Serial.println(F("93 − Transition Ramp Up Short Sharp 2 – 0 to 100%"));
  }
  if (effect == 94) {
    Serial.println(F("94 − Transition Ramp Down Long Smooth 1 – 50 to 0%"));
  }
  if (effect == 95) {
    Serial.println(F("95 − Transition Ramp Down Long Smooth 2 – 50 to 0%"));
  }
  if (effect == 96) {
    Serial.println(F("96 − Transition Ramp Down Medium Smooth 1 – 50 to 0%"));
  }
  if (effect == 97) {
    Serial.println(F("97 − Transition Ramp Down Medium Smooth 2 – 50 to 0%"));
  }
  if (effect == 98) {
    Serial.println(F("98 − Transition Ramp Down Short Smooth 1 – 50 to 0%"));
  }
  if (effect == 99) {
    Serial.println(F("99 − Transition Ramp Down Short Smooth 2 – 50 to 0%"));
  }
  if (effect == 100) {
    Serial.println(F("100 − Transition Ramp Down Long Sharp 1 – 50 to 0%"));
  }
  if (effect == 101) {
    Serial.println(F("101 − Transition Ramp Down Long Sharp 2 – 50 to 0%"));
  }
  if (effect == 102) {
    Serial.println(F("102 − Transition Ramp Down Medium Sharp 1 – 50 to 0%"));
  }
  if (effect == 103) {
    Serial.println(F("103 − Transition Ramp Down Medium Sharp 2 – 50 to 0%"));
  }
  if (effect == 104) {
    Serial.println(F("104 − Transition Ramp Down Short Sharp 1 – 50 to 0%"));
  }
  if (effect == 105) {
    Serial.println(F("105 − Transition Ramp Down Short Sharp 2 – 50 to 0%"));
  }
  if (effect == 106) {
    Serial.println(F("106 − Transition Ramp Up Long Smooth 1 – 0 to 50%"));
  }
  if (effect == 107) {
    Serial.println(F("107 − Transition Ramp Up Long Smooth 2 – 0 to 50%"));
  }
  if (effect == 108) {
    Serial.println(F("108 − Transition Ramp Up Medium Smooth 1 – 0 to 50%"));
  }
  if (effect == 109) {
    Serial.println(F("109 − Transition Ramp Up Medium Smooth 2 – 0 to 50%"));
  }
  if (effect == 110) {
    Serial.println(F("110 − Transition Ramp Up Short Smooth 1 – 0 to 50%"));
  }
  if (effect == 111) {
    Serial.println(F("111 − Transition Ramp Up Short Smooth 2 – 0 to 50%"));
  }
  if (effect == 112) {
    Serial.println(F("112 − Transition Ramp Up Long Sharp 1 – 0 to 50%"));
  }
  if (effect == 113) {
    Serial.println(F("113 − Transition Ramp Up Long Sharp 2 – 0 to 50%"));
  }
  if (effect == 114) {
    Serial.println(F("114 − Transition Ramp Up Medium Sharp 1 – 0 to 50%"));
  }
  if (effect == 115) {
    Serial.println(F("115 − Transition Ramp Up Medium Sharp 2 – 0 to 50%"));
  }
  if (effect == 116) {
    Serial.println(F("116 − Transition Ramp Up Short Sharp 1 – 0 to 50%"));
  }
  if (effect == 117) {
    Serial.println(F("117 − Transition Ramp Up Short Sharp 2 – 0 to 50%"));
  }
  if (effect == 118) {
    Serial.println(F("118 − Long buzz for programmatic stopping – 100%"));
  }
  if (effect == 119) {
    Serial.println(F("119 − Smooth Hum 1 (No kick or brake pulse) – 50%"));
  }
  if (effect == 120) {
    Serial.println(F("120 − Smooth Hum 2 (No kick or brake pulse) – 40%"));
  }
  if (effect == 121) {
    Serial.println(F("121 − Smooth Hum 3 (No kick or brake pulse) – 30%"));
  }
  if (effect == 122) {
    Serial.println(F("122 − Smooth Hum 4 (No kick or brake pulse) – 20%"));
  }
  if (effect == 123) {
    Serial.println(F("123 − Smooth Hum 5 (No kick or brake pulse) – 10%"));
  }

  // set the effect to play
  drv.setWaveform(0, effect);  // play effect
  drv.setWaveform(1, 0);       // end waveform

  // play the effect!
  drv.go();

  // wait a bit
  delay(500);

  effect++;
  if (effect > 117) effect = 1;
}

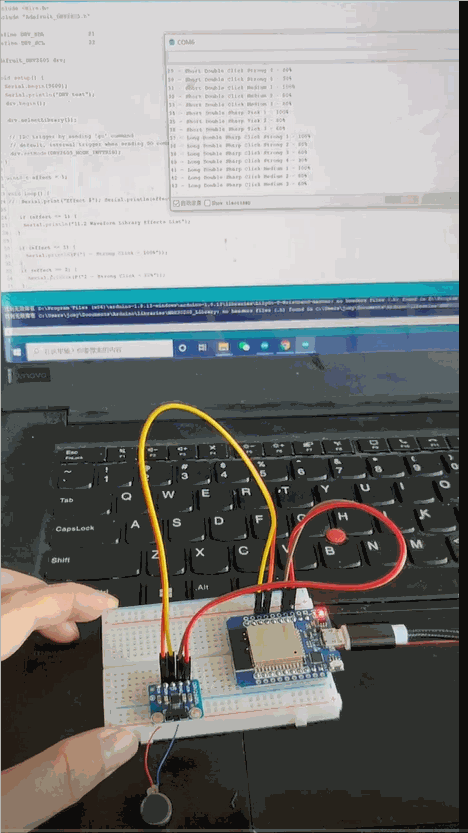

实物图
