通过简易迷宫问题，理解Monte-Carlo, Sarsa和Q-learning算法

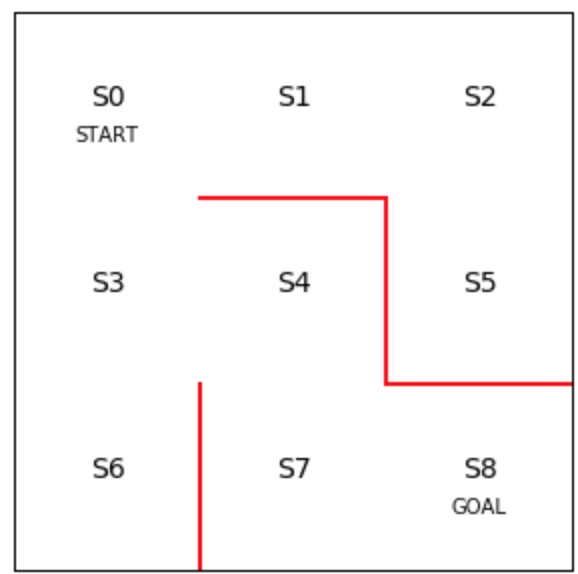

$3\times3$ 的迷宫如下
在这里插入图片描述
可以通过每一步都随机地走，直到走到S8为止
这里主要写通过强化学习，找到最佳路线

MC算法：

首先定义一个policy，它是一个矩阵，行代表S1～S8
列代表action的4个方向，这里定义方向为↑、→、↓、←的顺序

policy定义为 $\pi_{\theta}(s, a)$ , 其中 $\theta$ 是决定 $\pi$ 的参数，首先定义初始 $\theta_{0}$
$\theta_{0}$ 矩阵中值为1代表这个方向可以走，如果是墙壁，就定义为np.nan

#row: S0~S7, column: ↑、→、↓、←
#theta: parameter of policy pi(s, a)
theta_0 = np.array([[np.nan, 1, 1, np.nan], #S0
                    [np.nan, 1, np.nan, 1], #S1
                    [np.nan, np.nan, 1, 1], #S2
                    [1, 1, 1, np.nan], #S3
                    [np.nan, np.nan, 1, 1], #S4
                    [1, np.nan, np.nan, np.nan], #S5
                    [1, np.nan, np.nan, np.nan], #S6
                    [1, 1, np.nan, np.nan], #S7
                    #S8 is goal, no policy
    ])

下面由 $\theta_{0}$ 求 $\pi_{\theta}(s, a)$ ，可以单纯求比例，也可以用softmax
soft公式如下：
$P(\theta_{i}) = \frac{exp(\beta\theta_{i})}{\sum_{i=1}^{N_{a}}exp(\beta\theta_{i})}$
$N_{a}$ 表示action的种类数（4个）

#use softmax to get policy
def softmax_convert_into_pi_from_theta(theta):
    beta = 1.0
    [m, n] = theta.shape
    pi = np.zeros((m,n))

    exp_theta = np.exp(beta * theta)

    for i in range(0, m):
        pi[i, :] = exp_theta[i, :] /np.nansum(exp_theta[i, :])

    pi = np.nan_to_num(pi)

    return pi

打印初期 $\pi_{\theta}$ 可以看到在不同的state下不同action的概率

pi_0 = softmax_convert_into_pi_from_theta(theta_0)
print(pi_0)
#output:
#[[ 0.          0.5         0.5         0.        ]
# [ 0.          0.5         0.          0.5       ]
# [ 0.          0.          0.5         0.5       ]
# [ 0.33333333  0.33333333  0.33333333  0.        ]
# [ 0.          0.          0.5         0.5       ]
# [ 1.          0.          0.          0.        ]
# [ 1.          0.          0.          0.        ]
# [ 0.5         0.5         0.          0.        ]]

通过policy来确定agent的动作
通过 $\pi$ 的概率来选择下一步的action和state

def get_action_and_next_s(pi, s):
    direction = ["up", "right", "down", "left"]

    next_direction = np.random.choice(direction, p=pi[s, :])

    if next_direction == "up":
        action = 0
        s_next = s - 3
    elif next_direction == "right":
        action = 1
        s_next = s + 1
    elif next_direction == "down":
        action = 2
        s_next = s + 3
    elif next_direction == "left":
        action = 3
        s_next = s - 1

    return [action, s_next]

直到走到Goal，一直不停探索路径，到达goal的路径保存在s_a_history

def goal_maze_ret_s_a(pi):
    s = 0  #start
    s_a_history = [[0, np.nan]]

    while(1):
        [action, next_s] = get_action_and_next_s(pi, s)
        s_a_history[-1][1] = action
        #print([action, next_s])

        s_a_history.append([next_s, np.nan]) #now don't know next action, add np.nan as next action

        if next_s == 8:
            break
        else:
            s = next_s

    return s_a_history

随机走一条路径

s_a_history = goal_maze_ret_s_a(pi_0)
print(s_a_history)
#output:
#[[0, 2], [3, 0], [0, 2], [3, 0], [0, 1], [1, 3], [0, 2], [3, 0], [0, 2], [3, #1], [4, 2], [7, 0], [4, 3], [3, 1], [4, 2], [7, 1], [8, nan]]
#17 steps

MC算法需要完整的路径来更新policy，所以每次得到完整路径后去更新 $\theta$ ，通过 $\theta$ 得到 $\pi$ ，
重复上面的步骤直到policy收敛
$\theta$ 的更新公式：
$\theta_{s_{i},a_{j}} = \theta_{s_{i},a_{j}} + \eta.\Delta\theta_{s_{i},a_{j}}$
$\Delta\theta_{s_{i},a_{j}} = \{N(s_{i}, a_{j}) + P(s_{i}, a_{j})N(s_{i}, a)\}/T$

$N$ 表示次数， $T$ 表示到达goal的总step数

def update_theta(theta, pi, s_a_history):
    eta = 0.1  #learning rate
    T = len(s_a_history) - 1

    [m, n] = theta.shape
    delta_theta = theta.copy() #deep copy

    for i in range(0, m):
        for j in range(0, n):
            if not(np.isnan(theta[i, j])):
                SA_i = [SA for SA in s_a_history if SA[0] == i] #the (s,a) pair with state i
                SA_ij = [SA for SA in s_a_history if SA == [i, j]] #the (s,a) pair with state i, action j

                N_i = len(SA_i)
                N_ij = len(SA_ij)
                delta_theta[i, j] = (N_ij + pi[i, j] * N_i) / T

    new_theta = theta + eta * delta_theta

    return new_theta

MC算法迭代，定义收敛标准

stop_epsilon = 10**-8

theta = theta_0
pi = pi_0

is_continue = True
count = 1

while is_continue:
    s_a_history = goal_maze_ret_s_a(pi)
    new_theta = update_theta(theta, pi, s_a_history)
    new_pi = softmax_convert_into_pi_from_theta(new_theta)

    print(np.sum(np.abs(new_pi - pi)))
    print("steps to reach goal is: " + str(len(s_a_history) - 1))

    if np.sum(np.abs(new_pi - pi)) < stop_epsilon:
        is_continue = False
    else:
        theta = new_theta
        pi = new_pi

最后确认下收敛后的policy

np.set_printoptions(precision=3, suppress=True) #not display by e
print(pi)
#output
#[[ 0.     0.     1.     0.   ]
# [ 0.     0.38   0.     0.62 ]
# [ 0.     0.     0.474  0.526]
# [ 0.     1.     0.     0.   ]
# [ 0.     0.     1.     0.   ]
# [ 1.     0.     0.     0.   ]
# [ 1.     0.     0.     0.   ]
# [ 0.     1.     0.     0.   ]]

可以看到policy已经可以找到最佳路径，而未收敛的概率处是因为通过最优路径不会再采取那个action，所以仍保留初始附近的概率

Sarsa算法

名称解释，Sarsa指当前State(S), Action(a)得到即时Reward( r), 并通过下一步的State(s), Action(a)得到预期reward

定义Q矩阵，通过 $\epsilon-greedy$ 方法选择下一步的action, 在每一个step都更新Q值，而不是MC算法的每个episode更新policy
最后Q矩阵收敛可以得到最优路径

Q矩阵的size和上面policy一样，行代表state，列代表action，初始值为random
但是为了保持墙壁的限制条件，让Q乘 $\theta_{0}$
将Q的terminal state设为0

#row: S0~S7, column: ↑、→、↓、←
#theta: policy pi(s, a)
theta_0 = np.array([[np.nan, 1, 1, np.nan], #S0
                    [np.nan, 1, np.nan, 1], #S1
                    [np.nan, np.nan, 1, 1], #S2
                    [1, 1, 1, np.nan], #S3
                    [np.nan, np.nan, 1, 1], #S4
                    [1, np.nan, np.nan, np.nan], #S5
                    [1, np.nan, np.nan, np.nan], #S6
                    [1, 1, np.nan, np.nan], #S7
                    #S8 is goal, no policy
    ])

[a, b] = theta_0.shape
Q = np.random.rand(a, b) * theta_0
Q[7,3]=0

print(Q)
#output:
[[   nan  0.745  0.711    nan]
 [   nan  0.286    nan  0.385]
 [   nan    nan  0.513  0.056]
 [ 0.501  0.921  0.993    nan]
 [   nan    nan  0.891  0.01 ]
 [ 0.875    nan    nan    nan]
 [ 0.439    nan    nan    nan]
 [ 0.958  0.936    nan  0.   ]]

$\epsilon-greedy$ （选择下一步的action）：
greedy表示每次选择Q[s, :]中的最大值作为下一步的action，但是它有一个问题，就是容易陷入local optimal，所以要平衡随机探索和greedy
于是以 $\epsilon$ 的概率进行随机探索， $1-\epsilon$ 的概率采取greedy
$\epsilon$ 随着step增加而衰减

而且有一个理论，也就是说 $\epsilon-greedy$ 是可以改进policy的：
for any $\epsilon-greedy$ policy $\pi$ , $\epsilon-greedy$ policy $\pi'$ with respect to $q_{\pi}$ is an improvement. $V_{\pi'}(s) \geq V_{\pi}(s)$
证明就不写了

由于涉及到随机探索，所以仍然需要探索用的policy
这里不用softmax，而是用简单的概率

def simple_convert_into_pi_from_theta(theta):
    [m, n] = theta.shape
    pi = np.zeros((m, n))
    for i in range(0, m):
        pi[i, :] = theta[i, :] / np.nansum(theta[i, :])

    pi = np.nan_to_num(pi)
    return pi

pi_0 = simple_convert_into_pi_from_theta(theta_0)

实现 $\epsilon-greedy$ ：

#epsilon-greedy
#get the action
def get_action(s, Q, epsilon, pi_0):
    direction = ["up", "right", "down", "left"]
    #print("s = " + str(s))

    #probability epsilon to random search
    if np.random.rand() < epsilon:
        next_direction = np.random.choice(direction, p=pi_0[s, :])
    else:
        #move by the maximum Q
        next_direction = direction[np.nanargmax(Q[s, :])]

    if next_direction == "up":
        action = 0
    elif next_direction == "right":
        action = 1
    elif next_direction == "down":
        action = 2
    elif next_direction == "left":
        action = 3

    return action

#get next state by action
def get_s_next(s, a, Q, epsilon, pi_0):
    direction = ["up", "right", "down", "left"]
    next_direction = direction[a]

    if next_direction == "up":
        s_next = s - 3
    elif next_direction == "right":
        s_next = s + 1
    elif next_direction == "down":
        s_next = s + 3
    elif next_direction == "left":
        s_next = s - 1

    return s_next

通过state, action更新Q矩阵的Sarsa算法：
推导：
$\mu_{k} = \frac{1}{k}\sum_{j=1}^{k}x_{j}$
$=\frac{1}{k}(x_{k} + \sum_{j=1}^{k-1}x_{j})$
$=\frac{1}{k}(x_{k} + (k-1)\mu_{k-1})$
$=\mu_{k-1} + \frac{1}{k}(x_{k} -\mu_{k-1})$

for each state $S_{t}$ with $G_{t}$ :
$N(S_{t})\leftarrow N(S_{t})+1$
$V(S_{t})\leftarrow V(S_{t}) + \frac{1}{N(S_{t})}(G_{t}-V(S_{t}))$

$G_{t}=R_{t+1} +\gamma V(S_{t+1})$

得到：
$Q(s_{t}, a_{t}) = Q(s_{t}, a_{t}) + \eta*(R_{t+1} +\gamma Q(s_{t+1},a_{t+1})-Q(s_{t}, a_{t}))$
其中 $R_{t+1} +\gamma Q(s_{t+1},a_{t+1})-Q(s_{t}, a_{t})$ 叫做TD error

根据上述公式更新Q：

def Sarsa(s, a, r, s_next, a_next, Q, eta, gamma):
    if s_next == 8:  #the goal, next state not exist
        Q[s, a] = Q[s, a] + eta * (r - Q[s, a])
    else:
        Q[s, a] = Q[s, a] + eta * (r + gamma*Q[s_next, a_next] - Q[s, a])

    return Q

一个episode:

def goal_maze_ret_s_a_Q(Q, epsilon, eta, gamma, pi):
    s = 0 #start state
    a = a_next = get_action(s, Q, epsilon, pi) #get action by epsilon-greedy
    s_a_history = [[0, np.nan]]

    while(1): #until reach the goal
        a = a_next

        s_a_history[-1][1] = a

        s_next = get_s_next(s, a, Q, epsilon, pi)
        s_a_history.append([s_next, np.nan])

        if s_next == 8:
            r = 1 #get the reward
            a_next = np.nan
        else:
            r = 0
            a_next = get_action(s_next, Q, epsilon, pi)

        Q = Sarsa(s, a, r, s_next, a_next, Q, eta, gamma)  #update Q

        if s_next == 8:
            break
        else:
            s = s_next

    return [s_a_history, Q]

完整迭代：

eta = 0.1
gamma = 0.9
epsilon = 0.5
v = np.nanmax(Q, axis=1) #select the maximum Q value for each state
is_continue = True
episode = 1

while is_continue:
    print("episode: " + str(episode))

    epsilon = epsilon / 2  #epsilon-greedy

    [s_a_history, Q] = goal_maze_ret_s_a_Q(Q, epsilon, eta, gamma, pi_0)

    new_v = np.nanmax(Q, axis=1) #maximum value for each state

    print(np.sum(np.abs(new_v - v)))

    v = new_v

    print("steps to reach goal is: " + str(len(s_a_history) - 1))

    episode = episode + 1
    if episode > 100:
        break

虽然写了到100 episode，但是从output看出很快就收敛到最优路径

episode: 1
0.227489819094
steps to reach goal is: 14
episode: 2
0.154785251991
steps to reach goal is: 10
episode: 3
0.0105243446365
steps to reach goal is: 4
episode: 4
0.00946282714278
steps to reach goal is: 4
episode: 5
0.00848520483778
steps to reach goal is: 4
episode: 6
0.00758386849718
steps to reach goal is: 4
episode: 7
0.0051117594454
steps to reach goal is: 4
episode: 8

看下收敛后的路径及Q矩阵

print(s_a_history)
#output:
[[0, 2], [3, 1], [4, 2], [7, 1], [8, nan]]

print(Q)
#output:
[[   nan  0.705  0.729    nan]
 [   nan  0.286    nan  0.41 ]
 [   nan    nan  0.513  0.056]
 [ 0.501  0.81   0.775    nan]
 [   nan    nan  0.9    0.088]
 [ 0.875    nan    nan    nan]
 [ 0.575    nan    nan    nan]
 [ 0.928  1.       nan  0.   ]]

标准Sarsa只能backward一步，而Sarsa( $\lambda)$ 算法一次可以更新整个路径，与Sarsa不同的是加了一个 $E$ 矩阵
（这个单独写）

Q-learning

Q-learning与Sarsa的区别：

对比Q的更新公式：

Sarsa：
$Q(s_{t}, a_{t}) = Q(s_{t}, a_{t}) + \eta*(R_{t+1} +\gamma Q(s_{t+1},a_{t+1})-Q(s_{t}, a_{t}))$

Q-learning:
$Q(s_{t}, a_{t}) = Q(s_{t}, a_{t}) + \eta*(R_{t+1} +\gamma \mathop{\max}\limits_{a }Q(s_{t+1},a)-Q(s_{t}, a_{t}))$

可以看到Sarsa更新时需要求并且使用 $a_{t+1}$ ，而Q-learning需要用到 $s_{t+1}$ 对应的最大Q值。
$a_{t+1}$ 是由决定下一步action的policy决定的，所以Q的更新依赖于policy，称为online-policy
而Q-learning不依赖于决定action的policy，称为offline-policy

Sarsa中用到的 $\epsilon-greedy$ 中random的部分Q-learning中没有，所以Q-learning有比Sarsa收敛更快的特征

按照Q-learning公式：

def Q_learning(s, a, r, s_next, Q, eta, gamma):
    if s_next == 8:  #goal
        Q[s, a] = Q[s, a] + eta*(r - Q[s, a])
    else:
        Q[s, a] = Q[s, a] + eta*(r + gamma*np.nanmax(Q[s_next,:]) - Q[s, a])

    return Q

因为不用 $\epsilon-greedy$ ，所以action函数去掉随机的部分：

#get the action
def get_action(s, Q):
    direction = ["up", "right", "down", "left"]
    #print("s = " + str(s))

    next_direction = direction[np.nanargmax(Q[s, :])]

    if next_direction == "up":
        action = 0
    elif next_direction == "right":
        action = 1
    elif next_direction == "down":
        action = 2
    elif next_direction == "left":
        action = 3

    return action

def get_s_next(s, a):
    direction = ["up", "right", "down", "left"]
    next_direction = direction[a]

    if next_direction == "up":
        s_next = s - 3
    elif next_direction == "right":
        s_next = s + 1
    elif next_direction == "down":
        s_next = s + 3
    elif next_direction == "left":
        s_next = s - 1

    return s_next

一次episode:

def goal_maze_ret_Q_learning(Q, eta, gamma):
    s = 0 #start state
    a = a_next = get_action(s, Q) #get action by maximum Q value
    s_a_history = [[0, np.nan]]

    while(1): #until reach the goal
        a = a_next

        s_a_history[-1][1] = a

        s_next = get_s_next(s, a)
        s_a_history.append([s_next, np.nan])

        if s_next == 8:
            r = 1 #get the reward
            a_next = np.nan
        else:
            r = 0
            a_next = get_action(s_next, Q)

        Q = Q_learning(s, a, r, s_next, Q, eta, gamma) #update Q

        if s_next == 8:
            break
        else:
            s = s_next

    return [s_a_history, Q]

完整迭代到100次：

eta = 0.1 #learning-rate
gamma = 0.9 #decrease rate
v = np.nanmax(Q, axis=1) #maximum value for each state
is_continue = True
episode = 1

V = []   #state value for each episode
V.append(np.nanmax(Q, axis=1))  #get the maximum value for each state

while is_continue:
    print("episode " + str(episode))

    [s_a_history, Q] = goal_maze_ret_Q_learning(Q, eta, gamma) #get one path

    new_v = np.nanmax(Q, axis=1)

    print(np.sum(np.abs(new_v - v))) #get the error

    v = new_v

    V.append(v)

    print("steps to reach goal: " + str(len(s_a_history) - 1))
    episode = episode + 1
    if episode > 100:
        is_continue = False

收敛结果

episode 1
0.100490460992
steps to reach goal: 20
episode 2
0.0969381947436
steps to reach goal: 16
episode 3
0.0943713455446
steps to reach goal: 8
episode 4
0.0932547392558
steps to reach goal: 6
episode 5
0.0918454990963
steps to reach goal: 6
episode 6
0.0904328729472
steps to reach goal: 4
episode 7
0.0895058129093
steps to reach goal: 4
episode 8
0.0885468091866
steps to reach goal: 4
episode 9
0.0875441463751
steps to reach goal: 4
episode 10
0.0864873768061
steps to reach goal: 4
episode 11
0.0853677368575
steps to reach goal: 4
episode 12
0.0841783707317
steps to reach goal: 4
episode 13
0.0829144098366
steps to reach goal: 4
episode 14
0.0815729464098
steps to reach goal: 4
episode 15
0.0801529321705
steps to reach goal: 4
episode 16
0.0786550263091
steps to reach goal: 4
episode 17
0.0770814118009
steps to reach goal: 4
episode 18
0.0754355946909
steps to reach goal: 4
episode 19
0.0737221974552
steps to reach goal: 4
episode 20
0.0719467546908
steps to reach goal: 4
