03-QNX Shell常用指令

1. 概述

2. 指令

查看指令用法:

#use <指令>

例如:查看pidin用法

# use pidin
pidin [options] argument - display system stats
-d delay   delay period in tenths of a second
-F format  a string consisting of format identifiers
-f formats contiguous string of format codes (-f mbe = -F %m %b %e)
-h         this message
-k         print PID & NID data until an error occurs
-l         display statistics at intervals decided by -d option
-M formats format string (as in printf())
-n node    remote QNX node you are interested in
-o prio    run at prio priority
-P pid     process family (pid or name) you are interested in
-p pid     process (pid or name) you are interested in
-v         verbose output
Formats
A - arguments
B - what you are blocked on
E - environment
F - thread flags
H - extended scheduling
I - pid and tid
J - state of the threads (sorted by tid) of the processes
K - what kernel call was executed last
More (Y/n)?

2.1  进程/线程

2.1.1 查看进程

#pidin a

#pidin ar

# pidin a
     pid Arguments
       1 procnto-smp-instr -v -ae -bl -mLr~x -F 4000 -~s
   12291 slogger2 -U 15:15 -V -P /var/pps -G 5 -D SLOG2_PHYS -s 258048
   16386 bmetrics_service -m 0xC221000 -i addr=0x146BF658 -x addr=0x85E11040 -s 10
   20486 devc-quipv3 -e -b115200 -lt 12
   20487 secpolgenerate -l
   32776 /bin/qcpe_qhee -U 105:105
   32777 watchdog -u -w
   32778 memorydump -r -t -d full -U 712:712,21
   32779 syscache_service -U 147:147,21
   32780 pil_service -U 14:14,21
   32781 smmu_service -V -U 29:29,21
   32783 qcgpio
   32784 qcore
   36881 /bin/qcpe_service -U 102:102
   40978 on -T default_root_t ksh -l

#pidin a | grep <进程号/名称>

# pidin a | grep usb
  307255 io-usb-otg -t memory=/memory/ram/dma -dqcom-xhci ioport=0xa800000,irq=170,soc=8155,memory=/memory/ram/dma, -n /dev/usb2/io-usb-otg
  356410 usblauncher_otg -S 2 -c /etc/usblauncher/usb2.lua -M /etc/usblauncher/rules.mnt -m /var/pps -n /dev/usb2/io-usb-otg -E -e -0
  430143 io-hid -dusb
 1155112 grep usb

2.1.2 查看memory

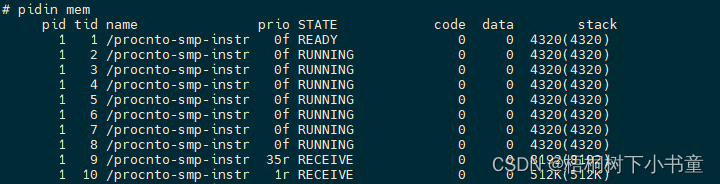

pidin mem 查看内存信息

pidin -P <进程名> 查看某个进程内存使用情况

# pidin -P qseecom_service
     pid tid name               prio STATE       Blocked
   94257   1 in/qseecom_service  10r RECEIVE     3
   94257   2 in/qseecom_service  10r RECEIVE     1
   94257   3 in/qseecom_service  10r REPLY       36881
   94257   4 in/qseecom_service  10r SEM         fff8089f774403b4
   94257   5 in/qseecom_service  10r REPLY       36881
   94257   6 in/qseecom_service  10r SEM         fff8089f77440434
   94257   7 in/qseecom_service  10r SEM         fff8089f774404b4
   94257   8 in/qseecom_service  10r SEM         fff8089f77440534
   94257   9 in/qseecom_service  10r REPLY       36881
   94257  10 in/qseecom_service  10r REPLY       36881
   94257  11 in/qseecom_service  10r RECEIVE     3
   94257  12 in/qseecom_service  10r RECEIVE     3

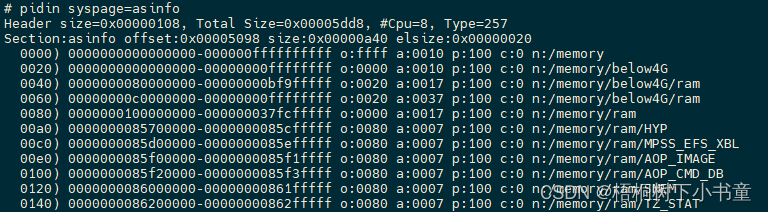

2.1.3 查看系统页信息

pidin syspage=asinfo

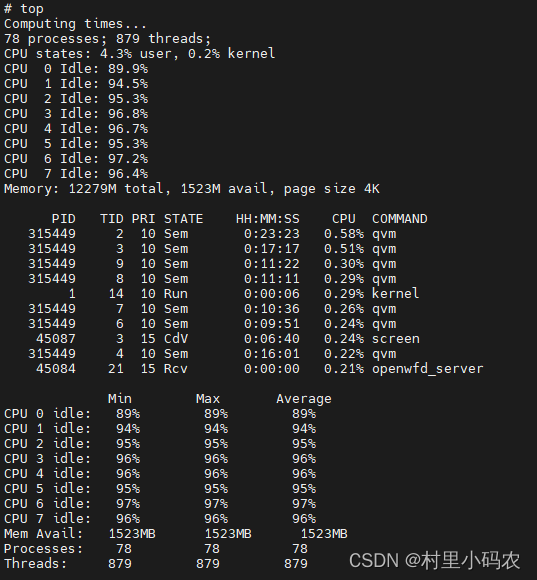

2.1.3 查看CPU使用率

#top





2.2 结束/杀死<进程/线程>

#slay  <进程名>

使用方法:slay [options]... process_name|process_ID...


# use slay
slay [options]... process_name|process_ID...
Options:
 -#              Use signal # (numeric).
 -f              Force (don't query just because there are multiple matches).
 -h              Raise signal SIGSTOP (hold).
 -m <name|pid>   Match only on name or pid (default is to match either)
 -n <node>       Processes will be looked for on node <node>.
 -P <prio>       Change priority to <prio>; optionally, can follow with
                 changed scheduling policy (f|r|o).
 -p              Print process IDs (in decimal) to stdout, one process ID
                 per line. No other actions will be performed - processes
                 will not be slain.
 -Q              Quiet.
 -q              Query before signal. This will override -f.
 -S              Don't kill processes if there are sons.
 -s <sig>        Define signal to send.
 -t <ttyname>    Process must be on tty 'ttyname'.
 -u              Raise signal SIGCONT (unhold).
 -v              Verbose.
 -T <thread_id>  Thread ID.
 -R <runmask>    Set CPU Affinity to <runmask>.  May be used multiple times to
                 specify masks > 32 bits wide (32 bits per -R).  The lower 32
                 bits (bits 31-0) are always taken from the first -R, bits
                 63-32 from the second...  If used in conjunction with -C, the
                 resultant mask is the bitwise or'ing of all -[CR] options.
 -C <cpunum>     Set CPU Affinity to cpunum.  First CPU is 0.  If specified
                 multiple times or in conjunction with -R, the resultant mask
                 is the bitwise or'ing of all -[CR] options.
 -i              When used in conjunction with -[CR], also set the inherit
                 mask.
Signals:
 SIGNULL     SIGHUP      SIGINT      SIGQUIT     SIGILL      SIGTRAP
 SIGIOT      SIGABRT     SIGEMT      SIGDEADLK   SIGFPE      SIGKILL
 SIGBUS      SIGSEGV     SIGSYS      SIGPIPE     SIGALRM     SIGTERM
 SIGUSR1     SIGUSR2     SIGCHLD     SIGCLD      SIGPWR      SIGWINCH
 SIGURG      SIGPOLL     SIGIO       SIGSTOP     SIGTSTP     SIGCONT
 SIGTTIN     SIGTTOU     SIGVTALRM   SIGPROF     SIGXCPU     SIGXFSZ
Note:
 Processes may be specified by name or PID, unless -m used to limit match.
 Query becomes the default when multiple processes of the same name are found
 unless -f is also specified.
 The exit status is number processes successfully slayed.
 A value of zero indicates failure to slay any process.
# slay io-usb-otg
#
# pidin a | grep usb
  356410 usblauncher_otg -S 2 -c /etc/usblauncher/usb2.lua -M /etc/usblauncher/rules.mnt -m /var/pps -n /dev/usb2/io-usb-otg -E -e -0
  430143 io-hid -dusb
 1183784 grep usb

终止qvm进程:

slay -s  SIGQUIT qvm

如上图,结束进程io-usb-otg之后,再次查看进程名,已经不存在了。

#kill

使用方法: kill [ -s signame | -signum | -signame ] {pid|job}...
                   kill -l [exit_status]

#kill <参数> <进程PID>

2.3  Slog日志信息

slog2info

# use slog2info
slog2info [options]

If no options are specified then all the logs are displayed.

Options:

-w / -W             Wait mode, listens for new prints. Ctrl-C to stop.
                    [-w] Prints all available older logs prior to live
                         streaming.
                    [-W] Ignores all older logs and starts live streaming
                         from the current moment.

-l filename         Specify a specific buffer_set file to parse.  This allows
                    selection of PID-specific buffer_set.  Choose one of the
                    files under /dev/shmem/slogger2/.

-b bset1,bset2,...  Only parse logs with that match one of the list of buffer
                    set names.
                    Alternative permitted usage: -b bset1 -b bset2 -b ...

-i                  Display information about a buffer_set file specified by -l

-r resetfilename    Display the pre-reset logs contained in a special file that
                    slogger2 may have generated during startup when slogger2
                    was invoked with the -d/-D option.

-c                  Clears the live slog2 buffers. Can be used with -b to
                    clear target buffer sets.

-s / -S             [-s] Show the numeric severity level for each log line.
                    [-S] Show the severity level for each log line as one of:
                    SLOG2_[SHUTDOWN|CRITICAL|ERROR|WARNING|NOTICE|INFO|DEBUG1
                    |DEBUG2]

-e code1,code2,...  Only parse logs that match one of the specified event
                    code names.

-t                  Display thread id.

-n                  Newline '\n' characters will be discarded from logs and
                    each log line in a multiline log will appear as a
                    separate log line in the output.

-a                  Highlight logs with ANSI terminal color-codes.  Logs of

清除log

#slog2info -c

实时显示log:

#slog2info -w

过滤log

#slog2info -b qvm -w  //过滤只显示qvm进程相关log

2.4  挂载信息

mount

# use mount
Usage: mount [-abwruv] -t type [-o options] [special] mntpoint
       mount [-abwruv] -T type [-o options] special [mntpoint]
       mount [-abwruv] -e [-t|T type] [-o options] special [mntpoint]
       mount

Where:
       -a Mount all devices listed in the fstab file. If type provided,
          mount only those entries. This option is ignored if a special
          device or mountpoint is specified.
       -b Ignore fstab file.
       -o Gives server-specific options
       -r Mount read only
       -T Indicates the special device may not be a real device
          but rather a hint for the server.  The server will
          autocreate an appropriate mountpoint if mntpoint is
          not specified.
       -t Indicates the mount request should only go to the server
          who created/is responsible for the special device.  If
          the special device doesn't exist then this option behaves
          the same as -T.
       -e Enumerate the device given by special
       -u Mount for update (remount)
# mount -b
/dev/disk/uda0.3A065A51-80C6-4439-8602-79437023632A.8 on / type qnx6
/dev/disk/uda0.1B81E7E6-F50D-419B-A739-2AEEF8DA3335.13 on /var type qnx6
/var/pps_persist on /var/pps type PPS
/dev/disk/uda0.6C95E238-E343-4BA8-B489-8681ED22AD0B.11 on /persist type qnx6
/dev/disk/uda0.ms.21 on /firmware type dos (fat16)

2.5  网络

配置工具:ifconfig、route、hostname、netmap
查询工具:netstat、alive

ifconfig //与Linux基本一样

# ifconfig --help
ifconfig: illegal option -- -
usage: ifconfig [-h] [-m] [-v] [-z] [-L] interface
        [ af [ address [ dest_addr ] ] [ netmask mask ] [ prefixlen n ]
                [ alias | -alias ] ]
        [ up ] [ down ] [ metric n ] [ mtu n ]
        [ nwid network_id ] [ nwkey network_key | -nwkey ]
        [ powersave | -powersave ] [ powersavesleep duration ]
        [ hidessid | -hidessid ] [ apbridge | -apbridge ]
        [ [ af ] tunnel src_addr dest_addr ] [ deletetunnel ]
        [ arp | -arp ]
        [ media type ] [ mediaopt opts ] [ -mediaopt opts ] [ instance minst ]
        [ preference n ]
        [ vlan n vlanif i ]
        [ agrport i ] [ -agrport i ]
        [ anycast | -anycast ] [ deprecated | -deprecated ]
        [ tentative | -tentative ] [ pltime n ] [ vltime n ] [ eui64 ]
        [ link0 | -link0 ] [ link1 | -link1 ] [ link2 | -link2 ]
        [ ip4csum | -ip4csum ]
        [ tcp4csum | -tcp4csum ]
        [ udp4csum | -udp4csum ]
        [ ip4csum-tx | -ip4csum-tx ] [ ip4csum-rx | -ip4csum-rx ]
        [ tcp4csum-tx | -tcp4csum-tx ] [ tcp4csum-rx | -tcp4csum-rx ]
        [ udp4csum-tx | -udp4csum-tx ] [ udp4csum-rx | -udp4csum-rx ]
        [ acceptrtadv | -acceptrtadv ]
        [ name <newname> ]
        [ aliasif i dir | -aliasif i dir ]
        [ setfib n ]
        [ addfib n ]
        [ delfib n ]
        [ getfib ]
       ifconfig -a [-b] [-h] [-m] [-d] [-u] [-v] [-z] [ af ]
       ifconfig -l [-b] [-d] [-u] [-s]
       ifconfig -C
       ifconfig interface create
       ifconfig interface destroy

查看IP

# ifconfig
lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> mtu 33136
        inet 127.0.0.1 netmask 0xff000000
        inet6 ::1 prefixlen 128
        inet6 fe80::1%lo0 prefixlen 64 scopeid 0x1
pflog0: flags=0 mtu 33136
emac0: flags=8943<UP,BROADCAST,RUNNING,PROMISC,SIMPLEX,MULTICAST> mtu 1500
        capabilities=27<IP4CSUM,TCP4CSUM,UDP4CSUM,TSO4>
        enabled=0
        address: 02:04:00:00:01:02
        media: Ethernet none
        inet 192.168.1.1 netmask 0xffffff00 broadcast 192.168.1.255
        inet6 fe80::4:ff:fe00:102%emac0 prefixlen 64 scopeid 0x21

  如果出现status: no carrier是由于当前phy的link状态是down的,所以status是no carrier的

netstat//与Linux基本一样

# netstat --help
netstat: illegal option -- -
usage: netstat [-Aan] [-f address_family]
       netstat [-bdgiLmnqrsSv] [-f address_family] [-F fib_selector]
       netstat [-dn] [-I interface] [-w wait]
       netstat [-p protocol]
       netstat [-p protocol] -P pcbaddr
       netstat [-p protocol] [-i] [-I Interface]
       netstat [-s] [-f address_family] [-i] [-I Interface]
       netstat [-s] [-B] [-I interface]

如何查看网卡状态:netstat –in

# netstat -in
Name  Mtu   Network       Address              Ipkts Ierrs    Opkts Oerrs Colls
lo0   33136 <Link>                                 0     0        0     0     0
lo0   33136 127/8         127.0.0.1                0     0        0     0     0
lo0   33136 ::1/128       ::1                      0     0        0     0     0
lo0   33136 fe80::/64     fe80::1                  0     0        0     0     0
pflog 33136 <Link>                                 0     0        0     0     0
emac0 1500  <Link>        02:04:00:00:01:02        0     0        0     0     0
emac0 1500  fe80::/64     fe80::4:ff:fe00:1        0     0        0     0     0
emac0 1500  192.168.1/24  192.168.1.1              0     0        0     0     0
vp0   1500  <Link>        aa:aa:aa:aa:aa:aa     1026     0     1704     6     0
vp0   1500  fe80::/64     fe80::a8aa:aaff:f     1026     0     1704     6     0
bridg 1500  <Link>                              1026     0     1962  2484     0

如何查看路由表: netstat –rn


# netstat -rn
Routing tables

Internet:
Destination        Gateway            Flags    Refs      Use    Mtu  Interface
default            192.168.1.10       UGS         0        0      -  emac0
127.0.0.1          127.0.0.1          UH          0        0  33136  lo0
192.168.1/24       link#33            UC          1        0      -  emac0
192.168.1.10       link#33            UHL1c       2     3660      -  emac0

Internet6:
Destination                        Gateway                        Flags    Refs      Use    Mtu  Interface
::1                                ::1                            UH          0        0  33136  lo0
fe80::%lo0/64                      fe80::1%lo0                    U           0        0      -  lo0
fe80::1%lo0                        link#1                         UHL         0        0      -  lo0
fe80::%emac0/64                    link#33                        UC          0        0      -  emac0
fe80::4:ff:fe00:102%emac0          02:04:00:00:01:02              UHL         0        0      -  lo0
fe80::%vp0/64                      link#34                        UC          0        0      -  vp0
fe80::a8aa:aaff:feaa:aaaa%vp0      aa:aa:aa:aa:aa:aa              UHL         0        0      -  lo0
ff01:1::/32                        ::1                            UC          0        0  33136  lo0
ff01:21::/32                       link#33                        UC          0        0      -  emac0
ff01:22::/32                       link#34                        UC          0        0      -  vp0
ff02::%lo0/32                      ::1                            UC          0        0  33136  lo0
ff02::%emac0/32                    link#33                        UC          0        0      -  emac0
ff02::%vp0/32                      link#34                        UC          0        0      -  vp0

如何检查网络监听:netstat –an

nicinfo  //显示网络控制接口信息

# use nicinfo
nicinfo - Display information about network interface controllers.

nicinfo [-cgsv] [iface...]

Options:
-c          Display config only
-s          Display statistics only
-g          Display general statistics only
-v          Be verbose

Description:
This utility displays information about the given network interfaces, or
all interfaces if none are specified. The information includes the number
of packets transmitted and received, collisions, and other errors.

# nicinfo -c
pflog0:

emac0:
  EMAC Ethernet Device Ethernet Controller

  Link is DOWN

  Physical Node ID ........................... 020400 000102
  Current Physical Node ID ................... 020400 000102
  Current Operation Rate ..................... Unknown
  Active Interface Type ...................... MII
    Active PHY address ....................... 7
  Maximum Transmittable data Unit ............ 1514
  Maximum Receivable data Unit ............... 1514
  Promiscuous Mode ........................... On
  Multicast Support .......................... Enabled

2.3  内存信息

showmem


showmem [options] [argument]
showmem (w/o option)displays process wise allocation from sysram
Options:
-a               Display process wise allocation for all carveouts, export to text file.
-t as_name       Display memory usage of process level for pmem.
-p pid           Display memory allocation of specified process.
-s               Display memory summary for sysram and pmem.
-l               Display memory layout.
carv_name        Display process wise allocation for carveout "carv_name".
-h               Print this help message.
.-------------------------------------.<-- 0x80001000
|               sysram ,        28 KB |
.-------------------------------------.<-- 0x80008000
|                 hole ,        12 KB |
.-------------------------------------.<-- 0x8000b000
|  inactive_ringbuffer ,        16 KB |
.-------------------------------------.<-- 0x8000f000
|           ringbuffer ,        16 KB |
.-------------------------------------.<-- 0x80013000
|                 hole ,        40 KB |
.-------------------------------------.<-- 0x8001d000
|    active_lun0_array ,         8 KB |
.-------------------------------------.<-- 0x8001f000
|                 hole ,        44 KB |
.-------------------------------------.<-- 0x8002a000
|    active_lun5_array ,         4 KB |
.-------------------------------------.<-- 0x8002b000
|                 hole ,        64 KB |
.-------------------------------------.<-- 0x8003b000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|               sysram ,     86.77 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x85700000
|                                     |
|                                     |
|                                     |
|                  HYP ,      6.00 MB |
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x85d00000
|                 hole , 17592186044416.00 MB |
.-------------------------------------.<-- 0x85700200
|              startup ,       408 KB |
.-------------------------------------.<-- 0x85766308
|                                     |
|                                     |
|              imagefs ,      4.61 MB |
|                                     |
|                                     |
.-------------------------------------.<-- 0x85c03160
|                 hole ,      1011 KB |
.-------------------------------------.<-- 0x85d00000
|                                     |
|         MPSS_EFS_XBL ,      2.00 MB |
|                                     |
.-------------------------------------.<-- 0x85f00000
|            AOP_IMAGE ,       128 KB |
.-------------------------------------.<-- 0x85f20000
|           AOP_CMD_DB ,       128 KB |
.-------------------------------------.<-- 0x85f40000
|               sysram ,       768 KB |
.-------------------------------------.<-- 0x86000000
|                                     |
|                 SMEM ,      2.00 MB |
|                                     |
.-------------------------------------.<-- 0x86200000
|              TZ_STAT ,      1.00 MB |
.-------------------------------------.<-- 0x86300000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|          pIMEM_VAULT ,     56.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x89b00000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|               sysram ,     28.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x8b700000
|                                     |
|                                     |
|               CAMERA ,      5.00 MB |
|                                     |
|                                     |
.-------------------------------------.<-- 0x8bc00000
|              WLAN_FW ,      1.50 MB |
.-------------------------------------.<-- 0x8bd80000
|               NPU_FW ,       512 KB |
.-------------------------------------.<-- 0x8be00000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|                 ADSP ,     26.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x8d800000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|                 MPSS ,    150.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x96e00000
|                                     |
|                                     |
|                VIDEO ,      5.00 MB |
|                                     |
|                                     |
.-------------------------------------.<-- 0x97300000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|                 SLPI ,     20.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x98700000
|               IPA_FW ,        64 KB |
.-------------------------------------.<-- 0x98710000
|              IPA_GSI ,        28 KB |
.-------------------------------------.<-- 0x98717000
|            GPU_MICRO ,         8 KB |
.-------------------------------------.<-- 0x98719000
|              GSI_QUP ,        72 KB |
.-------------------------------------.<-- 0x9872b000
|               sysram ,       852 KB |
.-------------------------------------.<-- 0x98800000
|                 SPSS ,      1.00 MB |
.-------------------------------------.<-- 0x98900000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|                 CDSP ,     20.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x99d00000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|               sysram ,     71.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x9e400000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|              QSEECOM ,     20.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x9f800000
|                                     |
|                                     |
|                                     |
|                                     |
|                 UEFI ,      8.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xa0000000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|                 ifs2 ,    135.36 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xa875c000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|               sysram ,    120.64 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xb0000000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|          gvm_sysram2 ,    128.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xb8000000
|                                     |
|                                     |
|                                     |
|                                     |
|             spss_mem ,      8.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xb8800000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|               sysram ,    114.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xbfa00000
|                                     |
|                                     |
|                                     |
|                 hole ,      6.00 MB |
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xc0000000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|           gvm_secmem ,    324.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xd4400000
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
|            mdsp_frpc ,     10.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xd4e00000
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
|              mdf_mem ,     10.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xd5800000
|                                     |
|                                     |
|                                     |
|                                     |
|            adsp_heap ,      9.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xd6100000
|               sysram ,      1.00 MB |
.-------------------------------------.<-- 0xd6200000
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
|              cvp_mem ,     10.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xd6c00000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|               sysram ,     64.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xdac00000
|        gptp_timedata ,         4 KB |
.-------------------------------------.<-- 0xdac01000
|         gvm_emac_ipa ,         8 KB |
.-------------------------------------.<-- 0xdac03000
|               sysram ,      1012 KB |
.-------------------------------------.<-- 0xdad00000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|                  dma ,    160.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0xe4d00000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|               sysram ,    435.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x100000000
|                                     |
|                                     |
|    gvm_ion_audio_mem ,      4.00 MB |
|                                     |
|                                     |
.-------------------------------------.<-- 0x100400000
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
|           smmu_s1_pt ,     16.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x101400000
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
|           SLOG2_PHYS ,     10.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x101e00000
|           RESET_INFO ,      1.00 MB |
.-------------------------------------.<-- 0x101f00000
|     RESET_INFO_QNX_1 ,      1.00 MB |
.-------------------------------------.<-- 0x102000000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|               mm_dma ,   1280.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x152000000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|            cp_b_heap ,    150.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x15b600000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|            cp_p_heap ,     50.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x15e800000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|           cp_np_heap ,    125.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x166500000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|             gvm_pmem ,   1300.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x1b7900000
|                                     |
|                                     |
|        TRACEKEV_PHYS ,      5.00 MB |
|                                     |
|                                     |
.-------------------------------------.<-- 0x1b7e00000
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
|        PROCSNAP_PHYS ,     10.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x1b8800000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|               sysram ,    120.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x1c0000000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|          gvm_sysram1 ,   6144.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x340000000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|               sysram ,    803.60 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x372399000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|                 hole ,    144.34 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x37b3f0000
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
|                 qcpe ,     73.00 MB |
|                                     |
|                                     |
|                                     |
|                                     |
~                                     ~
|                                     |
|                                     |
|                                     |
.-------------------------------------.<-- 0x37fcf0000
|             bmetrics ,        64 KB |
.-------------------------------------.<-- 0x37fd00000

  • 9
    点赞
  • 52
    收藏
    觉得还不错? 一键收藏
  • 打赏
    打赏
  • 1
    评论

“相关推荐”对你有帮助么?

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论 1
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

村里小码农

你的鼓励将是我创作的最大动力

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付:¥1
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
