【代码解读】Opencood框架之PointPillarV2VNet

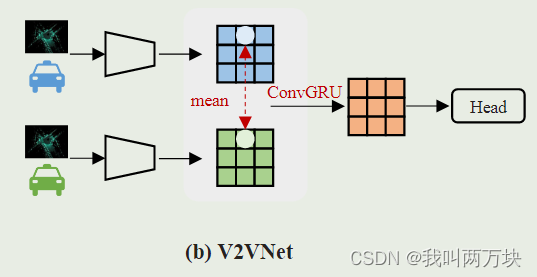

PointPillarV2VNet

# -*- coding: utf-8 -*-
# Author: Hao Xiang <haxiang@g.ucla.edu>, Runsheng Xu <rxx3386@ucla.edu>
# License: TDG-Attribution-NonCommercial-NoDistrib


import torch.nn as nn

from opencood.models.sub_modules.pillar_vfe import PillarVFE
from opencood.models.sub_modules.point_pillar_scatter import PointPillarScatter
from opencood.models.sub_modules.base_bev_backbone import BaseBEVBackbone
from opencood.models.sub_modules.downsample_conv import DownsampleConv
from opencood.models.sub_modules.naive_compress import NaiveCompressor
from opencood.models.fuse_modules.v2v_fuse import V2VNetFusion


class PointPillarV2VNet(nn.Module):
    def __init__(self, args):
        super(PointPillarV2VNet, self).__init__()

        self.max_cav = args['max_cav']
        # PIllar VFE
        self.pillar_vfe = PillarVFE(args['pillar_vfe'],
                                    num_point_features=4,
                                    voxel_size=args['voxel_size'],
                                    point_cloud_range=args['lidar_range'])
        self.scatter = PointPillarScatter(args['point_pillar_scatter'])
        self.backbone = BaseBEVBackbone(args['base_bev_backbone'], 64)

        # used to downsample the feature map for efficient computation
        self.shrink_flag = False
        if 'shrink_header' in args:
            self.shrink_flag = True
            self.shrink_conv = DownsampleConv(args['shrink_header'])
        self.compression = False

        if args['compression'] > 0:
            self.compression = True
            self.naive_compressor = NaiveCompressor(256, args['compression'])

        self.fusion_net = V2VNetFusion(args['v2vfusion'])

        self.cls_head = nn.Conv2d(128 * 2, args['anchor_number'],
                                  kernel_size=1)
        self.reg_head = nn.Conv2d(128 * 2, 7 * args['anchor_number'],
                                  kernel_size=1)
        if args['backbone_fix']:
            self.backbone_fix()

    def backbone_fix(self):
        """
        Fix the parameters of backbone during finetune on timedelay。
        """
        for p in self.pillar_vfe.parameters():
            p.requires_grad = False

        for p in self.scatter.parameters():
            p.requires_grad = False

        for p in self.backbone.parameters():
            p.requires_grad = False

        if self.compression:
            for p in self.naive_compressor.parameters():
                p.requires_grad = False
        if self.shrink_flag:
            for p in self.shrink_conv.parameters():
                p.requires_grad = False

        for p in self.cls_head.parameters():
            p.requires_grad = False
        for p in self.reg_head.parameters():
            p.requires_grad = False

    def forward(self, data_dict):
        voxel_features = data_dict['processed_lidar']['voxel_features']
        voxel_coords = data_dict['processed_lidar']['voxel_coords']
        voxel_num_points = data_dict['processed_lidar']['voxel_num_points']
        record_len = data_dict['record_len']

        pairwise_t_matrix = data_dict['pairwise_t_matrix']

        batch_dict = {

   'voxel_features': voxel_features,
                      'voxel_coords': voxel_coords,
                      'voxel_num_points': voxel_num_points,
                      'record_len': record_len}
        # n, 4 -> n, c
        batch_dict = self.pillar_vfe(batch_dict)
        # n, c -> N, C, H, W
        batch_dict = self.scatter(batch_dict)
        batch_dict = self.backbone(batch_dict)

        spatial_features_2d = batch_dict['spatial_features_2d']
        # downsample feature to reduce memory
        if self.shrink_flag:
            spatial_features_2d = self.shrink_conv(spatial_features_2d)
        # compressor
        if self.compression:
            spatial_features_2d = self.naive_compressor(spatial_features_2d)
        fused_feature = self.fusion_net(spatial_features_2d,
                                        record_len,
                                        pairwise_t_matrix)

        psm = self.cls_head(fused_feature)
        rm = self.reg_head(fused_feature)

        output_dict = {

   'psm': psm,
                       'rm': rm}

        return output_dict

以下是对提供的代码逐行解析：

# -*- coding: utf-8 -*-
# Author: Hao Xiang <haxiang@g.ucla.edu>
# License: TDG-Attribution-NonCommercial-NoDistrib

这些是文件的元信息注释，指定了文件的编码方式为 UTF-8，提供了作者信息和许可证信息。

"""
Implementation of V2VNet Fusion
"""

这是一个文档字符串，说明了该文件的目的，即实现了 V2VNet Fusion。

import torch
import torch.nn as nn

from opencood.models.sub_modules.torch_transformation_utils import \
    get_discretized_transformation_matrix, get_transformation_matrix, \
    warp_affine, get_rotated_roi
from opencood.models.sub_modules.convgru import ConvGRU
导入所需的模块和类，包括 PyTorch 库和自定义模块中的一些工具函数和 ConvGRU 类。

class V2VNetFusion(nn.Module):
    def __init__(self, args):
        super(V2VNetFusion, self).__init__()
定义了一个名为 V2VNetFusion 的类，它继承自 nn.Module，表示它是一个 PyTorch 模型。

        in_channels = args['in_channels']
        H, W = args['conv_gru']['H'], args[
