注意力机制——CAM、SAM、CBAM、SE

本文详细介绍了卷积神经网络中的四种注意力机制:SEBlock(通道注意力)、CAM(类激活映射)、SAM(空间注意力模块)和CBAM(通道与空间注意力模块)。SEBlock通过全局信息嵌入和适应性重校准来调整通道特征。CAM用于识别图像中的关键区域。SAM聚焦于特征图的空间维度。CBAM结合了通道和空间注意力,以提高模型性能。代码示例展示了如何实现这些模块。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

  CAM、SAM、CBAM详见:CBAM——即插即用的注意力模块(附代码)

目录

1.什么是注意力机制?

2.通道注意力机制——SE

(1)Squeeze

(2)Excitation

(3)SE Block

3.CAM

4.SAM

5.CBAM

6.代码

参考


1.什么是注意力机制?

从数学角度看,注意力机制即提供一种权重模式进行运算。

神经网络中,注意力机制即利用一些网络层计算得到特征图对应的权重值,对特征图进行”注意力机制“。

2.通道注意力机制——SE

论文地址论文

该论文于2018年发表于CVPR,是较早的将注意力机制引入卷积神经网络,并且该机制是一种即插即用的模块,可嵌入任意主流的卷积神经网络中,为卷积神经网络模型设计提供新思路——即插即用模块设计。

摘要核心

  • 背景介绍:卷积神经网络的核心是卷积操作,其通过局部感受野的方式融合空间和通道维度的特征;针对空间维度的特征提取方法已被广泛研究。
  • 本文内容:本文针对通道维度进行研究,探索通道之间的关系,并提出SE Block,它可自适应的调整通道维度上的特征。
  • 研究成果:SE Block可堆叠构成SENet,SENet在多个数据集上表现良好;SENet不仅可以大幅提升精度,同时仅需要增加少量的参数。
  • 比赛成绩:ILSVRC 2017分类冠军,top-5 error低至2.251%,相对于2016冠军下降了~25%
  • 代码开源

SE Block模型图如下所示:由两部分组成Squeeze和Excitation

(1)Squeeze

Squeeze(Global Information Embedding):全局信息低维嵌入

Squeeze操作:采用全局池化,即压缩H和W至1*1,利用1个像素来表示一个通道,实现低维嵌入。压缩后的特征本质是一个向量,无空间维度,只有通道维度。

Squeeze计算公式:

​

相对应模型的实现位置

(2)Excitation

Excitation(Adaptative Recalibration):适应变换

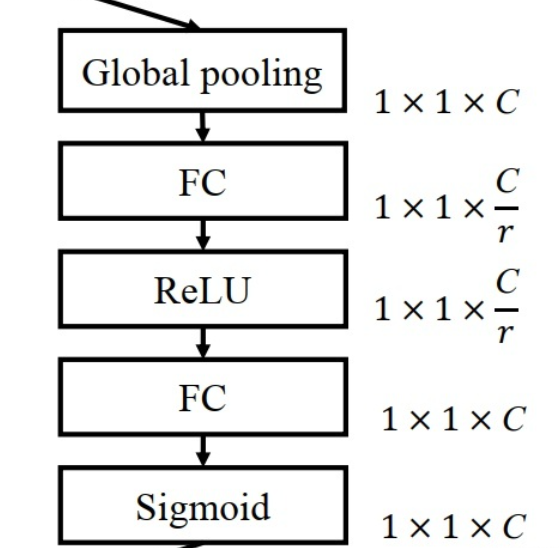

Excitation部分是用2个全连接来实现 ,第一个全连接把C个通道压缩成了C/r个通道来降低计算量(后面跟了RELU),第二个全连接再恢复回C个通道(后面跟了Sigmoid),r是指压缩的比例。作者尝试了r在各种取值下的性能 ,最后得出结论r=16时整体性能和计算量最平衡。

Excitation公式:

为什么要加全连接层呢?这是为了利用通道间的相关性来训练出真正的scale。一次mini-batch个样本的squeeze输出并不代表通道真实要调整的scale值,真实的scale要基于全部数据集来训练得出,而不是基于单个batch,所以后面要加个全连接层来进行训练。可以拿SE Block和下面3种错误的结构比较来进一步理解:

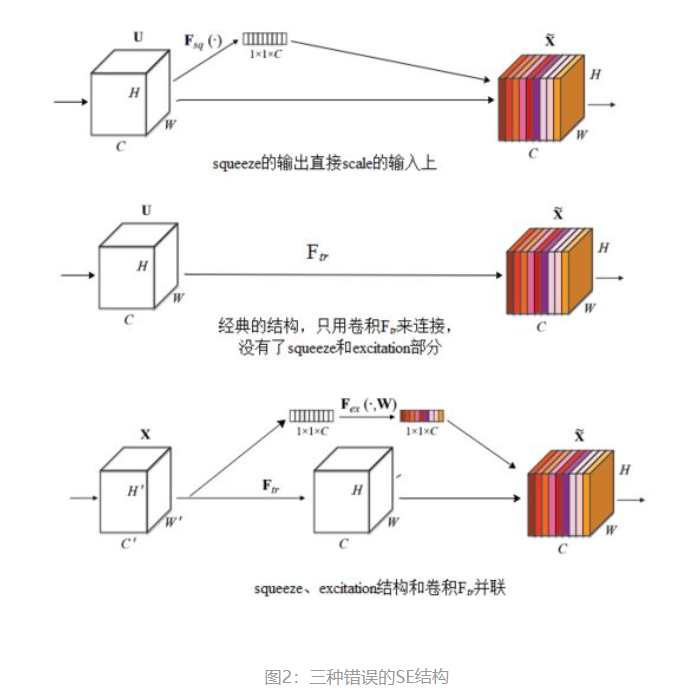

图2最上方的结构,squeeze的输出直接scale到输入上,没有了全连接层,某个通道的调整值完全基于单个通道GAP的结果,事实上只有GAP的分支是完全没有反向计算、没有训练的过程的,就无法基于全部数据集来训练得出通道增强、减弱的规律。
图2中间是经典的卷积结构,有人会说卷积训练出的权值就含有了scale的成分在里面,也利用了通道间的相关性,为啥还要多个SE Block?那是因为这种卷积有空间的成分在里面,为了排除空间上的干扰就得先用GAP压缩成一个点后再作卷积,压缩后因为没有了Height、Width的成分,这种卷积就是全连接了。
图2最下面的结构,SE模块和传统的卷积间采用并联而不是串联的方式,这时SE利用的是Ftr输入X的相关性来计算scale,X和U的相关性是不同的,把根据X的相关性计算出的scale应用到U上明显不合适。

相对应模型的实现位置

(3)SE Block

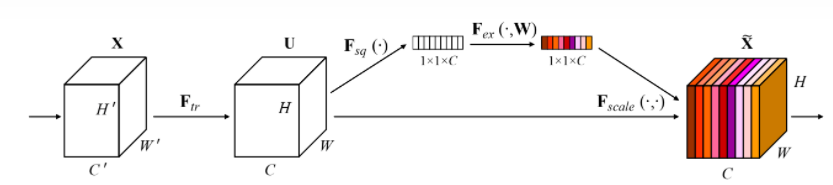

分开看完之后,再整合起来看就是如下图这样的操作过程。

  • Squeeze:压缩特征图至向量形式
  • Excitation:两个全连接对特征向量进行映射变换
  • Scale:将得到的权重向量于通道的乘法

SE Block的嵌入方式:只“重构”特征图,不改变原来结构。

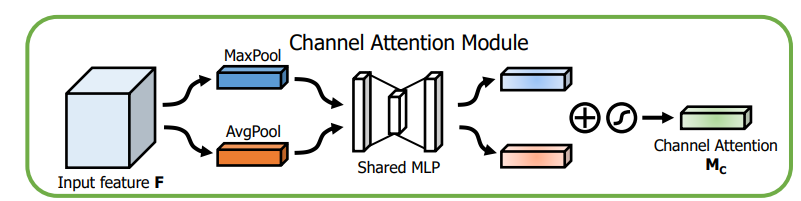

3.CAM

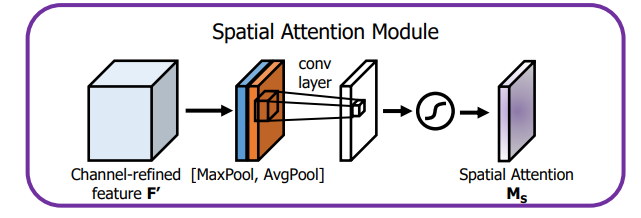

4.SAM

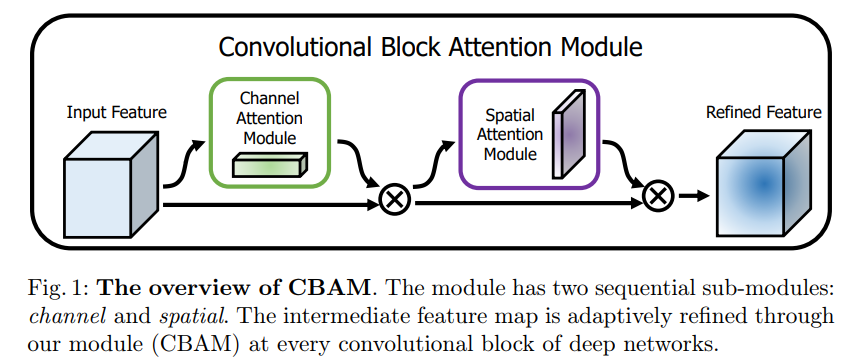

5.CBAM

6.代码

空间注意力模块

import torch
from torch import nn

class SpatialAttention(nn.Module):
    def __init__(self, kernel_size=7):
        super(SpatialAttention, self).__init__()

        assert kernel_size in (3, 7), 'kernel size must be 3 or 7'
        padding = 3 if kernel_size == 7 else 1

        self.conv1 = nn.Conv2d(2, 1, kernel_size, padding=padding, bias=False)  # 7,3     3,1
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        avg_out = torch.mean(x, dim=1, keepdim=True)
        max_out, _ = torch.max(x, dim=1, keepdim=True)
        x = torch.cat([avg_out, max_out], dim=1)
        x = self.conv1(x)
        return self.sigmoid(x)

if __name__ == '__main__':
    SA = SpatialAttention(7)
    data_in = torch.randn(8,32,300,300)
    data_out = SA(data_in)
    print(data_in.shape)  # torch.Size([8, 32, 300, 300])
    print(data_out.shape)  # torch.Size([8, 1, 300, 300])

通道注意力模块

import torch
from torch import nn

class ChannelAttention(nn.Module):
	def __init__(self, in_planes, ratio=16):
		super(ChannelAttention, self).__init__()
		self.avg_pool = nn.AdaptiveAvgPool2d(1)
		self.max_pool = nn.AdaptiveMaxPool2d(1)

		self.fc1 = nn.Conv2d(in_planes, in_planes // ratio, 1, bias=False)
		self.relu1 = nn.ReLU()
		self.fc2 = nn.Conv2d(in_planes // ratio, in_planes, 1, bias=False)
		self.sigmoid = nn.Sigmoid()

	def forward(self, x):
		avg_out = self.fc2(self.relu1(self.fc1(self.avg_pool(x))))
		max_out = self.fc2(self.relu1(self.fc1(self.max_pool(x))))
		out = avg_out + max_out
		return self.sigmoid(out)


if __name__ == '__main__':
    CA = ChannelAttention(32)
    data_in = torch.randn(8,32,300,300)
    data_out = CA(data_in)
    print(data_in.shape)  # torch.Size([8, 32, 300, 300])
    print(data_out.shape)  # torch.Size([8, 32, 1, 1])

CBAM注意力机制

import torch
from torch import nn

class ChannelAttention(nn.Module):
    def __init__(self, in_planes, ratio=16):
        super(ChannelAttention, self).__init__()
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.max_pool = nn.AdaptiveMaxPool2d(1)

        self.fc1 = nn.Conv2d(in_planes, in_planes // ratio, 1, bias=False)
        self.relu1 = nn.ReLU()
        self.fc2 = nn.Conv2d(in_planes // ratio, in_planes, 1, bias=False)
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        avg_out = self.fc2(self.relu1(self.fc1(self.avg_pool(x))))
        max_out = self.fc2(self.relu1(self.fc1(self.max_pool(x))))
        out = avg_out + max_out
        return self.sigmoid(out)


class SpatialAttention(nn.Module):
    def __init__(self, kernel_size=7):
        super(SpatialAttention, self).__init__()

        assert kernel_size in (3, 7), 'kernel size must be 3 or 7'
        padding = 3 if kernel_size == 7 else 1

        self.conv1 = nn.Conv2d(2, 1, kernel_size, padding=padding, bias=False)  # 7,3     3,1
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        avg_out = torch.mean(x, dim=1, keepdim=True)
        max_out, _ = torch.max(x, dim=1, keepdim=True)
        x = torch.cat([avg_out, max_out], dim=1)
        x = self.conv1(x)
        return self.sigmoid(x)

class CBAM(nn.Module):
    def __init__(self, in_planes, ratio=16, kernel_size=7):
        super(CBAM, self).__init__()
        self.ca = ChannelAttention(in_planes, ratio)
        self.sa = SpatialAttention(kernel_size)

    def forward(self, x):
        out = x * self.ca(x)
        result = out * self.sa(out)
        return result


if __name__ == '__main__':
    print('testing ChannelAttention'.center(100,'-'))
    torch.manual_seed(seed=20200910)
    CA = ChannelAttention(32)
    data_in = torch.randn(8,32,300,300)
    data_out = CA(data_in)
    print(data_in.shape)  # torch.Size([8, 32, 300, 300])
    print(data_out.shape)  # torch.Size([8, 32, 1, 1])




if __name__ == '__main__':
    print('testing SpatialAttention'.center(100,'-'))
    torch.manual_seed(seed=20200910)
    SA = SpatialAttention(7)
    data_in = torch.randn(8,32,300,300)
    data_out = SA(data_in)
    print(data_in.shape)  # torch.Size([8, 32, 300, 300])
    print(data_out.shape)  # torch.Size([8, 1, 300, 300])



if __name__ == '__main__':
    print('testing CBAM'.center(100,'-'))
    torch.manual_seed(seed=20200910)
    cbam = CBAM(32, 16, 7)
    data_in = torch.randn(8,32,300,300)
    data_out = cbam(data_in)
    print(data_in.shape)  # torch.Size([8, 32, 300, 300])
    print(data_out.shape)  # torch.Size([8, 1, 300, 300])

SE注意力机制

from torch import nn
import torch

class SELayer(nn.Module):
    def __init__(self, channel, reduction=16):
        super(SELayer, self).__init__()
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.fc = nn.Sequential(
            nn.Linear(channel, channel // reduction, bias=False),
            nn.ReLU(inplace=True),
            nn.Linear(channel // reduction, channel, bias=False),
            nn.Sigmoid()
        )

    def forward(self, x):
        b, c, _, _ = x.size()
        y = self.avg_pool(x).view(b, c)
        y = self.fc(y).view(b, c, 1, 1)
        return x * y.expand_as(x)
        # return x * y


if __name__ == '__main__':
    torch.manual_seed(seed=20200910)
    data_in = torch.randn(8,32,300,300)
    SE = SELayer(32)
    data_out = SE(data_in)
    print(data_in.shape)  # torch.Size([8, 32, 300, 300])
    print(data_out.shape)  # torch.Size([8, 32, 300, 300])








参考

注意力机制代码

SE模型详解

SENet
