代码

import torch
import numpy as np
import networkx as nx
import matplotlib.pyplot as plt

def graph_showing(data):
    '''
    args:
         data: torch_geometric.data.Data
    '''
    G = nx.Graph()
    edge_index = data['edge_index'].t()
#     print(edge_index)
    edge_index = np.array(edge_index.cpu())
#     print(edge_index)

    G.add_edges_from(edge_index)
    nx.draw(G)
    plt.show()

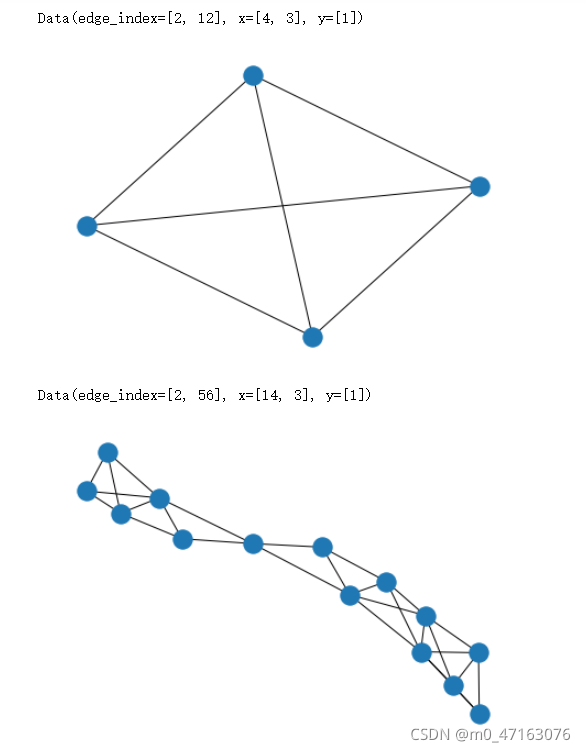

展示

展示用到的是TUDataset数据集

from torch_geometric.datasets import TUDataset
dataset = TUDataset(root='./data/ENZYMES', name='ENZYMES')

for data in dataset:
    print(data)
#     print(data['edge_index'])
#     print(data.is_directed())
#     print(data.num_edges)
    graph_showing(data)
