eNSP——MPLS VPN配置（实验一）

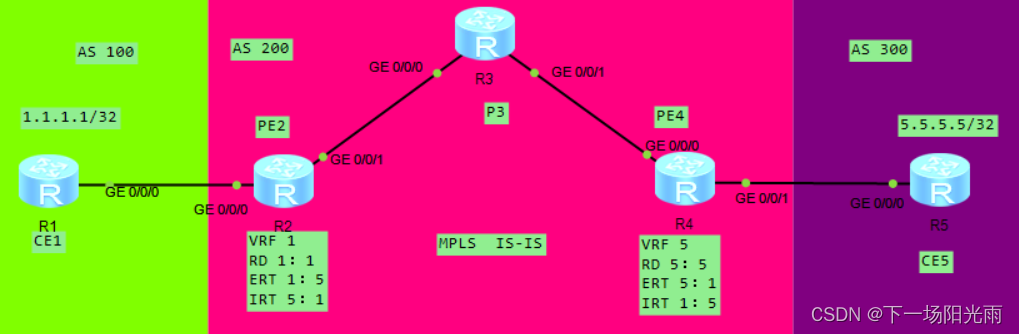

实验目的：通过MPLS、IS-IS、BGP、MPLS VPN 技术，使R1上的LoopBack0的1.1.1.1能够ping通R5上的LoopBack0的5.5.5.5。

开始配置：

IP配置：

<R1>dis ip in br
Interface                         IP Address/Mask      Physical   Protocol
GigabitEthernet0/0/0              12.1.1.1/24          up         up
LoopBack0                         1.1.1.1/32           up         up(s)
NULL0                             unassigned           up         up(s)


<R2>dis ip in br
Interface                         IP Address/Mask      Physical   Protocol
GigabitEthernet0/0/0              12.1.1.2/24          up         up
GigabitEthernet0/0/1              23.1.1.2/24          up         up
LoopBack0                         2.2.2.2/32           up         up(s)
NULL0                             unassigned           up         up(s)

<R3>dis ip in br
Interface                         IP Address/Mask      Physical   Protocol
GigabitEthernet0/0/0              23.1.1.3/24          up         up
GigabitEthernet0/0/1              34.1.1.3/24          up         up
LoopBack0                         3.3.3.3/32           up         up(s)
NULL0                             unassigned           up         up(s)

<R4>dis ip in br
Interface                         IP Address/Mask      Physical   Protocol
GigabitEthernet0/0/0              34.1.1.4/24          up         up
GigabitEthernet0/0/1              45.1.1.4/24          up         up
LoopBack0                         4.4.4.4/32           up         up(s)
NULL0                             unassigned           up         up(s)

<R5>dis ip in br
Interface                         IP Address/Mask      Physical   Protocol
GigabitEthernet0/0/0              45.1.1.5/24          up         up
LoopBack0                         5.5.5.5/32           up         up(s)
NULL0                             unassigned           up         up(s)

IS-IS配置：

[R2]isis 1
[R2-isis-1]network-entity 49.0002.0000.0000.0002
[R2-isis-1]is-level level-2
[R2-isis-1]int g 0/0/1
[R2-GigabitEthernet0/0/1]isis  enable  1
[R2-GigabitEthernet0/0/1]int loop 0
[R2-LoopBack0]isis  enable  1

[R3]isis 1
[R3-isis-1]network-entity 49.0003.0000.0000.0003.00
[R3-isis-1]is-level level-2
[R3-isis-1]int g0/0/0
[R3-GigabitEthernet0/0/0]isis  enable  1
[R3-GigabitEthernet0/0/0]int g 0/0/1
[R3-GigabitEthernet0/0/1]isis  enable 1
[R3-GigabitEthernet0/0/1]int loo 0
[R3-LoopBack0]isis enable 1

[R4]isis  1
[R4-isis-1]network-entity 49.0004.0000.0000.0004.00
[R4-isis-1]is-level  level-2
[R4-isis-1]int g 0/0/0
[R4-GigabitEthernet0/0/0]isis  enable 1
[R4-GigabitEthernet0/0/1]int loo 0
[R4-LoopBack0]isis enable 1

配置完成测试一下
[R2-LoopBack0]ping -a 2.2.2.2 4.4.4.4
  PING 4.4.4.4: 56  data bytes, press CTRL_C to break
    Reply from 4.4.4.4: bytes=56 Sequence=1 ttl=254 time=90 ms
    Reply from 4.4.4.4: bytes=56 Sequence=2 ttl=254 time=60 ms
    Reply from 4.4.4.4: bytes=56 Sequence=3 ttl=254 time=60 ms

  --- 4.4.4.4 ping statistics ---
    3 packet(s) transmitted
    3 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 60/70/90 ms

配置MPLS，涉及到MPLS的路由器为R2、R3、R4：

[R2]mpls lsr-id 2.2.2.2
[R2]mpls
[R2-mpls]mpls ldp
[R2-GigabitEthernet0/0/0]int g 0/0/1
[R2-GigabitEthernet0/0/1]mpls
[R2-GigabitEthernet0/0/1]mpls ldp


[R3]mpls lsr-id 3.3.3.3
[R3]mpls
[R3-mpls]mpls ldp
[R3-mpls-ldp]int g 0/0/0
[R3-GigabitEthernet0/0/0]mpls
[R3-GigabitEthernet0/0/0]mpls ldp
[R3-GigabitEthernet0/0/0]int g 0/0/1
[R3-GigabitEthernet0/0/1]mpls
[R3-GigabitEthernet0/0/1]mpls ldp


[R4]mpls lsr-id 4.4.4.4
[R4]mpls
[R4-mpls]mpls ldp
[R4-mpls-ldp]int g 0/0/0
[R4-GigabitEthernet0/0/0]mpls
[R4-GigabitEthernet0/0/0]mpls ldp



//在R3上查看mpls邻居是否建立成功
[R3]display mpls ldp peer

 LDP Peer Information in Public network
 A '*' before a peer means the peer is being deleted.
 ------------------------------------------------------------------------------
 PeerID                 TransportAddress   DiscoverySource
 ------------------------------------------------------------------------------
 2.2.2.2:0              2.2.2.2            GigabitEthernet0/0/0
 4.4.4.4:0              4.4.4.4            GigabitEthernet0/0/1
 ------------------------------------------------------------------------------
 TOTAL: 2 Peer(s) Found.

//接着查看标签是否连续且一致（//不太了解这个标签原理，所以有些词不达意，一般邻居建立成功都是对的）

[R4]dis mpls lsp
-------------------------------------------------------------------------------
                 LSP Information: LDP LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
2.2.2.2/32         NULL/1024     -/GE0/0/0
2.2.2.2/32         1024/1024     -/GE0/0/0
3.3.3.3/32         NULL/3        -/GE0/0/0
3.3.3.3/32         1025/3        -/GE0/0/0
4.4.4.4/32         3/NULL        -/-         //看这个 In/Out Label列的3/NULL

[R3]displa mpls ls
-------------------------------------------------------------------------------
                 LSP Information: LDP LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
2.2.2.2/32         NULL/3        -/GE0/0/0
2.2.2.2/32         1024/3        -/GE0/0/0
3.3.3.3/32         3/NULL        -/-
4.4.4.4/32         NULL/3        -/GE0/0/1
4.4.4.4/32         1025/3        -/GE0/0/1   //接着看这个

[R2]display mpls lsp
-------------------------------------------------------------------------------
                 LSP Information: LDP LSP
-------------------------------------------------------------------------------
FEC                In/Out Label  In/Out IF                      Vrf Name
2.2.2.2/32         3/NULL        -/-
3.3.3.3/32         NULL/3        -/GE0/0/1
3.3.3.3/32         1024/3        -/GE0/0/1
4.4.4.4/32         NULL/1025     -/GE0/0/1    //最后应该看这个
4.4.4.4/32         1025/1025     -/GE0/0/1

这个样子MPLS的第一步应该算是配置完成，接着我们配置bgp 200。
BGP 200中需要配置的路由器为R2和R4。

[R2]bgp  200
[R2-bgp]undo default ipv4-unicast   //关闭ipv4的peer自动建立
[R2-bgp]router-id 2.2.2.2
[R2-bgp]peer 4.4.4.4 as-number 200
[R2-bgp]peer 4.4.4.4 connect-interface LoopBack 0
[R2-bgp]ipv4-family vpnv4      //我们需要的是在vpnv4中建立
[R2-bgp-af-vpnv4]peer 4.4.4.4 enable

R4同样配置
[R4]bgp  200
[R4-bgp]undo default ipv4-unicast
[R4-bgp]router-id 4.4.4.4
[R4-bgp]peer 2.2.2.2 as-number 200
[R4-bgp]peer 2.2.2.2 connect-interface LoopBack  0
[R4-bgp]ipv4-family vpnv4
[R4-bgp-af-vpnv4]peer 2.2.2.2 enable

查询bgp邻居

[R4-bgp]display bgp vpnv4 all peer

 BGP local router ID : 4.4.4.4
 Local AS number : 200
 Total number of peers : 1		  Peers in established state : 1

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State Pre
fRcv

  2.2.2.2         4         200        2        3     0 00:00:24 Established

配置R1和R5的bgp

[R1]bgp  100
[R1-bgp]router-id 1.1.1.1
[R1-bgp]peer 12.1.1.2 as-number 200
[R1-bgp]network 1.1.1.1 32

[R5]bgp  300
[R5-bgp]router-id 5.5.5.5
[R5-bgp]peer 45.1.1.4 as-number 200
[R1-bgp]network 5.5.5.5 32

配置R2上的VPN实例，创建完实例后，进入bgp中绑定

[R2]ip vpn-instance 1
[R2-vpn-instance-1]route-distinguisher 1:1
[R2-vpn-instance-1]vpn-target 1:5 export-extcommunity
[R2-vpn-instance-1]vpn-target 5:1 import-extcommunity
[R2-vpn-instance-1-af-ipv4]int g 0/0/0
[R2-GigabitEthernet0/0/0]ip binding vpn-instance 1
[R2-GigabitEthernet0/0/0]ip address 12.1.1.2 24      //绑定实例之后需要重新敲ip地址

[R2]bgp 200
[R2-bgp]ipv4-family vpn-instance 1
[R2-bgp-1]peer 12.1.1.1 as-number 100

 配置R4上的VPN实例，创建完实例后，进入bgp中绑定

[R4]ip vpn-instance  5
[R4-vpn-instance-5]route-distinguisher 5:5
[R4-vpn-instance-5]vpn-target 1:5 import-extcommunity
[R4-vpn-instance-5]vpn-target 5:1 export-extcommunity
[R4-bgp-5]int g 0/0/1
[R4-GigabitEthernet0/0/1]ip binding vpn-instance 5
[R4-GigabitEthernet0/0/1]ip address 45.1.1.4 24

[R4]bgp 200
[R4-bgp]ipv4-family vpn-instance 5
[R4-bgp-5]peer 45.1.1.5 as-number 300

本地路由转发介绍一下：

[R2]dis bgp vpnv4 all routing-table

 BGP Local router ID is 2.2.2.2
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete

 Total number of routes from all PE: 1
 Route Distinguisher: 1:1

      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   1.1.1.1/32         12.1.1.1        0                     0      100i

 VPN-Instance 1, Router ID 2.2.2.2:

 Total Number of Routes: 1
      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   1.1.1.1/32         12.1.1.1        0                     0      100i

在R2上，先收到了来自vpn实例1的路由1.1.1.1，通过本地路由转发到了ipv4路由上，所以有了2条路由。接下来看一下R4的路由。

[R4]dis bgp vpnv4 all routing-table

 BGP Local router ID is 4.4.4.4
 Status codes: * - valid, > - best, d - damped,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete

 Total number of routes from all PE: 1
 Route Distinguisher: 1:1

      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  1.1.1.1/32         2.2.2.2         0          100        0      100i

 VPN-Instance 5, Router ID 4.4.4.4:

 Total Number of Routes: 1
      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  1.1.1.1/32         2.2.2.2         0          100        0      100i

在R4上，先收到了来自ipv4的路由1.1.1.1，通过本地路由转发到了vpn实例5上。

在R1上测试：实验成功。

[R1]ping -a  1.1.1.1 5.5.5.5
  PING 5.5.5.5: 56  data bytes, press CTRL_C to break
    Reply from 5.5.5.5: bytes=56 Sequence=1 ttl=253 time=110 ms
    Reply from 5.5.5.5: bytes=56 Sequence=2 ttl=253 time=90 ms
    Reply from 5.5.5.5: bytes=56 Sequence=3 ttl=253 time=120 ms
    Reply from 5.5.5.5: bytes=56 Sequence=4 ttl=253 time=110 ms
    Reply from 5.5.5.5: bytes=56 Sequence=5 ttl=253 time=90 ms

  --- 5.5.5.5 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 90/104/120 ms

 小计：VPN路由自动递归到隧道，所以route recursive-lookup tunnel不需要敲。

最后：此文章仅作为本人备考HCIE过程中的实验记录，文章如果有错，欢迎各位大佬指正。若是有同样备考IE的小伙伴可以私聊我，一起学习~
