gMLP（NeurIPS 2021）原理与代码解析

paper：Pay Attention to MLPs

third-party implementation：https://github.com/huggingface/pytorch-image-models/blob/main/timm/models/mlp_mixer.py

方法介绍

gMLP和MLP-Mixer以及ResMLP都是基于MLP的网络结构，非常简单，关于MLP-Mixer和ResMLP的介绍见MLP-Mixer（NeurIPS 2021, Google）论文与源码解读-CSDN博客、ResMLP（NeurIPS 2021，Meta）论文与代码解析-CSDN博客。

在MLP-Mixer中每个block包含两个MLP，每个MLP包含两个线性层（即全连接层），一个MLP用于token间的信息交互，另一个MLP用于通道间的信息交互，每个MLP都用了residual connection，标准化采用LayerNorm。而在ResMLP中，第一个包含两个线性层的token MLP换成了单个线性层，此外在线性层前后包含两个标准化层pre-normalization和post-normalization，pre-normalization采用了简单的仿射变换，post-normalization采用了CaiT中的LayerScale。

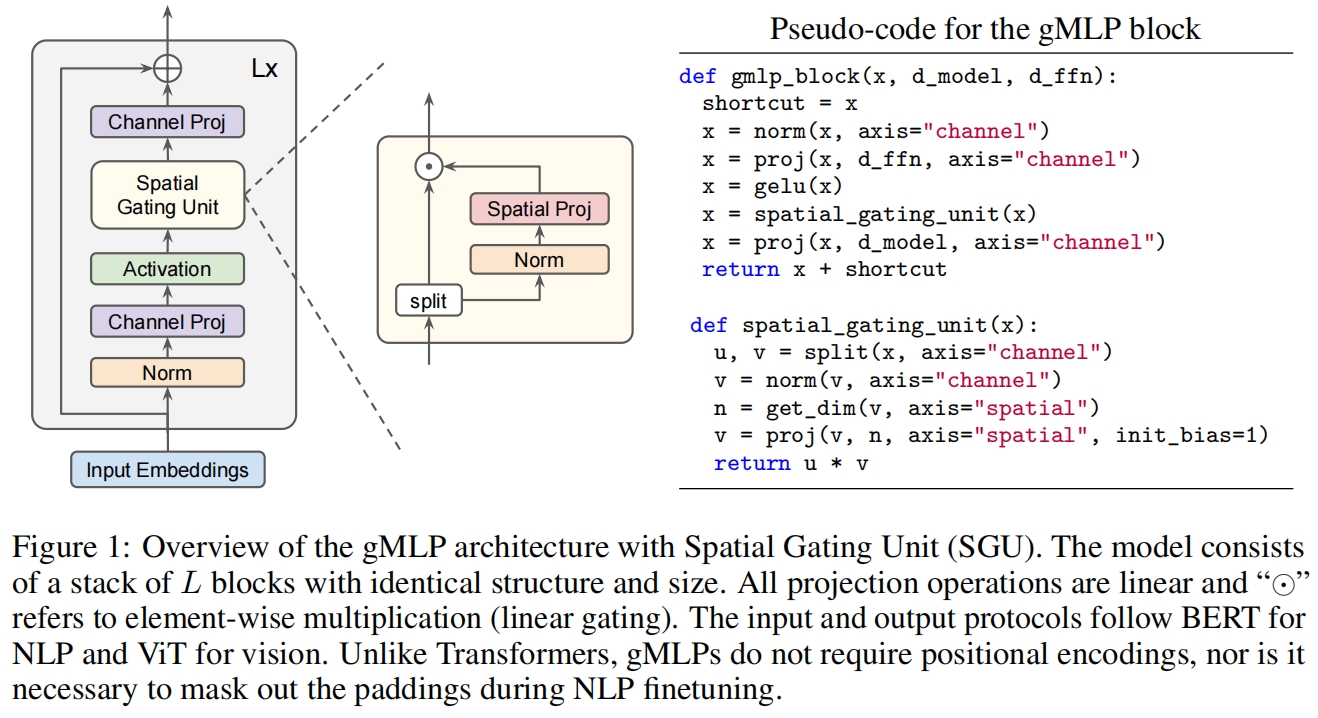

gMLP的结构和伪代码如图1所示。可以看到gMLP将token_mlp（即这里的spatial gating unit）和channel_mlp放到了一起，只包含一个skip-connection，而不是像MLP-Mixer和ResMLP中每个mlp都采用一个skip-connection。此外block内的结构和MLP-Mixer以及ResMLP中的先token_mlp后channel_mlp不同，这里采用了channel+token+channel的形式。最后作者专门为token_mlp设计了一个门控机制，将输入split开一分为二，一半经过spatial proj得到的输出再和另一半相乘得到最终输出。

以上就是gMLP和MLP-Mixer以及ResMLP不同之处，总共包括三点，整体结构也非常简单。下面就直接用代码来解释具体的实现细节。

代码解析

一个完整的block的代码如下，forward函数中可以看到只包含一个skip-connection，self.mlp_channels包含了图1中第一个Channel Proj到最后的Channel Proj。

class SpatialGatingBlock(nn.Module):
    """ Residual Block w/ Spatial Gating

    Based on: `Pay Attention to MLPs` - https://arxiv.org/abs/2105.08050
    """
    def __init__(
            self,
            dim,
            seq_len,
            mlp_ratio=4,
            mlp_layer=GatedMlp,
            norm_layer=partial(nn.LayerNorm, eps=1e-6),
            act_layer=nn.GELU,
            drop=0.,
            drop_path=0.,
    ):
        super().__init__()
        channel_dim = int(dim * mlp_ratio)  # 512x6=3072
        self.norm = norm_layer(dim)
        sgu = partial(SpatialGatingUnit, seq_len=seq_len)  # 196
        self.mlp_channels = mlp_layer(dim, channel_dim, act_layer=act_layer, gate_layer=sgu, drop=drop)
        self.drop_path = DropPath(drop_path) if drop_path > 0. else nn.Identity()

    def forward(self, x):  # (1,196,512)
        x = x + self.drop_path(self.mlp_channels(self.norm(x)))
        return x

上面的mlp_layer的代码如下，self.fc1和self.fc2对应两个Channel Proj。

class GatedMlp(nn.Module):
    """ MLP as used in gMLP
    """
    def __init__(
            self,
            in_features,
            hidden_features=None,
            out_features=None,
            act_layer=nn.GELU,
            norm_layer=None,
            gate_layer=None,
            bias=True,
            drop=0.,
    ):
        super().__init__()
        out_features = out_features or in_features
        hidden_features = hidden_features or in_features
        bias = to_2tuple(bias)
        drop_probs = to_2tuple(drop)

        self.fc1 = nn.Linear(in_features, hidden_features, bias=bias[0])
        self.act = act_layer()
        self.drop1 = nn.Dropout(drop_probs[0])
        if gate_layer is not None:
            assert hidden_features % 2 == 0
            self.gate = gate_layer(hidden_features)
            hidden_features = hidden_features // 2  # FIXME base reduction on gate property?
        else:
            self.gate = nn.Identity()
        self.norm = norm_layer(hidden_features) if norm_layer is not None else nn.Identity()
        self.fc2 = nn.Linear(hidden_features, out_features, bias=bias[1])
        self.drop2 = nn.Dropout(drop_probs[1])

    def forward(self, x):  # (1,196,512)
        # Linear(in_features=512, out_features=3072, bias=True)
        x = self.fc1(x)  # (1,196,3072)
        x = self.act(x)
        x = self.drop1(x)
        x = self.gate(x)  # (1,196,1536)
        x = self.norm(x)
        # Linear(in_features=1536, out_features=512, bias=True)
        x = self.fc2(x)  # (1,196,512)
        x = self.drop2(x)
        return x

gate_layer的代码如下，其中x.chunk(2, dim=-1)表示将x沿最后一个维度均分为2份。

class SpatialGatingUnit(nn.Module):
    """ Spatial Gating Unit

    Based on: `Pay Attention to MLPs` - https://arxiv.org/abs/2105.08050
    """
    def __init__(self, dim, seq_len, norm_layer=nn.LayerNorm):
        super().__init__()
        gate_dim = dim // 2
        self.norm = norm_layer(gate_dim)
        self.proj = nn.Linear(seq_len, seq_len)  # 196,196

    def init_weights(self):
        # special init for the projection gate, called as override by base model init
        nn.init.normal_(self.proj.weight, std=1e-6)
        nn.init.ones_(self.proj.bias)

    def forward(self, x):  # (1,196,3072)
        u, v = x.chunk(2, dim=-1)  # (1,196,1536),(1,196,1536)
        v = self.norm(v)
        v = self.proj(v.transpose(-1, -2))  # (1,1536,196)
        return u * v.transpose(-1, -2)  # (1,196,1536) * (1,196,1536)

实验结果

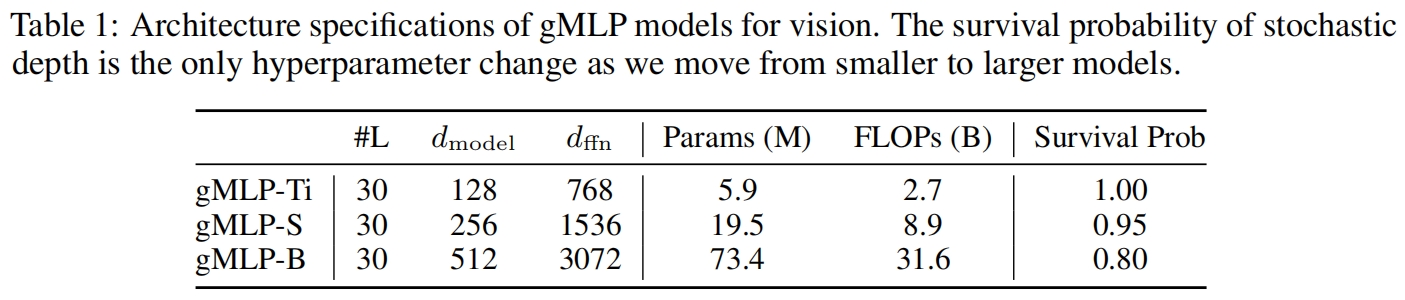

作者设计了三个不同大小的gMLP，具体参数配置如下

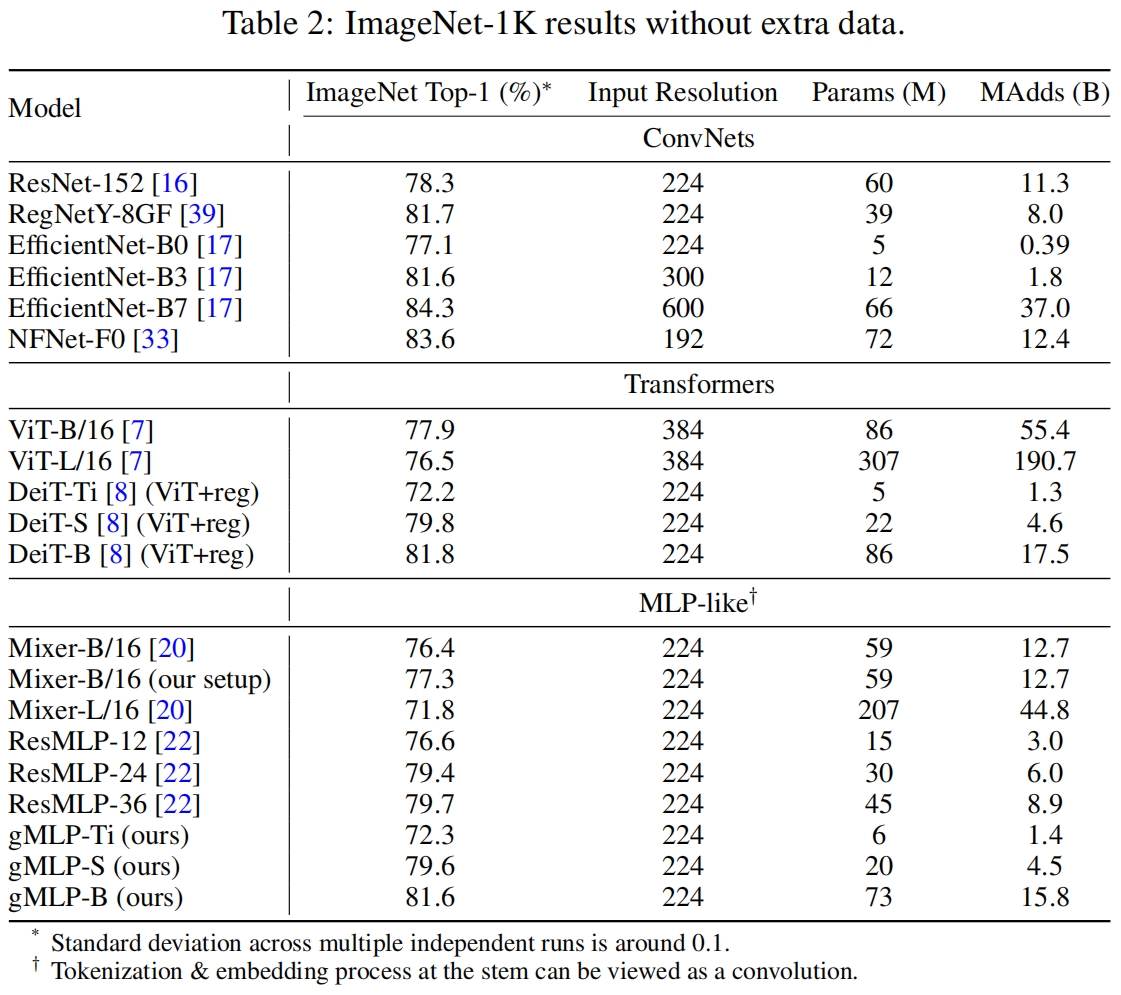

和其它模型在ImageNet上的分类性能对比如下，可以看到和类似大小的MLP-Mixer与ResMLP相比，gMLP用更少的参数得到了更好的性能。
