前言
- 前些天看李沐老师的课，发现一个AutoMl包
AutoGluon，李沐老师说使用该包在Kaggle泰坦尼克号生还预测中取得前10%的成绩，在房价预测中拿到了第1名的成绩（用到了表格+文本的多模态模型） - 这里我用员工满意度预测(Table)、Children vs Adults Classification(Image)、流浪猫收留预测(Multimodal)，数据下载可点击数据标题
- 接下来我将分别示例表格类型数据预测、图片类型数据分类、多模态预测（表格、文本、图片）
- 安装
AutoGluon(Jupyter Notebook中)：! pip install autogluon - 关于
AutoGluon的更多API请参照官方网站，Github地址
表格类型预测

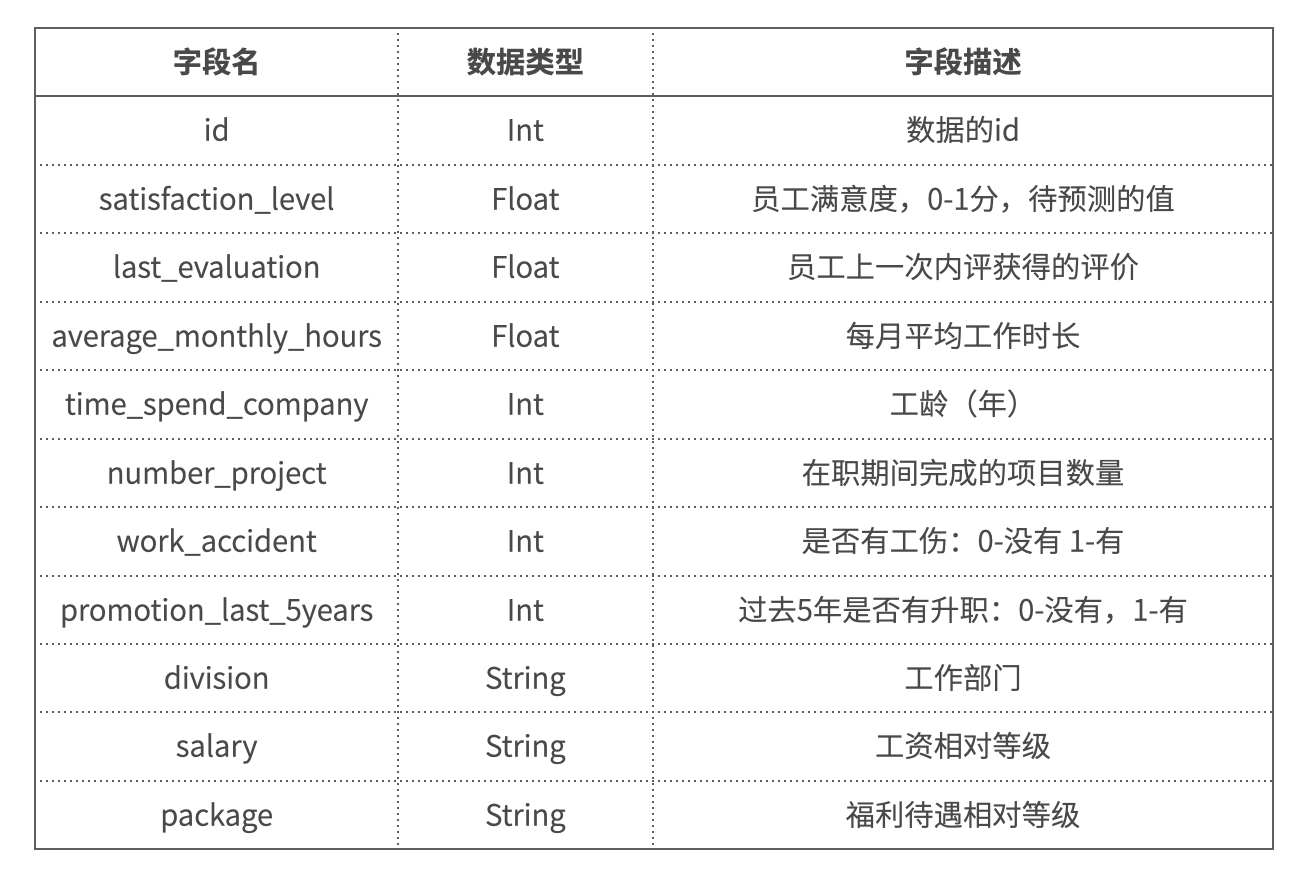

- 下图为员工满意度预测数据中字段信息内容：
导入包
- 导入必要包
#加载包
import numpy as np
import pandas as pd
from plotnine import*
import seaborn as sns
from scipy import stats
import matplotlib as mpl
import matplotlib.pyplot as plt
#中文显示问题
plt.rcParams['font.sans-serif']=['SimHei']
plt.rcParams['axes.unicode_minus'] = False
# notebook嵌入图片
%matplotlib inline
# 提高分辨率
%config InlineBackend.figure_format='retina'
# 切分数据
from sklearn.model_selection import train_test_split
#评价指标
from sklearn.metrics import mean_squared_error
# 忽略警告
import warnings
warnings.filterwarnings('ignore')
数据导入与探索
- 导入训练与测试数据
df_train = pd.read_csv("../input/employee-satisfaction/训练集.csv", encoding="gbk",index_col = 'id')
df_test = pd.read_csv("../input/employee-satisfaction/测试集.csv", encoding="gbk",index_col = 'id')
df_train.head()
- 将数据中字符串列数值化
# 将字符串列改为数值列
df_train.replace({'package':{'a':0,'b':1,'c':2,'d':3,'e':4},
'salary':{'low':0,'medium':1,'high':2}},
inplace=True)
df_test.replace({'package':{'a':0,'b':1,'c':2,'d':3,'e':4},
'salary':{'low':0,'medium':1,'high':2}},
inplace=True)
df_train.head()
- 对部门列进行独热编码
df_train = pd.get_dummies(df_train,columns=['division'])
df_test = pd.get_dummies(df_test,columns=['division'])
df_train.head()
- 异常值检查
# 绘制箱型图进行异常值检查
i = 0
frows = 2
fcols = 2
plt.figure(dpi = 600,figsize=(12, 8))
for lab in df_train.columns[[0,2,8]]:
i += 1
plt.subplot(frows,fcols,i)
plt.boxplot(x=df_train[lab].values,labels=[lab])
# plt.savefig('1.png')
- 数据归一化
# 数据归一化
from sklearn import preprocessing
# 归一化的特征列不包含预测列
features_columns = [col for col in df_train.columns if col not in ['satisfaction_level']]
min_max_scaler = preprocessing.MinMaxScaler()
min_max_scaler = min_max_scaler.fit(df_train[features_columns])
train_data_scaler = min_max_scaler.transform(df_train[features_columns])
test_data_scaler = min_max_scaler.transform(df_test[features_columns])
train_data_scaler = pd.DataFrame(train_data_scaler)
train_data_scaler.columns = features_columns
test_data_scaler = pd.DataFrame(test_data_scaler)
test_data_scaler.columns = features_columns
train_data_scaler['satisfaction_level'] = df_train['satisfaction_level'].values
df_train = train_data_scaler
df_test = test_data_scaler

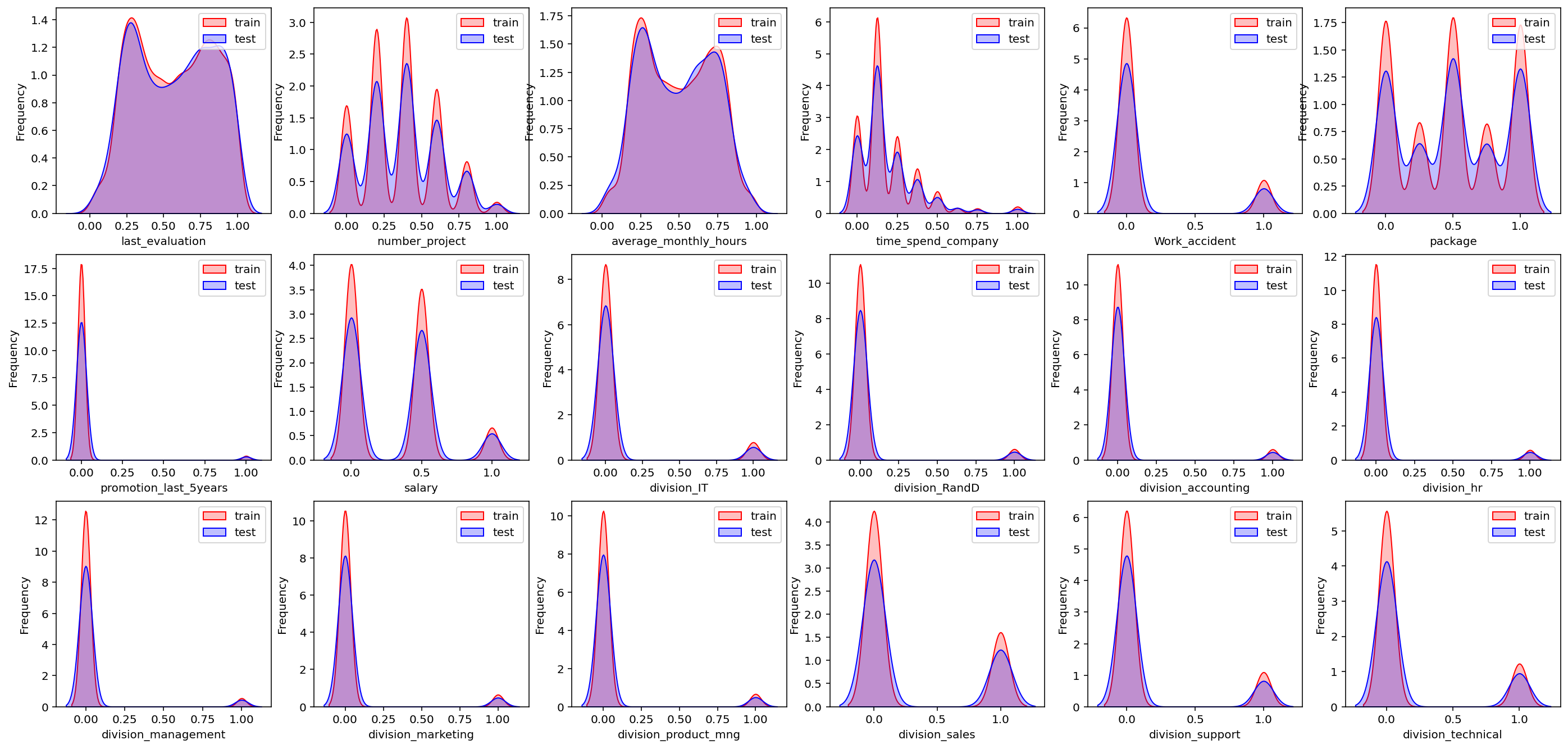

- 观察训练集与测试集数据分布是否有偏差
# 观察训练集与测试集数据分布
dist_cols = 6
dist_rows = len(df_test.columns)
plt.figure(figsize=(4*dist_cols,4*dist_rows))
for i, col in enumerate(df_test.columns):
ax=plt.subplot(dist_rows,dist_cols,i+1)
ax = sns.kdeplot(df_train[col], color="Red", shade=True)
ax = sns.kdeplot(df_test[col], color="Blue", shade=True)
ax.set_xlabel(col)
ax.set_ylabel("Frequency")
ax = ax.legend(["train","test"])
plt.show()
- 绘制特征间相关性热力图
# 绘制相关性热力图
plt.figure(dpi = 300,figsize=(20, 16))
# 获取列标签
column = df_train.columns.tolist()
mcorr = df_train[column].corr(method="spearman")
# 创建一个和相关性矩阵相同维度的空矩阵
mask = np.zeros_like(mcorr, dtype=np.bool)
mask[np.triu_indices_from(mask)] = True
cmap = sns.diverging_palette(220, 10, as_cmap=True)
g = sns.heatmap(mcorr, mask=mask, cmap=cmap, square=True, annot=True, fmt='0.2f')
# plt.savefig('2.png')
plt.show()
Auto ML
- 将数据转换为
autogluon中所需格式，并定义预测标签，不考虑时间成本追求最优模型，5择交叉检验、模型融合 - 使用CPU训练了大约20分钟，可以看到最优模型为
WeightedEnsemble_L3
from autogluon.tabular import TabularDataset, TabularPredictor
train_data = TabularDataset(df_train)
# 预测标签
label = 'satisfaction_level'
# 模型保存文件名
save_path = 'agModels-predictClass'
# 建立预测模型，verbosity(0~4)，默认为2就好
predictor = TabularPredictor(label=label,path=save_path,verbosity=0)
# presets='best_quality'不考虑时间成本，追求最好模型
predictor.fit(train_data,presets='best_quality',num_bag_folds=5,num_bag_sets=1,num_stack_levels=1)
# 输出模型表现
predictor.leaderboard(silent=True)
输出：
model score_val pred_time_val fit_time pred_time_val_marginal fit_time_marginal stack_level can_infer fit_order
0 WeightedEnsemble_L3 -0.172081 7.343329 333.876595 0.001310 0.623922 3 True 22
1 ExtraTreesMSE_BAG_L2 -0.172605 5.116233 172.232698 1.107705 7.378392 2 True 17
2 CatBoost_BAG_L2 -0.173452 4.080730 179.991769 0.072202 15.137464 2 True 16
3 LightGBMXT_BAG_L2 -0.173462 4.172402 174.590106 0.163874 9.735801 2 True 13
4 RandomForestMSE_BAG_L2 -0.173785 4.957497 191.662132 0.948968 26.807827 2 True 15
5 LightGBM_BAG_L2 -0.173939 4.105616 175.162125 0.097088 10.307820 2 True 14
6 WeightedEnsemble_L2 -0.174116 2.045973 34.980294 0.001211 0.699372 2 True 12
7 XGBoost_BAG_L2 -0.174219 4.094137 180.652536 0.085609 15.798230 2 True 19
8 LightGBMLarge_BAG_L2 -0.174762 4.210132 182.043600 0.201604 17.189295 2 True 21
9 NeuralNetFastAI_BAG_L2 -0.175477 4.541154 209.018030 0.532626 44.163725 2 True 18
10 RandomForestMSE_BAG_L1 -0.175685 0.904012 7.887363 0.904012 7.887363 1 True 5
11 ExtraTreesMSE_BAG_L1 -0.177117 0.847087 4.248557 0.847087 4.248557 1 True 7
12 NeuralNetTorch_BAG_L2 -0.177767 4.301633 212.179403 0.293104 47.325097 2 True 20
13 LightGBMLarge_BAG_L1 -0.179927 0.274584 11.694356 0.274584 11.694356 1 True 11
14 XGBoost_BAG_L1 -0.180700 0.115822 7.230349 0.115822 7.230349 1 True 9
15 CatBoost_BAG_L1 -0.180793 0.053771 14.898683 0.053771 14.898683 1 True 6
16 LightGBM_BAG_L1 -0.181259 0.313841 8.541626 0.313841 8.541626 1 True 4
17 LightGBMXT_BAG_L1 -0.183204 0.583974 9.379441 0.583974 9.379441 1 True 3
18 NeuralNetFastAI_BAG_L1 -0.188396 0.415200 45.523810 0.415200 45.523810 1 True 8
19 NeuralNetTorch_BAG_L1 -0.192048 0.241119 54.613551 0.241119 54.613551 1 True 10
20 KNeighborsDist_BAG_L1 -0.195021 0.124069 0.015969 0.124069 0.015969 1 True 2
21 KNeighborsUnif_BAG_L1 -0.196171 0.135048 0.820599 0.135048 0.820599 1 True 1
- 输出各特征重要性
# 删除其余模型（减少内存开销）
predictor.delete_models(models_to_keep='best')
# 输出最优模型
predictor.get_model_best()
# 输出特征重要程度
predictor.feature_importance(train_data)
- 输出：
importance stddev p_value n p99_high p99_low
number_project 0.140325 0.001946 4.437726e-09 5 0.144332 0.136318
average_monthly_hours 0.120057 0.001612 3.897295e-09 5 0.123376 0.116739
time_spend_company 0.113286 0.002141 1.531254e-08 5 0.117695 0.108877
last_evaluation 0.108663 0.000795 3.442178e-10 5 0.110301 0.107026
package 0.071335 0.000921 3.339475e-09 5 0.073232 0.069438
salary 0.034672 0.001662 6.312180e-07 5 0.038093 0.031250
Work_accident 0.016181 0.000579 1.958612e-07 5 0.017373 0.014990
division_sales 0.016054 0.000679 3.826687e-07 5 0.017451 0.014656
division_technical 0.015590 0.000977 1.843122e-06 5 0.017603 0.013578
division_support 0.012123 0.000587 6.598496e-07 5 0.013332 0.010913
division_IT 0.007362 0.000297 3.168499e-07 5 0.007973 0.006750
division_product_mng 0.006758 0.000402 1.501938e-06 5 0.007587 0.005930
division_marketing 0.006032 0.000617 1.297950e-05 5 0.007302 0.004761
division_accounting 0.005793 0.000534 8.553800e-06 5 0.006892 0.004694
division_RandD 0.005265 0.000286 1.042488e-06 5 0.005854 0.004676
division_hr 0.004269 0.000494 2.108536e-05 5 0.005286 0.003253
division_management 0.003864 0.000752 1.638736e-04 5 0.005413 0.002316
promotion_last_5years 0.002596 0.000383 5.523791e-05 5 0.003385 0.001807
预测
- 导入测试数据集，
autogluon会自动使用最优模型进行预测
# 导入预测数据
test_data = TabularDataset(df_test)
# 导入模型
predictor = TabularPredictor.load(save_path)
# 得到预测值
y_pred = predictor.predict(test_data)
y_pred
图像数据分类
划分数据集
import autogluon.core as ag
from autogluon.vision import ImagePredictor, ImageDataset
train_data, _, test_data = ImageDataset.from_folders('../input/children-vs-adults-images', train='train', test='test')
print('train #', len(train_data), 'test #', len(test_data))
输出：
train # 680 test # 120
Auto ML
- 选择不考虑时间成本，最求最优模型

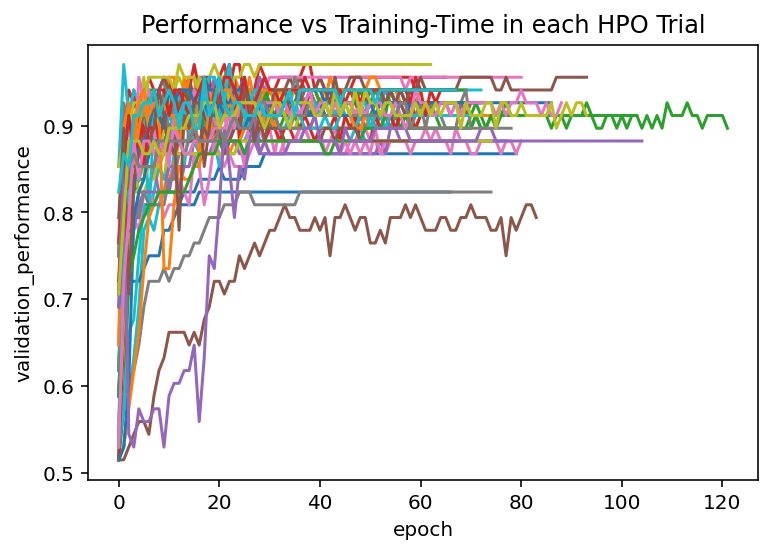

- 这个模型我在Kaggle上使用GPU训练了快12个小时！，可以看到模型在训练集上准确率为96.05%，验证集上准确率为97.05%，效果很好
predictor = ImagePredictor(verbosity=2)
predictor.fit(train_data,presets ='best_quality')
输出
Finished, total runtime is 42713.23 s
{ 'best_config': { 'augmentation': { 'auto_augment': None,
'color_jitter': 0.4,
'cutmix': 0.0,
'cutmix_minmax': None,
'drop': 0.0,
'drop_block': None,
'drop_path': None,
'hflip': 0.5,
'mixup': 0.0,
'mixup_mode': 'batch',
'mixup_off_epoch': 0,
'mixup_prob': 1.0,
'mixup_switch_prob': 0.5,
'no_aug': False,
'ratio': (0.75, 1.3333333333333333),
'scale': (0.08, 1.0),
'smoothing': 0.1,
'train_interpolation': 'random',
'vflip': 0.0},
'data': { 'crop_pct': 0.99,
'img_size': None,
'input_size': None,
'interpolation': '',
'mean': None,
'std': None,
'validation_batch_size_multiplier': 1},
'estimator': <class 'gluoncv.auto.estimators.torch_image_classification.torch_image_classification.TorchImageClassificationEstimator'>,
'gpus': [0],
'img_cls': { 'global_pool_type': None,
'model': 'swin_base_patch4_window7_224',
'pretrained': True},
'misc': { 'amp': False,
'apex_amp': False,
'eval_metric': 'top1',
'log_interval': 50,
'native_amp': False,
'num_workers': 2,
'pin_mem': False,
'prefetcher': False,
'save_images': False,
'seed': 467,
'torchscript': False,
'tta': 0,
'use_multi_epochs_loader': False},
'model_ema': { 'model_ema': True,
'model_ema_decay': 0.9998,
'model_ema_force_cpu': False},
'optimizer': { 'clip_grad': None,
'clip_mode': 'norm',
'momentum': 0.9,
'opt': 'sgd',
'opt_betas': None,
'opt_eps': None,
'weight_decay': 0.0001},
'train': { 'batch_size': 16,
'bn_eps': None,
'bn_momentum': None,
'cooldown_epochs': 10,
'decay_epochs': 30,
'decay_rate': 0.1,
'early_stop_baseline': -inf,
'early_stop_max_value': inf,
'early_stop_min_delta': 0.001,
'early_stop_patience': 50,
'epochs': 200,
'lr': 0.0005115112828551085,
'lr_cycle_limit': 1,
'lr_cycle_mul': 1.0,
'lr_noise': None,
'lr_noise_pct': 0.67,
'lr_noise_std': 1.0,
'min_lr': 1e-05,
'output_lr_mult': 0.1,
'patience_epochs': 10,
'sched': 'step',
'start_epoch': 0,
'sync_bn': False,
'transfer_lr_mult': 0.01,
'warmup_epochs': 3,
'warmup_lr': 0.0001}},
'total_time': 42712.701295375824,
'train_acc': 0.9605263157894737,
'valid_acc': 0.9705882352941176}
预测
- 最优模型在测试集上准确率为89.2%也是一个非常不错的成绩，比我用手调的还好2个点！
test_acc = predictor.evaluate(test_data)
print('Top-1 test acc: %.3f' % test_acc['top1'])
输出：
Top-1 test acc: 0.892
- 输出测试集预测标签
result = predictor.predict(test_data)
print(result)
输出：
0 0
1 0
2 0
3 0
4 0
..
115 1
116 1
117 1
118 1
119 1
Name: label, Length: 120, dtype: int64
多模态数据预测
- 多模态数据即表格数据+文本数据+图像数据，是基于多模型融合的预测。
下载数据集
download_dir = './ag_petfinder_tutorial'
zip_file = 'https://automl-mm-bench.s3.amazonaws.com/petfinder_kaggle.zip'
from autogluon.core.utils.loaders import load_zip
load_zip.unzip(zip_file, unzip_dir=download_dir)
dataset_path = download_dir + '/petfinder_processed'
os.listdir(dataset_path)
# train_images:训练集图片
# test_images:测试集图片
# train.csv:训练集标签，特征，文本
# test.csv:测试集标签，特征，文本
# dev.csv:所有数据集标签
导入数据
train_data = pd.read_csv(f'{dataset_path}/train.csv', index_col=0)
test_data = pd.read_csv(f'{dataset_path}/dev.csv', index_col=0)
train_data.info()
输出：
<class 'pandas.core.frame.DataFrame'>
Int64Index: 11994 entries, 10721 to 5640
Data columns (total 25 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 Type 11994 non-null int64
1 Name 10988 non-null object
2 Age 11994 non-null int64
3 Breed1 11994 non-null int64
4 Breed2 11994 non-null int64
5 Gender 11994 non-null int64
6 Color1 11994 non-null int64
7 Color2 11994 non-null int64
8 Color3 11994 non-null int64
9 MaturitySize 11994 non-null int64
10 FurLength 11994 non-null int64
11 Vaccinated 11994 non-null int64
12 Dewormed 11994 non-null int64
13 Sterilized 11994 non-null int64
14 Health 11994 non-null int64
15 Quantity 11994 non-null int64
16 Fee 11994 non-null int64
17 State 11994 non-null int64
18 RescuerID 11994 non-null object
19 VideoAmt 11994 non-null int64
20 Description 11986 non-null object
21 PetID 11994 non-null object
22 PhotoAmt 11994 non-null float64
23 AdoptionSpeed 11994 non-null int64
24 Images 11994 non-null object
dtypes: float64(1), int64(19), object(5)
memory usage: 2.4+ MB
- 告诉Auto模型预测列与图像路径列
# 需要预测的值
label = 'AdoptionSpeed'
# 对应图像标签
image_col = 'Images'
- 同1只动物有2~3张不同的照片，因为AutoGluon包1行数据只能读取1张照片，这里只取图片路径列的第1张
# 每行取第一张图片
train_data[image_col] = train_data[image_col].apply(lambda ele: ele.split(';')[0])
test_data[image_col] = test_data[image_col].apply(lambda ele: ele.split(';')[0])
train_data[image_col].iloc[0]
- 将图片路径改为绝对路径
# 将csv文件中的图片路径补充完整
def path_expander(path, base_folder):
path_l = path.split(';')
return ';'.join([os.path.abspath(os.path.join(base_folder, path)) for path in path_l])
train_data[image_col] = train_data[image_col].apply(lambda ele: path_expander(ele, base_folder=dataset_path))
test_data[image_col] = test_data[image_col].apply(lambda ele: path_expander(ele, base_folder=dataset_path))
train_data[image_col].iloc[0]
- 绘制图片
example_row = train_data.iloc[1]
example_image = example_row['Images']
from IPython.display import Image, display
pil_img = Image(filename=example_image)
display(pil_img)
- 数据采样，迅速定位值得训练的模型
# 数据采样（了解哪些模型值得训练）
train_data = train_data.sample(5000, random_state=0)
- 多模态特征提取
from autogluon.tabular import FeatureMetadata
feature_metadata = FeatureMetadata.from_df(train_data)
print(feature_metadata)
输出：
('float', []) : 1 | ['PhotoAmt']
('int', []) : 19 | ['Type', 'Age', 'Breed1', 'Breed2', 'Gender', ...]
('object', []) : 4 | ['Name', 'RescuerID', 'PetID', 'Images']
('object', ['text']) : 1 | ['Description']
- 将Images列设为图像路径属性（方便训练器识别）
# 将Images列设为图像路径属性（方便训练器识别）
feature_metadata = feature_metadata.add_special_types({image_col: ['image_path']})
print(feature_metadata)
输出：
('float', []) : 1 | ['PhotoAmt']
('int', []) : 19 | ['Type', 'Age', 'Breed1', 'Breed2', 'Gender', ...]
('object', []) : 3 | ['Name', 'RescuerID', 'PetID']
('object', ['image_path']) : 1 | ['Images']
('object', ['text']) : 1 | ['Description']
Auto ML
from autogluon.tabular.configs.hyperparameter_configs import get_hyperparameter_config
# 多模态训练模式
hyperparameters = get_hyperparameter_config('multimodal')
hyperparameters
- 时间限制最多训练8个小时，并使用GPU加速
from autogluon.tabular import TabularPredictor
predictor = TabularPredictor(label=label).fit(
train_data=train_data,
hyperparameters=hyperparameters,
feature_metadata=feature_metadata,
presets = 'best_quality',
time_limit=8*3600,
ag_args_fit={'num_gpus': 0})
输出：
Fitting model: LightGBMLarge_BAG_L1 ... Training model for up to 17493.06s of the 27095.97s of remaining time.
Fitting 8 child models (S1F1 - S1F8) | Fitting with ParallelLocalFoldFittingStrategy
0.432 = Validation score (accuracy)
386.71s = Training runtime
1.49s = Validation runtime
Fitting model: TextPredictor_BAG_L1 ... Training model for up to 17096.1s of the 26699.01s of remaining time.
Fitting 8 child models (S1F1 - S1F8) | Fitting with ParallelLocalFoldFittingStrategy
E1019 05:14:49.161276010 2762 chttp2_transport.cc:1103] Received a GOAWAY with error code ENHANCE_YOUR_CALM and debug data equal to "too_many_pings"
0.3634 = Validation score (accuracy)
3734.32s = Training runtime
18.76s = Validation runtime
Fitting model: ImagePredictor_BAG_L1 ... Training model for up to 13344.84s of the 22947.75s of remaining time.
Fitting 8 child models (S1F1 - S1F8) | Fitting with ParallelLocalFoldFittingStrategy
0.3524 = Validation score (accuracy)
4517.97s = Training runtime
28.6s = Validation runtime
Completed 1/20 k-fold bagging repeats ...
Fitting model: WeightedEnsemble_L2 ... Training model for up to 1919.15s of the 18419.43s of remaining time.
0.4578 = Validation score (accuracy)
1.42s = Training runtime
0.0s = Validation runtime
Fitting 6 L2 models ...
Fitting model: LightGBM_BAG_L2 ... Training model for up to 18417.99s of the 18417.59s of remaining time.
Fitting 8 child models (S1F1 - S1F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4564 = Validation score (accuracy)
199.13s = Training runtime
1.04s = Validation runtime
Fitting model: LightGBMXT_BAG_L2 ... Training model for up to 18213.83s of the 18213.57s of remaining time.
Fitting 8 child models (S1F1 - S1F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4528 = Validation score (accuracy)
140.68s = Training runtime
0.68s = Validation runtime
Fitting model: CatBoost_BAG_L2 ... Training model for up to 18067.64s of the 18067.38s of remaining time.
Fitting 8 child models (S1F1 - S1F8) | Fitting with ParallelLocalFoldFittingStrategy
0.463 = Validation score (accuracy)
1012.6s = Training runtime
1.73s = Validation runtime
Fitting model: XGBoost_BAG_L2 ... Training model for up to 17049.43s of the 17049.16s of remaining time.
Fitting 8 child models (S1F1 - S1F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4614 = Validation score (accuracy)
355.78s = Training runtime
0.67s = Validation runtime
Fitting model: NeuralNetTorch_BAG_L2 ... Training model for up to 16687.78s of the 16687.5s of remaining time.
Fitting 8 child models (S1F1 - S1F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4528 = Validation score (accuracy)
62.11s = Training runtime
0.85s = Validation runtime
Fitting model: LightGBMLarge_BAG_L2 ... Training model for up to 16621.21s of the 16620.96s of remaining time.
Fitting 8 child models (S1F1 - S1F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4588 = Validation score (accuracy)
698.95s = Training runtime
2.09s = Validation runtime
Repeating k-fold bagging: 2/20
Fitting model: LightGBM_BAG_L2 ... Training model for up to 15917.11s of the 15916.86s of remaining time.
Fitting 8 child models (S2F1 - S2F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4474 = Validation score (accuracy)
361.11s = Training runtime
1.7s = Validation runtime
Fitting model: LightGBMXT_BAG_L2 ... Training model for up to 15750.46s of the 15750.21s of remaining time.
Fitting 8 child models (S2F1 - S2F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4566 = Validation score (accuracy)
383.67s = Training runtime
2.51s = Validation runtime
Fitting model: CatBoost_BAG_L2 ... Training model for up to 15502.33s of the 15502.08s of remaining time.
Fitting 8 child models (S2F1 - S2F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4534 = Validation score (accuracy)
2029.12s = Training runtime
3.6s = Validation runtime
Fitting model: XGBoost_BAG_L2 ... Training model for up to 14480.59s of the 14480.34s of remaining time.
Fitting 8 child models (S2F1 - S2F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4574 = Validation score (accuracy)
713.87s = Training runtime
1.32s = Validation runtime
Fitting model: NeuralNetTorch_BAG_L2 ... Training model for up to 14118.13s of the 14117.89s of remaining time.
Fitting 8 child models (S2F1 - S2F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4494 = Validation score (accuracy)
123.94s = Training runtime
1.64s = Validation runtime
Fitting model: LightGBMLarge_BAG_L2 ... Training model for up to 14051.54s of the 14051.05s of remaining time.
Fitting 8 child models (S2F1 - S2F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4516 = Validation score (accuracy)
1290.52s = Training runtime
3.15s = Validation runtime
Repeating k-fold bagging: 3/20
Fitting model: LightGBM_BAG_L2 ... Training model for up to 13454.83s of the 13454.58s of remaining time.
Fitting 8 child models (S3F1 - S3F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4534 = Validation score (accuracy)
565.3s = Training runtime
2.79s = Validation runtime
Fitting model: LightGBMXT_BAG_L2 ... Training model for up to 13245.22s of the 13244.89s of remaining time.
Fitting 8 child models (S3F1 - S3F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4552 = Validation score (accuracy)
562.97s = Training runtime
3.64s = Validation runtime
Fitting model: CatBoost_BAG_L2 ... Training model for up to 13061.41s of the 13061.16s of remaining time.
Fitting 8 child models (S3F1 - S3F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4538 = Validation score (accuracy)
2989.07s = Training runtime
5.31s = Validation runtime
Fitting model: XGBoost_BAG_L2 ... Training model for up to 12096.7s of the 12096.4s of remaining time.
Fitting 8 child models (S3F1 - S3F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4628 = Validation score (accuracy)
1065.02s = Training runtime
1.96s = Validation runtime
Fitting model: NeuralNetTorch_BAG_L2 ... Training model for up to 11741.2s of the 11740.95s of remaining time.
Fitting 8 child models (S3F1 - S3F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4536 = Validation score (accuracy)
191.06s = Training runtime
2.32s = Validation runtime
Fitting model: LightGBMLarge_BAG_L2 ... Training model for up to 11669.58s of the 11669.33s of remaining time.
Fitting 8 child models (S3F1 - S3F8) | Fitting with ParallelLocalFoldFittingStrategy
0.455 = Validation score (accuracy)
1921.24s = Training runtime
4.67s = Validation runtime
Repeating k-fold bagging: 4/20
Fitting model: LightGBM_BAG_L2 ... Training model for up to 11032.26s of the 11032.01s of remaining time.
Fitting 8 child models (S4F1 - S4F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4564 = Validation score (accuracy)
779.74s = Training runtime
4.27s = Validation runtime
Fitting model: LightGBMXT_BAG_L2 ... Training model for up to 10813.47s of the 10813.22s of remaining time.
Fitting 8 child models (S4F1 - S4F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4564 = Validation score (accuracy)
724.24s = Training runtime
4.74s = Validation runtime
Fitting model: CatBoost_BAG_L2 ... Training model for up to 10647.91s of the 10647.64s of remaining time.
Fitting 8 child models (S4F1 - S4F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4544 = Validation score (accuracy)
4043.74s = Training runtime
7.46s = Validation runtime
Fitting model: XGBoost_BAG_L2 ... Training model for up to 9588.75s of the 9588.44s of remaining time.
Fitting 8 child models (S4F1 - S4F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4632 = Validation score (accuracy)
1380.01s = Training runtime
2.51s = Validation runtime
Fitting model: NeuralNetTorch_BAG_L2 ... Training model for up to 9269.72s of the 9269.47s of remaining time.
Fitting 8 child models (S4F1 - S4F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4528 = Validation score (accuracy)
249.06s = Training runtime
3.08s = Validation runtime
Fitting model: LightGBMLarge_BAG_L2 ... Training model for up to 9207.7s of the 9207.42s of remaining time.
Fitting 8 child models (S4F1 - S4F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4544 = Validation score (accuracy)
2604.8s = Training runtime
6.68s = Validation runtime
Repeating k-fold bagging: 5/20
Fitting model: LightGBM_BAG_L2 ... Training model for up to 8518.63s of the 8518.39s of remaining time.
Fitting 8 child models (S5F1 - S5F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4568 = Validation score (accuracy)
969.05s = Training runtime
5.1s = Validation runtime
Fitting model: LightGBMXT_BAG_L2 ... Training model for up to 8324.31s of the 8324.06s of remaining time.
Fitting 8 child models (S5F1 - S5F8) | Fitting with ParallelLocalFoldFittingStrategy
0.46 = Validation score (accuracy)
954.32s = Training runtime
6.73s = Validation runtime
Fitting model: CatBoost_BAG_L2 ... Training model for up to 8089.46s of the 8089.21s of remaining time.
Fitting 8 child models (S5F1 - S5F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4526 = Validation score (accuracy)
4982.74s = Training runtime
9.3s = Validation runtime
Fitting model: XGBoost_BAG_L2 ... Training model for up to 7145.47s of the 7145.16s of remaining time.
Fitting 8 child models (S5F1 - S5F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4618 = Validation score (accuracy)
1687.99s = Training runtime
3.07s = Validation runtime
Fitting model: NeuralNetTorch_BAG_L2 ... Training model for up to 6833.41s of the 6833.16s of remaining time.
Fitting 8 child models (S5F1 - S5F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4534 = Validation score (accuracy)
311.52s = Training runtime
3.78s = Validation runtime
Fitting model: LightGBMLarge_BAG_L2 ... Training model for up to 6766.63s of the 6766.35s of remaining time.
Fitting 8 child models (S5F1 - S5F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4552 = Validation score (accuracy)
3278.15s = Training runtime
8.55s = Validation runtime
Repeating k-fold bagging: 6/20
Fitting model: LightGBM_BAG_L2 ... Training model for up to 6087.9s of the 6087.65s of remaining time.
Fitting 8 child models (S6F1 - S6F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4586 = Validation score (accuracy)
1164.77s = Training runtime
6.08s = Validation runtime
Fitting model: LightGBMXT_BAG_L2 ... Training model for up to 5886.76s of the 5886.47s of remaining time.
Fitting 8 child models (S6F1 - S6F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4624 = Validation score (accuracy)
1100.85s = Training runtime
7.32s = Validation runtime
Fitting model: CatBoost_BAG_L2 ... Training model for up to 5735.64s of the 5735.38s of remaining time.
Fitting 8 child models (S6F1 - S6F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4518 = Validation score (accuracy)
5980.75s = Training runtime
11.3s = Validation runtime
Fitting model: XGBoost_BAG_L2 ... Training model for up to 4732.41s of the 4732.16s of remaining time.
Fitting 8 child models (S6F1 - S6F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4578 = Validation score (accuracy)
1990.26s = Training runtime
3.59s = Validation runtime
Fitting model: NeuralNetTorch_BAG_L2 ... Training model for up to 4425.39s of the 4425.12s of remaining time.
Fitting 8 child models (S6F1 - S6F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4546 = Validation score (accuracy)
377.89s = Training runtime
4.44s = Validation runtime
Fitting model: LightGBMLarge_BAG_L2 ... Training model for up to 4354.59s of the 4354.33s of remaining time.
Fitting 8 child models (S6F1 - S6F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4524 = Validation score (accuracy)
3901.7s = Training runtime
10.22s = Validation runtime
Repeating k-fold bagging: 7/20
Fitting model: LightGBM_BAG_L2 ... Training model for up to 3725.6s of the 3725.34s of remaining time.
Fitting 8 child models (S7F1 - S7F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4596 = Validation score (accuracy)
1347.21s = Training runtime
6.95s = Validation runtime
Fitting model: LightGBMXT_BAG_L2 ... Training model for up to 3538.96s of the 3538.7s of remaining time.
Fitting 8 child models (S7F1 - S7F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4622 = Validation score (accuracy)
1247.92s = Training runtime
7.96s = Validation runtime
Fitting model: CatBoost_BAG_L2 ... Training model for up to 3387.65s of the 3387.4s of remaining time.
Fitting 8 child models (S7F1 - S7F8) | Fitting with ParallelLocalFoldFittingStrategy
0.452 = Validation score (accuracy)
6844.92s = Training runtime
13.13s = Validation runtime
Fitting model: XGBoost_BAG_L2 ... Training model for up to 2519.12s of the 2518.87s of remaining time.
Fitting 8 child models (S7F1 - S7F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4578 = Validation score (accuracy)
2340.68s = Training runtime
4.2s = Validation runtime
Fitting model: NeuralNetTorch_BAG_L2 ... Training model for up to 2164.52s of the 2164.27s of remaining time.
Fitting 8 child models (S7F1 - S7F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4576 = Validation score (accuracy)
441.27s = Training runtime
5.19s = Validation runtime
Fitting model: LightGBMLarge_BAG_L2 ... Training model for up to 2097.19s of the 2096.93s of remaining time.
Fitting 8 child models (S7F1 - S7F8) | Fitting with ParallelLocalFoldFittingStrategy
0.4582 = Validation score (accuracy)
4558.04s = Training runtime
11.89s = Validation runtime
Completed 7/20 k-fold bagging repeats ...
Fitting model: WeightedEnsemble_L3 ... Training model for up to 1841.8s of the 1436.21s of remaining time.
0.4694 = Validation score (accuracy)
0.93s = Training runtime
0.0s = Validation runtime
AutoGluon training complete, total runtime = 27364.79s ... Best model: "WeightedEnsemble_L3"
TabularPredictor saved. To load, use: predictor = TabularPredictor.load("AutogluonModels/ag-20221019_043937/")
预测
- 观察各模型在测试集上表现
leaderboard = predictor.leaderboard(test_data)
model score_test score_val pred_time_test pred_time_val fit_time pred_time_test_marginal pred_time_val_marginal fit_time_marginal stack_level can_infer fit_order
0 CatBoost_BAG_L2 0.440147 0.4520 311.027459 67.010538 17144.274338 3.961333 13.129473 6844.922442 2 True 12
1 NeuralNetTorch_BAG_L2 0.439146 0.4576 313.881686 59.070805 10740.619594 6.815560 5.189740 441.267699 2 True 14
2 WeightedEnsemble_L3 0.438146 0.4694 356.545686 84.355455 21175.077252 0.013631 0.000960 0.931303 3 True 16
3 LightGBMXT_BAG_L2 0.435145 0.4622 331.060749 61.838714 11547.272638 23.994623 7.957649 1247.920743 2 True 11
4 WeightedEnsemble_L2 0.434478 0.4578 301.874017 52.586521 10151.541209 0.006723 0.001295 1.415491 2 True 9
5 LightGBM_BAG_L2 0.431811 0.4596 328.935630 60.831540 11646.558565 21.869503 6.950476 1347.206670 2 True 10
6 LightGBMLarge_BAG_L2 0.431811 0.4582 345.884833 65.766117 14857.395032 38.818707 11.885052 4558.043137 2 True 15
7 XGBoost_BAG_L2 0.429810 0.4578 321.760539 58.077633 12640.035064 14.694413 4.196568 2340.683169 2 True 13
8 LightGBMLarge_BAG_L1 0.426475 0.4320 6.381093 1.489012 386.712939 6.381093 1.489012 386.712939 1 True 6
9 LightGBM_BAG_L1 0.423474 0.4302 2.985550 0.803576 132.148328 2.985550 0.803576 132.148328 1 True 1
10 XGBoost_BAG_L1 0.421140 0.4302 2.731979 0.632295 190.459603 2.731979 0.632295 190.459603 1 True 4
11 CatBoost_BAG_L1 0.420140 0.4452 0.933754 1.721086 1114.353101 0.933754 1.721086 1114.353101 1 True 3
12 LightGBMXT_BAG_L1 0.410470 0.4126 5.198832 1.295838 149.226177 5.198832 1.295838 149.226177 1 True 2
13 NeuralNetTorch_BAG_L1 0.397799 0.4078 0.728582 0.579873 74.164125 0.728582 0.579873 74.164125 1 True 5
14 TextPredictor_BAG_L1 0.370457 0.3634 96.319121 18.761692 3734.320718 96.319121 18.761692 3734.320718 1 True 7
15 ImagePredictor_BAG_L1 0.350784 0.3524 191.787215 28.597692 4517.966904 191.787215 28.597692 4517.966904 1 True 8
- 输出测试集预测值
y_pred = predictor.predict(test_data)
y_pred
结语
AutoGluon包是很强大的Auto ML包，但相应的需要付出的算力是人工调参的10倍以上，针对一些有经验性的任务不妨用手调，能快速部署。AutoGluon官网上还有很多例子，比如文本（NLP）类预测，以及目标检测、时间序列，这里因为篇幅原因不过多赘述，后面有时间会再更新。
1603
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
