Pytorch里面的DataLoader的collate_fn参数

DataLoader的collate_fn参数，实现自定义的batch输出。

DataLoader完整的参数表如下：

class torch.utils.data.DataLoader(
    dataset,
    batch_size=1,
    shuffle=False,
    sampler=None,
    batch_sampler=None,
    num_workers=0,
    collate_fn=<function default_collate>,
    pin_memory=False,
    drop_last=False,
    timeout=0,
    worker_init_fn=None)

collate_fn：如何取样本的，我们可以定义自己的函数来准确地实现想要的功能。
这里我们需要找到DataLoader的源码进行查看这个参数到底是什么。
可以看到collate_fn默认是等于default_collate，那么这个函数的定义如下。

def default_collate(batch):
    r"""
        Function that takes in a batch of data and puts the elements within the batch
        into a tensor with an additional outer dimension - batch size. The exact output type can be
        a :class:`torch.Tensor`, a `Sequence` of :class:`torch.Tensor`, a
        Collection of :class:`torch.Tensor`, or left unchanged, depending on the input type.
        This is used as the default function for collation when
        `batch_size` or `batch_sampler` is defined in :class:`~torch.utils.data.DataLoader`.
        Here is the general input type (based on the type of the element within the batch) to output type mapping:
        * :class:`torch.Tensor` -> :class:`torch.Tensor` (with an added outer dimension batch size)
        * NumPy Arrays -> :class:`torch.Tensor`
        * `float` -> :class:`torch.Tensor`
        * `int` -> :class:`torch.Tensor`
        * `str` -> `str` (unchanged)
        * `bytes` -> `bytes` (unchanged)
        * `Mapping[K, V_i]` -> `Mapping[K, default_collate([V_1, V_2, ...])]`
        * `NamedTuple[V1_i, V2_i, ...]` -> `NamedTuple[default_collate([V1_1, V1_2, ...]), default_collate([V2_1, V2_2, ...]), ...]`
        * `Sequence[V1_i, V2_i, ...]` -> `Sequence[default_collate([V1_1, V1_2, ...]), default_collate([V2_1, V2_2, ...]), ...]`
        Args:
            batch: a single batch to be collated
        Examples:
            >>> # Example with a batch of `int`s:
            >>> default_collate([0, 1, 2, 3])
            tensor([0, 1, 2, 3])
            >>> # Example with a batch of `str`s:
            >>> default_collate(['a', 'b', 'c'])
            ['a', 'b', 'c']
            >>> # Example with `Map` inside the batch:
            >>> default_collate([{'A': 0, 'B': 1}, {'A': 100, 'B': 100}])
            {'A': tensor([  0, 100]), 'B': tensor([  1, 100])}
            >>> # Example with `NamedTuple` inside the batch:
            >>> Point = namedtuple('Point', ['x', 'y'])
            >>> default_collate([Point(0, 0), Point(1, 1)])
            Point(x=tensor([0, 1]), y=tensor([0, 1]))
            >>> # Example with `Tuple` inside the batch:
            >>> default_collate([(0, 1), (2, 3)])
            [tensor([0, 2]), tensor([1, 3])]
            >>> # Example with `List` inside the batch:
            >>> default_collate([[0, 1], [2, 3]])
            [tensor([0, 2]), tensor([1, 3])]
    """
    elem = batch[0]
    elem_type = type(elem)
    if isinstance(elem, torch.Tensor):
        out = None
        if torch.utils.data.get_worker_info() is not None:
            # If we're in a background process, concatenate directly into a
            # shared memory tensor to avoid an extra copy
            numel = sum(x.numel() for x in batch)
            storage = elem.storage()._new_shared(numel)
            out = elem.new(storage).resize_(len(batch), *list(elem.size()))
        return torch.stack(batch, 0, out=out)
    elif elem_type.__module__ == 'numpy' and elem_type.__name__ != 'str_' \
            and elem_type.__name__ != 'string_':
        if elem_type.__name__ == 'ndarray' or elem_type.__name__ == 'memmap':
            # array of string classes and object
            if np_str_obj_array_pattern.search(elem.dtype.str) is not None:
                raise TypeError(default_collate_err_msg_format.format(elem.dtype))

            return default_collate([torch.as_tensor(b) for b in batch])
        elif elem.shape == ():  # scalars
            return torch.as_tensor(batch)
    elif isinstance(elem, float):
        return torch.tensor(batch, dtype=torch.float64)
    elif isinstance(elem, int):
        return torch.tensor(batch)
    elif isinstance(elem, string_classes):
        return batch
    elif isinstance(elem, collections.abc.Mapping):
        try:
            return elem_type({key: default_collate([d[key] for d in batch]) for key in elem})
        except TypeError:
            # The mapping type may not support `__init__(iterable)`.
            return {key: default_collate([d[key] for d in batch]) for key in elem}
    elif isinstance(elem, tuple) and hasattr(elem, '_fields'):  # namedtuple
        return elem_type(*(default_collate(samples) for samples in zip(*batch)))
    elif isinstance(elem, collections.abc.Sequence):
        # check to make sure that the elements in batch have consistent size
        it = iter(batch)
        elem_size = len(next(it))
        if not all(len(elem) == elem_size for elem in it):
            raise RuntimeError('each element in list of batch should be of equal size')
        transposed = list(zip(*batch))  # It may be accessed twice, so we use a list.

        if isinstance(elem, tuple):
            return [default_collate(samples) for samples in transposed]  # Backwards compatibility.
        else:
            try:
                return elem_type([default_collate(samples) for samples in transposed])
            except TypeError:
                # The sequence type may not support `__init__(iterable)` (e.g., `range`).
                return [default_collate(samples) for samples in transposed]

    raise TypeError(default_collate_err_msg_format.format(elem_type))

是不是看着有点头大，没有关系，我们先搞清楚他的输入是什么。这里可以看到他的输入被命名为batch，但是我们还是不知道到底是什么，可以猜测应该是一个batch size的数据。我们继续往后找，可以找到这个地方。

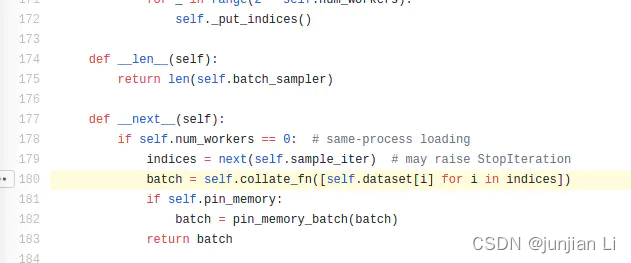

我们可以从这里看到collate_fn在这里进行了调用，那么他的输入我们就找到了，从这里看这就是一个list，list中的每个元素就是self.data[i]，如果你在往上看，可以看到这个self.data就是我们需要预先定义的Dataset，那么这里self.data[i]就等价于我们在Dataset里面定义的__getitem__这个函数。
所以我们知道了collate_fn这个函数的输入就是一个list，list的长度是一个batch size，list中的每个元素都是__getitem__得到的结果。
这时我们再去看看collate_fn这个函数，其实可以看到非常简单，就是通过对一些情况的排除，然后最后输出结果，比如第一个if，如果我们的输入是一个tensor，那么最后会将一个batch size的tensor重新stack在一起，比如输入的tensor是一张图片，3x30x30，如果batch size是32，那么按第一维stack之后的结果就是32x3x30x30，这里stack和concat有一点区别就是会增加一维。

所以通过上面的源码解读我们知道了数据读入具体是如何操作的，那么我们就能够实现自定义的数据读入了，我们需要自己按需要重新定义collate_fn这个函数

参考：
PyTorch实现自由的数据读取
