1.1 硬件I2C介绍
在项目中遇见与MCU通信接口协议为I2C的设备时，可通过GPIO口软件模拟I2C和使用MCU自身的硬件I2C资源。两者各有优势，软件模拟可以不受GPIO口限制，也可以主控制器MCU的选择上降低成本，但也存在I2C设备对通信速率有特定的要求或者需要较高的传输速率时，会存在时序调试困难、start/stop/ack/noack/read/write等都需要软件实现、GPIO口翻转速率限制等原因导致软件模拟I2C通信速率有一定的限制。硬件I2C则不存在上述问题，I2C通信速率可配置100k/400k/1M(NXP芯片做到了3.4M），通信时序中的绝大部分都由硬件完成，我们只需要按照逻辑配置好相应的寄存器即可，但也存在受特定GPIO口限制、相应成本高等缺点。本文主要是基GD32MCU介绍硬件I2C的配置和注意的事项，关于I2C协议概念介绍只是简要提及。
1.2 GD32 mcu硬件I2C的主要特性
1、同一接口既可实现主机功能又可实现从机功能；
2、主从机之间的双向数据传输；
3、支持7位和10位的地址模式和广播寻址；
4、支持I2C多主机模式；
5、速率100k\400k\1M；
6、从机模式下可配置SCL主动拉低；
7、支持DMA模式；
8、支持SMBUS；
9、事件中断和错误中断；
10、支持PEC错误校验。
1.3 主机发送和接收实现（速率100k/400k/1M 地址10bit or 7bit)

 //.h文件
#ifndef MAIN_H
#define MAIN_H
#include "gd32f3x0.h"
#define I2Cx_Pinx_AFx_BIT(gpiox,pinx,afx) (((uint32_t)gpiox)|((uint32_t)(pinx)<<4)|(uint32_t)(afx))
/*send_slaver address*/
typedef enum
{
  Send_7Address=0x42,
  Send_7Address_2=0x44,
  send_gual=0x00,
  Send_10Address=0x232
}Send_Address_Enum;
/*define pin speed enum*/
typedef enum
{
 standard_speed=100000,
 High_speed=400000,
 More_HighSpeed=1000000
}I2Cx_Speed_enum;

/*define I2Cx SDA Pin enum*/
typedef enum
{
 //define I2C0
 I2C0_SDA_GPIOx1=I2Cx_Pinx_AFx_BIT(GPIOA,10,4),
 I2C0_SDA_GPIOx2=I2Cx_Pinx_AFx_BIT(GPIOB,7,1),
 I2C0_SDA_GPIOx3=I2Cx_Pinx_AFx_BIT(GPIOB,9,1),
 //define I2C1
 I2C1_SDA_GPIOx4=I2Cx_Pinx_AFx_BIT(GPIOA,1,4),
 I2C1_SDA_GPIOx5=I2Cx_Pinx_AFx_BIT(GPIOB,11,1),
 I2C1_SDA_GPIOx6=I2Cx_Pinx_AFx_BIT(GPIOF,7,0)
}I2Cx_PinSDA_Enum;

/*define I2Cx SCL Pin enum*/
typedef enum
{
 //define I2C0
 I2C0_SCL_GPIOy1=I2Cx_Pinx_AFx_BIT(GPIOA,9,4),
 I2C0_SCL_GPIOy2=I2Cx_Pinx_AFx_BIT(GPIOB,6,1),
 I2C1_SCL_GPIOy3=I2Cx_Pinx_AFx_BIT(GPIOB,8,1),
 //define I2C1
 I2C1_SCL_GPIOy4=I2Cx_Pinx_AFx_BIT(GPIOA,0,4),
 I2C1_SCL_GPIOy5=I2Cx_Pinx_AFx_BIT(GPIOB,10,1),
 I2C1_SCL_GPIOy6=I2Cx_Pinx_AFx_BIT(GPIOB,6,0)
}I2Cx_PinSCL_Enum;
/*define I2Cx address model*/
typedef enum
{
  I2Cx_Address_7bit=I2C_ADDFORMAT_7BITS,
  I2Cx_Address_10bit=I2C_ADDFORMAT_10BITS
}Address_Model_Enum;
/*define I2Cx slaver address*/
typedef enum
{
    Slaver_7Address=0x40,
	Slaver_10Address=0x230
}Slaver_Address_Enum;
/*define I2CX init param*/
typedef struct
{
	uint32_t Memory_address;
	I2Cx_PinSDA_Enum gpio_sdapin;
	I2Cx_PinSCL_Enum gpio_sclpin;
	rcu_periph_enum I2Cx_Periph;
	I2Cx_Speed_enum I2c_speed;
	Address_Model_Enum address_model;
	Send_Address_Enum address;
	Slaver_Address_Enum slaver_address;
}Param_Typedef;
/*I2C gpio init function*/
void I2Cx_Init(Param_Typedef* i2c_init);
/*I2C gpiopin enable*/
void I2Cx_Pin_ClockEnable(I2Cx_PinSDA_Enum gpio_sdapin,I2Cx_PinSCL_Enum gpio_sclpin);
/*I2C master send buffer 7 and 10 address*/
void Master_SendData_address(uint8_t* SendBuffer,uint8_t DataNum,Param_Typedef *i2c_init);
/*I2C master receive data 7 and 10 address*/
void Master_ReceiveData(uint8_t* ReceiveBuffer,uint8_t DataNum,Param_Typedef *i2c_init);
/*I2C 7 bit address prepare send*/
void Send_7Prepare(Param_Typedef *i2c_init);
/*I2C 10 bit address prepare send*/
void Send_10Prepare(Param_Typedef *i2c_init);
/*I2C 10 bit address prepare receive*/
void Receive_10Prepare(Param_Typedef *i2c_init);
/*Master receive 7 address prepare*/
void Receive_7Prepare(Param_Typedef *i2c_init);

#endif /* MAIN_H */
//.c文件
#include "gd32f3x0.h"
#include <stdio.h>
#include "gd32f350r_eval.h"
#include "main.h"
#include "systick.h"
#define I2C0_Measure
//#define I2C1_Measure
#define BufferNum 20
uint8_t write_buffer[BufferNum]={0};//send data buffer
uint8_t receive_buffer[BufferNum]={0};//receive data buffer
Param_Typedef I2Cx_Param;

/*define I2Cx Param struct array*/
static Param_Typedef Para_Aarry[]=
{
	/*I2C0 param array*/
	{I2C0,I2C0_SDA_GPIOx2,I2C0_SCL_GPIOy2,RCU_I2C0,standard_speed,I2Cx_Address_7bit,Send_7Address,Slaver_7Address},
	{I2C0,I2C0_SDA_GPIOx2,I2C0_SCL_GPIOy2,RCU_I2C0,standard_speed,I2Cx_Address_10bit,Send_10Address,Slaver_10Address},
	{I2C0,I2C0_SDA_GPIOx2,I2C0_SCL_GPIOy2,RCU_I2C0,High_speed,I2Cx_Address_7bit,Send_7Address,Slaver_7Address},
	{I2C0,I2C0_SDA_GPIOx2,I2C0_SCL_GPIOy2,RCU_I2C0,High_speed,I2Cx_Address_10bit,Send_10Address,Slaver_10Address},
	{I2C0,I2C0_SDA_GPIOx2,I2C0_SCL_GPIOy2,RCU_I2C0,More_HighSpeed,I2Cx_Address_7bit,Send_7Address,Slaver_7Address},
	/*I2C1 param array*/
	{I2C1,I2C1_SDA_GPIOx5,I2C1_SCL_GPIOy5,RCU_I2C1,standard_speed,I2Cx_Address_7bit,Send_7Address,Slaver_7Address},
	{I2C1,I2C1_SDA_GPIOx5,I2C1_SCL_GPIOy5,RCU_I2C1,standard_speed,I2Cx_Address_10bit,Send_10Address,Slaver_10Address},
	{I2C1,I2C1_SDA_GPIOx5,I2C1_SCL_GPIOy5,RCU_I2C1,High_speed,I2Cx_Address_7bit,Send_7Address,Slaver_7Address},
	{I2C1,I2C1_SDA_GPIOx5,I2C1_SCL_GPIOy5,RCU_I2C1,High_speed,I2Cx_Address_10bit,Send_10Address,Slaver_10Address},
	{I2C1,I2C1_SDA_GPIOx5,I2C1_SCL_GPIOy5,RCU_I2C1,More_HighSpeed,I2Cx_Address_7bit,Send_7Address,Slaver_7Address},
};

/*testing sequence enum*/
typedef enum
{
	/*Measure I2C0*/
	I2C0_Seven_Address_standard=0,
	I2C0_Ten_Address_standard,
	I2C0_Seven_Address_high,
	I2C0_Ten_Address_high,
	I2C0_Seven_Address_more_high,
	/*Measure I2C1*/
	I2C1_Seven_Address_standard,
	I2C1_Ten_Address_standard,
	I2C1_Seven_Address_high,
	I2C1_Ten_Address_high,
	I2C1_Seven_Address_more_high
}Test_Sequence_Enum;
/*Configure Param of I2Cx Send data*/
void Configure_I2CX_Send(Test_Sequence_Enum measure_sequence);
/*Configure Param of I2Cx receive data*/
void Configure_I2CX_Receive(Test_Sequence_Enum measure_sequence);
/*I2Cx param init*/
void Param_Init(Param_Typedef* i2c_param,Param_Typedef* Param_Array,Test_Sequence_Enum measure_sequence);
/*!
    \brief      main function
    \param[in]  none
    \param[out] none
    \retval     none
*/
int main(void)
{
	 uint8_t num=0;
   /*configure EVAL_COM1*/
   gd_eval_com_init(EVAL_COM);
	 systick_config();
	 for(num=0;num<BufferNum;num++){
		 write_buffer[num]=num;
	 }
	 #ifdef I2C0_Measure
	 /*Test Sequence I2C0 send*/
	 Configure_I2CX_Send(I2C0_Seven_Address_standard);
	 Configure_I2CX_Send(I2C0_Ten_Address_standard);
	 Configure_I2CX_Send(I2C0_Seven_Address_high);
	 Configure_I2CX_Send(I2C0_Ten_Address_high);
	 Configure_I2CX_Send(I2C0_Seven_Address_more_high);
	 /*Test Sequence I2C0 receive*/
	 Configure_I2CX_Receive(I2C0_Seven_Address_standard);
	 Configure_I2CX_Receive(I2C0_Ten_Address_standard);
	 Configure_I2CX_Receive(I2C0_Seven_Address_high);
	 Configure_I2CX_Receive(I2C0_Ten_Address_high);
	 Configure_I2CX_Receive(I2C0_Seven_Address_more_high);
	 #elif defined I2C1_Measure
	 /*Test Sequence I2C1 send*/
	 Configure_I2CX_Send(I2C1_Seven_Address_standard);
	 Configure_I2CX_Send(I2C1_Ten_Address_standard);
	 Configure_I2CX_Send(I2C1_Seven_Address_high);
	 Configure_I2CX_Send(I2C1_Ten_Address_high);
	 Configure_I2CX_Send(I2C1_Seven_Address_more_high);
	 /*Test Sequence I2C1 receive*/
	 Configure_I2CX_Receive(I2C1_Seven_Address_standard);
	 Configure_I2CX_Receive(I2C1_Ten_Address_standard);
	 Configure_I2CX_Receive(I2C1_Seven_Address_high);
	 Configure_I2CX_Receive(I2C1_Ten_Address_high);
	 Configure_I2CX_Receive(I2C1_Seven_Address_more_high);
	 #endif
   while(1){

   }
}

/*!
    \brief      Configure Param of I2Cx I2Cx Send data
    \param[in]  Test_Sequence_Enum measure_sequence //test sequence
    \param[out] none
    \retval     none
*/
void Configure_I2CX_Send(Test_Sequence_Enum measure_sequence)
{
	switch(measure_sequence)
	{
		case I2C0_Seven_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Seven_Address_standard);
      I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0 Seven Address standard send success\n");
	  break;
		case I2C0_Ten_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Ten_Address_standard);
      I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
      printf("I2C0_Ten_Address_standard send success\n");
	  break;
		case I2C0_Seven_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Seven_Address_high);
		  I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
      printf("I2C0_Seven_Address_high send success\n");
	  break;
		case I2C0_Ten_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Ten_Address_high);
		  I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Ten_Address_high send success\n");
	  break;
		case I2C0_Seven_Address_more_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Seven_Address_more_high);
		  I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Seven_Address_more_high send success\n");
	  break;
		case I2C1_Seven_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Seven_Address_standard);
      I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1 Seven Address standard send success\n");
	  break;
		case I2C1_Ten_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Ten_Address_standard);
      I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Ten_Address_standard send success\n");
	  break;
		case I2C1_Seven_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Seven_Address_high);
		  I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Seven_Address_high send success\n");
	  break;
		case I2C1_Ten_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Ten_Address_high);
		  I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Ten_Address_high send success\n");
	  break;
		case I2C1_Seven_Address_more_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Seven_Address_more_high);
		  I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Seven_Address_more_high send success\n");
	  break;
		default:
		break;
	}
}

/*!
    \brief      Configure Param of receive data
    \param[in]  Test_Sequence_Enum measure_sequence //test sequence
    \param[out] none
    \retval     none
*/
void Configure_I2CX_Receive(Test_Sequence_Enum measure_sequence)
{
 	switch(measure_sequence)
	{
		case I2C0_Seven_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Seven_Address_standard);
      I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_ReceiveData(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Seven_Address_standard receive data success!!\n");
	  break;
		case I2C0_Ten_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Ten_Address_standard);
      I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_ReceiveData(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Ten_Address_standard receive data success!!\n");
	  break;
		case I2C0_Seven_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Seven_Address_high);
		  I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_ReceiveData(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Seven_Address_high receive data success!!\n");
	  break;
		case I2C0_Ten_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Ten_Address_high);
		  I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_ReceiveData(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Ten_Address_high receive data success!!\n");
	  break;
		case I2C0_Seven_Address_more_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Seven_Address_more_high);
		  I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_ReceiveData(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Ten_Address_high receive data success!!\n");
	  break;
		case I2C1_Seven_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Seven_Address_standard);
      I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_ReceiveData(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Seven_Address_standard receive data success!!\n");
	  break;
		case I2C1_Ten_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Ten_Address_standard);
      I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_ReceiveData(receive_buffer,BufferNum,&I2Cx_Param);
	    printf("I2C1_Ten_Address_standard receive data success!!\n");
	  break;
		case I2C1_Seven_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Seven_Address_high);
		  I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_ReceiveData(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Seven_Address_high receive data success!!\n");
	  break;
		case I2C1_Ten_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Ten_Address_high);
		  I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_ReceiveData(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Ten_Address_high receive data success!!\n");
	  break;
		case I2C1_Seven_Address_more_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Seven_Address_more_high);
		  I2Cx_Init(&I2Cx_Param);
		  delay_1ms(3000);//delay 3s wait slaver init success!
      Master_ReceiveData(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Ten_Address_high receive data success!!\n");
	  break;
		default:
		break;
	}
}

/*!
    \brief      Configure Param of I2Cx receive data
    \param[in]  Test_Sequence_Enum measure_sequence //test sequence
    \param[out] none
    \retval     none
*/
void Param_Init(Param_Typedef* i2c_param,Param_Typedef* Param_Array,Test_Sequence_Enum measure_sequence)
{
   i2c_param->Memory_address=Param_Array[measure_sequence].Memory_address;
	 i2c_param->gpio_sclpin=Param_Array[measure_sequence].gpio_sclpin;
	 i2c_param->gpio_sdapin=Param_Array[measure_sequence].gpio_sdapin;
	 i2c_param->address=Param_Array[measure_sequence].address;
	 i2c_param->address_model=Param_Array[measure_sequence].address_model;
	 i2c_param->I2Cx_Periph=Param_Array[measure_sequence].I2Cx_Periph;
	 i2c_param->I2c_speed=Param_Array[measure_sequence].I2c_speed;
	 i2c_param->slaver_address=Param_Array[measure_sequence].slaver_address;
}

/*!
    \brief      I2C init
    \param[in]  I2Cx_PinSDA_Enum SDA pin
		            I2Cx_PinSCL_Enum SCL pin
								rcu_periph_enum  I2C periph
		            I2Cx_Speed_enum check clock frequence
								Address_Model_Enum 7 or 10 address check
								Slaver_Address_Enum 7 or 10 address
    \param[out] none
    \retval     none
*/
void I2Cx_Init(Param_Typedef *i2c_init)
{
	uint32_t gpiox_sda,pinx_sda,afx_sda,gpiox_scl,pinx_scl,afx_scl;
	I2Cx_Pin_ClockEnable(i2c_init->gpio_sdapin,i2c_init->gpio_sclpin);//SCL and SDA GPIO enable
	/*GPIO sda configure*/
	gpiox_sda=(uint32_t)((i2c_init->gpio_sdapin)& 0xffffff00);
	pinx_sda=(0x01<<((i2c_init->gpio_sdapin & 0xf0) >> 4));
	afx_sda=AF((i2c_init->gpio_sdapin & 0x0f));
	I2Cx_Pin_ClockEnable(i2c_init->gpio_sdapin,i2c_init->gpio_sclpin);
	gpio_af_set(gpiox_sda, afx_sda, pinx_sda);//IO口引脚复用功能
	gpio_mode_set(gpiox_sda, GPIO_MODE_AF, GPIO_PUPD_PULLUP,pinx_sda);//GPIO口、备用功能、端口上拉模式、具体引脚
	gpio_output_options_set(gpiox_sda, GPIO_OTYPE_OD, GPIO_OSPEED_50MHZ,pinx_sda);//GPIO口、推挽输出及开漏输出、输出速率、具体引脚
	/*GPIO scl configure*/
	gpiox_scl=(uint32_t)((i2c_init->gpio_sclpin)& 0xffffff00);
	pinx_scl=(0x01<<((i2c_init->gpio_sclpin & 0xf0) >> 4));
	afx_scl=AF((i2c_init->gpio_sclpin & 0x0f));
	gpio_af_set(gpiox_scl, afx_scl,pinx_scl);//IO口引脚复用功能
	gpio_mode_set(gpiox_scl, GPIO_MODE_AF, GPIO_PUPD_PULLUP,pinx_scl);//GPIO口、备用功能、端口上拉模式、具体引脚
	/*--------------------------------I2C module initaial configure------------------------------------*/
	/*enable I2C clock*/
	rcu_periph_clock_enable(i2c_init->I2Cx_Periph);//使能I2C时钟
	/*configure I2C clock*/
  i2c_clock_config(i2c_init->Memory_address,i2c_init->I2c_speed,I2C_DTCY_2);//I2C的基地址、I2C数据传输速度、I2C的快速模式
	/*configure I2C address*/
  i2c_mode_addr_config(i2c_init->Memory_address,I2C_I2CMODE_ENABLE,i2c_init->address_model,i2c_init->slaver_address);//I2C基地址、I2C模式、7位地址模式、I2C从机地址
	/*enable I2C0*/
  i2c_enable(i2c_init->Memory_address);//I2C外设使能
  /*enable acknowledge*/
	i2c_ack_config(i2c_init->Memory_address,I2C_ACK_ENABLE);//选择是否发送应答信号
}

/*!
    \brief      I2C GPIO Clock enable
    \param[in]  I2Cx_PinSDA_Enum SDA pin
		            I2Cx_PinSCL_Enum SCL pin
    \param[out] none
    \retval     none
*/
void I2Cx_Pin_ClockEnable(I2Cx_PinSDA_Enum gpio_sdapin,I2Cx_PinSCL_Enum gpio_sclpin)
{
	uint32_t gpiox_sda,gpiox_scl;
	gpiox_sda=(uint32_t)(gpio_sdapin & 0xffffff00);
	gpiox_scl=(uint32_t)(gpio_sclpin & 0xffffff00);
	/*SDA enable*/
	if(gpiox_sda==GPIOB){
	  rcu_periph_clock_enable(RCU_GPIOB);
	}else if(gpiox_sda==GPIOA){
	  rcu_periph_clock_enable(RCU_GPIOC);
	}else if(gpiox_sda==GPIOF){
		rcu_periph_clock_enable(RCU_GPIOF);
	}
	/*SCL enable*/
	if(gpiox_scl==GPIOB){
	  rcu_periph_clock_enable(RCU_GPIOB);
	}else if(gpiox_scl==GPIOA){
	  rcu_periph_clock_enable(RCU_GPIOA);
	}
}

/*!
    \brief      Master send data 7 and 10 address
    \param[in]  SendBuffer send array
		            DataNum send data num
    \param[out] none
    \retval     none
*/
void Master_SendData_address(uint8_t* SendBuffer,uint8_t DataNum,Param_Typedef *i2c_init)
{
 	uint8_t num;
	/*wait until I2C bus is idle*/
	while(i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_I2CBSY)){
	}
	/*send a start condition to I2C bus*/
	i2c_start_on_bus(i2c_init->Memory_address);//在I2C总线上产生一个开始信号
	/*wait until SBSEND bit is set  judge start whether send*/
  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_SBSEND)){
	}
	//I2C_STAT0(i2c_init->Memory_address);//read I2C_STAT0 to clear ADDSEND
	if(i2c_init->address_model==I2Cx_Address_7bit){
	  Send_7Prepare(i2c_init);
	}
	else if(i2c_init->address_model==I2Cx_Address_10bit){
	  Send_10Prepare(i2c_init);
	}
	/*wait until the transmit data buffer is empty */
  while(SET != i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_TBE)){
	}
	for(num=0;num<DataNum;num++){
	  i2c_data_transmit(i2c_init->Memory_address,SendBuffer[num]);
		while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_BTC)){
		}
	}
  /*send a stop condition to I2C bus*/
  i2c_stop_on_bus(i2c_init->Memory_address);//在总线上发送停止信号位
  /*wait until the stop condition is finished*/
  while(I2C_CTL0(i2c_init->Memory_address)&0x0200);//等待结束信号发送
  //printf("master send data success");
}

/*!
    \brief      Master receive data
    \param[in]  ReceiveBuffer receive data array
		            DataNum receive data num
                address  slaver address
    \param[out] none
    \retval     none
*/
void Master_ReceiveData(uint8_t* ReceiveBuffer,uint8_t DataNum,Param_Typedef *i2c_init)
{
	/*wait until I2C bus is idle*/
	while(i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_I2CBSY));
	/*send a start condition to I2C bus*/
	i2c_start_on_bus(i2c_init->Memory_address);//在I2C总线上产生一个开始信号
	/*wait until SBSEND bit is set  judge start whether send*/
  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_SBSEND));
	if(i2c_init->address==Send_7Address){
	 Receive_7Prepare(i2c_init);
	}
	else if(i2c_init->address==Send_10Address){
	 Receive_10Prepare(i2c_init);
	}
	if(DataNum==1){
	 /*disable acknowledge*/
	 i2c_ack_config(i2c_init->Memory_address,I2C_ACK_DISABLE);//选择是否发送应答信号
	 /*send a stop condition to I2C bus*/
     i2c_stop_on_bus(i2c_init->Memory_address);//在总线上发送停止信号位
	 /*I2C_DATA is not empty*/
	  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_RBNE));
	  *ReceiveBuffer=i2c_data_receive(i2c_init->Memory_address);//read data from I2C_DATA
  }
	 while(DataNum){
      if(DataNum==2){
          while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_RBNE));
         *ReceiveBuffer=i2c_data_receive(i2c_init->Memory_address);//read data from I2C_DATA
		  DataNum-=1;
          ReceiveBuffer++;
		  /*disable acknowledge*/
	      i2c_ack_config(i2c_init->Memory_address,I2C_ACK_DISABLE);//选择是否发送应答信号
	      /*send a stop condition to I2C bus*/
        i2c_stop_on_bus(i2c_init->Memory_address);//在总线上发送停止信号位
	   }
		 /*I2C_DATA is not empty*/
	    while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_RBNE));
     *ReceiveBuffer=i2c_data_receive(i2c_init->Memory_address);//read data from I2C_DATA
     DataNum-=1;
     ReceiveBuffer++;
   }
  /*wait until the stop condition is finished*/
  while(I2C_CTL0(i2c_init->Memory_address)&0x0200);//判断stop结束位已经发送
  /*enable acknowledge*/
  i2c_ack_config(i2c_init->Memory_address,I2C_ACK_ENABLE);//软件发送应答信号使能
  i2c_ackpos_config(i2c_init->Memory_address,I2C_ACKPOS_CURRENT);//ACKEN位决定对当前正在接收的字节是否发送ACK/NACK；PECTRANS位表明PEC 是否处于移位寄存器中
	//printf("master receive data success");
}

/*!
    \brief      Master send 7 address prepare
    \param[in]  none
    \param[out] none
    \retval     none
*/
void Send_7Prepare(Param_Typedef *i2c_init)
{
 /*send slave address to I2C bus*/
 i2c_master_addressing(i2c_init->Memory_address,i2c_init->address,I2C_TRANSMITTER);//发送从机地址+写、清除SBSEND位、I2C设备发送方
 /*wait until ADDSEND bit is set*/
 while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_ADDSEND)){
 }
 /*read I2C_STAT0 and then read I2C_STAT1 to clear ADDSEND*/
 i2c_flag_clear(i2c_init->Memory_address,I2C_FLAG_ADDSEND);//清除ADDSEND位
}

/*!
    \brief      Master receive 7 address prepare
    \param[in]  none
    \param[out] none
    \retval     none
*/
void Receive_7Prepare(Param_Typedef *i2c_init)
{
 /*send slave address to I2C bus */
 i2c_master_addressing(i2c_init->Memory_address,i2c_init->address,I2C_RECEIVER);//发送从机地址+写、清除SBSEND位、I2C设备发送方
 /* wait until ADDSEND bit is set */
 while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_ADDSEND)){
 }
 /*read I2C_STAT0 and then read I2C_STAT1 to clear ADDSEND*/
 i2c_flag_clear(i2c_init->Memory_address,I2C_FLAG_ADDSEND);//清除ADDSEND位
}

/*!
    \brief      Master send 10 address prepare
    \param[in]  none
    \param[out] none
    \retval     none
*/
void Send_10Prepare(Param_Typedef *i2c_init)
{
  uint32_t adrH10,adrL10;
  adrH10=(((i2c_init->address & 0x300)>>7)|0xf0);//10位地址头(高2位)
  adrL10=i2c_init->address & 0xff;//10位地址(低8位)
  /*send slave  address adr10 to I2C bus */
  i2c_master_addressing(i2c_init->Memory_address,(uint8_t)adrH10, I2C_TRANSMITTER);
  /* wait until ADDSEND bit is set */
  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_ADD10SEND));
  i2c_data_transmit(i2c_init->Memory_address,adrL10);
  /*wait until ADDSEND bit is set*/
  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_ADDSEND));
   /*read I2C_STAT0 and then read I2C_STAT1 to clear ADDSEND*/
  i2c_flag_clear(i2c_init->Memory_address,I2C_FLAG_ADDSEND);//清除ADDSEND位
}

/*!
    \brief      Master receive 10 address prepare
    \param[in]  none
    \param[out] none
    \retval     none
*/
void Receive_10Prepare(Param_Typedef *i2c_init)
{
    uint32_t adrH10,adrL10;
    adrH10=(((i2c_init->address & 0x300)>>7)|0xf0);//10位地址头(高2位)
	adrL10=i2c_init->address & 0xff;//10位地址(低8位)
	/*send slave address to I2C bus*/
  i2c_master_addressing(i2c_init->Memory_address,(uint8_t)adrH10, I2C_TRANSMITTER);//发送从机10地址头+写、清除SBSEND位、I2C设备发送方
	/*wait until ADDSEND bit is set*/
  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_ADD10SEND));
	i2c_data_transmit(i2c_init->Memory_address,adrL10);
	/* wait until ADDSEND bit is set */
  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_ADDSEND));
	/*read I2C_STAT0 and then read I2C_STAT1 to clear ADDSEND*/
  i2c_flag_clear(i2c_init->Memory_address,I2C_FLAG_ADDSEND);//清除ADDSEND位
  /*send a start condition to I2C bus*/
	i2c_start_on_bus(i2c_init->Memory_address);//在I2C总线上产生一个开始信号
	/*wait until SBSEND bit is set  judge start whether send*/
  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_SBSEND));
	i2c_master_addressing(i2c_init->Memory_address,(uint8_t)adrH10,I2C_RECEIVER);
	  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_ADDSEND));//等待ADDSEND位置1 硬件置1
	/*read I2C_STAT0 and then read I2C_STAT1 to clear ADDSEND*/
  i2c_flag_clear(i2c_init->Memory_address,I2C_FLAG_ADDSEND);//清除ADDSEND位
}

/* retarget the C library printf function to the USART */
int fputc(int ch, FILE *f)
{
    usart_data_transmit(EVAL_COM, (uint8_t)ch);
    while(RESET == usart_flag_get(EVAL_COM, USART_FLAG_TBE));
    return ch;
}

/*!
    \brief      this function handles SysTick exception
    \param[in]  none
    \param[out] none
    \retval     none
*/
void SysTick_Handler(void)
{
    delay_decrement();
}

上述程序实现了主机发送和接收，速率100k/400k/1M，发送从机地址10bit、7bit，程序方便移植，只需将对应的.c和.h添加到工程中即可。当I2C的通信速率为1M时，需配置I2C模块所挂载的pclk时钟为3的整数倍或者25的整数倍，否则主机的SCL实际的时钟会有一定的误差，大于或者小于1M，大于1M可能导致通信失败（GD mcu官方手册有提到）。I2C总线空闲时，默认为高电平，因为GPIO口内部自带的上拉驱动能力不够，配置为开漏输出，需外接上拉电阻，GPIO的输出速率要选择最大（代码中选择的是50M)增加GPIO口输出能力，否则通过示波器查看发现SCL时钟波形不是正规的波形，也可能造成通信失败。不同GPIO口输出速率下，SCL时钟输出波形如下图所示。

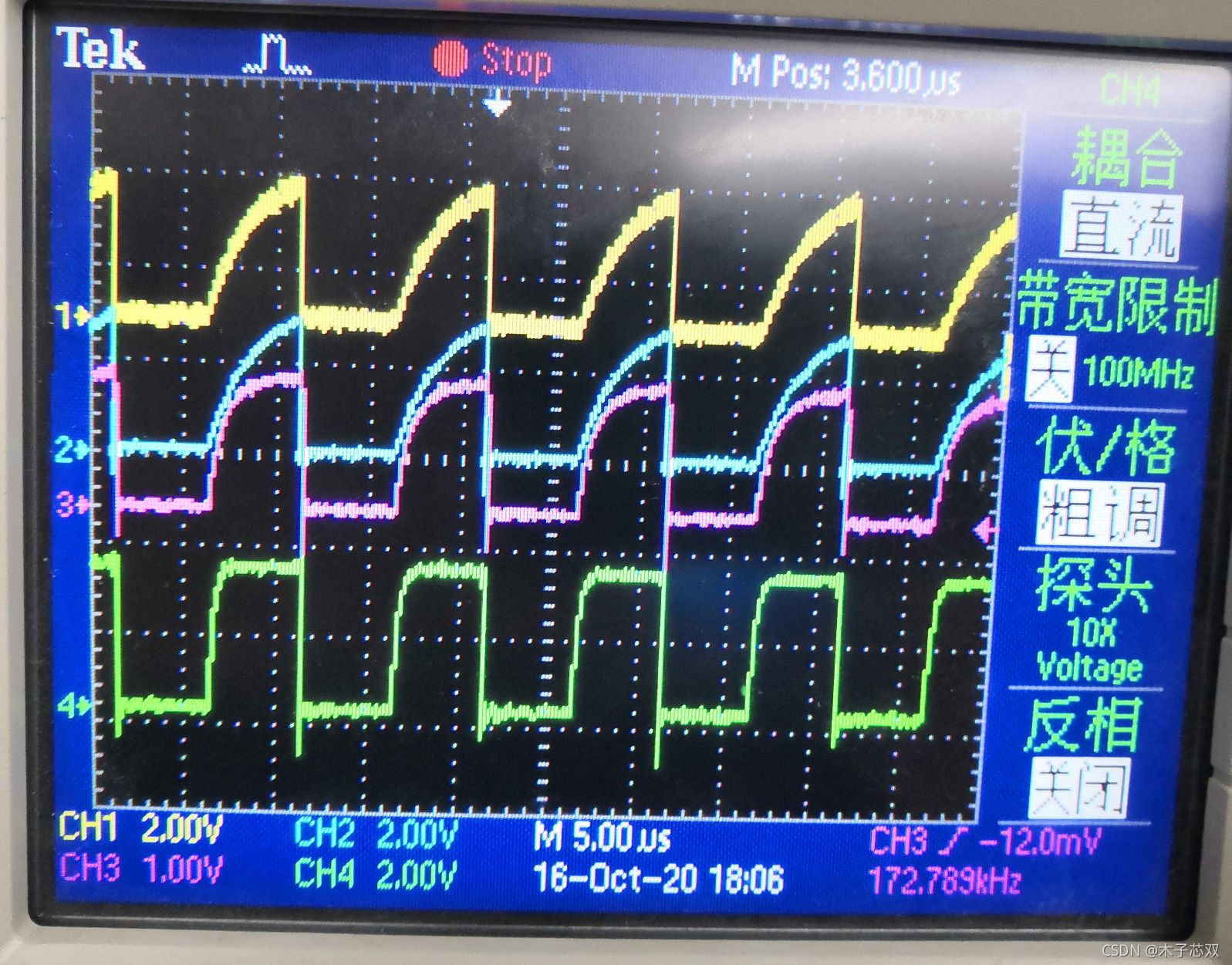

上图为上到下GPIO口输出速率依次增大SCL输出波形图
1.4 从机发送和接收（速率100k\400k\1M，地址10bit or 7bit)
I2C的从机的通信时钟由主机提供，故不需要配置时钟，I2C初始化后默认为从机模式，发送start信号后，由从机模式转换为主机模式。

#include "gd32f3x0.h"
#include <stdio.h>
#include "gd32f350r_eval.h"
#include "main.h"
#include "systick.h"
#define I2C0_Measure
//#define I2C1_Measure
#define BufferNum 20
uint8_t write_buffer[BufferNum]={0};//send data buffer
uint8_t receive_buffer[BufferNum]={0};//receive data buffer
Param_Typedef I2Cx_Param;

/*define I2Cx Param struct array*/
static Param_Typedef Para_Aarry[]=
{
	/*I2C0 param array*/
	{I2C0,I2C0_SDA_GPIOx2,I2C0_SCL_GPIOy2,RCU_I2C0,standard_speed,I2Cx_Address_7bit,Send_7Address,Slaver_7Address},
	{I2C0,I2C0_SDA_GPIOx2,I2C0_SCL_GPIOy2,RCU_I2C0,standard_speed,I2Cx_Address_10bit,Send_10Address,Slaver_10Address},
	{I2C0,I2C0_SDA_GPIOx2,I2C0_SCL_GPIOy2,RCU_I2C0,High_speed,I2Cx_Address_7bit,Send_7Address,Slaver_7Address},
	{I2C0,I2C0_SDA_GPIOx2,I2C0_SCL_GPIOy2,RCU_I2C0,High_speed,I2Cx_Address_10bit,Send_10Address,Slaver_10Address},
	{I2C0,I2C0_SDA_GPIOx2,I2C0_SCL_GPIOy2,RCU_I2C0,More_HighSpeed,I2Cx_Address_7bit,Send_7Address,Slaver_7Address},
	/*I2C1 param array*/
	{I2C1,I2C1_SDA_GPIOx5,I2C1_SCL_GPIOy5,RCU_I2C1,standard_speed,I2Cx_Address_7bit,Send_7Address,Slaver_7Address},
	{I2C1,I2C1_SDA_GPIOx5,I2C1_SCL_GPIOy5,RCU_I2C1,standard_speed,I2Cx_Address_10bit,Send_10Address,Slaver_10Address},
	{I2C1,I2C1_SDA_GPIOx5,I2C1_SCL_GPIOy5,RCU_I2C1,High_speed,I2Cx_Address_7bit,Send_7Address,Slaver_7Address},
	{I2C1,I2C1_SDA_GPIOx5,I2C1_SCL_GPIOy5,RCU_I2C1,High_speed,I2Cx_Address_10bit,Send_10Address,Slaver_10Address},
	{I2C1,I2C1_SDA_GPIOx5,I2C1_SCL_GPIOy5,RCU_I2C1,More_HighSpeed,I2Cx_Address_7bit,Send_7Address,Slaver_7Address},
};

/*testing sequence enum*/
typedef enum
{
	/*Measure I2C0*/
	I2C0_Seven_Address_standard=0,
	I2C0_Ten_Address_standard,
	I2C0_Seven_Address_high,
	I2C0_Ten_Address_high,
	I2C0_Seven_Address_more_high,
	/*Measure I2C1*/
	I2C1_Seven_Address_standard,
	I2C1_Ten_Address_standard,
	I2C1_Seven_Address_high,
	I2C1_Ten_Address_high,
	I2C1_Seven_Address_more_high
}Test_Sequence_Enum;
/*Configure Param of I2Cx Send data*/
void Configure_I2CX_Send(Test_Sequence_Enum measure_sequence);
/*Configure Param of I2Cx receive data*/
void Configure_I2CX_Receive(Test_Sequence_Enum measure_sequence);
/*I2Cx param init*/
void Param_Init(Param_Typedef* i2c_param,Param_Typedef* Param_Array,Test_Sequence_Enum measure_sequence);
/*!
    \brief      main function
    \param[in]  none
    \param[out] none
    \retval     none
*/
int main(void)
{
	 uint8_t num=0;
	 for(num=0;num<BufferNum;num++){
		 write_buffer[num]=num;
	 }
   //printf("I2C slaver measuring\n");
	 #ifdef I2C0_Measure
	 /*Test Sequence I2C0 receive*/
	 Configure_I2CX_Receive(I2C0_Seven_Address_standard);
	 Configure_I2CX_Receive(I2C0_Ten_Address_standard);
	 Configure_I2CX_Receive(I2C0_Seven_Address_high);
	 Configure_I2CX_Receive(I2C0_Ten_Address_high);
	 Configure_I2CX_Receive(I2C0_Seven_Address_more_high);
	 /*Test Sequence I2C0 send*/
	 Configure_I2CX_Send(I2C0_Seven_Address_standard);
	 Configure_I2CX_Send(I2C0_Ten_Address_standard);
	 Configure_I2CX_Send(I2C0_Seven_Address_high);
	 Configure_I2CX_Send(I2C0_Ten_Address_high);
	 Configure_I2CX_Send(I2C0_Seven_Address_more_high);
	 #elif defined I2C1_Measure
	 /*Test Sequence I2C1 receive*/
	 Configure_I2CX_Receive(I2C1_Seven_Address_standard);
	 Configure_I2CX_Receive(I2C1_Ten_Address_standard);
	 Configure_I2CX_Receive(I2C1_Seven_Address_high);
	 Configure_I2CX_Receive(I2C1_Ten_Address_high);
	 Configure_I2CX_Receive(I2C1_Seven_Address_more_high);
	 /*Test Sequence I2C1 send*/
	 Configure_I2CX_Send(I2C1_Seven_Address_standard);
	 Configure_I2CX_Send(I2C1_Ten_Address_standard);
	 Configure_I2CX_Send(I2C1_Seven_Address_high);
	 Configure_I2CX_Send(I2C1_Ten_Address_high);
	 Configure_I2CX_Send(I2C1_Seven_Address_more_high);
	 #endif
   while(1){

   }
}

/*!
    \brief      Configure Param of I2Cx I2Cx Send data
    \param[in]  Test_Sequence_Enum measure_sequence //test sequence
    \param[out] none
    \retval     none
*/
void Configure_I2CX_Send(Test_Sequence_Enum measure_sequence)
{
	switch(measure_sequence)
	{
		case I2C0_Seven_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Seven_Address_standard);
      I2Cx_Init(&I2Cx_Param);
      Slaver_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0 Seven Address standard send success\n");
	  break;
		case I2C0_Ten_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Ten_Address_standard);
      I2Cx_Init(&I2Cx_Param);
      Slaver_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
      printf("I2C0_Ten_Address_standard send success\n");
	  break;
		case I2C0_Seven_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Seven_Address_high);
		  I2Cx_Init(&I2Cx_Param);
      Slaver_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
      printf("I2C0_Seven_Address_high send success\n");
	  break;
		case I2C0_Ten_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Ten_Address_high);
		  I2Cx_Init(&I2Cx_Param);
      Slaver_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Ten_Address_high send success\n");
	  break;
		case I2C0_Seven_Address_more_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Seven_Address_more_high);
		  I2Cx_Init(&I2Cx_Param);
      Slaver_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Seven_Address_more_high send success\n");
	  break;
		case I2C1_Seven_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Seven_Address_standard);
      I2Cx_Init(&I2Cx_Param);
      Slaver_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1 Seven Address standard send success\n");
	  break;
		case I2C1_Ten_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Ten_Address_standard);
      I2Cx_Init(&I2Cx_Param);
      Slaver_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Ten_Address_standard send success\n");
	  break;
		case I2C1_Seven_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Seven_Address_high);
		  I2Cx_Init(&I2Cx_Param);
      Slaver_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Seven_Address_high send success\n");
	  break;
		case I2C1_Ten_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Ten_Address_high);
		  I2Cx_Init(&I2Cx_Param);
      Slaver_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Ten_Address_high send success\n");
	  break;
		case I2C1_Seven_Address_more_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Seven_Address_more_high);
		  I2Cx_Init(&I2Cx_Param);
      Slaver_SendData_address(write_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Seven_Address_more_high send success\n");
	  break;
		default:
		break;
	}
}

/*!
    \brief      Configure Param of receive data
    \param[in]  Test_Sequence_Enum measure_sequence //test sequence
    \param[out] none
    \retval     none
*/
void Configure_I2CX_Receive(Test_Sequence_Enum measure_sequence)
{
 	switch(measure_sequence)
	{
		case I2C0_Seven_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Seven_Address_standard);
      I2Cx_Init(&I2Cx_Param);
      Slaver_ReceiveData_address(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Seven_Address_standard receive data success!!\n");
	  break;
		case I2C0_Ten_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Ten_Address_standard);
      I2Cx_Init(&I2Cx_Param);
      Slaver_ReceiveData_address(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Ten_Address_standard receive data success!!\n");
	  break;
		case I2C0_Seven_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Seven_Address_high);
		  I2Cx_Init(&I2Cx_Param);
      Slaver_ReceiveData_address(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Seven_Address_high receive data success!!\n");
	  break;
		case I2C0_Ten_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Ten_Address_high);
		  I2Cx_Init(&I2Cx_Param);
      Slaver_ReceiveData_address(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Ten_Address_high receive data success!!\n");
	  break;
		case I2C0_Seven_Address_more_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C0_Seven_Address_more_high);
		  I2Cx_Init(&I2Cx_Param);
      Slaver_ReceiveData_address(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C0_Ten_Address_high receive data success!!\n");
	  break;
		case I2C1_Seven_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Seven_Address_standard);
      I2Cx_Init(&I2Cx_Param);
      Slaver_ReceiveData_address(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Seven_Address_standard receive data success!!\n");
	  break;
		case I2C1_Ten_Address_standard:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Ten_Address_standard);
      I2Cx_Init(&I2Cx_Param);
      Slaver_ReceiveData_address(receive_buffer,BufferNum,&I2Cx_Param);
	    printf("I2C1_Ten_Address_standard receive data success!!\n");
	  break;
		case I2C1_Seven_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Seven_Address_high);
		  I2Cx_Init(&I2Cx_Param);
      Slaver_ReceiveData_address(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Seven_Address_high receive data success!!\n");
	  break;
		case I2C1_Ten_Address_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Ten_Address_high);
		  I2Cx_Init(&I2Cx_Param);
      Slaver_ReceiveData_address(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Ten_Address_high receive data success!!\n");
	  break;
		case I2C1_Seven_Address_more_high:
		  Param_Init(&I2Cx_Param,Para_Aarry,I2C1_Seven_Address_more_high);
		  I2Cx_Init(&I2Cx_Param);
      Slaver_ReceiveData_address(receive_buffer,BufferNum,&I2Cx_Param);
		  printf("I2C1_Ten_Address_high receive data success!!\n");
	  break;
		default:
		break;
	}
}

/*!
    \brief      Configure Param of I2Cx receive data
    \param[in]  Test_Sequence_Enum measure_sequence //test sequence
    \param[out] none
    \retval     none
*/
void Param_Init(Param_Typedef* i2c_param,Param_Typedef* Param_Array,Test_Sequence_Enum measure_sequence)
{
   i2c_param->Memory_address=Param_Array[measure_sequence].Memory_address;
	 i2c_param->gpio_sclpin=Param_Array[measure_sequence].gpio_sclpin;
	 i2c_param->gpio_sdapin=Param_Array[measure_sequence].gpio_sdapin;
	 i2c_param->address=Param_Array[measure_sequence].address;
	 i2c_param->address_model=Param_Array[measure_sequence].address_model;
	 i2c_param->I2Cx_Periph=Param_Array[measure_sequence].I2Cx_Periph;
	 i2c_param->I2c_speed=Param_Array[measure_sequence].I2c_speed;
	 i2c_param->slaver_address=Param_Array[measure_sequence].slaver_address;
}

/*!
    \brief      I2C init
    \param[in]  I2Cx_PinSDA_Enum SDA pin
		            I2Cx_PinSCL_Enum SCL pin
								rcu_periph_enum  I2C periph
		            I2Cx_Speed_enum check clock frequence
								Address_Model_Enum 7 or 10 address check
								Slaver_Address_Enum 7 or 10 address
    \param[out] none
    \retval     none
*/
void I2Cx_Init(Param_Typedef *i2c_init)
{
	uint32_t gpiox_sda,pinx_sda,afx_sda,gpiox_scl,pinx_scl,afx_scl;
	I2Cx_Pin_ClockEnable(i2c_init->gpio_sdapin,i2c_init->gpio_sclpin);//SCL and SDA GPIO enable
	/*GPIO sda configure*/
	gpiox_sda=(uint32_t)((i2c_init->gpio_sdapin)& 0xffffff00);
	pinx_sda=(0x01<<((i2c_init->gpio_sdapin & 0xf0) >> 4));
	afx_sda=AF((i2c_init->gpio_sdapin & 0x0f));
	I2Cx_Pin_ClockEnable(i2c_init->gpio_sdapin,i2c_init->gpio_sclpin);
	gpio_af_set(gpiox_sda, afx_sda, pinx_sda);//IO口引脚复用功能
	gpio_mode_set(gpiox_sda, GPIO_MODE_AF, GPIO_PUPD_PULLUP,pinx_sda);//GPIO口、备用功能、端口上拉模式、具体引脚
	gpio_output_options_set(gpiox_sda, GPIO_OTYPE_OD, GPIO_OSPEED_50MHZ,pinx_sda);//GPIO口、推挽输出及开漏输出、输出速率、具体引脚
	/*GPIO scl configure*/
	gpiox_scl=(uint32_t)((i2c_init->gpio_sclpin)& 0xffffff00);
	pinx_scl=(0x01<<((i2c_init->gpio_sclpin & 0xf0) >> 4));
	afx_scl=AF((i2c_init->gpio_sclpin & 0x0f));
	gpio_af_set(gpiox_scl, afx_scl,pinx_scl);//IO口引脚复用功能
	gpio_mode_set(gpiox_scl, GPIO_MODE_AF, GPIO_PUPD_PULLUP,pinx_scl);//GPIO口、备用功能、端口上拉模式、具体引脚
	gpio_output_options_set(gpiox_scl, GPIO_OTYPE_OD, GPIO_OSPEED_50MHZ,pinx_scl);//GPIO口、推挽输出及开漏输出、输出速率、具体引脚
	/*--------------------------------I2C module initaial configure------------------------------------*/
	/*enable I2C clock*/
	rcu_periph_clock_enable(i2c_init->I2Cx_Periph);//使能I2C时钟
	/*configure I2C clock*/
  i2c_clock_config(i2c_init->Memory_address,i2c_init->I2c_speed,I2C_DTCY_2);//I2C的基地址、I2C数据传输速度、I2C的快速模式
	/*configure I2C address*/
  i2c_mode_addr_config(i2c_init->Memory_address,I2C_I2CMODE_ENABLE,i2c_init->address_model,i2c_init->slaver_address);//I2C基地址、I2C模式、7位地址模式、I2C从机地址
	/*enable I2C0*/
  i2c_enable(i2c_init->Memory_address);//I2C外设使能
  /*enable acknowledge*/
	i2c_ack_config(i2c_init->Memory_address,I2C_ACK_ENABLE);//选择是否发送应答信号
}

/*!
    \brief      I2C GPIO Clock enable
    \param[in]  I2Cx_PinSDA_Enum SDA pin
		            I2Cx_PinSCL_Enum SCL pin
    \param[out] none
    \retval     none
*/
void I2Cx_Pin_ClockEnable(I2Cx_PinSDA_Enum gpio_sdapin,I2Cx_PinSCL_Enum gpio_sclpin)
{
	uint32_t gpiox_sda,gpiox_scl;
	gpiox_sda=(uint32_t)(gpio_sdapin & 0xffffff00);
	gpiox_scl=(uint32_t)(gpio_sclpin & 0xffffff00);
	/*SDA enable*/
	if(gpiox_sda==GPIOB){
	  rcu_periph_clock_enable(RCU_GPIOB);
	}else if(gpiox_sda==GPIOA){
	  rcu_periph_clock_enable(RCU_GPIOC);
	}else if(gpiox_sda==GPIOF){
		rcu_periph_clock_enable(RCU_GPIOF);
	}
	/*SCL enable*/
	if(gpiox_scl==GPIOB){
	  rcu_periph_clock_enable(RCU_GPIOB);
	}else if(gpiox_scl==GPIOA){
	  rcu_periph_clock_enable(RCU_GPIOA);
	}
}

/*!
    \brief      Slaver receive data
    \param[in]  uint8_t* SendBuffer //receive buffer
		            uint8_t DataNum //receive data num
                Param_Typedef *i2c_init //define I2CX init param
    \param[out] none
    \retval     none
*/
void Slaver_ReceiveData_address(uint8_t* ReceiveBuffer,uint8_t DataNum,Param_Typedef *i2c_init)
{
	/*waiting I2C_FLAG_ADDSEND is set 1*/
	  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_ADDSEND));
  /*read I2C_STAT0 and then read I2C_STAT1 to clear ADDSEND*/
  i2c_flag_clear(i2c_init->Memory_address,I2C_FLAG_ADDSEND);//清除ADDSEND位
  while(DataNum){
		/*I2C_DATA is not empty*/
	  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_RBNE));
		*ReceiveBuffer=i2c_data_receive(i2c_init->Memory_address);//read data from I2C_DATA
		ReceiveBuffer+=1;
		DataNum-=1;
	}
	while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_STPDET));
	/*clear STPDET flag*/
	I2C_STAT0(i2c_init->Memory_address);
	I2C_CTL0(i2c_init->Memory_address)=0x0000;
	//printf("slaver receive data success!!\n");
}

/*!
    \brief      I2C slaver send buffer 7 and 10 address
    \param[in]  uint8_t* SendBuffer  //receive buffer
		            uint8_t DataNum      //receive data num
                Param_Typedef *i2c_init //define I2CX init param
    \param[out] none
    \retval     none
*/
void Slaver_SendData_address(uint8_t* SendBuffer,uint8_t DataNum,Param_Typedef *i2c_init)
{
	uint8_t num;
	/*waiting I2C_FLAG_ADDSEND is set 1*/
	  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_ADDSEND));
  /*read I2C_STAT0 and then read I2C_STAT1 to clear ADDSEND*/
  i2c_flag_clear(i2c_init->Memory_address,I2C_FLAG_ADDSEND);//清除ADDSEND位
	if(i2c_init->address_model==I2Cx_Address_10bit){
	  /*wait until ADDSEND bit is set*/
    while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_ADDSEND));
		/*read I2C_STAT0 and then read I2C_STAT1 to clear ADDSEND*/
    i2c_flag_clear(i2c_init->Memory_address,I2C_FLAG_ADDSEND);//清除ADDSEND位
	}
	/*wait until the transmit data buffer is empty*/
  while(SET != i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_TBE));
	//send one byte to I2C BUS
	i2c_data_transmit(i2c_init->Memory_address,*SendBuffer);
	SendBuffer+=1;
	while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_BTC));
	//send two byte to I2C BUS
	i2c_data_transmit(i2c_init->Memory_address,*SendBuffer);
	SendBuffer+=1;
	for(num=0;num<(DataNum-2);num++){
	  /*I2C_DATA is not empty*/
	  while(!i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_BTC));
		i2c_data_transmit(i2c_init->Memory_address,*SendBuffer);
    SendBuffer+=1;
	}
	/*wait until the transmit data buffer is empty*/
  while(SET != i2c_flag_get(i2c_init->Memory_address,I2C_FLAG_AERR));
	//clear I2C AERR flag
	i2c_flag_clear(i2c_init->Memory_address,I2C_FLAG_AERR);
}

/* retarget the C library printf function to the USART */
int fputc(int ch, FILE *f)
{
    usart_data_transmit(EVAL_COM, (uint8_t)ch);
    while(RESET == usart_flag_get(EVAL_COM, USART_FLAG_TBE));
    return ch;
}

/*!
    \brief      this function handles SysTick exception
    \param[in]  none
    \param[out] none
    \retval     none
*/
void SysTick_Handler(void)
{
    delay_decrement();
}

以上从机接收和发送代码和主机一一对应，两者可作为测试使用。I2C从机支持双地址、10bit地址和广播地址模式（0x00)。双地址模式：I2C从机设备可对两个地址响应。广播地址模式：所有I2C从机设备默认的响应地址。

//双地址模式
 i2c_dualaddr_enable(I2C0,0x44);
//广播地址
 i2c_slave_response_to_gcall_config(I2C0, I2C_GCEN_ENABLE);

1.5 主机中断接收发送程序

//主机中断发送
int main(void)
{
	 uint8_t num=0;
   /*configure EVAL_COM1*/
   gd_eval_com_init(EVAL_COM);
	 systick_config();
	 for(num=0;num<BufferNum;num++){
		 write_buffer[num]=num;
	 }
	 printf("I2C master send by interrupt measuring!!!");
	 Param_Init(&I2Cx_Param,Para_Aarry,I2C_Measuring);
	 I2Cx_Init(&I2Cx_Param);
	 nvic_irq_enable(I2Cx_EV_IRQn,0,0);/*!< I2C0 event interrupt priority and enable*/
	 nvic_irq_enable(I2Cx_ER_IRQn,0,1);/*!< I2C0 erro  interrupt priority and enable*/
	 i2c_interrupt_enable(I2C_x,I2C_INT_ERR);//error interrupt enable
	 i2c_interrupt_enable(I2C_x,I2C_INT_EV);//event interrupt enable
	 i2c_interrupt_enable(I2C_x,I2C_INT_BUF);//buffer interrupt enable
   delay_1ms(3000);
    /*wait until I2C bus is idle*/
	   while(i2c_flag_get(I2C_x,I2C_FLAG_I2CBSY));
	 /*send a start condition to I2C bus*/
	i2c_start_on_bus(I2C_x);//在I2C总线上产生一个开始信号
	  while(!Send_InterruptFlag);
	/*wait until the stop condition is finished*/
  while(I2C_CTL0(I2C_x)&0x0200);//等待结束信号发送
  printf("I2C0 master interrupt send success!!");
   while(1){

   }
}
/*!
    \brief      this function handles I2C0 Event
    \param[in]  none
    \param[out] none
    \retval     none
*/
void I2C0_EV_IRQHandler(void)
{
	if(i2c_flag_get(I2C_x,I2C_FLAG_SBSEND)){
		 I2C_STAT0(I2C_x);
		 /*send slave address to I2C bus */
     i2c_master_addressing(I2C_x,0x42,I2C_TRANSMITTER);//发送从机地址+写、清除SBSEND位、I2C设备发送方
	}else if(i2c_flag_get(I2C_x,I2C_FLAG_ADDSEND)){
	   i2c_flag_clear(I2C_x,I2C_FLAG_ADDSEND);//清除ADDSEND位
	}else if(i2c_flag_get(I2C_x,I2C_FLAG_TBE)){
		if(Data<20){
	     i2c_data_transmit(I2C_x,write_buffer[Data]);
		   Data+=1;
		}else{
			 i2c_stop_on_bus(I2C_x);//在总线上发送停止信号位
       Send_InterruptFlag=1;
       i2c_interrupt_disable(I2C_x,I2C_INT_ERR);//error interrupt enable
	     i2c_interrupt_disable(I2C_x,I2C_INT_EV);//event interrupt enable
	     i2c_interrupt_disable(I2C_x,I2C_INT_BUF);//buffer interrupt enable
		}
	}
}

/*!
    \brief      this function handles I2C0 Error
    \param[in]  none
    \param[out] none
    \retval     none
*/
void I2C0_ER_IRQHandler(void)
{
	//SMBus Alert status
	if(i2c_flag_get(I2C_x,I2C_FLAG_SMBALT)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_SMBALT);
	}
	//timeout signal in SMBus mode
	if(i2c_flag_get(I2C_x,I2C_FLAG_SMBTO)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_SMBTO);
	}
	//PEC error when receiving data
	if(i2c_flag_get(I2C_x,I2C_FLAG_PECERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_PECERR);
	}
	//over-run or under-run situation occurs in slave mode
	if(i2c_flag_get(I2C_x,I2C_FLAG_OUERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_OUERR);
	}
	//acknowledge error
	if(i2c_flag_get(I2C_x,I2C_FLAG_AERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_AERR);
	}
	//arbitration lost in master mode
	if(i2c_flag_get(I2C_x,I2C_FLAG_LOSTARB)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_LOSTARB);
	}
	//a bus error
	if(i2c_flag_get(I2C_x,I2C_FLAG_BERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_BERR);
	}
}
//主机接收中断
/*!
    \brief      this function handles I2C0 Event
    \param[in]  none
    \param[out] none
    \retval     none
*/
void I2C0_EV_IRQHandler(void)
{
	if(i2c_flag_get(I2C_x,I2C_FLAG_SBSEND)){
		 I2C_STAT0(I2C_x);
		 /*send slave address to I2C bus */
     i2c_master_addressing(I2C_x,0x42,I2C_RECEIVER);//发送从机地址+写、清除SBSEND位、I2C设备发送方
	}
	if(i2c_flag_get(I2C_x,I2C_FLAG_ADDSEND)){
	   i2c_flag_clear(I2C_x,I2C_FLAG_ADDSEND);//清除ADDSEND位
	}
	if(i2c_flag_get(I2C_x,I2C_FLAG_RBNE)){
		 if(Data==18){
			 receive_buffer[Data]=i2c_data_receive(I2C_x);
			 Data+=1;
			 /*disable acknowledge*/
	     i2c_ack_config(I2C_x,I2C_ACK_DISABLE);//选择是否发送应答信号
			 i2c_stop_on_bus(I2C_x);//在总线上发送停止信号位
		 }else if(Data<18){
	     receive_buffer[Data]=i2c_data_receive(I2C_x);
		   Data+=1;
		 }else if(Data==19)
		 {
		   receive_buffer[Data]=i2c_data_receive(I2C_x);
       Receive_InterruptFlag=1;
       i2c_interrupt_disable(I2C_x,I2C_INT_ERR);//error interrupt enable
	     i2c_interrupt_disable(I2C_x,I2C_INT_EV);//event interrupt enable
	     i2c_interrupt_disable(I2C_x,I2C_INT_BUF);//buffer interrupt enable
		 }
	}
}

/*!
    \brief      this function handles I2C0 Error
    \param[in]  none
    \param[out] none
    \retval     none
*/
void I2C0_ER_IRQHandle(void)
{
	//SMBus Alert status
	if(i2c_flag_get(I2C_x,I2C_FLAG_SMBALT)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_SMBALT);
	}
	//timeout signal in SMBus mode
	if(i2c_flag_get(I2C_x,I2C_FLAG_SMBTO)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_SMBTO);
	}
	//PEC error when receiving data
	if(i2c_flag_get(I2C_x,I2C_FLAG_PECERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_PECERR);
	}
	//over-run or under-run situation occurs in slave mode
	if(i2c_flag_get(I2C_x,I2C_FLAG_OUERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_OUERR);
	}
	//acknowledge error
	if(i2c_flag_get(I2C_x,I2C_FLAG_AERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_AERR);
	}
	//arbitration lost in master mode
	if(i2c_flag_get(I2C_x,I2C_FLAG_LOSTARB)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_LOSTARB);
	}
	//a bus error
	if(i2c_flag_get(I2C_x,I2C_FLAG_BERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_BERR);
	}
}

如果项目程序有多个中断，尽可能将I2C主机接收的中断优先级设为最高，否则会存在主机多接收一个数据，原因：当主机接收一个数据时，RBNE置1，在未读取DATA寄存器中的数据时，被更高的优先级任务打断，I2C总线上又接收一个数据到移位寄存器，此时BTC标志位置1。当中断恢复时，主机读取DATA寄存器中的数据。因为此时BTC已经置1，BTC清除的条件是需先读state状态寄存器，再读DATA寄存器，此时读DATA寄存器，无法清除BTC，使移位寄存器中的数据无法移到数据寄存器，I2C总线SCL被拉低，已阻止接收下一个数据，此时I2C还认为接收两个数据，会再次进中断读取DATA寄存器，BTC清零，移位寄存器数据移到Data寄存器，再次读取下一个数据，会造成接收的数据中有两个前后重复的数据。
1.6 从机中断接收和发送

//从机中断接收
/*!
    \brief      this function handles I2C0 Event
    \param[in]  none
    \param[out] none
    \retval     none
*/
void I2C0_EV_IRQHandler(void)
{
	if(i2c_interrupt_flag_get(I2C_x,I2C_INT_FLAG_ADDSEND)){
		/*read I2C_STAT0 and then read I2C_STAT1 to clear ADDSEND*/
    i2c_flag_clear(I2C_x,I2C_FLAG_ADDSEND);//清除ADDSEND位
	}else if(i2c_interrupt_flag_get(I2C_x,I2C_INT_FLAG_TBE)){
		 if(Data<20){
       i2c_data_transmit(I2C_x,writer_buffer[Data]);
       Data+=1;
		 }else{
			 Send_InterruptFlag=1;
			 i2c_interrupt_disable(I2C_x,I2C_INT_ERR);
	     i2c_interrupt_disable(I2C_x,I2C_INT_EV);
	     i2c_interrupt_disable(I2C_x,I2C_INT_BUF);
		 }
	}
}

/*!
    \brief      this function handles I2C0 Error
    \param[in]  none
    \param[out] none
    \retval     none
*/
void I2C0_ER_IRQHandle(void)
{
	//SMBus Alert status
	if(i2c_flag_get(I2C_x,I2C_FLAG_SMBALT)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_SMBALT);
	}
	//timeout signal in SMBus mode
	if(i2c_flag_get(I2C_x,I2C_FLAG_SMBTO)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_SMBTO);
	}
	//PEC error when receiving data
	if(i2c_flag_get(I2C_x,I2C_FLAG_PECERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_PECERR);
	}
	//over-run or under-run situation occurs in slave mode
	if(i2c_flag_get(I2C_x,I2C_FLAG_OUERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_OUERR);
	}
	//acknowledge error
	if(i2c_flag_get(I2C_x,I2C_FLAG_AERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_AERR);
	}
	//arbitration lost in master mode
	if(i2c_flag_get(I2C_x,I2C_FLAG_LOSTARB)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_LOSTARB);
	}
	//a bus error
	if(i2c_flag_get(I2C_x,I2C_FLAG_BERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_BERR);
	}
}
//从机中断发送
/*!
    \brief      this function handles I2C0 Event
    \param[in]  none
    \param[out] none
    \retval     none
*/
void I2C0_EV_IRQHandler(void)
{
	if(i2c_interrupt_flag_get(I2C_x,I2C_INT_FLAG_ADDSEND)){
		/*read I2C_STAT0 and then read I2C_STAT1 to clear ADDSEND*/
    i2c_flag_clear(I2C_x,I2C_FLAG_ADDSEND);//清除ADDSEND位
	}else if(i2c_interrupt_flag_get(I2C_x,I2C_INT_FLAG_TBE)){
		 if(Data<20){
       i2c_data_transmit(I2C_x,writer_buffer[Data]);
       Data+=1;
		 }else{
			 Send_InterruptFlag=1;
			 i2c_interrupt_disable(I2C_x,I2C_INT_ERR);
	     i2c_interrupt_disable(I2C_x,I2C_INT_EV);
	     i2c_interrupt_disable(I2C_x,I2C_INT_BUF);
		 }
	}
}

/*!
    \brief      this function handles I2C0 Error
    \param[in]  none
    \param[out] none
    \retval     none
*/
void I2C0_ER_IRQHandle(void)
{
	//SMBus Alert status
	if(i2c_flag_get(I2C_x,I2C_FLAG_SMBALT)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_SMBALT);
	}
	//timeout signal in SMBus mode
	if(i2c_flag_get(I2C_x,I2C_FLAG_SMBTO)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_SMBTO);
	}
	//PEC error when receiving data
	if(i2c_flag_get(I2C_x,I2C_FLAG_PECERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_PECERR);
	}
	//over-run or under-run situation occurs in slave mode
	if(i2c_flag_get(I2C_x,I2C_FLAG_OUERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_OUERR);
	}
	//acknowledge error
	if(i2c_flag_get(I2C_x,I2C_FLAG_AERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_AERR);
	}
	//arbitration lost in master mode
	if(i2c_flag_get(I2C_x,I2C_FLAG_LOSTARB)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_LOSTARB);
	}
	//a bus error
	if(i2c_flag_get(I2C_x,I2C_FLAG_BERR)){
	  i2c_flag_clear(I2C_x,I2C_FLAG_BERR);
	}
}

主机发送每一个byte数据时，从机都需发送ACK信号，而从机发送数据时，当主机接收到最后一个字节的数据时，给从机发NACK信号，从机接收到NACK信号后，就知道主机要结束通信了。从机SCL拉低功能作用是：从机在接收数据时，由于需要处理其他事情，比如打印一些调试信息，可能没有及时读取DATA寄存器中的数据，这时从机会拉低SCL时钟线已阻止主机发送下一个字节数据，也就是再告诉主机“我正在忙啦！您稍等片刻”，I2C中对这个拉低时间没有具体要求，但是在SMBUS中，对SCL拉低的时间规定为25ms，如果25ms从机还在拉低SCL硬件就会强制发送stop信号结束此次通信（也就是说主机的忍耐是有限度的哈！！）。
这篇就先写这么多，I2C硬件的其他主要特性及代码实现在后面介绍。

【国产MCU系列】-GD32F470-内部集成电路总线接口（I2C）
视觉与物联智能
11-21 478
I2C总线是PHILIPS公司推出的一种双线式半双工串行总线，是具备多主机系统所需的总线裁决和高低速器件同步功能的性能串行总线。用于连接微控制器及外围设备。I2C总线只有两根双向信号线。一根是数据线SDA，另一根是时钟线SCL。
GD32F103 软件模拟I2C发送
05-30
GD32F103 软件模拟I2C发送
GD32硬件IIC+DMA程序
01-11
GD32硬件IIC+DMA程序，使用的IIC时序如下。 写寄存器操作为： START+ACK（从机的ACK信号）+IIC设备地址+（从机的ACK信号）+START+ACK（从机的ACK信号）+IIC写寄存器地址+ACK（从机的ACK信号）+IIC写数据（4Byte，每个数据后都有ACK）+STOP 读寄存器操作为： START+ACK（从机的ACK信号）+IIC设备地址+（从机的ACK信号）+START+ACK（从机的ACK信号）+IIC读寄存器地址+ACK（从机的ACK信号）+IIC读数据（4Byte，前n个数据后都有（主机发送的）ACK,最后1byte数据后如果发ACK，表示还有数据要读，如果最后1byte数据后为NACK，后面紧接着就是停止位）+STOP
【MCU开发中的通讯模块】
最新发布
SpringWJN的博客
03-19 768
MCU 开发中的通信模块涵盖有线（UART、SPI、I2C、CAN、USB、以太网）和无线（BLE、Wi-Fi、Zigbee、LoRa、RF、NFC）两大类。STM32 等 MCU 通常内置多种通信外设（如 UART、SPI、I2C），而无线通信多需外接模块（如 nRF52832、ESP8266）。选择通信模块时需根据距离、速率、功耗和成本综合考虑。在实际开发中，开发者需熟悉外设配置、协议栈实现和硬件连接，以确保通信稳定高效。
GD32-I2C
weixin_62702955的博客
08-14 1300
是两线式的串行总线、半双工、同一时间只可以单向通信。I2C（内部集成电路总线）模块提供了符合工业标准的两线串行制接口，可用于 MCU 和外部 I2C 设备的通讯。I2C 总线使用两条串行线：串行数据线SDA 和串行时钟线 SCL。
IIC（硬件实现）-GD32
小柚子的博客
07-09 3278
【代码】IIC（硬件实现）-GD32。
GD32硬件I2C外设详解
zdlzf的博客
10-31 2242
I2C总线是PHLIPS公司推出的一种双线式半双工串行总线，是具备多主机系统所需的总线裁决和高低速器件同步功能的高性能串行总线。用于连接微控器及外围设备。I2C总线只有两根双向信号线。一根是数据线SDA，另一根是时钟线SCL。通用的I2C总线，可以使各种设备的通信标准统一，对于厂家来说，使用成熟的方案可以缩短芯片设计周期、提高稳定性，对于应用者来说，使用通用的通信协议可以避免学习各种各样的自定义协议，降低了学习和应用的难度；
GD32 - 硬件IIC实现
originab的博客
07-24 754
0x820x72。
GD32F103 硬件I2C驱动SSD1306-OLED显示屏,PCF8563-RTC实时时钟,SHT30温湿度传器
06-02
GD32F103是一款基于ARM Cortex-M3内核的高性能通用MCU，它提供了丰富的外设接口，包括I2C，使得与各种外围设备的通信变得简单。 **GD32F103硬件I2C接口** GD32F103系列微控制器的I2C接口支持标准和快速模式，最高...
GD32F4XX硬件I2C高速读写数据
05-13
适用于GD32单片机硬件I2C通讯驱动。 GD32系列依托兆易创新(GigaDevice)先进的gFlash技术和量产经验， 打造出全新形态的MCU，为客户提供出众的功能和品质。 GD32F4系列属于GD32 MCU产品家族的增强型高性能产品系列。...
RT-thread+GD32F450+i2c
04-07
在本文中，我们将深入探讨如何在RT-thread操作系统上结合GD32F450系列微控制器（MCU）实现I2C通信。RT-thread是一个开源、实时、可扩展的嵌入式操作系统，广泛应用于物联网设备和智能硬件。GD32F450是兆易创新公司...
【GD32】08 - IIC（以SHT20为例）
m0_63235356的博客
06-27 1674
接下来是设置IIC通信的模式与地址，模式我们自然是选择I2C模式的，而地址可以选择7位或者是10位的（10位的参数截图没截上，因为卡在手册的下一页了），这个根据我们通信的模块的从机地址而定。今天来了解一下GD32中的硬件IIC，其实我个人是觉得软件IIC比较方便的，不过之前文章里用的都是软件IIC，今天就算是走出自己的舒适圈，我们来了解了解GD32中的硬件IIC。关于IIC以及本文中演示的SHT20，在之前的文章里都有，并且也不是本文的重点，因此这里就不介绍了，不了解且感兴趣的小伙伴可以去看看之前的文章。
GD32 I2C应用深度剖析：从原理到实战项目
Jiuri的博客
12-25 1025
所有连接到I2C总线上的设备，都共享这两根信号线，通过设备地址来区分彼此，就如同住在公寓里的住户，共用楼梯通道，但各有自家的门牌号码。若应答正常，逐字节发送数据，每发一字节都要检查应答，直至全部数据传输完毕，最后发出停止信号，结束此次“数据投递”。收到应答后，主机准备接收，每接收一字节，适时发出应答或非应答信号，依需求决定是否继续接收，全部接收完，发出停止信号，把数据“收入囊中”。代码清晰展现向EEPROM写入与读取数据的流程，从起始信号开启对话，到精准地址定位，再到数据的有序传输，完整实现数据的存与取。
GD32F103 硬件 IIC
qq_41328470的博客
10-05 1807
GD32F103 硬件 IIC
GD32/STM32开发中I2C的软实现
qq_43580381的博客
03-04 2094
I2C软实现
MCU开发之I2C通信
weixin_33849215的博客
08-02 245
　　程序状态字PSW是8位寄存器，用于存放程序运行的状态信息，PSW中各位状态通常是在指令执行的过程中自动形成的，但也可以由用户根据需要采用传送指令加以改变。各个标志位的意义如下： PSW.7（Cy）：进位标志位。 PSW.6（AC）：辅助进位标志位，又称为半进位标志位。 PSW.5（F0）：用户标志位。 PSW.4、PSW.3（RS1和 RS0）：寄存器组选择位。 PSW.2（OV）：溢出标志位...
GD32F103 硬件I2C驱动SSD1306-OLED显示屏,PCF8563-RTC实时时钟,SHT30温湿度传感器
qq_39164769的博客
06-02 759
GD32Fxx 硬件I2C 总线驱动OLED,RTC,SHT30
【GD32】从0开始学GD32单片机（8）—— I2C外设详解+主机从机发送和接收例程
热门推荐
JackieCoo的博客
09-25 1万+
介绍GD32的I2C外设，包含主机从机发送和接收例程
GD32硬件IIC
weixin_44563314的博客
08-22 7172
GD32E230硬件IIC的协议欢迎使用Markdown编辑器新的改变功能快捷键合理的创建标题，有助于目录的生成如何改变文本的样式插入链接与图片如何插入一段漂亮的代码片生成一个适合你的列表创建一个表格设定内容居中、居左、居右SmartyPants创建一个自定义列表如何创建一个注脚注释也是必不可少的KaTeX数学公式新的甘特图功能，丰富你的文章UML 图表FLowchart流程图导出与导入导出导入 欢迎使用Markdown编辑器 你好！ 这是你第一次使用 Markdown编辑器 所展示的欢迎页。如果你想学习如
评论 4
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
