【python/ctypes】windows下调用动态库dll

说在前面

• 环境：windows10
• python版本：Python 3.7.3 [MSC v.1916 64 bit (AMD64)] on win32
• visual studio版本：2017 community
• 其他：在此之前，尝试过使用boost来链接，但是boost库过大，并不是很方便。linux下的使用方法类似。

简单函数返回

• 下面的例子测试了int、char*的返回，例子比较简单，仅实现了返回。
• c++

  #include <iostream>

  void TestVoid()
  {
  	std::cout << "void test func!" << std::endl;

  	return;
  }

  int TestInteger()
  {
  	int a = 10;
  	std::cout << "integer return test func! " << a << std::endl;

  	return a;
  }

  char* TestString()
  {
  	char a[16] = "str a is a str!";
  	std::cout << "string return test func! " << a << std::endl;

  	return a;
  }

  int main()
  {
  	TestVoid();

  	TestInteger();

  	TestString();
  }

  extern "C" {
  	__declspec(dllexport) void PyTestVoid() {
  		TestVoid();
  	}

  	__declspec(dllexport) int PyTestInteger() {
  		return TestInteger();
  	}

  	__declspec(dllexport) char* PyTestString() {
  		return TestString();
  	}
  }

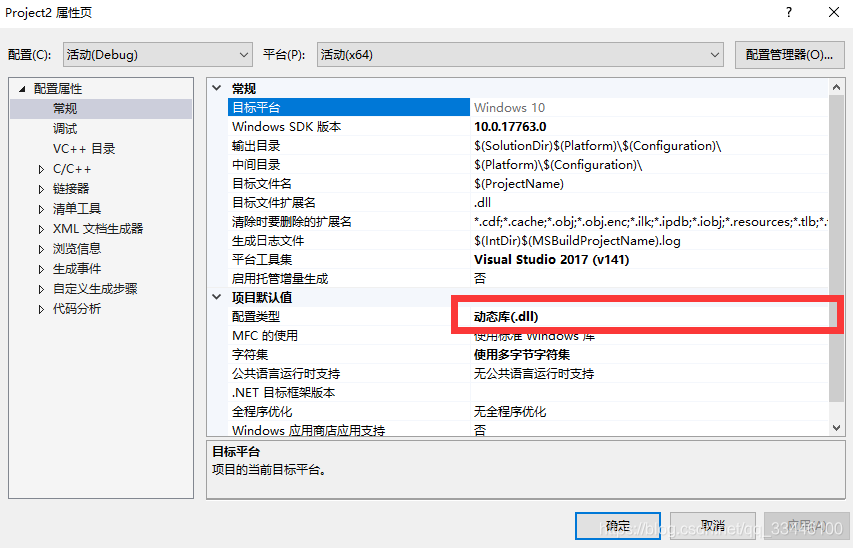

• 编译成动态库
  注意动态库的位版本与python位版本保持一致，例如python是64位，那么编译的动态库也需要64位，否则会报错。



• python代码
  ctypes无需安装，为内置库

  import ctypes
  # 找到编译的dll地址
  lib = ctypes.cdll.LoadLibrary('C:/path/to/Project2.dll')
  # PyTestInteger为c++代码中定义的函数名
  # 使用restype来确定返回值的类型
  # 如果不使用restype确定，函数即使有返回值也不会得到返回
  lib.PyTestInteger.restype = ctypes.c_int

  lib.PyTestString.restype = ctypes.c_char_p

  # 调用
  lib.PyTestVoid()
  # 调用
  a = lib.PyTestInteger()
  print('a =', a)
  # 调用
  b = lib.PyTestString()
  print('b =', b)


• 输出

  void test func!
  integer return test func! 10
  a = 10
  string return test func! str a is a str!
  b = b'str a is a str!'

  Process finished with exit code 0


简单参数

• c++代码

  void TestIntegerParam(int a, int b)
  {
  	std::cout << "integer param test! a = " << a << "b = " << b << std::endl;

  	return;
  }

  void TestStringParam(std::string a)
  {
  	std::cout << "string param test! a = " << a.c_str() << std::endl;

  	return;
  }

  extern "C" {
  	__declspec(dllexport) void PyTestIntegerParam(int a, int b) {
  		TestIntegerParam(a, b);
  	}

  	__declspec(dllexport) void PyTestStringParam(char* a) {
  		TestStringParam(a);
  	}
  }


• python代码

  import ctypes

  lib = ctypes.cdll.LoadLibrary('C:/path/to/Project2.dll')
  # 使用argtypes来定义函数的参数
  lib.PyTestIntegerParam.argtypes = [ctypes.c_int, ctypes.c_int]

  lib.PyTestStringParam.argtypes = [ctypes.c_char_p]

  lib.PyTestIntegerParam(10, 1)
  # 可以试下不加encode
  lib.PyTestStringParam('i am a str!'.encode('utf-8'))


• 输出

  integer param test! a = 10b = 1
  string param test! a = i am a str!

  Process finished with exit code 0


类型定义

ctypes type	C type	Python type
c_bool	_Bool	bool (1)
c_char	char	1-character bytes object
c_wchar	wchar_t	1-character string
c_byte	char	int
c_ubyte	unsigned char	int
c_short	short	int
c_ushort	unsigned short	int
c_int	int	int
c_uint	unsigned int	int
c_long	long	int
c_ulong	unsigned long	int
c_longlong	__int64 or long long	int
c_ulonglong	unsigned __int64 or unsigned long long	int
c_size_t	size_t	int
c_ssize_t	ssize_t or Py_ssize_t	int
c_float	float	float
c_double	double	float
c_longdouble	long double	float
c_char_p	char * (NUL terminated)	bytes object or None
c_wchar_p	wchar_t * (NUL terminated)	string or None
c_void_p	void *	int or None

关于性能

• 如果对dll性能有要求，可以将编译的dll改为Release版本


---

待续。。。。。。
