深度学习模型试跑(九):HRNet / HRNet-Semantic-Segmentation

前言

官方项目地址:
mmsegmentation地址:

一.模型解读

具体参考

二.模型训练

我的环境

os:		win10
cuda:	11.0
gpu:	RTX3090
torch:	1.7.0
代码: 因为要使用libtorch，所以选择了mmsegmentation的，因为这里有形成的转换代码

1.数据转换

支持4类数据（voc2012, cityscapes, pascal_context, ade20K）, 我选择的是voc2012，因这个数据模式相对熟悉一些。

labelme转voc2012的程序应该有很多，可以在网上找。

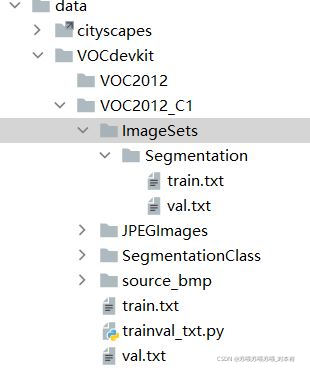

—VOC2012_C1: 我自己的数据集
——ImageSets: 放置验证集和训练集文档
——JPEGImages： 放置原始训练及验证图片（jpg格式）
——SegmentationClass： 放置标签图片(png格式)

2.配置

配置可参考我上一篇，因为都是在mmsegmentation下做的
修改的地方我用中文注释出来了，实际应用的时候不要带中文。

总配置文件: fcn_hr18_512x512_40k_voc12augPG.py
参考: fcn_hr18_512x512_40k_voc12aug.py

_base_ = [
    '../_base_/models/fcn_hr18.py', '../_base_/datasets/pascal_voc12_augPG.py',
    '../_base_/default_runtime.py', '../_base_/schedules/schedule_80k.py'
]
model = dict(decode_head=dict(num_classes=3))

根据总配置文件，逐步设置各个分支配置文件，以下的py程序我都是复制了相关分支的配置脚本
fcn_hr18.py: 不用修改

pascal_voc12_augPG.py:

_base_ = './pascal_voc12PG.py'
# dataset settings
data = dict(
    train=dict(
        ann_dir=['SegmentationClass'],
        split=[
            'ImageSets/Segmentation/train.txt'
        ]))

pascal_voc12PG.py:

# dataset settings
dataset_type = 'PGC1VOCDataset'
data_root = 'data/VOCdevkit/VOC2012_C1'
img_norm_cfg = dict(
    mean=[123.675, 116.28, 103.53], std=[58.395, 57.12, 57.375], to_rgb=True)
crop_size = (512, 512)
train_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(type='LoadAnnotations'),
    dict(type='Resize', img_scale=(2048, 512), ratio_range=(0.5, 2.0)),
    dict(type='RandomCrop', crop_size=crop_size, cat_max_ratio=0.75),
    dict(type='RandomFlip', prob=0.5),
    dict(type='PhotoMetricDistortion'),
    dict(type='Normalize', **img_norm_cfg),
    dict(type='Pad', size=crop_size, pad_val=0, seg_pad_val=255),
    dict(type='DefaultFormatBundle'),
    dict(type='Collect', keys=['img', 'gt_semantic_seg']),
]
test_pipeline = [
    dict(type='LoadImageFromFile'),
    dict(
        type='MultiScaleFlipAug',
        img_scale=(2048, 512),
        # img_ratios=[0.5, 0.75, 1.0, 1.25, 1.5, 1.75],
        flip=False,
        transforms=[
            dict(type='Resize', keep_ratio=True),
            dict(type='RandomFlip'),
            dict(type='Normalize', **img_norm_cfg),
            dict(type='ImageToTensor', keys=['img']),
            dict(type='Collect', keys=['img']),
        ])
]
data = dict(
    samples_per_gpu=4,
    workers_per_gpu=4,
    train=dict(
        type=dataset_type,
        data_root=data_root,
        img_dir='JPEGImages',
        ann_dir='SegmentationClass',
        split='ImageSets/Segmentation/train.txt',
        pipeline=train_pipeline),
    val=dict(
        type=dataset_type,
        data_root=data_root,
        img_dir='JPEGImages',
        ann_dir='SegmentationClass',
        split='ImageSets/Segmentation/val.txt',
        pipeline=test_pipeline),
    test=dict(
        type=dataset_type,
        data_root=data_root,
        img_dir='JPEGImages',
        ann_dir='SegmentationClass',
        split='ImageSets/Segmentation/val.txt',
        pipeline=test_pipeline))

#由于pascal_voc12PG.py改变了数据集类型，需要在mmseg/datasets/voc.py中添加一类,
voc.py

import os.path as osp

from .builder import DATASETS
from .custom import CustomDataset


@DATASETS.register_module()
class PascalVOCDataset(CustomDataset):
    """Pascal VOC dataset.

    Args:
        split (str): Split txt file for Pascal VOC.
    """

    CLASSES = ('background', 'aeroplane', 'bicycle', 'bird', 'boat', 'bottle',
               'bus', 'car', 'cat', 'chair', 'cow', 'diningtable', 'dog',
               'horse', 'motorbike', 'person', 'pottedplant', 'sheep', 'sofa',
               'train', 'tvmonitor')

    PALETTE = [[0, 0, 0], [128, 0, 0], [0, 128, 0], [128, 128, 0], [0, 0, 128],
               [128, 0, 128], [0, 128, 128], [128, 128, 128], [64, 0, 0],
               [192, 0, 0], [64, 128, 0], [192, 128, 0], [64, 0, 128],
               [192, 0, 128], [64, 128, 128], [192, 128, 128], [0, 64, 0],
               [128, 64, 0], [0, 192, 0], [128, 192, 0], [0, 64, 128]]

    def __init__(self, split, **kwargs):
        super(PascalVOCDataset, self).__init__(
            img_suffix='.jpg', seg_map_suffix='.png', split=split, **kwargs)
        assert osp.exists(self.img_dir) and self.split is not None


@DATASETS.register_module()
class PGC1VOCDataset(CustomDataset):
    """Pascal VOC dataset.

    Args:
        split (str): Split txt file for Pascal VOC.
    """

    CLASSES = ('background', 'scratch', 'bicycle', 'bird', 'boat', 'bottle',
               'bus', 'car', 'cat', 'chair', 'cow', 'diningtable', 'dog',
               'horse', 'motorbike', 'person', 'pottedplant', 'sheep', 'sofa',
               'train', 'tvmonitor')

    PALETTE = [[0, 0, 0], [128, 0, 0], [0, 128, 0], [128, 128, 0], [0, 0, 128],
               [128, 0, 128], [0, 128, 128], [128, 128, 128], [64, 0, 0],
               [192, 0, 0], [64, 128, 0], [192, 128, 0], [64, 0, 128],
               [192, 0, 128], [64, 128, 128], [192, 128, 128], [0, 64, 0],
               [128, 64, 0], [0, 192, 0], [128, 192, 0], [0, 64, 128]]

    def __init__(self, split, **kwargs):
        super(PGC1VOCDataset, self).__init__(
            img_suffix='.jpg', seg_map_suffix='.png', split=split, **kwargs)
        assert osp.exists(self.img_dir) and self.split is not None


@DATASETS.register_module()
class UcontrolVOCDataset(CustomDataset):
    """Pascal VOC dataset.

    Args:
        split (str): Split txt file for Pascal VOC.
    """

    CLASSES = ('background', 'myoepithelium', 'neutrophil', 'unlabeled', 'macrophage', 'lymphocyte', 'apoptotic_body',
               'plasma_cell', 'fibroblast', 'mitotic_figure', 'tumor', 'vascular_endothelium', 'eosinophil')

    PALETTE = [[0, 0, 0], [128, 0, 0], [0, 128, 0], [128, 128, 0], [0, 0, 128],
               [128, 0, 128], [0, 128, 128], [128, 128, 128], [64, 0, 0],
               [192, 0, 0], [64, 128, 0], [192, 128, 0], [64, 0, 128],
               [192, 0, 128], [64, 128, 128], [192, 128, 128], [0, 64, 0],
               [128, 64, 0], [0, 192, 0], [128, 192, 0], [0, 64, 128]]

    def __init__(self, split, **kwargs):
        super(UcontrolVOCDataset, self).__init__(
            img_suffix='.jpg', seg_map_suffix='.png', split=split, **kwargs)
        assert osp.exists(self.img_dir) and self.split is not None

default_runtime.py

checkpoint_config = dict(interval=1)
# yapf:disable
log_config = dict(
    interval=50,
    hooks=[
        dict(type='TextLoggerHook'),
        dict(type='TensorboardLoggerHook')	#打开Tensorboard
    ])
# yapf:enable
custom_hooks = [dict(type='NumClassCheckHook')]

dist_params = dict(backend='gloo') #设置为gloo,NCCL只支持linux系统
log_level = 'INFO'
load_from = None
resume_from = None
workflow = [('train', 1)]

schedule_80k.py: 不用修改

3.开始训练

训练脚本：

python tools/train.py configs/hrnet/fcn_hr18_512x512_40k_voc12augPG.py

训练的时候会报错，

错误1：
data[‘category_id’] = self.cat_ids[label]
IndexError: list index out of range
解决方法：
我到mmdet/datasets/coco.py下，找到每个self.cat_ids[label]的位置，然后在前面添加一句if label < 1:
例如

                for i in range(bboxes.shape[0]):
                    if label < 1:
                        data = dict()
                        data['image_id'] = img_id
                        data['bbox'] = self.xyxy2xywh(bboxes[i])
                        data['score'] = float(bboxes[i][4])
                        data['category_id'] = self.cat_ids[label]
                        json_results.append(data)

错误2：想不起来啦，暂时先放着

三.模型推理

from mmseg.apis import inference_segmentor, init_segmentor

# config_file = 'configs/setr/setr_pup_512x512_160k_b16_ade20k.py'
# checkpoint_file = 'checkpoints/setr_pup_512x512_160k_b16_ade20k_20210619_191343-7e0ce826.pth'

config_file = 'configs/hrnet/fcn_hr18_512x512_40k_voc12augPG.py'
checkpoint_file = 'checkpoints/fcn_hr18_512x512_40k_voc12augPGC1.pth'

# build the model from a config file and a checkpoint file
model = init_segmentor(config_file, checkpoint_file, device='cuda:0')

# test a single image and show the results
img = 'demo/test_c1.bmp'  # or img = mmcv.imread(img), which will only load it once
result = inference_segmentor(model, img)
# visualize the results in a new window
model.show_result(img, result, show=True)
# or save the visualization results to image files
# you can change the opacity of the painted segmentation map in (0, 1].
model.show_result(img, result, out_file='result_hrnet.jpg', opacity=0.5)

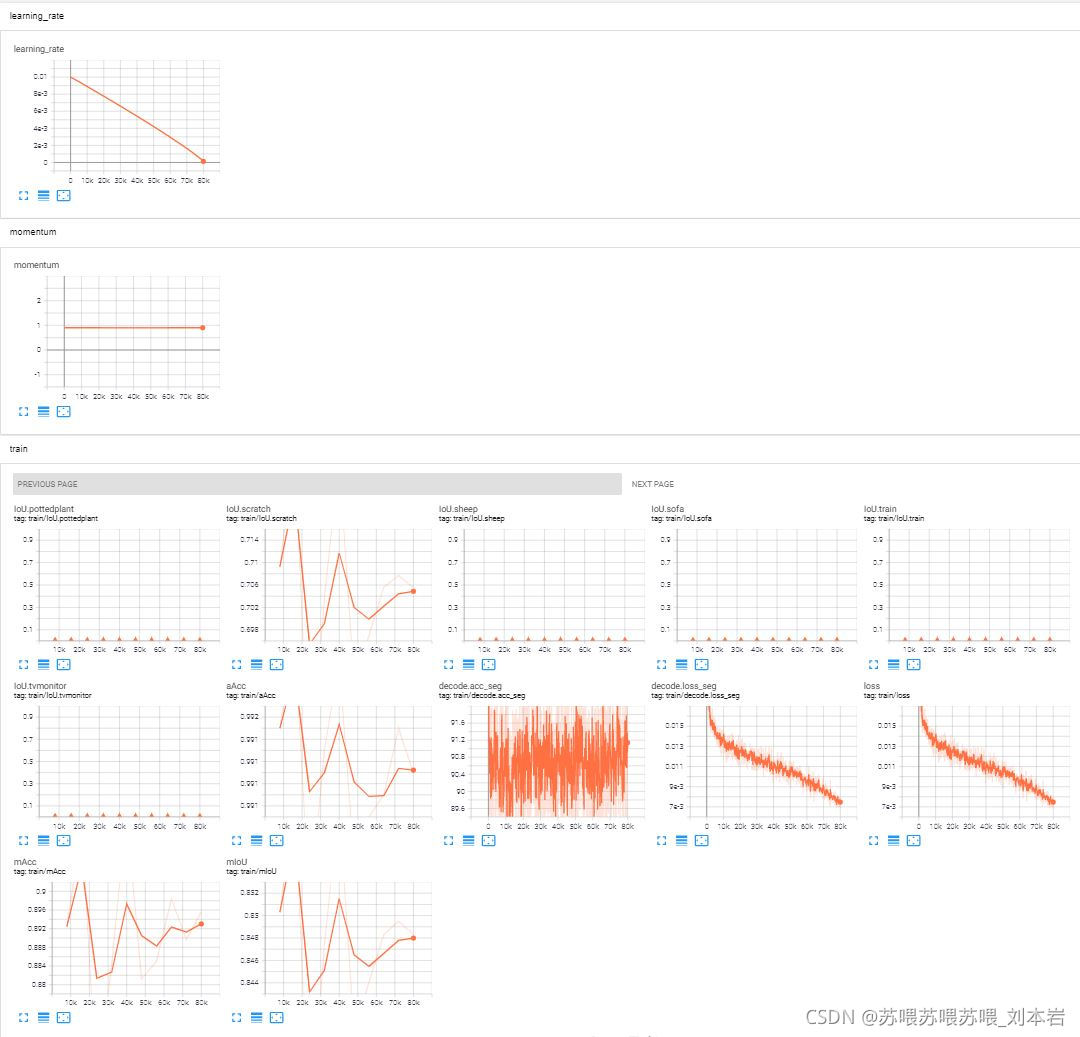

tensorboard:
