datahub使用-字段级&表级数据血缘-clickhouse

参考两位大佬的文章综合了一下

Datahub实践——Sqllineage解析Sql实现端到端数据血缘_实时计算的技术博客_51CTO博客

sqllineage解析sql列级血缘并提交到datahub-CSDN博客

目录

元数据摄取-clickhouse

数据血缘自动识别及上传datahub

---

元数据摄取-clickhouse

自动获取clickhouse数据字典形成元数据信息

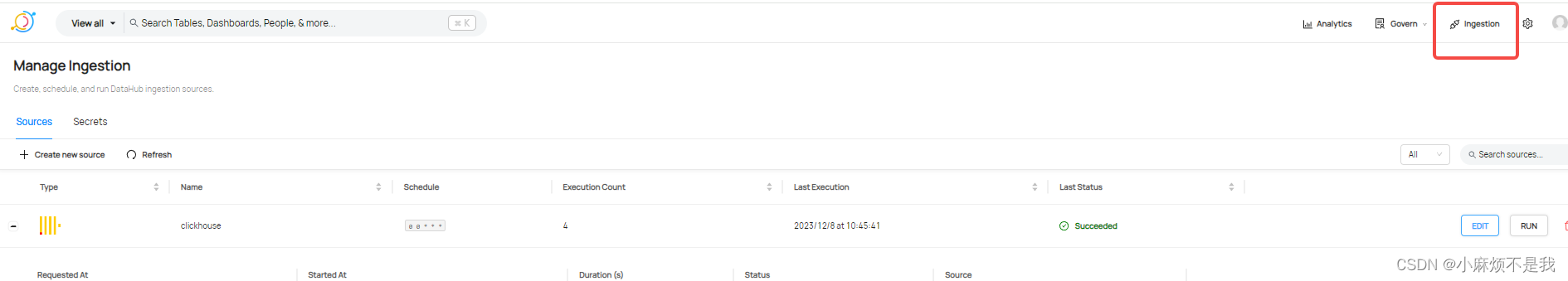

datahub前端下列界面设置clickhouse数据源

 配置信息

source:
    type: clickhouse
    config:
        host_port: '10:XXX.XXX.XXX:8123'#clickhouse 地址
        username: user
        password: pw
        include_views: true
        include_tables: true
sink:
    type: datahub-rest
    config:
        server: 'http://datahub-source:8080'#datahub地址

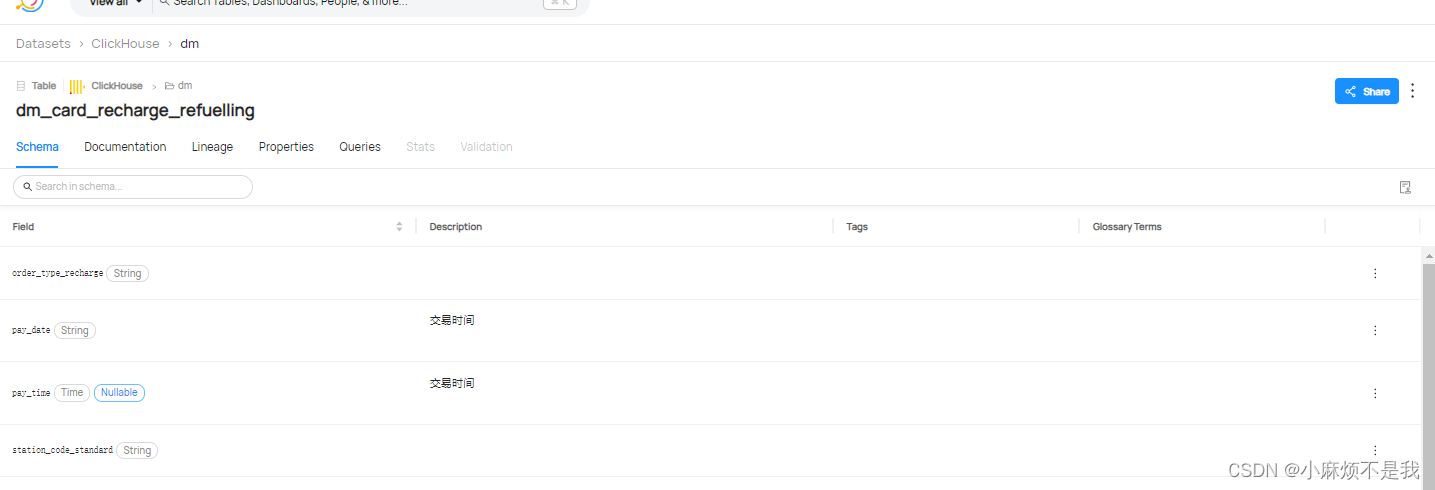

执行成功后可从前台查看是否获取成功

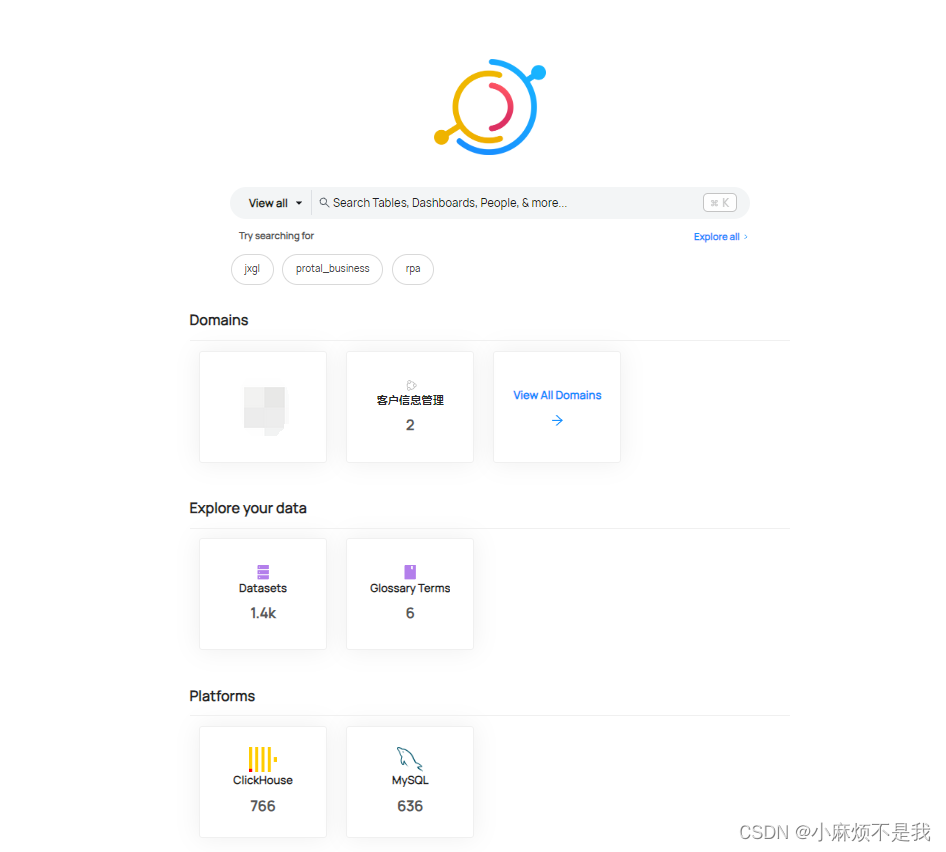

点击platforms查看获取clickhouse结果

数据血缘自动识别及上传datahub

通过sqllineage获取指定sql文件中HiveSQL的字段级血缘关系，并将结果提交到datahub
参考datahub官方文档给出的提交细粒度血缘的脚本datahub/lineage_emitter_dataset_finegrained.py at master · datahub-project/datahub · GitHub

参考sqllineage文档Getting Started — sqllineage 1.3.7 documentation

结合sqllineage，获取指定sql的列级血缘，再调用datahub rest api，将结果提交到datahub

具体py代码如下


from sqllineage.runner import LineageRunner
import datahub.emitter.mce_builder as builder
from datahub.emitter.mcp import MetadataChangeProposalWrapper
from datahub.emitter.rest_emitter import DatahubRestEmitter
from datahub.metadata.com.linkedin.pegasus2avro.dataset import (
    DatasetLineageType,
    FineGrainedLineage,
    FineGrainedLineageDownstreamType,
    FineGrainedLineageUpstreamType,
    Upstream,
    UpstreamLineage,
)
import sys

'''
    解析目标sql文件的HiveSQL生成列级血缘，提交到datahub
    sql文件路径作为命令行参数传入脚本
    提交到datahub的platform = clickhouse
'''


# 库名设置
def datasetUrn(tableName):
    return builder.make_dataset_urn("Clickhouse", tableName)  # platform = clickhouse


# 表、列级信息设置
def fieldUrn(tableName, fieldName):
    return builder.make_schema_field_urn(datasetUrn(tableName), fieldName)


# 目标sql文件路径
sqlFilePath = sys.argv[1]

sqlFile = open(sqlFilePath, mode='r', encoding='utf-8')

sql = sqlFile.read().__str__()

# 获取sql血缘
result = LineageRunner(sql)

# 获取sql中的下游表名
targetTableName = result.target_tables[0].__str__()

print(result)

print('===============')

# 打印列级血缘结果
result.print_column_lineage()

print('===============')

# 获取列级血缘
lineage = result.get_column_lineage

# 字段级血缘list
fineGrainedLineageList = []

# 用于冲突检查的上游list
upStreamsList = []

# 遍历列级血缘
for columnTuples in lineage():
    # 上游list
    upStreamStrList = []

    # 下游list
    downStreamStrList = []

    # 逐个字段遍历
    for column in columnTuples:

        # 元组中最后一个元素为下游表名与字段名，其他元素为上游表名与字段名

        # 遍历到最后一个元素，为下游表名与字段名
        if columnTuples.index(column) == len(columnTuples) - 1:
            downStreamFieldName = column.raw_name.__str__()
            downStreamTableName = column.__str__().replace('.' + downStreamFieldName, '').__str__()

            # print('下游表名：' + downStreamTableName)
            # print('下游字段名：' + downStreamFieldName)

            downStreamStrList.append(fieldUrn(downStreamTableName, downStreamFieldName))
        else:
            upStreamFieldName = column.raw_name.__str__()
            upStreamTableName = column.__str__().replace('.' + upStreamFieldName, '').__str__()

            # print('上游表名：' + upStreamTableName)
            # print('上游字段名：' + upStreamFieldName)

            upStreamStrList.append(fieldUrn(upStreamTableName, upStreamFieldName))

            # 用于检查上游血缘是否冲突
            upStreamsList.append(Upstream(dataset=datasetUrn(upStreamTableName), type=DatasetLineageType.TRANSFORMED))

    fineGrainedLineage = FineGrainedLineage(upstreamType=FineGrainedLineageUpstreamType.DATASET,
                                            upstreams=upStreamStrList,
                                            downstreamType=FineGrainedLineageDownstreamType.FIELD_SET,
                                            downstreams=downStreamStrList)

    fineGrainedLineageList.append(fineGrainedLineage)

fieldLineages = UpstreamLineage(
    upstreams=upStreamsList, fineGrainedLineages=fineGrainedLineageList
)

lineageMcp = MetadataChangeProposalWrapper(
    entityUrn=datasetUrn(targetTableName),  # 下游表名
    aspect=fieldLineages
)

# 调用datahub REST API
emitter = DatahubRestEmitter('http://10.XXX.XXX.XXX.XXX:8080') # datahub server

# Emit metadata!
emitter.emit_mcp(lineageMcp)

#将表之间血缘关系进一步上传，弥补字段级血缘关系解析来源表少一部分的问题

for target_table in result.target_tables:
    target_table=str(target_table)
    print(target_table)
    input_tables_urn = []
    for source_table in result.source_tables:
        source_table=str(source_table)
        input_tables_urn.append(builder.make_dataset_urn("clickhouse", source_table))
        print(input_tables_urn)
    lineage_mce = builder.make_lineage_mce(
    input_tables_urn,
    builder.make_dataset_urn("clickhouse", target_table),
)
    emitter.emit_mce(lineage_mce)
    try:
        emitter.emit_mce(lineage_mce)
        print("添加数仓表 【{}】血缘成功".format(target_table))
    except Exception as e:
        print("添加数仓表 【{}】血缘失败".format(target_table))
        print(e)
        break

将上述py文件及sql文件一并上传至datahub服务器，执行一下命令

python sql-lineage-to-datahub.py target_table.sql

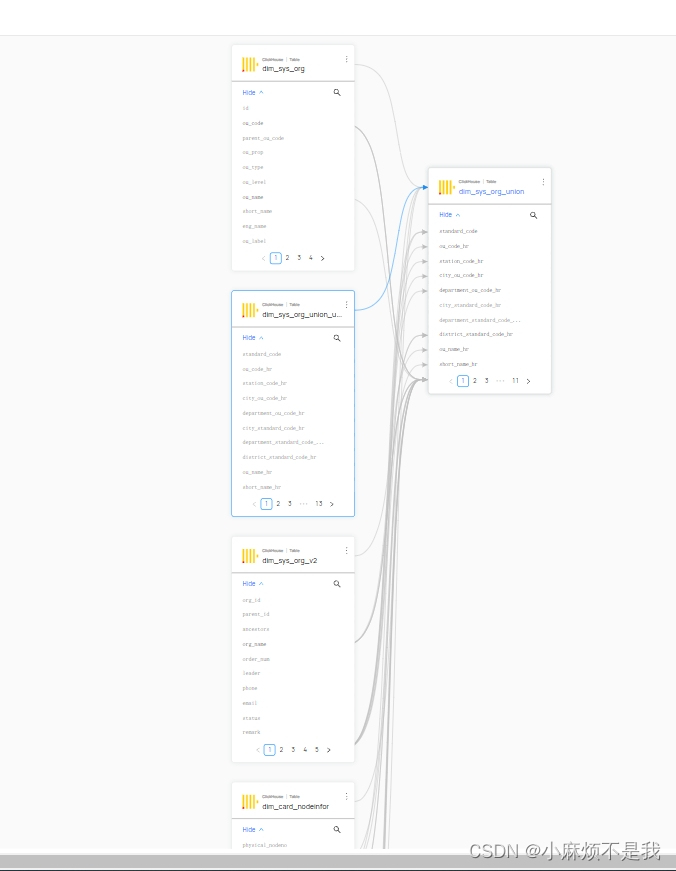

查看目标表血缘关系

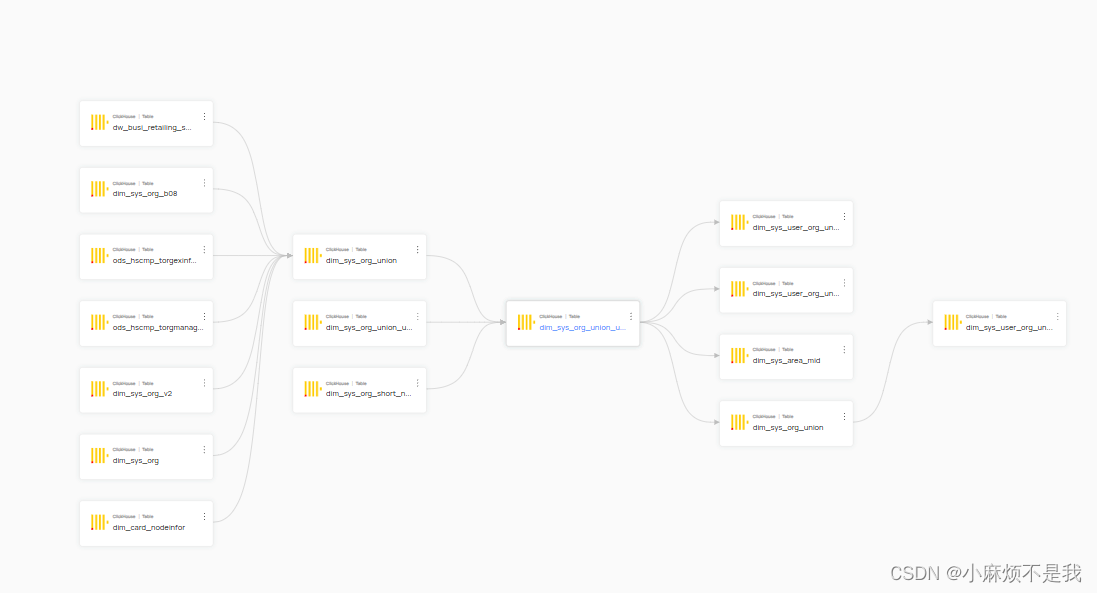

同理，可上传与目标表下游表相关sql文件，并执行，可串联起所有与该表相关的数据血缘（下图是上传了5个sql生成），如下
