JPEG压缩是一种有损压缩技术，常用于数字图像。它通过减少图像文件大小来实现压缩，但会造成一定程度的图像质量损失。
一、JPEG压缩
1.1 JPEG压缩原理
JPEG压缩的工作原理是利用人眼的视觉特性，对图像进行离散余弦变换和量化。简单来说，就是将图像分成一个个小的方块，然后分析每个方块的亮度和颜色信息。人眼对亮度变化更敏感，对颜色变化的敏感度较低，因此JPEG压缩会保留更多的亮度信息，而舍弃一些颜色信息。
JPEG压缩的压缩程度可以通过压缩率来控制。压缩率越高，图像文件越小，但图像质量也会越差。一般来说，压缩率在70%到80%之间是比较合适的，既能大幅减小文件大小，又能保持较好的图像质量。
1.2 JPEG压缩优点
可以大幅减小图像文件大小，节省存储空间和传输带宽。
压缩后的图像仍然保持较好的视觉质量。
广泛支持，几乎所有图像编辑软件和数码设备都支持JPEG格式。
1.3 JPEG压缩缺点
压缩过程会造成一定程度的图像质量损失，特别是高压缩率下更加明显。
不适用于需要保留原始图像信息的场景，例如医学图像、印刷图像等。
二、图像退化中加入JPEG压缩
2.1 优势
在模拟图像退化过程中加入JPEG压缩，好处见下：
2.1.1 更逼真的模拟
JPEG 压缩会引入块效应、伪影和瑕疵等痕迹，这些痕迹与现实世界中的图像退化现象（例如，镜头模糊、大气散射、压缩伪影等）相似。因此，在模拟图像退化过程中加入 JPEG 压缩可以使模拟结果更加逼真。
2.1.2 提高效率
JPEG 压缩可以显著减小图像文件大小。这在处理大量图像数据时尤其有益，因为它可以节省存储空间和计算资源。
2.1.3 简化模型
JPEG 压缩引入的块效应和伪影可以简化图像退化模型。例如，在模拟运动模糊时，可以先对图像进行 JPEG 压缩，然后再应用运动模糊模型。这样可以避免在运动模糊模型中显式地模拟 JPEG 压缩引起的块效应和伪影。
2.2 缺点
在模拟图像退化过程中加入 JPEG 压缩也有一些潜在的缺点：
可能引入额外的误差： JPEG 压缩本身会造成一定的图像质量损失。如果在模拟图像退化过程中加入 JPEG 压缩，可能会进一步降低图像质量。
可能使模型更难解释： JPEG 压缩引入的块效应和伪影会使图像退化模型更加复杂，从而更难理解和解释。
2.3 加入 JPEG 压缩模拟的具体示例
2.3.1 模拟镜头模糊
镜头模糊会导致图像出现一定的模糊和失真。为了模拟镜头模糊，可以先对图像进行 JPEG 压缩，然后再应用高斯滤波或其他模糊滤波器。
2.3.2 模拟大气散射
大气散射会导致图像出现一定的朦胧和色彩失真。为了模拟大气散射，可以先对图像进行 JPEG 压缩，然后再降低图像的对比度和饱和度。
2.3.3 模拟压缩伪影
除了 JPEG 压缩之外，还有其他类型的图像压缩，例如 PNG 和 GIF 压缩。这些压缩格式也会引入不同的伪影。为了模拟其他类型的压缩伪影，可以先对图像进行相应的压缩，然后再进行其他类型的退化模拟。
三、代码
3.1 cv2.imencode库和cv2.imdecode库
cv2.imencode() 和 cv2.imdecode() 都是 OpenCV 库中用于处理图像编码和解码的函数。
cv2.imencode() 用于将图像编码为特定格式的字节流。它通常用于将图像转换为 JPEG 或 PNG 格式并将其保存到内存中。
3.1.1 函数原型
cv2.imencode(ext, img, [params]) -> (retval, buf)
cv2.imencode()参数说明：
ext: 要使用的图像格式的后缀，例如 ‘jpg’ 或 ‘png’。
img: 要编码的图像。
params: 可选参数，用于控制编码过程。例如，对于 JPEG 格式，可以使用 params 参数来控制压缩质量。
cv2.imdecode(buf, flags) -> img
cv2.imdecode()参数说明：
buf: 要解码的字节流。
flags: 可选参数，用于指定图像的色彩空间。例如，cv2.IMREAD_COLOR 表示使用彩色模式解码图像，cv2.IMREAD_GRAYSCALE 表示使用灰度模式解码图像。
3.1.2 示例代码
import cv2
img_gt = cv2.imread('Images/Visible_Images/1.jpg')
encode_param = [int(cv2.IMWRITE_JPEG_QUALITY), 20] # 设置JPEG图像的质量参数为20,参数可以自定义调整
_, encimg = cv2.imencode('.jpg', img_gt, encode_param) # 以JPEG格式进行编码
img_lq = np.float32(cv2.imdecode(encimg, 1)) # 解码编码后的图像，并将其转换为浮点类型
cv2.imwrite('Result/DiffJpeg/CV_Result/cv2_JPEG_20.png', img_lq) # 将解码后的图像保存为’cv2_JPEG_20.png’
3.2 DiffJPEG压缩（三通道图像）

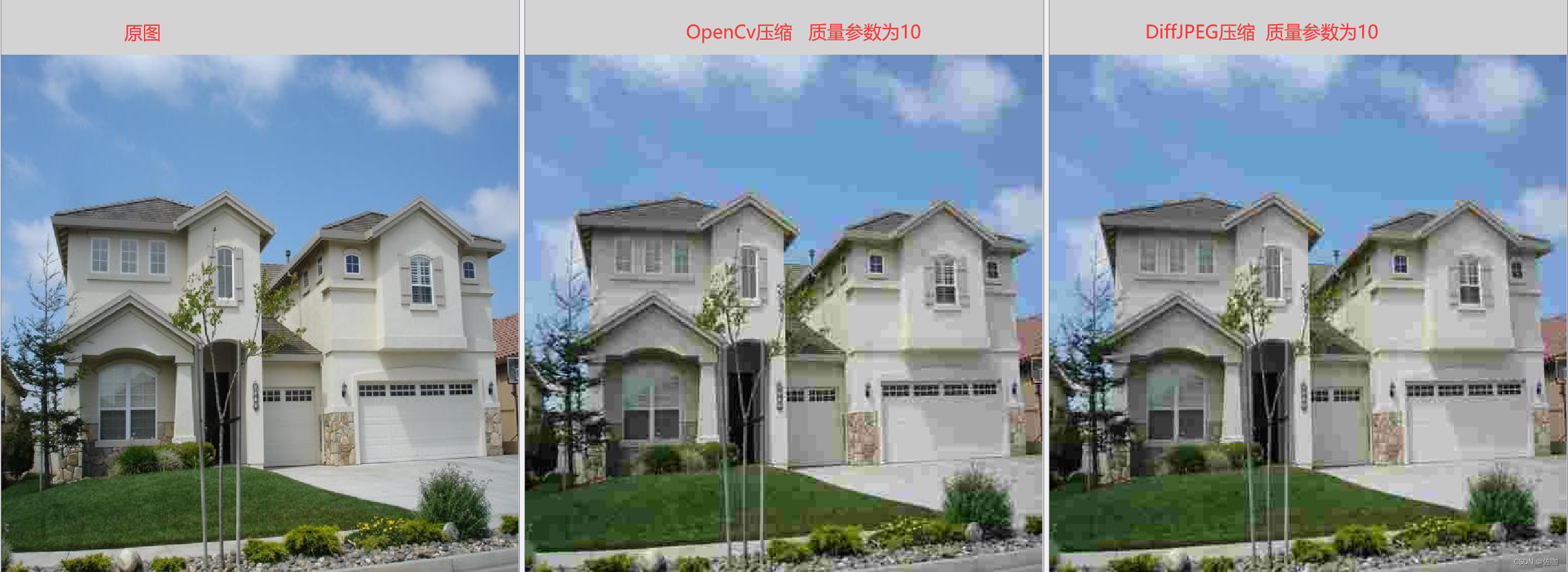

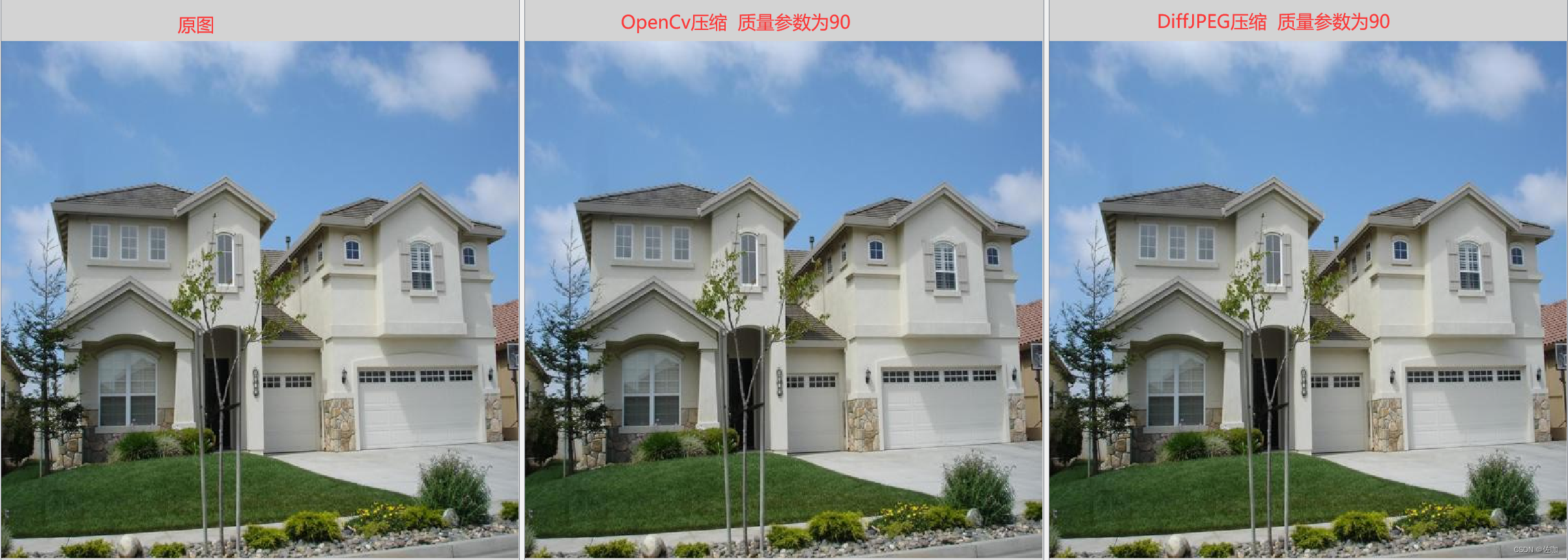

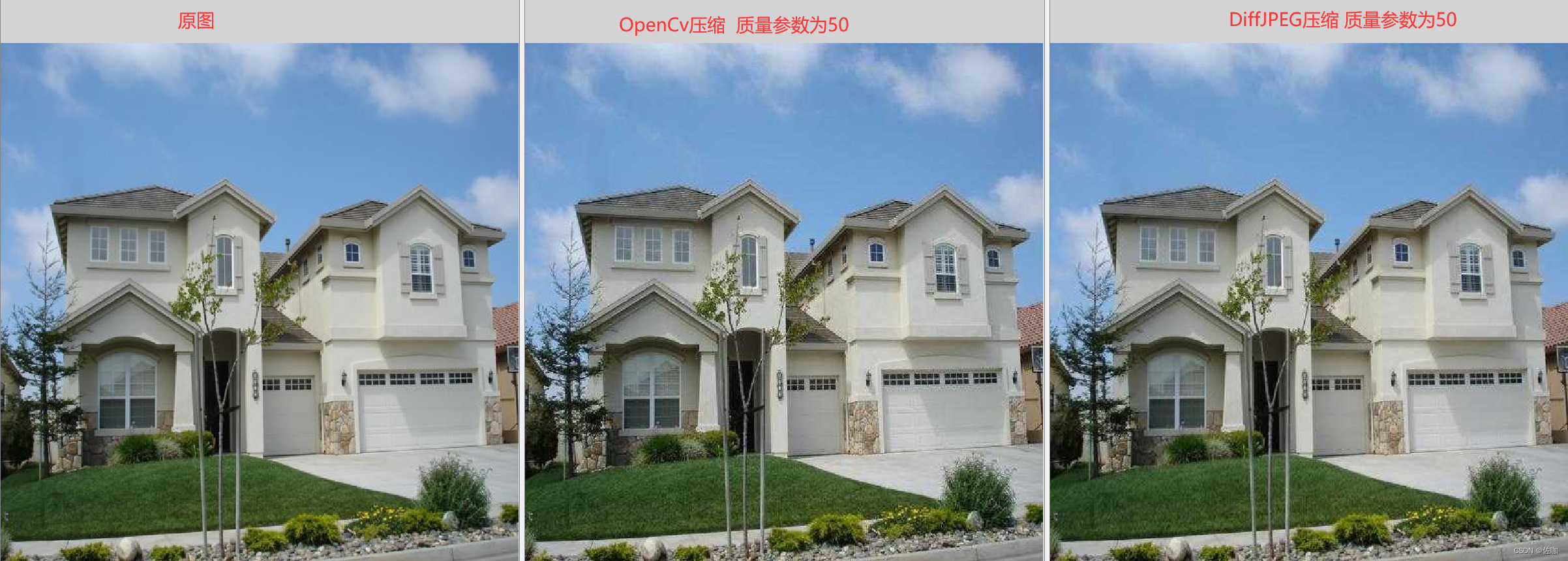

DiffJPEG压缩是基于pythorch实现的，压缩图像与OpecnCV包压缩的图像略有不同。

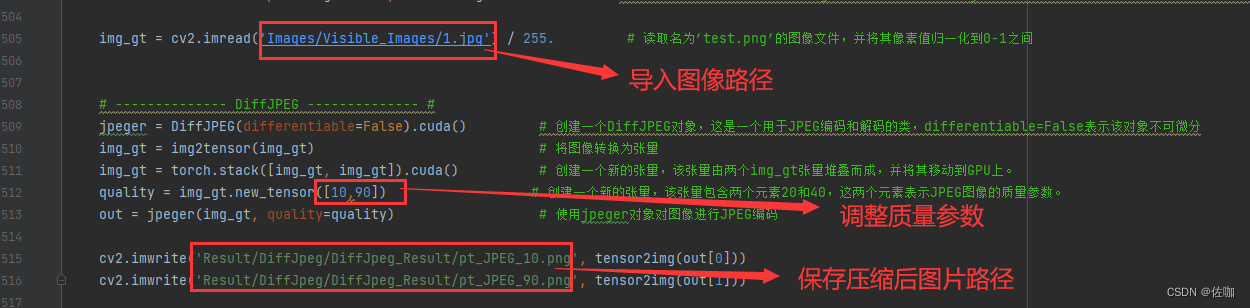

3.2.1 参数修改
使用代码，只需要修改下面参数即可：
3.2.2 代码
import itertools
import numpy as np
import torch
import torch.nn as nn
from torch.nn import functional as F
# ------------------------ utils ------------------------#
y_table = np.array(
[[16, 11, 10, 16, 24, 40, 51, 61], [12, 12, 14, 19, 26, 58, 60, 55], [14, 13, 16, 24, 40, 57, 69, 56],
[14, 17, 22, 29, 51, 87, 80, 62], [18, 22, 37, 56, 68, 109, 103, 77], [24, 35, 55, 64, 81, 104, 113, 92],
[49, 64, 78, 87, 103, 121, 120, 101], [72, 92, 95, 98, 112, 100, 103, 99]],
dtype=np.float32).T
y_table = nn.Parameter(torch.from_numpy(y_table))
c_table = np.empty((8, 8), dtype=np.float32)
c_table.fill(99)
c_table[:4, :4] = np.array([[17, 18, 24, 47], [18, 21, 26, 66], [24, 26, 56, 99], [47, 66, 99, 99]]).T
c_table = nn.Parameter(torch.from_numpy(c_table))
def diff_round(x):
""" Differentiable rounding function
"""
return torch.round(x) + (x - torch.round(x))**3
def quality_to_factor(quality):
""" Calculate factor corresponding to quality
Args:
quality(float): Quality for jpeg compression.
Returns:
float: Compression factor.
"""
if quality < 50:
quality = 5000. / quality
else:
quality = 200. - quality * 2
return quality / 100.
# ------------------------ compression ------------------------#
class RGB2YCbCrJpeg(nn.Module):
""" Converts RGB image to YCbCr
"""
def __init__(self):
super(RGB2YCbCrJpeg, self).__init__()
matrix = np.array([[0.299, 0.587, 0.114], [-0.168736, -0.331264, 0.5], [0.5, -0.418688, -0.081312]],
dtype=np.float32).T
self.shift = nn.Parameter(torch.tensor([0., 128., 128.]))
self.matrix = nn.Parameter(torch.from_numpy(matrix))
def forward(self, image):
"""
Args:
image(Tensor): batch x 3 x height x width
Returns:
Tensor: batch x height x width x 3
"""
image = image.permute(0, 2, 3, 1)
result = torch.tensordot(image, self.matrix, dims=1) + self.shift
return result.view(image.shape)
class ChromaSubsampling(nn.Module):
""" Chroma subsampling on CbCr channels
"""
def __init__(self):
super(ChromaSubsampling, self).__init__()
def forward(self, image):
"""
Args:
image(tensor): batch x height x width x 3
Returns:
y(tensor): batch x height x width
cb(tensor): batch x height/2 x width/2
cr(tensor): batch x height/2 x width/2
"""
image_2 = image.permute(0, 3, 1, 2).clone()
cb = F.avg_pool2d(image_2[:, 1, :, :].unsqueeze(1), kernel_size=2, stride=(2, 2), count_include_pad=False)
cr = F.avg_pool2d(image_2[:, 2, :, :].unsqueeze(1), kernel_size=2, stride=(2, 2), count_include_pad=False)
cb = cb.permute(0, 2, 3, 1)
cr = cr.permute(0, 2, 3, 1)
return image[:, :, :, 0], cb.squeeze(3), cr.squeeze(3)
class BlockSplitting(nn.Module):
""" Splitting image into patches
"""
def __init__(self):
super(BlockSplitting, self).__init__()
self.k = 8
def forward(self, image):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x h*w/64 x h x w
"""
height, _ = image.shape[1:3]
batch_size = image.shape[0]
image_reshaped = image.view(batch_size, height // self.k, self.k, -1, self.k)
image_transposed = image_reshaped.permute(0, 1, 3, 2, 4)
return image_transposed.contiguous().view(batch_size, -1, self.k, self.k)
class DCT8x8(nn.Module):
""" Discrete Cosine Transformation
"""
def __init__(self):
super(DCT8x8, self).__init__()
tensor = np.zeros((8, 8, 8, 8), dtype=np.float32)
for x, y, u, v in itertools.product(range(8), repeat=4):
tensor[x, y, u, v] = np.cos((2 * x + 1) * u * np.pi / 16) * np.cos((2 * y + 1) * v * np.pi / 16)
alpha = np.array([1. / np.sqrt(2)] + [1] * 7)
self.tensor = nn.Parameter(torch.from_numpy(tensor).float())
self.scale = nn.Parameter(torch.from_numpy(np.outer(alpha, alpha) * 0.25).float())
def forward(self, image):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x height x width
"""
image = image - 128
result = self.scale * torch.tensordot(image, self.tensor, dims=2)
result.view(image.shape)
return result
class YQuantize(nn.Module):
""" JPEG Quantization for Y channel
Args:
rounding(function): rounding function to use
"""
def __init__(self, rounding):
super(YQuantize, self).__init__()
self.rounding = rounding
self.y_table = y_table
def forward(self, image, factor=1):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x height x width
"""
if isinstance(factor, (int, float)):
image = image.float() / (self.y_table * factor)
else:
b = factor.size(0)
table = self.y_table.expand(b, 1, 8, 8) * factor.view(b, 1, 1, 1)
image = image.float() / table
image = self.rounding(image)
return image
class CQuantize(nn.Module):
""" JPEG Quantization for CbCr channels
Args:
rounding(function): rounding function to use
"""
def __init__(self, rounding):
super(CQuantize, self).__init__()
self.rounding = rounding
self.c_table = c_table
def forward(self, image, factor=1):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x height x width
"""
if isinstance(factor, (int, float)):
image = image.float() / (self.c_table * factor)
else:
b = factor.size(0)
table = self.c_table.expand(b, 1, 8, 8) * factor.view(b, 1, 1, 1)
image = image.float() / table
image = self.rounding(image)
return image
class CompressJpeg(nn.Module):
"""Full JPEG compression algorithm
Args:
rounding(function): rounding function to use
"""
def __init__(self, rounding=torch.round):
super(CompressJpeg, self).__init__()
self.l1 = nn.Sequential(RGB2YCbCrJpeg(), ChromaSubsampling())
self.l2 = nn.Sequential(BlockSplitting(), DCT8x8())
self.c_quantize = CQuantize(rounding=rounding)
self.y_quantize = YQuantize(rounding=rounding)
def forward(self, image, factor=1):
"""
Args:
image(tensor): batch x 3 x height x width
Returns:
dict(tensor): Compressed tensor with batch x h*w/64 x 8 x 8.
"""
y, cb, cr = self.l1(image * 255)
components = {'y': y, 'cb': cb, 'cr': cr}
for k in components.keys():
comp = self.l2(components[k])
if k in ('cb', 'cr'):
comp = self.c_quantize(comp, factor=factor)
else:
comp = self.y_quantize(comp, factor=factor)
components[k] = comp
return components['y'], components['cb'], components['cr']
# ------------------------ decompression ------------------------#
class YDequantize(nn.Module):
"""Dequantize Y channel
"""
def __init__(self):
super(YDequantize, self).__init__()
self.y_table = y_table
def forward(self, image, factor=1):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x height x width
"""
if isinstance(factor, (int, float)):
out = image * (self.y_table * factor)
else:
b = factor.size(0)
table = self.y_table.expand(b, 1, 8, 8) * factor.view(b, 1, 1, 1)
out = image * table
return out
class CDequantize(nn.Module):
"""Dequantize CbCr channel
"""
def __init__(self):
super(CDequantize, self).__init__()
self.c_table = c_table
def forward(self, image, factor=1):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x height x width
"""
if isinstance(factor, (int, float)):
out = image * (self.c_table * factor)
else:
b = factor.size(0)
table = self.c_table.expand(b, 1, 8, 8) * factor.view(b, 1, 1, 1)
out = image * table
return out
class iDCT8x8(nn.Module):
"""Inverse discrete Cosine Transformation
"""
def __init__(self):
super(iDCT8x8, self).__init__()
alpha = np.array([1. / np.sqrt(2)] + [1] * 7)
self.alpha = nn.Parameter(torch.from_numpy(np.outer(alpha, alpha)).float())
tensor = np.zeros((8, 8, 8, 8), dtype=np.float32)
for x, y, u, v in itertools.product(range(8), repeat=4):
tensor[x, y, u, v] = np.cos((2 * u + 1) * x * np.pi / 16) * np.cos((2 * v + 1) * y * np.pi / 16)
self.tensor = nn.Parameter(torch.from_numpy(tensor).float())
def forward(self, image):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x height x width
"""
image = image * self.alpha
result = 0.25 * torch.tensordot(image, self.tensor, dims=2) + 128
result.view(image.shape)
return result
class BlockMerging(nn.Module):
"""Merge patches into image
"""
def __init__(self):
super(BlockMerging, self).__init__()
def forward(self, patches, height, width):
"""
Args:
patches(tensor) batch x height*width/64, height x width
height(int)
width(int)
Returns:
Tensor: batch x height x width
"""
k = 8
batch_size = patches.shape[0]
image_reshaped = patches.view(batch_size, height // k, width // k, k, k)
image_transposed = image_reshaped.permute(0, 1, 3, 2, 4)
return image_transposed.contiguous().view(batch_size, height, width)
class ChromaUpsampling(nn.Module):
"""Upsample chroma layers
"""
def __init__(self):
super(ChromaUpsampling, self).__init__()
def forward(self, y, cb, cr):
"""
Args:
y(tensor): y channel image
cb(tensor): cb channel
cr(tensor): cr channel
Returns:
Tensor: batch x height x width x 3
"""
def repeat(x, k=2):
height, width = x.shape[1:3]
x = x.unsqueeze(-1)
x = x.repeat(1, 1, k, k)
x = x.view(-1, height * k, width * k)
return x
cb = repeat(cb)
cr = repeat(cr)
return torch.cat([y.unsqueeze(3), cb.unsqueeze(3), cr.unsqueeze(3)], dim=3)
class YCbCr2RGBJpeg(nn.Module):
"""Converts YCbCr image to RGB JPEG
"""
def __init__(self):
super(YCbCr2RGBJpeg, self).__init__()
matrix = np.array([[1., 0., 1.402], [1, -0.344136, -0.714136], [1, 1.772, 0]], dtype=np.float32).T
self.shift = nn.Parameter(torch.tensor([0, -128., -128.]))
self.matrix = nn.Parameter(torch.from_numpy(matrix))
def forward(self, image):
"""
Args:
image(tensor): batch x height x width x 3
Returns:
Tensor: batch x 3 x height x width
"""
result = torch.tensordot(image + self.shift, self.matrix, dims=1)
return result.view(image.shape).permute(0, 3, 1, 2)
class DeCompressJpeg(nn.Module):
"""Full JPEG decompression algorithm
Args:
rounding(function): rounding function to use
"""
def __init__(self, rounding=torch.round):
super(DeCompressJpeg, self).__init__()
self.c_dequantize = CDequantize()
self.y_dequantize = YDequantize()
self.idct = iDCT8x8()
self.merging = BlockMerging()
self.chroma = ChromaUpsampling()
self.colors = YCbCr2RGBJpeg()
def forward(self, y, cb, cr, imgh, imgw, factor=1):
"""
Args:
compressed(dict(tensor)): batch x h*w/64 x 8 x 8
imgh(int)
imgw(int)
factor(float)
Returns:
Tensor: batch x 3 x height x width
"""
components = {'y': y, 'cb': cb, 'cr': cr}
for k in components.keys():
if k in ('cb', 'cr'):
comp = self.c_dequantize(components[k], factor=factor)
height, width = int(imgh / 2), int(imgw / 2)
else:
comp = self.y_dequantize(components[k], factor=factor)
height, width = imgh, imgw
comp = self.idct(comp)
components[k] = self.merging(comp, height, width)
#
image = self.chroma(components['y'], components['cb'], components['cr'])
image = self.colors(image)
image = torch.min(255 * torch.ones_like(image), torch.max(torch.zeros_like(image), image))
return image / 255
# ------------------------ main DiffJPEG ------------------------ #
class DiffJPEG(nn.Module):
"""This JPEG algorithm result is slightly different from cv2.
DiffJPEG supports batch processing.
Args:
differentiable(bool): If True, uses custom differentiable rounding function, if False, uses standard torch.round
"""
def __init__(self, differentiable=True):
super(DiffJPEG, self).__init__()
if differentiable:
rounding = diff_round
else:
rounding = torch.round
self.compress = CompressJpeg(rounding=rounding)
self.decompress = DeCompressJpeg(rounding=rounding)
def forward(self, x, quality):
"""
Args:
x (Tensor): Input image, bchw, rgb, [0, 1]
quality(float): Quality factor for jpeg compression scheme.
"""
factor = quality
if isinstance(factor, (int, float)):
factor = quality_to_factor(factor)
else:
for i in range(factor.size(0)):
factor[i] = quality_to_factor(factor[i])
h, w = x.size()[-2:]
h_pad, w_pad = 0, 0
# why should use 16
if h % 16 != 0:
h_pad = 16 - h % 16
if w % 16 != 0:
w_pad = 16 - w % 16
x = F.pad(x, (0, w_pad, 0, h_pad), mode='constant', value=0)
y, cb, cr = self.compress(x, factor=factor)
recovered = self.decompress(y, cb, cr, (h + h_pad), (w + w_pad), factor=factor)
recovered = recovered[:, :, 0:h, 0:w]
return recovered
if __name__ == '__main__':
import cv2
from basicsr.utils import img2tensor, tensor2img # 从basicsr.utils模块导入img2tensor和tensor2img函数，这两个函数分别用于将图像转换为张量和将张量转换为图像。
img_gt = cv2.imread('Images/Visible_Images/1.jpg') / 255. # 读取名为’test.png’的图像文件，并将其像素值归一化到0-1之间
# -------------- DiffJPEG -------------- #
jpeger = DiffJPEG(differentiable=False).cuda() # 创建一个DiffJPEG对象，这是一个用于JPEG编码和解码的类，differentiable=False表示该对象不可微分
img_gt = img2tensor(img_gt) # 将图像转换为张量
img_gt = torch.stack([img_gt, img_gt]).cuda() # 创建一个新的张量，该张量由两个img_gt张量堆叠而成，并将其移动到GPU上。
quality = img_gt.new_tensor([10,90]) # 创建一个新的张量，该张量包含两个元素20和40，这两个元素表示JPEG图像的质量参数。
out = jpeger(img_gt, quality=quality) # 使用jpeger对象对图像进行JPEG编码
cv2.imwrite('Result/DiffJpeg/DiffJpeg_Result/pt_JPEG_10.png', tensor2img(out[0]))
cv2.imwrite('Result/DiffJpeg/DiffJpeg_Result/pt_JPEG_90.png', tensor2img(out[1]))
3.3 DiffJPEG压缩（三通道和单通道图像）
2024年7月9日更新代码：在上面3.2代码基础上，新增了单通道灰度图像压缩，改进后的代码可以根据输入图像自行判断并压缩，三通道和单通道图像都可以直接使用下面代码。
3.3.1 参数修改
3.3.2 代码
import itertools
import numpy as np
import torch
import torch.nn as nn
from torch.nn import functional as F
# ------------------------ utils ------------------------#
y_table = np.array(
[[16, 11, 10, 16, 24, 40, 51, 61], [12, 12, 14, 19, 26, 58, 60, 55], [14, 13, 16, 24, 40, 57, 69, 56],
[14, 17, 22, 29, 51, 87, 80, 62], [18, 22, 37, 56, 68, 109, 103, 77], [24, 35, 55, 64, 81, 104, 113, 92],
[49, 64, 78, 87, 103, 121, 120, 101], [72, 92, 95, 98, 112, 100, 103, 99]],
dtype=np.float32).T
y_table = nn.Parameter(torch.from_numpy(y_table))
c_table = np.empty((8, 8), dtype=np.float32)
c_table.fill(99)
c_table[:4, :4] = np.array([[17, 18, 24, 47], [18, 21, 26, 66], [24, 26, 56, 99], [47, 66, 99, 99]]).T
c_table = nn.Parameter(torch.from_numpy(c_table))
def diff_round(x):
""" Differentiable rounding function
"""
return torch.round(x) + (x - torch.round(x))**3
def quality_to_factor(quality):
""" Calculate factor corresponding to quality
Args:
quality(float): Quality for jpeg compression.
Returns:
float: Compression factor.
"""
if quality < 50:
quality = 5000. / quality
else:
quality = 200. - quality * 2
return quality / 100.
# ------------------------ compression ------------------------#
class RGB2YCbCrJpeg(nn.Module):
""" Converts RGB image to YCbCr
"""
def __init__(self):
super(RGB2YCbCrJpeg, self).__init__()
matrix = np.array([[0.299, 0.587, 0.114], [-0.168736, -0.331264, 0.5], [0.5, -0.418688, -0.081312]],
dtype=np.float32).T
self.shift = nn.Parameter(torch.tensor([0., 128., 128.]))
self.matrix = nn.Parameter(torch.from_numpy(matrix))
def forward(self,c,image):
"""
Args:
image(Tensor): batch x 3 x height x width
Returns:
Tensor: batch x height x width x 3
"""
if c == 3:
image = image.permute(0, 2, 3, 1) # 将输入的 image 张量进行维度置换（permute），将通道维度（3）移动到最后一个位置。
# image = image.permute(0, 2, 1, 1)
result = torch.tensordot(image, self.matrix, dims=1) + self.shift # 计算张量 image 和类成员变量 self.matrix 的张量点积（tensor dot product）。dims=1 指定在第一个轴上进行张量点积。self.matrix 是类中定义的另一个张量，用于计算。self.shift 是类中定义的偏移张量，将其添加到点积结果中。
return result.view(image.shape) # 将 result 张量重新视图化为与 image 相同的形状，并返回。
else:
result = image.permute(0,2,3,1) # 将 image 张量进行维度置换，将通道维度移动到最后一个位置。
return result[:,:,:,0] # 返回 result 张量的第一个通道（索引为 0）的切片，即返回一个只包含第一个通道的张量。
##################################### Gray Image #########################################
class RGB2Y(nn.Module):
""" Converts RGB image to Y (luminance)
"""
def __init__(self):
super(RGB2Y, self).__init__()
matrix = np.array([[0.299, 0.587, 0.114]], dtype=np.float32).T # 只保留Y通道的转换系数
self.shift = nn.Parameter(torch.tensor([0.])) # 只保留Y通道的偏移量
self.matrix = nn.Parameter(torch.from_numpy(matrix))
def forward(self, image):
"""
Args:
image(Tensor): batch x 3 x height x width
Returns:
Tensor: batch x height x width x 1
"""
image = image.permute(0, 2, 3, 1)
result = torch.tensordot(image, self.matrix, dims=1) + self.shift
return result.view(*image.shape[:-1], 1) # 保持输出为4D张量，但最后一个维度为1
class ChromaSubsampling(nn.Module):
""" Chroma subsampling on CbCr channels
"""
def __init__(self):
super(ChromaSubsampling, self).__init__()
def forward(self, image):
"""
Args:
image(tensor): batch x height x width x 3
Returns:
y(tensor): batch x height x width
cb(tensor): batch x height/2 x width/2
cr(tensor): batch x height/2 x width/2
"""
image_2 = image.permute(0, 3, 1, 2).clone()
cb = F.avg_pool2d(image_2[:, 1, :, :].unsqueeze(1), kernel_size=2, stride=(2, 2), count_include_pad=False)
cr = F.avg_pool2d(image_2[:, 2, :, :].unsqueeze(1), kernel_size=2, stride=(2, 2), count_include_pad=False)
cb = cb.permute(0, 2, 3, 1)
cr = cr.permute(0, 2, 3, 1)
return image[:, :, :, 0], cb.squeeze(3), cr.squeeze(3)
# channels = image.shape[-1]
# if channels == 1: # 如果只有一个通道，直接返回Y通道
# return image[:, :, :, 0], None, None
# else:
# image_2 = image.permute(0, 3, 1, 2).clone()
# cb = F.avg_pool2d(image_2[:, 1, :, :].unsqueeze(1), kernel_size=2, stride=(2, 2), count_include_pad=False)
# cr = F.avg_pool2d(image_2[:, 2, :, :].unsqueeze(1), kernel_size=2, stride=(2, 2), count_include_pad=False)
# cb = cb.permute(0, 2, 3, 1)
# cr = cr.permute(0, 2, 3, 1)
# return image[:, :, :, 0], cb.squeeze(3), cr.squeeze(3)
class BlockSplitting(nn.Module):
""" Splitting image into patches
"""
def __init__(self):
super(BlockSplitting, self).__init__()
self.k = 8
def forward(self, image):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x h*w/64 x h x w
"""
height, _ = image.shape[1:3] # 原始写法
batch_size = image.shape[0]
#
image_reshaped = image.view(batch_size, height // self.k, self.k, -1, self.k)
image_transposed = image_reshaped.permute(0, 1, 3, 2, 4)
return image_transposed.contiguous().view(batch_size, -1, self.k, self.k)
class DCT8x8(nn.Module):
""" Discrete Cosine Transformation
"""
def __init__(self):
super(DCT8x8, self).__init__()
tensor = np.zeros((8, 8, 8, 8), dtype=np.float32)
for x, y, u, v in itertools.product(range(8), repeat=4):
tensor[x, y, u, v] = np.cos((2 * x + 1) * u * np.pi / 16) * np.cos((2 * y + 1) * v * np.pi / 16)
alpha = np.array([1. / np.sqrt(2)] + [1] * 7)
self.tensor = nn.Parameter(torch.from_numpy(tensor).float())
self.scale = nn.Parameter(torch.from_numpy(np.outer(alpha, alpha) * 0.25).float())
def forward(self, image):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x height x width
"""
image = image - 128
# image = image.unsqueeze(-1) # 增加一个维度
result = self.scale * torch.tensordot(image, self.tensor, dims=2)
result.view(image.shape)
# result = result.view(*image.shape[:-1]) # 忽略最后一个维度
return result
class YQuantize(nn.Module):
""" JPEG Quantization for Y channel
Args:
rounding(function): rounding function to use
"""
def __init__(self, rounding):
super(YQuantize, self).__init__()
self.rounding = rounding
self.y_table = y_table
def forward(self, image, factor=1):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x height x width
"""
if isinstance(factor, (int, float)):
image = image.float() / (self.y_table * factor)
else:
b = factor.size(0)
table = self.y_table.expand(b, 1, 8, 8) * factor.view(b, 1, 1, 1)
image = image.float() / table
image = self.rounding(image)
return image
class CQuantize(nn.Module):
""" JPEG Quantization for CbCr channels
Args:
rounding(function): rounding function to use
"""
def __init__(self, rounding):
super(CQuantize, self).__init__()
self.rounding = rounding
self.c_table = c_table
def forward(self, image, factor=1):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x height x width
"""
if isinstance(factor, (int, float)):
image = image.float() / (self.c_table * factor)
else:
b = factor.size(0)
table = self.c_table.expand(b, 1, 8, 8) * factor.view(b, 1, 1, 1)
image = image.float() / table
image = self.rounding(image)
return image
class CompressJpeg(nn.Module):
"""Full JPEG compression algorithm
Args:
rounding(function): rounding function to use
"""
def __init__(self, rounding=torch.round):
super(CompressJpeg, self).__init__()
# self.l1 = nn.Sequential(RGB2YCbCrJpeg(), ChromaSubsampling()) # 三通道
# self.l1 = nn.Sequential(RGB2Y(), ChromaSubsampling())
# self.l1 = RGB2Y() # 单通道
self.l1 = RGB2YCbCrJpeg()
self.chroma_sub = ChromaSubsampling()
self.l2 = nn.Sequential(BlockSplitting(), DCT8x8())
self.c_quantize = CQuantize(rounding=rounding) # 三通道
self.y_quantize = YQuantize(rounding=rounding)
def forward(self, image,c, factor=1):
"""
Args:
image(tensor): batch x 3 x height x width
Returns:
dict(tensor): Compressed tensor with batch x h*w/64 x 8 x 8.
"""
if c == 3:
y, cb, cr = self.chroma_sub(self.l1(c,image * 255))
components = {'y': y, 'cb': cb, 'cr': cr}
else:
y = self.l1(c,image*255)
components = {'y':y}
for k in components.keys():
comp = self.l2(components[k])
if k in ('cb', 'cr'):
comp = self.c_quantize(comp, factor=factor)
else:
comp = self.y_quantize(comp, factor=factor)
components[k] = comp
if 'cb' in components.keys():
return components['y'], components['cb'], components['cr']
else:
return components['y']
# return components['y'], components['cb'], components['cr']
# ------------------------ decompression ------------------------#
class YDequantize(nn.Module):
"""Dequantize Y channel
"""
def __init__(self):
super(YDequantize, self).__init__()
self.y_table = y_table
def forward(self, image, factor=1):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x height x width
"""
if isinstance(factor, (int, float)):
out = image * (self.y_table * factor)
else:
b = factor.size(0)
table = self.y_table.expand(b, 1, 8, 8) * factor.view(b, 1, 1, 1)
out = image * table
return out
class CDequantize(nn.Module):
"""Dequantize CbCr channel
"""
def __init__(self):
super(CDequantize, self).__init__()
self.c_table = c_table
def forward(self, image, factor=1):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x height x width
"""
if isinstance(factor, (int, float)):
out = image * (self.c_table * factor)
else:
b = factor.size(0)
table = self.c_table.expand(b, 1, 8, 8) * factor.view(b, 1, 1, 1)
out = image * table
return out
class iDCT8x8(nn.Module):
"""Inverse discrete Cosine Transformation
"""
def __init__(self):
super(iDCT8x8, self).__init__()
alpha = np.array([1. / np.sqrt(2)] + [1] * 7)
self.alpha = nn.Parameter(torch.from_numpy(np.outer(alpha, alpha)).float())
tensor = np.zeros((8, 8, 8, 8), dtype=np.float32)
for x, y, u, v in itertools.product(range(8), repeat=4):
tensor[x, y, u, v] = np.cos((2 * u + 1) * x * np.pi / 16) * np.cos((2 * v + 1) * y * np.pi / 16)
self.tensor = nn.Parameter(torch.from_numpy(tensor).float())
def forward(self, image):
"""
Args:
image(tensor): batch x height x width
Returns:
Tensor: batch x height x width
"""
image = image * self.alpha
result = 0.25 * torch.tensordot(image, self.tensor, dims=2) + 128
result.view(image.shape)
# return result
return result.view(image.shape)
class BlockMerging(nn.Module):
"""Merge patches into image
"""
def __init__(self):
super(BlockMerging, self).__init__()
def forward(self, patches, height, width):
"""
Args:
patches(tensor) batch x height*width/64, height x width
height(int)
width(int)
Returns:
Tensor: batch x height x width
"""
k = 8
batch_size = patches.shape[0]
image_reshaped = patches.view(batch_size, height // k, width // k, k, k)
image_transposed = image_reshaped.permute(0, 1, 3, 2, 4)
return image_transposed.contiguous().view(batch_size, height, width)
class ChromaUpsampling(nn.Module):
"""Upsample chroma layers
"""
def __init__(self):
super(ChromaUpsampling, self).__init__()
def forward(self, y, cb, cr):
"""
Args:
y(tensor): y channel image
cb(tensor): cb channel
cr(tensor): cr channel
Returns:
Tensor: batch x height x width x 3
"""
def repeat(x, k=2):
height, width = x.shape[1:3]
x = x.unsqueeze(-1)
x = x.repeat(1, 1, k, k)
x = x.view(-1, height * k, width * k)
return x
cb = repeat(cb)
cr = repeat(cr)
return torch.cat([y.unsqueeze(3), cb.unsqueeze(3), cr.unsqueeze(3)], dim=3)
class YCbCr2RGBJpeg(nn.Module):
"""Converts YCbCr image to RGB JPEG
"""
def __init__(self):
super(YCbCr2RGBJpeg, self).__init__()
matrix = np.array([[1., 0., 1.402], [1, -0.344136, -0.714136], [1, 1.772, 0]], dtype=np.float32).T
self.shift = nn.Parameter(torch.tensor([0, -128., -128.]))
self.matrix = nn.Parameter(torch.from_numpy(matrix))
def forward(self, image):
"""
Args:
image(tensor): batch x height x width x 3
Returns:
Tensor: batch x 3 x height x width
"""
result = torch.tensordot(image + self.shift, self.matrix, dims=1)
return result.view(image.shape).permute(0, 3, 1, 2)
class DeCompressJpeg(nn.Module):
"""Full JPEG decompression algorithm
Args:
rounding(function): rounding function to use
"""
def __init__(self, rounding=torch.round):
super(DeCompressJpeg, self).__init__()
self.c_dequantize = CDequantize()
self.y_dequantize = YDequantize()
self.idct = iDCT8x8()
self.merging = BlockMerging()
self.chroma = ChromaUpsampling()
self.colors = YCbCr2RGBJpeg()
def forward(self, c ,y, cb, cr, imgh, imgw, factor=1):
"""
Args:
compressed(dict(tensor)): batch x h*w/64 x 8 x 8
imgh(int)
imgw(int)
factor(float)
Returns:
Tensor: batch x 3 x height x width
"""
if c == 3:
components = {'y': y, 'cb': cb, 'cr': cr}
else:
components = {'y': y}
for k in components.keys():
if k in ('cb', 'cr'):
comp = self.c_dequantize(components[k], factor=factor)
height, width = int(imgh / 2), int(imgw / 2)
else:
comp = self.y_dequantize(components[k], factor=factor)
height, width = imgh, imgw
comp = self.idct(comp)
components[k] = self.merging(comp, height, width)
#
if c == 3:
image = self.chroma(components['y'], components['cb'], components['cr'])
image = self.colors(image)
else:
image = components['y'].unsqueeze(1)
image = torch.min(255 * torch.ones_like(image), torch.max(torch.zeros_like(image), image))
return image / 255
# ------------------------ main DiffJPEG ------------------------ #
class DiffJPEG(nn.Module):
"""This JPEG algorithm result is slightly different from cv2.
DiffJPEG supports batch processing.
Args:
differentiable(bool): If True, uses custom differentiable rounding function, if False, uses standard torch.round
"""
def __init__(self, differentiable=True):
super(DiffJPEG, self).__init__()
if differentiable:
rounding = diff_round
else:
rounding = torch.round
## 三通道
self.compress = CompressJpeg(rounding=rounding)
self.decompress = DeCompressJpeg(rounding=rounding)
# 单通道
# self.compress = CompressJpeg_Gray(rounding=diff_round if differentiable else torch.round)
# self.decompress = DeCompressJpeg_Gray()
# self.factor = quality_to_factor(quality)
def forward(self, x, quality):
"""
Args:
x (Tensor): Input image, bchw, rgb, [0, 1]
quality(float): Quality factor for jpeg compression scheme.
"""
factor = quality
if isinstance(factor, (int, float)):
factor = quality_to_factor(factor)
else:
for i in range(factor.size(0)):
factor[i] = quality_to_factor(factor[i])
# h, w = x.size()[-2:]
c, h, w = x.size()[1:]
h_pad, w_pad = 0, 0
# why should use 16
if h % 16 != 0:
h_pad = 16 - h % 16
if w % 16 != 0:
w_pad = 16 - w % 16
x = F.pad(x, (0, w_pad, 0, h_pad), mode='constant', value=0)
if c == 3:
y, cb, cr = self.compress(x, c =c ,factor=factor)
recovered = self.decompress(c,y, cb, cr, (h + h_pad), (w + w_pad), factor=factor)
else:
y = self.compress(x, c = c, factor=factor)
recovered = self.decompress(c,y,None,None,(h + h_pad), (w + w_pad), factor=factor)
recovered = recovered[:, :, 0:h, 0:w]
return recovered
######################################################################################################################
def _totensor(imgs, bgr2rgb=True, float32=True):
def _convert(img):
if img.ndim == 2:
img = np.expand_dims(img, axis=2)
if bgr2rgb and img.shape[2] == 3:
img = img[..., [2, 1, 0]]
img = torch.from_numpy(np.ascontiguousarray(img))
if float32:
img = img.float()
else:
img = img.byte()
return img.permute(2, 0, 1).contiguous()
if isinstance(imgs, list):
return [_convert(img) for img in imgs]
else:
return _convert(imgs)
def img2tensor(imgs, bgr2rgb=True, float32=True):
if isinstance(imgs, np.ndarray):
if imgs.ndim == 2:
imgs = np.expand_dims(imgs, axis=2)
return _totensor(imgs, bgr2rgb, float32)
elif isinstance(imgs, list):
for i in range(len(imgs)):
if imgs[i].ndim == 2:
imgs[i] = np.expand_dims(imgs[i], axis=2)
return _totensor(imgs, bgr2rgb, float32)
else:
raise TypeError("Input should be a numpy array or list of numpy arrays")
if __name__ == '__main__':
import cv2
# from basicsr.utils import img2tensor, tensor2img # 从basicsr.utils模块导入img2tensor和tensor2img函数，这两个函数分别用于将图像转换为张量和将张量转换为图像。
from basicsr.utils import tensor2img
# img_gt = cv2.imread('test.png') / 255. # 读取名为’test.png’的图像文件，并将其像素值归一化到0-1之间
# img_gt = cv2.imread('Images/Visible_Images/1.jpg',0) / 255.
# img_gt = cv2.imread('Images/INF400300_rgb/V3-20240220112811.bmp') / 255. # 彩色图像
img_gt = cv2.imread('Images/INF400300_rgb/V3-20240220112811.bmp',0) / 255. # 灰度图像
# -------------- cv2 -------------- #
encode_param = [int(cv2.IMWRITE_JPEG_QUALITY), 20] # 设置JPEG图像的质量参数为20
_, encimg = cv2.imencode('.jpg', img_gt * 255., encode_param) # 将归一化后的图像乘以255（即将像素值恢复到0-255之间），然后以JPEG格式进行编码
img_lq = np.float32(cv2.imdecode(encimg, 1)) # 解码编码后的图像，并将其转换为浮点类型
cv2.imwrite('Result/DiffJpeg/DiffJpeg_Result_Gray/cv2_JPEG_20.png', img_lq) # 将解码后的图像保存为’cv2_JPEG_20.png’
# -------------- DiffJPEG -------------- #
jpeger = DiffJPEG(differentiable=False).cuda() # 创建一个DiffJPEG对象，这是一个用于JPEG编码和解码的类，differentiable=False表示该对象不可微分
# jpeger = DiffJPEG_Gray(differentiable=False).cuda()
img_gt = img2tensor(img_gt) # 将图像转换为张量
img_gt = torch.stack([img_gt, img_gt]).cuda() # 创建一个新的张量，该张量由两个img_gt张量堆叠而成，并将其移动到GPU上。
quality = img_gt.new_tensor([60, 90]) # 创建一个新的张量，该张量包含两个元素20和40，这两个元素表示JPEG图像的质量参数。
out = jpeger(img_gt, quality=quality) # 使用jpeger对象对图像进行JPEG编码
cv2.imwrite('Result/DiffJpeg/DiffJpeg_Result_Gray/pt_JPEG_60.png', tensor2img(out[0]))
cv2.imwrite('Result/DiffJpeg/DiffJpeg_Result_Gray/pt_JPEG_90.png', tensor2img(out[1]))
四、压缩效果
五、总结
以上就是图像JPEG压缩的两种方法，OpenCV包中的压缩方法使用不同的软件包生成的结果有差异。学者自行调整质量参数尝试。
总结不易，多多支持，谢谢！
感谢您阅读到最后！关注公众号「视觉研坊」，获取干货教程、实战案例、技术解答、行业资讯！
937
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
