手动实现一下常见的图片数据增强方法，并且实现目标检测 bbox 的同样的增强

0. 所有需要用到的库

import torch
import numpy as np
from PIL import Image
from PIL import ImageEnhance, ImageDraw
from torchvision import transforms
import math
import random

1. 旋转

def random_rotate(img, bboxes, angle_range=(-10,10)):
    # 随机旋转
    angle = random.uniform(angle_range[0], angle_range[1])
    img = img.rotate(-angle, expand=False)
    w, h = img.size
    cx = w / 2
    cy = h / 2
    theta = math.radians(angle)
    cos_theta = math.cos(theta)
    sin_theta = math.sin(theta)
    new_bboxes = None
    for bbox in bboxes:
        x1, y1, x2, y2 = bbox
        # 旋转变换
        point1x, point1y = rotate_point(x1, y1,cx, cy, cos_theta, sin_theta)
        point2x, point2y = rotate_point(x2, y2, cx, cy, cos_theta, sin_theta)
        point3x,point3y = rotate_point(x1, y2, cx, cy, cos_theta, sin_theta)
        point4x,point4y = rotate_point(x2, y1, cx, cy, cos_theta, sin_theta)
        x1 = min(point1x, point2x, point3x, point4x)
        y1 = min(point1y, point2y, point3y, point4y)
        x2 = max(point1x, point2x, point3x, point4x)
        y2 = max(point1y, point2y, point3y, point4y)

        # new_bboxes.append([x1, y1, x2, y2])

        if new_bboxes is not None:
            # new_bboxes = torch.cat((new_bboxes, torch.Tensor()), 0)
            new_bboxes = torch.cat((new_bboxes, torch.Tensor([x1, y1, x2, y2]).reshape(1, 4)), 0)
        else:
            new_bboxes = torch.Tensor([x1, y1, x2, y2]).reshape(1, 4)
    print(new_bboxes)
    print(new_bboxes.shape)
    return img, new_bboxes

def rotate_point(x, y, cx, cy, cos_theta, sin_theta):
    # 旋转变换
    nx = cos_theta * (x - cx) - sin_theta * (y - cy) + cx
    ny = sin_theta * (x - cx) + cos_theta * (y - cy) + cy
    return nx, ny

2. 随机裁剪

def random_crop(img, bboxes, p=1):
    # 随机裁剪
    if random.random() < p:
        h_img, w_img = img.size
        print(bboxes.shape)
        # 得到可以包含所有bbox的最大bbox
        # max_bbox = np.concatenate([np.min(bboxes[:, 0:2], axis=0), np.max(bboxes[:, 2:4], axis=0)], axis=-1)
        # bboxes 是tensor

        max_bbox = torch.cat((torch.min(bboxes[:, 0:2], 0)[0], torch.max(bboxes[:, 2:4], 0)[0]), 0)
        max_l_trans = max_bbox[0]
        max_u_trans = max_bbox[1]
        max_r_trans = w_img - max_bbox[2]
        max_d_trans = h_img - max_bbox[3]

        crop_xmin = max(0, int(max_bbox[0] - random.uniform(0, max_l_trans)))
        crop_ymin = max(0, int(max_bbox[1] - random.uniform(0, max_u_trans)))
        crop_xmax = max(w_img, int(max_bbox[2] + random.uniform(0, max_r_trans)))
        crop_ymax = max(h_img, int(max_bbox[3] + random.uniform(0, max_d_trans)))

        # img = img[crop_ymin : crop_ymax, crop_xmin : crop_xmax]
        img = img.crop((crop_xmin, crop_ymin, crop_xmax, crop_ymax))

        bboxes[:, [0, 2]] = bboxes[:, [0, 2]] - crop_xmin
        bboxes[:, [1, 3]] = bboxes[:, [1, 3]] - crop_ymin
    return img, bboxes

3. 随机改变颜色亮度对比度

def random_distort(img):
    # 随机改变亮度
    def random_brightness(img, lower=0.5, upper=1.5):
        e = np.random.uniform(lower, upper)
        return ImageEnhance.Brightness(img).enhance(e)
    # 随机改变对比度
    def random_contrast(img, lower=0.5, upper=1.5):
        e = np.random.uniform(lower, upper)
        return ImageEnhance.Contrast(img).enhance(e)
    # 随机改变颜色
    def random_color(img, lower=0.5, upper=1.5):
        e = np.random.uniform(lower, upper)
        return ImageEnhance.Color(img).enhance(e)

    ops = [random_brightness, random_contrast, random_color]
    np.random.shuffle(ops)

    # img = Image.fromarray(img)
    img = ops[0](img)
    img = ops[1](img)
    img = ops[2](img)
    # img = np.asarray(img)

    return img

4. 随机水平翻转竖直翻转

def random_flip_horizon(self, img, boxes):
    #-------------------------------------
    # 随机水平翻转
    #-------------------------------------
    if np.random.random() > 0.5:
    # transform=transforms.HorizontalFlip()
        transform = transforms.RandomHorizontalFlip(p = 1.0)
        img=transform(img)
        w = img.width
        xmin=w-boxes[:,2]
        xmax=w-boxes[:,0]
        boxes[:,0]=xmin
        boxes[:,2]=xmax
    return img, boxes

def random_flip_vertical(self, img, boxes):

    #-------------------------------------
    # 随机垂直翻转
    #-------------------------------------
    if np.random.random()>0.5:
        transform=transforms.RandomVerticalFlip(p=1.0)
        img=transform(img)
        h=img.height
        ymin=h-boxes[:, 3]
        ymax=h-boxes[:, 1]
        boxes[:, 1]=ymin
        boxes[:, 3]=ymax
    return img, boxes

5. 可视化代码

def visualization(self, img, boxes):
    #---------------------------------------------------------------------
    # 可视化，将boxes画在img上
    #---------------------------------------------------------------------
    draw = ImageDraw.Draw(img)
    for i in range(boxes.size(0)):
        box = boxes[i].int()
        draw.rectangle([(box[0], box[1]), (box[2], box[3])], outline='yellow', width=3)

    img.show()

6. img 和bbox 的读取

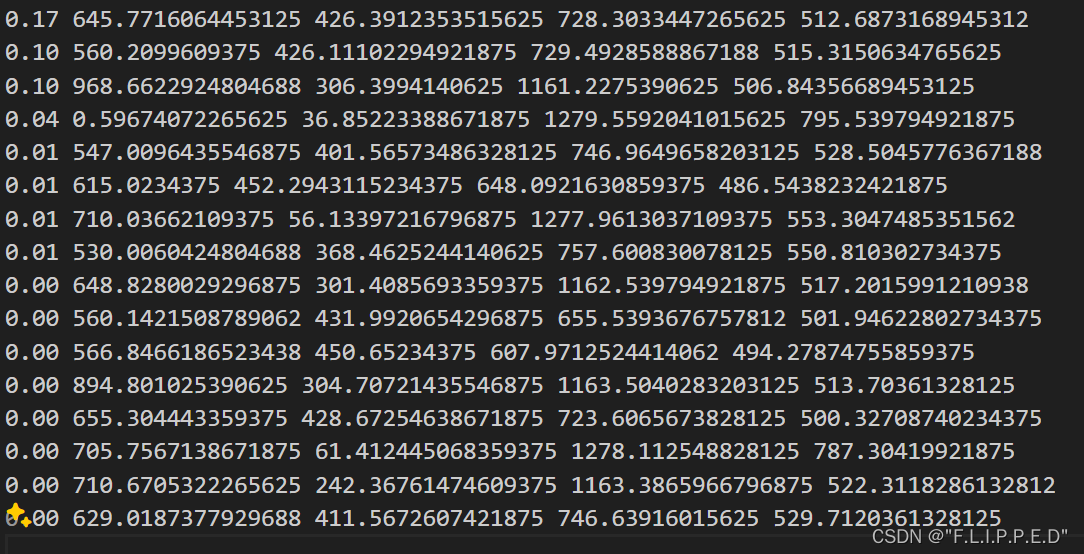

其中我的bbox txt 的 格式是这样的

第一个是label 信息，后面四个是 x1，y1,x2,y2 bbox的对角线坐标

img = "outputs/001/100.jpg"
img =  Image.open(img)
bboxs = open("outputs/detections/100.txt", "r").read().split("\n")
aa = None
for bb in bboxs:
    if bb:
        bb = bb.split(" ")[1:]
        # print(bb)
        bb = [float(i) for i in bb]
        print(bb)
        bb = torch.Tensor(bb).reshape(1, 4)
        if aa is not None :
            aa = torch.cat((aa, bb), 0)
        else:
            aa = bb
        # boxes.append(bb)

# boxes = []


# print(bboxs)
