详解MiniGPT-4

一、前言

论文：Minigpt-4: Enhancing vision-language understanding with advanced large language models.
Github：Minigpt-4

MiniGPT-4 是一个高效的多模态模型，它通过整合 BLIP-2 的视觉组件和Vicuna 的语言模型，并在视觉和语言之间加入单层投影层实现对齐。模型采用了冻结策略，仅微调投影层，并通过高质量数据进一步提升对话能力。这使得 MiniGPT-4 能够在较少计算资源的条件下，展现出接近 GPT-4 的视觉对话能力。

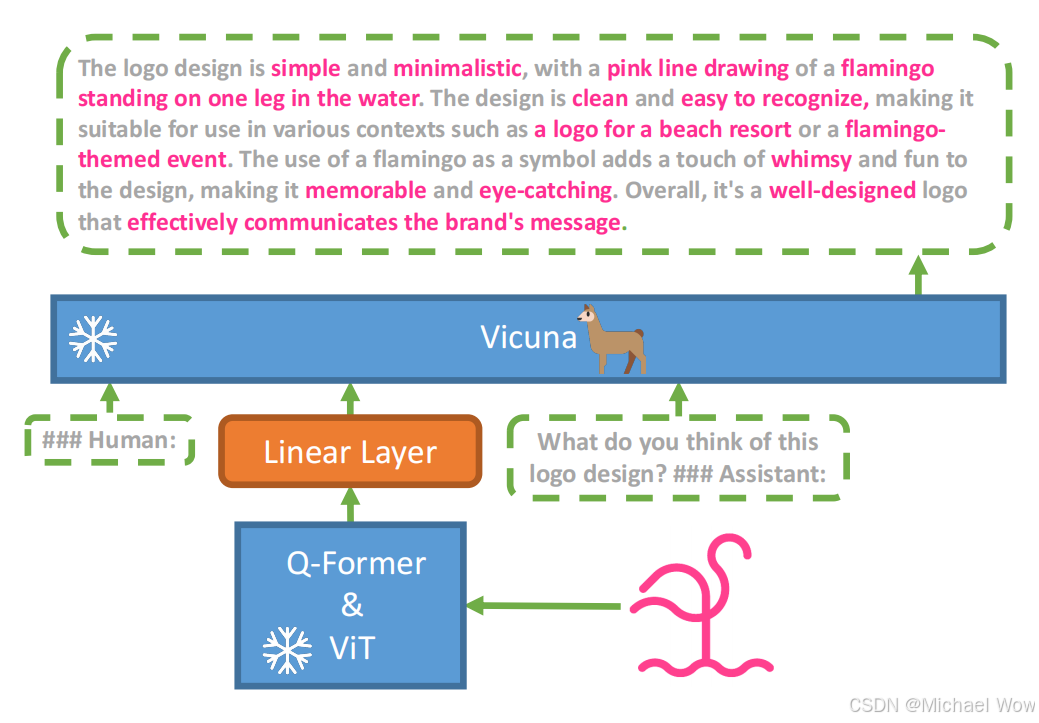

二、总体架构

MiniGPT-4 认为，当前新的语言模型和视觉编码器更新速度非常快，采用冻结ViT & Q-Former 和语言模型参数，只训练连接ViT & Q-Former 和语言模型的投影层的方式会非常有效，避免了重新训练视觉部分所需的大量计算资源。

三、技术细节

3.1 模型结构与初始化：Vision Encoder 和 Q-Former

在模型初始化阶段，init_vision_encoder 和 init_Qformer 两个方法分别用于视觉编码器和Q-Former 的构建。

3.1.1 视觉编码器初始化：

    def init_vision_encoder(
        cls, model_name, img_size, drop_path_rate, use_grad_checkpoint, precision, freeze
    ):
        logging.info('Loading VIT')

        assert model_name == "eva_clip_g", "vit model must be eva_clip_g for current version of MiniGPT-4"
        if not freeze:
            precision = "fp32"  # fp16 is not for training

        visual_encoder = create_eva_vit_g(
            img_size, drop_path_rate, use_grad_checkpoint, precision
        )

        ln_vision = LayerNorm(visual_encoder.num_features)

        if freeze:
            for name, param in visual_encoder.named_parameters():
                param.requires_grad = False
            visual_encoder = visual_encoder.eval()
            visual_encoder.train = disabled_train
            for name, param in ln_vision.named_parameters():
                param.requires_grad = False
            ln_vision = ln_vision.eval()
            ln_vision.train = disabled_train
            logging.info("freeze vision encoder")

        logging.info('Loading VIT Done')
        return visual_encoder, ln_vision

• 视觉编码器选择：使用 EVA-CLIP (ViT-G) 作为图像特征提取器，将输入图像编码为视觉嵌入。
• 层归一化 (LayerNorm)：对编码后的嵌入进行归一化，确保特征稳定性。

3.1.2 Q-Former 的初始化：

def init_Qformer(cls, num_query_token, vision_width, freeze):
        encoder_config = BertConfig.from_pretrained("bert-base-uncased")
        encoder_config.encoder_width = vision_width
        # insert cross-attention layer every other block
        encoder_config.add_cross_attention = True
        encoder_config.cross_attention_freq = 2
        encoder_config.query_length = num_query_token
        Qformer = BertLMHeadModel(config=encoder_config)
        query_tokens = nn.Parameter(
            torch.zeros(1, num_query_token, encoder_config.hidden_size)
        )
        query_tokens.data.normal_(mean=0.0, std=encoder_config.initializer_range)

        Qformer.cls = None
        Qformer.bert.embeddings.word_embeddings = None
        Qformer.bert.embeddings.position_embeddings = None
        for layer in Qformer.bert.encoder.layer:
            layer.output = None
            layer.intermediate = None

        if freeze:
            for name, param in Qformer.named_parameters():
                param.requires_grad = False
            Qformer = Qformer.eval()
            Qformer.train = disabled_train
            query_tokens.requires_grad = False
            logging.info("freeze Qformer")

        return Qformer, query_tokens

• Q-Former 的设计：基于 BERT 的结构进行初始化，支持交叉注意力层（Cross-Attention Layer），与视觉嵌入进行交互。
• 查询向量 (Query Tokens)：这些参数化的查询向量在训练时会从视觉编码中提取关键信息。

3.2 图像编码与视觉-语言融合

def encode_img(self, image):
        device = image.device

        if len(image.shape) > 4:
            image = image.reshape(-1, *image.shape[-3:])

        with self.maybe_autocast():
            image_embeds = self.ln_vision(self.visual_encoder(image)).to(device)
            if self.has_qformer:
                image_atts = torch.ones(image_embeds.size()[:-1], dtype=torch.long).to(device)

                query_tokens = self.query_tokens.expand(image_embeds.shape[0], -1, -1)
                query_output = self.Qformer.bert(
                    query_embeds=query_tokens,
                    encoder_hidden_states=image_embeds,
                    encoder_attention_mask=image_atts,
                    return_dict=True,
                )

                inputs_llama = self.llama_proj(query_output.last_hidden_state)
            else:
                image_embeds = image_embeds[:, 1:, :]
                bs, pn, hs = image_embeds.shape
                image_embeds = image_embeds.view(bs, int(pn / 4), int(hs * 4))

                inputs_llama = self.llama_proj(image_embeds)
            atts_llama = torch.ones(inputs_llama.size()[:-1], dtype=torch.long).to(image.device)
        return inputs_llama, atts_llama

• 视觉编码：将图像通过视觉编码器生成嵌入，并通过 LayerNorm 归一化处理。
• 查询向量与图像嵌入交互：使用 Q-Former 模块通过交叉注意力，从图像嵌入中提取与查询向量相关的特征。
• 线性投影：通过 llama_proj 将 Q-Former 的输出特征投影到 LLM 的嵌入维度，以确保与语言模型的输入对齐。

3.3 语言模型输入处理与前向传播

def preparing_embedding(self, samples):
        ### prepare input tokens
        if 'image' in samples:
            img_embeds, img_atts = self.encode_img(samples["image"])
        else:
            img_embeds = img_atts = None

        if 'conv_q' in samples:
            # handeling conversation datasets
            conv_q, conv_a = samples['conv_q'], samples['conv_a']

            connect_sym = samples['connect_sym'][0]
            conv_q = [q.split(connect_sym)for q in conv_q]
            conv_a = [a.split(connect_sym) for a in conv_a]

            conv_q = [[self.prompt_template.format(item) for item in items] for items in conv_q]

            cond_embeds, cond_atts = self.prompt_wrap(img_embeds, img_atts, [q[0] for q in conv_q])
            regress_token_ids, regress_atts, part_targets = self.tokenize_conversation(conv_q, conv_a)

        else:
            if "instruction_input" in samples:
                instruction = samples["instruction_input"]
            elif self.prompt_list:
                instruction = random.choice(self.prompt_list)
            else:
                instruction = None

            if hasattr(self, 'chat_template') and self.chat_template:
                instruction = [self.prompt_template.format(instruct) for instruct in instruction]

            if 'length' in samples:
                # the input is a image train (like videos)
                bsz, pn, hs = img_embeds.shape
                img_embeds = img_embeds.reshape(len(samples['image']), -1, pn, hs)
                cond_embeds, cond_atts = self.prompt_wrap(img_embeds, img_atts, instruction, samples['length'])
            else:
                cond_embeds, cond_atts = self.prompt_wrap(img_embeds, img_atts, instruction)

            ### prepare target tokens
            self.llama_tokenizer.padding_side = "right"
            text = [t + self.end_sym for t in samples["answer"]]

            regress_tokens = self.llama_tokenizer(
                text,
                return_tensors="pt",
                padding="longest",
                truncation=True,
                max_length=self.max_txt_len,
                add_special_tokens=False
            ).to(self.device)

            regress_token_ids = regress_tokens.input_ids
            regress_atts = regress_tokens.attention_mask
            part_targets = regress_token_ids.masked_fill(
                regress_token_ids == self.llama_tokenizer.pad_token_id, -100
            )

        regress_embeds = self.embed_tokens(regress_token_ids)

        return cond_embeds, cond_atts, regress_embeds, regress_atts, part_targets


def forward(self, samples, reduction='mean'):
        # prepare the embedding to condition and the embedding to regress
        cond_embeds, cond_atts, regress_embeds, regress_atts, part_targets = \
            self.preparing_embedding(samples)

        # concat the embedding to condition and the embedding to regress
        inputs_embeds, attention_mask, input_lens = \
            self.concat_emb_input_output(cond_embeds, cond_atts, regress_embeds, regress_atts)

        # get bos token embedding
        bos = torch.ones_like(part_targets[:, :1]) * self.llama_tokenizer.bos_token_id
        bos_embeds = self.embed_tokens(bos)
        bos_atts = cond_atts[:, :1]

        # add bos token at the begining
        inputs_embeds = torch.cat([bos_embeds, inputs_embeds], dim=1)
        attention_mask = torch.cat([bos_atts, attention_mask], dim=1)

        # ensemble the final targets
        targets = torch.ones([inputs_embeds.shape[0], inputs_embeds.shape[1]],
                             dtype=torch.long).to(self.device).fill_(-100)

        for i, target in enumerate(part_targets):
            targets[i, input_lens[i]+1:input_lens[i]+len(target)+1] = target  # plus 1 for bos

        with self.maybe_autocast():
            outputs = self.llama_model(
                inputs_embeds=inputs_embeds,
                attention_mask=attention_mask,
                return_dict=True,
                labels=targets,
                reduction=reduction
            )
        loss = outputs.loss

        return {"loss": loss}

四、一些问题总结（持续更新）

1. 在 Q-Former 之后添加线性投影层有什么原因？
   • 维度对齐：确保 Q-Former 的输出与 LLM 的输入维度匹配。
   • 语义对齐：帮助视觉嵌入与语言模型的语义空间融合。
   • 计算高效：通过简单的线性变换实现有效的特征映射。
   • 模块化设计：增强了模型的灵活性，适应不同的视觉和语言模型组合。

参考

1. Zhu, Deyao, et al. “Minigpt-4: Enhancing vision-language understanding with advanced large language models.” arXiv preprint arXiv:2304.10592 (2023).
