scaleBox大屏自适应容器组件

1.引言

在做数字大屏时，需要整体页面，图表能跟着浏览器的尺寸自动变化，本文采用 vue 前端框架，采用 JavaScript 语言，封装了一个大屏自适应组件，将需要显示的页面放入组件的插槽中，就能实现自适应屏幕大小的效果。

echart引入教程：echart引入和组件封装-CSDN博客

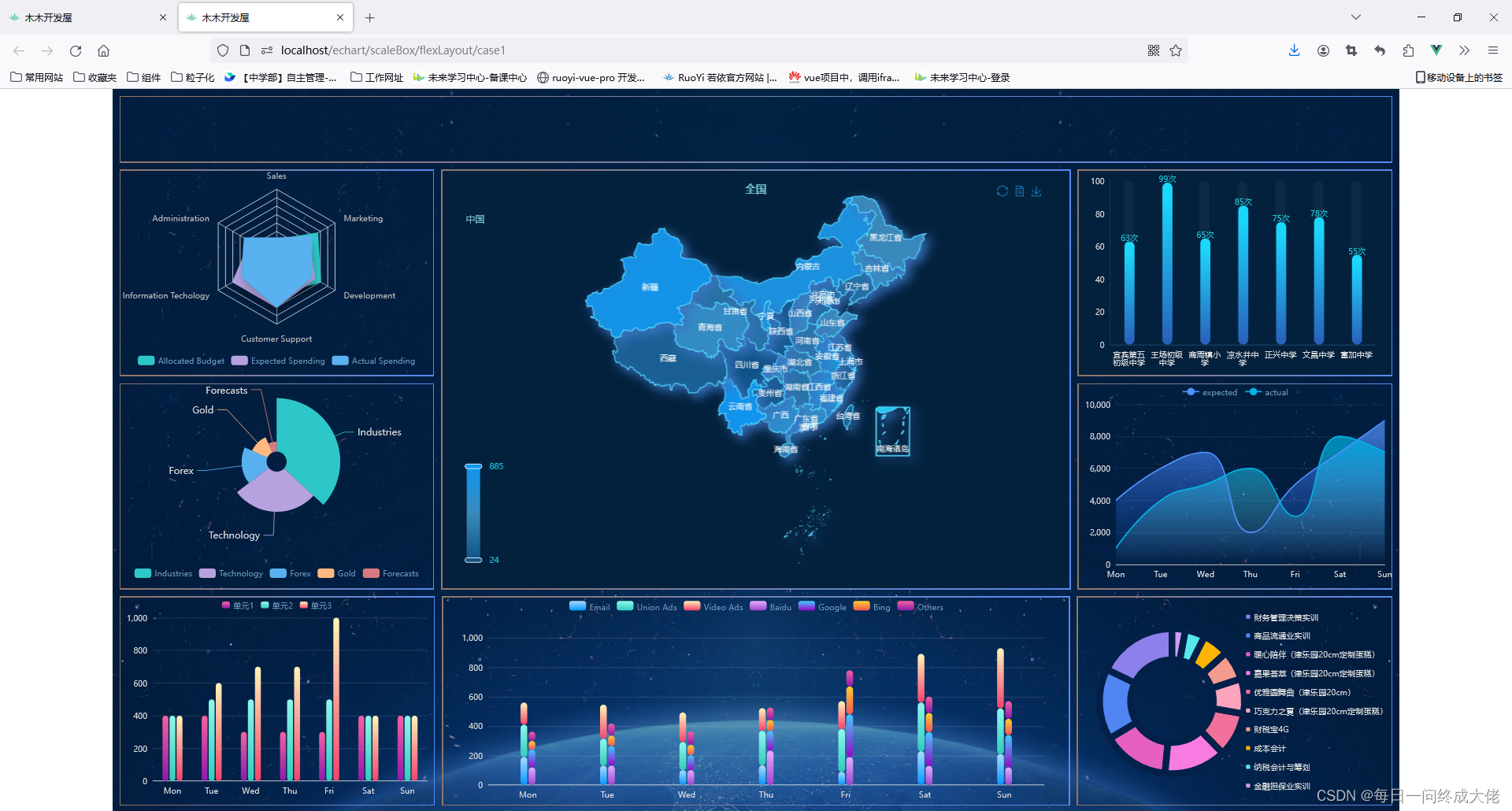

2.实际效果

您的浏览器不支持播放该视频！
在这里插入图片描述

3.组件代码

scaleBox.vue 组件

<!-- 大屏自适应容器组件 需固定宽高 否者按照 1920*1080 处理-->
<template>
	<!-- <section class="screen-box" :style="boxStyle"> -->
	<div class="screen-wrapper" ref="screenWrapper" :style="wrapperStyle">
		<slot></slot>
	</div>
	<!-- </section> -->
</template>
<script>
	/**
	 * 防抖函数
	 * @param {T} fn
	 * @param {number} delay
	 * @return
	 */
	function debounce(fn, delay) {
		let timer = null;
		return function (...args) {
			timer = setTimeout(
				() => {
					typeof fn === "function" && fn.apply(null, args);
					clearTimeout(timer);
				},
				delay > 0 ? delay : 100
			);
		};
	}

	export default {
		name: "VScaleScreen",
		props: {
			// 大屏宽度
			width: {
				type: [String, Number],
				default: 1920,
			},
			// 大屏高度
			height: {
				type: [String, Number],
				default: 1080,
			},
			// 全屏自适应，启用此配置项时会存在拉伸效果，同时autoScale失效，非必要情况下不建议开启
			fullScreen: {
				type: Boolean,
				default: false,
			},
			// 自适应配置，配置为boolean类型时，为启动或者关闭自适应，配置为对象时，若x为true，x轴产生边距，y为true时，y轴产生边距，启用fullScreen时此配置失效 | Boolean or {x:boolean,y:boolean}
			autoScale: {
				type: [Object, Boolean],
				default: true,
			},
			//是否进行自适应
			selfAdaption: {
				type: Boolean,
				default: true,
			},
			// 窗口变化防抖延迟时间
			delay: {
				type: Number,
				default: 500,
			},
			// 修改容器样式，如居中展示时侧边背景色，符合Vue双向绑定style标准格式
			boxStyle: {
				type: Object,
				default: () => ({}),
			},
			// 修改自适应区域样式，符合Vue双向绑定style标准格式
			wrapperStyle: {
				type: Object,
				default: () => ({}),
			},
		},
		data() {
			return {
				currentWidth: 0,
				currentHeight: 0,
				originalWidth: 0,
				originalHeight: 0,
				onResize: null,
				observer: null,
			};
		},
		watch: {
			//是否进行自适应判断
			selfAdaption(val) {
				// 如果自适应，设置并初始化自适应，添加监听事件
				if (val) {
					this.resize();
					this.addListener();
				} else {
					// 否者清除所有样式操作，并移除监听事件
					this.clearListener();
					this.clearStyle();
				}
			},
		},
		computed: {
			screenWrapper() {
				return this.$refs["screenWrapper"];
			},
		},
		methods: {
			initSize() {
				return new Promise((resolve, reject) => {
					// console.log("初始化样式");
					//给父元素设置 overflow:hidden
					this.screenWrapper.parentNode.style.overflow = "hidden";
					this.screenWrapper.parentNode.scrollLeft = 0;
					this.screenWrapper.parentNode.scrollTop = 0;

					this.$nextTick(() => {
						// region 获取大屏真实尺寸
						if (this.width && this.height) {
							this.currentWidth = this.width;
							this.currentHeight = this.height;
						} else {
							this.currentWidth = this.screenWrapper.clientWidth;
							this.currentHeight = this.screenWrapper.clientHeight;
						}
						// endregion
						// region 获取画布尺寸
						if (!this.originalHeight || !this.originalWidth) {
							this.originalWidth = window.screen.width;
							this.originalHeight = window.screen.height;
						}
						// endregion
						resolve();
					});
				});
			},
			updateSize() {
				if (this.currentWidth && this.currentHeight) {
					this.screenWrapper.style.width = `${this.currentWidth}px`;
					this.screenWrapper.style.height = `${this.currentHeight}px`;
				} else {
					this.screenWrapper.style.width = `${this.originalWidth}px`;
					this.screenWrapper.style.height = `${this.originalHeight}px`;
				}
			},
			handleAutoScale(scale) {
				if (!this.autoScale) return;
				const screenWrapper = this.screenWrapper;
				const domWidth = screenWrapper.clientWidth;
				const domHeight = screenWrapper.clientHeight;
				const currentWidth = document.body.clientWidth;
				const currentHeight = document.body.clientHeight;
				screenWrapper.style.transform = `scale(${scale},${scale}) `;
				let mx = Math.max((currentWidth - domWidth * scale) / 2, 0);
				let my = Math.max((currentHeight - domHeight * scale) / 2, 0);
				if (typeof this.autoScale === "object") {
					// @ts-ignore
					!this.autoScale.x && (mx = 0);
					// @ts-ignore
					!this.autoScale.y && (my = 0);
				}
				// console.log({
				//   mx,
				//   my,
				//   currentWidth,
				//   currentHeight,
				//   domWidth,
				//   domHeight,
				//   scale,
				// });
				this.screenWrapper.style.margin = `${my}px ${mx}px`;
			},
			updateScale() {
				const screenWrapper = this.screenWrapper;
				// 获取真实视口尺寸
				const currentWidth = document.body.clientWidth;
				const currentHeight = document.body.clientHeight;
				// 获取大屏最终的宽高onResize
				const realWidth = this.currentWidth || this.originalWidth;
				const realHeight = this.currentHeight || this.originalHeight;
				// 计算缩放比例
				const widthScale = currentWidth / realWidth;
				const heightScale = currentHeight / realHeight;
				// console.log({currentWidth, currentHeight,realWidth,realHeight});

				// 若要铺满全屏，则按照各自比例缩放
				if (this.fullScreen) {
					screenWrapper.style.transform = `scale(${widthScale},${heightScale})`;
					return false;
				}
				// 按照宽高最小比例进行缩放
				const scale = Math.min(widthScale, heightScale);
				this.handleAutoScale(scale);
			},
			initMutationObserver() {
				const screenWrapper = this.screenWrapper;
				const observer = (this.observer = new MutationObserver(() => {
					this.onResize();
				}));

				observer.observe(screenWrapper, {
					attributes: true,
					attributeFilter: ["style"],
					attributeOldValue: true,
				});
			},
			/**
			 * @description 添加监听事件
			 */
			addListener() {
				window.addEventListener("resize", this.onResize);
			},
			/**
			 * @description 移除监听事件
			 */
			clearListener() {
				window.removeEventListener("resize", this.onResize);
			},
			/**
			 * @description 清除样式
			 */
			clearStyle() {
				// console.log("清除");
				const screenWrapper = this.screenWrapper;
				screenWrapper.parentNode.style.overflow = "auto";

				screenWrapper.style = "";
			},
			/**
			 * @description 初始化并设置自适应
			 */
			async resize() {
				if (!this.selfAdaption) {
					return;
				}
				await this.initSize();
				this.updateSize();
				this.updateScale();
			},
		},
		mounted() {
			this.onResize = debounce(() => {
				this.resize();
			}, this.delay);
			this.$nextTick(() => {
				if (this.selfAdaption) {
					this.resize();
					this.addListener();
				}
			});
		},
		beforeDestroy() {
			this.clearListener();
			// this.observer.disconnect()
		},
	};
	//
</script>

<style scoped lang="scss">
	.screen-box {
		overflow: hidden;
		background-size: 100% 100%;
		background: #000;
		width: 100vw;
		height: 100vh;
	}

	.screen-wrapper {
		transition-property: all;
		transition-timing-function: cubic-bezier(0.4, 0, 0.2, 1);
		transition-duration: 500ms;
		position: relative;
		overflow: hidden;
		z-index: 100;
		transform-origin: left top;
	}
</style>

4.使用实列

4.1 flex 布局

<!-- scaleBox + flex基础布局 -->
<template>
	<scaleBox
		:width="1920"
		:height="1080"
		class="scale-wrap"
		:selfAdaption="selfAdaption"
	>
		<div class="container p-10 flex fd-column gap-10">
			<div class="header e-card"></div>
			<div class="body flex flex-1 fd-column gap-10">
				<div class="center flex-2 flex fd-row gap-10">
					<div class="c-left flex-1 flex fd-column gap-10">
						<div class="c-left1 e-card flex-1"></div>
						<div class="c-left2 e-card flex-1"></div>
					</div>
					<div class="c-center flex-2 flex">
						<div class="c-center1 e-card flex-1"></div>
					</div>
					<div class="c-right flex-1 flex fd-column gap-10">
						<div class="c-right1 e-card flex-1"></div>
						<div class="c-right2 e-card flex-1"></div>
					</div>
				</div>
				<div class="bottom flex-1 flex fd-row gap-10">
					<div class="bottom1 e-card flex-1"></div>
					<div class="bottom2 e-card flex-2"></div>
					<div class="bottom3 e-card flex-1"></div>
				</div>
			</div>
		</div>
	</scaleBox>
</template>

<script>
	import scaleBox from "@/components/scaleBox";
	export default {
		components: { scaleBox },
		data() {
			return {
				selfAdaption: true,
			};
		},
	};
</script>

<style scoped lang="scss">
	.e-card {
		border: 2px solid;
		border-image: linear-gradient(to right, #917667, #578aef) 1;
	}

	.container {
		--header-hight: 100px;
		height: 100%;
		width: 100%;
		background: #03213d;
		//background-image: url("../../images/bg1.jpg");
		background-repeat: no-repeat;
		background-position: center center;
		background-size: cover;

		.header {
			height: var(--header-hight);
		}
	}
</style>

4.2 grid 布局

<!-- scaleBox + grid布局 -->

<template>
	<scaleBox
		:width="1920"
		:height="1080"
		class="scale-wrap"
		:selfAdaption="selfAdaption"
	>
		<div class="container p-10">
			<div class="header e-card"></div>
			<div class="body">
				<div class="center">
					<div class="c-left">
						<div class="c-left1 e-card"></div>
						<div class="c-left2 e-card"></div>
					</div>
					<div class="c-center">
						<div class="c-center1 e-card"></div>
					</div>
					<div class="c-right">
						<div class="c-right1 e-card"></div>
						<div class="c-right2 e-card"></div>
					</div>
				</div>
				<div class="bottom">
					<div class="bottom1 e-card"></div>
					<div class="bottom2 e-card"></div>
					<div class="bottom3 e-card"></div>
				</div>
			</div>
		</div>
	</scaleBox>
</template>

<script>
	import scaleBox from "@/components/scaleBox";
	export default {
		components: { scaleBox },
		data() {
			return {
				selfAdaption: true,
			};
		},
	};
</script>

<style scoped lang="scss">
	.e-card {
		border: 2px solid;
		border-image: linear-gradient(to right, #917667, #578aef) 1;
	}

	.container {
		--header-hight: 100px;
		height: 100%;
		width: 100%;
		display: grid;
		grid-template-rows: var(--header-hight) auto;
		row-gap: 10px;
		background: #03213d;
		//background-image: url("../../images/bg1.jpg");
		background-repeat: no-repeat;
		background-position: center center;
		background-size: cover;

		.header {
		}

		.body {
			height: 100%;
			display: grid;
			grid-template-rows: 2fr 1fr;
			row-gap: 10px;

			.center {
				display: grid;
				grid-template-columns: 1fr 2fr 1fr;
				column-gap: 10px;

				.c-left {
					display: grid;
					grid-template-rows: 1fr 1fr;
					row-gap: 10px;
				}

				.c-center {
					display: grid;
					grid-template-rows: 1fr;
				}

				.c-right {
					display: grid;
					grid-template-rows: 1fr 1fr;
					row-gap: 10px;
				}
			}

			.bottom {
				display: grid;
				grid-template-columns: 1fr 2fr 1fr;
				column-gap: 10px;
			}
		}
	}
</style>
