YOLOv12 Detect
注：RDK X5部署使用的Python，C/C++代码，yaml等配置文件，请前往RDK Model Zoo获取：https://github.com/D-Robotics/rdk_model_zoo
YOLOv12 介绍
YOLO系列模型凭借其高效的实时检测能力，在目标检测领域占据主导地位。然而，传统YOLO模型主要依赖卷积神经网络（CNN）的改进，而视觉Transformer（ViT）等基于注意力机制的模型虽在建模能力上更优，却因计算复杂度和内存访问效率问题难以满足实时性需求。YOLOv12的提出，首次将注意力机制成功融入YOLO框架，在保持实时速度的同时显著提升检测精度。

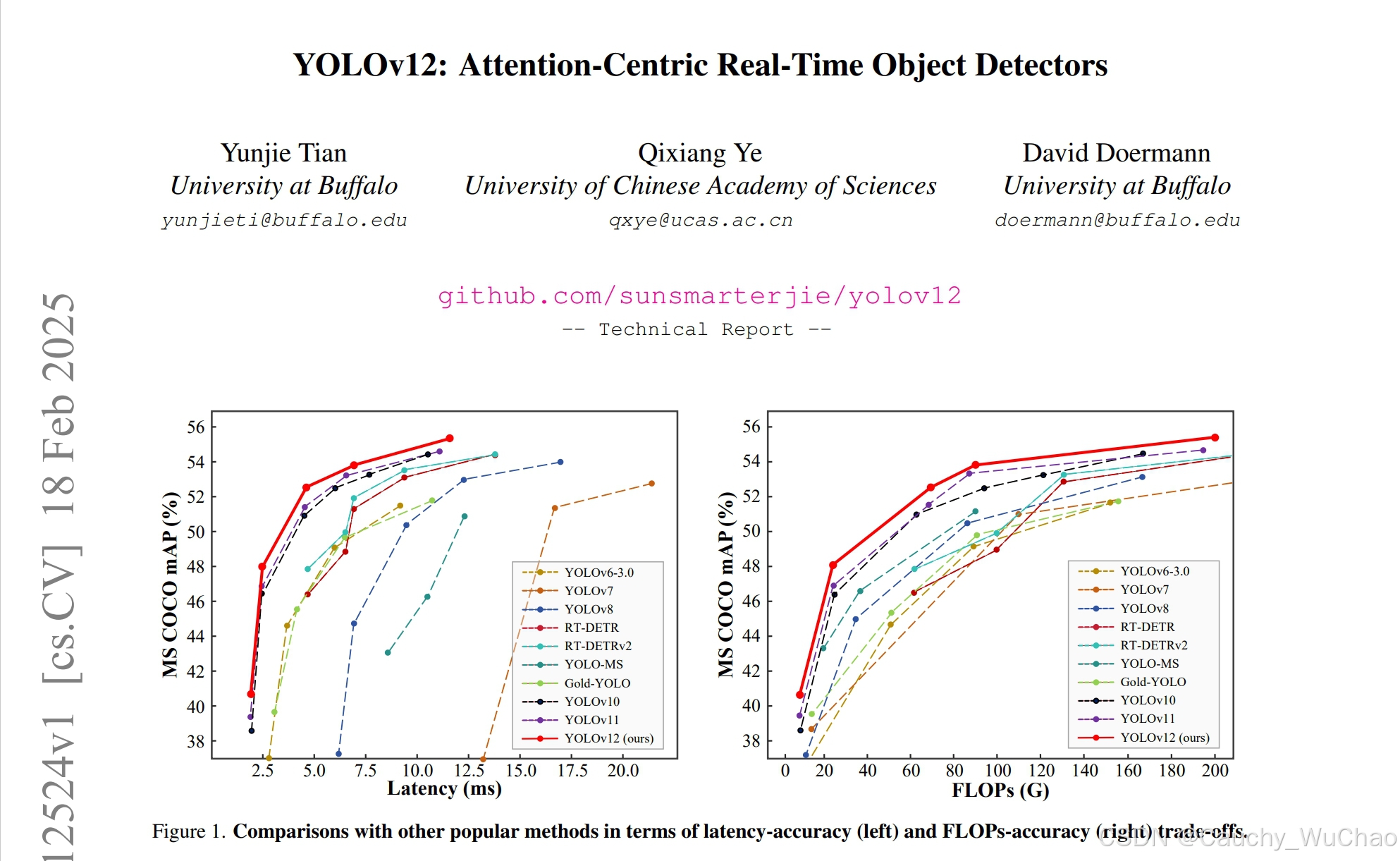

YOLOv12论文：https://arxiv.org/abs/2502.12524 (发布时间：18 Feb 2025 04:20:14 UTC)
YOLOv12代码仓库：https://github.com/sunsmarterjie/yolov12
YOLO介绍
YOLO(You Only Look Once)是一种流行的物体检测和图像分割模型,由华盛顿大学的约瑟夫-雷德蒙(Joseph Redmon)和阿里-法哈迪(Ali Farhadi)开发。YOLO 于 2015 年推出,因其高速度和高精确度而迅速受到欢迎。
- 2016 年发布的YOLOv2 通过纳入批量归一化、锚框和维度集群改进了原始模型。
2018 年推出的YOLOv3 使用更高效的骨干网络、多锚和空间金字塔池进一步增强了模型的性能。 - YOLOv4于 2020 年发布,引入了 Mosaic 数据增强、新的无锚检测头和新的损失函数等创新技术。
- YOLOv5进一步提高了模型的性能,并增加了超参数优化、集成实验跟踪和自动导出为常用导出格式等新功能。
- YOLOv6于 2022 年由美团开源,目前已用于该公司的许多自主配送机器人。
- YOLOv7增加了额外的任务,如 COCO 关键点数据集的姿势估计。
- YOLOv8是YOLO 的最新版本,由Ultralytics 提供。YOLOv8 支持全方位的视觉 AI 任务,包括检测、分割、姿态估计、跟踪和分类。这种多功能性使用户能够在各种应用和领域中利用YOLOv8 的功能。
- YOLOv9 引入了可编程梯度信息(PGI)和广义高效层聚合网络(GELAN)等创新方法。
- YOLOv10是由清华大学的研究人员使用该软件包创建的。 UltralyticsPython 软件包创建的。该版本通过引入端到端头(End-to-End head), 消除了非最大抑制(NMS)要求, 实现了实时目标检测的进步.
- YOLO11 NEW 🚀：Ultralytics的最新YOLO模型在多个任务上实现了最先进的（SOTA）性能。
- YOLOv12构建以注意力为核心的YOLO框架，通过创新方法和架构改进，打破CNN模型在YOLO系列中的主导地位，实现具有快速推理速度和更高检测精度的实时目标检测。
步骤参考
注：任何No such file or directory, No module named “xxx”, command not found.等报错请仔细检查,请勿逐条复制运行,如果对修改过程不理解请前往开发者社区从YOLOv5开始了解。
环境、项目准备
- 下载sunsmarterjie/yolov12，未来可能是ultralytics/ultralytics仓库, 参考YOLO11官方文档, 配置好环境. 注意，导出时可以先不按照作者的 requirements.txt 准备环境, 只需要ultralytics所需要的环境.
git clone https://github.com/sunsmarterjie/yolov12.git
- 进入本地仓库,下载官方的预训练权重,这里以YOLOv12n-Detect模型为例
cd yolov12
wget https://github.com/sunsmarterjie/yolov12/releases/download/v1.0/yolov12n.pt
导出为onnx
- 卸载yolo相关的命令行命令,这样直接修改
./ultralytics/ultralytics目录即可生效。
$ conda list | grep ultralytics
$ pip list | grep ultralytics # 或者
# 如果存在,则卸载
$ conda uninstall ultralytics
$ pip uninstall ultralytics # 或者
如果不是很顺利，可以通过以下Python命令确认需要修改的ultralytics目录的位置:
>>> import ultralytics
>>> ultralytics.__path__
['/home/wuchao/miniconda3/envs/yolo/lib/python3.11/site-packages/ultralytics']
# 或者
['/home/wuchao/YOLO11/ultralytics_v11/ultralytics']
- 注释掉FlashAttention模块的导入
文件目录：yolov12/ultralytics/nn/modules/block.py, 约第1160行，注释掉以下内容，我们在训练时可以按照原作者的意图去使用Flash Attention，导出时可以不使用。
# try:
# from flash_attn.flash_attn_interface import flash_attn_func
# except Exception:
# assert False, "import FlashAttention error! Please install FlashAttention first."
# from timm.models.layers import trunc_normal_
- 修改优化后的AAttn模块
文件目录：ultralytics/nn/modules/block.py, 约第1166行,AAttn类的forward方法替换成以下内容. 主要的优化点是去除了一些无用的数据搬运操作，同时将Reduce的维度变为C维度，对BPU更加友好。并且不需要重新训练模型。
目前可以将BPU吞吐量优化到超过30FPS，从而实现实时目标检测。未来Bayes BPU会专门针对 Area Attention 结构进行优化，从而实现YOLOv8那样近300FPS的吞吐量。
注：建议您保留好原本的forward方法,例如改一个其他的名字forward_, 方便在训练的时候换回来。
class AAttn(nn.Module):
def forward(self, x): # RDK X5
B, C, H, W = x.shape
N = H * W
qkv = self.qkv(x).flatten(2).transpose(1, 2)
if self.area > 1:
qkv = qkv.reshape(B * self.area, N // self.area, C * 3)
B, N, _ = qkv.shape
q, k, v = qkv.view(B, N, self.num_heads, self.head_dim * 3).split(
[self.head_dim, self.head_dim, self.head_dim], dim=3
)
q = q.permute(0, 2, 3, 1)
k = k.permute(0, 2, 3, 1)
v = v.permute(0, 2, 3, 1)
attn = (q.transpose(-2, -1) @ k) * (self.head_dim ** -0.5)
attn = attn.permute(0, 3, 1, 2).contiguous() # CHW2HWC like
max_attn = attn.max(dim=1, keepdim=True).values
exp_attn = torch.exp(attn - max_attn)
sum_attn = exp_attn.sum(dim=1, keepdim=True)
attn = exp_attn / sum_attn
attn = attn.permute(0, 2, 3, 1).contiguous() # HWC2CHW like
x = (v @ attn.transpose(-2, -1))
x = x.permute(0, 3, 1, 2)
v = v.permute(0, 3, 1, 2)
if self.area > 1:
x = x.reshape(B // self.area, N * self.area, C)
v = v.reshape(B // self.area, N * self.area, C)
B, N, _ = x.shape
x = x.reshape(B, H, W, C).permute(0, 3, 1, 2)
v = v.reshape(B, H, W, C).permute(0, 3, 1, 2)
x = x + self.pe(v)
x = self.proj(x)
return x
- 修改Detect的输出头,直接将三个特征层的Bounding Box信息和Classify信息分开输出,一共6个输出头。
文件目录：./ultralytics/ultralytics/nn/modules/head.py,约第51行,Detect类的forward方法替换成以下内容.
注：建议您保留好原本的forward方法,例如改一个其他的名字forward_, 方便在训练的时候换回来。
注: 输出头顺序不能乱, 否则会报错. 另外不同版本的依赖库内部细节有一些不同, 如果发现输出头顺序与README的不同, 可以尝试修改append的顺序, 从而调转onnx输出头的顺序
def forward(self, x):
result = []
for i in range(self.nl):
result.append(self.cv3[i](x[i]).permute(0, 2, 3, 1).contiguous())
result.append(self.cv2[i](x[i]).permute(0, 2, 3, 1).contiguous())
return result
## 如果输出头顺序刚好是bbox和cls反的, 可以使用如下修改方式, 调换cv2和cv3的append顺序
## 然后再重新导出onnx, 编译为bin模型
def forward(self, x):
result = []
for i in range(self.nl):
result.append(self.cv2[i](x[i]).permute(0, 2, 3, 1).contiguous())
result.append(self.cv3[i](x[i]).permute(0, 2, 3, 1).contiguous())
return result
- 运行以下Python脚本,如果有No module named onnxsim报错,安装一个即可
from ultralytics import YOLO
YOLO('yolov12n.pt').export(imgsz=640, format='onnx', simplify=False, opset=11)
准备校准数据
参考RDK Model Zoo提供的极简的校准数据准备脚本：https://github.com/D-Robotics/rdk_model_zoo/blob/main/demos/tools/generate_calibration_data/generate_calibration_data.py 进行校准数据的准备。
PTQ方案量化转化
- 参考天工开物工具链手册和OE包(OpenExplore), 对模型进行检查, 所有算子均在BPU上, 进行编译即可.
(bpu_docker) $ hb_mapper checker --model-type onnx --march bayes-e --model yolov12n.onnx
(bpu_docker) $ hb_mapper makertbin --model-type onnx --config config_yolov12_detect_nv12.yaml
移除bbox信息3个输出头的反量化节点
- 查看bbox信息的3个输出头的反量化节点名称
通过hb_mapper makerbin时的日志,看到大小为[1, 80, 80, 64], [1, 40, 40, 64], [1, 20, 20, 64]的三个输出的名称为1051, 1073, 1095。 - 这里有一个小口诀, 就是带64的都移除. 这里的64 = 4 * REG, REG = 16.
ONNX IR version: 6
Opset version: ['ai.onnx v11', 'horizon v1']
Producer: pytorch v2.5.1
Domain: None
Version: None
Graph input:
images: shape=[1, 3, 640, 640], dtype=FLOAT32
Graph output:
output0: shape=[1, 80, 80, 80], dtype=FLOAT32
1051: shape=[1, 80, 80, 64], dtype=FLOAT32
1065: shape=[1, 40, 40, 80], dtype=FLOAT32
1073: shape=[1, 40, 40, 64], dtype=FLOAT32
1087: shape=[1, 20, 20, 80], dtype=FLOAT32
1095: shape=[1, 20, 20, 64], dtype=FLOAT32
- 进入编译产物的目录
$ cd yolov12n_detect_bayese_640x640_nv12
- 查看可以被移除的反量化节点
$ hb_model_modifier yolov12n_detect_bayese_640x640_nv12.bin
- 在生成的hb_model_modifier.log文件中,找到以下信息。主要是找到大小为[1, 80, 80, 64], [1, 40, 40, 64], [1, 20, 20, 64]的三个输出头的名称。当然, 也可以通过netron等工具查看onnx模型,获得输出头的名称。
此处的名称为:
“/model.21/cv2.0/cv2.0.2/Conv_output_0_HzDequantize”
“/model.21/cv2.1/cv2.1.2/Conv_output_0_HzDequantize”
“/model.21/cv2.2/cv2.2.2/Conv_output_0_HzDequantize”
2025-02-20 01:50:19,816 file: hb_model_modifier.py func: hb_model_modifier line No: 409 input: "/model.21/cv2.0/cv2.0.2/Conv_output_0_quantized"
input: "/model.21/cv2.0/cv2.0.2/Conv_x_scale"
output: "1051"
name: "/model.21/cv2.0/cv2.0.2/Conv_output_0_HzDequantize"
op_type: "Dequantize"
2025-02-20 01:50:19,816 file: hb_model_modifier.py func: hb_model_modifier line No: 409 input: "/model.21/cv2.1/cv2.1.2/Conv_output_0_quantized"
input: "/model.21/cv2.1/cv2.1.2/Conv_x_scale"
output: "1073"
name: "/model.21/cv2.1/cv2.1.2/Conv_output_0_HzDequantize"
op_type: "Dequantize"
2025-02-20 01:50:19,816 file: hb_model_modifier.py func: hb_model_modifier line No: 409 input: "/model.21/cv2.2/cv2.2.2/Conv_output_0_quantized"
input: "/model.21/cv2.2/cv2.2.2/Conv_x_scale"
output: "1095"
name: "/model.21/cv2.2/cv2.2.2/Conv_output_0_HzDequantize"
op_type: "Dequantize"
- 使用以下命令移除上述三个反量化节点,注意,导出时这些名称可能不同,请仔细确认。
$ hb_model_modifier yolov12n_detect_bayese_640x640_nv12.bin \
-r /model.21/cv2.0/cv2.0.2/Conv_output_0_HzDequantize \
-r /model.21/cv2.1/cv2.1.2/Conv_output_0_HzDequantize \
-r /model.21/cv2.2/cv2.2.2/Conv_output_0_HzDequantize
- 移除成功会显示以下日志
2025-02-20 02:00:57,469 INFO log will be stored in /open_explorer/yolov12n_detect_bayese_640x640_nv12/hb_model_modifier.log
2025-02-20 02:00:57,474 INFO Nodes that will be removed from this model: ['/model.21/cv2.0/cv2.0.2/Conv_output_0_HzDequantize', '/model.21/cv2.1/cv2.1.2/Conv_output_0_HzDequantize', '/model.21/cv2.2/cv2.2.2/Conv_output_0_HzDequantize']
2025-02-20 02:00:57,474 INFO Node '/model.21/cv2.0/cv2.0.2/Conv_output_0_HzDequantize' found, its OP type is 'Dequantize'
2025-02-20 02:00:57,475 INFO scale: /model.21/cv2.0/cv2.0.2/Conv_x_scale; zero point: 0. node info details are stored in hb_model_modifier log file
2025-02-20 02:00:57,475 INFO Node '/model.21/cv2.0/cv2.0.2/Conv_output_0_HzDequantize' is removed
2025-02-20 02:00:57,475 INFO Node '/model.21/cv2.1/cv2.1.2/Conv_output_0_HzDequantize' found, its OP type is 'Dequantize'
2025-02-20 02:00:57,475 INFO scale: /model.21/cv2.1/cv2.1.2/Conv_x_scale; zero point: 0. node info details are stored in hb_model_modifier log file
2025-02-20 02:00:57,476 INFO Node '/model.21/cv2.1/cv2.1.2/Conv_output_0_HzDequantize' is removed
2025-02-20 02:00:57,476 INFO Node '/model.21/cv2.2/cv2.2.2/Conv_output_0_HzDequantize' found, its OP type is 'Dequantize'
2025-02-20 02:00:57,476 INFO scale: /model.21/cv2.2/cv2.2.2/Conv_x_scale; zero point: 0. node info details are stored in hb_model_modifier log file
2025-02-20 02:00:57,476 INFO Node '/model.21/cv2.2/cv2.2.2/Conv_output_0_HzDequantize' is removed
2025-02-20 02:00:57,481 INFO modified model saved as yolov12n_detect_bayese_640x640_nv12_modified.bin
- 接下来得到的bin模型名称为yolov8n_bayese_640x640_nchw_modified.bin, 这个是最终的模型。
- NCHW输入的模型可以使用OpenCV和numpy来准备输入数据。
- nv12输入的模型可以使用codec, jpu, vpu, gpu等硬件设备来准备输入数据,或者直接给TROS对应的功能包使用。
使用hb_perf命令对bin模型进行可视化, hrt_model_exec命令检查bin模型的输入输出情况

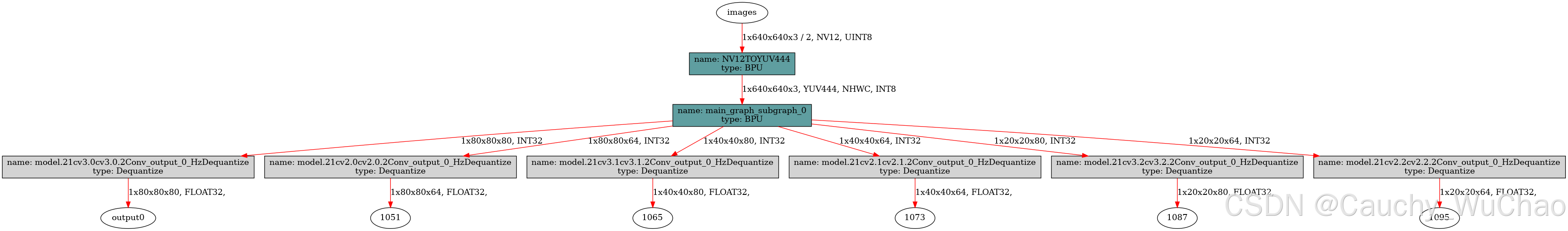

- 移除反量化系数前的bin模型
hb_perf yolov12n_detect_bayese_640x640_nv12.bin
在hb_perf_result目录下可以找到以下结果：
hrt_model_exec model_info --model_file yolov12n_detect_bayese_640x640_nv12.bin
可以看到这个移除反量化系数前的bin模型的输入输出信息
[HBRT] set log level as 0. version = 3.15.55.0
[DNN] Runtime version = 1.24.5_(3.15.55 HBRT)
[A][DNN][packed_model.cpp:247][Model](2025-02-20,02:07:03.901.572) [HorizonRT] The model builder version = 1.24.3
Load model to DDR cost 36.964ms.
This model file has 1 model:
[yolov12n_detect_bayese_640x640_nv12]
---------------------------------------------------------------------
[model name]: yolov12n_detect_bayese_640x640_nv12
input[0]:
name: images
input source: HB_DNN_INPUT_FROM_PYRAMID
valid shape: (1,3,640,640,)
aligned shape: (1,3,640,640,)
aligned byte size: 614400
tensor type: HB_DNN_IMG_TYPE_NV12
tensor layout: HB_DNN_LAYOUT_NCHW
quanti type: NONE
stride: (0,0,0,0,)
output[0]:
name: output0
valid shape: (1,80,80,80,)
aligned shape: (1,80,80,80,)
aligned byte size: 2048000
tensor type: HB_DNN_TENSOR_TYPE_F32
tensor layout: HB_DNN_LAYOUT_NHWC
quanti type: NONE
stride: (2048000,25600,320,4,)
output[1]:
name: 1051
valid shape: (1,80,80,64,)
aligned shape: (1,80,80,64,)
aligned byte size: 1638400
tensor type: HB_DNN_TENSOR_TYPE_F32
tensor layout: HB_DNN_LAYOUT_NHWC
quanti type: NONE
stride: (1638400,20480,256,4,)
output[2]:
name: 1065
valid shape: (1,40,40,80,)
aligned shape: (1,40,40,80,)
aligned byte size: 512000
tensor type: HB_DNN_TENSOR_TYPE_F32
tensor layout: HB_DNN_LAYOUT_NHWC
quanti type: NONE
stride: (512000,12800,320,4,)
output[3]:
name: 1073
valid shape: (1,40,40,64,)
aligned shape: (1,40,40,64,)
aligned byte size: 409600
tensor type: HB_DNN_TENSOR_TYPE_F32
tensor layout: HB_DNN_LAYOUT_NHWC
quanti type: NONE
stride: (409600,10240,256,4,)
output[4]:
name: 1087
valid shape: (1,20,20,80,)
aligned shape: (1,20,20,80,)
aligned byte size: 128000
tensor type: HB_DNN_TENSOR_TYPE_F32
tensor layout: HB_DNN_LAYOUT_NHWC
quanti type: NONE
stride: (128000,6400,320,4,)
output[5]:
name: 1095
valid shape: (1,20,20,64,)
aligned shape: (1,20,20,64,)
aligned byte size: 102400
tensor type: HB_DNN_TENSOR_TYPE_F32
tensor layout: HB_DNN_LAYOUT_NHWC
quanti type: NONE
stride: (102400,5120,256,4,)

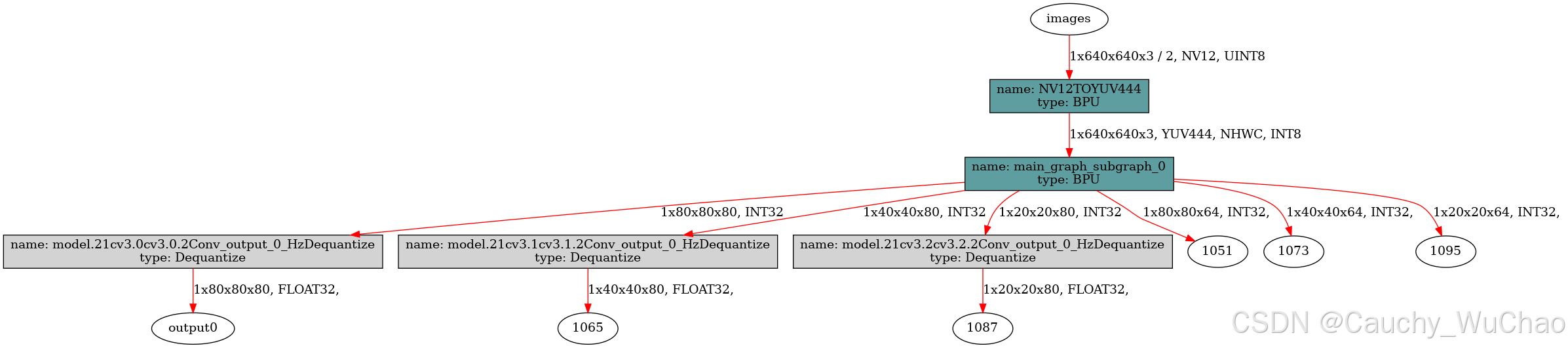

- 移除目标反量化系数后的bin模型
hb_perf yolov12n_detect_bayese_640x640_nv12_modified.bin
在hb_perf_result目录下可以找到以下结果。
hrt_model_exec model_info --model_file yolov12n_detect_bayese_640x640_nv12_modified.bin
可以看到这个移除反量化系数后的bin模型的输入输出信息, 以及移除反量化节点的所有反量化系数, 这也说明bin模型中是存储着这些信息的, 可以使用推理库的API获得, 方便我们进行对应的前后处理.
[HBRT] set log level as 0. version = 3.15.55.0
[DNN] Runtime version = 1.24.5_(3.15.55 HBRT)
[A][DNN][packed_model.cpp:247][Model](2025-02-20,02:07:20.123.684) [HorizonRT] The model builder version = 1.24.3
Load model to DDR cost 29.838ms.
This model file has 1 model:
[yolov12n_detect_bayese_640x640_nv12]
---------------------------------------------------------------------
[model name]: yolov12n_detect_bayese_640x640_nv12
input[0]:
name: images
input source: HB_DNN_INPUT_FROM_PYRAMID
valid shape: (1,3,640,640,)
aligned shape: (1,3,640,640,)
aligned byte size: 614400
tensor type: HB_DNN_IMG_TYPE_NV12
tensor layout: HB_DNN_LAYOUT_NCHW
quanti type: NONE
stride: (0,0,0,0,)
output[0]:
name: output0
valid shape: (1,80,80,80,)
aligned shape: (1,80,80,80,)
aligned byte size: 2048000
tensor type: HB_DNN_TENSOR_TYPE_F32
tensor layout: HB_DNN_LAYOUT_NHWC
quanti type: NONE
stride: (2048000,25600,320,4,)
output[1]:
name: 1051
valid shape: (1,80,80,64,)
aligned shape: (1,80,80,64,)
aligned byte size: 1638400
tensor type: HB_DNN_TENSOR_TYPE_S32
tensor layout: HB_DNN_LAYOUT_NHWC
quanti type: SCALE
stride: (1638400,20480,256,4,)
scale data: 0.000383288,0.000321971,0.000334189,0.00031903,0.000286901,0.000331248,0.0002912,0.000217551,0.000201713,0.000177842,0.000153858,0.000132929,0.000123313,0.000119693,0.000106739,0.000165285,0.00041044,0.000372201,0.000372654,0.000347765,0.000296177,0.000287579,0.000299798,0.000191531,0.000247531,0.000196283,0.000141188,0.000119919,0.000120711,0.000108832,9.46908e-05,0.000171394,0.00039347,0.000394601,0.000378311,0.000270836,0.000263596,0.000297309,0.000289163,0.000172978,0.000121277,0.000146392,0.000162569,0.00016438,0.000155442,0.000139378,0.000120145,0.00016404,0.000375143,0.000361341,0.000326723,0.000351612,0.000262691,0.000342561,0.000213818,0.000280565,0.000207143,0.000127951,0.000163248,0.000172525,0.000164266,0.000144808,0.000122295,0.000178973,
quantizeAxis: 3
output[2]:
name: 1065
valid shape: (1,40,40,80,)
aligned shape: (1,40,40,80,)
aligned byte size: 512000
tensor type: HB_DNN_TENSOR_TYPE_F32
tensor layout: HB_DNN_LAYOUT_NHWC
quanti type: NONE
stride: (512000,12800,320,4,)
output[3]:
name: 1073
valid shape: (1,40,40,64,)
aligned shape: (1,40,40,64,)
aligned byte size: 409600
tensor type: HB_DNN_TENSOR_TYPE_S32
tensor layout: HB_DNN_LAYOUT_NHWC
quanti type: SCALE
stride: (409600,10240,256,4,)
scale data: 0.000500503,0.000480531,0.000416524,0.000398718,0.000342411,0.000375377,0.000414599,0.000267336,0.000325808,0.000289233,0.000182275,0.000204412,0.000208262,0.000196832,0.000179868,0.000203209,0.000402087,0.000392462,0.000368399,0.00039559,0.000423984,0.000306558,0.000455987,0.000395349,0.000369602,0.000211631,0.000227512,0.000206337,0.000174574,0.000138841,0.000106417,0.000151113,0.000566435,0.000559697,0.000366474,0.000346021,0.000335433,0.000304633,0.000442753,0.000303671,0.000317386,0.000185282,0.000131623,0.000136796,0.000151234,0.00014991,0.000141849,0.000170364,0.000439865,0.000410268,0.000360218,0.000366715,0.000358774,0.000314017,0.00037634,0.000451656,0.000317146,0.000222339,0.000167957,0.000155445,0.000186245,0.000181914,0.000163385,0.00020754,
quantizeAxis: 3
output[4]:
name: 1087
valid shape: (1,20,20,80,)
aligned shape: (1,20,20,80,)
aligned byte size: 128000
tensor type: HB_DNN_TENSOR_TYPE_F32
tensor layout: HB_DNN_LAYOUT_NHWC
quanti type: NONE
stride: (128000,6400,320,4,)
output[5]:
name: 1095
valid shape: (1,20,20,64,)
aligned shape: (1,20,20,64,)
aligned byte size: 102400
tensor type: HB_DNN_TENSOR_TYPE_S32
tensor layout: HB_DNN_LAYOUT_NHWC
quanti type: SCALE
stride: (102400,5120,256,4,)
scale data: 0.000544121,0.000516699,0.000455214,0.000472823,0.000438472,0.000557977,0.000539214,0.000424328,0.000467338,0.000479462,0.000353895,0.000305401,0.00030338,0.000304535,0.000267442,0.00024305,0.000491008,0.000509771,0.000512369,0.000575296,0.000496781,0.000519008,0.000606183,0.000597523,0.000473977,0.000415668,0.000332246,0.000303669,0.000217071,0.000119216,4.82781e-05,4.57163e-05,0.000566925,0.000551915,0.000468781,0.000484946,0.000428081,0.0004734,0.000463008,0.000495049,0.000459833,0.000343504,0.000399503,0.000342926,0.000324164,0.00028938,0.0003487,0.000366596,0.000542389,0.000498802,0.00042173,0.000417112,0.000472245,0.000480039,0.000476864,0.000357937,0.000465318,0.000414802,0.000427503,0.000450019,0.000341772,0.000299628,0.000323586,0.000317813,
quantizeAxis: 3
部分编译日志参考
可以看到:
- 尾部的transpose节点满足被动量化逻辑, 支持被BPU加速, 同时不影响其父节点Conv卷积算子以int32高精度输出.
- 所有节点的余弦相似度均 > 0.9, 绝大多数节点的余弦相似度 > 0.99, 符合预期.
- 所有算子均在BPU上, 整个bin模型只有1个BPU子图.
ONNX IR version: 6
Opset version: ['ai.onnx v11', 'horizon v1']
Producer: pytorch v2.5.1
Domain: None
Version: None
Graph input:
images: shape=[1, 3, 640, 640], dtype=FLOAT32
Graph output:
output0: shape=[1, 80, 80, 80], dtype=FLOAT32
1051: shape=[1, 80, 80, 64], dtype=FLOAT32
1065: shape=[1, 40, 40, 80], dtype=FLOAT32
1073: shape=[1, 40, 40, 64], dtype=FLOAT32
1087: shape=[1, 20, 20, 80], dtype=FLOAT32
1095: shape=[1, 20, 20, 64], dtype=FLOAT32
2025-02-20 01:32:30,405 file: model_builder.py func: model_builder line No: 38 End to prepare the onnx model.
2025-02-20 01:32:30,454 file: model_builder.py func: model_builder line No: 265 Saving model to: yolov12n_detect_bayese_640x640_nv12_original_float_model.onnx.
2025-02-20 01:32:30,454 file: model_builder.py func: model_builder line No: 35 Start to optimize the onnx model.
2025-02-20 01:32:30,873 file: constant_folding.py func: constant_folding line No: 66 Summary info for constant_folding:
2025-02-20 01:32:30,873 file: constant_folding.py func: constant_folding line No: 67 After constant_folding, the number of nodes has changed from 635 to 531.
2025-02-20 01:32:30,873 file: constant_folding.py func: constant_folding line No: 71 After constant_folding, the number of parameters has changed from 2591000 to 2590992.
2025-02-20 01:32:30,873 file: constant_folding.py func: constant_folding line No: 76 Detailed info for constant_folding:
2025-02-20 01:32:30,873 file: constant_folding.py func: constant_folding line No: 88 After folding node (op_name: /model.6/m.0/m.0.0/attn/Concat, op_type: Concat), the number of increased parameters is 0.
After folding node (op_name: /model.6/m.0/m.0.1/attn/Concat, op_type: Concat), the number of increased parameters is 0.
After folding node (op_name: /model.6/m.1/m.1.0/attn/Concat, op_type: Concat), the number of increased parameters is 0.
After folding node (op_name: /model.6/m.1/m.1.1/attn/Concat, op_type: Concat), the number of increased parameters is 0.
After folding node (op_name: /model.8/m.0/m.0.0/attn/Concat, op_type: Concat), the number of increased parameters is 0.
After folding node (op_name: /model.8/m.0/m.0.1/attn/Concat, op_type: Concat), the number of increased parameters is 0.
After folding node (op_name: /model.8/m.1/m.1.0/attn/Concat, op_type: Concat), the number of increased parameters is 0.
After folding node (op_name: /model.8/m.1/m.1.1/attn/Concat, op_type: Concat), the number of increased parameters is 0.
After folding node (op_name: /model.6/m.0/m.0.0/attn/Slice, op_type: Slice), the number of increased parameters is -5.
After folding node (op_name: /model.6/m.0/m.0.1/attn/Slice, op_type: Slice), the number of increased parameters is -5.
After folding node (op_name: /model.6/m.1/m.1.0/attn/Slice, op_type: Slice), the number of increased parameters is -5.
After folding node (op_name: /model.6/m.1/m.1.1/attn/Slice, op_type: Slice), the number of increased parameters is -5.
After folding node (op_name: /model.8/m.0/m.0.0/attn/Slice, op_type: Slice), the number of increased parameters is -5.
After folding node (op_name: /model.8/m.0/m.0.1/attn/Slice, op_type: Slice), the number of increased parameters is -5.
After folding node (op_name: /model.8/m.1/m.1.0/attn/Slice, op_type: Slice), the number of increased parameters is -5.
After folding node (op_name: /model.8/m.1/m.1.1/attn/Slice, op_type: Slice), the number of increased parameters is -5.
2025-02-20 01:32:31,253 file: model_builder.py func: model_builder line No: 38 End to optimize the onnx model.
2025-02-20 01:32:31,288 file: model_builder.py func: model_builder line No: 265 Saving model to: yolov12n_detect_bayese_640x640_nv12_optimized_float_model.onnx.
2025-02-20 01:32:31,288 file: model_builder.py func: model_builder line No: 35 Start to calibrate the model.
2025-02-20 01:32:31,689 file: calibration_data_set.py func: calibration_data_set line No: 111 input name: images, number_of_samples: 50
2025-02-20 01:32:31,690 file: calibration_data_set.py func: calibration_data_set line No: 123 There are 50 samples in the data set.
2025-02-20 01:32:31,690 file: infer_thresholds.py func: infer_thresholds line No: 84 Run calibration model with modelwise search method.
2025-02-20 01:32:32,401 file: base.py func: base line No: 138 Calibration using batch 8
2025-02-20 01:32:35,015 file: ort.py func: ort line No: 207 Reset batch_size=1 and execute forward again...
2025-02-20 01:38:44,031 file: base.py func: base line No: 138 Calibration using batch 8
2025-02-20 01:38:44,975 file: ort.py func: ort line No: 207 Reset batch_size=1 and execute forward again...
2025-02-20 01:39:01,740 file: base.py func: base line No: 138 Calibration using batch 8
2025-02-20 01:39:04,503 file: ort.py func: ort line No: 207 Reset batch_size=1 and execute forward again...
2025-02-20 01:45:45,908 file: modelwise_search.py func: modelwise_search line No: 75 Select max-percentile:percentile=0.99995,per_channel method.
2025-02-20 01:45:45,908 file: modelwise_search.py func: modelwise_search line No: 79 Perchannel quantization is enabled.
2025-02-20 01:45:47,569 file: model_builder.py func: model_builder line No: 38 End to calibrate the model.
2025-02-20 01:45:47,732 file: model_builder.py func: model_builder line No: 265 Saving model to: yolov12n_detect_bayese_640x640_nv12_calibrated_model.onnx.
2025-02-20 01:45:47,732 file: model_builder.py func: model_builder line No: 35 Start to quantize the model.
2025-02-20 01:45:50,972 file: constant_folding.py func: constant_folding line No: 66 Summary info for constant_folding:
2025-02-20 01:45:50,972 file: constant_folding.py func: constant_folding line No: 67 After constant_folding, the number of nodes has changed from 440 to 440.
2025-02-20 01:45:50,972 file: constant_folding.py func: constant_folding line No: 71 After constant_folding, the number of parameters has changed from 2628155 to 2628155.
2025-02-20 01:45:50,972 file: constant_folding.py func: constant_folding line No: 76 Detailed info for constant_folding:
2025-02-20 01:45:50,972 file: constant_folding.py func: constant_folding line No: 88
2025-02-20 01:45:51,346 file: model_builder.py func: model_builder line No: 38 End to quantize the model.
2025-02-20 01:45:51,487 file: model_builder.py func: model_builder line No: 265 Saving model to: yolov12n_detect_bayese_640x640_nv12_quantized_model.onnx.
2025-02-20 01:45:51,487 file: model_builder.py func: model_builder line No: 35 Start to compile the model with march bayes-e.
2025-02-20 01:45:52,289 file: hybrid_build.py func: hybrid_build line No: 111 Compile submodel: main_graph_subgraph_0
2025-02-20 01:45:52,325 file: hbdk_cc.py func: hbdk_cc line No: 126 hbdk-cc parameters:['--O3', '--core-num', '1', '--fast', '--input-layout', 'NHWC', '--output-layout', 'NHWC', '--input-source', 'pyramid']
2025-02-20 01:45:52,325 file: hbdk_cc.py func: hbdk_cc line No: 127 hbdk-cc command used:hbdk-cc -f hbir -m /tmp/tmpnms6ibnw/main_graph_subgraph_0.hbir -o /tmp/tmpnms6ibnw/main_graph_subgraph_0.hbm --march bayes-e --progressbar --O3 --core-num 1 --fast --input-layout NHWC --output-layout NHWC --input-source pyramid
2025-02-20 01:49:52,707 file: tool_utils.py func: tool_utils line No: 326 consumed time 240.364
2025-02-20 01:49:52,831 file: tool_utils.py func: tool_utils line No: 326 FPS=54.28, latency = 18423.3 us, DDR = 69137136 bytes (see main_graph_subgraph_0.html)
2025-02-20 01:49:52,918 file: model_builder.py func: model_builder line No: 38 End to compile the model with march bayes-e.
2025-02-20 01:49:59,068 file: print_info_dict.py func: print_info_dict line No: 72 The main quantized node information:
======================================================================================================================================
Node ON Subgraph Type Cosine Similarity Threshold DataType
--------------------------------------------------------------------------------------------------------------------------------------
HZ_PREPROCESS_FOR_images BPU id(0) HzSQuantizedPreprocess 0.999761 127.0 int8
/model.0/conv/Conv BPU id(0) HzSQuantizedConv 0.999263 1.11671 int8
/model.0/act/Mul BPU id(0) HzLut 0.998640 39.9803 int8
/model.1/conv/Conv BPU id(0) HzSQuantizedConv 0.996558 37.5172 int8
/model.1/act/Mul BPU id(0) HzLut 0.995958 60.5783 int8
/model.2/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.992474 55.0255 int8
/model.2/cv1/act/Mul BPU id(0) HzLut 0.991721 60.0506 int8
/model.2/Split BPU id(0) Split 0.992019 18.821 int8
/model.2/m.0/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.996937 18.821 int8
/model.2/m.0/cv1/act/Mul BPU id(0) HzLut 0.997009 10.764 int8
/model.2/m.0/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.979531 4.32619 int8
/model.2/m.0/cv2/act/Mul BPU id(0) HzLut 0.986718 21.3189 int8
/model.2/m.0/Add BPU id(0) HzSElementwiseAdd 0.991367 18.821 int8
/model.2/Split_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.2/Split_output_1_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.2/Concat BPU id(0) Concat 0.991228 18.821 int8
/model.2/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.974776 18.096 int8
/model.2/cv2/act/Mul BPU id(0) HzLut 0.970959 23.6256 int8
/model.3/conv/Conv BPU id(0) HzSQuantizedConv 0.980584 8.9605 int8
/model.3/act/Mul BPU id(0) HzLut 0.990114 6.77134 int8
/model.4/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.986557 5.77031 int8
/model.4/cv1/act/Mul BPU id(0) HzLut 0.987362 6.23352 int8
/model.4/Split BPU id(0) Split 0.984971 3.40003 int8
/model.4/m.0/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.988986 3.40003 int8
/model.4/m.0/cv1/act/Mul BPU id(0) HzLut 0.992626 3.95427 int8
/model.4/m.0/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.989792 3.03118 int8
/model.4/m.0/cv2/act/Mul BPU id(0) HzLut 0.990566 5.51406 int8
/model.4/m.0/Add BPU id(0) HzSElementwiseAdd 0.993532 3.40003 int8
/model.4/Split_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.4/Split_output_1_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.4/Concat BPU id(0) Concat 0.991439 3.40003 int8
/model.4/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.982271 5.00101 int8
/model.4/cv2/act/Mul BPU id(0) HzLut 0.979179 6.17235 int8
/model.5/conv/Conv BPU id(0) HzSQuantizedConv 0.987544 3.15218 int8
/model.5/act/Mul BPU id(0) HzLut 0.986527 6.33787 int8
/model.6/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.986240 3.59684 int8
/model.6/cv1/act/Mul BPU id(0) HzLut 0.985648 8.97539 int8
/model.6/m.0/m.0.0/attn/qkv/conv/Conv BPU id(0) HzSQuantizedConv 0.949889 7.82223 int8
/model.6/m.0/m.0.0/attn/Reshape BPU id(0) Reshape 0.949889 8.26466 int8
/model.6/m.0/m.0.0/attn/Transpose BPU id(0) Transpose 0.949897 8.26466 int8
/model.6/m.0/m.0.0/attn/Reshape_1 BPU id(0) Reshape 0.949897 8.26466 int8
/model.6/m.0/m.0.0/attn/Split BPU id(0) Split 0.949827 8.26466 int8
/model.6/m.0/m.0.0/attn/Transpose_3 BPU id(0) Transpose 0.949827 8.26466 int8
/model.6/m.0/m.0.0/attn/MatMul BPU id(0) HzSQuantizedMatmul 0.976425 8.26466 int8
/model.6/m.0/m.0.0/attn/Mul BPU id(0) HzSElementwiseMul 0.976425 55.1994 int8
/model.6/m.0/m.0.0/attn/ReduceMax BPU id(0) HzQuantizedReduceMax 0.992110 9.75798 int8
/model.6/m.0/m.0.0/attn/Sub BPU id(0) HzSElementwiseSub 0.989671 9.75798 int8
/model.6/m.0/m.0.0/attn/Exp BPU id(0) HzLut 0.966661 16.0135 int8
/model.6/m.0/m.0.0/attn/ReduceSum BPU id(0) HzSQuantizedReduceSum 0.988765 1.0 int8
/model.6/m.0/m.0.0/attn/Div_reciprocal BPU id(0) HzLut 0.944800 237.883 int8
/model.6/m.0/m.0.0/attn/Div_mul BPU id(0) HzSElementwiseMul 0.940439 1.0 int8
/model.6/m.0/m.0.0/attn/Transpose_5 BPU id(0) Transpose 0.940425 0.182149 int8
/model.6/m.0/m.0.0/attn/MatMul_1 BPU id(0) HzSQuantizedMatmul 0.952914 8.26466 int8
/model.6/m.0/m.0.0/attn/Transpose_6 BPU id(0) Transpose 0.952918 6.51295 int8
/model.6/m.0/m.0.0/attn/Reshape_3 BPU id(0) Reshape 0.952918 6.51295 int8
/model.6/m.0/m.0.0/attn/Reshape_4 BPU id(0) Reshape 0.954994 8.26466 int8
/model.6/m.0/m.0.0/attn/pe/conv/Conv BPU id(0) HzSQuantizedConv 0.944411 8.26466 int8
/model.6/m.0/m.0.0/attn/proj/conv/Conv BPU id(0) HzSQuantizedConv 0.943099 5.11705 int8
/model.6/m.0/m.0.0/mlp/mlp.0/conv/Conv BPU id(0) HzSQuantizedConv 0.978632 7.61283 int8
/model.6/m.0/m.0.0/mlp/mlp.0/act/Mul BPU id(0) HzLut 0.952695 6.03865 int8
/model.6/m.0/m.0.0/mlp/mlp.1/conv/Conv BPU id(0) HzSQuantizedConv 0.852836 2.31089 int8
/model.6/m.0/m.0.1/attn/qkv/conv/Conv BPU id(0) HzSQuantizedConv 0.928506 7.55908 int8
/model.6/m.0/m.0.1/attn/Reshape BPU id(0) Reshape 0.928506 6.76044 int8
/model.6/m.0/m.0.1/attn/Transpose BPU id(0) Transpose 0.928507 6.76044 int8
/model.6/m.0/m.0.1/attn/Reshape_1 BPU id(0) Reshape 0.928507 6.76044 int8
/model.6/m.0/m.0.1/attn/Split BPU id(0) Split 0.942031 6.76044 int8
/model.6/m.0/m.0.1/attn/Transpose_3 BPU id(0) Transpose 0.942031 6.76044 int8
/model.6/m.0/m.0.1/attn/MatMul BPU id(0) HzSQuantizedMatmul 0.963639 6.76044 int8
/model.6/m.0/m.0.1/attn/Mul BPU id(0) HzSElementwiseMul 0.963639 106.046 int8
/model.6/m.0/m.0.1/attn/ReduceMax BPU id(0) HzQuantizedReduceMax 0.986943 18.7465 int8
/model.6/m.0/m.0.1/attn/Sub BPU id(0) HzSElementwiseSub 0.981969 18.7465 int8
/model.6/m.0/m.0.1/attn/Exp BPU id(0) HzLut 0.931749 34.5614 int8
/model.6/m.0/m.0.1/attn/ReduceSum BPU id(0) HzSQuantizedReduceSum 0.983025 1.0 int8
/model.6/m.0/m.0.1/attn/Div_reciprocal BPU id(0) HzLut 0.961381 192.696 int8
/model.6/m.0/m.0.1/attn/Div_mul BPU id(0) HzSElementwiseMul 0.932277 1.0 int8
/model.6/m.0/m.0.1/attn/Transpose_5 BPU id(0) Transpose 0.932276 0.672294 int8
/model.6/m.0/m.0.1/attn/MatMul_1 BPU id(0) HzSQuantizedMatmul 0.860546 6.76044 int8
/model.6/m.0/m.0.1/attn/Transpose_6 BPU id(0) Transpose 0.860547 5.09177 int8
/model.6/m.0/m.0.1/attn/Reshape_3 BPU id(0) Reshape 0.860547 5.09177 int8
/model.6/m.0/m.0.1/attn/Reshape_4 BPU id(0) Reshape 0.899771 6.76044 int8
/model.6/m.0/m.0.1/attn/pe/conv/Conv BPU id(0) HzSQuantizedConv 0.893992 6.76044 int8
/model.6/m.0/m.0.1/attn/proj/conv/Conv BPU id(0) HzSQuantizedConv 0.836461 2.94758 int8
/model.6/m.0/m.0.1/mlp/mlp.0/conv/Conv BPU id(0) HzSQuantizedConv 0.967829 7.90098 int8
/model.6/m.0/m.0.1/mlp/mlp.0/act/Mul BPU id(0) HzLut 0.928758 6.75616 int8
/model.6/m.0/m.0.1/mlp/mlp.1/conv/Conv BPU id(0) HzSQuantizedConv 0.841874 3.19698 int8
/model.6/m.1/m.1.0/attn/qkv/conv/Conv BPU id(0) HzSQuantizedConv 0.905192 7.62772 int8
/model.6/m.1/m.1.0/attn/Reshape BPU id(0) Reshape 0.905192 7.76085 int8
/model.6/m.1/m.1.0/attn/Transpose BPU id(0) Transpose 0.905189 7.76085 int8
/model.6/m.1/m.1.0/attn/Reshape_1 BPU id(0) Reshape 0.905189 7.76085 int8
/model.6/m.1/m.1.0/attn/Split BPU id(0) Split 0.918469 7.76085 int8
/model.6/m.1/m.1.0/attn/Transpose_3 BPU id(0) Transpose 0.918468 7.76085 int8
/model.6/m.1/m.1.0/attn/MatMul BPU id(0) HzSQuantizedMatmul 0.899024 7.76085 int8
/model.6/m.1/m.1.0/attn/Mul BPU id(0) HzSElementwiseMul 0.899024 43.2978 int8
/model.6/m.1/m.1.0/attn/ReduceMax BPU id(0) HzQuantizedReduceMax 0.981655 7.65405 int8
/model.6/m.1/m.1.0/attn/Sub BPU id(0) HzSElementwiseSub 0.978036 7.65405 int8
/model.6/m.1/m.1.0/attn/Exp BPU id(0) HzLut 0.922001 12.65 int8
/model.6/m.1/m.1.0/attn/ReduceSum BPU id(0) HzSQuantizedReduceSum 0.971859 1.0 int8
/model.6/m.1/m.1.0/attn/Div_reciprocal BPU id(0) HzLut 0.922367 295.065 int8
/model.6/m.1/m.1.0/attn/Div_mul BPU id(0) HzSElementwiseMul 0.916821 1.0 int8
/model.6/m.1/m.1.0/attn/Transpose_5 BPU id(0) Transpose 0.916821 0.265863 int8
/model.6/m.1/m.1.0/attn/MatMul_1 BPU id(0) HzSQuantizedMatmul 0.900055 7.76085 int8
/model.6/m.1/m.1.0/attn/Transpose_6 BPU id(0) Transpose 0.900055 4.18921 int8
/model.6/m.1/m.1.0/attn/Reshape_3 BPU id(0) Reshape 0.900055 4.18921 int8
/model.6/m.1/m.1.0/attn/Reshape_4 BPU id(0) Reshape 0.903510 7.76085 int8
/model.6/m.1/m.1.0/attn/pe/conv/Conv BPU id(0) HzSQuantizedConv 0.896833 7.76085 int8
/model.6/m.1/m.1.0/attn/proj/conv/Conv BPU id(0) HzSQuantizedConv 0.894019 5.4704 int8
/model.6/m.1/m.1.0/mlp/mlp.0/conv/Conv BPU id(0) HzSQuantizedConv 0.968532 7.95999 int8
/model.6/m.1/m.1.0/mlp/mlp.0/act/Mul BPU id(0) HzLut 0.944979 5.96626 int8
/model.6/m.1/m.1.0/mlp/mlp.1/conv/Conv BPU id(0) HzSQuantizedConv 0.862223 2.72638 int8
/model.6/m.1/m.1.1/attn/qkv/conv/Conv BPU id(0) HzSQuantizedConv 0.915527 8.29573 int8
/model.6/m.1/m.1.1/attn/Reshape BPU id(0) Reshape 0.915527 8.08552 int8
/model.6/m.1/m.1.1/attn/Transpose BPU id(0) Transpose 0.915525 8.08552 int8
/model.6/m.1/m.1.1/attn/Reshape_1 BPU id(0) Reshape 0.915525 8.08552 int8
/model.6/m.1/m.1.1/attn/Split BPU id(0) Split 0.929535 8.08552 int8
/model.6/m.1/m.1.1/attn/Transpose_3 BPU id(0) Transpose 0.929535 8.08552 int8
/model.6/m.1/m.1.1/attn/MatMul BPU id(0) HzSQuantizedMatmul 0.928315 8.08552 int8
/model.6/m.1/m.1.1/attn/Mul BPU id(0) HzSElementwiseMul 0.928315 94.1535 int8
/model.6/m.1/m.1.1/attn/ReduceMax BPU id(0) HzQuantizedReduceMax 0.985320 16.6441 int8
/model.6/m.1/m.1.1/attn/Sub BPU id(0) HzSElementwiseSub 0.980855 16.6441 int8
/model.6/m.1/m.1.1/attn/Exp BPU id(0) HzLut 0.924758 31.9968 int8
/model.6/m.1/m.1.1/attn/ReduceSum BPU id(0) HzSQuantizedReduceSum 0.963404 1.0 int8
/model.6/m.1/m.1.1/attn/Div_reciprocal BPU id(0) HzLut 0.938866 263.219 int8
/model.6/m.1/m.1.1/attn/Div_mul BPU id(0) HzSElementwiseMul 0.909976 1.0 int8
/model.6/m.1/m.1.1/attn/Transpose_5 BPU id(0) Transpose 0.909976 0.97091 int8
/model.6/m.1/m.1.1/attn/MatMul_1 BPU id(0) HzSQuantizedMatmul 0.849266 8.08552 int8
/model.6/m.1/m.1.1/attn/Transpose_6 BPU id(0) Transpose 0.849266 7.38827 int8
/model.6/m.1/m.1.1/attn/Reshape_3 BPU id(0) Reshape 0.849266 7.38827 int8
/model.6/m.1/m.1.1/attn/Reshape_4 BPU id(0) Reshape 0.914498 8.08552 int8
/model.6/m.1/m.1.1/attn/pe/conv/Conv BPU id(0) HzSQuantizedConv 0.909540 8.08552 int8
/model.6/m.1/m.1.1/attn/proj/conv/Conv BPU id(0) HzSQuantizedConv 0.843838 5.38561 int8
/model.6/m.1/m.1.1/mlp/mlp.0/conv/Conv BPU id(0) HzSQuantizedConv 0.979820 9.50589 int8
/model.6/m.1/m.1.1/mlp/mlp.0/act/Mul BPU id(0) HzLut 0.980003 5.27996 int8
/model.6/m.1/m.1.1/mlp/mlp.1/conv/Conv BPU id(0) HzSQuantizedConv 0.887700 2.19781 int8
...el.6/cv1/act/Mul_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
.../m.0/m.0.1/Add_1_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.6/Concat BPU id(0) Concat 0.964243 7.82223 int8
/model.6/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.953220 9.10745 int8
/model.6/cv2/act/Mul BPU id(0) HzLut 0.918525 5.64547 int8
/model.7/conv/Conv BPU id(0) HzSQuantizedConv 0.917116 3.67958 int8
/model.7/act/Mul BPU id(0) HzLut 0.880694 6.55691 int8
/model.8/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.869201 4.69061 int8
/model.8/cv1/act/Mul BPU id(0) HzLut 0.864077 8.04312 int8
/model.8/m.0/m.0.0/attn/qkv/conv/Conv BPU id(0) HzSQuantizedConv 0.880125 7.7326 int8
/model.8/m.0/m.0.0/attn/Reshape BPU id(0) Reshape 0.880125 7.10734 int8
/model.8/m.0/m.0.0/attn/Transpose BPU id(0) Transpose 0.880128 7.10734 int8
/model.8/m.0/m.0.0/attn/Reshape_1 BPU id(0) Reshape 0.880128 7.10734 int8
/model.8/m.0/m.0.0/attn/Split BPU id(0) Split 0.897226 7.10734 int8
/model.8/m.0/m.0.0/attn/Transpose_3 BPU id(0) Transpose 0.897225 7.10734 int8
/model.8/m.0/m.0.0/attn/MatMul BPU id(0) HzSQuantizedMatmul 0.864210 7.10734 int8
/model.8/m.0/m.0.0/attn/Mul BPU id(0) HzSQuantizedConv 0.864210 34.5117 int8
/model.8/m.0/m.0.0/attn/ReduceMax BPU id(0) HzQuantizedReduceMax 0.985389 6.10086 int8
/model.8/m.0/m.0.0/attn/Sub BPU id(0) HzSElementwiseSub 0.972379 6.10086 int8
/model.8/m.0/m.0.0/attn/Exp BPU id(0) HzLut 0.959014 11.3912 int8
/model.8/m.0/m.0.0/attn/ReduceSum BPU id(0) HzSQuantizedReduceSum 0.975597 1.0 int8
/model.8/m.0/m.0.0/attn/Div_reciprocal BPU id(0) HzLut 0.957331 328.755 int8
/model.8/m.0/m.0.0/attn/Div_mul BPU id(0) HzSElementwiseMul 0.911330 1.0 int8
/model.8/m.0/m.0.0/attn/Transpose_5 BPU id(0) Transpose 0.911336 0.124873 int8
/model.8/m.0/m.0.0/attn/MatMul_1 BPU id(0) HzSQuantizedMatmul 0.836789 7.10734 int8
/model.8/m.0/m.0.0/attn/Transpose_6 BPU id(0) Transpose 0.836789 2.86071 int8
/model.8/m.0/m.0.0/attn/Reshape_2 BPU id(0) Reshape 0.836789 2.86071 int8
/model.8/m.0/m.0.0/attn/Reshape_3 BPU id(0) Reshape 0.866819 7.10734 int8
/model.8/m.0/m.0.0/attn/pe/conv/Conv BPU id(0) HzSQuantizedConv 0.919996 7.10734 int8
/model.8/m.0/m.0.0/attn/proj/conv/Conv BPU id(0) HzSQuantizedConv 0.929278 6.59887 int8
/model.8/m.0/m.0.0/mlp/mlp.0/conv/Conv BPU id(0) HzSQuantizedConv 0.947668 6.03417 int8
/model.8/m.0/m.0.0/mlp/mlp.0/act/Mul BPU id(0) HzLut 0.884478 6.42685 int8
/model.8/m.0/m.0.0/mlp/mlp.1/conv/Conv BPU id(0) HzSQuantizedConv 0.780459 3.04914 int8
/model.8/m.0/m.0.1/attn/qkv/conv/Conv BPU id(0) HzSQuantizedConv 0.902503 7.73799 int8
/model.8/m.0/m.0.1/attn/Reshape BPU id(0) Reshape 0.902503 6.48655 int8
/model.8/m.0/m.0.1/attn/Transpose BPU id(0) Transpose 0.902503 6.48655 int8
/model.8/m.0/m.0.1/attn/Reshape_1 BPU id(0) Reshape 0.902503 6.48655 int8
/model.8/m.0/m.0.1/attn/Split BPU id(0) Split 0.908539 6.48655 int8
/model.8/m.0/m.0.1/attn/Transpose_3 BPU id(0) Transpose 0.908540 6.48655 int8
/model.8/m.0/m.0.1/attn/MatMul BPU id(0) HzSQuantizedMatmul 0.885193 6.48655 int8
/model.8/m.0/m.0.1/attn/Mul BPU id(0) HzSQuantizedConv 0.885193 78.4475 int8
/model.8/m.0/m.0.1/attn/ReduceMax BPU id(0) HzQuantizedReduceMax 0.975903 13.8677 int8
/model.8/m.0/m.0.1/attn/Sub BPU id(0) HzSElementwiseSub 0.972423 13.8677 int8
/model.8/m.0/m.0.1/attn/Exp BPU id(0) HzLut 0.875437 21.9182 int8
/model.8/m.0/m.0.1/attn/ReduceSum BPU id(0) HzSQuantizedReduceSum 0.937307 1.0 int8
/model.8/m.0/m.0.1/attn/Div_reciprocal BPU id(0) HzLut 0.942807 221.84 int8
/model.8/m.0/m.0.1/attn/Div_mul BPU id(0) HzSElementwiseMul 0.924961 1.0 int8
/model.8/m.0/m.0.1/attn/Transpose_5 BPU id(0) Transpose 0.924956 0.486045 int8
/model.8/m.0/m.0.1/attn/MatMul_1 BPU id(0) HzSQuantizedMatmul 0.880182 6.48655 int8
/model.8/m.0/m.0.1/attn/Transpose_6 BPU id(0) Transpose 0.880182 6.07937 int8
/model.8/m.0/m.0.1/attn/Reshape_2 BPU id(0) Reshape 0.880182 6.07937 int8
/model.8/m.0/m.0.1/attn/Reshape_3 BPU id(0) Reshape 0.904156 6.48655 int8
/model.8/m.0/m.0.1/attn/pe/conv/Conv BPU id(0) HzSQuantizedConv 0.911806 6.48655 int8
/model.8/m.0/m.0.1/attn/proj/conv/Conv BPU id(0) HzSQuantizedConv 0.845843 3.74406 int8
/model.8/m.0/m.0.1/mlp/mlp.0/conv/Conv BPU id(0) HzSQuantizedConv 0.942774 8.37251 int8
/model.8/m.0/m.0.1/mlp/mlp.0/act/Mul BPU id(0) HzLut 0.887939 7.95194 int8
/model.8/m.0/m.0.1/mlp/mlp.1/conv/Conv BPU id(0) HzSQuantizedConv 0.832788 3.93506 int8
/model.8/m.1/m.1.0/attn/qkv/conv/Conv BPU id(0) HzSQuantizedConv 0.890953 8.83073 int8
/model.8/m.1/m.1.0/attn/Reshape BPU id(0) Reshape 0.890953 6.31208 int8
/model.8/m.1/m.1.0/attn/Transpose BPU id(0) Transpose 0.890952 6.31208 int8
/model.8/m.1/m.1.0/attn/Reshape_1 BPU id(0) Reshape 0.890952 6.31208 int8
/model.8/m.1/m.1.0/attn/Split BPU id(0) Split 0.906172 6.31208 int8
/model.8/m.1/m.1.0/attn/Transpose_3 BPU id(0) Transpose 0.906172 6.31208 int8
/model.8/m.1/m.1.0/attn/MatMul BPU id(0) HzSQuantizedMatmul 0.904029 6.31208 int8
/model.8/m.1/m.1.0/attn/Mul BPU id(0) HzSQuantizedConv 0.904029 68.8552 int8
/model.8/m.1/m.1.0/attn/ReduceMax BPU id(0) HzQuantizedReduceMax 0.964473 12.172 int8
/model.8/m.1/m.1.0/attn/Sub BPU id(0) HzSElementwiseSub 0.960980 12.172 int8
/model.8/m.1/m.1.0/attn/Exp BPU id(0) HzLut 0.896600 20.6858 int8
/model.8/m.1/m.1.0/attn/ReduceSum BPU id(0) HzSQuantizedReduceSum 0.948536 1.0 int8
/model.8/m.1/m.1.0/attn/Div_reciprocal BPU id(0) HzLut 0.930476 306.153 int8
/model.8/m.1/m.1.0/attn/Div_mul BPU id(0) HzSElementwiseMul 0.903348 1.0 int8
/model.8/m.1/m.1.0/attn/Transpose_5 BPU id(0) Transpose 0.903357 0.283793 int8
/model.8/m.1/m.1.0/attn/MatMul_1 BPU id(0) HzSQuantizedMatmul 0.823701 6.31208 int8
/model.8/m.1/m.1.0/attn/Transpose_6 BPU id(0) Transpose 0.823701 5.51998 int8
/model.8/m.1/m.1.0/attn/Reshape_2 BPU id(0) Reshape 0.823701 5.51998 int8
/model.8/m.1/m.1.0/attn/Reshape_3 BPU id(0) Reshape 0.867830 6.31208 int8
/model.8/m.1/m.1.0/attn/pe/conv/Conv BPU id(0) HzSQuantizedConv 0.905341 6.31208 int8
/model.8/m.1/m.1.0/attn/proj/conv/Conv BPU id(0) HzSQuantizedConv 0.796501 4.20365 int8
/model.8/m.1/m.1.0/mlp/mlp.0/conv/Conv BPU id(0) HzSQuantizedConv 0.939062 8.61197 int8
/model.8/m.1/m.1.0/mlp/mlp.0/act/Mul BPU id(0) HzLut 0.834331 8.14074 int8
/model.8/m.1/m.1.0/mlp/mlp.1/conv/Conv BPU id(0) HzSQuantizedConv 0.779649 3.66047 int8
/model.8/m.1/m.1.1/attn/qkv/conv/Conv BPU id(0) HzSQuantizedConv 0.893438 9.3439 int8
/model.8/m.1/m.1.1/attn/Reshape BPU id(0) Reshape 0.893438 6.28169 int8
/model.8/m.1/m.1.1/attn/Transpose BPU id(0) Transpose 0.893439 6.28169 int8
/model.8/m.1/m.1.1/attn/Reshape_1 BPU id(0) Reshape 0.893439 6.28169 int8
/model.8/m.1/m.1.1/attn/Split BPU id(0) Split 0.916437 6.28169 int8
/model.8/m.1/m.1.1/attn/Transpose_3 BPU id(0) Transpose 0.916438 6.28169 int8
/model.8/m.1/m.1.1/attn/MatMul BPU id(0) HzSQuantizedMatmul 0.921318 6.28169 int8
/model.8/m.1/m.1.1/attn/Mul BPU id(0) HzSQuantizedConv 0.921318 60.0212 int8
/model.8/m.1/m.1.1/attn/ReduceMax BPU id(0) HzQuantizedReduceMax 0.985894 10.6103 int8
/model.8/m.1/m.1.1/attn/Sub BPU id(0) HzSElementwiseSub 0.976020 10.6103 int8
/model.8/m.1/m.1.1/attn/Exp BPU id(0) HzLut 0.865746 18.6618 int8
/model.8/m.1/m.1.1/attn/ReduceSum BPU id(0) HzSQuantizedReduceSum 0.944602 1.0 int8
/model.8/m.1/m.1.1/attn/Div_reciprocal BPU id(0) HzLut 0.932591 173.257 int8
/model.8/m.1/m.1.1/attn/Div_mul BPU id(0) HzSElementwiseMul 0.888304 1.0 int8
/model.8/m.1/m.1.1/attn/Transpose_5 BPU id(0) Transpose 0.888325 0.22651 int8
/model.8/m.1/m.1.1/attn/MatMul_1 BPU id(0) HzSQuantizedMatmul 0.829219 6.28169 int8
/model.8/m.1/m.1.1/attn/Transpose_6 BPU id(0) Transpose 0.829219 6.31663 int8
/model.8/m.1/m.1.1/attn/Reshape_2 BPU id(0) Reshape 0.829219 6.31663 int8
/model.8/m.1/m.1.1/attn/Reshape_3 BPU id(0) Reshape 0.863313 6.28169 int8
/model.8/m.1/m.1.1/attn/pe/conv/Conv BPU id(0) HzSQuantizedConv 0.875839 6.28169 int8
/model.8/m.1/m.1.1/attn/proj/conv/Conv BPU id(0) HzSQuantizedConv 0.796583 4.17225 int8
/model.8/m.1/m.1.1/mlp/mlp.0/conv/Conv BPU id(0) HzSQuantizedConv 0.914260 11.587 int8
/model.8/m.1/m.1.1/mlp/mlp.0/act/Mul BPU id(0) HzLut 0.825612 7.27041 int8
/model.8/m.1/m.1.1/mlp/mlp.1/conv/Conv BPU id(0) HzSQuantizedConv 0.783082 4.48301 int8
...el.8/cv1/act/Mul_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
.../m.0/m.0.1/Add_1_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.8/Concat BPU id(0) Concat 0.854717 7.7326 int8
/model.8/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.919245 10.6573 int8
/model.8/cv2/act/Mul BPU id(0) HzLut 0.792262 7.9901 int8
/model.9/Resize BPU id(0) HzQuantizedResizeUpsample 0.792258 4.4767 int8
/model.9/Resize_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
...el.6/cv2/act/Mul_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.10/Concat BPU id(0) Concat 0.835534 4.4767 int8
/model.11/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.931869 4.33843 int8
/model.11/cv1/act/Mul BPU id(0) HzLut 0.929009 5.25182 int8
/model.11/m.0/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.913487 4.79469 int8
/model.11/m.0/cv1/act/Mul BPU id(0) HzLut 0.897551 4.37755 int8
/model.11/m.0/m/m.0/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.812950 1.95695 int8
/model.11/m.0/m/m.0/cv1/act/Mul BPU id(0) HzLut 0.768384 5.00743 int8
/model.11/m.0/m/m.0/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.783928 4.28402 int8
/model.11/m.0/m/m.0/cv2/act/Mul BPU id(0) HzLut 0.832120 5.60862 int8
/model.11/m.0/m/m.0/Add BPU id(0) HzSElementwiseAdd 0.875144 1.95695 int8
/model.11/m.0/m/m.1/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.906362 4.13368 int8
/model.11/m.0/m/m.1/cv1/act/Mul BPU id(0) HzLut 0.889573 6.31358 int8
/model.11/m.0/m/m.1/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.927274 3.49848 int8
/model.11/m.0/m/m.1/cv2/act/Mul BPU id(0) HzLut 0.926586 7.73436 int8
/model.11/m.0/m/m.1/Add BPU id(0) HzSElementwiseAdd 0.930052 4.13368 int8
/model.11/m.0/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.810233 4.79469 int8
/model.11/m.0/cv2/act/Mul BPU id(0) HzLut 0.791696 7.14482 int8
/model.11/m.0/Concat BPU id(0) Concat 0.907055 7.53761 int8
/model.11/m.0/cv3/conv/Conv BPU id(0) HzSQuantizedConv 0.846183 7.53761 int8
/model.11/m.0/cv3/act/Mul BPU id(0) HzLut 0.831968 5.96765 int8
...l.11/cv1/act/Mul_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.11/Concat BPU id(0) Concat 0.910422 4.79469 int8
/model.11/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.888838 4.60841 int8
/model.11/cv2/act/Mul BPU id(0) HzLut 0.844449 4.72279 int8
/model.12/Resize BPU id(0) HzQuantizedResizeUpsample 0.844458 3.08783 int8
/model.12/Resize_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
...el.4/cv2/act/Mul_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.13/Concat BPU id(0) Concat 0.922253 3.08783 int8
/model.14/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.973190 2.99153 int8
/model.14/cv1/act/Mul BPU id(0) HzLut 0.974813 2.80452 int8
/model.14/m.0/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.976554 2.03538 int8
/model.14/m.0/cv1/act/Mul BPU id(0) HzLut 0.989194 2.82164 int8
/model.14/m.0/m/m.0/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.944782 0.994495 int8
/model.14/m.0/m/m.0/cv1/act/Mul BPU id(0) HzLut 0.950319 3.19807 int8
/model.14/m.0/m/m.0/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.951201 2.40526 int8
/model.14/m.0/m/m.0/cv2/act/Mul BPU id(0) HzLut 0.952833 5.10656 int8
/model.14/m.0/m/m.0/Add BPU id(0) HzSElementwiseAdd 0.956817 0.994495 int8
/model.14/m.0/m/m.1/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.906661 3.69061 int8
/model.14/m.0/m/m.1/cv1/act/Mul BPU id(0) HzLut 0.886776 4.94518 int8
/model.14/m.0/m/m.1/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.977044 3.26654 int8
/model.14/m.0/m/m.1/cv2/act/Mul BPU id(0) HzLut 0.978908 7.95299 int8
/model.14/m.0/m/m.1/Add BPU id(0) HzSElementwiseAdd 0.978571 3.69061 int8
/model.14/m.0/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.867786 2.03538 int8
/model.14/m.0/cv2/act/Mul BPU id(0) HzLut 0.836108 5.87879 int8
/model.14/m.0/Concat BPU id(0) Concat 0.971497 7.9912 int8
/model.14/m.0/cv3/conv/Conv BPU id(0) HzSQuantizedConv 0.917422 7.9912 int8
/model.14/m.0/cv3/act/Mul BPU id(0) HzLut 0.947152 4.23292 int8
...l.14/cv1/act/Mul_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.14/Concat BPU id(0) Concat 0.963604 2.03538 int8
/model.14/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.965152 2.56639 int8
/model.14/cv2/act/Mul BPU id(0) HzLut 0.973205 4.15928 int8
/model.15/conv/Conv BPU id(0) HzSQuantizedConv 0.916926 2.51084 int8
/model.15/act/Mul BPU id(0) HzLut 0.884388 5.56355 int8
/model.16/Concat BPU id(0) Concat 0.857230 3.08783 int8
/model.17/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.850424 3.08783 int8
/model.17/cv1/act/Mul BPU id(0) HzLut 0.853494 4.67934 int8
/model.17/m.0/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.958909 4.52616 int8
/model.17/m.0/cv1/act/Mul BPU id(0) HzLut 0.974340 3.17587 int8
/model.17/m.0/m/m.0/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.923811 0.950605 int8
/model.17/m.0/m/m.0/cv1/act/Mul BPU id(0) HzLut 0.907816 4.46063 int8
/model.17/m.0/m/m.0/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.858674 2.35509 int8
/model.17/m.0/m/m.0/cv2/act/Mul BPU id(0) HzLut 0.875918 5.53728 int8
/model.17/m.0/m/m.0/Add BPU id(0) HzSElementwiseAdd 0.878247 0.950605 int8
/model.17/m.0/m/m.1/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.838500 4.14696 int8
/model.17/m.0/m/m.1/cv1/act/Mul BPU id(0) HzLut 0.781075 6.86995 int8
/model.17/m.0/m/m.1/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.900731 3.86227 int8
/model.17/m.0/m/m.1/cv2/act/Mul BPU id(0) HzLut 0.911125 8.65739 int8
/model.17/m.0/m/m.1/Add BPU id(0) HzSElementwiseAdd 0.905278 4.14696 int8
/model.17/m.0/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.692213 4.52616 int8
/model.17/m.0/cv2/act/Mul BPU id(0) HzLut 0.633205 7.38137 int8
/model.17/m.0/Concat BPU id(0) Concat 0.858618 8.27161 int8
/model.17/m.0/cv3/conv/Conv BPU id(0) HzSQuantizedConv 0.766413 8.27161 int8
/model.17/m.0/cv3/act/Mul BPU id(0) HzLut 0.764852 8.86359 int8
...l.17/cv1/act/Mul_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.17/Concat BPU id(0) Concat 0.810665 4.52616 int8
/model.17/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.804440 5.11369 int8
/model.17/cv2/act/Mul BPU id(0) HzLut 0.775891 9.12061 int8
/model.18/conv/Conv BPU id(0) HzSQuantizedConv 0.785847 4.35916 int8
/model.18/act/Mul BPU id(0) HzLut 0.767370 5.64968 int8
/model.19/Concat BPU id(0) Concat 0.783937 4.4767 int8
/model.20/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.839450 4.4767 int8
/model.20/cv1/act/Mul BPU id(0) HzLut 0.753681 6.37758 int8
/model.20/Split BPU id(0) Split 0.766935 5.14695 int8
/model.20/m.0/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.941300 5.14695 int8
/model.20/m.0/cv1/act/Mul BPU id(0) HzLut 0.950236 3.17419 int8
/model.20/m.0/m/m.0/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.909498 1.3069 int8
/model.20/m.0/m/m.0/cv1/act/Mul BPU id(0) HzLut 0.863457 5.26665 int8
/model.20/m.0/m/m.0/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.889002 3.63313 int8
/model.20/m.0/m/m.0/cv2/act/Mul BPU id(0) HzLut 0.882881 6.15343 int8
/model.20/m.0/m/m.0/Add BPU id(0) HzSElementwiseAdd 0.897036 1.3069 int8
/model.20/m.0/m/m.1/cv1/conv/Conv BPU id(0) HzSQuantizedConv 0.916453 5.13745 int8
/model.20/m.0/m/m.1/cv1/act/Mul BPU id(0) HzLut 0.838347 7.28896 int8
/model.20/m.0/m/m.1/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.867950 5.4296 int8
/model.20/m.0/m/m.1/cv2/act/Mul BPU id(0) HzLut 0.861113 12.2769 int8
/model.20/m.0/m/m.1/Add BPU id(0) HzSElementwiseAdd 0.862412 5.13745 int8
/model.20/m.0/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.646957 5.14695 int8
/model.20/m.0/cv2/act/Mul BPU id(0) HzLut 0.635867 5.76255 int8
/model.20/m.0/Concat BPU id(0) Concat 0.824103 11.7658 int8
/model.20/m.0/cv3/conv/Conv BPU id(0) HzSQuantizedConv 0.797942 11.7658 int8
/model.20/m.0/cv3/act/Mul BPU id(0) HzLut 0.791153 9.29643 int8
/model.20/Split_output_0_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.20/Split_output_1_calibrated_Requantize BPU id(0) HzRequantize -- -- int8
/model.20/Concat BPU id(0) Concat 0.768936 5.14695 int8
/model.20/cv2/conv/Conv BPU id(0) HzSQuantizedConv 0.754442 5.93185 int8
/model.20/cv2/act/Mul BPU id(0) HzLut 0.688080 8.4523 int8
/model.21/cv3.0/cv3.0.0/cv3.0.0.0/conv/Conv BPU id(0) HzSQuantizedConv 0.984800 2.51084 int8
/model.21/cv3.0/cv3.0.0/cv3.0.0.0/act/Mul BPU id(0) HzLut 0.981564 4.35916 int8
/model.21/cv3.0/cv3.0.0/cv3.0.0.1/conv/Conv BPU id(0) HzSQuantizedConv 0.882605 3.90407 int8
/model.21/cv3.0/cv3.0.0/cv3.0.0.1/act/Mul BPU id(0) HzLut 0.839096 5.36776 int8
/model.21/cv3.0/cv3.0.1/cv3.0.1.0/conv/Conv BPU id(0) HzSQuantizedConv 0.852754 4.45713 int8
/model.21/cv3.0/cv3.0.1/cv3.0.1.0/act/Mul BPU id(0) HzLut 0.846775 6.34929 int8
/model.21/cv3.0/cv3.0.1/cv3.0.1.1/conv/Conv BPU id(0) HzSQuantizedConv 0.861514 5.61668 int8
/model.21/cv3.0/cv3.0.1/cv3.0.1.1/act/Mul BPU id(0) HzLut 0.876494 25.4446 int8
/model.21/cv3.0/cv3.0.2/Conv BPU id(0) HzSQuantizedConv 0.998885 24.9767 int8
/model.21/cv2.0/cv2.0.0/conv/Conv BPU id(0) HzSQuantizedConv 0.942020 2.51084 int8
/model.21/cv2.0/cv2.0.0/act/Mul BPU id(0) HzLut 0.933212 8.19463 int8
/model.21/cv2.0/cv2.0.1/conv/Conv BPU id(0) HzSQuantizedConv 0.880021 3.40829 int8
/model.21/cv2.0/cv2.0.1/act/Mul BPU id(0) HzLut 0.907260 29.9281 int8
/model.21/cv2.0/cv2.0.2/Conv BPU id(0) HzSQuantizedConv 0.962691 29.8958 int8
/model.21/cv3.1/cv3.1.0/cv3.1.0.0/conv/Conv BPU id(0) HzSQuantizedConv 0.854667 4.35916 int8
/model.21/cv3.1/cv3.1.0/cv3.1.0.0/act/Mul BPU id(0) HzLut 0.851683 5.69865 int8
/model.21/cv3.1/cv3.1.0/cv3.1.0.1/conv/Conv BPU id(0) HzSQuantizedConv 0.831362 5.38841 int8
/model.21/cv3.1/cv3.1.0/cv3.1.0.1/act/Mul BPU id(0) HzLut 0.794557 8.86448 int8
/model.21/cv3.1/cv3.1.1/cv3.1.1.0/conv/Conv BPU id(0) HzSQuantizedConv 0.790087 5.56816 int8
/model.21/cv3.1/cv3.1.1/cv3.1.1.0/act/Mul BPU id(0) HzLut 0.852858 17.9335 int8
/model.21/cv3.1/cv3.1.1/cv3.1.1.1/conv/Conv BPU id(0) HzSQuantizedConv 0.906170 11.6093 int8
/model.21/cv3.1/cv3.1.1/cv3.1.1.1/act/Mul BPU id(0) HzLut 0.922218 34.1971 int8
/model.21/cv3.1/cv3.1.2/Conv BPU id(0) HzSQuantizedConv 0.998879 34.1971 int8
/model.21/cv2.1/cv2.1.0/conv/Conv BPU id(0) HzSQuantizedConv 0.829088 4.35916 int8
/model.21/cv2.1/cv2.1.0/act/Mul BPU id(0) HzLut 0.829191 9.80536 int8
/model.21/cv2.1/cv2.1.1/conv/Conv BPU id(0) HzSQuantizedConv 0.835685 5.74615 int8
/model.21/cv2.1/cv2.1.1/act/Mul BPU id(0) HzLut 0.870592 31.7937 int8
/model.21/cv2.1/cv2.1.2/Conv BPU id(0) HzSQuantizedConv 0.964953 31.7937 int8
/model.21/cv3.2/cv3.2.0/cv3.2.0.0/conv/Conv BPU id(0) HzSQuantizedConv 0.649975 6.49264 int8
/model.21/cv3.2/cv3.2.0/cv3.2.0.0/act/Mul BPU id(0) HzLut 0.732351 7.88073 int8
/model.21/cv3.2/cv3.2.0/cv3.2.0.1/conv/Conv BPU id(0) HzSQuantizedConv 0.854144 6.37997 int8
/model.21/cv3.2/cv3.2.0/cv3.2.0.1/act/Mul BPU id(0) HzLut 0.824711 15.8374 int8
/model.21/cv3.2/cv3.2.1/cv3.2.1.0/conv/Conv BPU id(0) HzSQuantizedConv 0.778329 5.44782 int8
/model.21/cv3.2/cv3.2.1/cv3.2.1.0/act/Mul BPU id(0) HzLut 0.772837 10.4248 int8
/model.21/cv3.2/cv3.2.1/cv3.2.1.1/conv/Conv BPU id(0) HzSQuantizedConv 0.895221 10.3572 int8
/model.21/cv3.2/cv3.2.1/cv3.2.1.1/act/Mul BPU id(0) HzLut 0.921867 29.3847 int8
/model.21/cv3.2/cv3.2.2/Conv BPU id(0) HzSQuantizedConv 0.998451 29.2455 int8
/model.21/cv2.2/cv2.2.0/conv/Conv BPU id(0) HzSQuantizedConv 0.843470 6.49264 int8
/model.21/cv2.2/cv2.2.0/act/Mul BPU id(0) HzLut 0.762702 8.74596 int8
/model.21/cv2.2/cv2.2.1/conv/Conv BPU id(0) HzSQuantizedConv 0.766143 7.60039 int8
/model.21/cv2.2/cv2.2.1/act/Mul BPU id(0) HzLut 0.773633 38.1401 int8
/model.21/cv2.2/cv2.2.2/Conv BPU id(0) HzSQuantizedConv 0.924581 38.1401 int8
2025-02-20 01:49:59,069 file: print_info_dict.py func: print_info_dict line No: 72 The quantized model output:
=============================================================================
Output Cosine Similarity L1 Distance L2 Distance Chebyshev Distance
-----------------------------------------------------------------------------
output0 0.998886 0.468851 0.001009 4.919658
1051 0.962690 0.324137 0.000810 4.927746
1065 0.998879 0.458496 0.001880 8.105179
1073 0.964953 0.298953 0.001516 4.934404
1087 0.998451 0.416296 0.003976 7.377398
1095 0.924581 0.411139 0.004505 5.503676
2025-02-20 01:49:59,080 file: model_builder.py func: model_builder line No: 38 End to Horizon NN Model Convert.
使用TROS高效部署YOLOv12
安装或更新tros-humble-hobot-dnn等功能包
sudo apt update # 确保有地瓜apt源
sudo apt install -y tros*-dnn-node* tros*-hobot-usb-cam tros*-hobot-codec
拷贝tros-humble-hobot-dnn 的配置文件
cp -r /opt/tros/humble/lib/dnn_node_example/config .
配置为以下内容
{
"model_file": "yourself.bin",
"dnn_Parser": "yolov8",
"model_output_count": 6,
"reg_max": 16,
"class_num": 80,
"cls_names_list": "config/coco.list",
"strides": [8, 16, 32],
"score_threshold": 0.25,
"nms_threshold": 0.7,
"nms_top_k": 300
}
运行YOLOv8的推理节点
注：YOLOv12的后处理与YOLOv8相同，可以直接使用YOLOv8的推理节点
# 配置MIPI摄像头
export CAM_TYPE=mipi
# 配置USB摄像头
# export CAM_TYPE=usb
# 启动launch文件
ros2 launch dnn_node_example dnn_node_example.launch.py dnn_example_config_file:=config/my_workconfig.json
具体内容请参考TROS手册：https://developer.d-robotics.cc/rdk_doc/Robot_development/boxs/detection/yolo
同时，您还可以利用TROS轻松实现MIPI Camera, USB Camera, IPC Camera多种数据来源, 多路视频流的AI推理分析。参考RDK Video Solutions: https://github.com/D-Robotics/rdk_model_zoo/blob/main/demos/solutions/RDK_Video_Solutions/README_cn.md
模型训练
- 模型训练请参考ultralytics官方文档, 这个文档由ultralytics维护, 质量非常的高。网络上也有非常多的参考材料, 得到一个像官方一样的预训练权重的模型并不困难。
- 请注意, 训练时无需修改任何程序, 无需修改forward方法。
性能数据
RDK X5 & RDK X5 Module (临时方案，不代表最终Area Attention优化后的性能数据)
目标检测 Detection (COCO)
| 模型 | 尺寸(像素) | 类别数 | 参数量 | BPU任务延迟/BPU吞吐量(线程数) | 后处理时间 |
|---|---|---|---|---|---|
| YOLOv12n | 640×640 | 80 | 2.6 M | 17.7 ms / 56.3 FPS (1 thread ) 31.6 ms / 63.0 FPS (2 threads) | 3 ms |
说明:
- BPU延迟与BPU吞吐量。
- 单线程延迟为单帧,单线程,单BPU核心的延迟,BPU推理一个任务最理想的情况。
- 多线程帧率为多个线程同时向BPU塞任务, 每个BPU核心可以处理多个线程的任务, 一般工程中4个线程可以控制单帧延迟较小,同时吃满所有BPU到100%,在吞吐量(FPS)和帧延迟间得到一个较好的平衡。X5的BPU整体比较厉害, 一般2个线程就可以将BPU吃满, 帧延迟和吞吐量都非常出色。
- 表格中一般记录到吞吐量不再随线程数明显增加的数据。
- BPU延迟和BPU吞吐量使用以下命令在板端测试
hrt_model_exec perf --thread_num 2 --model_file yolov12n_detect_bayese_640x640_nv12_modified.bin
python3 ../../../tools/batch_perf/batch_perf.py --max 3 --file ptq_models
- 测试板卡均为最佳状态。
- X5的状态为最佳状态：CPU为8 × A55@1.8G, 全核心Performance调度, BPU为1 × Bayes-e@10TOPS.
sudo bash -c "echo 1 > /sys/devices/system/cpu/cpufreq/boost" # CPU: 1.8Ghz
sudo bash -c "echo performance > /sys/devices/system/cpu/cpufreq/policy0/scaling_governor" # Performance Mode
echo 1200000000 > /sys/kernel/debug/clk/bpu_mclk_2x_clk/clk_rate # BPU: 1.2GHz
- X3的状态为最佳状态：CPU为4 × A53@1.8G, 全核心Performance调度, BPU为2 × Bernoulli2@5TOPS.
sudo bash -c "echo 1 > /sys/devices/system/cpu/cpufreq/boost" # 1.8Ghz
sudo bash -c "echo performance > /sys/devices/system/cpu/cpufreq/policy0/scaling_governor" # Performance Mode
- 关于后处理: 目前在X5上使用Python重构的后处理, 仅需要单核心单线程串行5ms左右即可完成, 也就是说只需要占用2个CPU核心(200%的CPU占用, 最大800%的CPU占用), 每分钟可完成400帧图像的后处理, 后处理不会构成瓶颈.
反馈
本文如果有表达不清楚的地方欢迎前往地瓜开发者社区进行提问和交流.
参考
ultralytics
Github: yolov12
YOLOv12: Attention-Centric Real-Time Object Detectors
扫一扫
1776
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
