yolov5中添加CA注意力机制

1、找到models/common.py 添加新增的网络结构，代码如下：

import torch
import torch.nn as nn
import math
import torch.nn.functional as F

class h_sigmoid(nn.Module):
    def __init__(self, inplace=True):
        super(h_sigmoid, self).__init__()
        self.relu = nn.ReLU6(inplace=inplace)

    def forward(self, x):
        return self.relu(x + 3) / 6

class h_swish(nn.Module):
    def __init__(self, inplace=True):
        super(h_swish, self).__init__()
        self.sigmoid = h_sigmoid(inplace=inplace)

    def forward(self, x):
        return x * self.sigmoid(x)

class CoordAtt(nn.Module):
    def __init__(self, inp, oup, reduction=32):
        super(CoordAtt, self).__init__()
        self.pool_h = nn.AdaptiveAvgPool2d((None, 1))
        self.pool_w = nn.AdaptiveAvgPool2d((1, None))

        mip = max(8, inp // reduction)

        self.conv1 = nn.Conv2d(inp, mip, kernel_size=1, stride=1, padding=0)
        self.bn1 = nn.BatchNorm2d(mip)
        self.act = h_swish()

        self.conv_h = nn.Conv2d(mip, oup, kernel_size=1, stride=1, padding=0)
        self.conv_w = nn.Conv2d(mip, oup, kernel_size=1, stride=1, padding=0)


    def forward(self, x):
        identity = x

        n,c,h,w = x.size()
        x_h = self.pool_h(x)
        x_w = self.pool_w(x).permute(0, 1, 3, 2)

        y = torch.cat([x_h, x_w], dim=2)
        y = self.conv1(y)
        y = self.bn1(y)
        y = self.act(y)

        x_h, x_w = torch.split(y, [h, w], dim=2)
        x_w = x_w.permute(0, 1, 3, 2)

        a_h = self.conv_h(x_h).sigmoid()
        a_w = self.conv_w(x_w).sigmoid()

        out = identity * a_w * a_h

        return out

 代码链接：https://github.com/houqb/CoordAttention/blob/main/coordatt.py

2、在yolo.py文件里的parse_model函数加入类名：

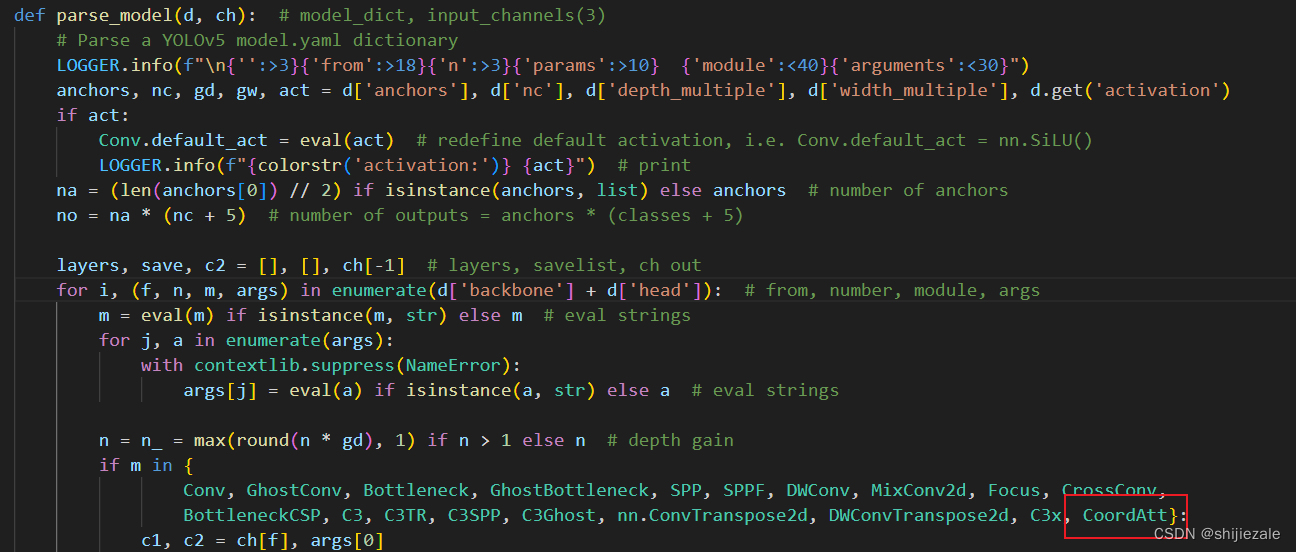

首先找到yolo.py里面parse_model函数的这一部分，在此处添加红框里面的内容

3、创建一个新的yaml文件

首先复制一个yolov5s.yaml，改名为yolov5s_ca.yaml

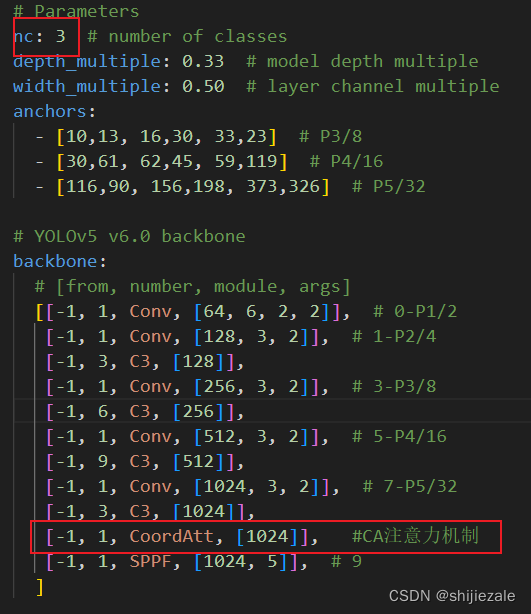

可以在backbone部分添加CA注意力机制，例如：

不要忘记修改nc，nc是类别数量

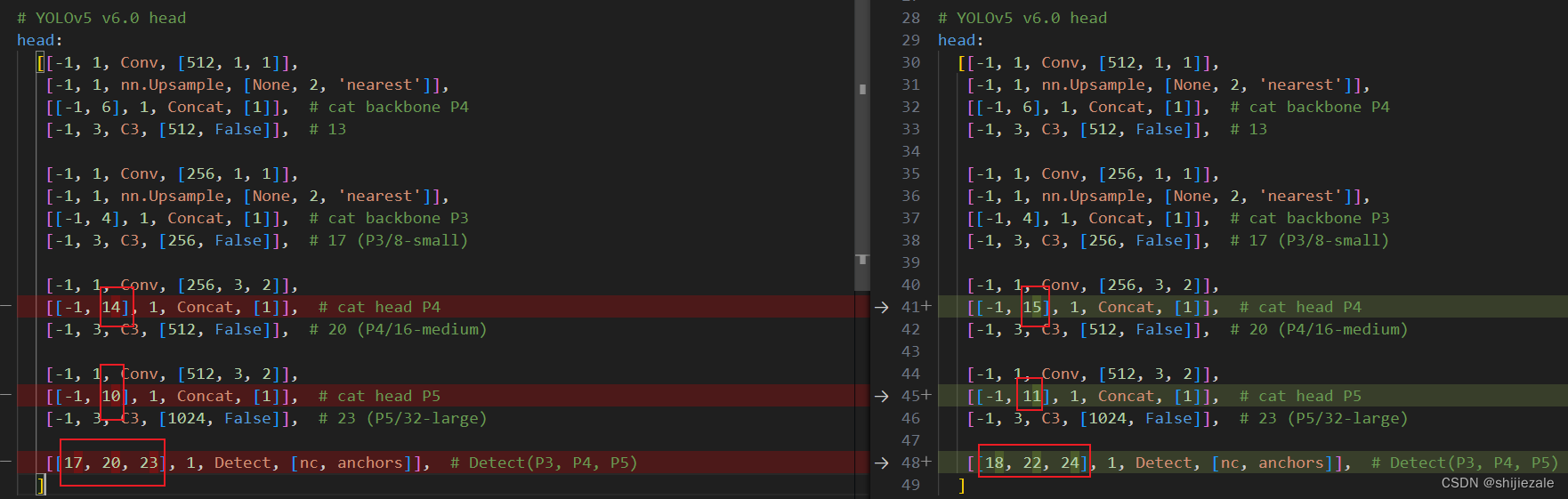

在此处添加CA模块后，网络结构发生了改变，原本的第9层变成了第10层，第10层变成了第11层，以此类推，所以后面的连接层，从第9层开始都要加1，例如：

4、验证是否添加成功，运行yolo.py文件，将cfg的参数改为刚刚创建的yolov5s_ca.yaml

python models\yolo.py --cfg yolov5s_ca.yaml

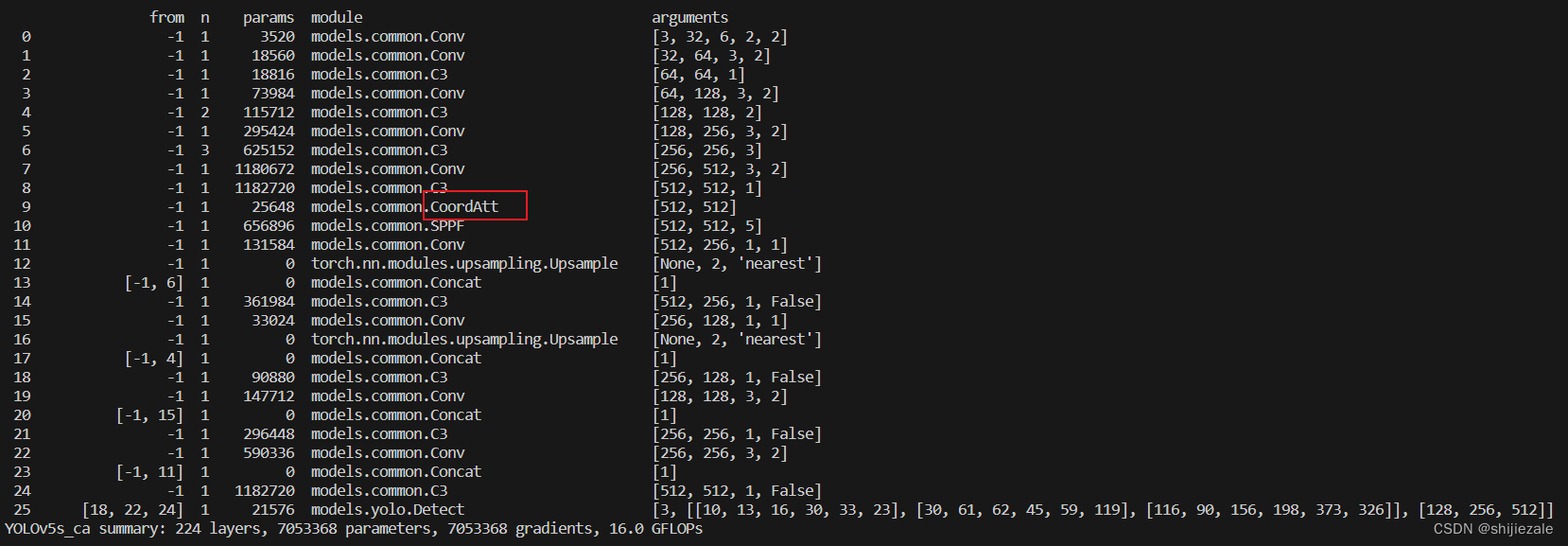

结果如下，表示添加CA注意力机制成功

 5、运行train.py文件开始训练

6、其它问题

如果出现错误RuntimeError: adaptive_avg_pool2d_backward_cuda does not have a deterministic implementation, but you set 'torch.use_deterministic_algorithms(True)'. You can turn off determinism just for this operation, or you can use the 'warn_only=True' option, if that's acceptable for your application. You can also file an issue at https://github.com/pytorch/pytorch/issues to help us prioritize adding deterministic support for this operation.

定位错误位置，在该函数前添加

torch.use_deterministic_algorithms(False)

如图位置
