EvolveGCN 原理解读

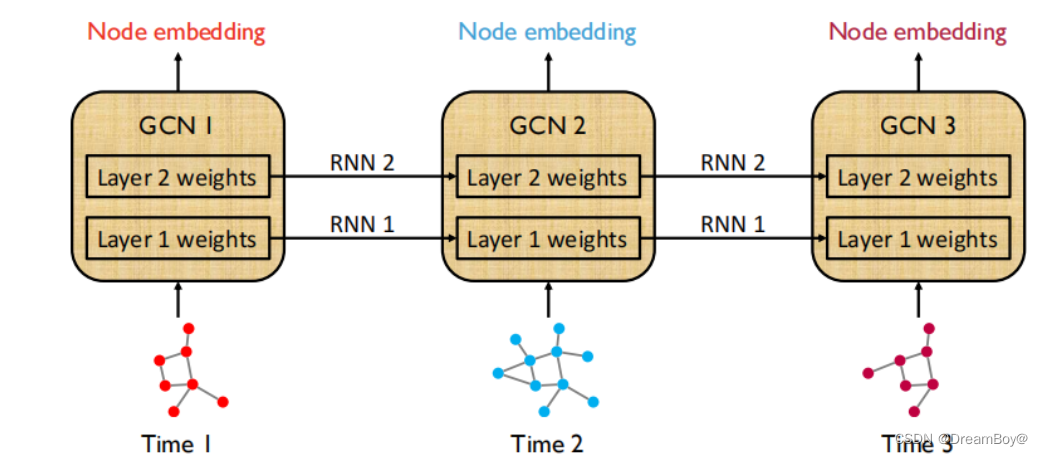

GCN与RNN的结合体：以此捕捉动态图的动态特征。

GCN的作用： 提取某一时刻图节点的特征，但是不对参数进行修改。
RNN的作用： 结合相邻时刻图节点的特征更新GCN的参数。

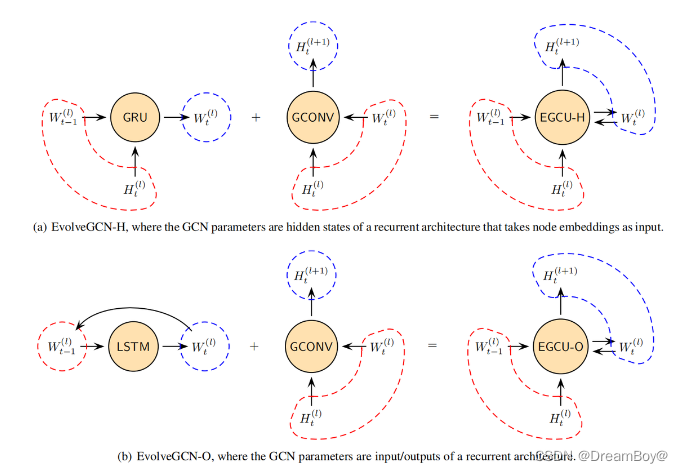

-H 更关注节点上的信息，-O 更关注图整体结构的变化。

代码实现

import torch
import numpy as np
np.set_printoptions(suppress=True)

import torch.nn as nn
from torch.nn import init
from dgl.nn.pytorch import GraphConv, HeteroGraphConv
from torch.nn.parameter import Parameter
import warnings
warnings.filterwarnings("ignore")


class MatGRUGate(torch.nn.Module):
    """
    GRU gate for matrix, similar to the official code.
    Please refer to section 3.4 of the paper for the formula.
    """

    def __init__(self, rows, cols, activation):  #行  列  激活函数
        super().__init__()
        self.activation = activation
        self.W = Parameter(torch.Tensor(rows, rows))
        self.U = Parameter(torch.Tensor(rows, rows))
        self.bias = Parameter(torch.Tensor(rows, cols))
        self.reset_parameters()

    def reset_parameters(self):  #初始化参数
        init.xavier_uniform_(self.W)
        init.xavier_uniform_(self.U)
        init.zeros_(self.bias)

    def forward(self, x, hidden):
        out = self.activation(self.W.matmul(x) + \
                              self.U.matmul(hidden) + \
                              self.bias)
        return out


class MatGRUCell(torch.nn.Module):
    """
    GRU cell for matrix, similar to the official code.
    Please refer to section 3.4 of the paper for the formula.
    """
    def __init__(self, in_feats, out_feats):
        super().__init__()
        self.update = MatGRUGate(in_feats,
                                 out_feats,
                                 torch.nn.Sigmoid())

        self.reset = MatGRUGate(in_feats,
                                out_feats,
                                torch.nn.Sigmoid())

        self.htilda = MatGRUGate(in_feats,
                                 out_feats,
                                 torch.nn.Tanh())

    def forward(self, prev_Q, z_topk=None):
        if z_topk is None:
            z_topk = prev_Q

        update = self.update(z_topk, prev_Q)
        reset = self.reset(z_topk, prev_Q)

        h_cap = reset * prev_Q
        h_cap = self.htilda(z_topk, h_cap)

        new_Q = (1 - update) * prev_Q + update * h_cap

        return new_Q


class   EGCN(nn.Module):
    def __init__(self, layers = []):   # num_layers=2  n_classes=2  输出维度设为6
        super(EGCN, self).__init__()
        self.layers_list = layers
        self.num_layers = len(self.layers_list)-2
        self.recurrent_layers = nn.ModuleList()  # rnn
        self.gnn_convs = nn.ModuleList()  # 卷积层
        self.gcn_weights_list = nn.ParameterList()  # 权重

        for i in range(self.num_layers + 1):
            if i == self.num_layers:
                self.mlp = nn.Sequential(nn.Linear(self.layers_list[i], 50),
                                         nn.ReLU(),
                                         nn.Linear(50, self.layers_list[i+1]),
                                         nn.Softmax())

            else:
                self.recurrent_layers.append(
                    MatGRUCell(in_feats=self.layers_list[i],
                               out_feats=self.layers_list[i + 1]))
                self.gcn_weights_list.append(
                    Parameter(torch.Tensor(self.layers_list[i],
                                           self.layers_list[i + 1])))
                self.gnn_convs.append(
                    GraphConv(in_feats=self.layers_list[i],
                              out_feats=self.layers_list[i + 1],
                              bias=False,
                              activation=nn.RReLU(),
                              weight=False,
                              allow_zero_in_degree=True))
        self.reset_parameters()

    def reset_parameters(self):
        for gcn_weight in self.gcn_weights_list:
            init.xavier_uniform_(gcn_weight)

    def forward(self, g_list):
        feature_list = []
        for g in g_list:
            feature_list.append(g.ndata['feature'])
        for i in range(self.num_layers):
            W = self.gcn_weights_list[i]
            for j, g in enumerate(g_list):
                W = self.recurrent_layers[i](W)
                feature_list[j] = self.gnn_convs[i](g, feature_list[j], weight=W)
        return self.mlp(feature_list[-1])

class   REGCN(nn.Module):
    def __init__(self, layers = []):
        super(REGCN, self).__init__()
        self.layers_list = layers
        self.num_layers = len(self.layers_list)-2
        self.recurrent_layers = nn.ModuleList()  # rnn
        self.gnn_convs = nn.ModuleList()  # 卷积层
        self.gcn_weights_list = nn.ParameterList()  # 权重
        self.recurrent_layers = nn.ModuleDict()  # rnn
        self.gcn_weights_list = nn.ModuleDict() # 权重
        for i in range(self.num_layers + 1):
            if i == 0:
                # 卷积层
                self.gnn_convs.append(
                    HeteroGraphConv({
                    rel: GraphConv(self.layers_list[0][rel],
                                   self.layers_list[i + 1],
                                   allow_zero_in_degree=True,
                                   weight=False,
                                   ) for rel in
                    self.layers_list[0]
                }, aggregate='sum'))
                self.gcn_weights_list.update({
                    rel:nn.ParameterList() for rel in self.layers_list[0]
                })
                self.recurrent_layers.update({
                    rel:nn.ModuleList() for rel in self.layers_list[0]
                })
                for rel in self.layers_list[0]:
                    self.gcn_weights_list[rel].append(
                    Parameter(
                            torch.Tensor(self.layers_list[i][rel],
                                        self.layers_list[i + 1])),
                    )
                    self.recurrent_layers[rel].append(
                            MatGRUCell(in_feats=self.layers_list[i][rel],
                                       out_feats=self.layers_list[i + 1]),
                        )
            elif i == self.num_layers:
                self.mlp = nn.Sequential(nn.Linear(self.layers_list[i], 50),
                                         nn.ReLU(),
                                         nn.Linear(50, self.layers_list[i+1]),
                                         nn.Softmax())
            else:
                for rel in self.layers_list[0]:
                    self.gcn_weights_list[rel].append(
                        Parameter(torch.Tensor(self.layers_list[i],self.layers_list[i + 1]))
                        )
                    self.recurrent_layers[rel].append(
                            MatGRUCell(in_feats=self.layers_list[i],
                                   out_feats=self.layers_list[i + 1])
                        )
                self.gnn_convs.append(
                    HeteroGraphConv({
                        rel: GraphConv(self.layers_list[0],
                                       self.layers_list[i + 1],
                                       allow_zero_in_degree=True,
                                       weight=False,) for rel in
                        self.layers_list[0]
                    }, aggregate='sum'))
        self.reset_parameters()

    def reset_parameters(self):
        for rel in self.gcn_weights_list:
            for gcn_weight in self.gcn_weights_list[rel]:
                init.xavier_uniform_(gcn_weight)

    def forward(self, g_list):
        feature_list = []
        for g in g_list:
            feature = { ntypes:g.nodes[ntypes].data["feature"] for ntypes in g_list[0].ntypes }
            feature_list.append(feature)
        for i in range(self.num_layers):
            W= {rel:{"weight":self.gcn_weights_list[rel][i]} for rel in self.layers_list[0]}
            for j, g in enumerate(g_list):
                W = {rel:{"weight":self.recurrent_layers[rel][i](W[rel]["weight"])}
                     for rel in self.layers_list[0]}
                feature_list[j] = self.gnn_convs[i](g, feature_list[j], mod_kwargs=W)
        return {ntypes : self.mlp(feature_list[-1][ntypes]) for ntypes in g_list[0].ntypes}
