ffmpeg提供了如下命令行用于截取指定时间范围内的视频:
ffmpeg -i c:\record\out_computer.mp4 -ss 00:00:10 -to 00:00:39 out_computer_2second.mp4
我跟了下ffmpeg命令行代码,没有使用滤镜,直接读取的视频AVPacket,用里面的pts判断是否在时间范围内。
如果读取到的pts小于起始时间,则读取下一帧,接着判断。
如果读取到的pts大于结束时间,则结束。
本人为此专门写了一个工程,该工程考虑了只有视频,没音频的文件。
main函数的内容如下,通俗易懂:
int main()
{
CTrimFile cVideoTrim;
const char *pFileA = "c:\\record\\out-computer.mp4";
const char *pFileOut = "c:\\record\\out-computer_trimmed.mp4";
std::string strBeginTime = "00:00:10";
std::string strEndTime = "00:00:20";
int iStartTime = TimeToSeconds(strBeginTime);
int iEndTime = TimeToSeconds(strEndTime);
int iDuration = iEndTime - iStartTime;
cVideoTrim.StartTrim(pFileA, pFileOut, iStartTime, iDuration);
cVideoTrim.WaitFinish();
return 0;
}

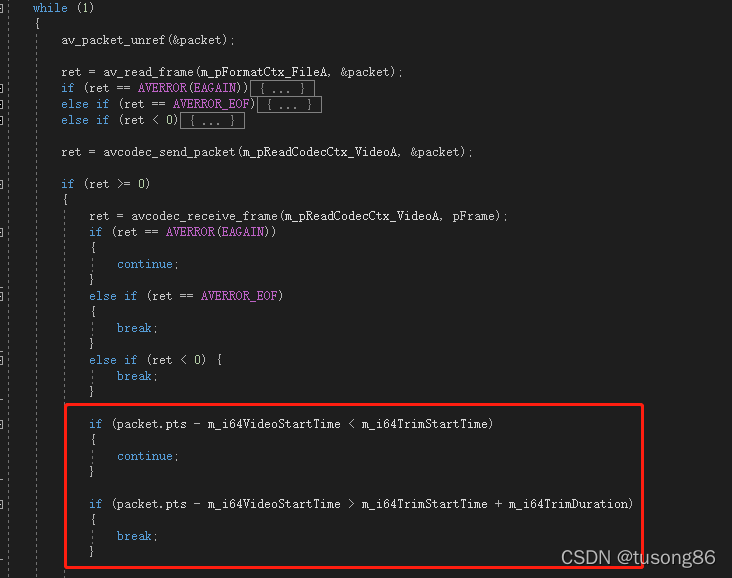

下面是读取文件的部分代码,红色方框显示了帧的过滤逻辑
代码结构如下:
FfmpegTrimTest.cpp的内容如下:
#include <iostream>
#include "TrimFile.h"
#include <vector>
#ifdef __cplusplus
extern "C"
{
#endif
#pragma comment(lib, "avcodec.lib")
#pragma comment(lib, "avformat.lib")
#pragma comment(lib, "avutil.lib")
#pragma comment(lib, "avdevice.lib")
#pragma comment(lib, "avfilter.lib")
#pragma comment(lib, "postproc.lib")
#pragma comment(lib, "swresample.lib")
#pragma comment(lib, "swscale.lib")
#ifdef __cplusplus
};
#endif
void SeparateString(const char* pStr, std::vector<int>& vecResult, char chKey)
{
if (pStr == NULL || pStr[0] == 0)
{
return;
}
std::string tmp = pStr;
if (tmp.at(tmp.length() - 1) != chKey)
{
tmp += chKey;
}
size_t beginIndex = 0;
static const size_t npos = size_t(-1);
size_t indexCh1a = tmp.find(chKey, beginIndex);
std::string tmpBuf;
while (indexCh1a != npos)
{
int len = static_cast<int>(indexCh1a - beginIndex);
if (len > 0)
{
tmpBuf.clear();
tmpBuf.append(tmp.c_str() + beginIndex, static_cast<size_t>(len));
vecResult.push_back(atoi(tmpBuf.c_str()));
}
beginIndex = ++indexCh1a;
indexCh1a = tmp.find(chKey, beginIndex);
}
}
///00:00:10这种类型的时间转化为秒数
int TimeToSeconds(std::string strTime)
{
int iRetSecond = 0;
std::vector<int> vecTime;
SeparateString(strTime.c_str(), vecTime, ':');
if (vecTime.size() != 3)
{
return iRetSecond;
}
int iHour = vecTime[0];
int iMinute = vecTime[1];
int iSecond = vecTime[2];
iRetSecond = iHour * 3600 + iMinute * 60 + iSecond;
return iRetSecond;
}
int main()
{
CTrimFile cVideoTrim;
const char *pFileA = "c:\\record\\out-computer.mp4";
const char *pFileOut = "c:\\record\\out-computer_trimmed.mp4";
std::string strBeginTime = "00:00:10";
std::string strEndTime = "00:00:20";
int iStartTime = TimeToSeconds(strBeginTime);
int iEndTime = TimeToSeconds(strEndTime);
int iDuration = iEndTime - iStartTime;
cVideoTrim.StartTrim(pFileA, pFileOut, iStartTime, iDuration);
cVideoTrim.WaitFinish();
return 0;
}
TrimFile.h的内容如下:
#pragma once
#include <Windows.h>
#ifdef __cplusplus
extern "C"
{
#endif
#include "libavcodec/avcodec.h"
#include "libavformat/avformat.h"
#include "libswscale/swscale.h"
#include "libswresample/swresample.h"
#include "libavdevice/avdevice.h"
#include "libavutil/audio_fifo.h"
#include "libavutil/avutil.h"
#include "libavutil/fifo.h"
#include "libavutil/frame.h"
#include "libavutil/imgutils.h"
#include "libavfilter/avfilter.h"
#include "libavfilter/buffersink.h"
#include "libavfilter/buffersrc.h"
#ifdef __cplusplus
};
#endif
class CTrimFile
{
public:
CTrimFile();
~CTrimFile();
public:
int StartTrim(const char *pFileA, const char *pFileOut, int iStartTime, int iDuration);
int WaitFinish();
private:
int OpenFileA(const char *pFileA);
int OpenOutPut(const char *pFileOut);
private:
static DWORD WINAPI VideoAReadProc(LPVOID lpParam);
void VideoARead();
static DWORD WINAPI VideoTrimProc(LPVOID lpParam);
void VideoTrim();
private:
AVFormatContext *m_pFormatCtx_FileA = NULL;
AVCodecContext *m_pReadCodecCtx_VideoA = NULL;
AVCodec *m_pReadCodec_VideoA = NULL;
AVCodecContext *m_pCodecEncodeCtx_Video = NULL;
AVFormatContext *m_pFormatCtx_Out = NULL;
AVFifoBuffer *m_pVideoAFifo = NULL;
int m_iVideoWidth = 1920;
int m_iVideoHeight = 1080;
int m_iYuv420FrameSize = 0;
private:
CRITICAL_SECTION m_csVideoASection;
HANDLE m_hVideoAReadThread = NULL;
HANDLE m_hVideoTrimThread = NULL;
int64_t m_i64TrimStartTime = 0;
int64_t m_i64TrimDuration = 0;
int64_t m_i64VideoStartTime = 0;
AVRational m_streamTimeBase;
};
TrimFile.cpp的内容如下:
#include "TrimFile.h"
//#include "log/log.h"
CTrimFile::CTrimFile()
{
InitializeCriticalSection(&m_csVideoASection);
}
CTrimFile::~CTrimFile()
{
DeleteCriticalSection(&m_csVideoASection);
}
int CTrimFile::StartTrim(const char *pFileA, const char *pFileOut, int iStartTime, int iDuration)
{
int ret = -1;
do
{
ret = OpenFileA(pFileA);
if (ret != 0)
{
break;
}
m_i64TrimStartTime = iStartTime * m_streamTimeBase.den / m_streamTimeBase.num;
m_i64TrimDuration = iDuration * m_streamTimeBase.den / m_streamTimeBase.num;
ret = OpenOutPut(pFileOut);
if (ret != 0)
{
break;
}
char szFilterDesc[512] = { 0 };
_snprintf(szFilterDesc, sizeof(szFilterDesc),
"[inPad]pad=%d:%d[inPad0];[in0]trim=start=%d:duration=%d[in00];[inPad0][in00]overlay=0[out]",
m_iVideoWidth, m_iVideoHeight, iStartTime, iDuration);
_snprintf(szFilterDesc, sizeof(szFilterDesc),
"[inPad]pad=%d:%d[inPad0];[in0]trim=start=%d:end=%d[in00];[inPad0][in00]overlay=0[out]",
m_iVideoWidth, m_iVideoHeight, iStartTime, iStartTime + iDuration);
m_iYuv420FrameSize = av_image_get_buffer_size(AV_PIX_FMT_YUV420P, m_pReadCodecCtx_VideoA->width, m_pReadCodecCtx_VideoA->height, 1);
//申请30帧缓存
m_pVideoAFifo = av_fifo_alloc(30 * m_iYuv420FrameSize);
m_hVideoAReadThread = CreateThread(NULL, 0, VideoAReadProc, this, 0, NULL);
m_hVideoTrimThread = CreateThread(NULL, 0, VideoTrimProc, this, 0, NULL);
} while (0);
return ret;
}
int CTrimFile::WaitFinish()
{
int ret = 0;
do
{
if (NULL == m_hVideoAReadThread)
{
break;
}
WaitForSingleObject(m_hVideoAReadThread, INFINITE);
CloseHandle(m_hVideoAReadThread);
m_hVideoAReadThread = NULL;
WaitForSingleObject(m_hVideoTrimThread, INFINITE);
CloseHandle(m_hVideoTrimThread);
m_hVideoTrimThread = NULL;
} while (0);
return ret;
}
int CTrimFile::OpenFileA(const char *pFileA)
{
int ret = -1;
do
{
if ((ret = avformat_open_input(&m_pFormatCtx_FileA, pFileA, 0, 0)) < 0) {
printf("Could not open input file.");
break;
}
if ((ret = avformat_find_stream_info(m_pFormatCtx_FileA, 0)) < 0) {
printf("Failed to retrieve input stream information");
break;
}
if (m_pFormatCtx_FileA->streams[0]->codecpar->codec_type != AVMEDIA_TYPE_VIDEO)
{
break;
}
m_i64VideoStartTime = m_pFormatCtx_FileA->streams[0]->start_time;
m_streamTimeBase = m_pFormatCtx_FileA->streams[0]->time_base;
m_pReadCodec_VideoA = (AVCodec *)avcodec_find_decoder(m_pFormatCtx_FileA->streams[0]->codecpar->codec_id);
m_pReadCodecCtx_VideoA = avcodec_alloc_context3(m_pReadCodec_VideoA);
if (m_pReadCodecCtx_VideoA == NULL)
{
break;
}
avcodec_parameters_to_context(m_pReadCodecCtx_VideoA, m_pFormatCtx_FileA->streams[0]->codecpar);
m_iVideoWidth = m_pReadCodecCtx_VideoA->width;
m_iVideoHeight = m_pReadCodecCtx_VideoA->height;
m_pReadCodecCtx_VideoA->framerate = m_pFormatCtx_FileA->streams[0]->r_frame_rate;
if (avcodec_open2(m_pReadCodecCtx_VideoA, m_pReadCodec_VideoA, NULL) < 0)
{
break;
}
ret = 0;
} while (0);
return ret;
}
int CTrimFile::OpenOutPut(const char *pFileOut)
{
int iRet = -1;
AVStream *pAudioStream = NULL;
AVStream *pVideoStream = NULL;
do
{
avformat_alloc_output_context2(&m_pFormatCtx_Out, NULL, NULL, pFileOut);
{
AVCodec* pCodecEncode_Video = (AVCodec *)avcodec_find_encoder(m_pFormatCtx_Out->oformat->video_codec);
m_pCodecEncodeCtx_Video = avcodec_alloc_context3(pCodecEncode_Video);
if (!m_pCodecEncodeCtx_Video)
{
break;
}
pVideoStream = avformat_new_stream(m_pFormatCtx_Out, pCodecEncode_Video);
if (!pVideoStream)
{
break;
}
int frameRate = 10;
m_pCodecEncodeCtx_Video->flags |= AV_CODEC_FLAG_QSCALE;
m_pCodecEncodeCtx_Video->bit_rate = 4000000;
m_pCodecEncodeCtx_Video->rc_min_rate = 4000000;
m_pCodecEncodeCtx_Video->rc_max_rate = 4000000;
m_pCodecEncodeCtx_Video->bit_rate_tolerance = 4000000;
m_pCodecEncodeCtx_Video->time_base.den = frameRate;
m_pCodecEncodeCtx_Video->time_base.num = 1;
m_pCodecEncodeCtx_Video->width = m_iVideoWidth;
m_pCodecEncodeCtx_Video->height = m_iVideoHeight;
//pH264Encoder->pCodecCtx->frame_number = 1;
m_pCodecEncodeCtx_Video->gop_size = 12;
m_pCodecEncodeCtx_Video->max_b_frames = 0;
m_pCodecEncodeCtx_Video->thread_count = 4;
m_pCodecEncodeCtx_Video->pix_fmt = AV_PIX_FMT_YUV420P;
m_pCodecEncodeCtx_Video->codec_id = AV_CODEC_ID_H264;
m_pCodecEncodeCtx_Video->codec_type = AVMEDIA_TYPE_VIDEO;
av_opt_set(m_pCodecEncodeCtx_Video->priv_data, "b-pyramid", "none", 0);
av_opt_set(m_pCodecEncodeCtx_Video->priv_data, "preset", "superfast", 0);
av_opt_set(m_pCodecEncodeCtx_Video->priv_data, "tune", "zerolatency", 0);
if (m_pFormatCtx_Out->oformat->flags & AVFMT_GLOBALHEADER)
m_pCodecEncodeCtx_Video->flags |= AV_CODEC_FLAG_GLOBAL_HEADER;
if (avcodec_open2(m_pCodecEncodeCtx_Video, pCodecEncode_Video, 0) < 0)
{
//编码器打开失败,退出程序
break;
}
}
if (!(m_pFormatCtx_Out->oformat->flags & AVFMT_NOFILE))
{
if (avio_open(&m_pFormatCtx_Out->pb, pFileOut, AVIO_FLAG_WRITE) < 0)
{
break;
}
}
avcodec_parameters_from_context(pVideoStream->codecpar, m_pCodecEncodeCtx_Video);
if (avformat_write_header(m_pFormatCtx_Out, NULL) < 0)
{
break;
}
iRet = 0;
} while (0);
if (iRet != 0)
{
if (m_pCodecEncodeCtx_Video != NULL)
{
avcodec_free_context(&m_pCodecEncodeCtx_Video);
m_pCodecEncodeCtx_Video = NULL;
}
if (m_pFormatCtx_Out != NULL)
{
avformat_free_context(m_pFormatCtx_Out);
m_pFormatCtx_Out = NULL;
}
}
return iRet;
}
DWORD WINAPI CTrimFile::VideoAReadProc(LPVOID lpParam)
{
CTrimFile *pVideoMerge = (CTrimFile *)lpParam;
if (pVideoMerge != NULL)
{
pVideoMerge->VideoARead();
}
return 0;
}
void CTrimFile::VideoARead()
{
AVFrame *pFrame;
pFrame = av_frame_alloc();
int y_size = m_pReadCodecCtx_VideoA->width * m_pReadCodecCtx_VideoA->height;
char *pY = new char[y_size];
char *pU = new char[y_size / 4];
char *pV = new char[y_size / 4];
AVPacket packet = { 0 };
int ret = 0;
while (1)
{
av_packet_unref(&packet);
ret = av_read_frame(m_pFormatCtx_FileA, &packet);
if (ret == AVERROR(EAGAIN))
{
continue;
}
else if (ret == AVERROR_EOF)
{
break;
}
else if (ret < 0)
{
break;
}
ret = avcodec_send_packet(m_pReadCodecCtx_VideoA, &packet);
if (ret >= 0)
{
ret = avcodec_receive_frame(m_pReadCodecCtx_VideoA, pFrame);
if (ret == AVERROR(EAGAIN))
{
continue;
}
else if (ret == AVERROR_EOF)
{
break;
}
else if (ret < 0) {
break;
}
if (packet.pts - m_i64VideoStartTime < m_i64TrimStartTime)
{
continue;
}
if (packet.pts - m_i64VideoStartTime > m_i64TrimStartTime + m_i64TrimDuration)
{
break;
}
while (1)
{
if (av_fifo_space(m_pVideoAFifo) >= m_iYuv420FrameSize)
{
///Y
int contY = 0;
for (int i = 0; i < pFrame->height; i++)
{
memcpy(pY + contY, pFrame->data[0] + i * pFrame->linesize[0], pFrame->width);
contY += pFrame->width;
}
///U
int contU = 0;
for (int i = 0; i < pFrame->height / 2; i++)
{
memcpy(pU + contU, pFrame->data[1] + i * pFrame->linesize[1], pFrame->width / 2);
contU += pFrame->width / 2;
}
///V
int contV = 0;
for (int i = 0; i < pFrame->height / 2; i++)
{
memcpy(pV + contV, pFrame->data[2] + i * pFrame->linesize[2], pFrame->width / 2);
contV += pFrame->width / 2;
}
EnterCriticalSection(&m_csVideoASection);
av_fifo_generic_write(m_pVideoAFifo, pY, y_size, NULL);
av_fifo_generic_write(m_pVideoAFifo, pU, y_size / 4, NULL);
av_fifo_generic_write(m_pVideoAFifo, pV, y_size / 4, NULL);
LeaveCriticalSection(&m_csVideoASection);
break;
}
else
{
Sleep(100);
}
}
}
if (ret == AVERROR(EAGAIN))
{
continue;
}
}
av_frame_free(&pFrame);
delete[] pY;
delete[] pU;
delete[] pV;
}
DWORD WINAPI CTrimFile::VideoTrimProc(LPVOID lpParam)
{
CTrimFile *pVideoMerge = (CTrimFile *)lpParam;
if (pVideoMerge != NULL)
{
pVideoMerge->VideoTrim();
}
return 0;
}
void CTrimFile::VideoTrim()
{
int ret = 0;
int iYuv420PadFrameSize = av_image_get_buffer_size(AV_PIX_FMT_YUV420P, m_iVideoWidth, m_iVideoHeight, 1);
int y_size = m_iVideoWidth * m_iVideoHeight;
DWORD dwBeginTime = ::GetTickCount();
AVFrame *pFrameVideoA = av_frame_alloc();
uint8_t *videoA_buffer_yuv420 = (uint8_t *)av_malloc(m_iYuv420FrameSize);
av_image_fill_arrays(pFrameVideoA->data, pFrameVideoA->linesize, videoA_buffer_yuv420, AV_PIX_FMT_YUV420P, m_pReadCodecCtx_VideoA->width, m_pReadCodecCtx_VideoA->height, 1);
pFrameVideoA->width = m_iVideoWidth;
pFrameVideoA->height = m_iVideoHeight;
pFrameVideoA->format = AV_PIX_FMT_YUV420P;
int iOutVideoWidth = m_pReadCodecCtx_VideoA->width;
int iOutVideoHeight = m_pReadCodecCtx_VideoA->height;
AVPacket packet = { 0 };
int iPicCount = 0;
while (1)
{
if (NULL == m_pVideoAFifo)
{
break;
}
int iVideoASize = av_fifo_size(m_pVideoAFifo);
if (iVideoASize >= m_iYuv420FrameSize)
{
EnterCriticalSection(&m_csVideoASection);
av_fifo_generic_read(m_pVideoAFifo, videoA_buffer_yuv420, m_iYuv420FrameSize, NULL);
LeaveCriticalSection(&m_csVideoASection);
pFrameVideoA->pkt_dts = pFrameVideoA->pts = av_rescale_q_rnd(iPicCount, m_pCodecEncodeCtx_Video->time_base, m_pFormatCtx_Out->streams[0]->time_base, (AVRounding)(AV_ROUND_NEAR_INF | AV_ROUND_PASS_MINMAX));
pFrameVideoA->pkt_duration = 0;
pFrameVideoA->pkt_pos = -1;
ret = avcodec_send_frame(m_pCodecEncodeCtx_Video, pFrameVideoA);
ret = avcodec_receive_packet(m_pCodecEncodeCtx_Video, &packet);
av_write_frame(m_pFormatCtx_Out, &packet);
iPicCount++;
}
else
{
if (m_hVideoAReadThread == NULL)
{
break;
}
Sleep(1);
}
}
av_write_trailer(m_pFormatCtx_Out);
avio_close(m_pFormatCtx_Out->pb);
av_frame_free(&pFrameVideoA);
}
