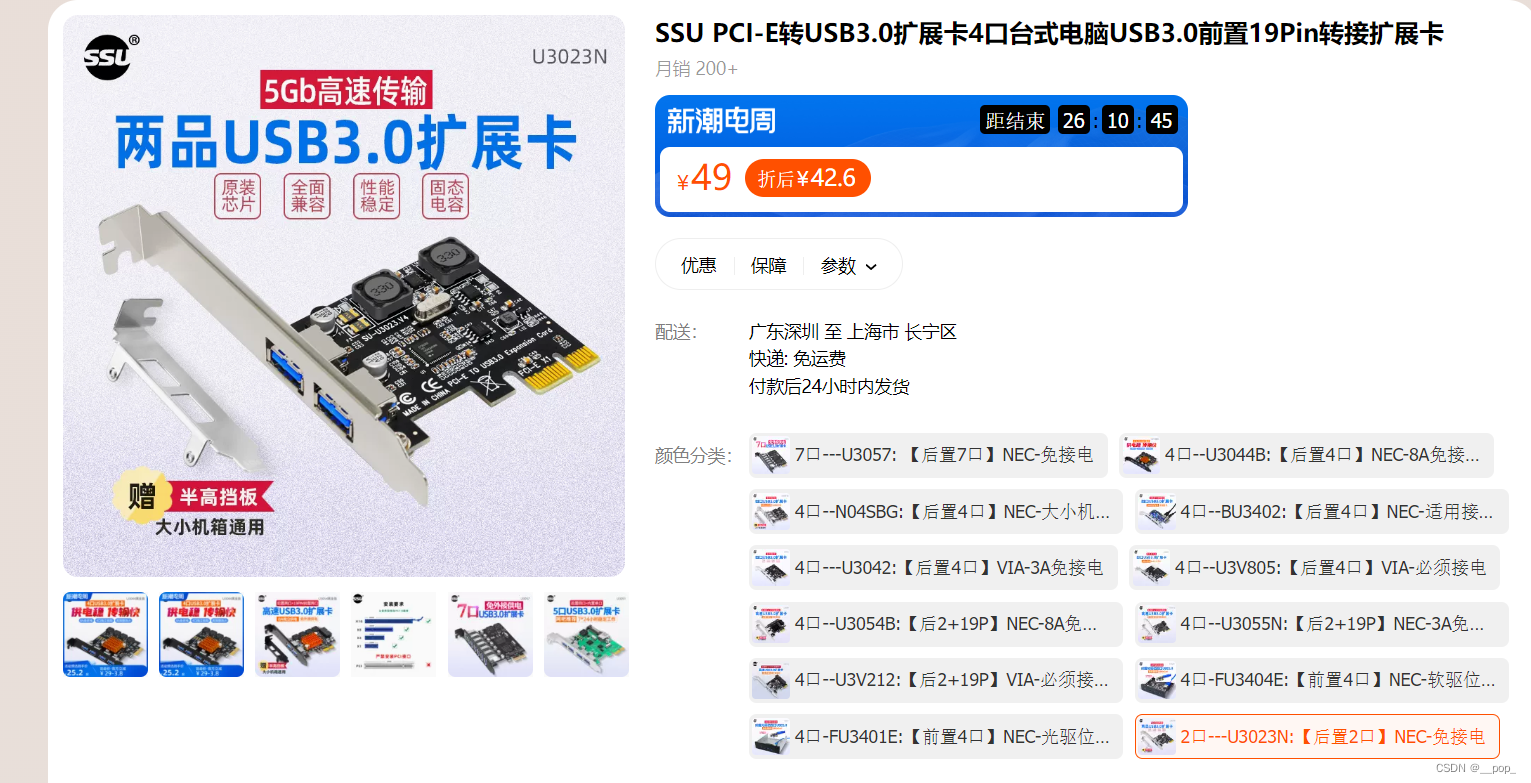

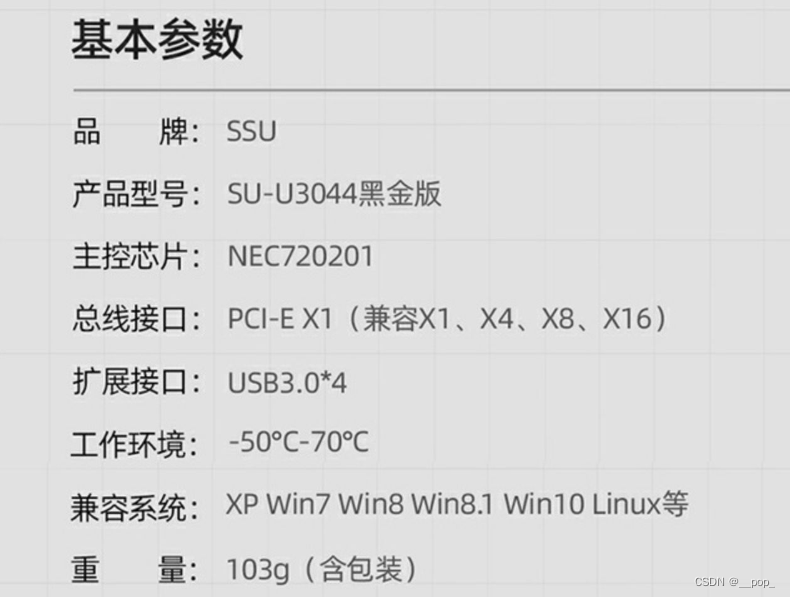

在这里插入图片描述

有linux代码(xhci-pci.c  xhci-pci.h  xhci-pci-renesas.c)支持,需要在文件系统中布局/lib/firmware/renesas_usb_fw.mem,
即 neclinux\201-202 for linux\FW Download solution for linux\FW-DOWNLOADER-20140128\FW-DOWNLOADER-20140128\firmware\renesas\K2026090.mem


在 Linux pc 5.19.0-35-generic #36~22.04.1-Ubuntu SMP PREEMPT_DYNAMIC Fri Feb 17 15:17:25 UTC 2 x86_64 x86_64 x86_64 GNU/Linux 中试验
免驱成功(不需要放置renesas_usb_fw.mem,不需要做额外操作)

另外内核启动过程中,还没加载文件系统,怎么 request_firmware?
还是说该驱动只能作为模块加载?
在文件系统加载后,驱动加载,但是并没有找到 renesas_usb_fw.mem , 因为我没放置
但是这个板子本来有个rom,且能用

虽然校验失败,但总归是 failed to load firmware renesas_usb_fw.mem, fallback to ROM

00:1c.3 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #4 (rev d5)
04:00.0 USB controller: Renesas Technology Corp. uPD720201 USB 3.0 Host Controller (rev 03)

$ lspci -s 00:1c.3 -xxx
00:1c.3 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #4 (rev d5)
00: 86 80 16 8c 07 04 10 00 d5 00 04 06 10 00 81 00
10: 00 00 00 00 00 00 00 00 00 04 04 00 f0 00 00 00
20: c0 f7 c0 f7 f1 ff 01 00 00 00 00 00 00 00 00 00
30: 00 00 00 00 40 00 00 00 00 00 00 00 0a 04 12 00
$ lspci -s 00:1c.3 -v
00:1c.3 PCI bridge: Intel Corporation 8 Series/C220 Series Chipset Family PCI Express Root Port #4 (rev d5) (prog-if 00 [Normal decode])
        Flags: bus master, fast devsel, latency 0, IRQ 27
        Bus: primary=00, secondary=04, subordinate=04, sec-latency=0
        I/O behind bridge: [disabled]
        Memory behind bridge: f7c00000-f7cfffff [size=1M]
        Prefetchable memory behind bridge: [disabled]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

$ lspci -s 04:00.0 -xxx
04:00.0 USB controller: Renesas Technology Corp. uPD720201 USB 3.0 Host Controller (rev 03)
00: 12 19 14 00 06 04 10 00 03 30 03 0c 10 00 00 00
10: 04 00 c0 f7 00 00 00 00 00 00 00 00 00 00 00 00
20: 00 00 00 00 00 00 00 00 00 00 00 00 ff ff ff ff
30: 00 00 00 00 50 00 00 00 00 00 00 00 0a 01 00 00
$ lspci -s 04:00.0 -v
04:00.0 USB controller: Renesas Technology Corp. uPD720201 USB 3.0 Host Controller (rev 03) (prog-if 30 [XHCI])
        Flags: bus master, fast devsel, latency 0, IRQ 19
        Memory at f7c00000 (64-bit, non-prefetchable) [size=8K]
        Capabilities: <access denied>
        Kernel driver in use: xhci_hcd
        Kernel modules: xhci_pci

Bus 006 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub


/:  Bus 06.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/4p, 5000M
/:  Bus 05.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/4p, 480M
