前言
切线的构造属于计算几何中的基础问题。存在高效的算法可以计算凸集的切线。对于凹集,其切线与对应凸集的切线相同,所以也能高效计算。因此,我们这里仅仅讨论凸多边形的切线。
寻找切线的算法与寻找极值点的算法(凸多边形的极值点)类似。通过运用相似的二分搜索方法,我们能构造O(logn)复杂度的切线寻找算法。
定义
直线L与多边形S相切定义为:L与S接触,但不穿过S的边界。也就是L仅仅与S的一个点相交或者与一条边重合。
根据上面的定义,S中的所有点要么在L上,要么都在L的同一侧。从外部任意一点,存在两条切线与S相切。
不妨设,以逆时针方向给出。
为第i条边,
为边向量,由Vi指向Vi+1。想象一下,站在Vi点面朝
的方向,如果P点在左手边,那么称P点在
左侧。

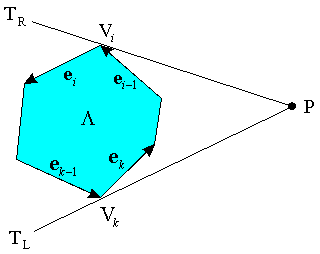

如上图所示。记P点为多边形S外部任意一点。对于任意一个顶点Vi,可以用下面的方法很方便地检查直线PVi是否是切线:
考虑Vi前后的两条边和
。如果点P在这两条边的同一侧(同在左侧或者同在右侧),那么Vi-1和Vi+1一定在直线PVi的不同侧,PVi就一定不是切线。反之,若点P在
的左侧,而在
的右侧,或者相反,那么点P就是一条切线。如上图,点P在
右侧而在
左侧,那么点P是最右切线;同样地,点P在
左侧而在
右侧,那么点P是最左切线。
对于凸多边形,可以用上述方法求出切线。但对于凹多边形,需要先求凸包,然后再用上述方法求其凸包的切线,其凸包的切线必然是原多边形的切线。相对于原始多边形,凸包往往点数大大减少,因此求解起来很快。多边形凸包算法可以参考之前的博文Melkman Algorithm。
对于凹多边形还有一种方法是:使用暴力搜索,先求出所有的局部切线,然后从这些切线中找到最右侧的和最左侧的
,就是我们要求的两条切线了。如下图:
暴力算法
寻找任意多边形切线的暴力算法很容易实现,通常当多边形点数n较小时,采用这一算法比较高效。
其C++代码如下:
// Assume that classes are already given for the objects:
// Point with coordinates {float x, y;}
//===================================================================
// isLeft(): test if a point is Left|On|Right of an infinite line.
// Input: three points P0, P1, and P2
// Return: >0 for P2 left of the line through P0 and P1
// =0 for P2 on the line
// <0 for P2 right of the line
// See: Algorithm 1 on Area of Triangles
inline float
isLeft( Point P0, Point P1, Point P2 )
{
return (P1.x - P0.x)*(P2.y - P0.y) - (P2.x - P0.x)*(P1.y - P0.y);
}
// tests for polygon vertex ordering relative to a fixed point P
#define above(P,Vi,Vj) (isLeft(P,Vi,Vj) > 0) // true if Vi is above Vj
#define below(P,Vi,Vj) (isLeft(P,Vi,Vj) < 0) // true if Vi is below Vj
//===================================================================
// tangent_PointPoly(): find any polygon's exterior tangents
// Input: P = a 2D point (exterior to the polygon)
// n = number of polygon vertices
// V = array of vertices for any 2D polygon with V[n]=V[0]
// Output: *rtan = index of rightmost tangent point V[*rtan]
// *ltan = index of leftmost tangent point V[*ltan]
void
tangent_PointPoly( Point P, int n, Point* V, int* rtan, int* ltan )
{
float eprev, enext; // V[i] previous and next edge turn direction
*rtan = *ltan = 0; // initially assume V[0] = both tangents
eprev = isLeft(V[0], V[1], P);
for (int i=1; i<n; i++) {
enext = isLeft(V[i], V[i+1], P);
if ((eprev <= 0) && (enext > 0)) {
if (!below(P, V[i], V[*rtan]))
*rtan = i;
}
else if ((eprev > 0) && (enext <= 0)) {
if (!above(P, V[i], V[*ltan]))
*ltan = i;
}
eprev = enext;
}
return;
}
//===================================================================
二分搜索
对于凸多边形,存在速度更快的二分搜索算法。只需要在多边形的点之间定义一个次序,就可以使用类似于凸多边形的极值点中的相同的二分搜索算法。例如,如下图,我们定义是增大的, 当Vi+1相对于点P在Vi之上。或者说点P在
右侧。
可以看到对于凸多边形而言,从最下面的切点开始,先单调增大,到最上面大的切点之后,再单调减小。因此与凸多边形的极值点算法相比,唯一的差别就是顺序关系判断函数发生了变化,其他部分基本完全一样。下面直接给出一个C++实现:
// tangent_PointPolyC(): fast binary search for tangents to a convex polygon
// Input: P = a 2D point (exterior to the polygon)
// n = number of polygon vertices
// V = array of vertices for a 2D convex polygon with V[n] = V[0]
// Output: *rtan = index of rightmost tangent point V[*rtan]
// *ltan = index of leftmost tangent point V[*ltan]
void
tangent_PointPolyC( Point P, int n, Point* V, int* rtan, int* ltan )
{
*rtan = Rtangent_PointPolyC(P, n, V);
*ltan = Ltangent_PointPolyC(P, n, V);
}
// Rtangent_PointPolyC(): binary search for convex polygon right tangent
// Input: P = a 2D point (exterior to the polygon)
// n = number of polygon vertices
// V = array of vertices for a 2D convex polygon with V[n] = V[0]
// Return: index "i" of rightmost tangent point V[i]
int
Rtangent_PointPolyC( Point P, int n, Point* V )
{
// use binary search for large convex polygons
int a, b, c; // indices for edge chain endpoints
int upA, dnC; // test for up direction of edges a and c
// rightmost tangent = maximum for the isLeft() ordering
// test if V[0] is a local maximum
if (below(P, V[1], V[0]) && !above(P, V[n-1], V[0]))
return 0; // V[0] is the maximum tangent point
for (a=0, b=n;;) { // start chain = [0,n] with V[n]=V[0]
c = (a + b) / 2; // midpoint of [a,b], and 0<c<n
dnC = below(P, V[c+1], V[c]);
if (dnC && !above(P, V[c-1], V[c]))
return c; // V[c] is the maximum tangent point
// no max yet, so continue with the binary search
// pick one of the two subchains [a,c] or [c,b]
upA = above(P, V[a+1], V[a]);
if (upA) { // edge a points up
if (dnC) // edge c points down
b = c; // select [a,c]
else { // edge c points up
if (above(P, V[a], V[c])) // V[a] above V[c]
b = c; // select [a,c]
else // V[a] below V[c]
a = c; // select [c,b]
}
}
else { // edge a points down
if (!dnC) // edge c points up
a = c; // select [c,b]
else { // edge c points down
if (below(P, V[a], V[c])) // V[a] below V[c]
b = c; // select [a,c]
else // V[a] above V[c]
a = c; // select [c,b]
}
}
}
}
// Ltangent_PointPolyC(): binary search for convex polygon left tangent
// Input: P = a 2D point (exterior to the polygon)
// n = number of polygon vertices
// V = array of vertices for a 2D convex polygon with V[n]=V[0]
// Return: index "i" of leftmost tangent point V[i]
int
Ltangent_PointPolyC( Point P, int n, Point* V )
{
// use binary search for large convex polygons
int a, b, c; // indices for edge chain endpoints
int dnA, dnC; // test for down direction of edges a and c
// leftmost tangent = minimum for the isLeft() ordering
// test if V[0] is a local minimum
if (above(P, V[n-1], V[0]) && !below(P, V[1], V[0]))
return 0; // V[0] is the minimum tangent point
for (a=0, b=n;;) { // start chain = [0,n] with V[n] = V[0]
c = (a + b) / 2; // midpoint of [a,b], and 0<c<n
dnC = below(P, V[c+1], V[c]);
if (above(P, V[c-1], V[c]) && !dnC)
return c; // V[c] is the minimum tangent point
// no min yet, so continue with the binary search
// pick one of the two subchains [a,c] or [c,b]
dnA = below(P, V[a+1], V[a]);
if (dnA) { // edge a points down
if (!dnC) // edge c points up
b = c; // select [a,c]
else { // edge c points down
if (below(P, V[a], V[c])) // V[a] below V[c]
b = c; // select [a,c]
else // V[a] above V[c]
a = c; // select [c,b]
}
}
else { // edge a points up
if (dnC) // edge c points down
a = c; // select [c,b]
else { // edge c points up
if (above(P, V[a], V[c])) // V[a] above V[c]
b = c; // select [a,c]
else // V[a] below V[c]
a = c; // select [c,b]
}
}
}
}
//===================================================================
