【window下配置Maxim SDK环境】

1. 前言
2. Maxim SDK下载
3. Maxim SDK安装
- 3.1 安装详解
- 3.2 安装完成
4. 测试环境
5. 实验效果
6.小结

在这里插入图片描述

1. 前言

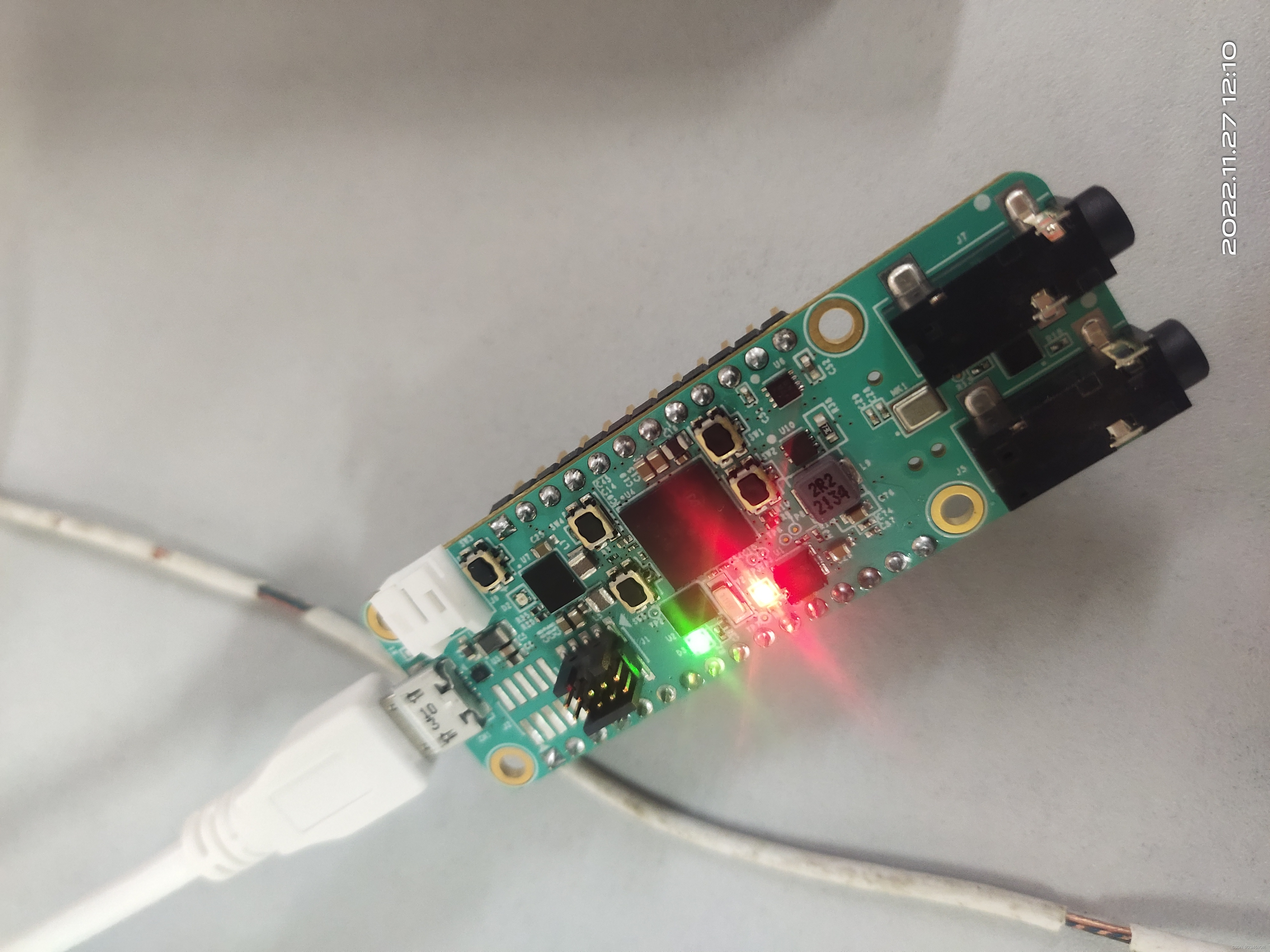

MAX78000FTHR为快速开发平台，帮助工程师利用MAX78000 Arm® Cortex® M4F处理器快速实施超低功耗、人工智能(AI)方案，器件集成卷积神经网络加速器。本文为MAX78000羽毛板搭建window开发环境。

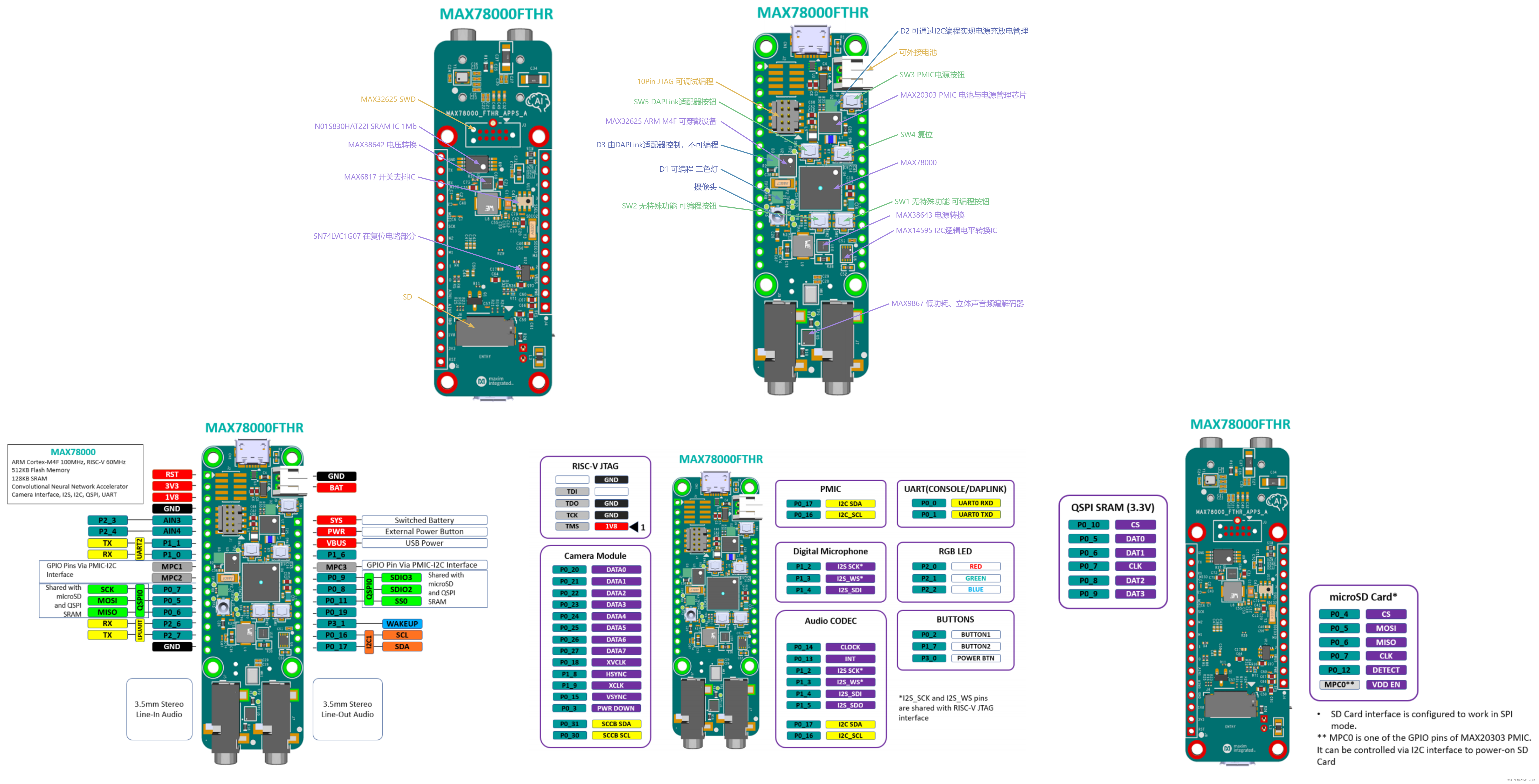

下图为板载资源

具体硬件介绍见

2. Maxim SDK下载

🥳🥳🥳温馨提示：接下来需要安全上网，否则一定会失败哟！

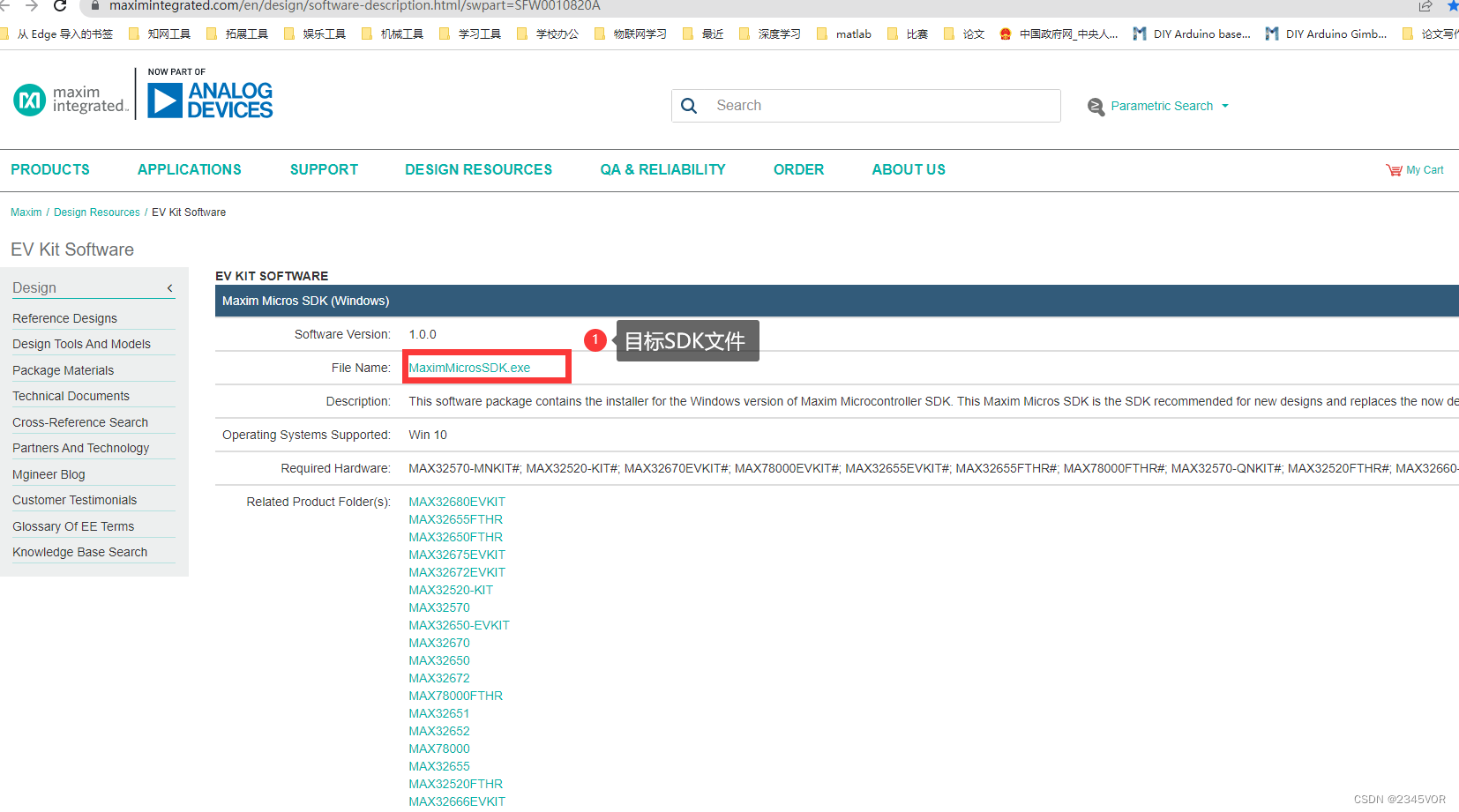

官网地址：https://www.maximintegrated.com/en/design/software-description.html/swpart=SFW0010820A
在这里插入图片描述

3. Maxim SDK安装

3.1 安装详解

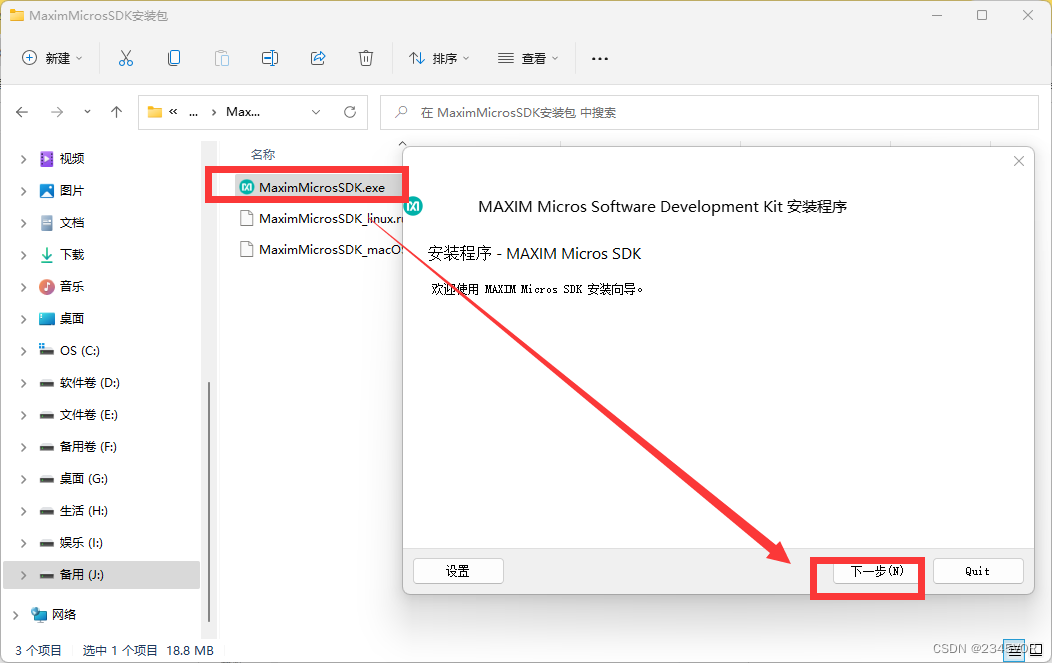

下载完成后，双击安装
看到上面的提示点击下一步

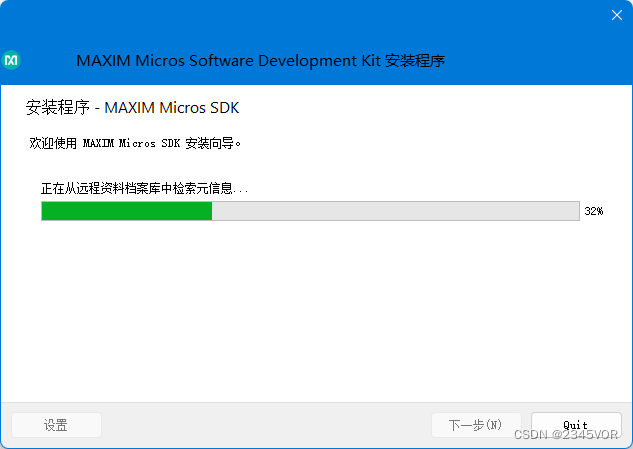

此过程需要远程连接maxin官网，一定要安全上网

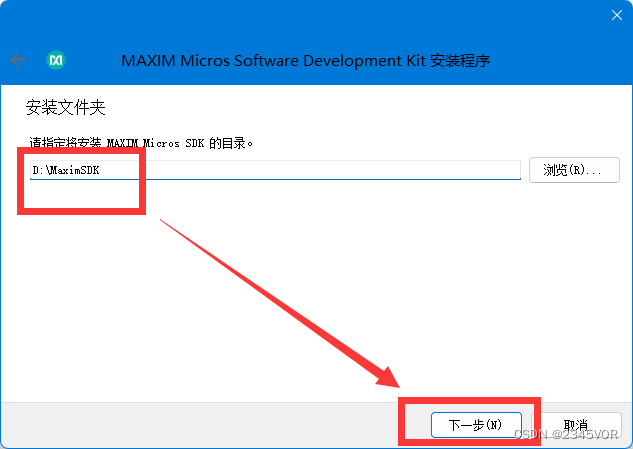

修改安装位置，下一步

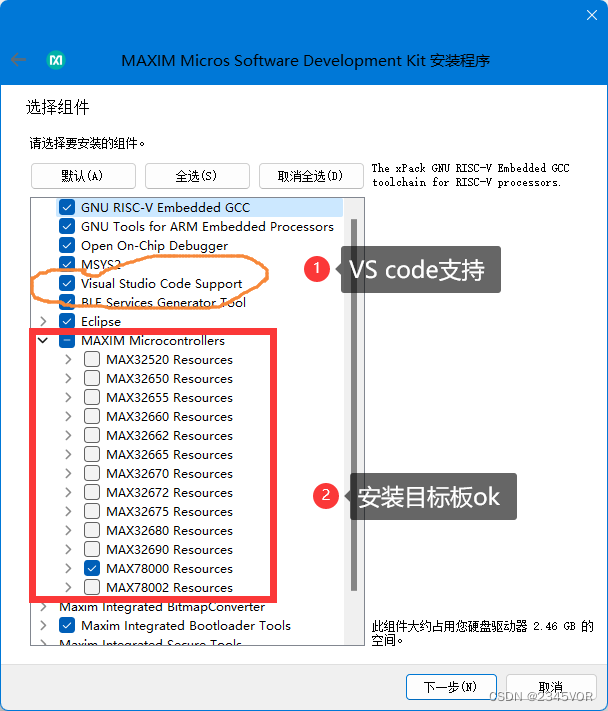

勾选VS code支持，只选择MAX7800，下一步

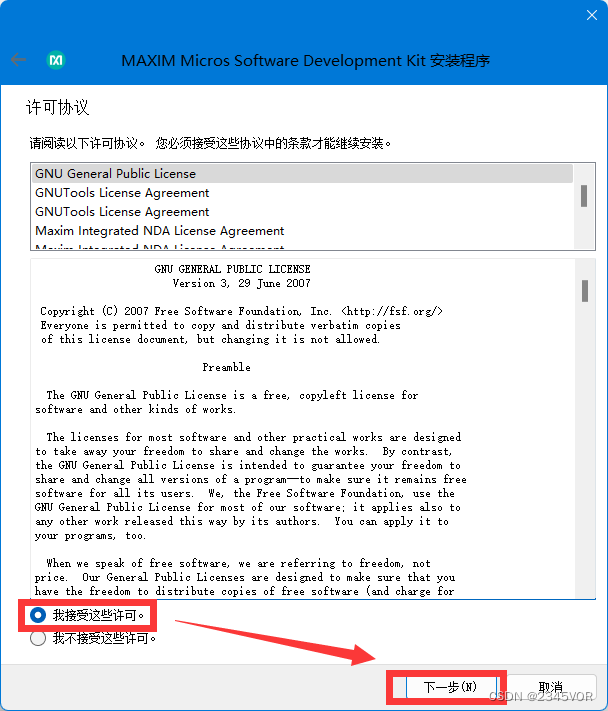

接受许可，下一步

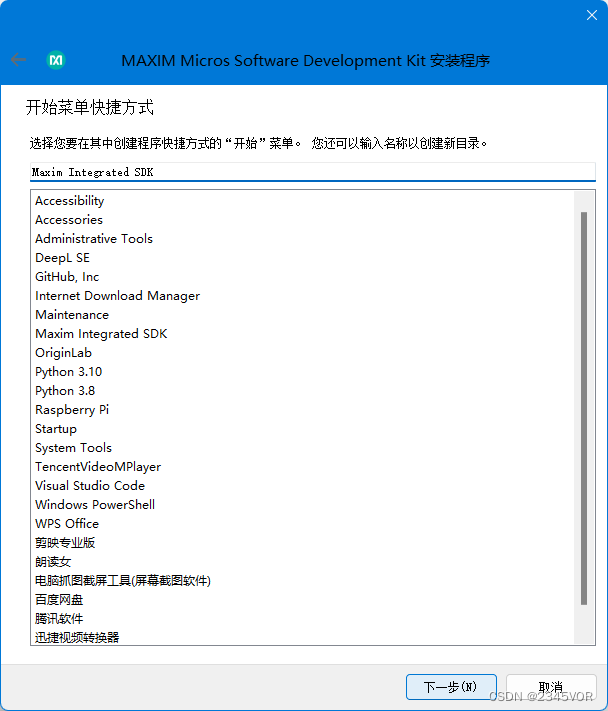

默认下一步

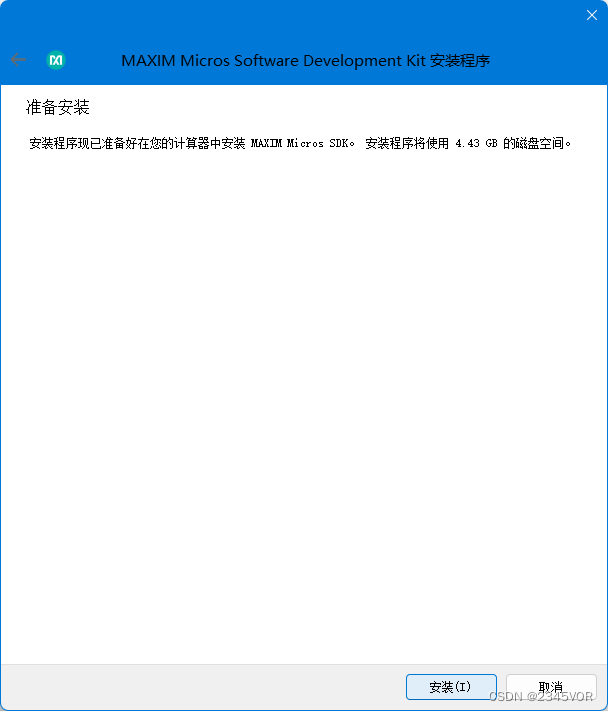

需要4.43GB，点击安装

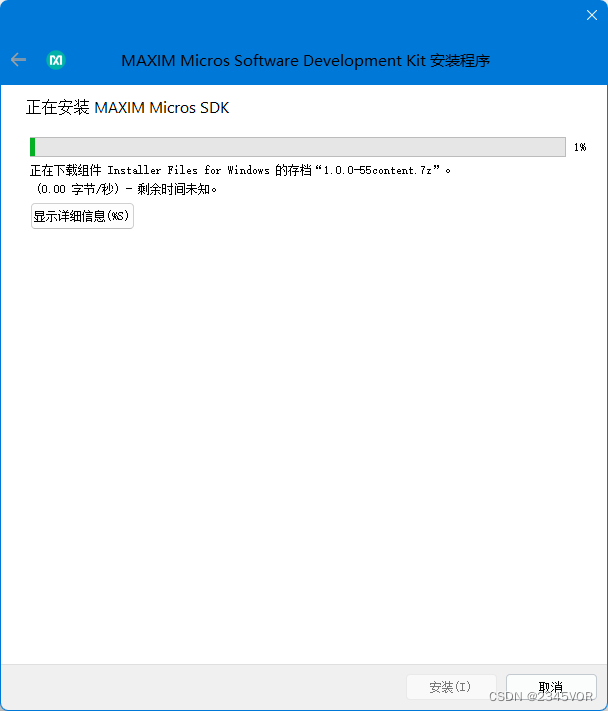

静静需要20分钟左右，可以去喝杯咖啡，也不介意你打赏一下小弟，请我喝杯咖啡，下面有交流群，可以相互问问题哟！
💖💖💖

3.2 安装完成

在这里插入图片描述

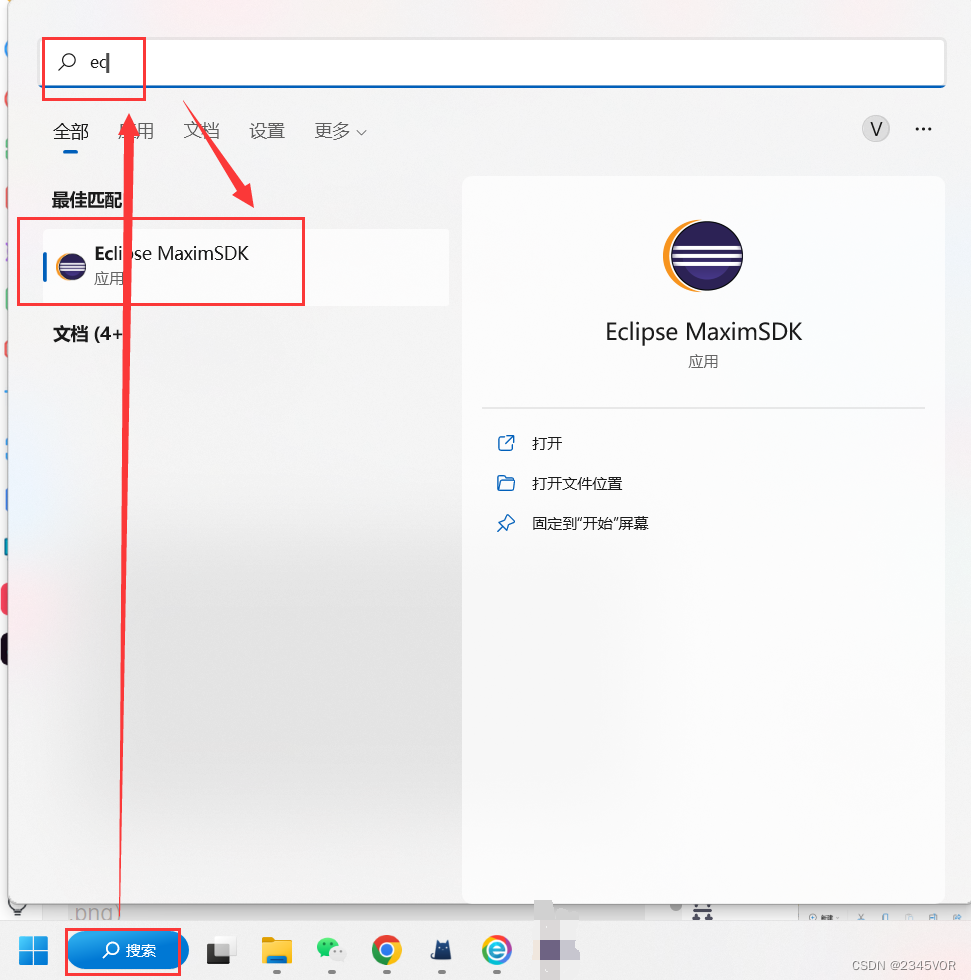

在搜索栏中找到这全家桶，

Eclipse就是🎏调试编译下载🎏全覆盖的UI编程软件；
Maxim就是🎏辅助下载🎏的软件；
MinGW就是命令行方式的🎏编译下载🎏的软件；

4. 测试环境

4.1 新建Hello word demo

在这里插入图片描述

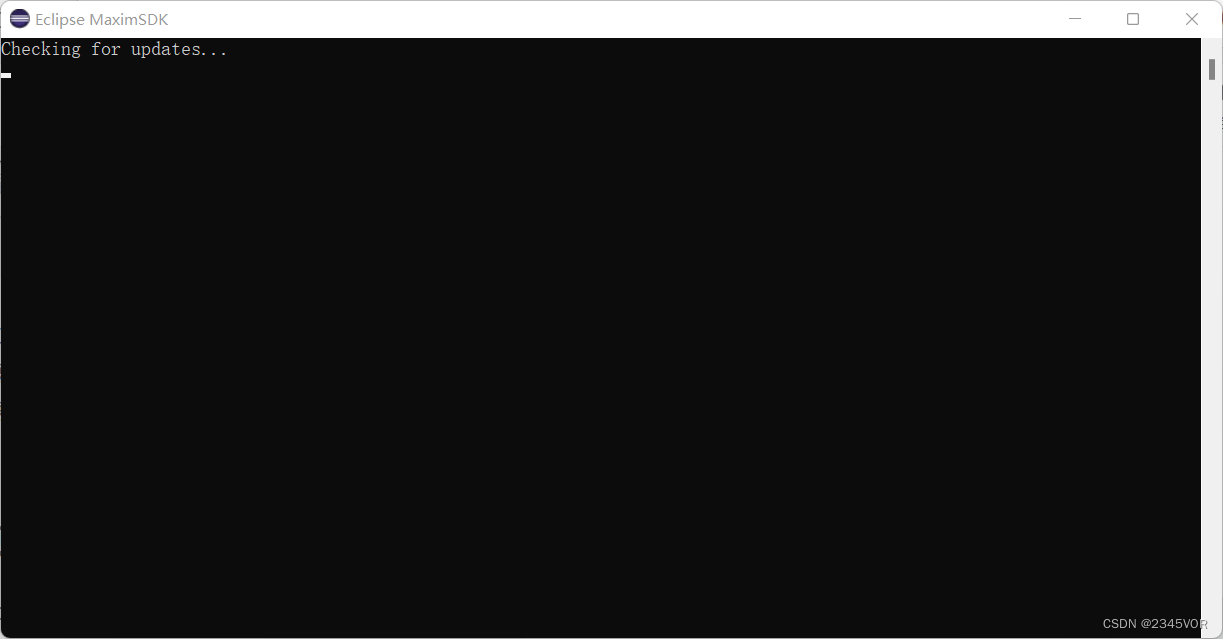

点击Eclipse，这个是检查更新，不急

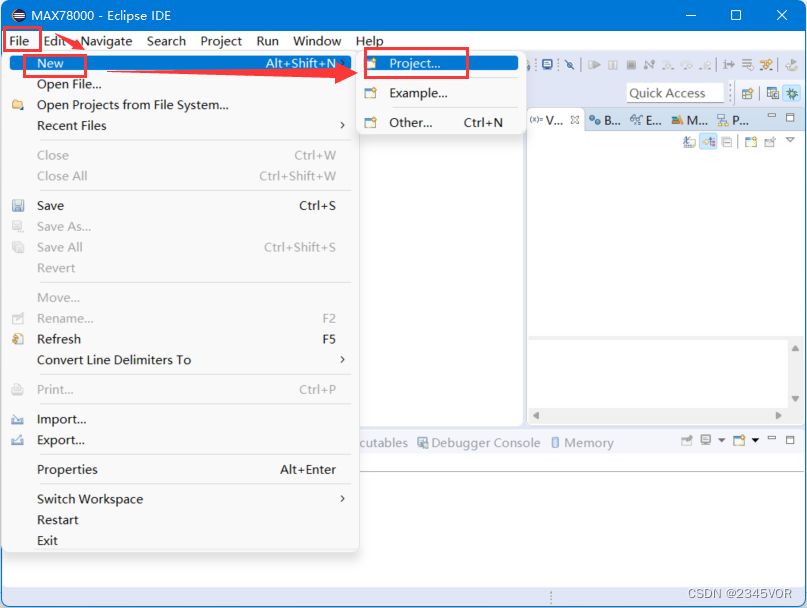

新建一个demo，file>new>Project

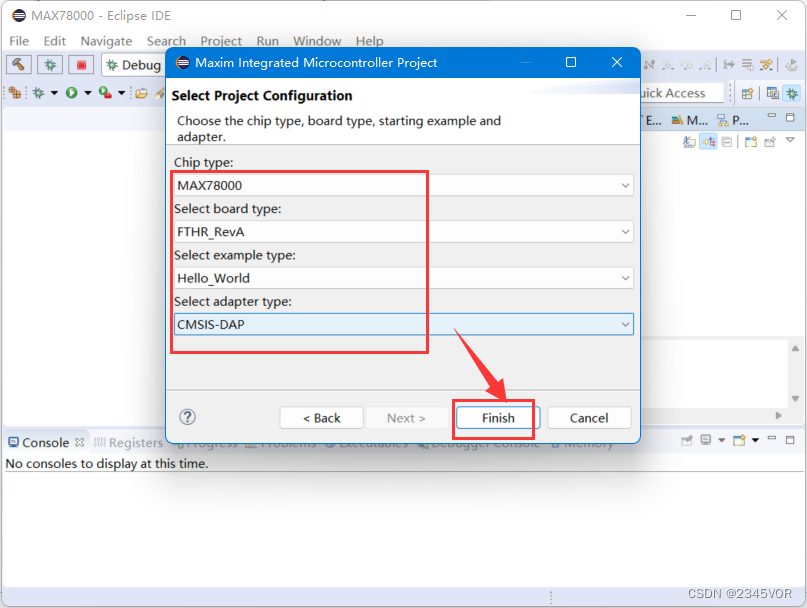

选择Maxim Microcontrollers，下一步

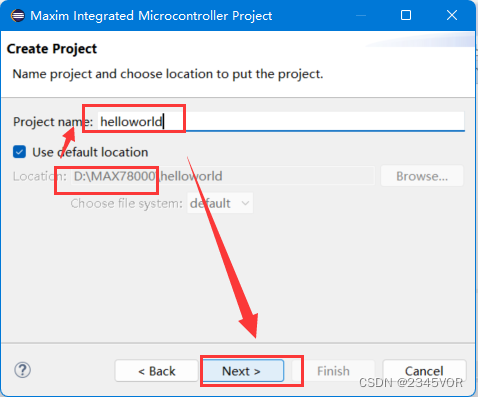

配置默认工作位置，首先helloworld吧，下一步
按照我的配置就好，finish

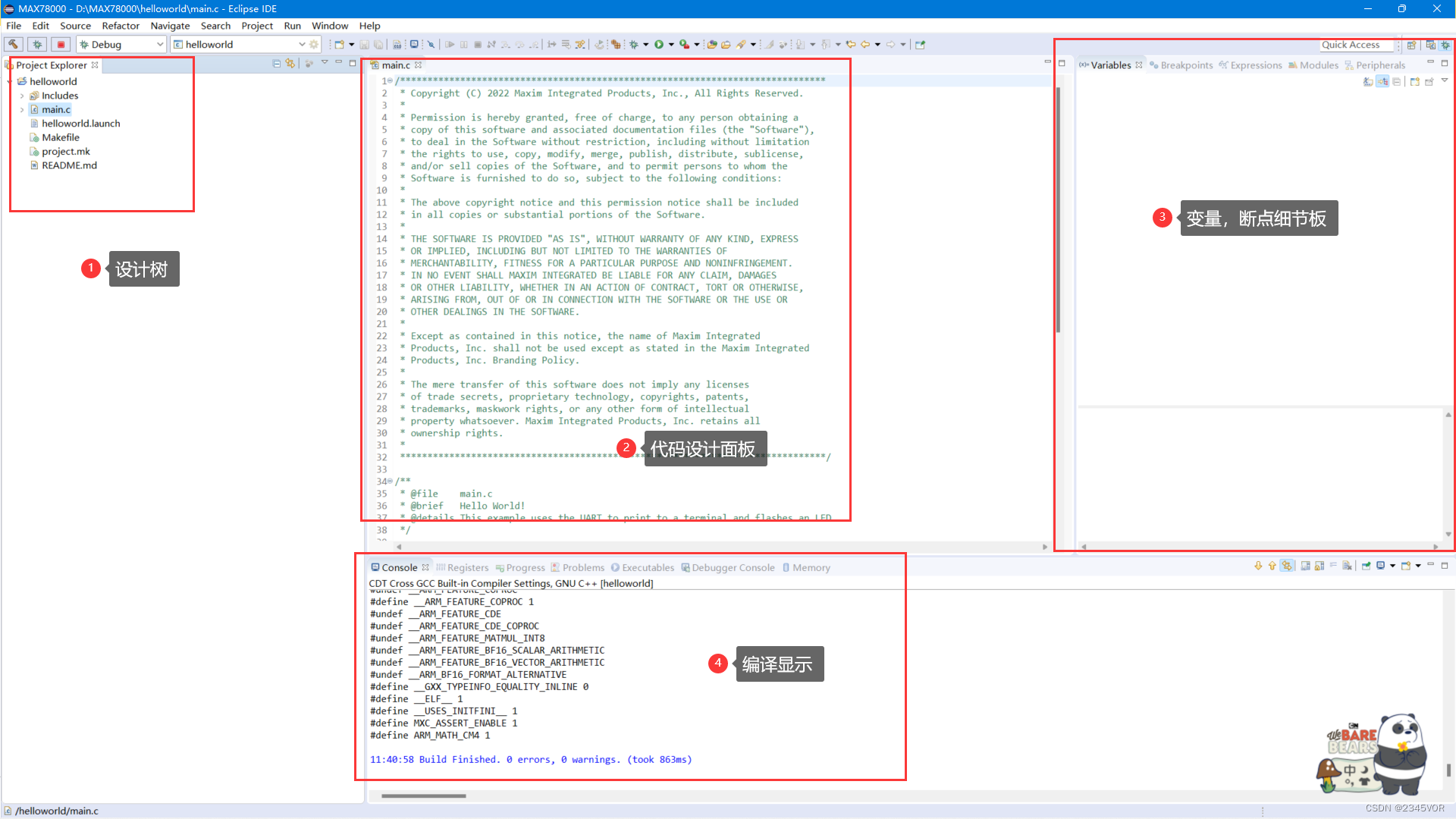

打开Helloword demo如下
main.c

/******************************************************************************
 * Copyright (C) 2022 Maxim Integrated Products, Inc., All Rights Reserved.
 *
 * Permission is hereby granted, free of charge, to any person obtaining a
 * copy of this software and associated documentation files (the "Software"),
 * to deal in the Software without restriction, including without limitation
 * the rights to use, copy, modify, merge, publish, distribute, sublicense,
 * and/or sell copies of the Software, and to permit persons to whom the
 * Software is furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included
 * in all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS
 * OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
 * MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
 * IN NO EVENT SHALL MAXIM INTEGRATED BE LIABLE FOR ANY CLAIM, DAMAGES
 * OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE,
 * ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR
 * OTHER DEALINGS IN THE SOFTWARE.
 *
 * Except as contained in this notice, the name of Maxim Integrated
 * Products, Inc. shall not be used except as stated in the Maxim Integrated
 * Products, Inc. Branding Policy.
 *
 * The mere transfer of this software does not imply any licenses
 * of trade secrets, proprietary technology, copyrights, patents,
 * trademarks, maskwork rights, or any other form of intellectual
 * property whatsoever. Maxim Integrated Products, Inc. retains all
 * ownership rights.
 *
 ******************************************************************************/

/**
 * @file    main.c
 * @brief   Hello World!
 * @details This example uses the UART to print to a terminal and flashes an LED.
 */

/***** Includes *****/
#include <stdio.h>
#include <stdint.h>
#include "mxc_device.h"
#include "led.h"
#include "board.h"
#include "mxc_delay.h"

/***** Definitions *****/

/***** Globals *****/

/***** Functions *****/

// *****************************************************************************
int main(void)
{
    int count = 0;

    printf("Hello World!\n");

    while (1) {
        LED_On(LED1);
        MXC_Delay(500000);
        LED_Off(LED1);
        MXC_Delay(500000);
        printf("count : %d\n", count++);
    }
}

在这里插入图片描述

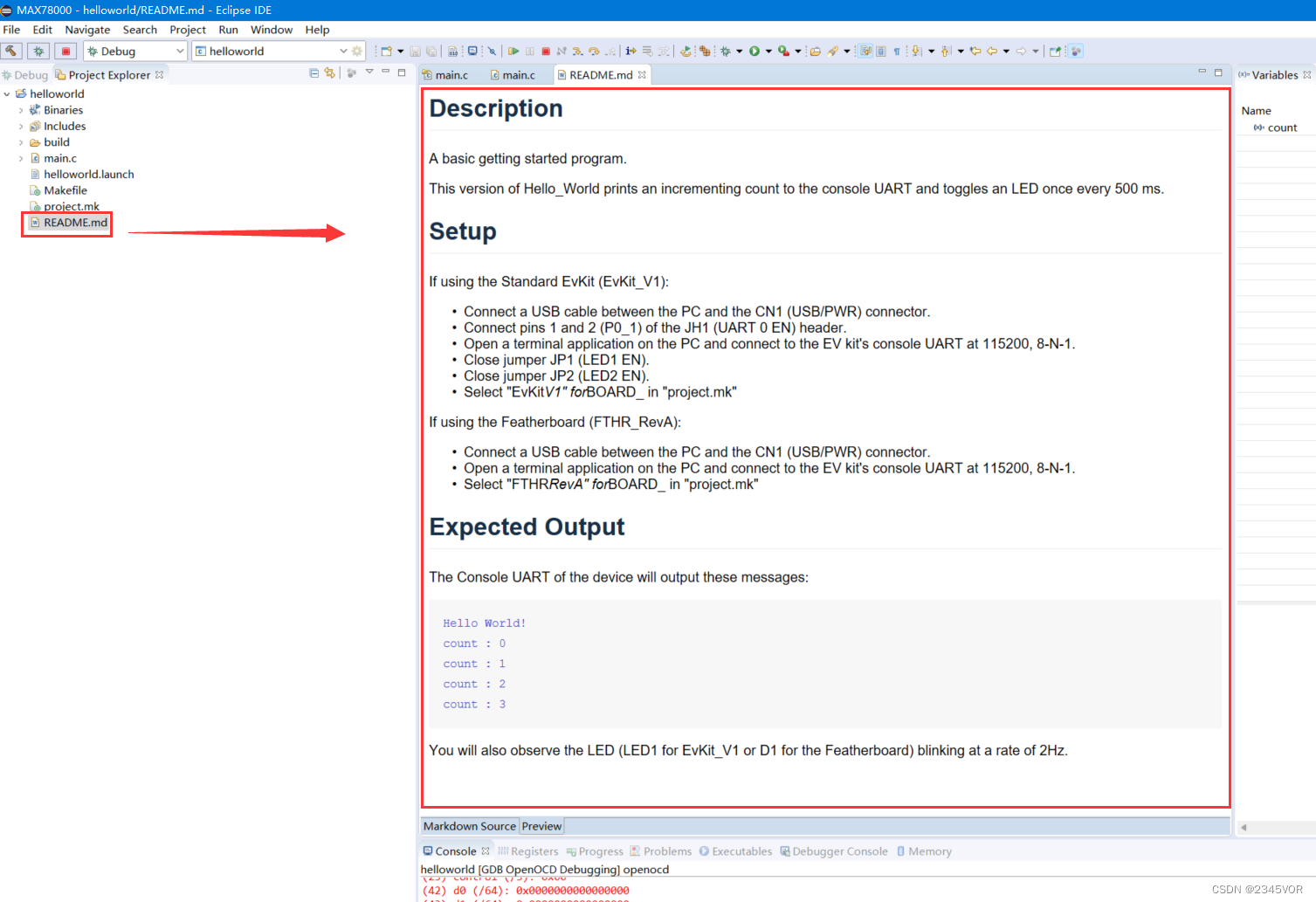

大家插入系统demo可以看看readme.md,分别实验验证

4.2 编译调试下载

将Maxim通过安卓数据线连接到电脑上

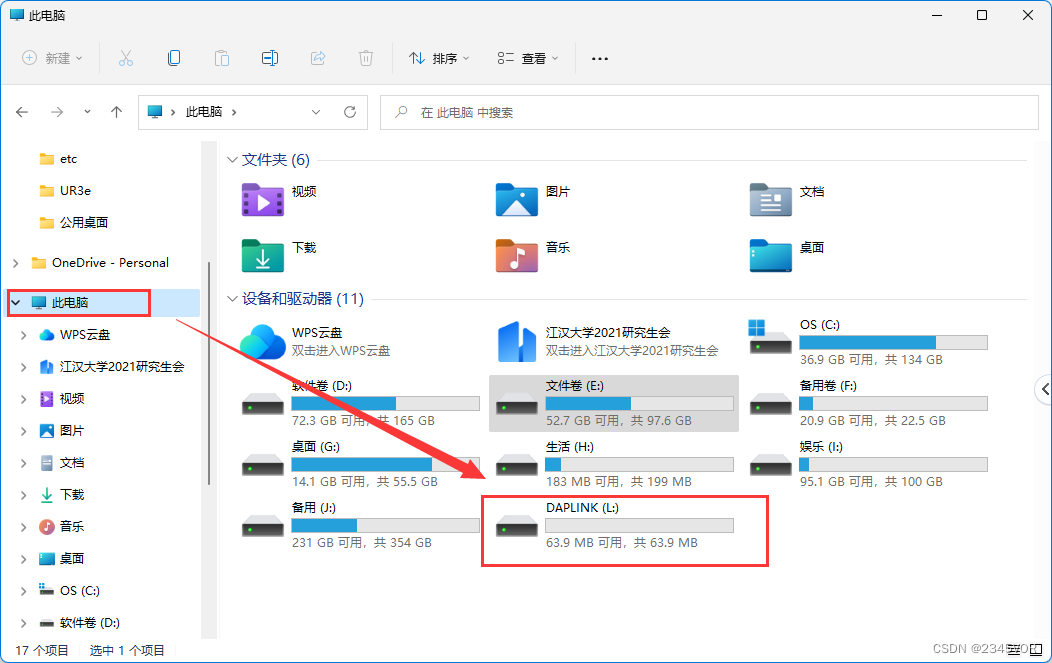

连接正常会出现DAPLINK 的U盘，如下查看

如果故障了，可参照官网刷固件还原！

4.2.1 clean

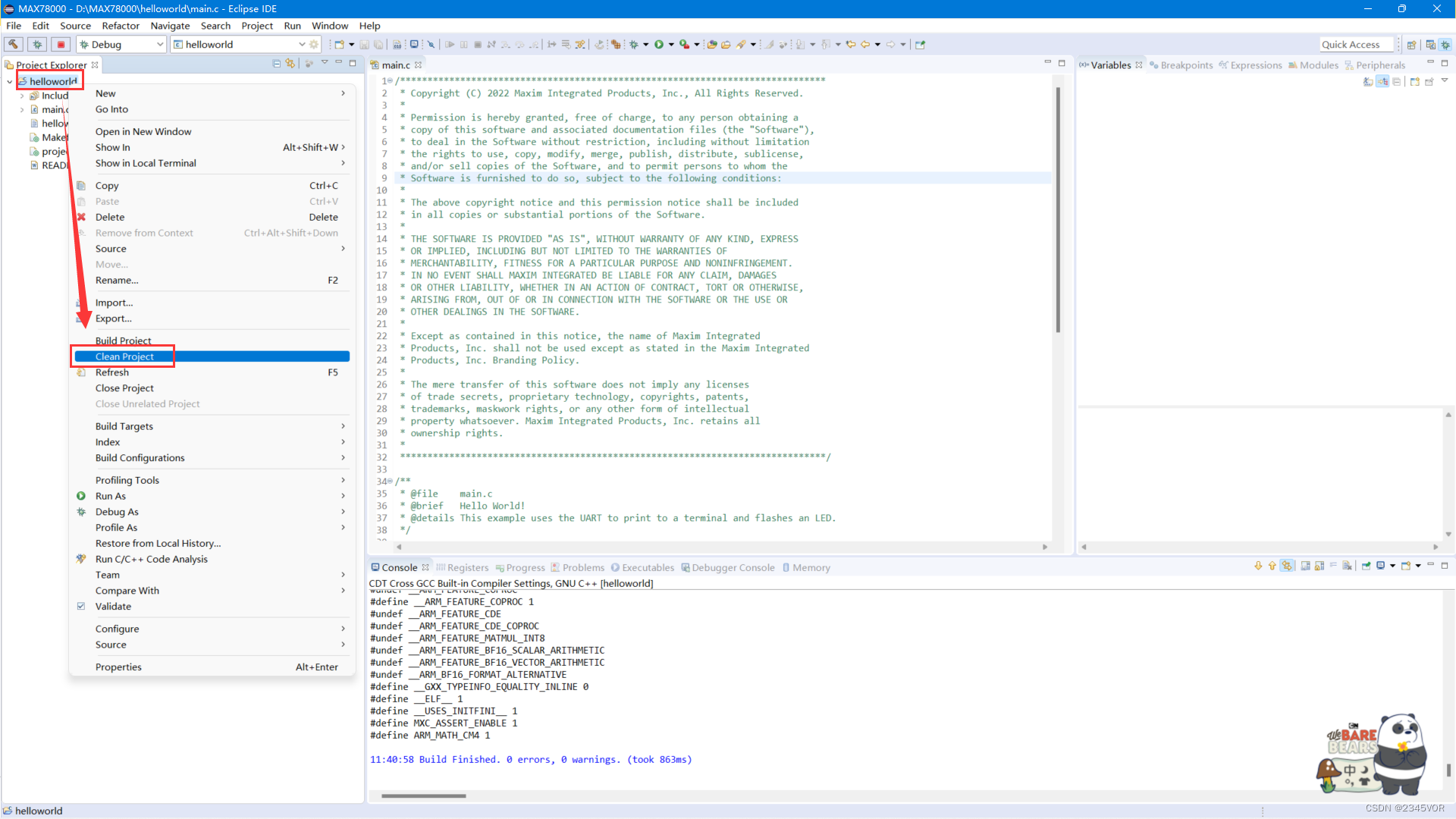

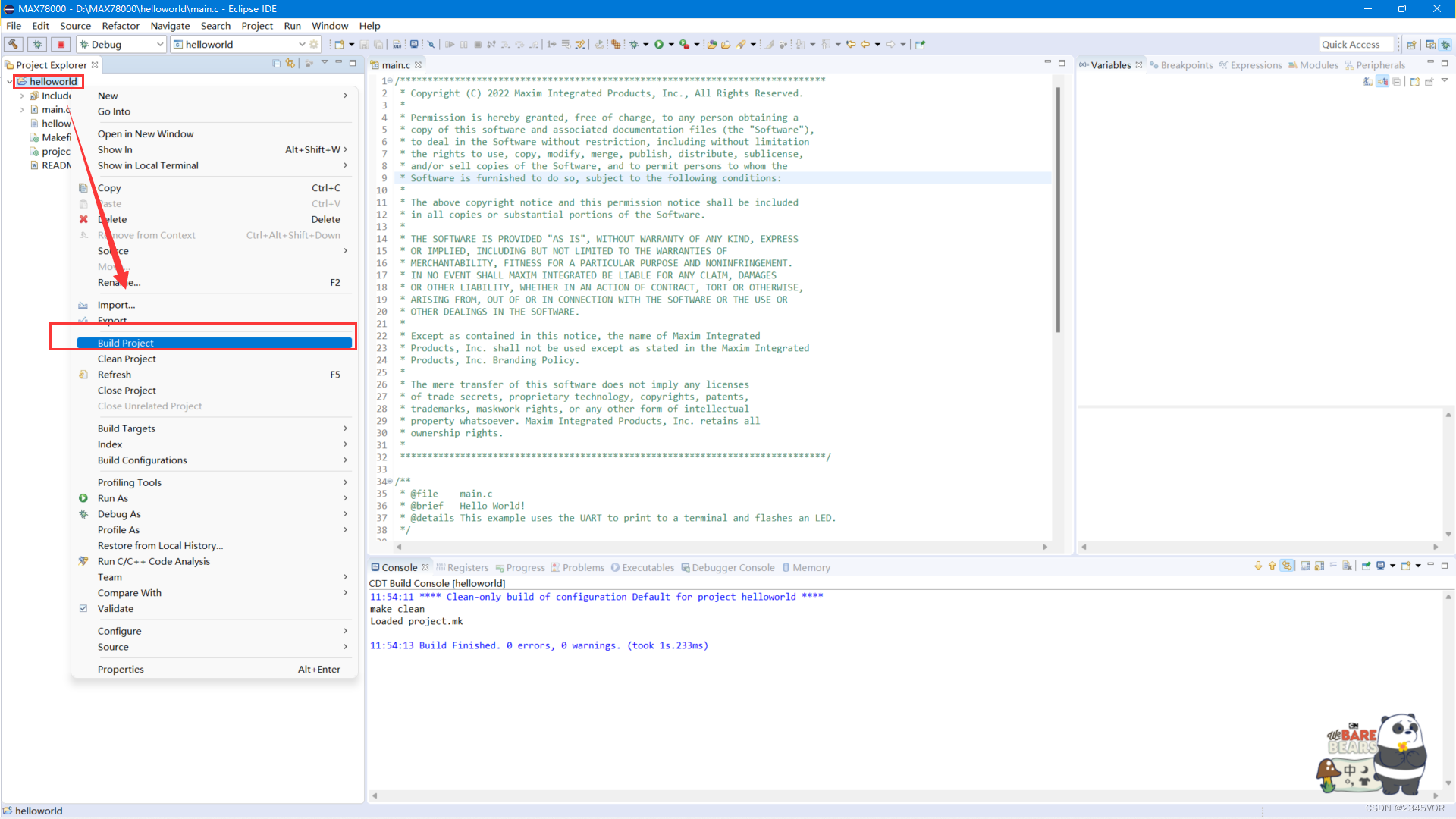

鼠标右键项目，点击clean project，清除原有编译结果（clean)
显示清除成功

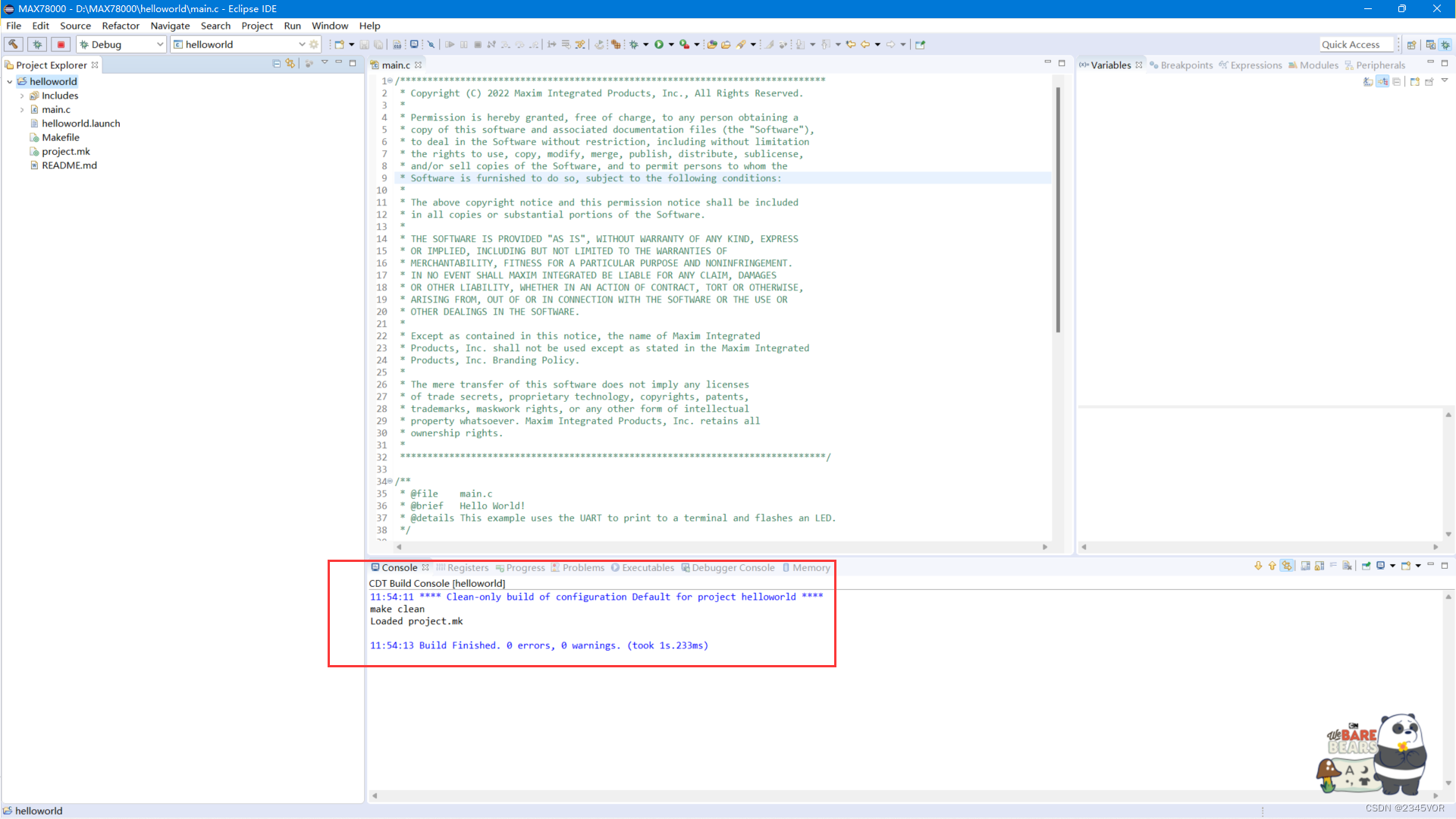

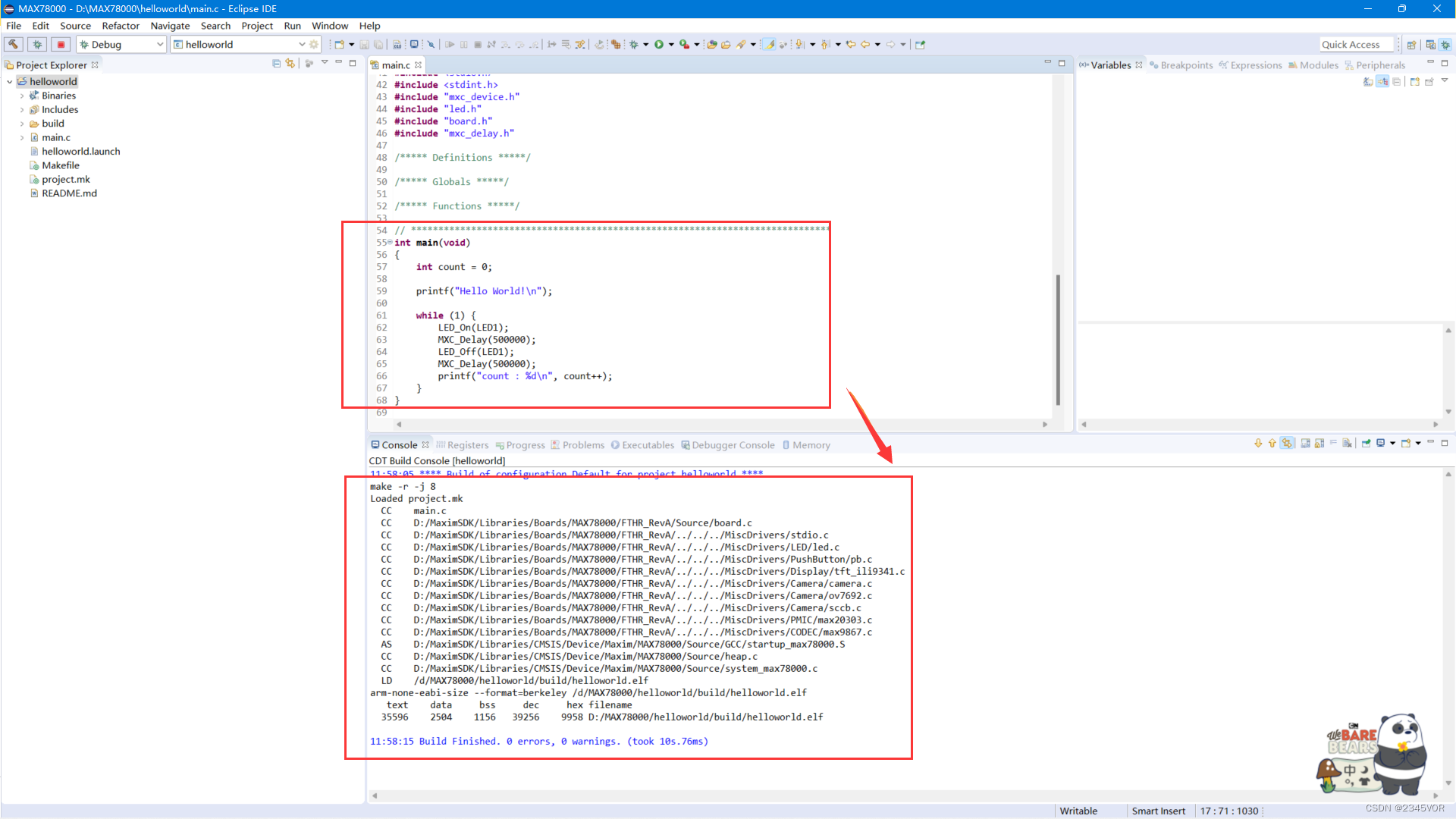

4.2.2 build

鼠标右键项目，点击build project，编译项目（build)
呼吸灯，打印Hello World!程序，生成elf为编译成功

4.2.3 Openocd

现在下载程序，采用Openocd

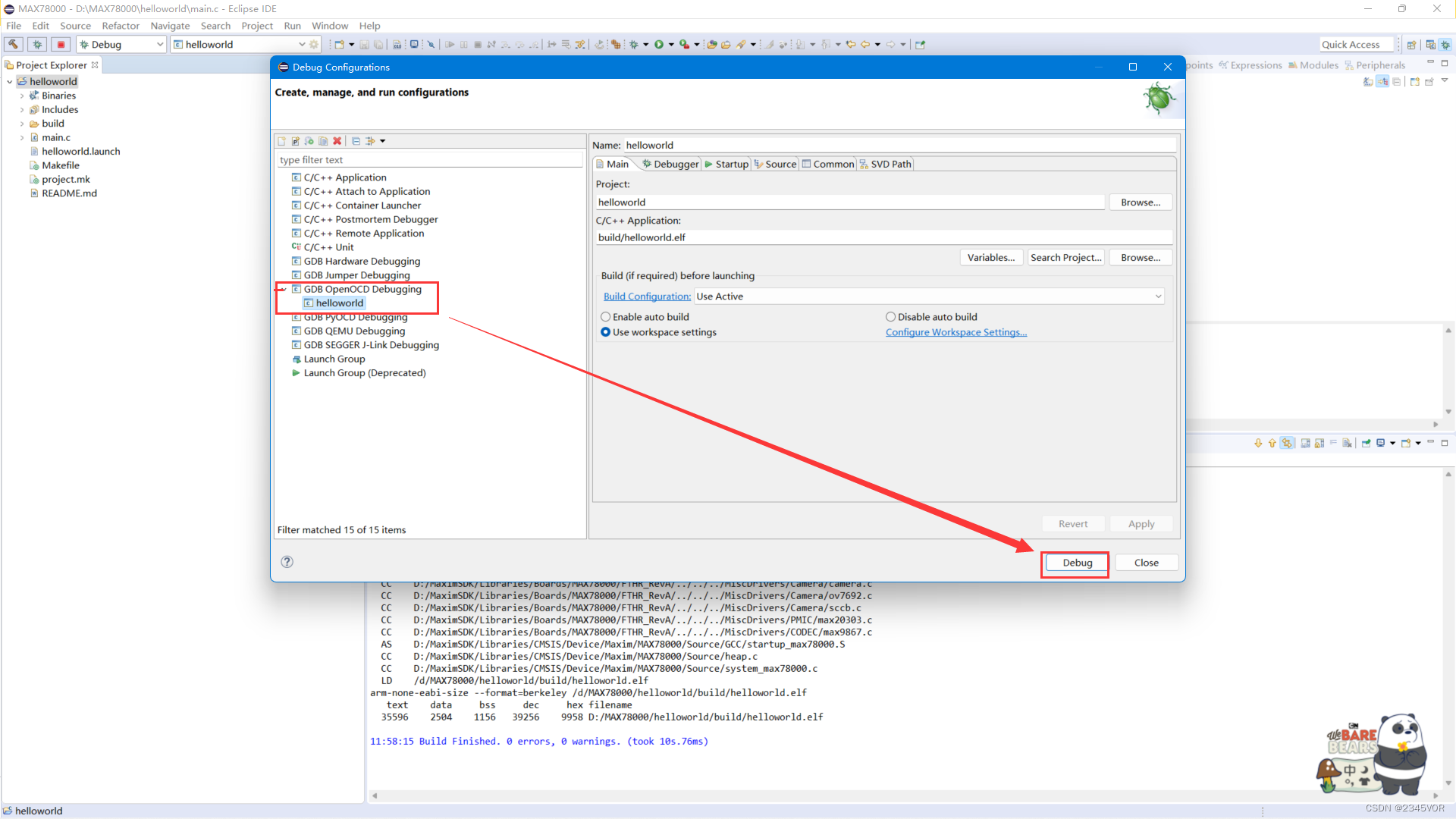

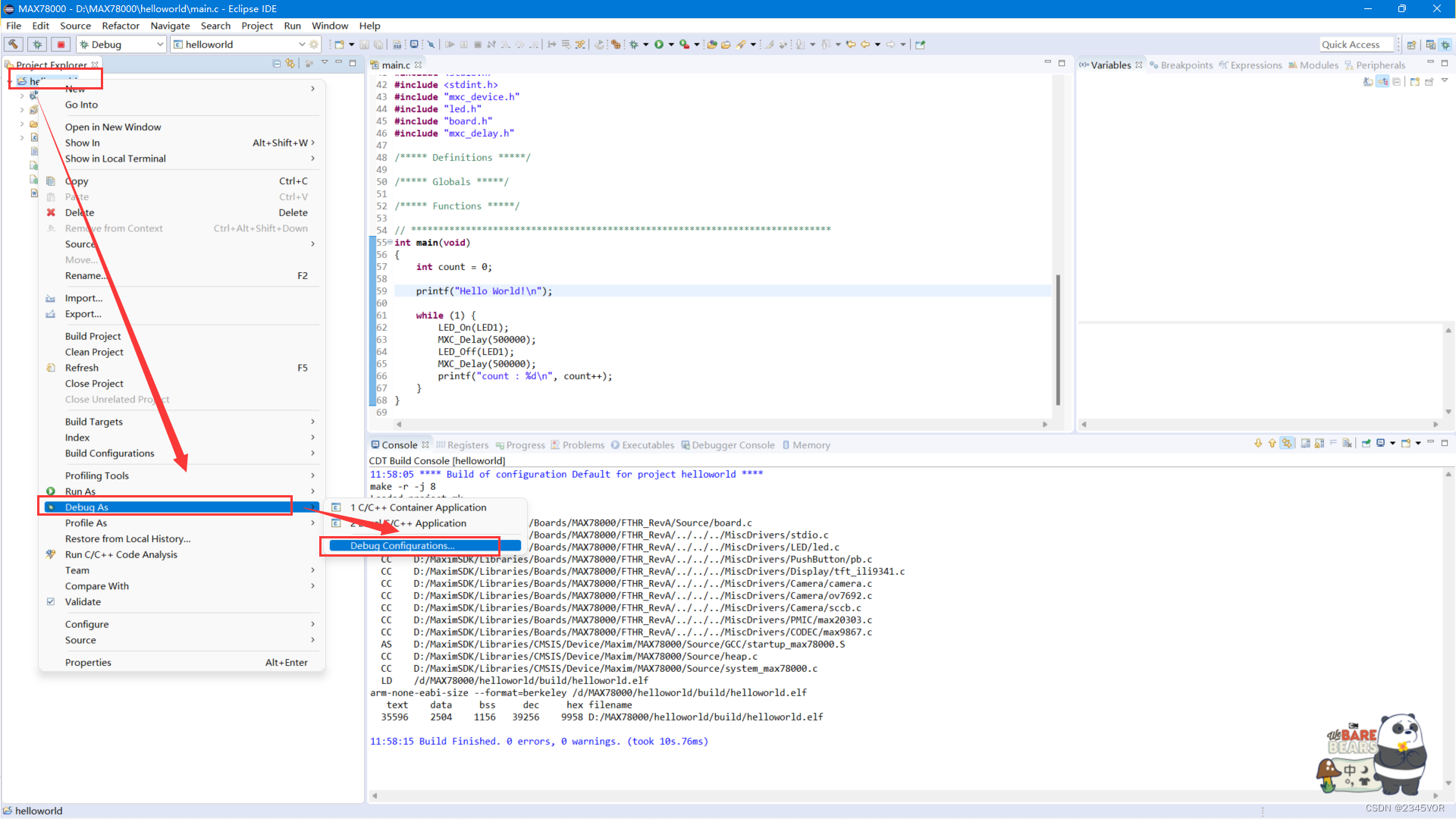

鼠标右键项目，点击Debug as，选择Debug configurations（Debug)
选择GDB Openocd Debugging下的Helloworld，点击Debug就开始下载程序啦！

打印如下，就下载成功啦！

Open On-Chip Debugger 0.11.0+dev-g56a818e4c (2022-11-16-05:46)
Licensed under GNU GPL v2
For bug reports, read
	http://openocd.org/doc/doxygen/bugs.html
DEPRECATED! use 'adapter driver' not 'interface'
Started by GNU MCU Eclipse
Info : Listening on port 6666 for tcl connections
Info : Listening on port 4444 for telnet connections
Info : CMSIS-DAP: SWD  supported
Info : CMSIS-DAP: Atomic commands supported
Info : CMSIS-DAP: FW Version = 0254
Info : CMSIS-DAP: Serial# = 04440001405d035900000000000000000000000097969906
Info : CMSIS-DAP: Interface Initialised (SWD)
Info : SWCLK/TCK = 1 SWDIO/TMS = 1 TDI = 0 TDO = 0 nTRST = 0 nRESET = 1
Info : CMSIS-DAP: Interface ready
Info : clock speed 2000 kHz
Info : SWD DPIDR 0x2ba01477
Info : max32xxx.cpu: Cortex-M4 r0p1 processor detected
Info : max32xxx.cpu: target has 6 breakpoints, 4 watchpoints
Info : max32xxx.cpu: external reset detected
Info : starting gdb server for max32xxx.cpu on 3333
Info : Listening on port 3333 for gdb connections
Info : accepting 'gdb' connection on tcp/3333
target halted due to debug-request, current mode: Thread
xPSR: 0x21030000 pc: 0x10002524 msp: 0x2001ffc0
Warn : Prefer GDB command "target extended-remote :3333" instead of "target remote :3333"
Info : SWD DPIDR 0x2ba01477
target halted due to debug-request, current mode: Thread
xPSR: 0x81000000 pc: 0x00002124 msp: 0x20003ff0
Info : SWD DPIDR 0x2ba01477
target halted due to debug-request, current mode: Thread
xPSR: 0x81000000 pc: 0x00002124 msp: 0x20003ff0
Info : Padding image section 0 at 0x10008b04 with 12 bytes
Info : SWD DPIDR 0x2ba01477
target halted due to debug-request, current mode: Thread
xPSR: 0x81000000 pc: 0x00002124 msp: 0x20003ff0
===== arm v7m registers
(0) r0 (/32): 0x10000000
(1) r1 (/32): 0xe000ed08
(2) r2 (/32): 0x00000001
(3) r3 (/32): 0x40000000
(4) r4 (/32): 0x00000000
(5) r5 (/32): 0x00000000
(6) r6 (/32): 0x00000000
(7) r7 (/32): 0x00000000
(8) r8 (/32): 0x00000000
(9) r9 (/32): 0x00000000
(10) r10 (/32): 0x00000000
(11) r11 (/32): 0x00000000
(12) r12 (/32): 0x20003fc8
(13) sp (/32): 0x20003ff0
(14) lr (/32): 0x0000211d
(15) pc (/32): 0x100004b4 (dirty)
(16) xPSR (/32): 0x81000000
(17) msp (/32): 0x20003ff0
(18) psp (/32): 0x00000000
(20) primask (/1): 0x00
(21) basepri (/8): 0x00
(22) faultmask (/1): 0x00
(23) control (/3): 0x00
(42) d0 (/64): 0x0000000000000000
(43) d1 (/64): 0x0000000000000000
(44) d2 (/64): 0x0000000000000000
(45) d3 (/64): 0x0000000000000000
(46) d4 (/64): 0x0000000000000000
(47) d5 (/64): 0x0000000000000000
(48) d6 (/64): 0x0000000000000000
(49) d7 (/64): 0x0000000000000000
(50) d8 (/64): 0x0000000000000000
(51) d9 (/64): 0x0000000000000000
(52) d10 (/64): 0x0000000000000000
(53) d11 (/64): 0x0000000000000000
(54) d12 (/64): 0x0000000000000000
(55) d13 (/64): 0x0000000000000000
(56) d14 (/64): 0x0000000000000000
(57) d15 (/64): 0x0000000000000000
(58) fpscr (/32): 0x00000000
===== Cortex-M DWT registers

5. 实验效果

此时板载绿灯一直闪烁，

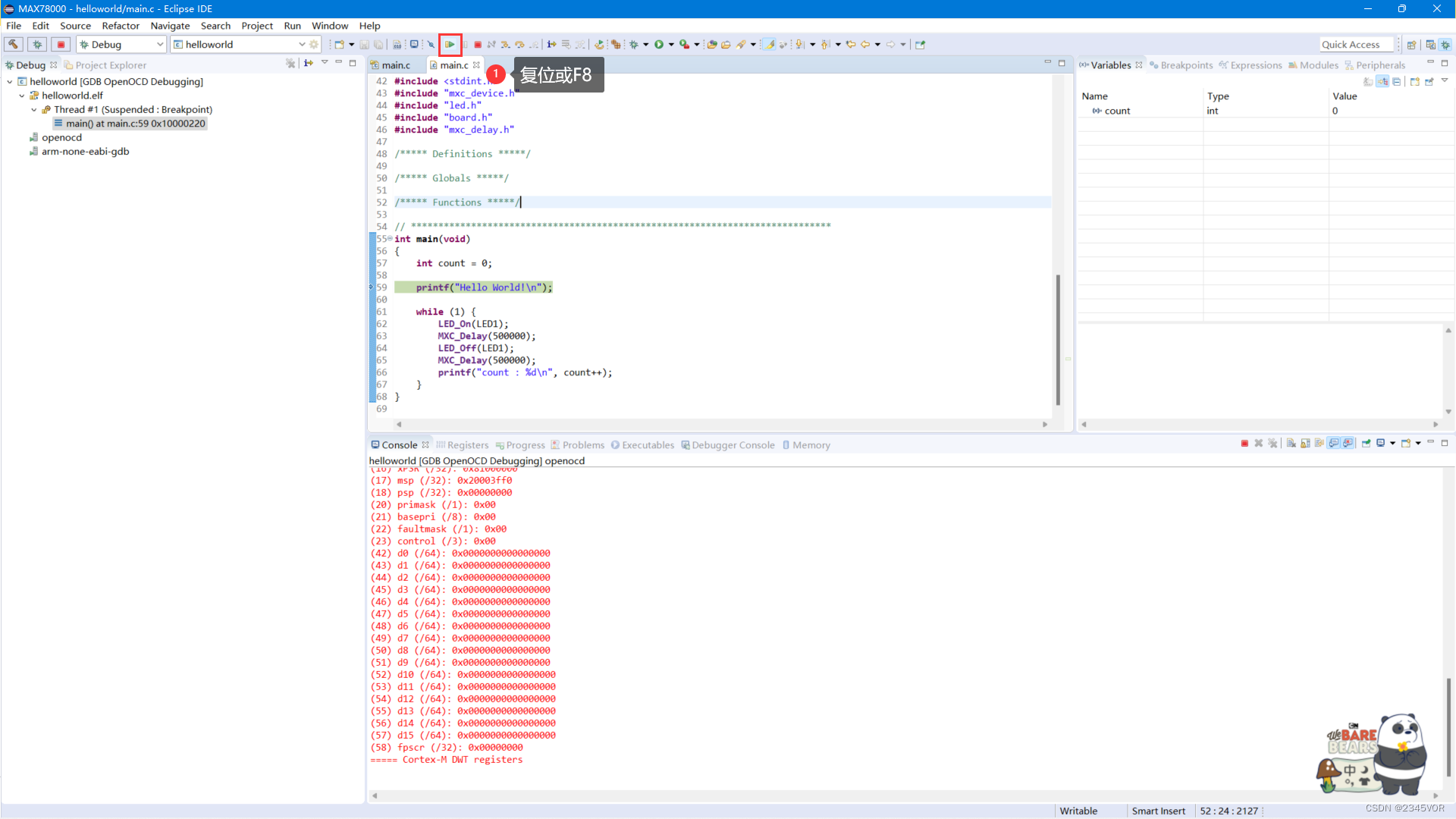

复位或者F8开始运行程序
打开串口调试助手，我用的Serial studio，设置好115200波特率，选择端口连接，调试如下

6.小结

通过对这篇文章我们掌握了window下配置Maxim SDK环境，接下来会有许多有趣的实验，尝试与Arduino通讯做语音小车，进而丰富我们的生活。🛹🛹🛹从而实现对外部世界进行感知，充分认识这个有机与无机的环境，科学地合理地进行创作和发挥效益，然后为人类社会发展贡献一点微薄之力。🤣🤣🤣
🥳🥳🥳再次非常感谢大赛支持和胡同学🥳🥳🥳
参考文献：
window10下配置Maxim SDK
数据手册
 MAX78000板卡项目汇总
 应用笔记
