1.下载后先运行X-HDL-4.2.1-Setup.exe文件，选择安装路径，注意路径中不要有中文。
2.运行crack_xhdl_4.2.1.exe文件，选择刚刚你安装XHDL的路径下的\bin文件夹，点击next—finish，出现success代表破解成功。
3.可能会要求你重启电脑，这时候同意重启就好了。
4.重启之后运行X-HDL。
5.可以选择VHDL转Verilog或Verilog转VHDL在这里插入图片描述

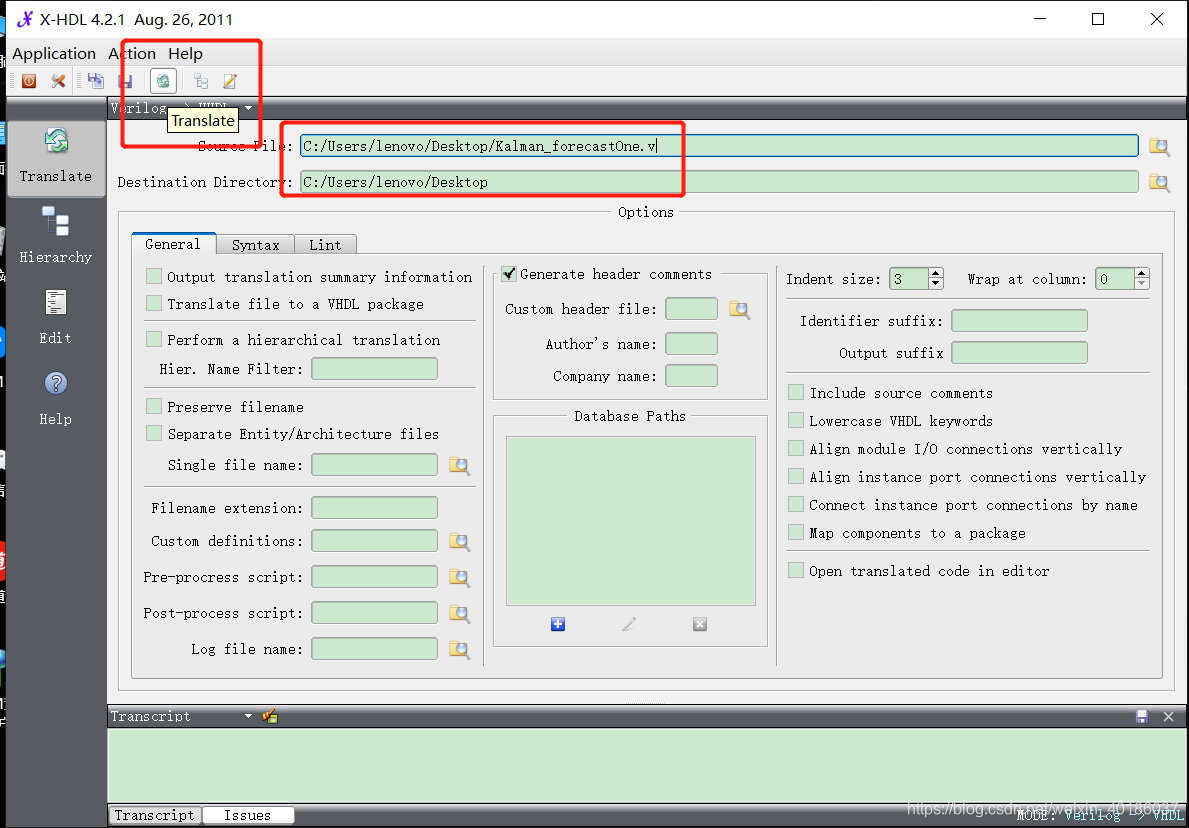

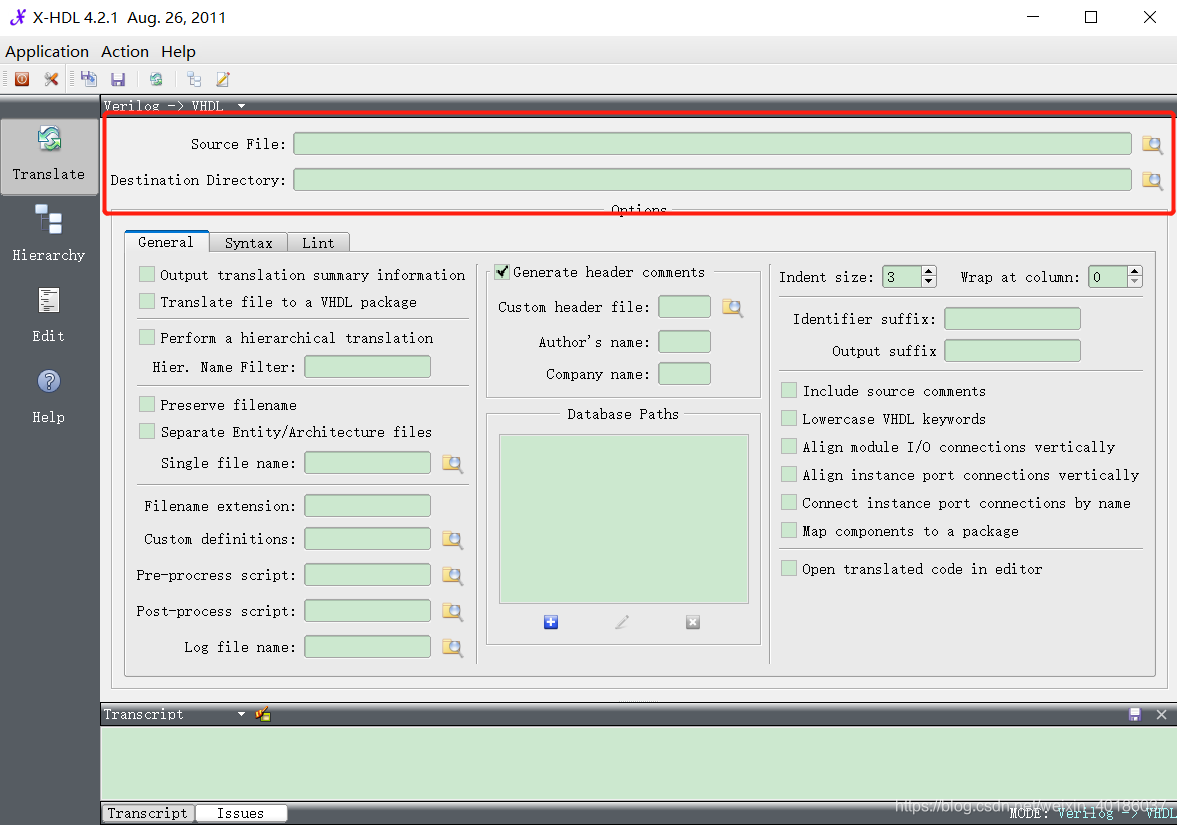

6.source file选择待转换的文件，destination directory选择输出路径，注意路径中不能含有中文字符，待转换文件中最好也不要有中文注释，可能会导致转换失败。在这里插入图片描述

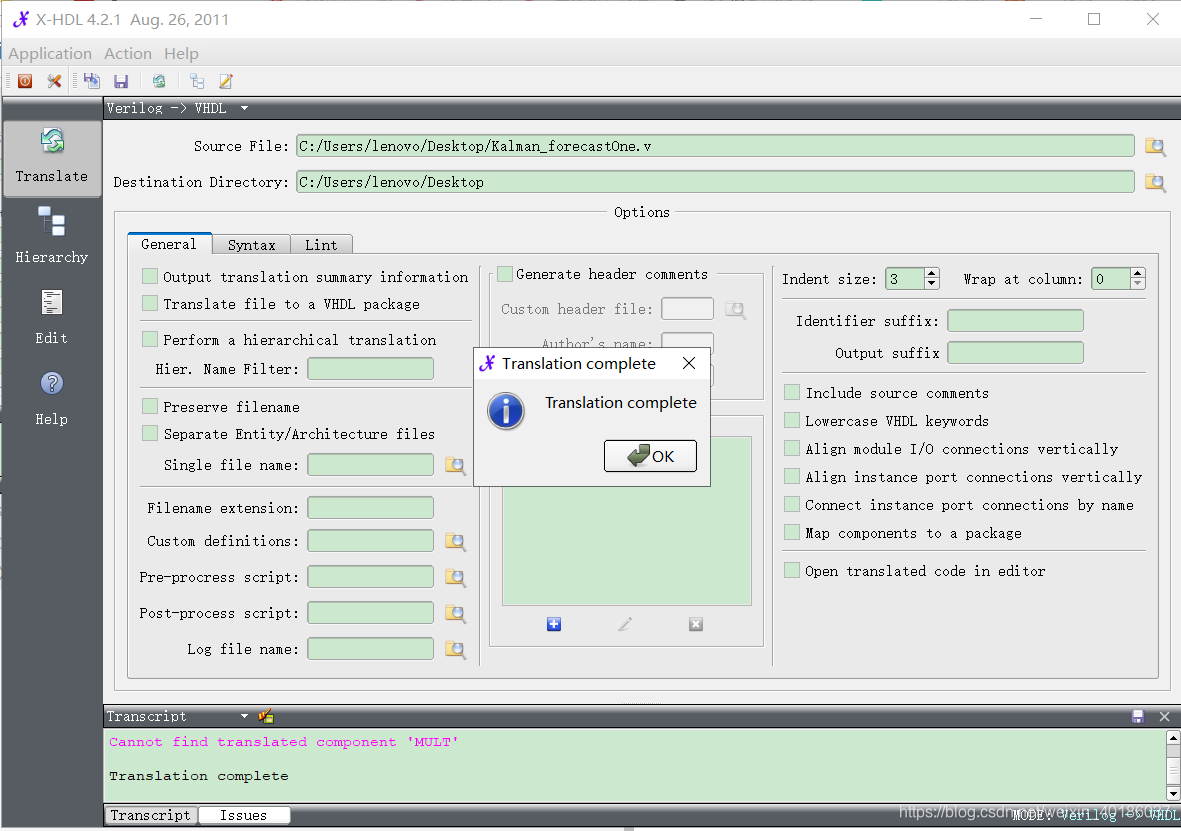

7.转换成功~在这里插入图片描述
在这里插入图片描述

下载：https://pan.baidu.com/s/1lusfdfvjEJwtnnsXolMHUA
提取码：i4of
