DPText-DETR原理及源码解读（一）

一、原理

发展脉络：DETR是FACEBOOK基于transformer做检测开山之作，Deformable DETR加速收敛并对小目标改进，TESTR实现了端到端的文本检测识别，DPText-DETR做了精度更高的文字检测。

原理及代码较为复杂，目前还在研究中并不断完善本博客，建议也参考下他人的解读。

DETR 2020 FACEBOOK：

原理

https://shihan-ma.github.io/posts/2021-04-15-DETR_annotation（推荐）

https://zhuanlan.zhihu.com/p/267156624

https://zhuanlan.zhihu.com/p/348060767

代码解读，可对数据维度进行了解

https://blog.csdn.net/feng__shuai/article/details/106625695

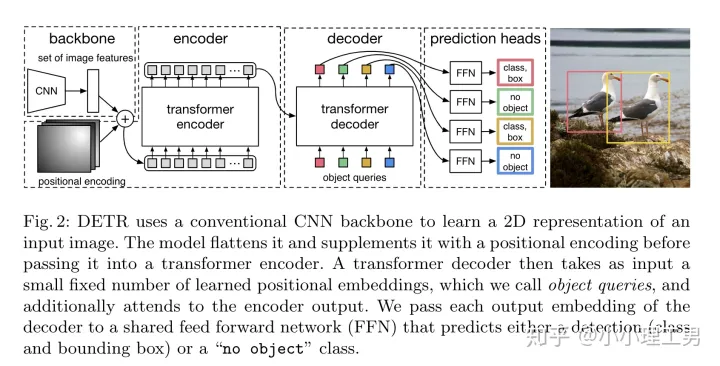

DETR即DEtection TRansformer。

backbone：cnn提取图像特征，flatten后增加positional encoding获取图像序列。使用单尺度特征

spatial positional encoding：加入到了encoder的self attention和decoder的cross attention，计算方式为分别计算xy两个维度的Positional Encoding，然后Cat到一起。是二维的位置编码。加在编码器qk上，不加到v上，加在解码器k上。

编码器：

解码器：有3个输入(encoder output、 positional encoding、object queries)，输出为带有位置和标签信息的embeddings

object queries：或称output positional encoding，代码中叫作query_embed。N为超参数，N通常为100，是由nn.Embedding构成的数组。作为N个查询得到 N个decoder output embedding。可学习迭代，object queries被加入到了decoder的两个attention中。

预测头prediction heads（FFN）：是双分支，一次性生成N个box（xywh）及这些box的class（是哪个class或no object）。注意这里没有经过shifted right，而是一次性全部输出，也就保证了速度。如增加mask head，也可用于分割。

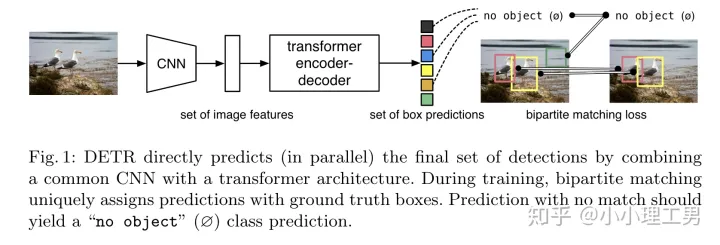

bipartite matching loss：举个match的例子，预测结果中绿色box不是no object ，但和gt没有match。基于匈牙利算法即可得到二分图最优匹配，再计算配对loss

准确率及耗时和Faster RCNN相当。但小目标上稍差，DETR长宽32倍下采样，如3×800×1066下采样到256×25×34，特征图较小导致小目标较差。而且很难收敛（收敛问题有说是因为基于match的loss导致，“使用matcher分配gt给proposal会导致分配较慢，且密集proposal上进行一一配对会导致训练不稳定，较难收敛。”，有说是因为全局attention计算空间较大导致）

注：虽然DERT没有anchor和nms了，但一般认为object queries就是一种可以学习的anchor

源码中包含全景分割、空洞卷积、各层（主loss和5层辅助loss）loss权重设置。除去cnn、transformer这些常规层后，特殊层包括：

class_embed 编码层分类，如91个类别

bbox_embed 通过3层Linear获取xywh位置信息

query_embed 解码器输入，embedding(100,256)

input_pro 将cnn输出特征图通道数量减小，衔接backbone和transformer，Con2d(2048,256,......)处理为256通道

Deformable DETR 2021商汤：

原理：https://zhuanlan.zhihu.com/p/596303361

https://zhuanlan.zhihu.com/p/372116181

代码解读：https://www.jianshu.com/u/e6d60e29af26

变形attention+多尺度

DETR存在2个问题：

1）收敛慢:"因为全局像素之间计算注意力要收敛到几个稀疏的像素点需要消耗很长的时间"，即注意力矩阵稀疏

2）小目标检测效果不好：由于attention的计算量和特征图尺寸呈平方关系，所以取了最后一层最小的特征图，特征图分辨率受限

Deformable解决上述问题的方法：

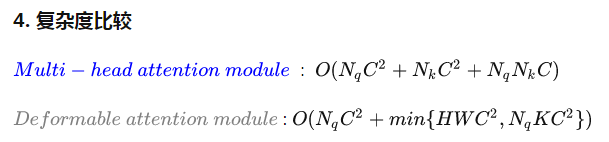

1）注意力权重矩阵往往都很稀疏，引入Deformable Attention，通过动态学习的采样点（采样少量的key）减小计算量。Deformable Attention减少了k的数量，如将原始attention视为N*N计算复杂度，即850*850，可变形attention减小为query数量*参考点数量

2）多尺度特征聚合，由于Deformable Attention做了采样，多尺度下计算量也不会很大

下面介绍一下Deformable Attention：

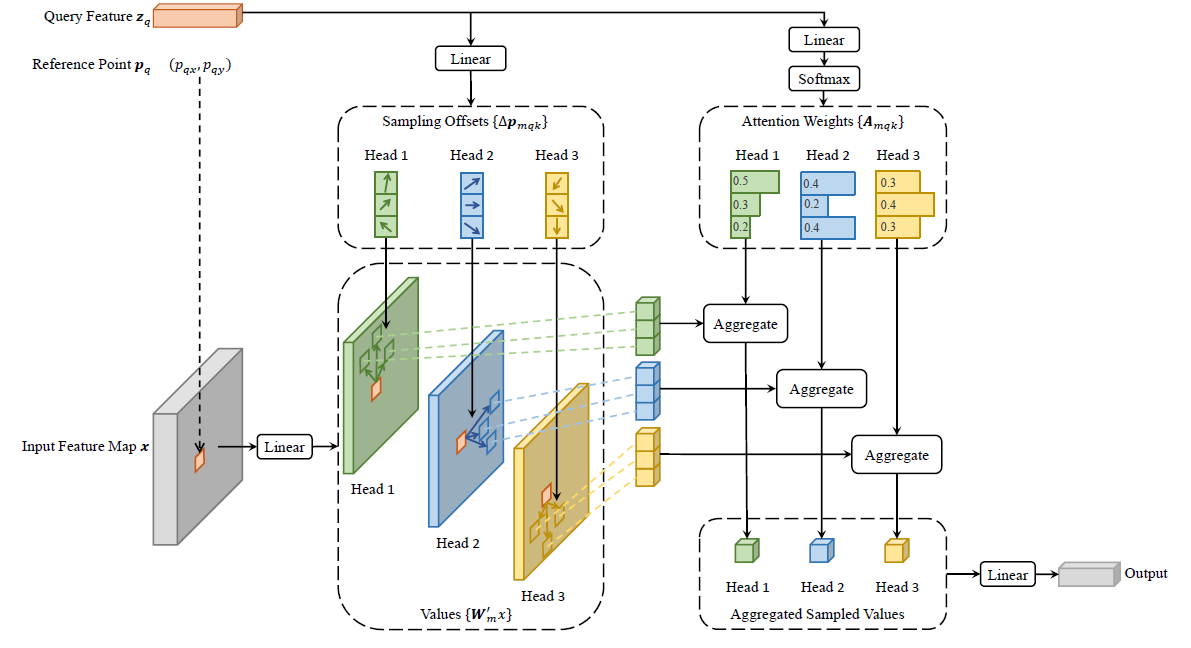

deformable attention module

Q特征：即左上角zq，输入特征HW*C可分解为HW个query。通过Linear得到Offsets采样偏移和Weights权重，可以理解为不同anchor的形状及内部权重

偏移量Offsets：限制了k的数量，从而减小计算量。偏移量的维度为参考点的个数，组数为注意力头的数量，如上图的head1，head2，head3

注意力权重矩阵Weights：每个头内部和为1，由线性层得到，而传统Attention的权重矩阵由qk内积得到。每个query会在4个level，共采样4*4=16个点，这16个点的权重相加和为1，而不是各level和为1。

#采样点坐标偏移
#n，q，8,4，4，2
sampling_offsets = self.sampling_offsets(query).view(N, Len_q, self.n_heads, self.n_levels, self.n_points, 2)
# 每个采样点的权重
# N, Len_q, self.n_heads, self.n_levels * self.n_points =n，q，8,4*4
attention_weights = self.attention_weights(query).view(N, Len_q, self.n_heads, self.n_levels * self.n_points)
# 每个采样点的权重归一化， softmax是在4*4内计算的
#n，q，8,4，4
attention_weights = F.softmax(attention_weights, -1).view(N, Len_q, self.n_heads, self.n_levels, self.n_points)


参考点：即左上角Pq，通过网格torch.meshgrid在特征图中获得平铺的参考点，即橙色的框。橙色参考点(reference point)附近采样少数点(上图为3个点)来作为注意力。参考点可以理解为滑窗的基准位置。query在不同level的归一化坐标相同。

多尺度：ResNet最后三层的特征图C3，C4，C5，加上一个Conv3x3 Stride2的卷积得到的一个C6，构成了四层特征图。过卷积都处理为256通道。

偏移量初始化：

上图是用了3个heads，可以看出来是分别向上、向右、向下偏移。在代码中使用了8个heads，初始化时分别向8个方向偏移，代码如下。

def _reset_parameters(self):
        constant_(self.sampling_offsets.weight.data, 0.)
        # 8个方向的角度，pi*0/4、pi*1/4、pi*2/4、pi*3/4、pi*4/4、pi*5/4、pi*6/4、pi*7/4
        thetas = torch.arange(self.n_heads, dtype=torch.float32) * (2.0 * math.pi / self.n_heads)
        grid_init = torch.stack([thetas.cos(), thetas.sin()], -1)
        # 计算.abs().max后，已经归一化为上述8个角度的保留正负值的宽高比信息，最大绝对值为1
        #[1,0],[1,1],[0,1],[-1,-1],[-1,0],[-1,-1],[0,-1],[-1,-1]重复维度为
        #(8, self.n_levels=4, self.n_points=4, 2)
        grid_init = (grid_init / grid_init.abs().max(-1, keepdim=True)[0]).view(self.n_heads, 1, 1, 2).repeat(1, self.n_levels, self.n_points, 1)
        # 参考cnn的3*3\5*5\7*7\9*9 在不同points上有越来越大的偏移量
        for i in range(self.n_points):
            grid_init[:, :, i, :] *= i + 1
        with torch.no_grad():
            self.sampling_offsets.bias = nn.Parameter(grid_init.view(-1))
        constant_(self.attention_weights.weight.data, 0.)
        constant_(self.attention_weights.bias.data, 0.)
        xavier_uniform_(self.value_proj.weight.data)
        constant_(self.value_proj.bias.data, 0.)
        xavier_uniform_(self.output_proj.weight.data)
        constant_(self.output_proj.bias.data, 0.)

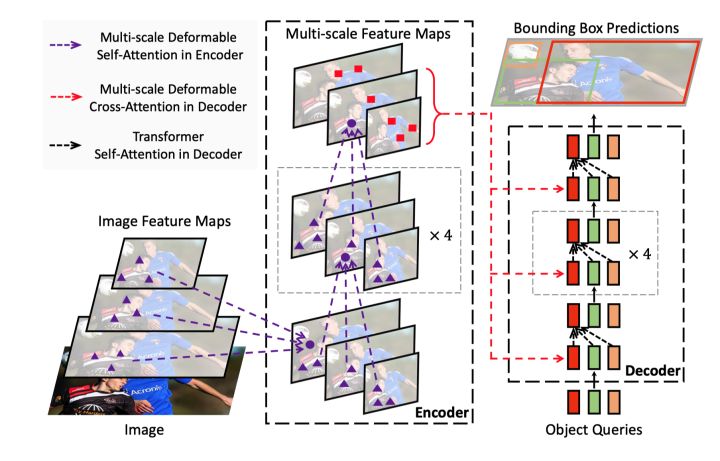

整体结构：

注意看图左上角的描述 deformable attention（代码里的MSDeformAttn）用在了编码器的self-attention、解码器的cross-attention，而解码器的self-attention还是普通的。nn.MultiheadAttention。

proposal并没有直接使用原始坐标，而是进行了log的编码log（x/(1-x)）， 在forward中的two_stage情况提取reference_points是使用sigmoid函数。

编码器中query为各层的各个位置的点，输出shape是 (bs, h_lvl1*w_lvl1+h_lvl2*w_lvl2+.., c=256)，其中h_lvli和w_lvli分别代表level=i时特征图的宽高，第2维即代表所有点数量和。

M：多头heads数量

L：层数，C3，C4，C5，C6

K：采样点数，数量为n_level*n_head*n_points

A_{mlqk}：每个采样点的内部权重，即上图右上角中的Attention Weights（A_{mqk}）

W_{m}: 图右下角线性层，self.output_proj = nn.Linear(d_model, d_model)，得到输出

W'_{m}:图左下角线性层，self.value_proj = nn.Linear(d_model, d_model)，获得value

x_{l}：各层待采样的特征图

φ_{l}：参考点P_{q}是基于torch.meshgrid实现的每个网格的中心点，是归一化的，为了适配所有level，φ_{l}将其映射到各level的具体点。在batch操作中，图总是在右侧或下侧进行pad操作。为将网格点映射到原图没pad部分的具体点，需要pad前后的valid_ratios，即[w_pad前/w_pad后，h_pad前/h_pad后]。具体可参考https://zhuanlan.zhihu.com/p/578615648

算法代码简单概括：

在deformable DETR中运用了4个尺度的特征图，采样是用F.grid_sample实现的，具体可以参考https://www.jianshu.com/p/b319f3f026e7

# 不完整，可视为伪代码
# 参考点生成，这里主要看valid_ratios
def get_reference_points(spatial_shapes, valid_ratios, device):
        reference_points_list = []
        for lvl, (H_, W_) in enumerate(spatial_shapes):

            ref_y, ref_x = torch.meshgrid(torch.linspace(0.5, H_ - 0.5, H_, dtype=torch.float32, device=device),
                                          torch.linspace(0.5, W_ - 0.5, W_, dtype=torch.float32, device=device))
            ref_y = ref_y.reshape(-1)[None] / (valid_ratios[:, None, lvl, 1] * H_)
            ref_x = ref_x.reshape(-1)[None] / (valid_ratios[:, None, lvl, 0] * W_)
            ref = torch.stack((ref_x, ref_y), -1)
            reference_points_list.append(ref)
        reference_points = torch.cat(reference_points_list, 1)
        reference_points = reference_points[:, :, None] * valid_ratios[:, None]
        return reference_points

# 参考点+归一化的偏移量，这里参考点也是归一化到0-1的，所以可以用到不同层上
 sampling_locations = reference_points[:, :, None, :, None, :] \
                                 + sampling_offsets / offset_normalizer[None, None, None, :, None, :]
 # 为了进行F.grid_sample又处理到-1~1之间
sampling_grids = 2 * sampling_locations - 1
# 对每一层
for lid_, (H_, W_) in enumerate(value_spatial_shapes):
    # N_, H_*W_, M_, D_ -> N_, H_*W_, M_*D_ -> N_, M_*D_, H_*W_ -> N_*M_, D_, H_, W_
    # 取出每一层信息,value_l为被采样的特征图
    value_l_ = value_list[lid_].flatten(2).transpose(1, 2).reshape(N_*M_, D_, H_, W_)
    # N_, Lq_, M_, P_, 2 -> N_, M_, Lq_, P_, 2 -> N_*M_, Lq_, P_, 2
    # 采样位置
    sampling_grid_l_ = sampling_grids[:, :, :, lid_].transpose(1, 2).flatten(0, 1)
    # 对每一层进行不规则点采样
    # N_*M_, D_, Lq_, P_
    sampling_value_l_ = F.grid_sample(value_l_, sampling_grid_l_,
                                          mode='bilinear', padding_mode='zeros', align_corners=False)
# 每层乘以权重后求和
output = (torch.stack(sampling_value_list, dim=-2).flatten(-2) * attention_weights).sum(-1).view(N_, M_*D_, Lq_)


2种优化效果的方法：

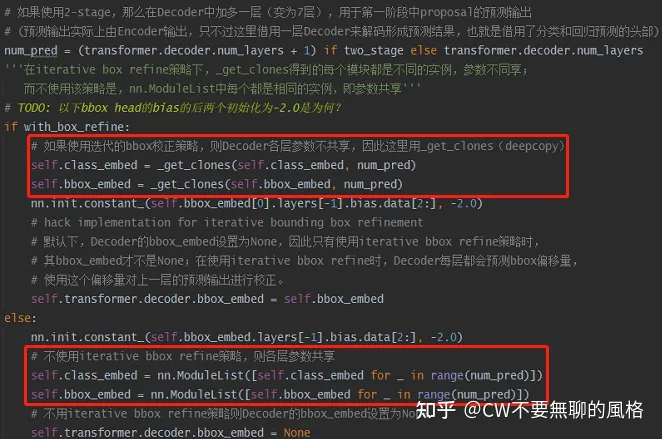

1、Iterative Bounding Box Refinement. 设计了一种边界框细化机制，类似Cascade R-CNN，对参考点的位置进行微调。解码器每层都进行预测传给下层做query及参考点。区别如下：

2、Two-Stage Deformable DETR. 类似RPN。在原始DETR中object queries和图像无关，加入两阶段机制后，encoder输出层预测proposal， region proposals 作为object queries输入解码器。在第一阶段，编码器中每个像素作为object query获得一个bbox，取Top作为第二阶段的输入，“encoder-only Deformable DETR for region proposal generation. In it, each pixel is assigned as an object query, which directly predicts a bounding box. Top scoring bounding boxes are picked as region proposals. No NMS is applied before feeding the region proposals to the second stage.”

在编码器中，query是每一个level中每个位置点的特征

在解码器中，

one_stage中query是可学习的；参考点是网格计算获取的2D的，即xy

two_stage中编码器提供的ToP-K个proposal信息；参考点是4D的，是编码器提出的proposal的xywh。“可以理解为，此时参考点就是object query本身的位置”

# 两阶段中由编码器获得proposals
output_memory, output_proposals = self.gen_encoder_output_proposals(memory, mask_flatten, spatial_shapes)

enc_outputs_class = self.bbox_class_embed(output_memory)
# self.bbox_embed 预测相对output_proposals的偏移，要相加
enc_outputs_coord_unact = self.bbox_embed(output_memory) + output_proposals
# 取top
topk = self.num_proposals
topk_proposals = torch.topk(enc_outputs_class[..., 0], topk, dim=1)[1]
topk_coords_unact = torch.gather(enc_outputs_coord_unact, 1, topk_proposals.unsqueeze(-1).repeat(1, 1, 4))
# 取消梯度
topk_coords_unact = topk_coords_unact.detach()
# 归一化
reference_points = topk_coords_unact.sigmoid()  # (bs, nq, 4)

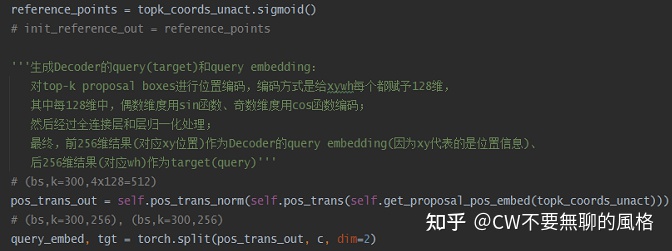

proposal如何变成query

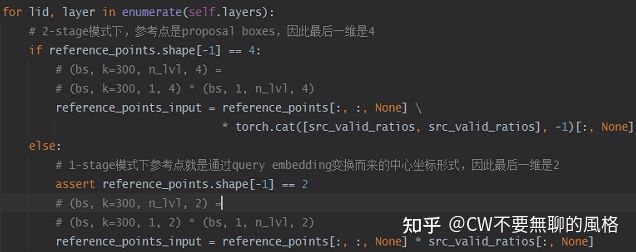

参考点和query之间的关系

引用别人的一段总结“在Encoder中：参考点是特征点本身的位置，query embedding是特征图对应的position emebdding（其实还加上了scale-level embedding），object query则来自于特征图，最终注意力机制中的query就是object query + query embedding。

在Decoder中：2-stage时，由参考点经过位置嵌入生成query embedding和object query；而1-stage时，object query和query embedding都是预设的embedding，参考点则由query embedding经全连接层生成，最终注意力机制中的query也是object query + query embedding。

综上可知，参考点（reference points）和query之间是存在着对应关系的（就有点“你生我、我生你”的feel~）。

OK，既然这样，那么基于参考点位置采样插值出来的特征（value）自然就能够和通过query经过线性变换得到的注意力权重对应起来了，这就是为什么可变形注意力模块中不需要key与query来交互计算注意力权重了。

打个比方：A与B已建立起了对应关系，之后A再通过某种映射关系得到C，B也通过某种映射关系得到D，那么C与D之间必然会有某种程度的耦合与对应关系。这里A、B、C、D就分别指代query、reference points、attention weights以及value。

还有个问题值得思考，为何在Decoder中，2-stage时由reference points生成query embedding是通过position embedding，而1-stage时由query embedding生成reference points时却用全连接层呢？

对此，CW是这么想的：2-stage时，参考点是由Encoder预测出来的proposals，本身一定程度上代表着物体的位置信息了（虽然这个位置可能并不精确），因此有必要用位置嵌入将这“宝贵"的信息给记录下来；而1-stage时，预设的query embedding本身就是一个抽象体，盲猜的东西，因此用线性变换来做维度映射得到参考点比较合理，因为毕竟其本身并没有实际意义的位置信息。

”

# 参考点的获取
# N, Len_q, n_heads, n_levels, n_points, 2
# one stage
if reference_points.shape[-1] == 2:
    # 取每层特征图的尺寸做归一化
    offset_normalizer = torch.stack([input_spatial_shapes[..., 1], input_spatial_shapes[..., 0]], -1)
    # 归一化采样点=参考点+偏移量
    # （n,len_q,1,n_level=4,1,2）+（n,len_q,8,4,n_points=4,2）/（1,1,1,4,1,2）
    sampling_locations = reference_points[:, :, None, :, None, :] \
                         + sampling_offsets / offset_normalizer[None, None, None, :, None, :]
# two stage
elif reference_points.shape[-1] == 4:
    # 编码器提供的proposal是xywh，:2即取前2，sampling_offsets本身是1、2、...、points，
    # 然后同一层结合不同heads形成了一个3*3、5*5、...的采样点。 / self.n_points进行归一化
    # reference_points[:, :, None, :, None, 2:] * 0.5即为一半的宽高
    # sampling_locations即在encoder提供proposal的中心点基础上，向外发散一半宽高作为采样点。
    sampling_locations = reference_points[:, :, None, :, None, :2] \
                         + sampling_offsets / self.n_points * reference_points[:, :, None, :, None, 2:] * 0.5

其他技术要点：

辅助损失aux_loss: True if auxiliary decoding losses (loss at each decoder layer) are to be used.解码器各层接上FFN用于计算损失

scale-level embedding：PE是二维的，在Deformable DETR中，用到了多尺度特征，为区分不同level，用到了一种可学习的scale-level embedding，长度为level数量，同一level共享，通道数和PE相同便于相加，一般取256。

个人评价：将CNN中多尺度和anchor的实现（即偏移）更进一步用到了DETR中，为了避免Attention计算量爆炸，又引入了CNN中的变形卷积DCN，合成Deformable Attention。然后还有一些花里胡哨的技巧，商汤确实有点东西。

TESTR（Text Spotting Transformers）2022：

https://zhuanlan.zhihu.com/p/561376987

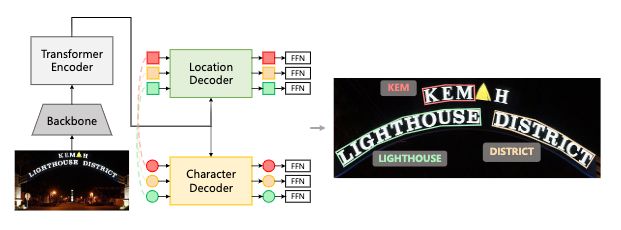

单编码器双解码器架构，两个解码器分别进行回归和识别。可进行弯曲文本检测识别

guidance generator：引导生成器

注：这里直接指明编码器通过ffn生成了粗粒度（coarse bounding boxes）的bbox，用bbox引导过解码器得到多点的文本控制点及文本，可以是边界点或贝塞尔曲线控制点。

解码器中一组query的每个query内部由多个subquery构成。是一种降低transformer计算量、复杂度的技术。

https://blog.csdn.net/Kaiyuan_sjtu/article/details/123815163

factorized self-attention（分解自注意力）:组内和组间分别计算self attention

box-to-polygon：先编码器预测bbox，后解码器基于bbox预测polygon

encoder：输出bbox和概率

decoder：取得分最高的TopN个bbox

location decoder：使用组合query的思想(composite queries)， factorized self-attention（因式分解自注意力）

control point queries控制点query

character decoder：使用character queries + 1D sine positional encoding

DPText-DETR：

https://zhuanlan.zhihu.com/p/569496186

https://zhuanlan.zhihu.com/p/607872370

Towards Better Scene Text Detection with Dynamic Points in Transformer

1. 改进的点标签形式，从影像左上角开始，去除文本左上角开始（文本阅读顺序标注）对于模型的引导性

2. EFSA（Enhanced Factorized Self-Attention 增强的因子化自我注意）：进行环形引导。通过循环卷积（环形卷积）引入局部关注

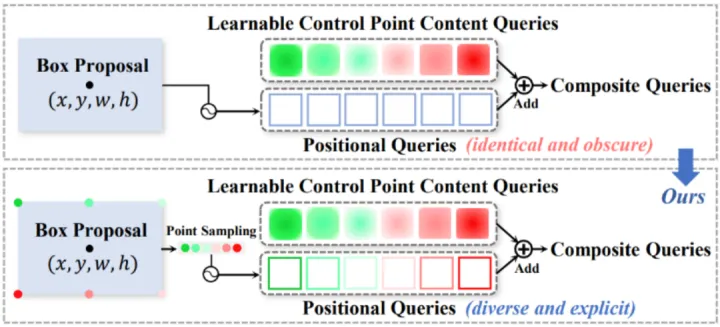

3. EPQM：显式点查询建模（(Explicit Point Query Modeling），均匀采样点代替xywh的box

图像经过backbone（ResNet-50），展平后，加上二维位置编码，经编码器得到N个box和score，取TOP，转成多点均匀采样，经过EFSA进行环形引导挖掘相关关系，再过解码器获得多点的box和score。

一、环境搭建

https://github.com/ymy-k/dptext-detr

https://github.com/facebookresearch/detectron2

推荐的环境是 Python 3.8 + PyTorch 1.9.1 (or 1.9.0) + CUDA 11.1 + Detectron2 (v0.6)

参考readme，报错缺啥装啥，要么就是安装包版本的问题

注：网上没找到对这个算法的代码解读，但它的前序工作，如DETR、deformable DETR的解读还是很多的

二、推理

按照readme写就行，eval和inference区别在于Evaluation会调用到datasets路径下的test_poly.json文件，infer的输入只需要图片，且支持可视化。这个框架的奇特点在于train和eval都用了train_net.py脚本。

除了装环境花了点时间，其他挺丝滑的。这里只讲inference，推理过程大致流程为加载配置，用detectron2推理，可视化。infer的对象input可以是一张图的路径也可以是一个文件夹的路径。

调用链路为：demo.py——predictor.py ——detectron2，最重要的函数基本都是由detectron2实现。

# infer时用到的函数主要包括（这里代码不全，可视为伪代码）：
# 加载配置
cfg = setup_cfg(args)  #（包括detectron、配置文件、命令行 3种来源的配置参数）
# 读图
from detectron2.data.detection_utils import read_image
img = read_image(path, format="BGR")
# 推理 & 可视化
from predictor import VisualizationDemo
demo = VisualizationDemo(cfg)
predictions, visualized_output = demo.run_on_image(img)
# 上一行demo.run_on_image(img)中run_on_image 主要函数
from detectron2.engine.defaults import DefaultPredictor
from detectron2.utils.visualizer import ColorMode, Visualizer
visualizer = Visualizer(image, self.metadata, instance_mode=self.instance_mode)
self.predictor = DefaultPredictor(cfg)
predictions = self.predictor(image)
instances = predictions["instances"].to(self.cpu_device)
vis_output = visualizer.draw_instance_predictions(predictions=instances)

# 保存可视化结果
visualized_output.save(out_filename)

detectron2的DefaultPredictor介绍

# detectron2/blob/main/detectron2/engine/defaults.py

class DefaultPredictor:
    """
    Create a simple end-to-end predictor with the given config that runs on
    single device for a single input image.
    Compared to using the model directly, this class does the following additions:
    1. Load checkpoint from `cfg.MODEL.WEIGHTS`.
    2. Always take BGR image as the input and apply conversion defined by `cfg.INPUT.FORMAT`.
    3. Apply resizing defined by `cfg.INPUT.{MIN,MAX}_SIZE_TEST`.
    4. Take one input image and produce a single output, instead of a batch.
    This is meant for simple demo purposes, so it does the above steps automatically.
    This is not meant for benchmarks or running complicated inference logic.
    If you'd like to do anything more complicated, please refer to its source code as
    examples to build and use the model manually.
    Attributes:
        metadata (Metadata): the metadata of the underlying dataset, obtained from
            cfg.DATASETS.TEST.
    Examples:
    ::
        pred = DefaultPredictor(cfg)
        inputs = cv2.imread("input.jpg")
        outputs = pred(inputs)
    """

    def __init__(self, cfg):
        self.cfg = cfg.clone()  # cfg can be modified by model
        self.model = build_model(self.cfg)  # 获取模型
        self.model.eval()
        if len(cfg.DATASETS.TEST):
            self.metadata = MetadataCatalog.get(cfg.DATASETS.TEST[0])

        checkpointer = DetectionCheckpointer(self.model)
        checkpointer.load(cfg.MODEL.WEIGHTS)

        self.aug = T.ResizeShortestEdge(
            [cfg.INPUT.MIN_SIZE_TEST, cfg.INPUT.MIN_SIZE_TEST], cfg.INPUT.MAX_SIZE_TEST
        )

        self.input_format = cfg.INPUT.FORMAT
        assert self.input_format in ["RGB", "BGR"], self.input_format

    def __call__(self, original_image):
        """
        Args:
            original_image (np.ndarray): an image of shape (H, W, C) (in BGR order).
        Returns:
            predictions (dict):
                the output of the model for one image only.
                See :doc:`/tutorials/models` for details about the format.
        """
        # 将图像处理为BGR格式，通过最长最短边参数cfg.INPUT.MIN_SIZE_TEST、
        # cfg.INPUT.MIN_SIZE_TEST对图像进行resize，再进行模型推理

        with torch.no_grad():  # https://github.com/sphinx-doc/sphinx/issues/4258
            # Apply pre-processing to image.
            if self.input_format == "RGB":
                # whether the model expects BGR inputs or RGB
                original_image = original_image[:, :, ::-1]
            height, width = original_image.shape[:2]
            image = self.aug.get_transform(original_image).apply_image(original_image)
            image = torch.as_tensor(image.astype("float32").transpose(2, 0, 1))

            inputs = {"image": image, "height": height, "width": width}
            predictions = self.model([inputs])[0]
            return

build_model介绍，类似mmdet的注册机制

# detectron2/modeling/meta_arch/build.py
from detectron2.utils.registry import Registry
META_ARCH_REGISTRY = Registry("META_ARCH")  # noqa F401 isort:skip


def build_model(cfg):
    """
    Build the whole model architecture, defined by ``cfg.MODEL.META_ARCHITECTURE``.
    Note that it does not load any weights from ``cfg``.
    """
    meta_arch = cfg.MODEL.META_ARCHITECTURE  # 读取配置文件中的算法名称
    model = META_ARCH_REGISTRY.get(meta_arch)(cfg) # 获取注册的模型
    model.to(torch.device(cfg.MODEL.DEVICE))
    _log_api_usage("modeling.meta_arch." + meta_arch)
    return model

model输出instance内容包含：

num_instance 检测到文本个数

image_height

image_width

fields:

scores:0-1之间的得分，有个参数限制了输出的score阈值

pred_classes：类别，我只标了text，这里全是0，应该可以标多种标签

polygons：点坐标列表，确实是左上角开始顺时针的16个点，可以通过在predictor.py中print(predictions['instances'].polygons.cpu().numpy()[0]查看第一个polygons)

三、数据准备

标签搞成了一个大json，生成格式参考process_positional_label.py。通过process_polygon_positional_label_form处理成作者论文说的从左上角开始的顺时针的16个点的标注，标注格式为COCO。另一个信息是，点的存储路径是annotations的polys下。

process_positional_label.py里做修改的只有annotations，但源码毕竟是当成COCO数据集加载的，所以还有一些其他东西也要加上，具体看下文json大致格式部分。

验证基于自己数据集制作的json文件是否初步符合要求，修改./adet/data/datasets/text.py 增加以下代码并执行实验。这里不报错只能说明大体上对，但请按照下文json大致格式把其他kv补全。

json_file='XXXXX/text_poly_pos.json'
image_root ='XXXXX/test_images'
name = 'mydata_test'   # _PREDEFINED_SPLITS_TEXT  中的对应key
load_text_json(json_file, image_root, name)

标签文件json大致格式为：

{“images”:[{"file_name": "000001.jpg",
            "id": int,
            "height":int,
            "width":int, }],
“categories”:[{"supercategory": "text",    # 不要用别的，配置文件builtin.py指明了是这个
               "id": int,   # 1，0应该是背景
               "name": "text", }],   # 同上
“annotations”:[{"polys":[,,,],# 左上开始顺时针的16个点
                "id": int,   # bbox的ind
                "image_id": int,
                "category_id": int,
                “bbox”:[,,,]}, # xywh格式，这里也可以是xyxy格式的2点box
                “bbox_mode”:BoxMode.XXYY_ABS 或BoxMode.XYWH_ABS },],   # 可去掉，默认是XYWH_ABS。BoxMode是detectrons2的方法，我不知道要怎么写到json里。也可以改下dataset_mapper.py的源码，写成自定义加载转化


}

下面的脚本是源码中的数据处理脚本，可根据自己数据集的情况将label处理为目标格式json

# process_positional_label.py
import numpy as np
import cv2
from tqdm import tqdm
import json
from shapely.geometry import Polygon
import copy
from scipy.special import comb as n_over_k
import torch
import sys


def convert_bezier_ctrl_pts_to_polygon(bez_pts, sample_num_per_side):
    '''
    贝塞尔曲线转格式，主函数没用到，这里仅做提供用
    An example of converting Bezier control points to polygon points for a text instance.
    The generation of Bezier label can be referred to https://github.com/Yuliang-Liu/bezier_curve_text_spotting
    Args:
        bez_pts (np.array): 8 Bezier control points in clockwise order, 4 for each side (top and bottom).
                            The top side is in line with the reading order of this text instance.
                            [x_top_0, y_top_0,.., x_top_3, y_top_3, x_bot_0, y_bot_0,.., x_bot_3, y_bot_3].
        sample_num_per_side (int): Sampled point numbers on each side.
    Returns:
        sampled_polygon (np.array): The polygon points sampled on Bezier curves.
                                    The order is the same as the Bezier control points.
                                    The shape is (2 * sample_num_per_side, 2).
    '''
    Mtk = lambda n, t, k: t ** k * (1 - t) ** (n - k) * n_over_k(n, k)
    BezierCoeff = lambda ts: [[Mtk(3, t, k) for k in range(4)] for t in ts]
    assert (len(bez_pts) == 16), 'The numbr of bezier control points must be 8'
    s1_bezier = bez_pts[:8].reshape((4, 2))
    s2_bezier = bez_pts[8:].reshape((4, 2))
    t_plot = np.linspace(0, 1, sample_num_per_side)
    Bezier_top = np.array(BezierCoeff(t_plot)).dot(s1_bezier)
    Bezier_bottom = np.array(BezierCoeff(t_plot)).dot(s2_bezier)
    sampled_polygon = np.vstack((Bezier_top, Bezier_bottom))
    return sampled_polygon

def roll_pts(in_poly):
    # 为了实现作者所说的标签从左上角开始的创新点，将点的开始位置重排，如将[1,2,3,4,5,6,7,8]转化为[5,6,7,8，1,2,3,4]
    # in_poly (np.array): (2 * sample_num_per_side, 2)
    num = in_poly.shape[0]
    assert num % 2 == 0
    return np.vstack((in_poly[num//2:], in_poly[:num//2])).reshape((-1)).tolist()

def intersec_num_y(polyline, x):
    '''
计算一段折线polyline和一条垂直线x的相交点数量和交点、
    Args:
        polyline: Represent the bottom side of a text instance
        x: Represent a vertical line.
    Returns:
        num: The intersection number of a vertical line and the polyline.
        ys_value: The y values of intersection points.
    '''
    num = 0
    ys_value = []
    for ip in range(7):
        now_x, now_y = polyline[ip][0], polyline[ip][1]
        next_x, next_y = polyline[ip+1][0], polyline[ip+1][1]
        if now_x == x:
            num += 1
            ys_value.append(now_y)
            continue
        xs, ys = [now_x, next_x], [now_y, next_y]
        min_xs, max_xs = min(xs), max(xs)
        if min_xs < x and max_xs > x:
            num += 1
            ys_value.append(((x-now_x)*(next_y-now_y)/(next_x-now_x)) + now_y)
    if polyline[7][0] == x:
        num += 1
        ys_value.append(polyline[7][1])
    assert len(ys_value) == num
    return num, ys_value

def process_polygon_positional_label_form(json_in, json_out):
    '''
    处理成作者论文说的从左上角开始的顺时针的16个点
    A simple implementation of generating the positional label
    form for polygon points. There are still some special
    situations need to be addressed, such as vertical instances
    and instances in "C" shape. Maybe using a rotated box
    proposal could be a better choice. If you want to generate
    the positional label form for Bezier control points, you can
    also firstly sample points on Bezier curves, then use the
    on-curve points referring to this function to decide whether
    to roll the original Bezier control points.
    (By the way, I deem that the "conflict" between point labels
    in the original form also impacts the detector. For example,
    in most cases, the first point appears in the upper left corner.
    If an inverse instance turns up, the first point moves to the
    lower right. Transformer decoders are supervised to address this
    diagonal drift, which is like the noise pulse. It could make the
    prediction unstable, especially for inverse-like instances.
    This may be a limitation of control-point-based methods.
    Segmentation-based methods are free from this issue. And there
    is no need to consider the point order issue when using rotation
    augmentation for segmentation-based methods.)
    Args:
        json_in: The path of the original annotation json file.
        json_out: The output json path.
    '''
    with open(json_in) as f_json_in:
        anno_dict = json.load(f_json_in)
    insts_list = anno_dict['annotations']
    new_insts_list = []
    roll_num = 0  # to count approximate inverse-like instances
    total_num = len(insts_list)
    for inst in tqdm(insts_list):
        new_inst = copy.deepcopy(inst)
        poly = np.array(inst['polys']).reshape((-1, 2))
        # suppose there are 16 points for each instance, 8 for each side
        assert poly.shape[0] == 16  # 每个边缘要求16个点，上8下8。
        is_ccw = Polygon(poly).exterior.is_ccw   #要求是顺时针顺序
        # make all points in clockwise order
        if not is_ccw:
            poly = np.vstack((poly[8:][::-1, :], poly[:8][::-1, :]))
            assert poly.shape == (16,2)

        roll_flag = False
        start_line, end_line = poly[:8], poly[8:][::-1, :]   # 拆成上下2条线

        if min(start_line[:, 1]) > max(end_line[:, 1]):   #倒着的poly
            roll_num += 1
            poly = roll_pts(poly)
            new_inst.update(polys=poly)
            new_insts_list.append(new_inst)
            continue

        # right and left
        if min(start_line[:, 0]) > max(end_line[:, 0]):  #找近似倒的？
            if min(poly[:, 1]) == min(end_line[:, 1]):
                roll_flag = True
            if roll_flag:
                roll_num += 1
                poly = roll_pts(poly)
            if not isinstance(poly, list):
                poly = poly.reshape((-1)).tolist()
            new_inst.update(polys=poly)
            new_insts_list.append(new_inst)
            continue

        # left and right
        if max(start_line[:, 0]) < min(end_line[:, 0]):  #找近似倒的？
            if min(poly[:, 1]) == min(end_line[:, 1]):
                roll_flag = True
            if roll_flag:
                roll_num += 1
                poly = roll_pts(poly)
            if not isinstance(poly, list):
                poly = poly.reshape((-1)).tolist()
            new_inst.update(polys=poly)
            new_insts_list.append(new_inst)
            continue

        for pt in start_line:
            x_value, y_value = pt[0], pt[1]  #找近似倒的？
            intersec_with_end_line_num, intersec_with_end_line_ys = intersec_num_y(end_line, x_value)
            if intersec_with_end_line_num > 0:
                if max(intersec_with_end_line_ys) < y_value:
                    roll_flag = True
                    break
                if min(poly[:, 1]) == min(start_line[:, 1]):
                    roll_flag = False
                    break
        if roll_flag:
            roll_num += 1
            poly = roll_pts(poly)
            new_inst.update(polys=poly)
            new_insts_list.append(new_inst)
        else:
            if not isinstance(poly, list):
                poly = poly.reshape((-1)).tolist()
            new_inst.update(polys=poly)
            new_insts_list.append(new_inst)
    assert len(new_insts_list) == total_num

    anno_dict.update(annotations=new_insts_list)  # 更新
    with open(json_out, mode='w+') as f_json_out:
        json.dump(anno_dict, f_json_out)

    # the approximate inverse-like ratio, the actual ratio should be lower
    print(f'Inverse-like Ratio: {roll_num / total_num * 100: .2f}%. Finished.')


if __name__ == '__main__':
    # an example of processing the positional label form for polygon control points.
    process_polygon_positional_label_form(
        json_in='./datasets/totaltext/train_poly_ori.json',
        json_out='./datasets/totaltext/train_poly_pos_example.json'
    )

四、配置文件

训练时，当成是TotalText数据集，主要有以下几个配置文件

configs/DPText_DETR/TotalText/R_50_poly.yaml

configs/DPText_DETR/Base.yaml

adet/data/builtin.py

detectron2的配置文件

adet/config/defaults.py #对detectron2部分参数的改写

之后可以看看detectron2的CfgNode

注意这个算法工程基于detectron2，是多个配置文件拼接覆盖得到最后的模型配置，如果是在训练测试推理过程中print配置，会发现带出了各种配置参数，包括这个模型不需要用到的nms模块的配置，需要自己甄别。adet/config下还有点配置文件。下面从顶层到底层对该算法涉及到的配置进行说明。

# configs/DPText_DETR/TotalText/R_50_poly.yaml
_BASE_: "../Base.yaml"  # 这里引用了一个基础配置文件

DATASETS:   # builtin.py中指向了对应的图片及json的路径
  TRAIN: ("totaltext_poly_train_rotate_pos",)
  TEST: ("totaltext_poly_test",)  # or "inversetext_test", "totaltext_poly_test_rotate"

MODEL:  # 预训练或finetune模型
  WEIGHTS: "output/r_50_poly/pretrain/model_final.pth"  # or the provided pre-trained model

SOLVER:
  IMS_PER_BATCH: 8   # batch-size
  BASE_LR: 5e-5   # 学习率
  LR_BACKBONE: 5e-6
  WARMUP_ITERS: 0
  STEPS: (16000,) # 学习率调整iter
  MAX_ITER: 20000
  CHECKPOINT_PERIOD: 20000

TEST:
  EVAL_PERIOD: 1000

OUTPUT_DIR: "output/r_50_poly/totaltext/finetune"   # 输出路径

# configs/DPText_DETR/Base.yaml
MODEL:
  META_ARCHITECTURE: "TransformerPureDetector"   # 本算法为TransformerPureDetector
  MASK_ON: False
  PIXEL_MEAN: [123.675, 116.280, 103.530]
  PIXEL_STD: [58.395, 57.120, 57.375]
  BACKBONE:   #backbone 为常见的resnet50
    NAME: "build_resnet_backbone"
  RESNETS:
    DEPTH: 50
    STRIDE_IN_1X1: False
    OUT_FEATURES: ["res3", "res4", "res5"]  # 和Deformable DETR一样，取了ResNet最后三层的特征图C3，C4，C5，
  TRANSFORMER:
    ENABLED: True
    NUM_FEATURE_LEVELS: 4
    ENC_LAYERS: 6
    DEC_LAYERS: 6
    DIM_FEEDFORWARD: 1024
    HIDDEN_DIM: 256
    DROPOUT: 0.1
    NHEADS: 8
    NUM_QUERIES: 100   # 100个切片，限制输出检测框数量，需根据场景调整
    ENC_N_POINTS: 4
    DEC_N_POINTS: 4
    USE_POLYGON: True
    NUM_CTRL_POINTS: 16   # 16个控制点
    EPQM: True
    EFSA: True
    INFERENCE_TH_TEST: 0.4   # 推理时输出bbox的阈值，这个值越小，输出bbox越多，但不是越小越好，注意有时会导致一些重叠的bbox

SOLVER:
  WEIGHT_DECAY: 1e-4
  OPTIMIZER: "ADAMW"
  LR_BACKBONE_NAMES: ['backbone.0']
  LR_LINEAR_PROJ_NAMES: ['reference_points', 'sampling_offsets']
  LR_LINEAR_PROJ_MULT: 0.1
  CLIP_GRADIENTS:
    ENABLED: True
    CLIP_TYPE: "full_model"
    CLIP_VALUE: 0.1
    NORM_TYPE: 2.0

INPUT:
  MIN_SIZE_TRAIN: (480, 512, 544, 576, 608, 640, 672, 704, 736, 768, 800, 832,)
  MAX_SIZE_TRAIN: 1600
  MIN_SIZE_TEST: 1000
  MAX_SIZE_TEST: 1800
  CROP:
    ENABLED: True
    CROP_INSTANCE: False
    SIZE: [0.1, 0.1]
  FORMAT: "RGB"

TEST:
  DET_ONLY: True  # evaluate only detection metrics

# adet/data/builtin.py
# 这个脚本是有一些冗余代码的，我的任务是文本检测，不需要_PREDEFINED_SPLITS_PIC，
# 关注与TEXT相关的_PREDEFINED_SPLITS_TEXT、metadata_text、register_all_coco即可
import os

from detectron2.data.datasets.register_coco import register_coco_instances
from detectron2.data.datasets.builtin_meta import _get_builtin_metadata

from .datasets.text import register_text_instances

# register plane reconstruction

_PREDEFINED_SPLITS_PIC = {
    "pic_person_train": ("pic/image/train", "pic/annotations/train_person.json"),
    "pic_person_val": ("pic/image/val", "pic/annotations/val_person.json"),
}

metadata_pic = {
    "thing_classes": ["person"]
}

# 这里可以去掉这些开源数据集的路径配置，加一个自定义数据集的配置，注意同步修改R_50_poly.yaml
# 训练和测试的图像可以放在一个文件夹，json分开即可
_PREDEFINED_SPLITS_TEXT = {
    # training sets with polygon annotations
    "syntext1_poly_train_pos": ("syntext1/train_images", "syntext1/train_poly_pos.json"),
    "syntext2_poly_train_pos": ("syntext2/train_images", "syntext2/train_poly_pos.json"),
    "mlt_poly_train_pos": ("mlt/train_images","mlt/train_poly_pos.json"),
    "totaltext_poly_train_ori": ("totaltext/train_images_rotate", "totaltext/train_poly_ori.json"),
    "totaltext_poly_train_pos": ("totaltext/train_images_rotate", "totaltext/train_poly_pos.json"),
    "totaltext_poly_train_rotate_ori": ("totaltext/train_images_rotate", "totaltext/train_poly_rotate_ori.json"),
    "totaltext_poly_train_rotate_pos": ("totaltext/train_images_rotate", "totaltext/train_poly_rotate_pos.json"),
    "ctw1500_poly_train_rotate_pos": ("ctw1500/train_images_rotate", "ctw1500/train_poly_rotate_pos.json"),
    "lsvt_poly_train_pos": ("lsvt/train_images","lsvt/train_poly_pos.json"),
    "art_poly_train_pos": ("art/train_images_rotate","art/train_poly_pos.json"),
    "art_poly_train_rotate_pos": ("art/train_images_rotate","art/train_poly_rotate_pos.json"),
    #-------------------------------------------------------------------------------------------------------
    "totaltext_poly_test": ("totaltext/test_images_rotate", "totaltext/test_poly.json"),
    "totaltext_poly_test_rotate": ("totaltext/test_images_rotate", "totaltext/test_poly_rotate.json"),
    "ctw1500_poly_test": ("ctw1500/test_images","ctw1500/test_poly.json"),
    "art_test": ("art/test_images","art/test_poly.json"),
    "inversetext_test": ("inversetext/test_images","inversetext/test_poly.json"),
}

metadata_text = {
    "thing_classes": ["text"]
}


def register_all_coco(root="datasets"):
    for key, (image_root, json_file) in _PREDEFINED_SPLITS_PIC.items():
        # Assume pre-defined datasets live in `./datasets`.
        register_coco_instances(
            key,
            metadata_pic,
            os.path.join(root, json_file) if "://" not in json_file else json_file,
            os.path.join(root, image_root),
        )
    for key, (image_root, json_file) in _PREDEFINED_SPLITS_TEXT.items():
        # Assume pre-defined datasets live in `./datasets`.
        register_text_instances(
            key,
            metadata_text,
            os.path.join(root, json_file) if "://" not in json_file else json_file,
            os.path.join(root, image_root),
        )


register_all_coco()

一些常见的参数调整

• 修改数据集路径及模型路径

在R_50_poly.yaml中的DATASETS指向了builtin.py中具体的数据集路径。在_PREDEFINED_SPLITS_TEXT 中加2行指向自己数据集的标签文件路径，及图像文件文件夹路径。修改R_50_poly.yaml中的DATASETS及MODEL。

• 修改batch_size

我的环境是单张16gGPU，实验后batch size 只能设置为1，修改R_50_poly.yaml中的 IMS_PER_BATCH

• 修改阈值，调整输出效果，解决漏检

用自己的数据集训练模型，出现大量漏检，发现很多不超过100个切片，甚至有张大量漏检的就是获得100个切片，推测有个值为100的超参限制。实验后确实为该参数限制，需根据场景调大Base.yaml中NUM_QUERIES的值。

• 修改阈值，调整输出效果，输出更低score的bbox

调小Base.yaml中INFERENCE_TH_TEST，注意可能导致多检，重复检测出同一个bbox，算法中没有nms模块，其实也就是论文指出的原有方法存在“产生具有不同起始点的假正例”

五、训练

用totalText的配置训练一晚上后，总loss还是有5左右，此时lr已经是5e-6了，而且训练集也有4k+，仔细看了下loss的构成，主要是loss_ctrl_points比较大，于是先推理一下看看效果吧，到底是没收敛还是单纯这个算法的loss大。

推理时GPU内存约使用2.5G，推理加可视化耗时约为0.5s/张，单推理时间（即代码中self.predictor(image)）约为0.2s（0.1s图片resize，0.1s跑模型）。效果不说完美，但是还行不离谱。

需注意：模型保存路径下有last_checkpoint和model_XXXX.pth文件，infer时不能加载这个last_checkpoint文件，会报错说pickle不能load这个文件。

观察下来大致有定位结果了，主要问题包括：

1. 部分漏检，而且训练集也漏检，某种材料漏检明显（后来排查到是超参100的问题）

2. 有些定位大而歪

eval

可以在训练时进行eval（训练时可以eval也可以不eval）；也可以训练完成后单独对text_poly_pos.json里包含的图片进行eval，即README.md中的Evaluation。

数据准备：

eval时除了text_poly_pos.json外还需要一个zip文件，zip中每个txt文件是一张图片的标注。在上文“标签文件json大致格式为”部分描述过json文件中images包含file_name及id。比如我的json文件中id为1、2、3、4，那么zip中txt文件名为0000001.txt、0000002.txt。。。一定要是这个补零后的位数，代码在哪限死的暂时还没看到。txt内每一行为顺时针的box点，形如：0,0,50,0,50,10,0,10,###123。“,###”为分隔符，前为坐标，后为ocr结果。这里不限制点数量。

可从 https://github.com/aim-uofa/AdelaiDet/blob/master/configs/BAText/README.md下载zip文件进行参考。打压缩包时注意不要连文件夹zip进去，在文件夹内部进行打包。

wget -O gt_totaltext.zip https://cloudstor.aarnet.edu.au/plus/s/SFHvin8BLUM4cNd/download

代码改动：

1、 该框架根据_PREDEFINED_SPLITS_TEXT 中的数据集名称加载对应的zip文件，如下的2处代码根据_PREDEFINED_SPLITS_TEXT中的dataset_name，从对应的zip文件中加载数据。

如果没有写自定义dataset_name对应的zip的话，train不影响，只是影响eval。

# adet/evaluation/text_evaluation_det.py
class TextDetEvaluator(DatasetEvaluator):
......省略了一些代码
        # use dataset_name to decide eval_gt_path
        if "rotate" in dataset_name:
            if "totaltext" in dataset_name:
                self._text_eval_gt_path = "datasets/evaluation/gt_totaltext_rotate.zip"
        elif "totaltext" in dataset_name:
            self._text_eval_gt_path = "datasets/evaluation/gt_totaltext.zip"
        elif "ctw1500" in dataset_name:
            self._text_eval_gt_path = "datasets/evaluation/gt_ctw1500.zip"
        elif "art" in dataset_name:
            self._text_eval_gt_path = None
            self.submit = True
        elif "inversetext" in dataset_name:
            self._text_eval_gt_path = "datasets/evaluation/gt_inversetext.zip"
        else:
            raise NotImplementedError

# adet/evaluation/text_evaluation.py
class TextEvaluator(DatasetEvaluator):
......省略了一些代码
         # use dataset_name to decide eval_gt_path
        if "rotate" in dataset_name:
            self._text_eval_gt_path = "datasets/evaluation/gt_totaltext_rotate.zip"
            self._word_spotting = False
        elif "totaltext" in dataset_name:
            self._text_eval_gt_path = "datasets/evaluation/gt_totaltext.zip"
            self._word_spotting = False
        elif "ctw1500" in dataset_name:
            self._text_eval_gt_path = "datasets/evaluation/gt_ctw1500.zip"
            self._word_spotting = False
        elif "icdar2015" in dataset_name:
            self._text_eval_gt_path = "datasets/evaluation/gt_icdar2015.zip"
            self._word_spotting = False
        elif "inversetext" in dataset_name:
            self._text_eval_gt_path = "datasets/evaluation/gt_inversetext.zip"
            self._word_spotting = False
        else:
            self._text_eval_gt_path = ""

2、eval时老是报ccw问题，即提示某个box的点不是顺时针排列的，但是提示出的box又明明是顺时针的，怀疑这里是源码问题，修改后就跑通了。

我把下面的改成了if not pRing.is_ccw:

# adet/evaluation/rrc_evaluation_funcs_det.py
    if pRing.is_ccw:
        assert (0), (
            "Points are not clockwise. The coordinates of bounding quadrilaterals have to be given in clockwise order. Regarding the correct interpretation of 'clockwise' remember that the image coordinate system used is the standard one, with the image origin at the upper left, the X axis extending to the right and Y axis extending downwards.")

eval 时输出3个参数：precision、recall、hmean，其中hmean是F1score调和平均数。

优点：

1、可以把一些特别近甚至有点重合的分开，因为这个方法不是分割而是一系列点。

2、可以表示弯曲的文本

缺点：

1、score阈值放太低可能会同个box重复多检，太高又会漏检，合适的值在0.3-0.4之间

2、落地时最好还是加上nms，否则会有重复文本的问题。

六、模型结构

整套代码挺简洁的，依赖Detectron2后代码量不大。从configs/DPText_DETR/Base.yaml中的model部分即可知模型结构配置，这里不再重复展示。由下可知

 META_ARCHITECTURE: "TransformerPureDetector"   # 本算法为TransformerPureDetector

class TransformerPureDetector中又引用了 class DPText_DERT，TransformerPureDetector实质主要做了一些前后处理的操作，且将backbone和DPText_DERT合在一起，并没有核心的模型代码。

这里先对TransformerPureDetector所在脚本进行说明

# adet/modeling/transformer_detector.py
from typing import List
import numpy as np
import torch
from torch import nn

from detectron2.modeling.meta_arch.build import META_ARCH_REGISTRY
from detectron2.modeling import build_backbone
from detectron2.structures import ImageList, Instances

from adet.layers.pos_encoding import PositionalEncoding2D
from adet.modeling.dptext_detr.losses import SetCriterion
from adet.modeling.dptext_detr.matcher import build_matcher
from adet.modeling.dptext_detr.models import DPText_DETR
from adet.utils.misc import NestedTensor, box_xyxy_to_cxcywh

# 获得输入的backbone输出及其PE结果
class Joiner(nn.Sequential):
    def __init__(self, backbone, position_embedding):
        super().__init__(backbone, position_embedding)

    def forward(self, tensor_list: NestedTensor):
        # self[0]为backbone
        # self[1]position_embedding
        #  结构图左下角，将backbone的输出和位置编码连接起来
        xs = self[0](tensor_list)
        out: List[NestedTensor] = []
        pos = []
        for _, x in xs.items(): # 对每项进行position_embedding
            out.append(x)
            # position encoding
            pos.append(self[1](x).to(x.tensors.dtype))

        return out, pos

# 获得多层特征及其mask
class MaskedBackbone(nn.Module):
    """ This is a thin wrapper around D2's backbone to provide padding masking"""
    def __init__(self, cfg):
        super().__init__()
        self.backbone = build_backbone(cfg)
        backbone_shape = self.backbone.output_shape()
        self.feature_strides = [backbone_shape[f].stride for f in backbone_shape.keys()]
        self.num_channels = backbone_shape[list(backbone_shape.keys())[-1]].channels

    def forward(self, images):
        features = self.backbone(images.tensor)
        masks = self.mask_out_padding(
            [features_per_level.shape for features_per_level in features.values()],
            images.image_sizes,
            images.tensor.device,
        )
        assert len(features) == len(masks)
        for i, k in enumerate(features.keys()):
            features[k] = NestedTensor(features[k], masks[i])  # 封装在一起
        return features

    def mask_out_padding(self, feature_shapes, image_sizes, device):
        masks = []
        assert len(feature_shapes) == len(self.feature_strides)
        for idx, shape in enumerate(feature_shapes):  # batch层循环
            N, _, H, W = shape
            masks_per_feature_level = torch.ones((N, H, W), dtype=torch.bool, device=device)
            for img_idx, (h, w) in enumerate(image_sizes):  # 每张图的多尺度
                masks_per_feature_level[
                    img_idx,
                    : int(np.ceil(float(h) / self.feature_strides[idx])),
                    : int(np.ceil(float(w) / self.feature_strides[idx])),
                ] = 0
            masks.append(masks_per_feature_level)
        return masks


def detector_postprocess(results, output_height, output_width):
    # 反归一化为output的尺寸，注意这里有output和results的2套hw尺寸
    scale_x, scale_y = (output_width / results.image_size[1], output_height / results.image_size[0])

    if results.has("beziers"):
        beziers = results.beziers
        # scale and clip in place
        h, w = results.image_size
        beziers[:, 0].clamp_(min=0, max=w)
        beziers[:, 1].clamp_(min=0, max=h)
        beziers[:, 6].clamp_(min=0, max=w)
        beziers[:, 7].clamp_(min=0, max=h)
        beziers[:, 8].clamp_(min=0, max=w)
        beziers[:, 9].clamp_(min=0, max=h)
        beziers[:, 14].clamp_(min=0, max=w)
        beziers[:, 15].clamp_(min=0, max=h)
        beziers[:, 0::2] *= scale_x
        beziers[:, 1::2] *= scale_y

    # scale point coordinates
    if results.has("polygons"):
        polygons = results.polygons
        polygons[:, 0::2] *= scale_x
        polygons[:, 1::2] *= scale_y

    return results


@META_ARCH_REGISTRY.register()
class TransformerPureDetector(nn.Module):
    def __init__(self, cfg):
        super().__init__()
        self.device = torch.device(cfg.MODEL.DEVICE)

        d2_backbone = MaskedBackbone(cfg)  # 获得图像多层特征及mask的模型
        N_steps = cfg.MODEL.TRANSFORMER.HIDDEN_DIM // 2   # 256//2
        self.test_score_threshold = cfg.MODEL.TRANSFORMER.INFERENCE_TH_TEST  # 0.4
        self.use_polygon = cfg.MODEL.TRANSFORMER.USE_POLYGON  # True
        self.num_ctrl_points = cfg.MODEL.TRANSFORMER.NUM_CTRL_POINTS  # 16
        assert self.use_polygon and self.num_ctrl_points == 16  # only the polygon version is released now
        backbone = Joiner(d2_backbone, PositionalEncoding2D(N_steps, normalize=True))
        backbone.num_channels = d2_backbone.num_channels
        self.dptext_detr = DPText_DETR(cfg, backbone)   # 传入配置文件及多层cnn+position emb

        box_matcher, point_matcher = build_matcher(cfg)

        loss_cfg = cfg.MODEL.TRANSFORMER.LOSS
        weight_dict = {'loss_ce': loss_cfg.POINT_CLASS_WEIGHT, 'loss_ctrl_points': loss_cfg.POINT_COORD_WEIGHT}
        enc_weight_dict = {
            'loss_bbox': loss_cfg.BOX_COORD_WEIGHT,
            'loss_giou': loss_cfg.BOX_GIOU_WEIGHT,
            'loss_ce': loss_cfg.BOX_CLASS_WEIGHT
        }
        if loss_cfg.AUX_LOSS:
            aux_weight_dict = {}   # 辅助损失
            # decoder aux loss
            for i in range(cfg.MODEL.TRANSFORMER.DEC_LAYERS - 1):
                aux_weight_dict.update(
                    {k + f'_{i}': v for k, v in weight_dict.items()})
            # encoder aux loss
            aux_weight_dict.update(
                {k + f'_enc': v for k, v in enc_weight_dict.items()})
            weight_dict.update(aux_weight_dict)

        enc_losses = ['labels', 'boxes']
        dec_losses = ['labels', 'ctrl_points']

        self.criterion = SetCriterion(
            self.dptext_detr.num_classes,
            box_matcher,
            point_matcher,
            weight_dict,
            enc_losses,
            dec_losses,
            self.dptext_detr.num_ctrl_points,
            focal_alpha=loss_cfg.FOCAL_ALPHA,
            focal_gamma=loss_cfg.FOCAL_GAMMA
        )

        pixel_mean = torch.Tensor(cfg.MODEL.PIXEL_MEAN).to(self.device).view(3, 1, 1)
        pixel_std = torch.Tensor(cfg.MODEL.PIXEL_STD).to(self.device).view(3, 1, 1)
        self.normalizer = lambda x: (x - pixel_mean) / pixel_std
        self.to(self.device)

    def preprocess_image(self, batched_inputs):
        """
        Normalize, pad and batch the input images.
        """
        images = [self.normalizer(x["image"].to(self.device)) for x in batched_inputs]
        images = ImageList.from_tensors(images)  # from detectron2.structures import ImageList
        return images

    def forward(self, batched_inputs):
        """
        Args:
            batched_inputs: a list, batched outputs of :class:`DatasetMapper` .
                Each item in the list contains the inputs for one image.
                For now, each item in the list is a dict that contains:
                * image: Tensor, image in (C, H, W) format.
                * instances (optional): groundtruth :class:`Instances`
                * proposals (optional): :class:`Instances`, precomputed proposals.
                Other information that's included in the original dicts, such as:
                * "height", "width" (int): the output resolution of the model, used in inference.
                  See :meth:`postprocess` for details.
        Returns:
            list[dict]:
                Each dict is the output for one input image.
                The dict contains one key "instances" whose value is a :class:`Instances`.
                The :class:`Instances` object has the following keys:
                "scores", "pred_classes", "polygons"
        """
        # 一个batch的图片归一化及pad等操作
        images = self.preprocess_image(batched_inputs)
        if self.training:
            gt_instances = [x["instances"].to(self.device) for x in batched_inputs]
            targets = self.prepare_targets(gt_instances)
            output = self.dptext_detr(images)
            # compute the loss
            loss_dict = self.criterion(output, targets)
            weight_dict = self.criterion.weight_dict
            for k in loss_dict.keys():
                if k in weight_dict:
                    loss_dict[k] *= weight_dict[k]
            return loss_dict
        else:
            # Transformer等模型操作
            output = self.dptext_detr(images)
            ctrl_point_cls = output["pred_logits"]
            ctrl_point_coord = output["pred_ctrl_points"]
            # 根据score过滤、反归一化
            results = self.inference(ctrl_point_cls, ctrl_point_coord, images.image_sizes)
            processed_results = []
            for results_per_image, input_per_image, image_size in zip(results, batched_inputs, images.image_sizes):
                height = input_per_image.get("height", image_size[0])
                width = input_per_image.get("width", image_size[1])
                # 反归一化2
                r = detector_postprocess(results_per_image, height, width)
                processed_results.append({"instances": r})
            return processed_results

    def prepare_targets(self, targets):
        new_targets = []
        for targets_per_image in targets:
            h, w = targets_per_image.image_size
            image_size_xyxy = torch.as_tensor([w, h, w, h], dtype=torch.float, device=self.device)
            gt_classes = targets_per_image.gt_classes
            gt_boxes = targets_per_image.gt_boxes.tensor / image_size_xyxy
            gt_boxes = box_xyxy_to_cxcywh(gt_boxes)
            raw_ctrl_points = targets_per_image.polygons if self.use_polygon else targets_per_image.beziers
            gt_ctrl_points = raw_ctrl_points.reshape(-1, self.dptext_detr.num_ctrl_points, 2) / \
                             torch.as_tensor([w, h], dtype=torch.float, device=self.device)[None, None, :]
            gt_ctrl_points = torch.clamp(gt_ctrl_points[:,:,:2], 0, 1)
            new_targets.append(
                {"labels": gt_classes, "boxes": gt_boxes, "ctrl_points": gt_ctrl_points}
            )
        return new_targets

    def inference(self, ctrl_point_cls, ctrl_point_coord, image_sizes):
        assert len(ctrl_point_cls) == len(image_sizes)
        results = []

        prob = ctrl_point_cls.mean(-2).sigmoid()
        scores, labels = prob.max(-1)

        for scores_per_image, labels_per_image, ctrl_point_per_image, image_size in zip(
                scores, labels, ctrl_point_coord, image_sizes
        ):
            selector = scores_per_image >= self.test_score_threshold  # 阈值过滤
            scores_per_image = scores_per_image[selector]
            labels_per_image = labels_per_image[selector]
            ctrl_point_per_image = ctrl_point_per_image[selector]

            result = Instances(image_size)   # 设定的输出格式
            result.scores = scores_per_image
            result.pred_classes = labels_per_image
            ctrl_point_per_image[..., 0] *= image_size[1]  # 反归一化
            ctrl_point_per_image[..., 1] *= image_size[0]
            if self.use_polygon:   # 展平
                result.polygons = ctrl_point_per_image.flatten(1)
            else:
                result.beziers = ctrl_point_per_image.flatten(1)
            results.append(result)

        return results

DPText_DETR流程：backbone——256通道处理——DeformableTransformer_Det——拿到编码器输出、解码器输出、辅助损失参考信息

# adet/modeling/dptext_detr/models.py
import numpy as np
import torch
from torch import nn
import torch.nn.functional as F
from adet.layers.deformable_transformer import DeformableTransformer_Det
from adet.utils.misc import NestedTensor, inverse_sigmoid_offset, nested_tensor_from_tensor_list, sigmoid_offset
from .utils import MLP


class DPText_DETR(nn.Module):
    def __init__(self, cfg, backbone):
        super().__init__()
        self.device = torch.device(cfg.MODEL.DEVICE)

        self.backbone = backbone

        self.d_model = cfg.MODEL.TRANSFORMER.HIDDEN_DIM  # 256
        self.nhead = cfg.MODEL.TRANSFORMER.NHEADS   # 8
        self.num_encoder_layers = cfg.MODEL.TRANSFORMER.ENC_LAYERS  # 6
        self.num_decoder_layers = cfg.MODEL.TRANSFORMER.DEC_LAYERS   # 6
        self.dim_feedforward = cfg.MODEL.TRANSFORMER.DIM_FEEDFORWARD   #1024
        self.dropout = cfg.MODEL.TRANSFORMER.DROPOUT   #0.1
        self.activation = "relu"
        self.return_intermediate_dec = True
        self.num_feature_levels = cfg.MODEL.TRANSFORMER.NUM_FEATURE_LEVELS   # 4
        self.dec_n_points = cfg.MODEL.TRANSFORMER.ENC_N_POINTS  # 4
        self.enc_n_points = cfg.MODEL.TRANSFORMER.DEC_N_POINTS   # 4
        self.num_proposals = cfg.MODEL.TRANSFORMER.NUM_QUERIES   #100
        self.pos_embed_scale = cfg.MODEL.TRANSFORMER.POSITION_EMBEDDING_SCALE   # 6.28xxx
        self.num_ctrl_points = cfg.MODEL.TRANSFORMER.NUM_CTRL_POINTS   # 16
        self.num_classes = 1  # only text
        self.sigmoid_offset = not cfg.MODEL.TRANSFORMER.USE_POLYGON  # True

        self.epqm = cfg.MODEL.TRANSFORMER.EPQM  # True 显式查询
        self.efsa = cfg.MODEL.TRANSFORMER.EFSA  # True 增强因子自注意力
        self.ctrl_point_embed = nn.Embedding(self.num_ctrl_points, self.d_model)  # 16，256,

        self.transformer = DeformableTransformer_Det(
            d_model=self.d_model,
            nhead=self.nhead,
            num_encoder_layers=self.num_encoder_layers,
            num_decoder_layers=self.num_decoder_layers,
            dim_feedforward=self.dim_feedforward,
            dropout=self.dropout,
            activation=self.activation,
            return_intermediate_dec=self.return_intermediate_dec,
            num_feature_levels=self.num_feature_levels,
            dec_n_points=self.dec_n_points,
            enc_n_points=self.enc_n_points,
            num_proposals=self.num_proposals,
            num_ctrl_points=self.num_ctrl_points,
            epqm=self.epqm,
            efsa=self.efsa
        )
        # 解码器
        self.ctrl_point_class = nn.Linear(self.d_model, self.num_classes)  # 256，1
        self.ctrl_point_coord = MLP(self.d_model, self.d_model, 2, 3)# 分别为输入层维度、隐藏层维度、输出层维度、层数
        # 编码器
        self.bbox_coord = MLP(self.d_model, self.d_model, 4, 3)
        self.bbox_class = nn.Linear(self.d_model, self.num_classes)

        if self.num_feature_levels > 1:  # 4>1
            strides = [8, 16, 32]   # C3、C4、C5下采样率对应为8、16、32
            num_channels = [512, 1024, 2048]
            num_backbone_outs = len(strides)  # 3
            input_proj_list = []
            for _ in range(num_backbone_outs):
                in_channels = num_channels[_]
                input_proj_list.append(
                    nn.Sequential(   # 将不同的输入通道[512, 1024, 2048]统一为256
                        nn.Conv2d(in_channels, self.d_model, kernel_size=1),
                        nn.GroupNorm(32, self.d_model),
                    )
                )
            for _ in range(self.num_feature_levels - num_backbone_outs):
                input_proj_list.append(
                    nn.Sequential(  # 也是加上一个Conv3x3 Stride2的卷积得到下采样率为64的C6
                        nn.Conv2d(in_channels, self.d_model,kernel_size=3, stride=2, padding=1),
                        nn.GroupNorm(32, self.d_model),
                    )
                )
                in_channels = self.d_model
            self.input_proj = nn.ModuleList(input_proj_list)
        else:
            strides = [32]
            num_channels = [2048]
            self.input_proj = nn.ModuleList([
                nn.Sequential(
                    nn.Conv2d(num_channels[0], self.d_model, kernel_size=1),
                    nn.GroupNorm(32, self.d_model),
                )
            ])
        self.aux_loss = cfg.MODEL.TRANSFORMER.AUX_LOSS
        # ctrl_point_class及bbox_class一些参数的初始化
        prior_prob = 0.01
        bias_value = -np.log((1 - prior_prob) / prior_prob)
        self.ctrl_point_class.bias.data = torch.ones(self.num_classes) * bias_value
        self.bbox_class.bias.data = torch.ones(self.num_classes) * bias_value
        nn.init.constant_(self.ctrl_point_coord.layers[-1].weight.data, 0)
        nn.init.constant_(self.ctrl_point_coord.layers[-1].bias.data, 0)

        for proj in self.input_proj:
            nn.init.xavier_uniform_(proj[0].weight, gain=1)   # 使输入输出方差一样
            nn.init.constant_(proj[0].bias, 0)   # 常量填充

        # ctrl_point_class及ctrl_point_coord 是解码器的
        num_pred = self.num_decoder_layers  # 6
        self.ctrl_point_class = nn.ModuleList([self.ctrl_point_class for _ in range(num_pred)])
        self.ctrl_point_coord = nn.ModuleList([self.ctrl_point_coord for _ in range(num_pred)])
        if self.epqm:    # 显示查询， epqm就是过一个多层MLP？
            self.transformer.decoder.ctrl_point_coord = self.ctrl_point_coord
        self.transformer.decoder.bbox_embed = None

        # bbox_class及bbox_coord是编码器的
        nn.init.constant_(self.bbox_coord.layers[-1].bias.data[2:], 0.0)
        self.transformer.bbox_class_embed = self.bbox_class
        self.transformer.bbox_embed = self.bbox_coord

        self.to(self.device)

    def forward(self, samples: NestedTensor):
        """ The forward expects a NestedTensor, which consists of:
               - samples.tensor: batched images, of shape [batch_size x 3 x H x W]
               - samples.mask: a binary mask of shape [batch_size x H x W], containing 1 on padded pixels
        """
        if isinstance(samples, (list, torch.Tensor)):
            # 将一个batch的图片处理成一样的宽高，并获得mask
            samples = nested_tensor_from_tensor_list(samples)

        features, pos = self.backbone(samples)
        """
        d2_backbone = MaskedBackbone(cfg)  # 获得图像多层特征及mask的模型

        backbone = Joiner(d2_backbone, PositionalEncoding2D(N_steps, normalize=True))
        backbone.num_channels = d2_backbone.num_channels
        self.dptext_detr = DPText_DETR(cfg, backbone)
        由上述代码可知， self.backbone是个Joiner类，由samples先过d2_backbone得到features，
        再由PE2D得到pos。需注意的是这里虽然samples包含mask，但MaskedBackbone的forward里似乎
        只用了.tensor及.image_sizes，没用.mask？参考MaskedBackbone的forward
        def forward(self, images):
            features = self.backbone(images.tensor)
            masks = self.mask_out_padding(
            [features_per_level.shape for features_per_level in features.values()],
            images.image_sizes,
            images.tensor.device,
        )
        backbone输入输出总结:
        self.backbone= Joiner(d2_backbone, PositionalEncoding2D)
                     =Joiner(MaskedBackbone(cfg), PositionalEncoding2D)
        输入：cfg、images.tensor、images.image_sizes
        输出：MaskedBackbone输出features 各层features[k] = NestedTensor(features[k], masks[i])
            PositionalEncoding2D 输出pos
        """
        if self.num_feature_levels == 1:
            raise NotImplementedError

        srcs = []
        masks = []
        # 每层进行转256通道的操作，共4层
        for l, feat in enumerate(features):
            src, mask = feat.decompose() # 这里也可以看出features的构成包含mask
            srcs.append(self.input_proj[l](src))
            masks.append(mask)
            assert mask is not None
        if self.num_feature_levels > len(srcs): # 4>4 应该没执行这个if下的操作
            _len_srcs = len(srcs)
            for l in range(_len_srcs, self.num_feature_levels):
                if l == _len_srcs:
                    src = self.input_proj[l](features[-1].tensors)
                else:
                    src = self.input_proj[l](srcs[-1])
                m = masks[0]
                mask = F.interpolate(m[None].float(), size=src.shape[-2:]).to(torch.bool)[0]
                pos_l = self.backbone[1](NestedTensor(src, mask)).to(src.dtype)
                srcs.append(src)
                masks.append(mask)
                pos.append(pos_l)

        # n_pts, embed_dim --> n_q, n_pts, embed_dim 每个query都要配一个控制点embed
        # self.ctrl_point_embed = nn.Embedding(self.num_ctrl_points, self.d_model)  # 16，256,
        ctrl_point_embed = self.ctrl_point_embed.weight[None, ...].repeat(self.num_proposals, 1, 1)
        # 核心操作
        #  self.transformer = DeformableTransformer_Det(...)
        hs, init_reference, inter_references, enc_outputs_class, enc_outputs_coord_unact = self.transformer(
            srcs, masks, pos, ctrl_point_embed
        )
        """
        DeformableTransformer_Det
        输入：
        srcs 多尺度特征图
        masks
        pos 2d位置编码信息
        ctrl_point_embed Embedding生成的Query
        输出：
        hs 解码器各层输出
        init_reference 初始化参考点
        inter_references 中间生成的参考点，即可能经过了偏移修正
        enc_outputs_class 编码器输出class
        enc_outputs_coord_unact 编码器输出坐标
        """

        outputs_classes = []
        outputs_coords = []
        # 对每层解码器进行循环
        for lvl in range(hs.shape[0]):  # 注意这里最外层是lvl不是batchsize，hs.shape[0]应该是6
            # 解码器各层的输入参考点
            if lvl == 0:
                reference = init_reference
            else:
                reference = inter_references[lvl - 1]
            # sigmoid的反函数
            reference = inverse_sigmoid_offset(reference, offset=self.sigmoid_offset)
            outputs_class = self.ctrl_point_class[lvl](hs[lvl])
            tmp = self.ctrl_point_coord[lvl](hs[lvl]) # 坐标xy偏移量
            """
self.ctrl_point_class = nn.Linear(self.d_model, self.num_classes)  # 256，1
self.ctrl_point_coord = MLP(self.d_model, self.d_model, 2, 3)# 分别为输入层维度、隐藏层维度、输出层维度、层数
num_pred = self.num_decoder_layers  # 6
self.ctrl_point_class = nn.ModuleList([self.ctrl_point_class for _ in range(num_pred)])
self.ctrl_point_coord = nn.ModuleList([self.ctrl_point_coord for _ in range(num_pred)])

Sigmoid就是1 / (1 + e**-x)。inverse_sigmoid_offset对它进行反转，就是-ln(x /(1- x))。
出于数值稳定性的目的，这里还用了1e-5
def inverse_sigmoid_offset(x, eps=1e-5, offset=True):
    if offset:
        x = (x + 0.5) / 2.0
    return inverse_sigmoid(x, eps)
def inverse_sigmoid(x, eps=1e-5):
    x = x.clamp(min=0, max=1)
    x1 = x.clamp(min=eps)
    x2 = (1 - x).clamp(min=eps)
    return torch.log(x1/x2)

            """

            if reference.shape[-1] == 2:  # 固定的参考点
                if self.epqm:
                    tmp += reference  # 参考点+预测的偏移量=更新后的xy
                else:
                    tmp += reference[:, :, None, :]
            else:  # Iterative bbox，解码器每层都进行预测传给下层做query及参考点
                assert reference.shape[-1] == 4
                if self.epqm:
                    tmp += reference[..., :2]  # :2表示xy更新，wh不更新
                else:
                    tmp += reference[:, :, None, :2]
            # tmp为每层解码器预测的xy，可以用来算损失的
            outputs_coord = sigmoid_offset(tmp, offset=self.sigmoid_offset)
            outputs_classes.append(outputs_class)
            outputs_coords.append(outputs_coord)

        outputs_class = torch.stack(outputs_classes)
        outputs_coord = torch.stack(outputs_coords)
        # [-1] 表明只要最后一个解码器的输出作为out，其他只是用来计算aux_loss
        out = {'pred_logits': outputs_class[-1], 'pred_ctrl_points': outputs_coord[-1]}

        if self.aux_loss:  # 辅助损失中[:-1]去掉了最后一层
            out['aux_outputs'] = self._set_aux_loss(outputs_class, outputs_coord)

        enc_outputs_coord = enc_outputs_coord_unact.sigmoid()
        out['enc_outputs'] = {'pred_logits': enc_outputs_class, 'pred_boxes': enc_outputs_coord}

        return out

    @torch.jit.unused
    def _set_aux_loss(self, outputs_class, outputs_coord):
        # this is a workaround to make torchscript happy, as torchscript
        # doesn't support dictionary with non-homogeneous values, such
        # as a dict having both a Tensor and a list.
        return [
            {'pred_logits': a, 'pred_ctrl_points': b} for a, b in zip(outputs_class[:-1], outputs_coord[:-1])
        ]

七、其他代码解读

在代码库中还推荐了DeepSOLO，但这是用transformer同时做检测识别，中文场景没啥用。

由于csdn文章长了后很卡，还有一些代码见《DPText-DETR原理及源码解读(二)》
