UE5 独立程序的网络TCP/UDP服务器与客户端基础流程

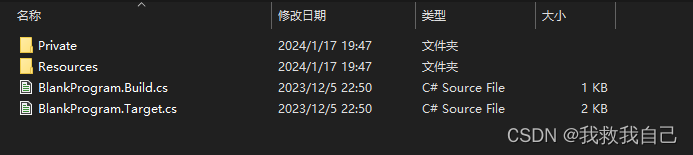

引擎源码版，复制\Engine\Source\Programs\路径下的BlankProgram空项目示例。

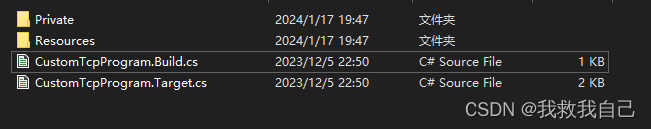

重命名BlankProgram，例如CustomTcpProgram，并修改项目名称。

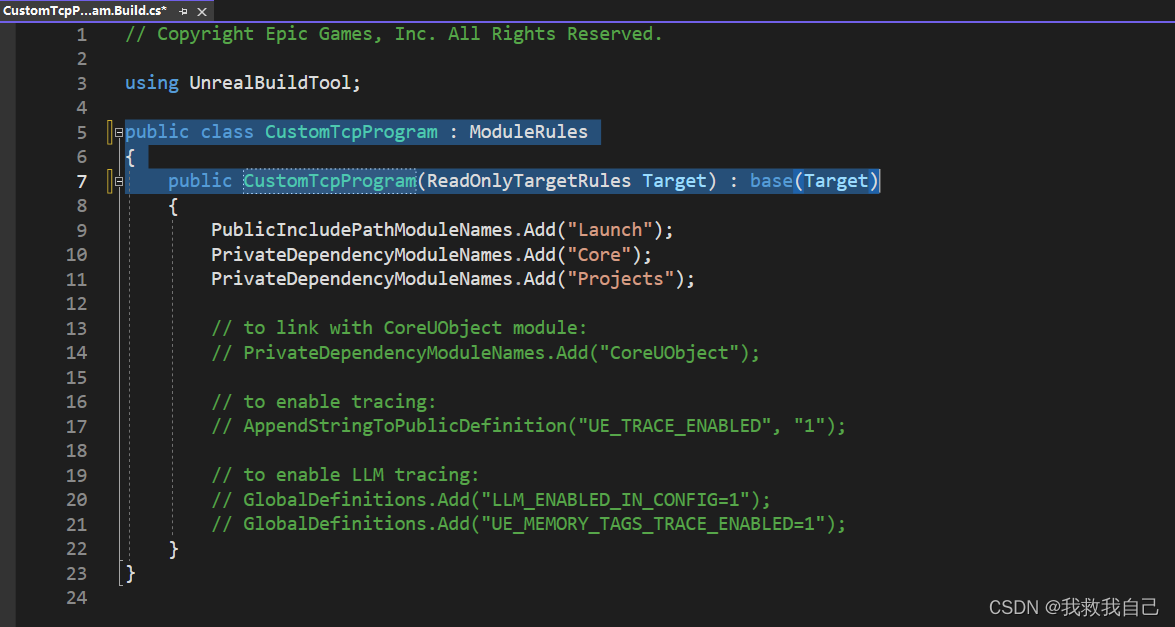

 修改.Build.cs内容

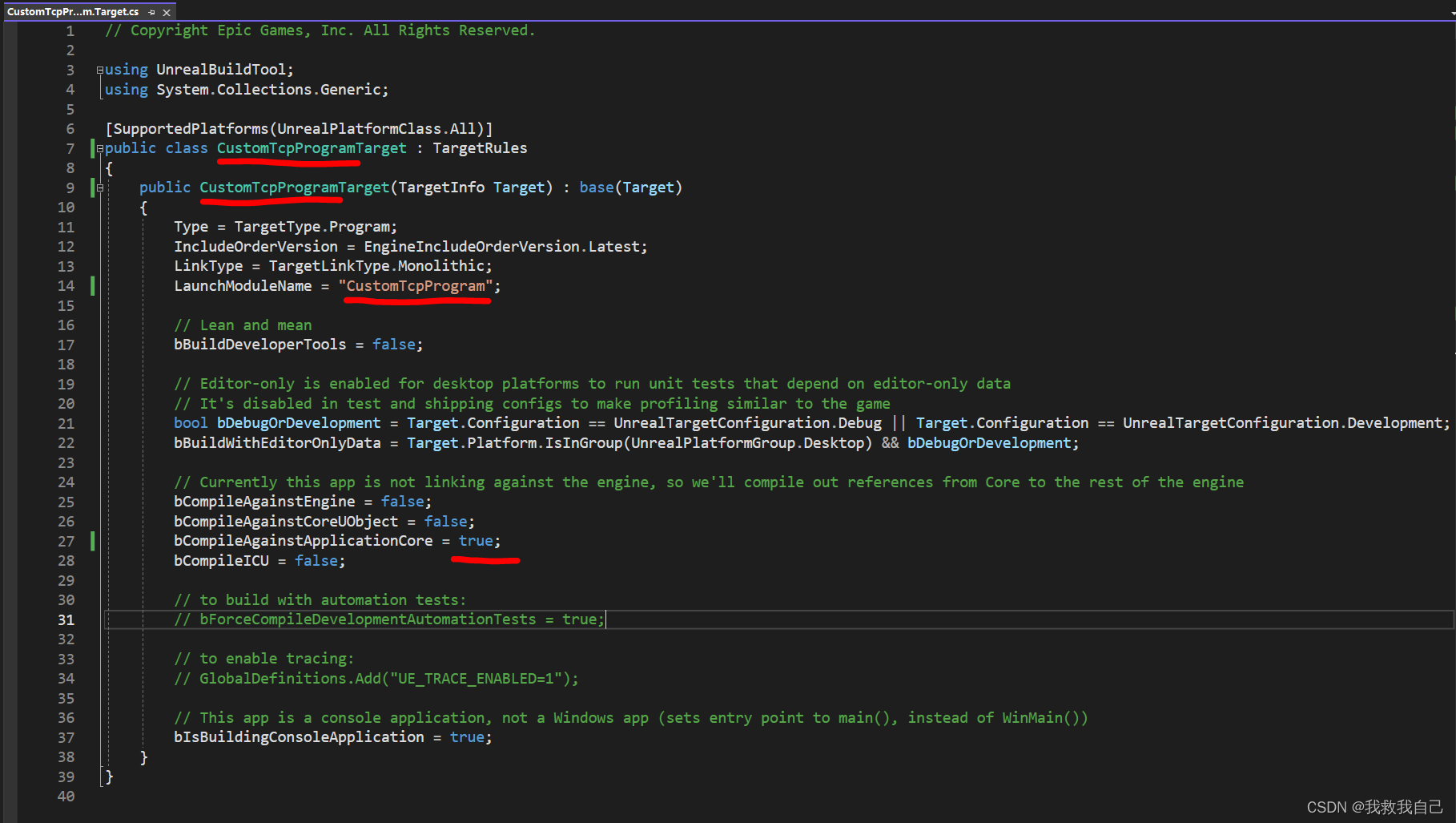

修改Target.cs内容

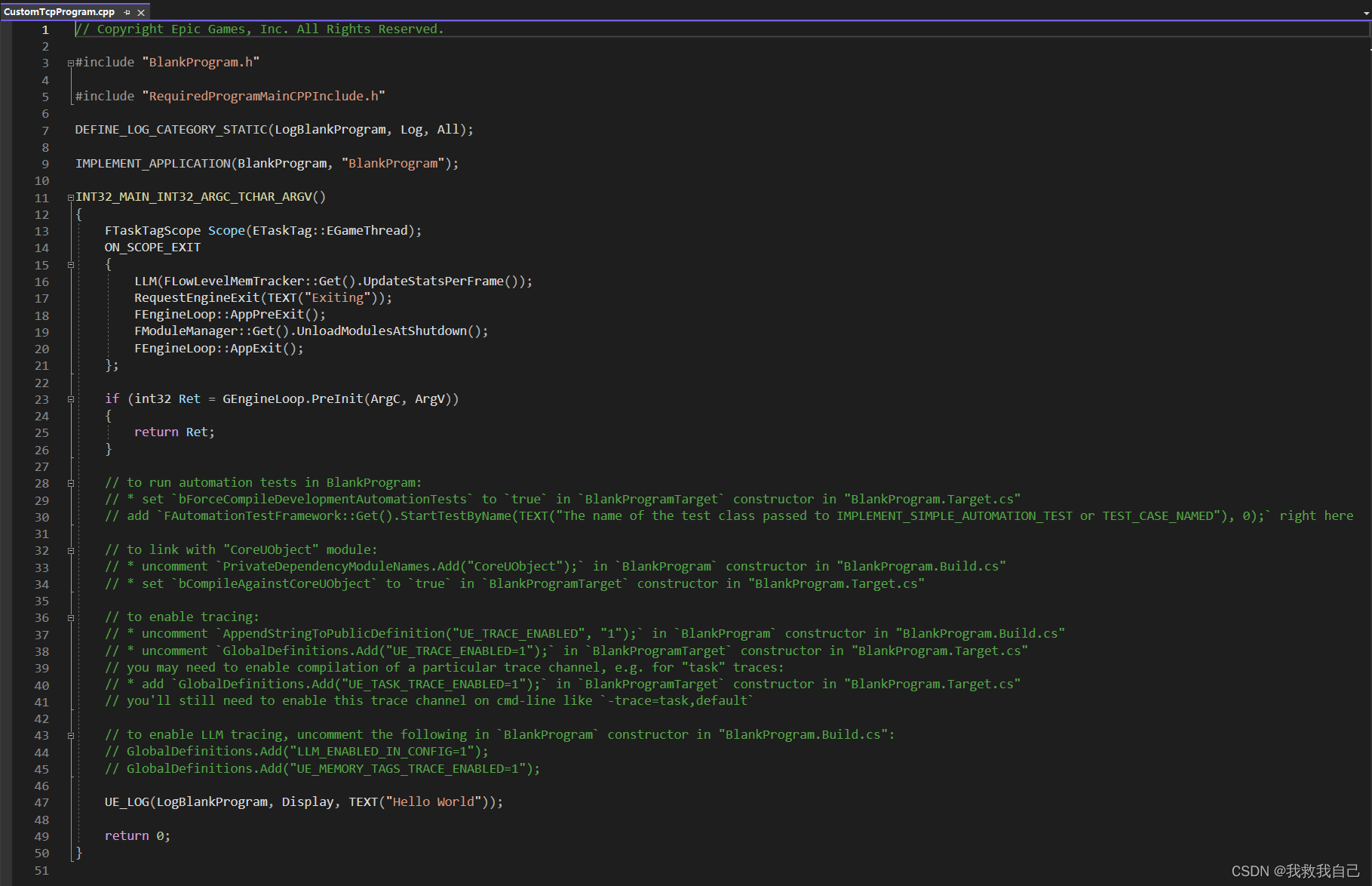

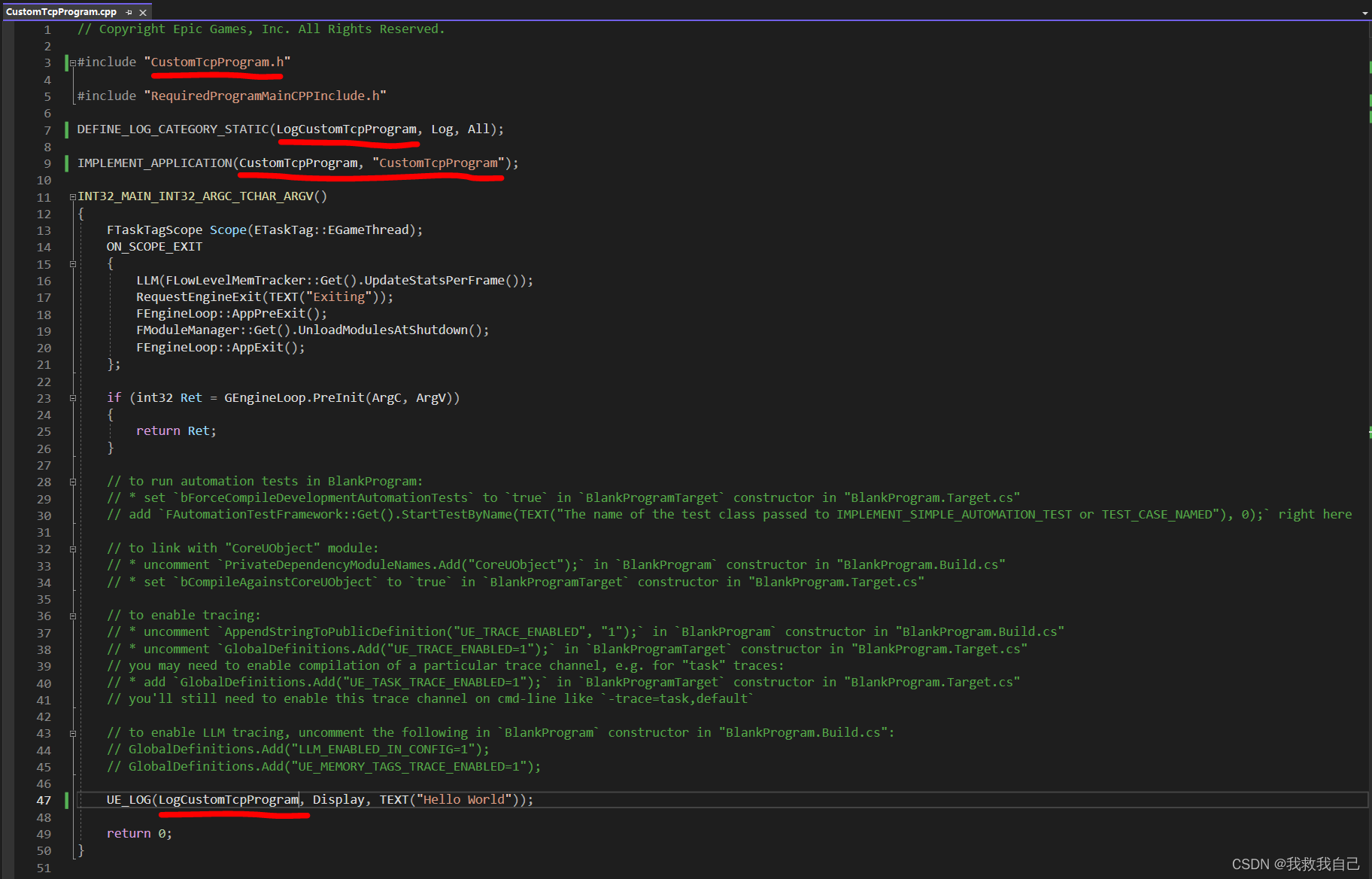

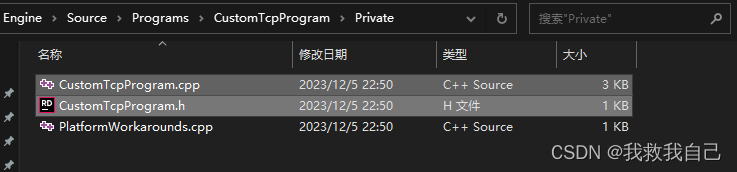

 修改Private文件夹内.h.cpp文件名并修改.cpp内容

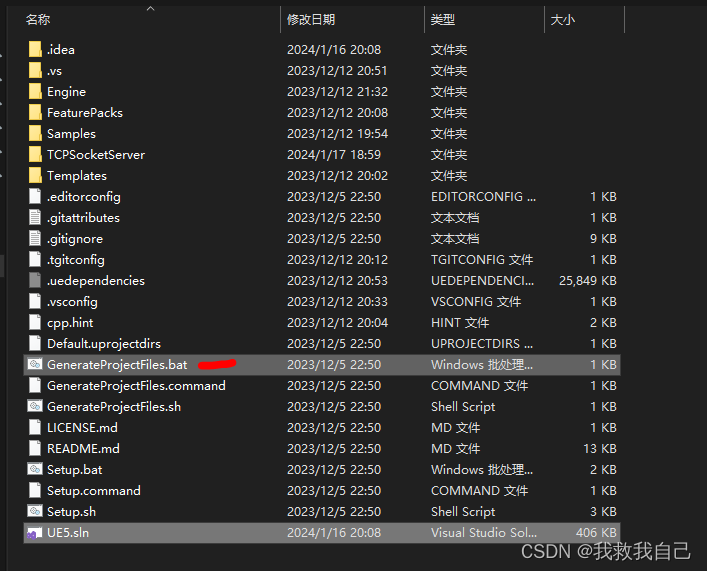

刷新引擎

在项目.Build.cs中加入模块

// Copyright Epic Games, Inc. All Rights Reserved.

using UnrealBuildTool;

public class TCPSocketServer : ModuleRules
{
	public TCPSocketServer(ReadOnlyTargetRules Target) : base(Target)
	{
		PublicIncludePathModuleNames.Add("Launch");
		PrivateDependencyModuleNames.Add("Core");
		PrivateDependencyModuleNames.Add("Projects");
        //加入网络模块
		PrivateDependencyModuleNames.Add("Sockets");
		PrivateDependencyModuleNames.Add("ApplicationCore");

		// to link with CoreUObject module:
		// PrivateDependencyModuleNames.Add("CoreUObject");

		// to enable tracing:
		// AppendStringToPublicDefinition("UE_TRACE_ENABLED", "1");

		// to enable LLM tracing:
		// GlobalDefinitions.Add("LLM_ENABLED_IN_CONFIG=1");
		// GlobalDefinitions.Add("UE_MEMORY_TAGS_TRACE_ENABLED=1");
	}
}

 .cpp

// Copyright Epic Games, Inc. All Rights Reserved.

#include "TCPSocketServer.h"

#include "RequiredProgramMainCPPInclude.h"
#include "Sockets.h"
#include "SocketSubsystem.h"

DEFINE_LOG_CATEGORY_STATIC(LogTCPSocketServer, Log, All);

IMPLEMENT_APPLICATION(TCPSocketServer, "TCPSocketServer");

INT32_MAIN_INT32_ARGC_TCHAR_ARGV()
{
	//应用初始化设置
	GEngineLoop.PreInit(ArgC,ArgV);

	// 获取网络套接字子系统
	ISocketSubsystem* SocketSubsystem = ISocketSubsystem::Get(PLATFORM_SOCKETSUBSYSTEM);
	// 创建一个TCP类型的套接字，命名为"This TcpIp Type"
	FSocket* Socket = SocketSubsystem->CreateSocket(NAME_Stream,TEXT("This TcpIp Type"));

	// 创建一个互联网地址对象，用于指定服务器的IP地址和端口号
	TSharedPtr<FInternetAddr> Addr = SocketSubsystem->CreateInternetAddr();

	Addr->SetPort(8888);

	bool bIsValid = false;
	Addr->SetIp(TEXT("127.0.0.1"),bIsValid);

	Socket->Bind(*Addr);

	Socket->Listen(128);

	while (true)
	{
		// 接受一个新的客户端连接请求，并返回一个新的套接字对象来表示这个连接
		FSocket* ClinetSocket = Socket->Accept(TEXT("ClinetConnect"));

		// 创建一个字节数组用于存储接收到的数据
		uint8 Buf[1024]{0};
		//存储实际读取到的字节数
		int32 BytesRead = 0;

		// 从客户端套接字读取数据到Buf数组中，最多读取1024字节，并将实际读取的字节数存储在BytesRead中
		ClinetSocket->Recv(Buf,1024,BytesRead);

		// 将接收到的字节数组转换为TCHAR字符串（用于UE5的字符串处理）
		FString Msg = UTF8_TO_TCHAR(reinterpret_cast<char *>(Buf));

		UE_LOG(LogTCPSocketServer,Display,TEXT("Msg = %s||Len = %d"),*Msg,BytesRead);
	}
}
/*
*TArray<FSocket*> Sockets; // 假设这是你的套接字列表

// 遍历套接字列表
for (int i = 0; i < Sockets.Num(); i++)
{
FSocket* Socket = Sockets[i];
FInternetAddr* RemoteAddr = Socket->GetRemoteAddress();

// 获取远程地址的IP和端口号
FString IP;
uint16 Port;
RemoteAddr->GetIP(IP);
RemoteAddr->GetPort(Port);

// 使用IP和端口号进行进一步的处理或记录等操作
UE_LOG(LogTCPSocketServer, Display, TEXT("Client IP: %s, Port: %d"), *IP, Port);
}
*/

客户端.cpp

// Copyright Epic Games, Inc. All Rights Reserved.

#include "TCPSocketClient.h"

#include "RequiredProgramMainCPPInclude.h"
#include "Sockets.h"
#include "SocketSubsystem.h"

DEFINE_LOG_CATEGORY_STATIC(LogTCPSocketClient, Log, All);

IMPLEMENT_APPLICATION(TCPSocketClient, "TCPSocketClient");

INT32_MAIN_INT32_ARGC_TCHAR_ARGV()
{
	GEngineLoop.PreInit(ArgC,ArgV);

	ISocketSubsystem* SocketSubsystem = ISocketSubsystem::Get(PLATFORM_SOCKETSUBSYSTEM);

	FSocket* Socket = SocketSubsystem->CreateSocket(NAME_Stream,TEXT("This Tcp Client"));

	TSharedPtr<FInternetAddr> Addr = SocketSubsystem->CreateInternetAddr();

	Addr->SetPort(8888);
	bool bIsValid = false;
	Addr->SetIp(TEXT("127.0.0.1"),bIsValid);

	if (Socket->Connect(*Addr))
	{
		FString Msg = TEXT("Hello Server");
		int32 SendSize = 0;
		Socket->Send(reinterpret_cast<uint8*>(TCHAR_TO_UTF8(*Msg)),Msg.Len(),SendSize);
	}

	Socket->Close();
	SocketSubsystem->DestroySocket(Socket);

	UE_LOG(LogTCPSocketClient, Display, TEXT("Hello World"));

	FEngineLoop::AppExit();
	return 0;
}

未完待续。。。
